Martin Universal Design Deluxe French Sketchbox Easel User manual

This french sketchbox easel is 95% assembled. All one must do is set-up the legs and open the
sketchbox for proper use and handling.
92-3032, 92-3033, 92-3531, 63-AB3033
Deluxe French Sketchbox Easel Assembly Instructions
4444 Lawton Street, Detroit, MI 48208 USA •Tel:[phone] / Fax:[phone]
E-mail: [email protected] •www.MartinUniversalDesign.com

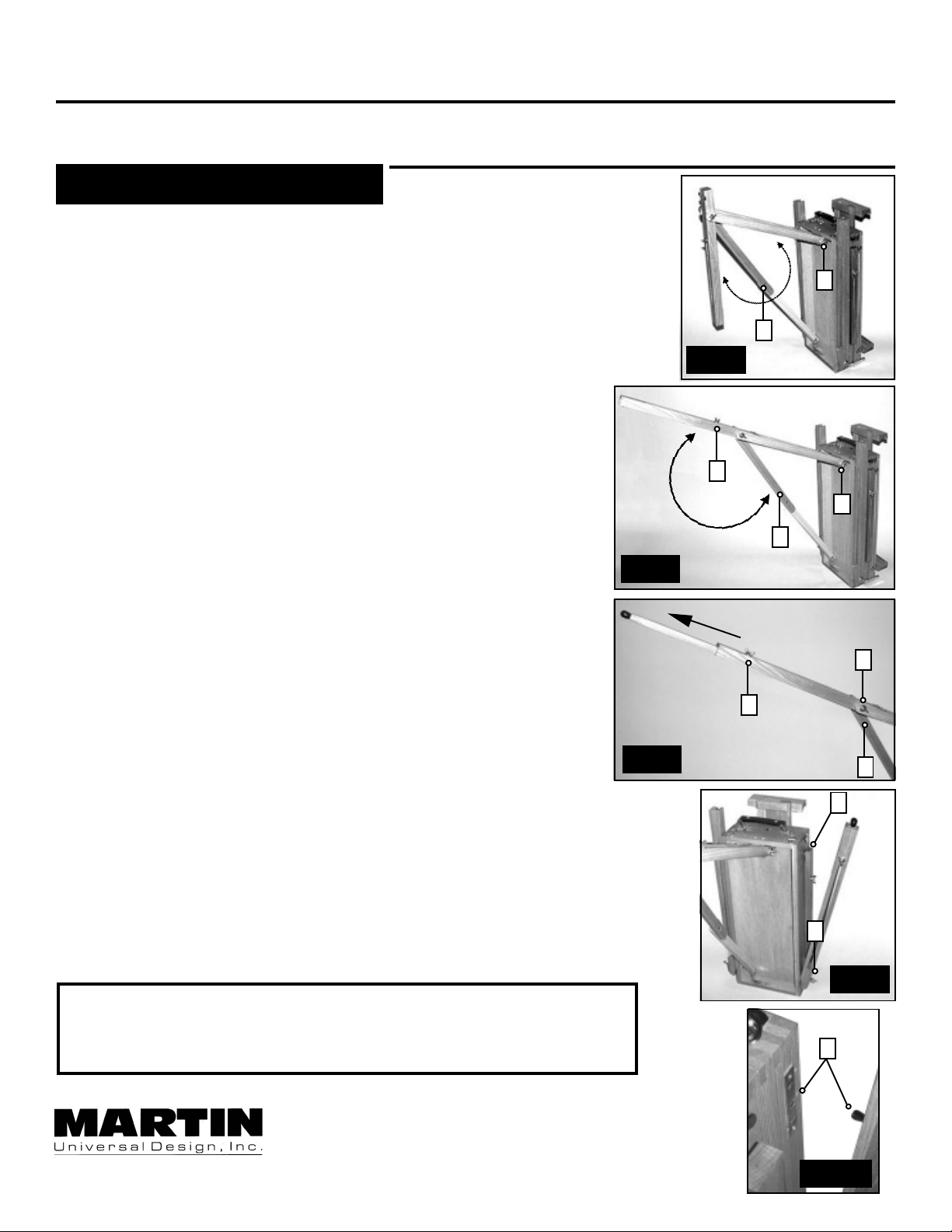

1. After removing Sketchbox Easel from box, remove styro-foam
sides and discard.
2. Begin by loosening wing nut [A] found under top rear edge of
easel sketchbox. After loosening wing-nut [A], swing center leg
outward while swinging hinged support [B] out until it stops
against support plate. Tighten wing-nut [A] to secure. See FIG 1.
3. Loosen wing-nut [C] and swing middle section of center leg up
until it stops against support plate. Tighten wing-nut [C] to
secure. See FIG 2.
4. Finish center leg assembly by loosening wing-nut [D] and sliding
out the lower section of leg completely. Tighten wing-nut to
secure. See FIG 3.
5. Assemble Side Legs by slightly loosening wing-nut [E] and
pulling legs away from easel box by unsnapping it from the
easel sketchbox at [F] Please Note: You may have to pull
firmly. See FIG 4 and review FIG 4A.
Turn page over to complete assembly instructions.
Assembly Instructions
A
B
FIG 1
C
A
B
FIG 2
FIG 3
D
C
B
FIG 4
E
F
FIG 4A
F
pg.1
IMPORTANT
If you have difficulty assembling your easel or need customer service assistance.
Please call: Martin Universal Design, Inc. Customer Service Hot Line at
1-800-366-7337. If you need additional parts, it is not necessary to contact your
dealer, our Customer Service Rep. will forward them to you immediately.

H
G
FIG 5
FIG 8
Q
6. Continue by extending lower portion of right leg by loosening wing-nut [G]
and extending lower leg [H] completely. Tighten wing-nut to secure.
See FIG 5. REPEAT with left side.
7. Loosen wing-nuts [I] and [J]. Twist left and right leg towards rear of easel
making certain legs are positioned into slotted grooves [K] then
re-tighten wing-nuts [I] and [J] to secure. See FIG 6.
Before going to step 8, easel should look like FIG 7.
8. Making certain all wing-nuts on all legs are tightened, continue by
carefully turning easel up onto all 3 legs. See FIG 8.
9. To open Sketchbox, release each hinge [L] on both sides of sketchbox
and loosen wing-nuts [N] and [O] positioned along tilt supports [M].
See FIG 9 and 10.
10. Lift up on sketchbox to swing up and open. Lock into desired position/
angle by tightening down wing-nuts along tilt supports [M]. See FIG 10.
11. To adjust upper canvas support loosen metal knob [Q] on rear of upper
canvas support. See FIG 10. Tighten at desired height.
To adjust lower canvas support loosen wing-nuts [P] along outer edge of
canvas support. See FIG. 11. Tighten at desired position.
J
I
FIG 6
FIG 7
FIG 9
L
K
J
M
O
FIG 10
N
M
M
P
Q
FIG 11
4444 Lawton Street, Detroit, MI 48208 USA
Tel:[phone] / Fax:[phone]
E-mail: [email protected]m
www.MartinUniversalDesign.com
Made In China pg.2
Your easel is now ready for your painting enjoyment!
92-3032, 92-3033, 92-3531, 63-AB3033
Deluxe French Sketchbox Easel Assembly Instructions
