Maruyama BL3100 User manual

BL3100
HAND-HELD BLOWER

— 1 —
Limited Warranty Statement
All Maruyama commercial/ industrial products are warranted to the original purchaser to be free from defects
in material and workmanship from the date of purchase for the time periods listed as follows:
Lifetime for inner drive shaft on trimmers and brushcutters and all ignition modules.
3 years for residential, non-institutional, non-income producing use.
1 year for industrial, commercial, institutional, rental and income producing use.
Maruyama AE series engines and Kawasaki TEX45/TEX54 are covered exclusively for one additional
year of industrial, commercial, institutional, rental and income producing use (total of 2 years).
All other engines refer to engine manufacturer's warranty statement.
Any part of a Maruyama product found to be defective within the applicable warranty period shall, at
Maruyama's option, be repaired or replaced without charge. Warranty consideration is obtained by delivering
any Maruyama product believed to be defective to an Authorized Maruyama Servicing Dealer within the
applicable warranty period.
The purchaser shall not be charged for diagnostic labor that leads to the determination that a warranted part
is defective, if the diagnostic work is performed at a Maruyama Dealer.
Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled
only for regular inspection to the effect of "repair or replace as necessary" shall be warranted for the warranty
period. Any warranted part, which is scheduled for replacement as, required maintenance shall be warranted
for the period of time up to the first scheduled replacement point for that part. Maruyama Mfg. Co., Inc. is
liable for damages to other engine components caused by the failure of a warranted part still under warranty.
The purchaser is responsible for the performance of the required maintenance, as defined by Maruyama Mfg.
Co., Inc. in the Owner's/Operator's Manual.
EMISSION-RELATED PARTS WARRANTY: In addition to the above warranty coverage, Maruyama Mfg.
Co., Inc. will repair or replace, free of charge, for the original purchaser and each subsequent purchaser any
emission-related part or parts found to be defective in material and workmanship for two (2) years from origi-
nal retail delivery date except catalytic converter. Catalytic converter is warranted one year from origi-
nal retail delivery date. Emission-related parts are the carburetor assembly, the ignition coil
assembly, the ignition rotor and the spark plug and catalytic converter. Any replacement part that is
equivalent in performance and durability may be used in non-warranty maintenance or repairs, and shall not
reduce the warranty obligations of Maruyama Mfg. Co., Inc.

— 2 —
This warranty does not cover the following:
1. Maintenance items (excluding defects in materials and workmanship) including hoses, spark plugs,
starter rope, air and fuel filters, clutch shoes, vibration isolators, throttle cables and all cutting attach-
ments, etc.
2. Extra expenses including shipping and handling, travel, payment for lost time or pay and for any inconve-
nience and storage.
3. Alterations or modifications including aftermarket parts not authorized by Maruyama U.S., Inc.
4. Wear, accident, abuse, neglect, misuse, negligence, improper fuels, lubricants, fuel mixtures (when
applicable), or failure to operate or maintain the product in accordance with instructions approved by
Maruyama.
Repair or replacement as provided under this warranty is the exclusive remedy of the consumer. Maruyama
shall not be liable for any incidental or consequential damages for breach of any express or implied warranty
on these products except to the extent prohibited by applicable law. Any implied warranty of merchantability
or fitness for a particular purpose on these products is limited in duration to the warranty period as defined in
the limited warranty statement. Maruyama reserves the rights to change or improve the design of the product
without notice and does not assume obligation to update previously manufactured products.
This warranty provides you with specific legal rights, which may vary from state to state.
It is the Owner's and Dealer's responsibility to make sure the Warranty Registration Card is properly filled out
and mailed to Maruyama U.S., Inc. Proof of purchase and registration will be required in order to obtain war-
ranty service.
To locate an Authorized Maruyama Servicing Dealer nearest you, contact: .
Maruyama U.S., Inc.
3570 Shelby Lane
Denton, TX 76207 U.S.A
P.O. Box 2107
Denton, TX 76202 U.S.A
Phone [phone]
[email protected]
www.maruyama-us.com

— 3 —
FEDERAL AND CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB),
and Maruyama Manufacturing Company, Inc. are pleased to explain the emission control system
warranty on your small off-road engine. In California, new 1995 and later small off-road engines
must be designed, built and equipped to meet the State's stringent anti-smog standards. In other
states, new 1997 and later model year small off-road engines must be designed, built and
equipped, at the time of sale, to meet the U.S. EPA regulations for small off-road engines. The
equipment engine must be free from defects in materials and workmanship which cause it to fail to
conform with U.S. EPA standards for the first two years of engine use from the date of sale to the
ultimate purchaser. Maruyama Manufacturing Company, Inc. must warrant the emission control sys-
tem on your small off-road engine for the period of time listed above provided there has been no
abuse, neglect or improper maintenance of your small off-road engine.
Emission durability of 300 hours.
Your emission control system may include parts such as the carburetor or fuel injection system,
the ignition system, and catalytic converter. Also included may be hoses, belts, and connectors
and other emission related assemblies.
Where a warrantable condition exists, Maruyama Manufacturing Company, Inc. will repair your
small off-road engine at no cost to you, including diagnosis (if the diagnostic work is performed at
an authorized dealer), parts, and labor.
MANUFACTURER'S WARRANTY COVERAGE:
The 1995 and later small off-road engines are warranted for two years in California. In other
states, 1997 and later model year small off-road engines are also warranted for two years. If any
emission-related part on your engine is defective, the part will be repaired or replaced by
Maruyama Manufacturing Company, Inc. free of charge.
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
WARNING:
.
.
BL3100

— 4 —
OWNER'S WARRANTY RESPONSIBILITIES:
(a) As the small off-road engine owner, you are responsible for the performance of the required
maintenance listed in your owner's manual.
Maruyama Manufacturing Company, Inc. recommends that you retain all receipts covering
maintenance on your small off-road engine, but Maruyama Manufacturing Company, Inc.
cannot deny warranty solely for the lack of receipts or for your failure to ensure the perfor-
mance of all scheduled maintenance. Any replacement part or service that is equivalent in
performance and durability may be used in non-warranty maintenance or repairs, and shall
not reduce the warranty obligations of the engine manufacturer.
(b) As the small off-road engine owner, you should be aware, however, that Maruyama
Manufacturing Company may deny you warranty coverage if your small off-road engine or a
part has failed due to abuse, neglect improper maintenance or unapproved modifications.
(c) You are responsible for presenting your small off-road engine to a Maruyama Manufacturing
Company, Inc. service center as soon as a problem exists. The warranty repairs should be
completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact
Maruyama U.S., Inc. at 1-940-383-7400.
COVERAGE
Maruyama Manufacturing Company, Inc. warrants to the ultimate purchaser and each subse-
quent purchaser that your small off-road engine will be designed, built and equipped, at the time
of sale, to meet all applicable regulations. Maruyama Manufacturing Company, Inc. also warrants
to the initial purchaser and each subsequent purchaser that your small off-road engine is free
from defects in materials and workmanship which cause the engine to fail to conform with applic-
able regulations for a period of two years.
The 1995 and later small off-road engines are warranted for two years in California. In all other
states for 1997 and later model years, EPA requires manufacturers to small off-road engines for
two years. These warranty periods will begin on the date the small off-road engine is purchased
by the initial purchaser. If any emission-related part on your engine is defective, the part will be
replaced by Maruyama Manufacturing Company, Inc. at no cost to the owner.
Maruyama Manufacturing Company, Inc. shall remedy warranty defects at any authorized
Maruyama Manufacturing Company, Inc. engine dealer or warranty station. Any authorized work
done at an authorized dealer or warranty station shall be free of charge to the owner if such work
determines that a warranted part is defective. Any manufacturer-approved or equivalent replace-
ment part may be used for any warranty maintenance or repairs on emission-related parts, and
must be provided free of charge to the owner if the part is still under warranty, Maruyama
Manufacturing Company, Inc. is liable for damages to other engine components caused by the
failure of a warranted part still under warranty.

— 5 —
The California Air Resources Board's Emission Warranty Parts List specifically defines the emis-
sion-related warranted parts, (EPA's regulations do not include a parts list, but EPA considers
emission-related warranted parts to include all the parts listed below.) These warranted parts
are: the carburetor assembly, the ignition coil assembly, the ignition rotor , the spark plug
and the catalytic converter.
MAINTENANCE REQUIREMENTS
The owner is responsible for the performance of the required maintenance as defined by the
Maruyama Manufacturing Company, Inc. in the owner's manual.
LIMITATIONS
This Emission Control System Warranty shall not cover any of the following:
(a) Repair or replacement required because of misuse or neglect, lack of required maintenance,
repairs improperly performed or replacements not conforming to Maruyama Manufacturing
Company, Inc. specifications that adversely affect performance and/or durability, and alter-
ations or modifications not recommended or approved in writing by Maruyama Manufacturing
Company, Inc., and
(b) Replacement of parts and other services and adjustments necessary for required mainte-
nance at and after the first scheduled replacement point.

— 6 —
Page
Limited Warranty Statement ....................................... 1
California Emission Control ....................................... 3
Introduction................................................................. 7
Safety........................................................................... 8
Operator Safety...................................................... 8

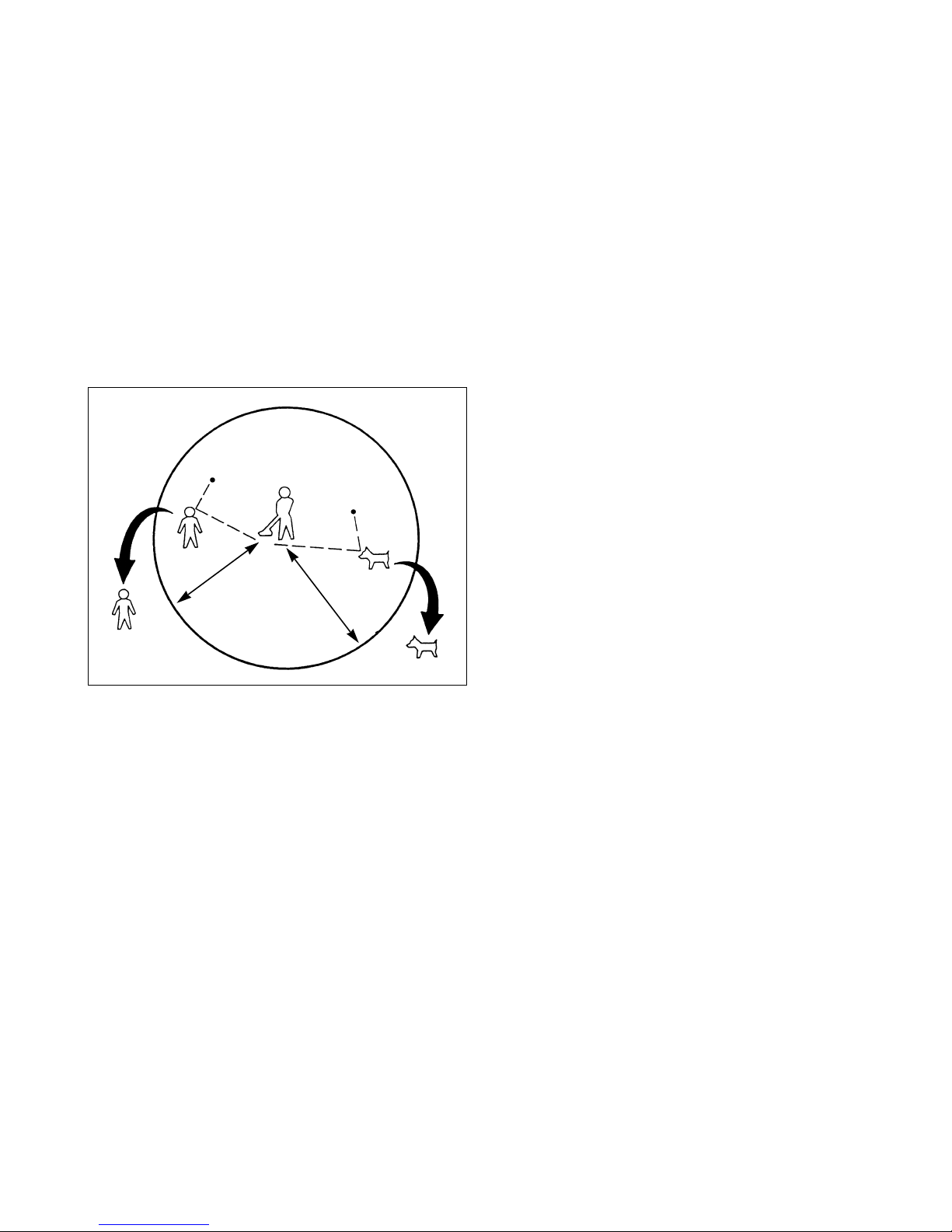

Handheld Blower Safety........................................ 9
Fuel Safety ............................................................. 9
Handheld Blower Operating Safety.......................10

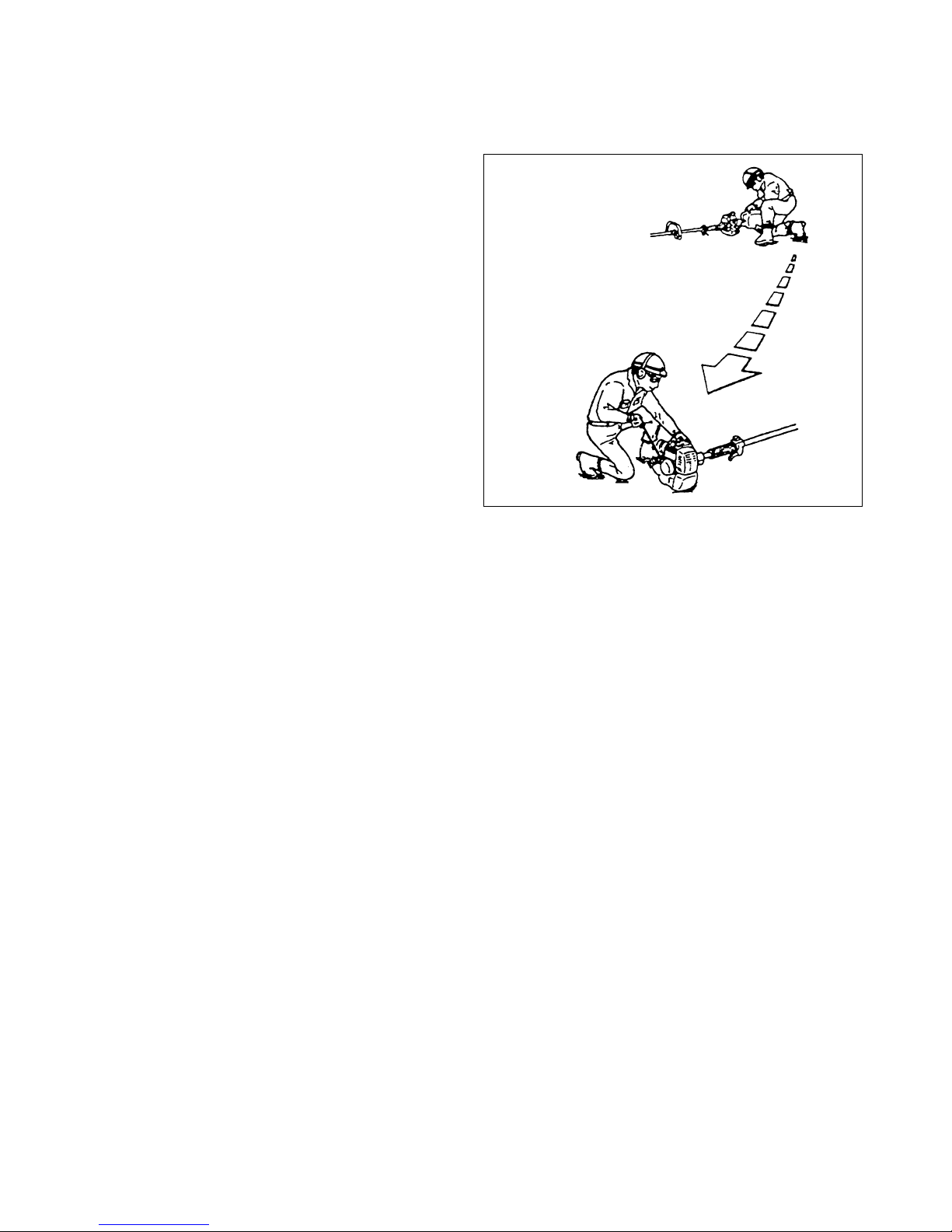

Operating Techniques ............................................10

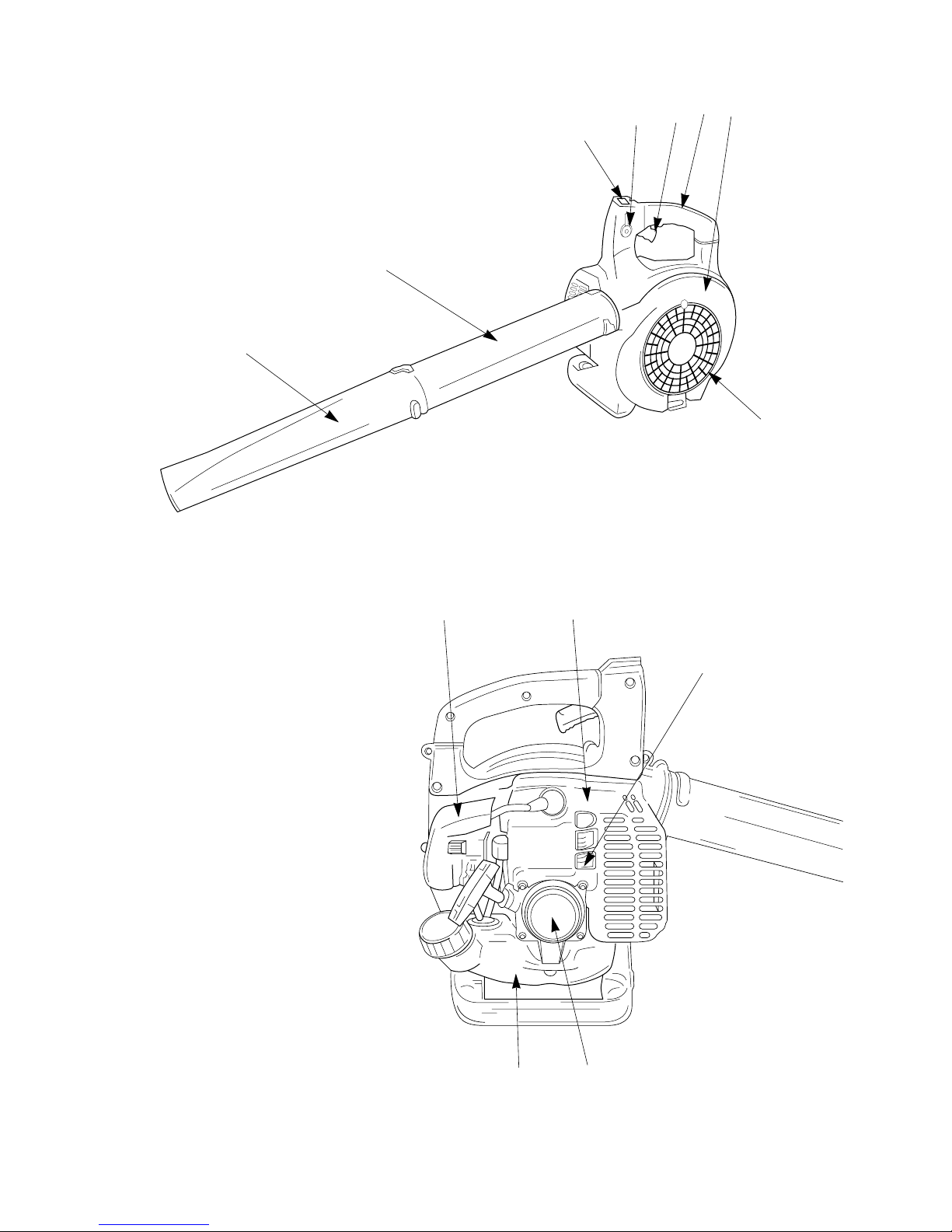

Product Description.....................................................11
Assembly.....................................................................12

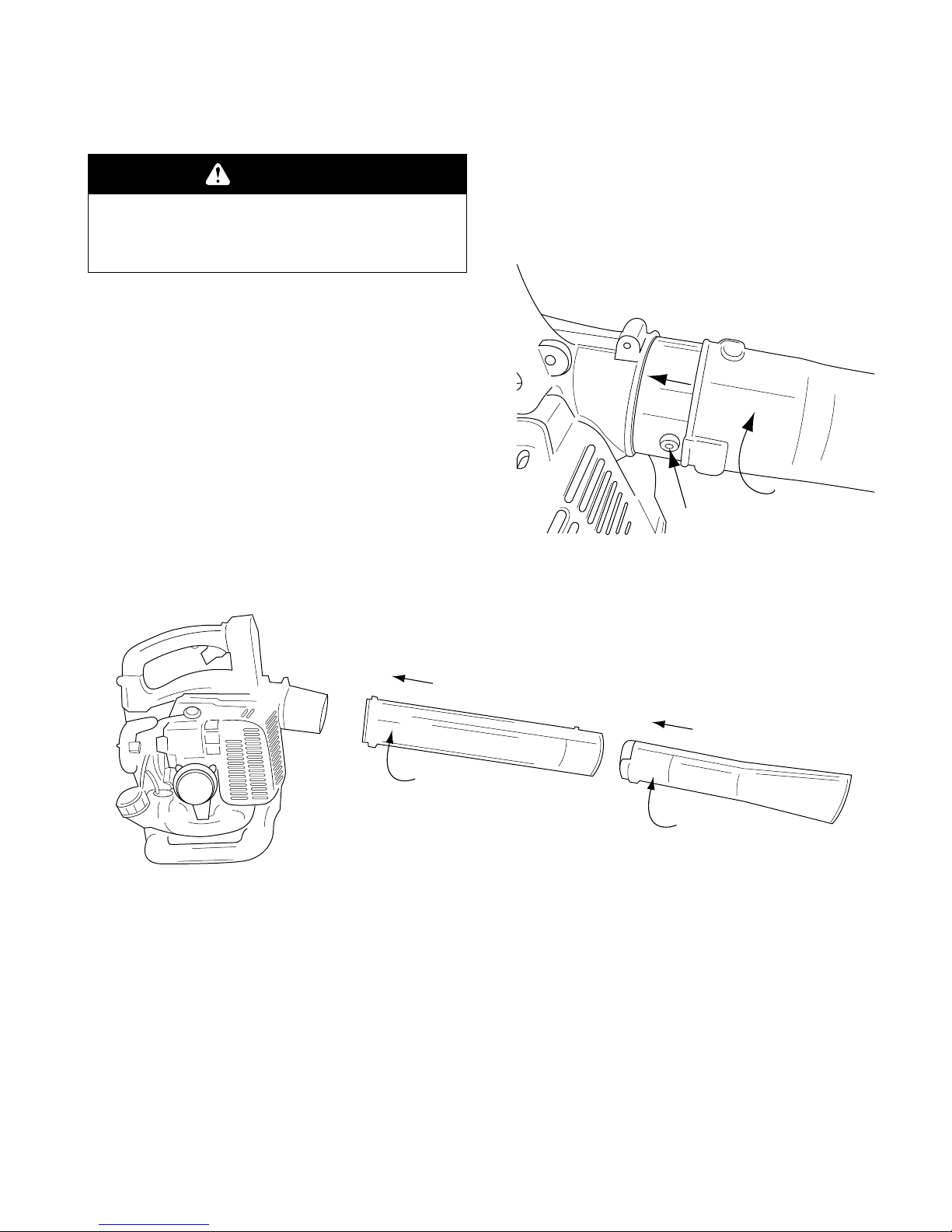

Blower Pipes ..........................................................12
Before Operation....................................................... 13
Oil and Fuel.......................................................... 13
Mixing Gasoline And Oil .................................... 14

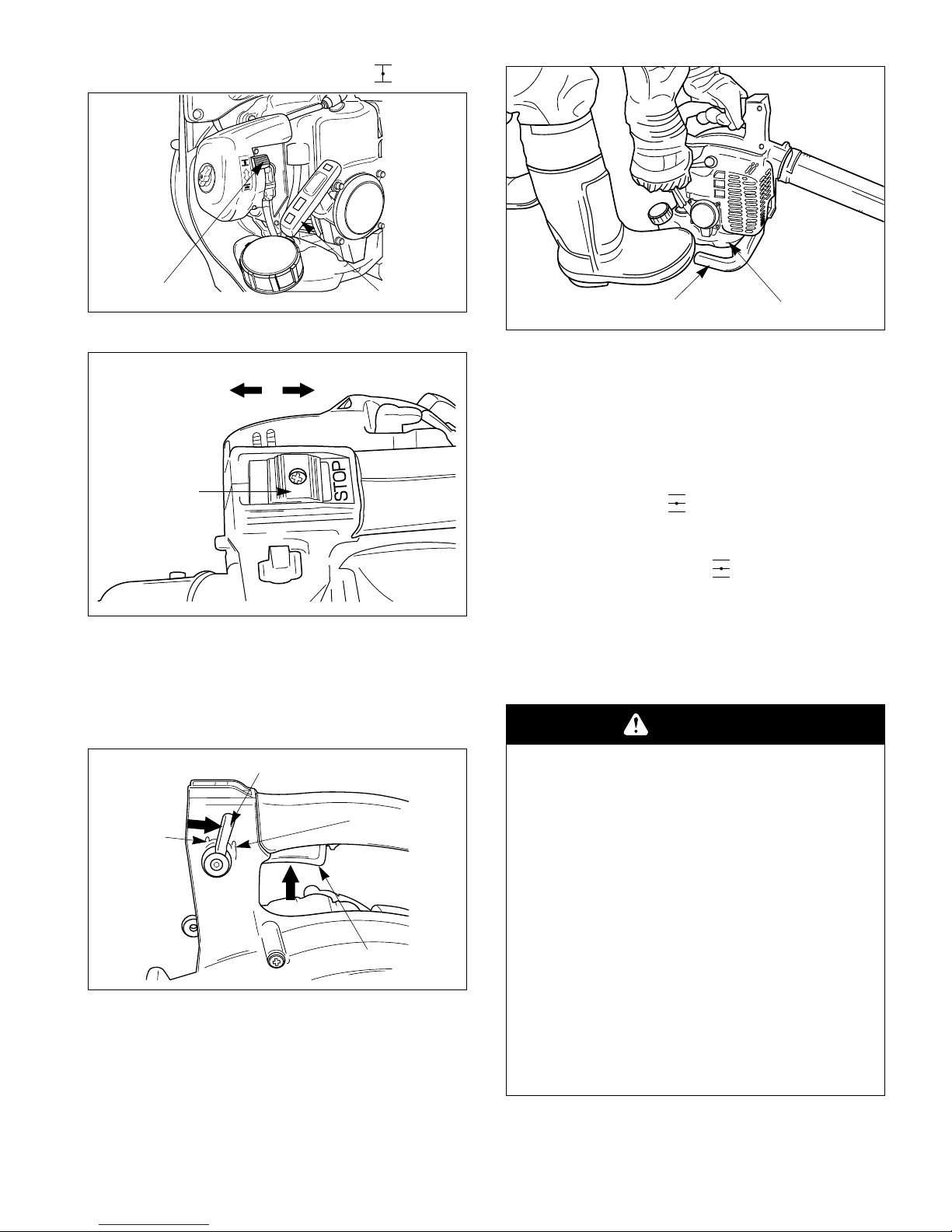

Starting And Stopping ......................................... 15
Page
Handheld Blower Operation .......................................17
Maintenance.............................................................. 18

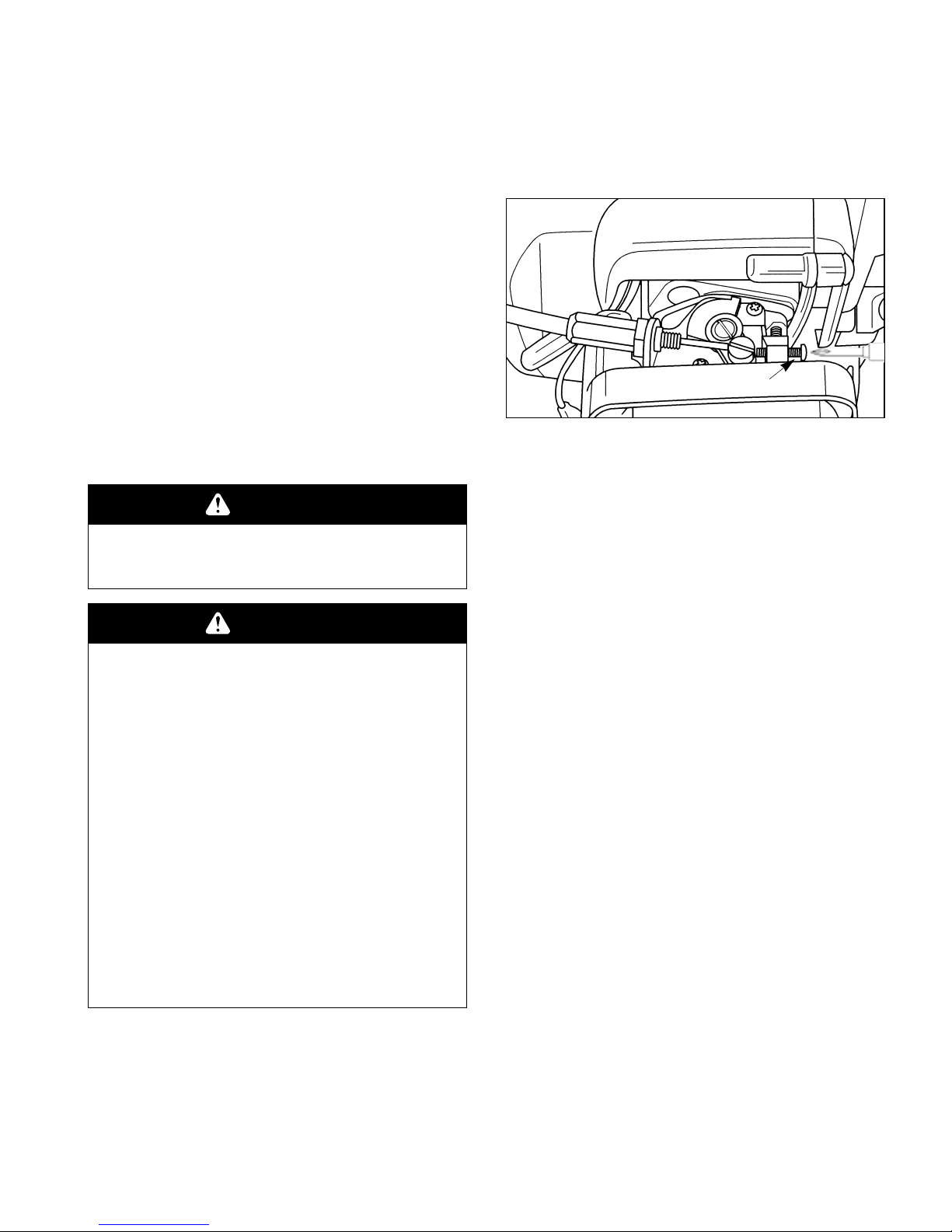

Idle Speed Adjustment......................................... 18
Air Filter............................................................... 19

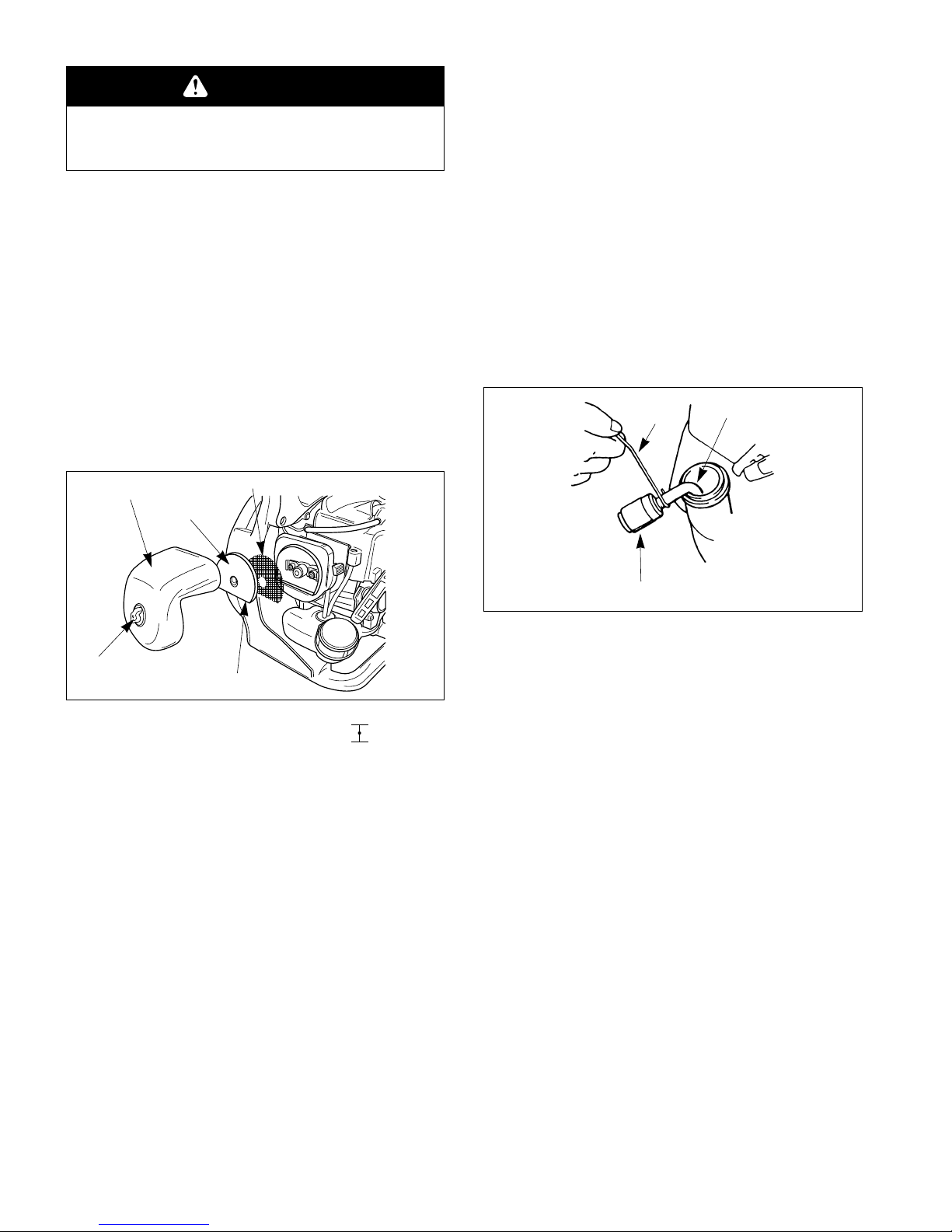

Fuel Filter............................................................. 19
Spark Plug............................................................ 20
Cylinder Cooling Fins.......................................... 20
Engine Screen ...................................................... 21
Spark Arrester...................................................... 21
Exhaust Muffler .................................................. 22
General Cleaning and Tightening........................ 22
Air Intake Screen ................................................. 23
Storage....................................................................... 23
Troubleshooting ........................................................ 25
Maintenance Period................................................... 25
Specifications............................................................ 26
Contents

— 7 —
Thank you for purchasing a Maruyama product.
Maruyama, it’s distributors, and dealers want you to be
completely satisfied with your new product. Please feel
free to contact your local Authorized Service Dealer for
help with service, genuine Maruyama parts, or other
information you may require.
Whenever you contact your Authorized Service Dealer
or the factory, always know the serial number of your
product. This number will help the Service Dealer or
Service Representative provide exact information about
your specific product. You will find the model and seri-
al number located in a unique place on the product
(Product Description on page 11).
For your convenience, write the product model name
and serial number in the space to the light.
Read this manual carefully to learn how to operate and
maintain your product correctly. Reading this manual
will help you and others avoid personal injury and dam-
age to the product.
Although Maruyama designs, produces and markets
safe, state-of-the-art products, you are responsible for
using the product properly and safely. You are also
responsible for training persons who you allow to use
the product about safe operation.
Model Name
Serial No.
Introduction

The Maruyama warning system in this manual identi-
fies potential hazards and has special safety messages
that help you and others avoid personal injury, even
death. DANGER, WARNING and CAUTION are sig-
nal words used to identify the level of hazard.
However, regardless of the hazard, be extremely care-
ful.
DANGER signals an extreme hazard that will cause
serious injury or death if the recommended precautions
are not followed.
WARNING signals a hazard that may cause serious
injury or death if the recommended precautions are not
followed.
CAUTION signals a hazard that may cause minor or
moderate injury if the recommended precautions are
not followed. Two other words are also used to high-
light information. “Important” calls attention to special
mechanical information and “Note” emphasizes general
information worthy of special attention.
Safety
Operator Safety
1. Read and understand this Operator’s Manual
before using this product. Be thoroughly familiar
with the proper use of this product.
2. Never allow children to operate the Handheld
Blower. It is not a toy. Never allow adults to
operate the unit without first reading the
Operator’s Manual.
3. Always wear eye protection that complies with
ANSI (American National Standards Institute)
Z87-1.
4. Always wear hearing protection.
5. Always wear sturdy boots with nonslip soles.
6. Always wear heavy, long pants, a long sleeved
shir and gloves. Do not wear loose clothing, jew-
elry, short pants, sandals, or go barefoot. Secure
hair so it is above shoulder length.
7. Always wear a face filter mask.
8. Never operate this Handheld Blower when you are
tired, ill, or under the influence of alcohol, drugs
or medication.
9. Never start or run the engine inside a closed room
or building. Breathing exhaust fumes can cause
death.
10. Keep handles clean of oil, fuel and dirt.
— 8 —

Handheld Blower Safety
1. Make sure the Handheld Blower is correctly
assembled as instructed in the Assembly section
of this manual.
2. Before each use, inspect the Handheld Blower,
replace damaged parts, And check for fuel leaks.
Make sure all fasteners are in place and tightened
securely.
3. Maintain the Handheld Blower in accordance with
the recommended maintenance intervals and pro-
cedures detailed in the “Maintenance” section,
beginning on page 18.
4. Use the correct accessories. Never use replace-
ment parts that are not approved by Maruyama
U.S., Inc.
5. Shut off the engine before performing mainte-
nance or working on the machine.
6. If running problems or excessive vibration occur,
stop immediately and inspect the unit for the
cause. If the cause cannot be determined, or is
beyond your ability to correct, return the
Handheld Blower to your servicing dealer for
repair.
Fuel Safety
1. Gasoline is highly flammable and must be handled
and stored carefully. Use a container approved for
storing gasoline and/or fuel/oil mixture.
2. Mix and pour fuel outdoors away from sparks or
flames.
3. Do not smoke near fuel storage containers or the
Handheld Blower. Do not smoke while operating
the Handheld Blower.
4. Do not overfill the fuel tank. Stop filling 1/4 to 1/2
inch (6mm-13mm) from the top of the tank.
5. Wipe up any spilled fuel before starting the
Handheld Blower engine.
6. Move the Handheld Blower at least 10 feet (3m)
away from the fueling location before starting the
engine.
7. Do not remove the fuel tank cap while the engine
is running or immediately after stopping the
engine.
8. Allow the engine to cool before refueling.
9. Empty the fuel tank before storing the Handheld
Blower. Fuel should be emptied after each use as
fuel remaining in the tank may leak during stor-
age.
10. Store both fuel and the Handheld Blower away
from open flame, sparks and excessive heat. Make
sure fuel vapors cannot reach sparks or open
flames from heaters, furnaces, electric motors, etc.
— 9 —
10 feet (3 m) Minimum

Operating Safety
1. THIS HANDHELD BLOWER CAN CAUSE
SERIOUS INJURIES. Read the instructions care-
fully. Be familiar with all controls and the proper
use of the Handheld Blower.
2. Avoid using the Handheld Blower near rocks,
gravel, stones and similar materials which can
become dangerous projectiles.
3. Keep children, bystanders and animals outside a
50ft. (15m) radius surrounding the area of opera-
tion.
4. If you are approached while operating the
Handheld Blower, stop the engine.
5. Never allow children to operate the Handheld
Blower.
6. Use the Handheld Blower only in daylight or ade-
quate artificial lighting.
7. Never operate the Handheld Blower without prop-
er guards or other protective safety devices in
place.
8. Do not put hands or feet near any moving parts.
Keep clear of hot surfaces such as the muffler.
9. Maintain a firm footing while operating the
Handheld Blower.
10. Use the right tool for the job. Do not use the
Handheld Blower for any job that is not recom-
mended.
11. Know how to stop the machine quickly in an
emergency. For information on how to stop the
engine refer to the Starting and Stopping
Procedures on page 15.
12. Do not point the Handheld Blower nozzle in the
direction of people or pets.
Operating Techniques
1. Operate power equipment only at reasonable
hours — not early in the morning or late at night
when people may be disturbed. Comply with the
times listed in local ordinances. Usual recommen-
dations for hours of operation are 9:00 a.m. to
5:00 p.m., Monday through Saturday.
2. To reduce noise levels, limit the number of pieces
of equipment used at any one time and operate
power blowers at the lowest possible throttle
speed to do the job.
3. Check your equipment before operation, especial-
ly the muffler, air intakes and air filters.
4. Use rakes or brooms to loosen debris before blow-
ing.
5. In dusty conditions, slightly dampen surfaces or
use a mister attachment when water is available.
6. Conserve water by using power blowers instead of
hoses for many lawn and garden applications,
including areas such as gutters, screens, patios,
grills, porches and gardens.
7. Use the full blower nozzle extension so the air
stream can work close to the ground.
8. Watch out for children, pets, open windows, or
freshly washed cars and blow debris safely away.
9. After using blowers and other equipment, CLEAN
UP! Dispose of debris in trash receptacles.
— 10 —
50 ft. (15 m Minimum)

— 11 —
Product Description
BL3100
1
2
3
45678
910
12
11
13
1. Pipe B
2. Pipe A
3. Air Intake Screen
4. Stop Switch
5. Throttle Setting Lever
6. Throttle Trigger
7. Handle
8. Fan Cover
9. Fuel Tank
10.Recoil Starter
11.Air Cleaner
12.Engine
13.Serial Number
(on the top of crankcase)

Assembly
Blower Pipes Installation
1. Align groove in pipe A with pegs on blower hous-
ing and slide pipe A on to housing.
2. Rotate pipes A clock wise to lock it into place.
3. Align groove in pipe B with pegs on pipe A and
slide pipe B until proper position.
4. Rotate pipe B clockwise to lock it into place.
— 12 —
1
WARNING
Stop the engine before installing or remov-
ing blower pipes.
Peg 2
13
24

Before Operation
Oil and Fuel
1. Do not smoke near fuel.
2. Mix and pour fuel outdoors and where there are
no sparks or flames.
3. Always shut off the engine before refueling.
Never remove the fuel tank cap while the engine is
running or just right after sopping the engine.
4. Always open the fuel tank cap slowly to release
any possible overpressure inside the tank.
5. Do not overfill the fuel tank. Stop filling 1/4-1/2
inch (6 mm-13 mm) from the top of the tank.
6. Tighten the fuel tank cap carefully but firmly after
refilling.
7. Wipe up any spilled fuel before starting the
engine.
8. Move the Handheld Blower at least 10 feet (3 m)
away from the fueling location and fuel storage
container before starting the engine.
Recommended Oil Type
Only use a two-cycle engine oil formulated for use in
high-performance, air-cooled two-cycle engines.
Maruyama brand 2-cycle oil is formulated for use in
high-performance, air-cooled two-cycle engines.
IMPORTANT: Do not use National Marine
Manufacturer’s Association (NMMA) or BIA
certified oils. This type of 2-cycle engine oil
does not have the proper additives for air-
cooled, 2-cycle engines and can cause engine
damage.
— 13 —
DANGER
POTENTIAL HAZARD
• In certain conditions gasoline is extreme-
ly flammable and highly explosive.
WHAT CAN HAPPEN
• A fire or explosion from gasoline can
burn you, others, and cause property
damage.
HOW TO AVOID THE HAZARD
• Use a funnel and fill the fuel tank out-
doors, in an open area, when the engine
is cold. Wipe up any gasoline that spills.
• Do not fill the fuel tank completely full.
Add gasoline to the fuel tank until the
level is 1/4” to 1/2” (6 mm to 13 mm)
below the bottom of the filler neck. This
empty space in the tank allows gasoline
to expand.
• Never smoke when handling gasoline,
and stay away from an open flame or
where gasoline fumes may be ignited by
a spark.
• Store gasoline in an approved container
and keep it out of the reach of children.
• Never buy more than a 30-day supply of
gasoline.
WARNING
POTENTIAL HAZARD
• Gasoline contains gasses that can build
up pressure inside a gas tank.
WHAT CAN HAPPEN
• Fuel can be sprayed on you when
removing gas cap.
HOW TO AVOID THE HAZARD
• Remove fuel cap slowly to avoid injury
from fuel spray.

Do not use automotive motor oil. This type of
oil does not have the proper additives for air-
cooled, 2-cycle engines and can cause engine
damage.
Recommended Fuel Type
Use clean, fresh lead-free gasoline, including oxygenat-
ed or reformulated gasoline, with an octane rating of 85
or higher. To ensure freshness, purchase only the quan-
tity of gasoline that can be used in 30 days. Use of
lead-free gasoline results in fewer combustion chamber
deposits and longer spark plug life. Use of premium
grade fuel is not necessary or recommended.
Use of Fuel Additives
IMPORTANT: NEVER USE METHANOL,
GASOLINE CONTAINING METHANOL,
GASOHOL CONTAINING MORE THAN
10% ETHANOL, PREMIUM GASOLINE, OR
WHITE GAS BECAUSE ENGINE FUEL SYS-
TEM DAMAGE COULD RESULT.
DO NOT USE FUEL ADDITIVES OTHER
THAN THOSE MANUFACTURED FOR
FUEL STABILIZATION DURING STORAGE
SUCH AS MARUYAMA’S STABILIZER/
CONDITIONER OR A SIMILAR PRODUCT.
MARUYAMA’S STABILIZER/CONDITION-
ER IS A PETROLEUM DISTILLATE BASED
CONDITIONER/STABILIZER.
MARUYAMA DOES NOT RECOMMEND
STABILIZERS WITH AN ALCOHOL BASE
SUCH AS ETHANOL, METHANOL OR ISO-
PROPYL. ADDITIVES SHOULD NOT BE
USED TO TRY TO ENHANCE THE POWER
OR PERFORMANCE OF MACHINE.
Mixing Gasoline And Oil
IMPORTANT: The engine used on this
Handheld Blower is of a 2-cycle design. The
internal moving parts of the engine, i.e., crank-
shaft bearings, piston pin bearings and piston to
cylinder wall contact surfaces, require oil mixed
with the gasoline for lubrication.
Failure to add oil to the gasoline or failure to
mix oil with the gasoline at the appropriate
ratio will cause major engine damage which will
void your warranty.
For your fuel premix, only use a quality oil
designed for 2-cycle air cooled engines.
Maruyama 50:1 2-cycle Oil is formulated to
meet the requirements of high-performance,
air-cooled two-cycle engines.
Fuel Mixture
The fuel: oil ratio is 50 parts gasoline to 1 part oil or
50:1.
Note: Never use a mixing ratio less than 50:1
regardless of the oil package mixing instructions.
Ratios less than 50:1, (for example, 60:1, 80:1,
100:1), reduce the amount of lubrication to the
internal moving parts of the engine and can cause
damage.
— 14 —
50:1
Gasoline 50:1 2-cycle oil
1 gallon 2.6 oz.
2 gallons 5.1 oz.
5 gallons 12.8 oz.
1 litre 20 ml
5 litre 100 ml
Fuel Mixture Chart

Mixing Instructions
IMPORTANT: Never mix gasoline and oil
directly in the Handheld Blower fuel tank.
1. Always mix fuel and oil in a clean container
approved for gasoline.
2. Mark the container to identify it as fuel mix for
the Handheld Blower.
3. Use regular unleaded gasoline and fill the contain-
er with half the required amount of gasoline.
4. Pour the correct amount of oil into the container
then add the remaining amount of gasoline.
5. Close the container tightly and shake it momentar-
ily to evenly mix the oil and the gasoline before
filling the fuel tank on the Handheld Blower.
6. When refilling the Handheld Blower fuel tank,
clean around the fuel tank cap to prevent dirt and
debris from entering the tank during cap removal.
7. Always shake the premix fuel container momen-
tarily before filling the fuel tank.
8. Always use a spout or funnel when fueling to
reduce fuel spillage.
9. Fill the tank only to within 1/4-1/2 inch (6 mm-13
mm) from the top of the tank. Avoid filling to the
top of the tank filler neck.
Starting and Stopping
Before Starting the Engine
1. Fill the fuel tank as instructed in the “Before
Operation” section of this manual (page13).
2. Rest the Handheld Blower on the ground.
3. Make sure that the area is clear of any broken
glass, nails, wire, rocks or other debris.
4. Keep all bystanders, children and animals away
from the working area.
Cold Starting Procedure
This Blower is equipped with a fuel primer and a choke
system. To start a “cold” engine properly, perform the
following procedure:
1. Pump the primer bulb at the bottom of the carbu-
retor until fuel can be seen flowing through the
fuel return line to the fuel tank.
(Flowing fuel should be almost clear, not foamy or
full of bubbles.)
— 15 —
Primer Bulb
Fuel
Return
Line

— 16 —
2. Move the choke lever to the closed ( ) position
3. Move the stop switch to the “ON” position.
4. (1) Press the throttle trigger.
(2) Move the throttle setting lever to half position.
(3) Release the throttle trigger.
(4) Release the throttle setting lever.
(Throttle is kept in half position.)
5. Hold the Handheld Blower with your left hand
and press it down firmly. Hold the assist handle
with your right foot gently.
IMPORTANT: Be careful not make damages to
fuel tank or the blower by your foot.
6. Pull the starter grip. Grasping the starter grip,
slowly pull the starter cord out until you feel resis-
tance, then pull the cord quickly and powerfully.
Pull the starter grip until the engine starts.
7. After the engine starts, move the throttle setting
lever to the idle position, then move the choke
lever to the open ( ) position.
If the engine stops running before you move the
choke lever to the open ( ) position:
A. Go ahead and open the choke.
B. Make sure the throttle setting lever is set to the
idle position.
C. Pull the starter grip until the engine starts.
START（ON） STOP
Starter Grip
Choke Lever
STOP SWITCH
START (ON) STOP
Throttle Trigger
Idle Position
Throttle Setting Lever
Full Throttle
Position
(1)
(2)
Fuel TANK
Assist Handle
WARNING
POTENTIAL HAZARD
• The components of your recoil starter
assembly are under high spring tension.
If improperly disassembled these parts
may strike you with considerable force,
possibly causing personal injuly.
WHAT CAN HAPPEN
• Contact with the parts can cause severe
personal injury.
HOW TO AVOID THE HAZARD
• Never attempt to disassemble your
recoil starter assembly yourself.
Always consult your authorized
Maruyama dealer for repair by qualified
service technicians.

Hot Restart
To start the engine that is already warmed up (hot
restart), or if the ambient temperature exceeds 68°F
(20°C):
1. Pump the primer bulb at the bottom of the carbu-
retor until fuel can be seen flowing through the
fuel return line to the fuel tank.
2. Move the choke lever to the open ( ) position
and move the stop switch to the “ON” position.
3. More the throttle setting lever to the idle position
and pull the starter grip.
4. If the engine fails to start after three to four pulls,
follow the instruction in the Cold Starting
Procedure section (page15).
If the engine fails to start after you follow the
above procedures, contact an authorized
Maruyama dealer.
Note: 1. Don't pull the starter cord out completely.
2. Do not rerease the starter cord from the
fully extended position.
To Stop The Engine:
1. Move the throttle setting lever to the idle position.
Release the throttle trigger.
2. Slide the stop switch to the “STOP” position.
Handheld Blower Operation
1. Allow the engine to warm up for a few minutes.
2. control engine speed by the throttle trigger, or set
the engine speed by the throttle setting lever.
*To adjust the throttle setting lever.
Press the throttle trigger, then adjust the throttle
setting lever as you wish operation.
3. Operate lower speed to blow leaves or debris
ground.
4. If the blow is not enough to blow, open the throttle
grodually.
Note: Operate Handheld Blower at the lowest
throttle setting to do the job.
— 17 —
CAUTION
• Always wear eye protection, hearing pro-
tection, gloves, face filter mask and stur-
dy boots with nonslip soles when
operating the Handheld Blower.

Maintenance
Maintenance, replacement or repair of emission
control devices and systems may be performed by
any repair establishment or individual; however,
warranty repairs must be performed by a dealer or
service center authorized by Maruyama
Manufacturing Company, Inc. The use of parts that
are not equivalent in performance and durability to
authorized parts may impair the effectiveness of the
emission control system and may have a bearing on
the outcome of a warranty claim.
Idle Speed Adjustment
This Handheld Blower is equipped with non-adjustable
fuel mixture carburetor. The engine idle speed is the
only adjustment for the operator.
Wear the recommended personal protective equipment
and observe all safety instructions.
When the throttle trigger and the throttle setting lever is
idle position the engine should return to an idle speed
between 2700 and 3300 RPM. The engine should not
stall (stop running) at engine idle speed.
To adjust the engine idle speed, rotate the idle speed
adjustment screw on the carburetor.
• Turn the idle speed screw in (clockwise) to
increase the engine idle speed.
• Turn the screw out (counterclockwise) to decrease
the engine idle speed.
If idle speed adjustment is necessary, and after
adjustment the engine stalls, stop using the Handheld
Blower immediately!
Contact your local authorized Maruyama Dealer for
assistance and servicing.
— 18 —
WARNING
• Idle speed adjustment should be
checked each time the unit is operated.
WARNING
POTENTIAL HAZARD
• Engine must be running to make carbu-
retor adjustments.
• When engine is running, fan is rotating
and other parts are moving.
WHAT CAN HAPPEN
• Contact with rotating fan or other mov-
ing parts could cause serious personal
injury or death.
HOW TO AVOID THE HAZARD
• Keep hands, feet and clothing away from
fan and other moving parts.
• Keep all bystanders and pets away from
unit while making carburetor adjust-
ments.
Idle Speed
Adjuster Screw

Air Filter
Maintenance Interval
• The air filter should be cleaned and inspected
each time the Handheld Blower is used, or more
often when working in extremely dusty condi-
tions.
• Replace after every 100 hours of operation.
Air Filter Cleaning
1. Move the choke lever to the closed ( ) position.
2. Loosen the knob and remove the air cleaner cover.
3 Remove the foam element and filter screen from
the air cleaner body.
4. Clean the foam element and filter screen with air
blow or warm soapy water.
5. Reassemble the filter screen and foam element to
the air cleaner body. Foam element must be locat-
ed as the felt side face to the cleaner cover.
6. Reinstall the air cleaner cover and tighten the
knob.
Fuel Filter
Maintenance Interval
The fuel filter should be cleaned and inspected for dam-
age after each 20 hours of operation.
The fuel filter should be replaced after every 100 hours
of operation.
Fuel Filter Replacement
The fuel filter is attached to the end of the fuel pick-up
hose inside the fuel tank.
To replace the fuel filter:
1. Make sure the fuel tank is empty.
2. Remove the fuel cap.
3. Using a wire hook, gently pull the fuel filter out
through the fuel filler opening.
4. Grasp the fuel hose next to the fuel filter fitting
and remove the filter, but do not release the hose.
5. While still holding on to the fuel hose, attach the
new fuel filter.
6. Drop the new fuel filter back into the fuel tank.
7. Make sure that the fuel filter is not stuck in a cor-
ner of the tank, and that the fuel hose is not dou-
bled over (kinked) before refueling.
— 19 —
Air Cleaner Cover
Foam Element
Filter Screen
Wire Fuel Pick-up Hose
Fuel Filter
WARNING
• Stop the engine before performing main-
tenance.
Felt Side
Knob
