FOREWORD
This Owner’s/Operator’s Manual is designed to familiarize the operator with the various features
and component parts of the equipment and to assist you with the assembly, operation and mainte-
nance of your new Hand-held Blower.
It is essential that any operator of this Hand-held Blower product reads and understands
the contents of this manual before using the Hand-held Blower.
Important safety instructions will be identified by the following safety symbol:
Failure to comply with the instructions in this manual may result in serious injury or death.
For additional assistance, contact any local authorized Maruyama dealer.
TABLE OF CONTENTS
SPECIFICATIONS
Models
Length×Width×Height※1
Dry Weight※1
Engine Displacement
Fuel Tank Capacity
Carburetor
Ignition System
325×255×370mm
30.1cm3
0.5R
Walbro Diaphragm Type
Solid State
BL3200
4.4 kg
Reverse2 Start
Use only non-leaded regular gasoline.
2-Cycle oil mix 25:1 ratio must be approved for air-cooled engines.
13m/s2
NGK
BPMR6Y
0.6
〜
0.7mm
Fuel Mixture:
Starter
Vibration Level Handle
(Max. rpm)
Sound Pressure Level
(Max. rpm) 80dB(A)
Spark Plug:
Make
Type
Electrode Gap
13m3/minMaximum Air Volume
Foreword······················································ 1 Starting and stopping procedure··············· 10
Specifications ·············································· 1 Carburetor adjustment······························· 12
Product description······································ 2 Operating the Hand-held Blower··············· 13
Marking························································ 3 Regular maintenance ································ 13
Symbol Explanation····································· 3 Storage······················································ 18
Safety instructions······································· 4 Troubleshooting········································· 19
Assembly····················································· 7 Maintenance period··································· 19
Before operation·········································· 8
※1. Dry weight without Pipe A and B

— 2 —
PRODUCT DESCRIPTION
AIR INTAKE SCREEN
HANDLE
FAN COVER
THROTTLE TRIGGER
PIPE B
PIPE A
THROTTLE SETTING LEVER
MODEL:BL3200
FUEL TANK
RECOIL STARTER
ENGINE
AIR CLEANER
SERIAL NUMBER
(ON THE TOP OF CRANKCASE)
STOP SWITCH

SYMBOL EXPLANATION
Read and understand this Owner’s/Operator’s Manual before using this product.
Fire Danger: Gasoline is highly flammable. Never add fuel to the Hand-held
Blower with a running or hot engine. Do not smoke or place any sources of heat in
the vicinity of the fuel.
Breathing exhaust fumes can cause death. Never start or run the engine inside a
close room or building.
Hot Surface Warning: Contact may cause burns. During use and for some time
after stopping the engine, the engine is very hot. Do not touch engine components
such a cylinder, muffler and engine covers until the engine has cooled to ambient
temperature.
Always use:
• A protective helmet.
• Ear protection.
• Protective glasses or visor.
Moving parts Warning: Contact with rotation fan or other moving parts could cause
serious personal injury or death. Keep hands, feet and clothing away from fan and
other moving parts.
MARKING
qMODEL NAME
wSERIAL No. (STAMPED)
e
See SYMBOL EXPLANATION
r
SOUND PRESSURE LEVEL
See SYMBOL EXPLANATION
w
r
q
— 3 —
e

— 4 —
SAFETY INSTRUCTIONS
The warning system in This manual identifies potential hazards and has special safety messages
that help you and others avoid personal injury, even death.
, and are signal words to identify the level of hazard.
: signals an extreme hazard that will cause serious injury or death if the recom-
mended precautions are not followed.
: signals a hazard that may cause serious injury or death if the recommended pre-
cautions are not followed.
: signals a hazard that may cause minor or moderate injury if the recommended
precautions are not followed. Two other words are also used to highlight informa-
tion. “Important” calls attention to special mechanical information and “Note”
emphasizes general information worthy of special attention.
OPERATOR SAFETY
1. Read and understand this Owner’s/Operator’s Manual before using this product. Be thoroughly
familiar with the proper use of this product.
2. Never allow children to operate the Handheld Blower. It is not a toy. Never allow adults to
operate the unit without first reading the Operator’s Manual.
3. Always wear eye protection.
4. Wear hearing protection.
5. Always wear sturdy boots with nonslip soles.
6. Always wear heavy long pants, boots and gloves. Do not wear
loose clothing, jewelry, short pants, sandals or go barefoot. Secure
hair so it is above shoulder length.
7. Always wear a face filter mask.
8. Never operate this Handheld Blower when you are tired, ill, under the influence of alcohol, drugs or
medication.
9. Never start or run the engine inside a closed room or building.
Breathing exhaust fumes can cause death.
10. Keep handles clean of oil, fuel and dirt.
• DANGER
• WARNING
• CAUTION
• DANGER • WARNING • CAUTION

— 5 —
HANDHELD BLOWER SAFETY
1. Make sure the Handheld Blower is correctly assembled as instructed in the Assembly section
of this manual.
2. Before each use, inspect the Handheld Blower, replace damaged parts, and check for fuel
leaks. Make sure all fasteners are in place and tightened securely.
3. Maintain the Handheld Blower in accordance with the recommended maintenance intervals
and procedures detailed in the “Maintenance” section, beginning on page 13.
4. Use the correct accessories. Never use replacement parts that are not approved by
Maruyama.
5. Shut off the engine before performing maintenance or working on the machine.
6. If running problems or excessive vibration occur, stop immediately and inspect the unit for the
cause. If the cause cannot be determined, or is beyond your ability to correct, return the
Handheld Blower to your servicing dealer for repair.
FUEL SAFETY
1. Gasoline is highly flammable and must be handled and
stored carefully. Use a container approved for storing
gasoline and/or fuel/oil mixture.
2. Mix and pour fuel outdoors and where there are no
sparks or flames.
3. Do not smoke near fuel storage containers or the
Handheld Blower. Do not smoke while operating the
Handheld Blower.
4. Do not overfill the fuel tank. Stop filling 6 ~ 13 mm (1/4 ~
1/2 inch) from the top of the tank.
5. Wipe up any spilled fuel before starting the engine.
6. Move the Handheld Blower at least 3 m (10ft.) away from
the fueling location before starting the engine.
7. Do not remove the fuel tank cap while the engine is run-
ning or immediately after stopping the engine.
8. Allow the engine to cool before refueling.
9. Empty the fuel tank before storing the Handheld Blower.
Fuel should be emptied after each use as fuel remaining
in the tank may leak during storage.
10. Store both fuel and the Handheld Blower away from open
flame, sparks and excessive heat. Make sure fuel vapors
cannot reach sparks or open flames from heaters, fur-
naces, electric motors, etc.
WIPE UP ANY FUEL SPILLAGE
Min. 3 m

— 6 —
OPERATING SAFETY
1. THIS HANDHELD BLOWER CAN CAUSE SERIOUS INJURIES. Read the instructions care-
fully. Be familiar with all controls and the proper use of the Handheld Blower.
2. Avoid using the Handheld Blower near rocks, gravel, stones and similar materials which can
become dangerous projectiles.
3. Keep children, bystanders and animals outside a 15m
(50ft.) radius surrounding the area of operation.
4. If you are approached while operating the Handheld
Blower, stop the engine.
5. Never allow children to operate the Handheld Blower.
6. Use the Handheld Blower only in daylight or adequate
artificial lighting.
7. Never operate the Handheld Blower without proper guards or other protective safety devices in
place.
8. Do not put hands or feet near any moving parts. Keep clear of hot surfaces such as the muffler.
9. Maintain a firm footing while operating the Handheld Blower.
10. Use the right tool for the job. Do not use the Handheld Blower for any job that is not recom-
mended.
11. Know how to stop the machine quickly in an emergency. For information on how to stop the
engine refer to the Starting and Stopping Procedures on page 10.
12. Do not point the Handheld Blower nozzle in the direction of people or pets.
OPERATING TECHNIQUES
1. Operate power equipment only at reasonable hours — not early in the morning or late at night
when people may be disturbed. Comply with the times listed in local ordinances. Usual recom-
mendations for hours of operation are 9:00 a.m. to 5:00 p.m., Monday through Saturday.
2. To reduce noise levels, limit the number of pieces of equipment used at any one time and oper-
ate power blowers at the lowest possible throttle speed to do the job.
3. Check your equipment before operation, especially the muffler, air intakes and air filters.
4. Use rakes or brooms to loosen debris before blowing.
5. In dusty conditions, slightly dampen surfaces or use a mister attachment when water is avail-
able.
6. Conserve water by using power blowers instead of hoses for many lawn and garden applica-
tions, including areas such as gutters, screens, patios, grills, porches and gardens.
7. Use the full blower nozzle extension so the air stream can work close to the ground.
15 m Minimum

— 7 —
8. Watch out for children, pets, open windows, or freshly washed cars and blow debris safely
away.
9. After using blowers and other equipment, CLEAN UP! Dispose of debris in trash receptacles.
ASSEMBLY
BLOWER PIPES INSTALLATION
1. Align groove in pipe A with pegs on
blower housing and slide pipe A on to
housing.
2. Rotate pipes A clock wise to lock it into
place.
3. Align groove in pipe B with pegs on
pipe A and slide pipe B until proper
position.
4. Align groove in pipe B with pegs on
pipe A and slide pipe B until proper position.
1
Peg
2
13
24
WARNING
Stop the engine before installing or removing blower pipes.

— 8 —
BEFORE OPERATION
FUELING
WARNING! The following precautions will lessen the risk of fire.
1. Do not smoke near fuel.
2. Mix and pour fuel outdoors and where there are no sparks or flames.
3. Always shut off the engine before refueling. Never remove the fuel tank cap while the engine is
running or immediately after stopping the engine.
4. Always open the fuel tank cap slowly to release any possible pressure inside the tank.
5. Do not overfill the fuel tank. Stop filling 6 ~ 13 mm (1/4 ~ 1/2 inch) from the top of the tank.
6. Tighten the tank fuel cap carefully but firmly after refilling.
7. Wipe up any spilled fuel before starting the engine.
8. Move the Handheld Blower at least 3 m (10ft.) away from the fueling location and fuel storage
container before starting the engine.
WARNING
POTENTIAL HAZARD
• Gasoline contains gasses that can build up pressure inside a gas tank.
WHAT CAN HAPPEN
• Fuel can be sprayed on you when removing fuel tank cap.
HOW TO AVOID THE HAZARD
• Remove fuel tank cap slowly to avoid injury from fuel spray.
DANGER
POTENTIAL HAZARD
• In certain conditions gasoline is extremely flammable and highly explosive.
WHAT CAN HAPPEN
• A fire or explosion from gasoline can burn you, others, and cause property damage.
HOW TO AVOID THE HAZARD
• Use a funnel and fill the fuel tank outdoors, in an open area, when the engine is cold.
Wipe up any gasoline that spills.
• Do not fill the fuel tank completely full. Add gasoline to the fuel tank until the level is 6 ~
13mm (1/4 ~ 1/2 inch) below the bottom of the filler neck. This empty space in the tank
allows gasoline to expand.
• Never smoke when handling gasoline, and stay away from an open flame or where gaso-
line fumes may be ignited by a spark.
• Store gasoline in an approved container and keep it out of the reach of children.
• Never buy more than a 30-day supply of gasoline.

— 9 —
FUEL; MIXING GASOLINE AND OIL
IMPORTANT: The engine used on this Handheld Blower is of a 2-cycle design. The internal mov-
ing parts of the engine, i.e., crankshaft bearings, piston pin bearings and piston to cylinder wall
contact surfaces, require oil mixed with the gasoline for lubrication. Failure to add oil to the gasoline
or failure to mix oil with the gasoline at the appropriate ratio will cause major engine damage which
will void your warranty. For your fuel premix, only use a quality oil designed for 2-cycle air-cooled
engine.
FUEL MIXTURE: Always use a good quality 2-cycle, air-cooled engine oil mixed at a ratio of 25:1.
FUEL MIXTURE CHART:
MIXING INSTRUCTIONS: Always mix fuel and oil in a clean container approved for gasoline.
Mark the container to identify it as fuel mix for the Handheld Blower. Use regular unleaded gasoline
and fill the container with half the required amount of gasoline. Pour the correct amount of oil into
the container then add the remaining amount of gasoline. Close the container tightly and shake it
momentarily to evenly mix the oil and the gasoline before filling the fuel tank on the Handheld
Blower.
When refilling the Handheld Blower fuel tank, clean around the fuel tank cap to prevent dirt and
debris for entering the tank during cap removal. Always shake the premix fuel container momen-
tarily before filling the fuel tank.
Always use a spout or funnel when fueling to reduce fuel spillage. Only fill the tank to within 6 ~ 13
mm (1/4 ~ 1/2 inch) from the top of the tank. Avoid filling to the top of the tank filler neck.
NOTE:
1. Never mix gasoline and oil directly in the Handheld Blower fuel tank.
2. Do not use National Marine Manufacturer’s Association (NMMA) or BIA certified oils. This type
of 2-cycle engine oil does not have the proper additives for air-cooled, 2-cycle engines and can
cause engine damages.
3. Do not use automotive motor oil. This type of oil does not have the proper additives for air-
cooled, 2-cycle engines and can cause engine damage.
2-Cycle Oil (25:1)
With 1 liter gasoline mix 40 mRoil
2 liter 80 mR
5 liter 200 mR
GAS GAS
FILL
HALF
GASOLINE ADD OIL ADD REMAINING
GASOLINE SHAKE (MIX OIL AND GASOLINE)
OIL

— 10 —
STARTING AND STOPPING PROCEDURE
BEFORE STARTING THE ENGINE: Fill the fuel tank as instructed in the BEFORE OPERATION
section of this manual (page8). Rest the Handheld Blower on the ground. Make sure that the area
is clear of any broken glass, nails, wire, rocks or other debris. Keep all bystanders, children and ani-
mals away from the working area.
COLD STARTING PROCEDURE
This Blower is equipped with a fuel primer
and a choke system. To start a “cold”
engine properly, perform the following pro-
cedure:
1. Pump the primer bulb at the bottom of
the carburetor until fuel can be seen
flowing through the fuel return line to
the fuel tank. (Flowing fuel should be
almost clear, not foamy or full of bub-
bles.)
2. Move the choke lever to the closed
( ) position.
3. Move the stop switch to the “ON” posi-
tion.
4. (1) Press the throttle trigger
(2) Move the throttle setting lever to half
position.
(3) Release the throttle trigger.
(4) Release the throttle setting lever.
(Throttle is kept in half position.)
Primer Bulb
Fuel
Return
Line
START（ON） STOP
Starter Grip
Choke Lever
STOP SWITCH
START (ON) STOP
Throttle Trigger
Idle Position
Throttle Setting Lever
Full Throttle
Position
(1)
(2)

— 11 —
5. Hold the Handheld Blower with your left
hand and press it down firmly. Hold the
assist handle with your right foot gently.
IMPORTANT: Be careful not make dam-
ages to fuel tank or the blower by your
foot.
6. Pull the starter grip. Grasping the
starter grip, slowly pull the starter cord
out until you feel resistance, then pull
the cord quickly and powerfully. Pull the
starter grip until the engine starts.
7. After the engine starts, move the throttle setting lever to the idle position, then move the choke
lever to the open( ) position.
If the engine stops running before you move the choke lever to the open( ) position:
A. Go ahead and open the choke.
B. Make sure the throttle setting lever is set to the idle position.
C. Pull the starter grip until the engine starts.
HOT RESTART
To start the engine that is already warmed up (hot restart), or if the ambient temperature exceeds
20°C:
1. Pump the primer bulb at the bottom of the carburetor until fuel can be seen flowing through the
fuel return line to the fuel tank.
2. Move the choke lever to the ( ) position and move the stop switch to the “ON” position.
3. More the throttle setting lever to the idle position and pull the starter grip.
4. If the engine fails to start after three to four pulls, follow the instruction in the Cold Starting
Procedure section (page10).
If the engine fails to start after you follow the above procedures, contact an authorized
Maruyama dealer.
NOTE: 1. Don't pull the starter cord out completely.
2. Do not rerease the starter cord from the fully extended position.
TO STOP THE ENGINE
1. Move the throttle setting lever to the idle position. Release the throttle trigger.
2. Slide the stop switch to the “STOP” position.
Fuel TANK
Assist Handle

— 12 —
CARBURETOR ADJUSTMENT
This Handheld Blower is equipped with non-adjustable fuel mixture carburetor. The engine idle
speed is the only adjustment for the operator.
Wear the recommended personal protective equipment and observe all safety instructions.
Engine Idle Speed:
When the throttle trigger and the throttle setting lever is idle position the engine should return to an
idle speed between 2700 and 3300 RPM. The engine should not stall (stop running) at engine idle
speed.
To adjust the engine idle speed, rotate the
idle speed adjustment screw on the carbu-
retor.
• Turn the idle speed screw in (clockwise)
to increase the engine idle speed.
• Turn the screw out (counterclockwise)
to decrease the engine idle speed.
If idle speed adjustment is necessary,
and after adjustment the engine stalls,
stop using the Handheld Blower imme-
diately!
Contact your local authorized Maruyama Dealer for assistance and servicing.
Idle Speed
Adjuster Screw
WARNING
• Idle speed adjustment should be checked each time the unit is operated.
WARNING
POTENTIAL HAZARD
• Engine must be running to make carburetor adjustments.
• When engine is running, fan is rotating and other parts are moving.
WHAT CAN HAPPEN
• Contact with rotating fan or other moving parts could cause serious personal injury or
death.
HOW TO AVOID THE HAZARD
• Keep hands, feet and clothing away from fan and other moving parts.
• Keep all bystanders and pets away from unit while making carburetor adjustments.

— 13 —
OPERATION THE HANDHELD BLOWER
1. Allow the engine to warm up for a few minutes.
2. Control engine speed by the throttle trigger, or set the engine speed by the throttle setting lever.
*To adjust the throttle setting lever.
Press the throttle trigger, then adjust the throttle setting lever as you wish operation.
3. Operate lower speed to blow leaves or debris ground.
4. If the blow is not enough to blow, open the throttle gradually.
NOTE: Operate Handheld Blower at the lowest throttle setting to do the job.
REGULAR MAINTENANCE
Maintenance, replacement or repair of emission control devices and systems
may be performed by any repair establishment or individual; however, war-
ranty repairs must be performed by a dealer or service center authorized by
Maruyama, The use of parts that are not equivalent in performance and dura-
bility to authorized parts may impair the effectiveness of the emission control
system and may have a bearing on the outcome of a warranty claim.
AIR FILTER
Maintenance Interval
• The air filter should be cleaned and inspected each time the Handheld Blower is used, or more
often when working in extremely dusty conditions.
• Replace after every 100 hours of operation.
Air Filter Cleaning
1. Move the choke lever to the closed( )position.
2. Loosen the knob and remove the air cleaner cover.
3. Remove the foam element and filter screen from the air cleaner body.
WARNING
• Always wear eye protection, hearing protection, gloves, face filter mask and sturdy boots
with nonslip soles when operating the Handheld Blower.
WARNING
• Stop the engine before performing maintenance.

— 14 —
4. Clean the foam element and filter screen with air blow or warm soapy water.
5. Reassemble the filter screen and foam element to the air cleaner body. Foam element must be
located as the felt side face to the cleaner cover.
6. Reinstall the air cleaner cover and tighten the knob.
FUEL FILTER
Maintenance Interval
• The fuel filter should be cleaned and inspected for damage after each 20 hours of operation.
• The fuel filter should be replaced after every 100 hours of operation.
Fuel Filter Replacement
The fuel filter is attached to the end of the fuel
pick-up hose inside the fuel tank.
To replace the fuel filter:
1. Make sure the fuel tank is empty.
2. Remove the fuel cap.
3. Using a wire hook, gently pull the fuel fil-
ter out through the fuel filler opening.
4. Grasp the fuel hose next to the fuel filter fitting and remove the filter, but do not release the
hose.
5. While still holding on to the fuel hose, attach the new fuel filter.
6. Drop the new fuel filter back into the fuel tank.
7. Make sure that the fuel filter is not stuck in a corner of the tank, and that the fuel hose is not
doubled over (kinked) before refueling.
Air Cleaner Cover
Foam Element
Filter Screen
Felt Side
Knob
Wire Fuel Pick-up Hose
Fuel Filter

— 15 —
SPARK PLUG
Maintenance Interval
• The spark plug should be removed from the engine and checked after each 25 hours of
operation.
• Replace the spark plug after every 100 hours of operation.
Spark Plug Maintenance
1. With the engine at ambient (room) tempera-
ture, twist the high tension lead boot on the
spark plug back and forth a couple of times to
loosen the boot, then pull the boot off of the
spark plug.
2. Remove the spark plug.
3. Clean the electrodes with a stiff brush.
4. Adjust the electrode air gap to 0.6- 0.7 mm
(024-.028 in).
5. Replace the spark plug if it is oil-fouled, damaged, or if the electrodes are worn down.
6. Do not overtighten the spark plug when installing. The tightening torque is 10.7-16.6 N·m
(95-148 in. lbs).
CYLINDER COOLING FINS
Maintenance Interval
• The cylinder cooling fins should be cleaned after every 25 hours of operation, or once a week,
whichever comes first.
• Air must flow freely around and through the
cylinder cooling fins to prevent engine over-
heating. Leaves, grass, dirt and debris buildup
on the fins will increase the operating temper-
ature of the engine, which can reduce engine
performance and shorten engine life.
Cooling Fin Cleaning
1. With the engine at ambient (room) tempera-
ture, loosen the knob and remove the air
cleaner cover.
2. Twist the high tension lead boot on the spark
plug back and forth a couple of times to
loosen the boot, then pull the boot off of the
spark plug.
3. Remove the four screws retaining the topcov-
er, then remove the topcover.
4. Clean all dirt and debris from the cooling fins
and from around the cylinder base.
5. Reinstall the topcover and the cleaner cover.
Air Cleaner Cover
Knob
Top cover
3mm Allen Wrench Driver
○
＋
0.6 - 0.7 mm (0.024 - 0.02 inches)
TIPS

— 16 —
SPARK ARRESTER
Maintenance Interval
• The spark arrester should be inspected and cleaned after every 25 hours of use.
• Replace the screen if it cannot be thoroughly cleaned, or if it is damaged.
Spark Arrester Maintenance
1. With the engine at ambient (room) temperature, loosen the knob and remove the air cleaner
cover (See cooling fin cleaning.).
2. Twist the high tension lead boot on the
spark plug back and forth a couple of
times to loosen the boot, then pull the
boot off of the spark plug.
3. Remove the four screws retaining the
topcover, then remove the topcover
(see Cooling fin cleaning).
4. Remove the two screws retaining the
muffler.
5. Remove and clean the tail, gasket and
spark arrester with a safety solvent and
a stiff brush. If any part cannot be thor-
oughly cleaned, it must be replaced.
3mm Allen
Wrench
Tail
Spark Arrester
Muffler
ENGINE SCREEN
Maintenance Interval
The screen should be cleaned and inspect-
ed each time the Handheld Blower is used.
Screen Cleaning
Clean all dirt and debris from the screen.
Screen
WARNING
POTENTIAL HAZARD
• Muffler surface becomes hot when Handheld Blower is in operation and remains hot for
some time after the engine is shut off.
WHAT CAN HAPPEN
• Contact with hot muffler surfaces could cause a burn.
HOW TO AVOID THE HAZARD
• Make sure the muffler is cool before inspecting and cleaning the spark arrester.

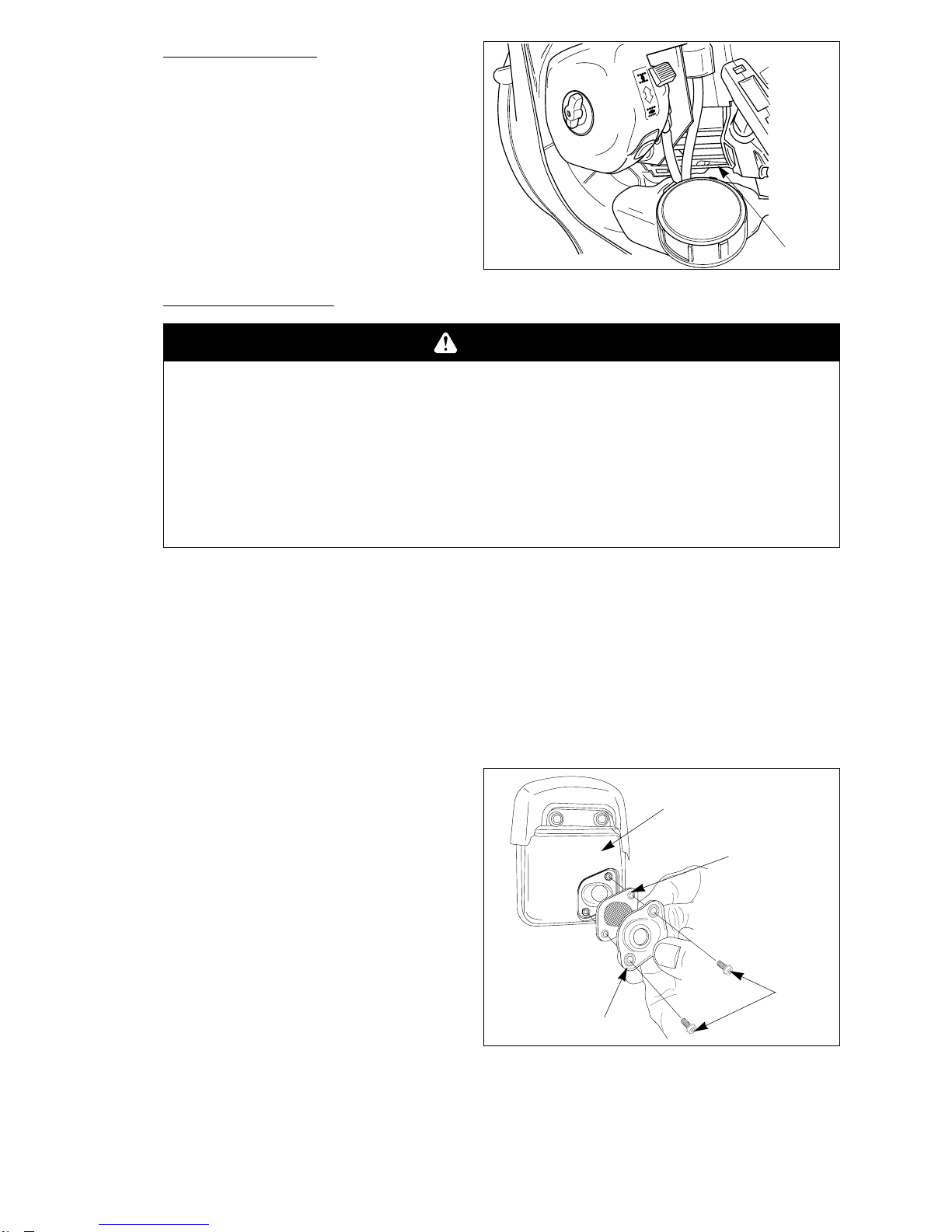

6. Reinstall the spark arrester and tail
onto the muffler, then reinstall and
tighten the two screws. The hole of tail
must be located in left (refer to the pic-
ture.)
7. Reinstall the topcover and the cleaner
cover.
— 17 —
EXHAUST MUFFLER
Maintenance Interval
The muffler should be inspected and cleaned after each 100 hours of use.
Muffler Maintenance
1. With the engine at ambient (room) temperature, loosen the knob and remove the air cleaner
cover (See cooling fin cleaning.).
2. Twist the high tension lead boot on spark plug back and forth a couple of times to loosen the
boot, then pull the boot of the spark plug.
3. Remove the four screws, and remove the topcover (see Cooling fin cleaning).
4. Remove the spark arrester (see spark arrester maintenance). Clean the muffler with a stiff
brush.
IMPORTANT: Be careful not to allow any dirt or debris to fall into the exhaust port, as this
can cause engine damage.
5. Reinstall the spark arrester and tail onto the muffler, then reinstall and tighten the two
screws.The hole of tail must be located in left. (see spark arrester maintenance)
6. Reinstall the top cover and the cleaner cover.
AIR INTAKE SCREEN
Maintenance Interval
The air intake screen should be cleaned
and inspected each time Handheld Blower
is used and when air flow dropped down
during operation.
Air Intake Screen Cleaning
Clean all dirt and debris from the air intake
screen. Air Intake Screen
Knob
Hole of Tail
WARNING
• Never use the handheld Blower without the air intake screen. Before starting the engine,
check the knob is securely tightened and no damage.

GENERAL CLEANING AND TIGHTENING
The Maruyama Handheld Blower will provide maximum performance for many, many hours if it is
maintained properly. Good maintenance includes regular checking of all fasteners for correct tight-
ness, and cleaning the entire machine.
— 18 —
STORAGE
For long term storage of the Handheld Blower:
1. Empty the fuel tank into a suitable fuel stor-
age container approved for gasoline.
2. Pump the primer bulb on the carburetor until
all fuel is discharged through the clear fuel
return hose.
3. Run the engine to remove any fuel that may
remain in the carburetor.
4. Perform all regular maintenance procedures
and any needed repairs.

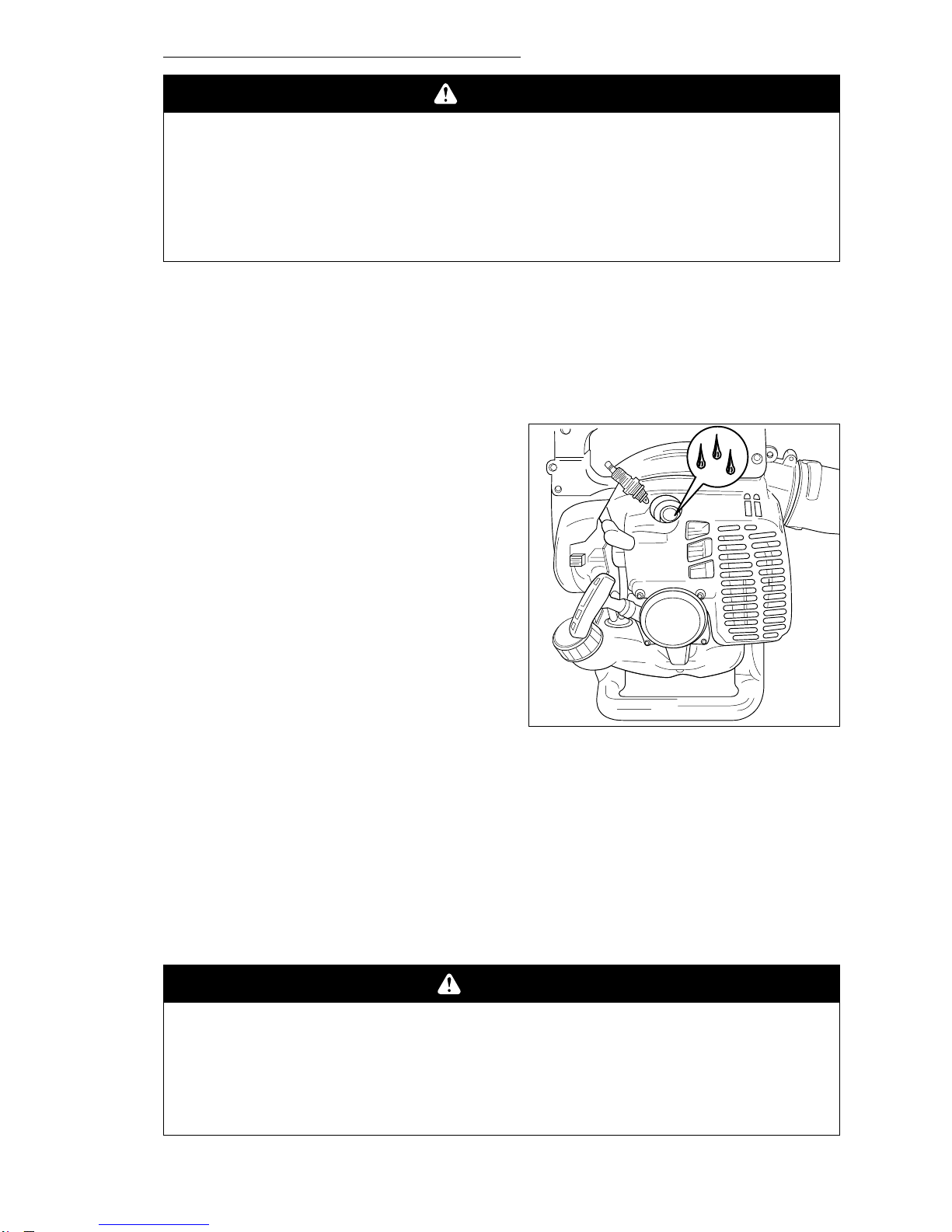

5. Remove the spark plug and squirt a very small amount of oil into the cylinder.
6. Pull the starter grip once.
7. Slowly pull the starter grip to bring the piston to the top of the cylinder (TDC).
8. Reinstall the spark plug.
9. Store the Handheld Blower in a dry place away from excessive heat, sparks or open flame.
WARNING
POTENTIAL HAZARD
• When engine is running, fan is rotating and other parts are moving.
WHAT CAN HAPPEN
• Contact with rotating fan or other moving parts could cause serious personal injury or
death.
HOW TO AVOID THE HAZARD
• Always turn off your Handheld Blower before you clean or perform any maintenance on it.
CAUTION
POTENTIAL HAZARD
• Oil may squirt out of the spark plug opening when you pull the starter grip.
WHAT CAN HAPPEN
• Oil can cause eye injuries.
HOW TO AVOID THE HAZARD
• Protect your eyes and keep your face away from the spark plug opening.

— 19 —
Every Every Every
Maintenance Daily 20 hours 50 hours 100 hours
Check and replenish fuel ●
Check for fuel leakage ●
Check bolts, nuts and screws for tightness or missing ●
Check engine idle speed adjustment ●
■Clean air filter element ●
■Remove dust and dirt from engine screen ●
■Remove dust and dirt from air intake screen ●
Tighten bolts and nuts ●
Clean spark plug and adjust electrode gap ●
■Remove dust and dirt from cylinder fins ●
●Remove carbon deposits in exhaust port ●
●Clean spark arrester ●
Replace fuel filter ●
●
Remove carbon deposits on piston head and combustion chamber
●
●Remove carbon deposits in transfer ports ●
Replace fuel tube, fuel tank cap gasket It is recommended to replace every 3 years
Problem Cause Action
Engine Will Not Start STOP switch set to off position Move switch to on position
Empty fuel tank Fill fuel tank
Primer bulb wasn’t pushed enough Press primer bulb until fuel flows
through fuel return line
Engine flooded Use warm engine starting procedure
Engine Lacks Power or dropped Dirty air filter Clean or replace air filter
down when blowing. Clogged spark arrester or exhaust port. Clean spark arrester or exhaust port.
Blower pipes clogged, loos or damaged. Unclog or tighten or replace e
TROUBLESHOOTING
If further assistance is required, contact your local authorized Maruyama service dealer.
MAINTENANCE PERIOD
●: Service to be performed by an authorized Maruyama service dealer.
■: Service more frequently under dusty conditions.
NOTE:
The service intervals indicated are to be used as a guide.
Service to be performed more frequently as necessary depending on operating condition.
