Masotti TB6 User manual

TB61_1ENG TB6 User’s manual 1/8
MasottiGuitarDevices

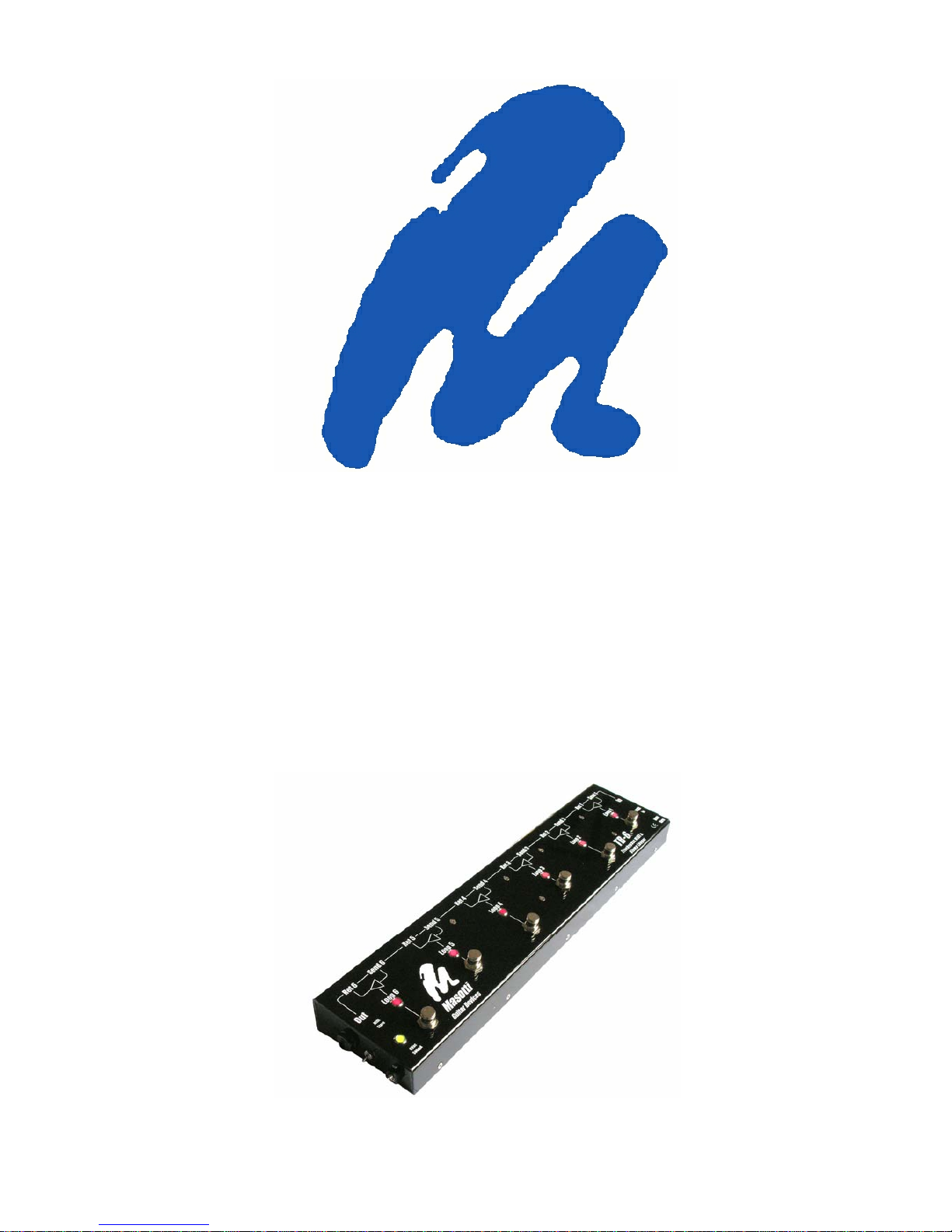

TB6
User’smanual

TB61_1ENG TB6 User’s manual 2/8
Welcome to Masotti Guitar Devices world and thank you for your
choice. Our challenge is to bring new ideas in guitar amplification,
exploring new techniques and adopting the "no compromise"
philosophy.
TB6 is a true bypass looper. It manages up to six pedals in direct
mode as well as via MIDI. Noise switch is absent thanks to the
microprocessor clickless technoloy, developed by MGD and
adopted in all our products.
IMPORTANT:
BEFORE SWITCH ON THE DEVICE, PLEASE READ CAREFULLY THE
IMPORTANT SAFETY NOTES AT PAG. 8

TB61_1ENG TB6 User’s manual 3/8
Index
General descripiton..........................................................................................................................4
Commands and connectors..............................................................................................................4
Normal functioning..........................................................................................................................5
MIDI programming..........................................................................................................................5
Standard MIDI map. ........................................................................................................................6
Connections......................................................................................................................................6
Power supply....................................................................................................................................6
Effects sequence...............................................................................................................................7
Inteconnecting cables and connectors..............................................................................................7
Warranty...........................................................................................................................................7
Important safety notes......................................................................................................................8
Technical specs................................................................................................................................8

TB61_1ENG TB6 User’s manual 4/8
Generaldescripiton.
TBS is a floor looper, completely true bypass, that manages up to six effects both in direct
mode (by corresponding stomps) and via MIDI. Noise switch is absent tanks to our
clickless technology based on a microprocessor that acts on the internal gold plated relais.
Signal passes through them only, no semiconductor is present on the signal path.
By the six stomps, any loop can be included or excluded at any time. Via MIDI, any
combination of the six loops can be recalled by a simple Program change. The
combination can be temporarily modified by the stomps and it can be restored simply
sendind again the same Program Change.
The same combination can be easily stored in different program changes (see next
paragraphs). Mechanical structure of TBS is roust for heavy duty live applications. The
loops status is clearly indicated by six red leds, while a multicolor led indicates the status
of the device (normal or programming mode).
Two or more TB6s can be easily connected in daisy chain.
In the MGD products panorama, PW4 and MIDI STOMP are the ideal complements for
TB6 to have a no-compromise and flexible pedal board.
Commandsandconnectors.
On the front panel, the six stomps are avalaible for the immediate access to loops. The
corresponding leds indicate the loop status. Graphics allow the signal path visualization.
On the right side we can find input jack, MIDI IN and MIDI THRU plugs.

TB61_1ENG TB6 User’s manual 5/8

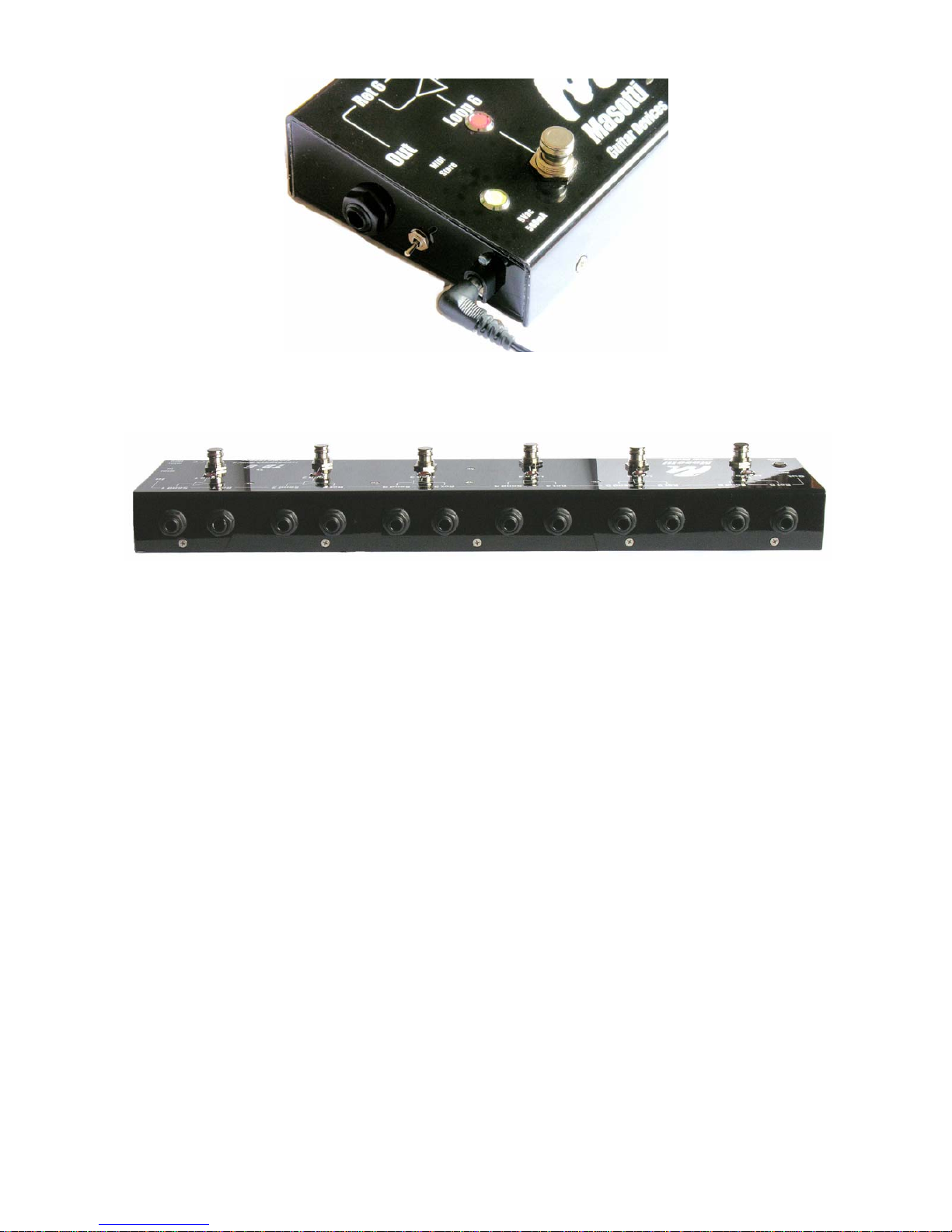

On the left side we can find output jack, programming switch and power supply plug.
On the upper side there are the send/return jacks for the loops, easily identified by the
graphics of the front panel.
Normalfunctioning.
Normal functioning is selected by moving the programming switch to the low position.
Powering TB6, a loop check sequence is made. During this sequence, status LED is
yellow. After the sequence is ended, status LED becomes green and it indicates the
normal status. Now all the loops are excluded and the device is completely in bypass.
From now, you can activate any loop and de-activate them by pressing one or more times
the corresponding stomp, according to the “toggle” logic. You can also send any PC to the
TB6 for recall the combination of the loops stored previously. The recalled sequence can
be modified by stomps and restored simply sending the PC again. Default MIDI channel is
#1, it can be modified in factory and it must be sepcified at the order moment.
Of course, the effects connected to the loops must be powered and in active status.
MIDI patch reception is confirmed by a momentary yellow blinking of the status LED.
MIDIprogramming.
In order to store any combination in any PC memory, please follow this procedure:
1) Switch ON and connect the MIDI pedalboard to the MIDI IN connector with a
standard 5-poles cable. Pedalboard must be set in channel 1 or the desired
channel, as requested at the moment of the order.
2) Switch ON the TB6 by simply connecting the power supply to the power conncetor.
3) Move the Prog swith to the high position; status LED now is red.
4) Set the loops in the wanted combination by stomps.
5) Send the patch or the patches in which you want to store this combination. At every
MIDI reception, status LED blinks yellow.

TB61_1ENG TB6 User’s manual 6/8
6) Repeat 4 an 5 steps as necessary.
7) Move the prog switch in low position; status LED becomes green. Now TB6 is in
normal mode and you can start to play and enjoy it!
You can move to normal mode to prog mode and vice-versa in any time simply acting
on the left side switch.
StandardMIDImap.
Factory map has the bypass on patch 0, loops 1 and 4 on patch 1, loops 2 and 5 on patch
3, loops 3 and 6 on patch 4. It is only a test map and you need to set your own map
following the proper procedure as illustrated before.
Connections.

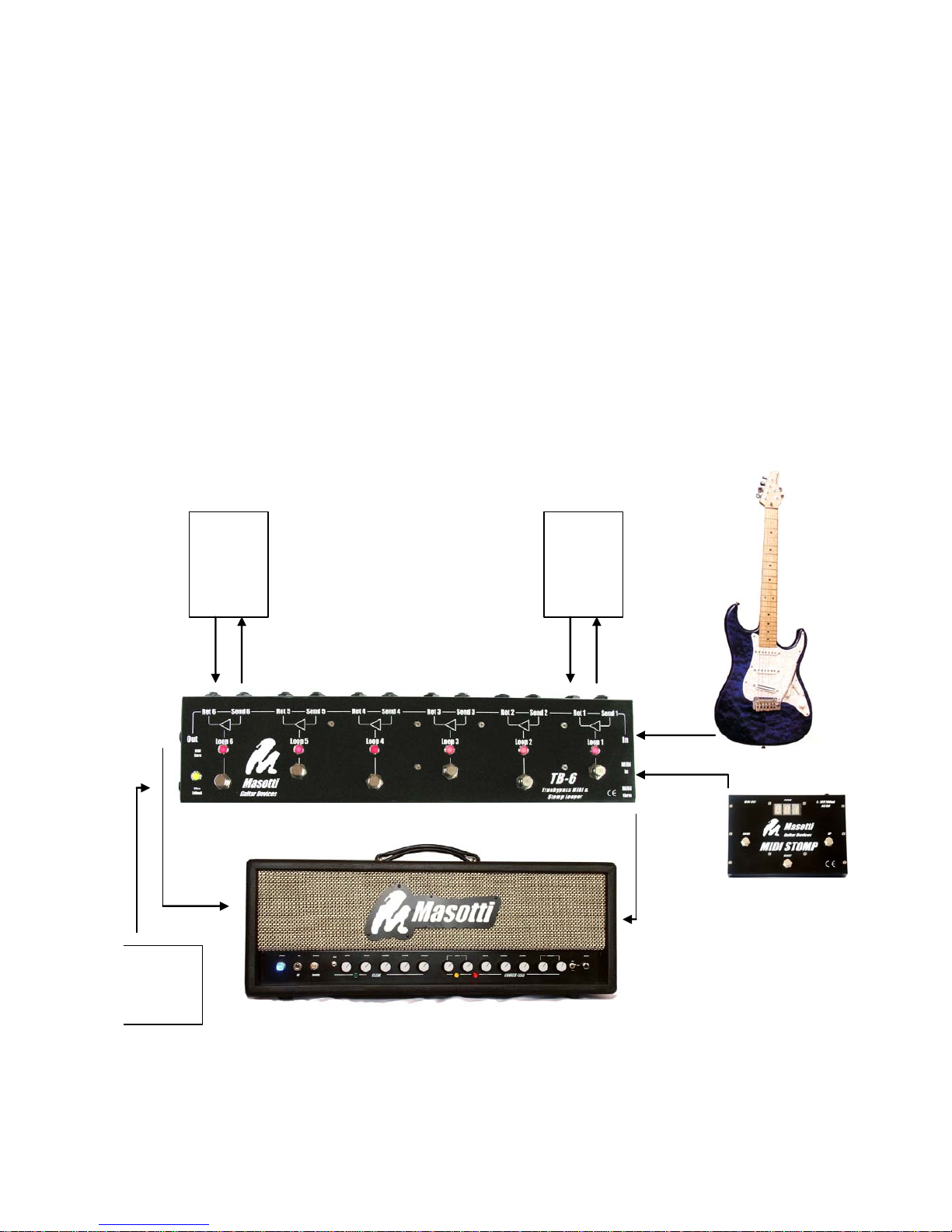

In the following picture you can find the standard connections for TB6.
TYPICAL CONNECTIONS
IN
IN
FX 1
OUT IN
SEND1RET1
FX 6
OUT IN
RET6 SEND6
..............
OUT
9V -
500mA
PWR
SUPPLY
MIDI IN
MIDI
THRU
Powersupply.
TB6 requires a 9V 500mA power supply. A stabilized power supply is preferred in order to
minimize hum and disturbs, even if TB6 accepts also 9V AC power supplies. Polarity is not
important, plug must be a standard 2.1mm internal diameter. IMPORTANT: The power

TB61_1ENG TB6 User’s manual 7/8
suppy that powers TB6 cannot supply any other effect or device, please use a dedicated
unit. Always use a CE/FCC marked power supply, with cable and plug not damaged.
Chech both input and output voltage before use it.
Effectssequence.
A start trace for connecting the effects can be the following:
1) wha wha: if it is true bypass, it can be connected also bifore the TB6. Of course, in
this case it’s not pssible to manage it via MIDI;
2) dynamics effects (booster and compressors);
3) distortions: overdirves, distorcers and fuzzes;
4) modulations: chorus, flanger, phaser;
5) ambients: delays and reverbers.
An optional volume pedal can be placet both immediately after the guitar, before TB6 input
(as instrument volume control) of after the chain, after TBS out as master volume.
This sequence is only a trace and it has be modified accordino to personal needs and
preferences.
Inteconnectingcablesandconnectors.
True bypass systems, if correctly projected and built, introduce a negligible signal loss
when they are in bypass. TB6 is equipped with gold plated relais and connectors and it is
wired with silver plated, teflon isolated cables. When in bypass, its electrical eqivalent
length corresponds to about 1m of good quality cable. Nevertheless, when loops are
active, signal passes trhough external connectors and cables and, of course, trhough the
effects. So, it’s very important to use best quality components and to use shorths cables.
However, a good buffer before the chain is recommendend in all complex true bypass
systems in order to compensate impedance mismatches and signal loss between different
pedals.
Warranty.
Warranty is 2 (two) years according to EU laws. Warranty is not valid if the device is
opened or partially modified without our authorization. No responsibility is due for Masotti
Guitar Devices for damages to human, animals or things originated by a manumission or a
different use of TB6 as described in this manual.

TB61_1ENG TB6 User’s manual 8/8
Importantsafetynotes
TB6 is projected and engineered to comply to EU safety and electromagnetlical
compatibiliy CEI EN 60065, EN 55103-1 and EN55103-2. CE mark indicates the
compliance. Furthermore, even if ambient policy of MGD limits at the minimum the use of
potentially polluting components, according to current EU laws customer must waste this
device in special sites.
Nevertheless, in order to avoid shock or hurt risks, you should follow carefully the
indications reported in this manual and in the next list:
•Never open the case. No serviceable parts inside. For service, refer to MGD or
qualified and skilled personnel.
•Never remove any screw.
•Don't espose TB6 to rain, water sparks, excessive humidity, chemical
vapours, heavy dust, heat fonts, strong vibrations.
•Never introduce in the plugs objects different than corresponding
connectors.
•Always use CE/FCC-approved and good conditions power supply.
•Before switch TB6 on, check mains and ouptut voltages value on the power
supply.
Technicalspecs.
Six loops true bypass system.
Power requirements: 9V AC/DC 500mA
Parasitic capacitance on the signal with loops in bypass: <100pF.
Switching time: < 50ms.
Ambiental conditions: 10-40’C, 30-90% no condensation humidity.
©Masotti Guitar Devices 03-2006– Via C. Battisti 107, 01010 Farnese (VT) Italy.
Tel. [phone]
URL: www.masottiamp.it
For info please contact us at e-mail [email protected]
.
