HORIZON3D

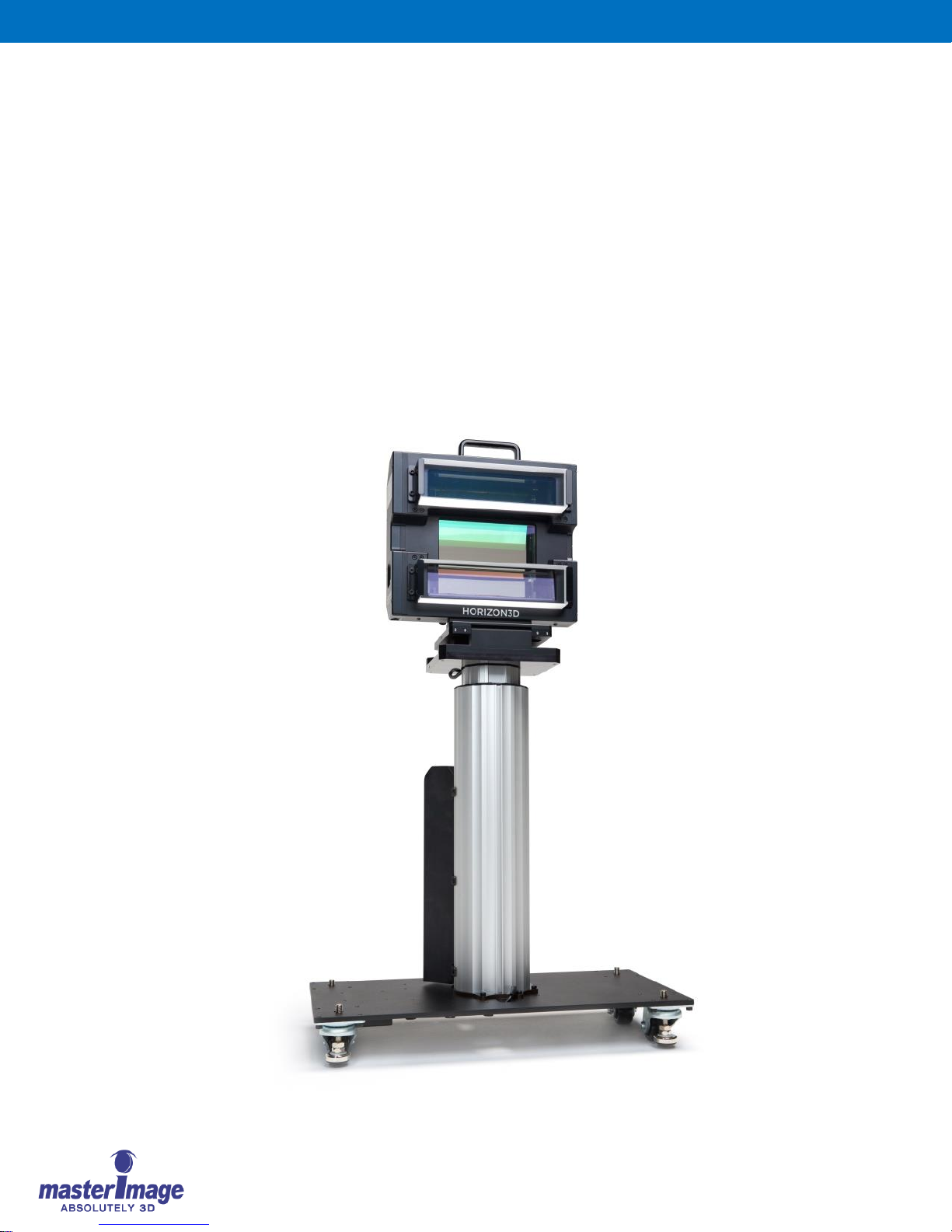

Digital 3D Cinema System
Installation & Operation Manual
Revision No. 1.0.1

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
2
Revision History
Revision
Date
Release
Status
Author
Remarks
d1.0.0
3rd September 2015
Initial Draft
RJG
d1.0.1
23rd October 2015
2nd Draft
RJG
Picture replacement
d1.0.2
17th November 2015
3rd Draft
RJG
Drawing Replacement
1.0.0
3rd December 2015
1st Release
RJG
1.0.1
7th December 2015
2nd Release
RJG
Picture Replacement
Copyright © 2005-2015 MASTERIMAGE 3D, INC
All Rights Reserved
MASTERIMAGE 3D, INC. Proprietary
All other trademarks and copyrights are the property of their respective owners.

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
3
Locations
MASTERIMAGE 3D, INC
15260 Ventura Blvd Suite 1220
Sherman Oaks CA 91403
TEL: [phone]
FAX: [phone]
MASTERIMAGE 3D ASIA, LLC.
(Gasandong, BYC HIGHCITY Building A 22F),
131, Gasandigital1-ro, Geumcheon-gu,
Seoul, 153-803, South Korea
TEL.: [phone]
FAX: [phone]
MASTERIMAGE 3D EUROPE, PLC
Pinewood Studios
Pinewood Rd., Iver Heath
Buckinghamshire
England
SL0 0NH
TEL: [phone]
Fax: [phone]
URL: www.masterimage3d.com
Support Site: support.masterimage3d.com
Email Contact: [e-mail]

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
4
Table of Contents
1. Introduction ............................................................................................................7
1.1. Welcome.......................................................................................................................7
1.2. Contacting Technical Support .......................................................................................7
2. Warnings and Cautions..........................................................................................8
2.1. Installation Consideration..............................................................................................8
2.2. Heat Damage................................................................................................................8
2.3. General Electrical Safety...............................................................................................8
2.4. General Handling..........................................................................................................8
3. System Overview ...................................................................................................9
3.1. The New Horizon of Digital 3D Projection......................................................................9
4. Installation and Configuration...............................................................................10
4.1. Unpacking the HORIZON3D .......................................................................................10
4.2. Confirm Package Contents of HORIZON3D................................................................11
5. Detailed Component Overview.............................................................................12
5.1. Three-Way Beam Optical Head Assembly ..................................................................12
5.2. Head Assembly –Component Identification................................................................13
5.3. Lift Column Actuator....................................................................................................15
6. System Setup.......................................................................................................16
6.1. Initial System Assembly ..............................................................................................16
6.1.1. Attach Optical Head to Tilt Angle Stage.............................................................16
6.1.2. Cable Connections.............................................................................................17
6.1.3. Initial Installation Consideration..........................................................................18
6.1.4. Setting 3D Position ............................................................................................19
6.1.5. Setting 2D Position ............................................................................................20
6.1.6. Verifying 3D & 2D Position and Locking Feet.....................................................21
6.2. System Alignment.......................................................................................................22
6.2.1. Adjusting Optical Head Assembly Position.........................................................22
6.2.2. Image Alignment –Manual ................................................................................23
6.2.3. Image Alignment –Wireless ..............................................................................27
6.3. 3D Phase Sync Polarity...............................................................................................31
6.4. Actuator 3D Position ...................................................................................................31
7. Projector Configuration.........................................................................................32
7.1. Projector 3D File Configuration ...................................................................................32

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
5
7.2. Series II Projectors......................................................................................................32
7.2.1. NEC Series II File Settings for External Server Playback...................................32
7.2.2. Christie Series II File Settings for External Server Playback ..............................33
7.2.3. Barco Series II File Settings for External Server Playback .................................33
7.2.4. IMB Configuration Settings ................................................................................34
8. System Setup Using the Monitor Application .......................................................35
8.1. Initial Configuration .....................................................................................................35
8.2. Execute the Monitor Application using a Web Browser ...............................................35
8.2.1. Changing the User Password ............................................................................36
8.3. System Operation via the Monitor Application.............................................................37
8.4. Position Movement via the Monitor Application ...........................................................38
8.4.1. 3D Position ........................................................................................................38
8.4.2. 2D Position ........................................................................................................39
8.5. Sync Polarity via the Monitor Application.....................................................................40
8.6. Setting 3D Position via the Monitor Application ...........................................................41
8.7. Automation Source via the Monitor Application ...........................................................42
8.8. Sync Pulse Automation Reference Frequency via the Monitor Application..................43
8.9. 2D Delay Time via the Monitor Application..................................................................44
8.10. Ethernet Automation Port Number Allocation..............................................................45
8.11. Network Configuration via the Monitor Application ......................................................46
8.12. Sync Source via the Monitor Application .....................................................................47
8.13. Log File via the Monitor Application.............................................................................48
8.14. Factory Default via the Monitor Application .................................................................50
9. HORIZON3D Troubleshooting..............................................................................51
9.1. Error Code Table.........................................................................................................52
10. Appendix A –Firmware Upgrade for HORIZON3D..............................................53
10.1. Prerequisites for Upgrading Firmware.........................................................................53
10.1.1. System Firmware Upgrade ................................................................................53
10.1.2. Web Server (MPFS) Upgrade............................................................................53
10.1.3. Lifting Column Firmware Upgrade......................................................................53
10.2. Web Server (MPFS) Upgrade Procedure....................................................................54
10.3. System Firmware Upgrade Procedure ........................................................................55
10.4. Lifting Column Firmware Upgrade Procedure..............................................................58
11. Appendix B –HORIZON3D Automation...............................................................61
11.1. Ethernet Automation ...................................................................................................63
11.1.1. Doremi Server....................................................................................................63

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
6
11.1.2. Qube Server ......................................................................................................69
11.1.3. GDC Server.......................................................................................................72
12. Appendix C –Installation Record.........................................................................78
13. Appendix D –Dimensional Drawings...................................................................79

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
7
1. Introduction
1.1. Welcome
Congratulations on choosing the finest digital projection 3D system available.
The MASTERIMAGE HORIZON3D delivers the clearest, brightest, full-color images in a
studio-approved single projection, patented three-way beam, liquid crystal, digital 3D
system.
Paired with MASTERIMAGE high quality 3D eyewear, the HORIZON3D provides the
clearest and truest color 3D picture of any available liquid crystal 3D system.
This user manual provides all the information required for simple installations and the
operation of the HORIZON3D, with any DLP cinema projector and digital cinema server.
1.2. Contacting Technical Support
If you require technical support, our contact information is listed below:
MASTERIMAGE 3D, INC
Email: [e-mail]
Support Site: support.masterimage3d.com
Corporate Site: www.masterimage3d.com
USA Tel: [phone]
UK Tel: [phone]
Asia Tel: [phone]

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
8
2. Warnings and Cautions
2.1. Installation Consideration
When planning installation of the HORIZON3D, ensure that the auditorium throw ratio is
greater than 1.1:1.
2.2. Heat Damage
To avoid burning the polarizer film of the liquid crystal panel ensure a panel surface
temperature of <80˚F is maintained.
2.3. General Electrical Safety
Disconnect the power cord before servicing the system for any reason.
2.4. General Handling
Avoid touching any optical components with bare hands. Handle the optical head
assembly by the handles only.

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
9
3. System Overview
3.1. The New Horizon of Digital 3D Projection
Key Features:
HORIZON3D is a single-projection; three-way beam, liquid crystal based, easy-to-use, high-
quality Digital 3D Cinema System that enables 3D cinema presentation. The system can be
quickly installed in front of the lens of any DLP digital cinema projector.
HORIZON3D’s patented construction three-way beam uses three specific Liquid Crystal (LC)
panels that are accurately bonded to ensure effective polarization of the left and right images
from the projector lens.
HORIZON3D provides an accurate synchronization function for both current format 72Hz,
24fps, triple flash and future HFR 3D formats.
HORIZON3D is perfectly matched to the high quality polarized 3D eyewear produced by
MASTERIMAGE 3D.
HORIZON3D consists of the three-way beam optical head, lift column actuator and
connection cables.

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
10
4. Installation and Configuration
4.1. Unpacking the HORIZON3D
Inspect the HORIZON3D packaging box for any external damage. Report any damage to
shipper and to MasterImage 3D.
Top layer inside shipping carton
Palletized Outer Carton contains Lifting Column, Optical Head Assembly and Accessories

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
11
4.2. Confirm Package Contents of HORIZON3D
Optical Three-Way Beam Head Assembly
Lifting Column Unit
Power Adaptor
Sync Cable
3D Glasses
Cleaning Cloths

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
12
5. Detailed Component Overview
5.1. Three-Way Beam Optical Head Assembly

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
13
5.2. Head Assembly –Component Identification
A
B
C
D
1. Front Panel
A. Handle: Enables lifting or hand-carrying the Optical Head.
B. Upper Half Image Outflow: Composed of the upper LCD
and thick plate (Optional, To improve the alignment of the
upper half image if required).
C. Central Full Image Outflow: Composed of the central
LCD.
D. Lower Half Image Outflow: Composed of the lower LCD
and thick plate (Optional, To improve the alignment of the
lower half image if required)
E
F
G
H
I
2. Back Panel
E. Upper Vertical Alignment: Used to align the vertical offset of
the upper half reflected image (Operated manually or remotely).
F. Upper Horizontal Alignment: Used to align the horizontal
offset of the upper half reflected image (Operated manually or
remotely).
G. Lower Vertical Alignment: Used to align the vertical offset of
the lower half reflected image (Operated manually or remotely).
H. Lower Horizontal Alignment: Used to align the horizontal
offset of the lower half reflected image (Operated manually or
remotely).
I. Entrance Window: Entrance Window of 3D Image from DLP
projector.

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
14
J
K
L
M
N
O
P
Q
R
3. Side Panel | Switch & Port
J. DIP switch: To change Sync polarity (True or Invert) & 3D
Position (UP or DOWN).
K. Ethernet Port: Used for Automation, Alignment, Monitor
Program & Firmware Upgrade of Control Panel.
L. GPIO/TTL Port: Connected between HORIZON3D and DLP
Projector for 3D SYNC Input and automation function.
M. Actuator Port: Connected between Control Panel and lift-column
actuator to move the Optical Head between 3D position or 2D
position.
N. DC Port: DC (+24V) Power Port.
(*Note: If the Actuator Cable is connected to the Actuator port, do
not connect the DC power adaptor to the Control Panel, connect to
the Lifting Column)
O. 7-Segment LED: Used for Sync Frequency or Error Codes display.
P. 3D Button: Used to move the Optical Head to 3D position and to
activate 3D operation.
Q. 2D Button: Used to move the Optical Head to 2D position and to
stop 3D operation.
R. RUN Button: Activates 3D operation.

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
15
5.3. Lift Column Actuator
A
B
C
D
E
F
1. Lift Column Component Identification
A. Base Stage (with Tilt Angle Stage): For mounting of the
Optical Head Assembly.
B. Lift Column Actuator: Used to move the Optical head
between 3D position or 2D position.
C. Lift Colum Actuator Control Box
D. Rolling wheels: Used to move the HORIZON3D; wheels are
then locked to secure the unit in place.
E. DC Power Port: DC +24V/5A adaptor.
F. mini USB: Only used to upgrade the firmware of the Lift
Column Actuator Control Box

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
16
6. System Setup
6.1. Initial System Assembly
6.1.1. Attach Optical Head to Tilt Angle Stage
Screw:M8x1.25x22L
Two Guide Pins
1. Before attaching the Optical Head Assembly,
observe the two guide pins of Tilt Angle Stage
on Lift Column Actuator.
2. Lift the Optical Head carefully into position.
3. Attach the Optical Head Assembly onto Tilt
Angle Stage while aligning with the two guide
pins.
4. Once located correctly secure with two hex
screws (M8x1.25x22L) provided.

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
17
6.1.2. Cable Connections
A
C
B
A. Connecting the GPIO SYNC cable
1. Connect the SYNC cable to the Optical Head Assembly
GPIO/TTL port.
2. Tighten both screws securely.
3. Connect the other end to the DLP Projectors GPIO Port.
B. Connecting the Actuator Cable
1. Connect the Actuator Cable from the Lift Column
Actuator to the Optical Head Assembly Actuator Port.
C. Connecting the DC Power Cable
1. Insert the AC power cable into AC/DC adaptor.
2. Insert the plug into the AC power outlet.
3. Insert the DC jack into the DC Power Port and the system
is turned the system on automatically.

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
18
6.1.3. Initial Installation Consideration
3D Position or 2D Position
DOWN
Zero Position
Before moving and re-installing the HORIZON3D, follow
the below steps for your safety.
1. Press the RUN & 3D & 2D buttons (Origin Button) at the
same time and hold for more than 1second then release, the
Lift Column Actuator will drop to the Zero Position
automatically.
2. After pressing ‘Origin Button’ sequence, the 3D position
and 2D position information will be erased from the system
memory, if the 3D or 2D button is pressed the Lift Actuator
Column doesn’t move.
The 3D position and 2D position setting must be re-
memorized before further system operation.
Before positioning or operating the HORIZON3D for 3D and 2D,
take note of the below information.
When the AC Power is interrupted or disconnected suddenly
while the 3D or 2D positioning is operating, the 3D & 2D button
LED’s will blink.
At this time, press the 3D or 2D button and the Lift Actuator
Column will lower to the Zero Position automatically.
The Lift Actuator Column must be lowered to the Zero Position before moving the HORIZON3D.

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
19
6.1.4. Setting 3D Position
3D Position
UP
1. With the System Power ‘On’ the 7-segment display will show
“00” on the Control Panel.
If the GPIO SYNC cable is connected with the DLP projector,
then the display will show the sync frequency being output.
(For example, sync frequency is 24, 36, 72, 96Hz etc…)
2. At first installation this position is the Zero Position (factory
state).
3. To enter 3D & 2D position setting mode, press the 3D & 2D
button at the same time and hold for more than 1second then
release.
4. Press the 3D button to activate the Lift Column Actuator and
move the position upwards.
5. When the Optical Head is at the position you want it to be, release
the 3D button.
6. For fine-tuning of accurate 3D position of the Optical Head, short
press 3D or 2D button.
7. To save the 3D position, press RUN & 3D button at the same time
and hold for more than 1 second then release.
Note: If you want to exit 3D or 2D position setting mode, press the
3D & 2D button at the same time and hold for more than
1second then release.
Take care to avoid damaging the projector lens when raising the Lift Column Actuator

Installation & Operation Manual | HORIZON3D
© MASTERIMAGE 3D, Inc.
20
6.1.5. Setting 2D Position
DOWN
2D Position
8. Press the 2D button to activate the Lift Column Actuator and
move the position downwards. The 2D button’s LED will blink.
9. When the Optical Head has cleared the zoom lens and is at the
position you want it to be, release the 2D button.
10. To save the 2D position, press the RUN & 2D button at the same
time and hold for more than 1 second then release.
11. To exit the setting mode of 3D and 2D position, press the 3D and
2D button at the same time and hold for more than 1second then
release.
12. The 7-segment display will show “00” on the Control Panel.
If the GPIO SYNC cable is connected with the DLP projector,
then the display will show the sync frequency being output.
(For example, sync frequency is 24, 36, 72, 96Hz etc…)
