Panasonic SC-HT540 User manual

RQT8723-B
EB
Operating Instructions
DVD Home Theater Sound System
Model No. SC-HT540/SC-HT990
All necessary steps of setup are completed.
Please see the Operations Guide for playback operations.
STEP1Assembling the speakers
STEP2Positioning the speakers
STEP3Speaker connections
STEP4Audio and video connections

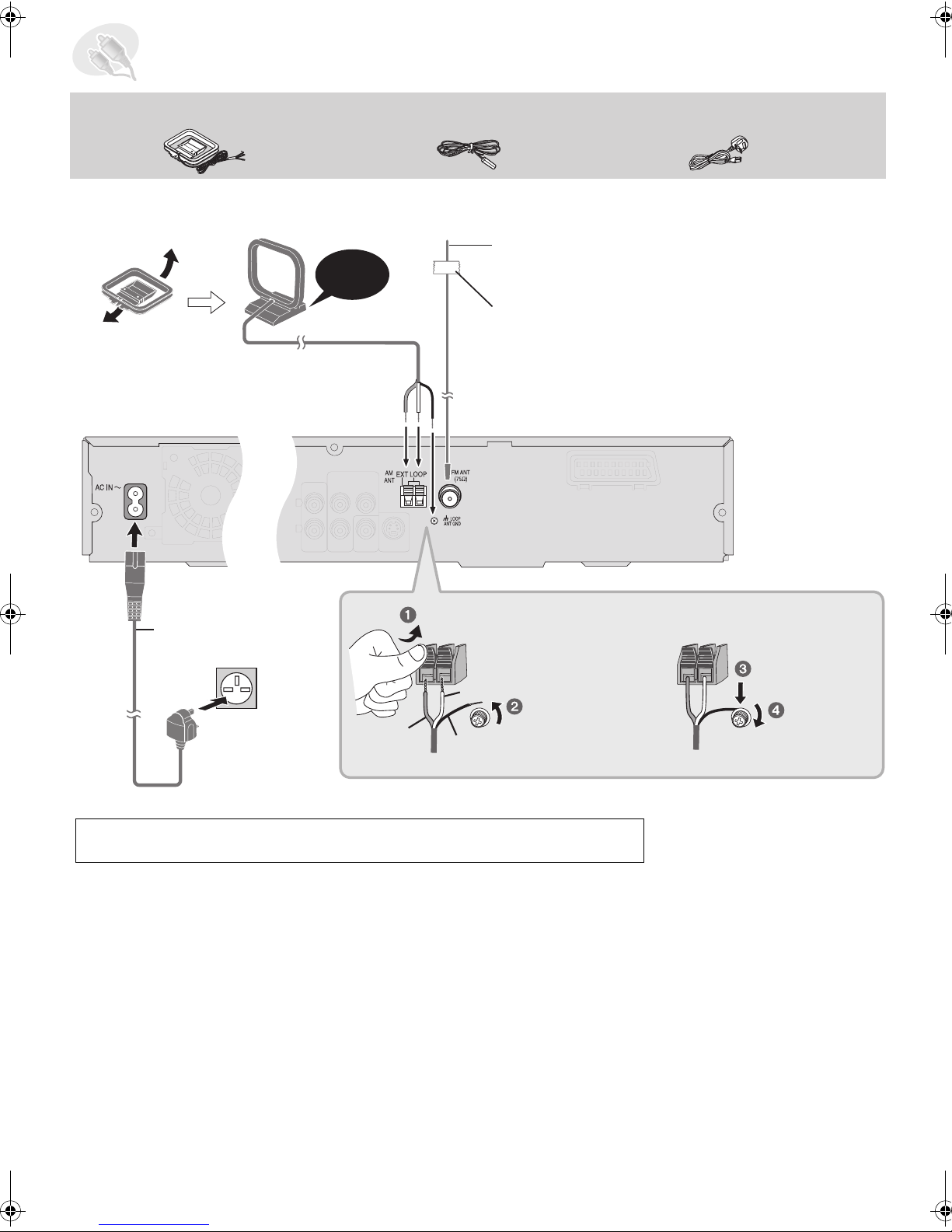

STEP5Radio and AC mains lead connections
STEP6Preparing the remote control
STEP7Performing QUICK SETUP
Setup Guide
EB-setup guide.fm Page 1 Friday, March 10, 2006 3:44 PM

2
[HT540] Front speakers
[HT990] Front and surround speakers
Preparation
≥To prevent damage or scratches, lay down a soft cloth and perform assembly on it.
≥For assembly, use a Phillips-head screwdriver.
≥Make sure you have all the indicated components before starting assembly, setup, and connection.
≥There is no difference between the right and left speakers and stands.
≥For optional wall mount, refer to page 38, Operations Guide.
[Note]
≥[HT990] The front and surround speakers are different.
– Check the label on the rear of speaker before attaching the stand (➜page 4).
– The stand with shorter cable is for the front speaker.
1Attach the stand to the base.
1Thread the speaker cable through the base.
For quicker threading, loosely fold the cable in half (do
not crease), pass the folded portion through the hole,
and then pull the rest of the cable through the base.
2Attach the stand to the base while gently pulling
on the end of the speaker cable.
2Secure the stand to the base.
3Attach the speaker to the stand.
1Pull out the end of the speaker cable and
position it between the ridges.
STEP1Assembling the speakers
The supplied stands are specially designed
for attachment to Panasonic SB-FS990 front
speakers, SB-FS741 surround speakers,
SB-FS540 front or surround speakers.
Use only as indicated in this setup.
[HT540] 2 Front speakers
(with cover plate)
[HT990] 2 Front speakers and
2 Surround speakers
(with cover plate)
[HT540] 2 Bases
[HT990] 4 Bases
[HT540] 2 Stands (with cable)
[HT990] 4 Stands
≥2kstands with short cable:
For front speakers
≥2kstands with long cable:
For surround speakers
[HT540] 8 Screws
[HT990] 16 Screws
Base
Cable
Stand
Base
Cable
Pull gently.
2
1
Screw
Tighten securely.
Slide the speaker
cable into the
groove.
Stand
Base
Screws
Tighten securely.
Cable
Ridges
Stand
EB-setup guide.fm Page 2 Friday, March 10, 2006 11:37 AM

3

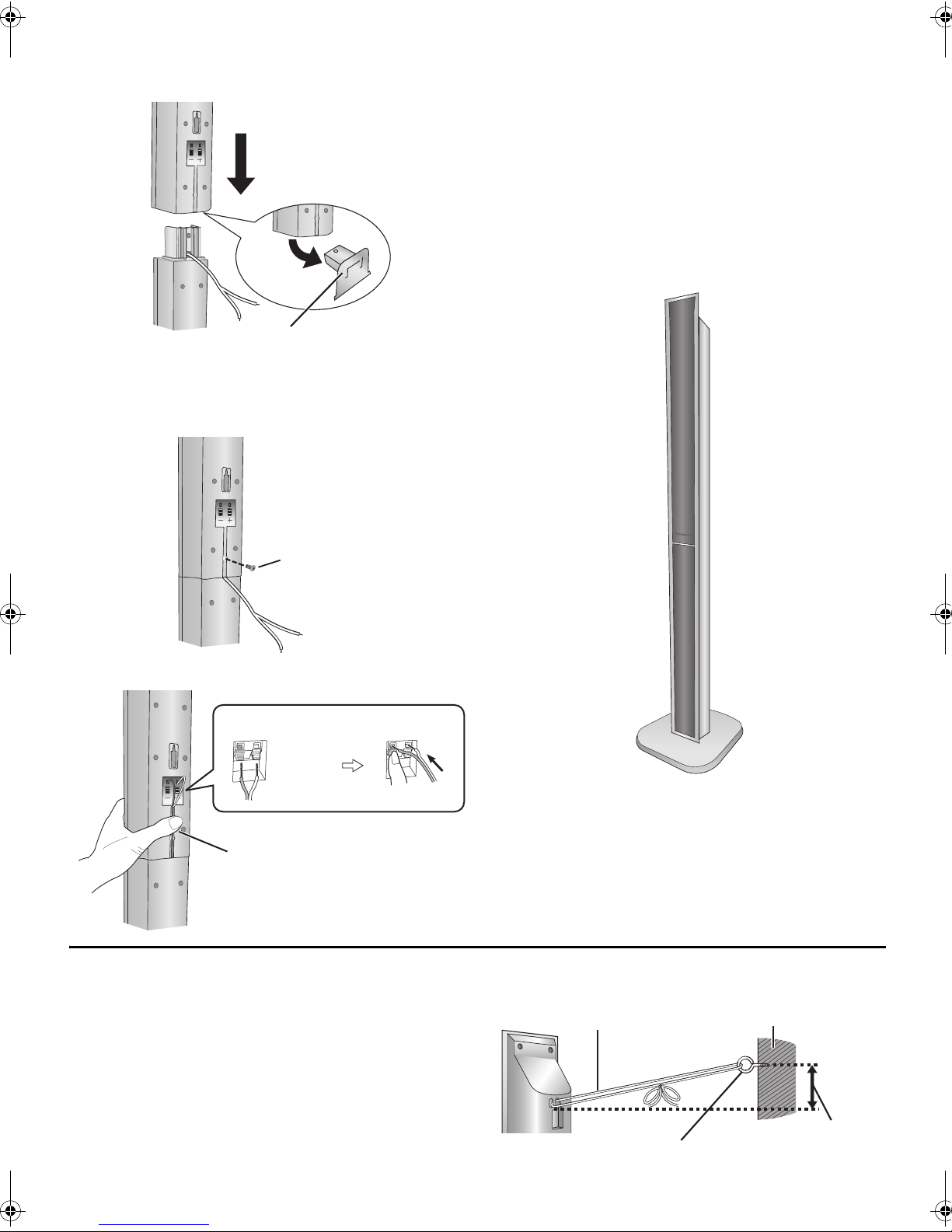

2Attach the speaker to the stand.
4Secure the speaker to the stand.
5Connect the speaker cable.
∫Preventing the speakers from falling
≥You will need to obtain the appropriate screw eyes to
match the walls or pillars to which they are going to
be fastened.
≥Consult a qualified housing contractor concerning the
appropriate procedure when attaching to a concrete
wall or a surface that may not have strong enough
support. Improper attachment may result in damage
to the wall or speakers.
Speaker
Stand
Cover plate
Remove before attaching the
speaker and keep for wall-mount use
(➜page 38, Operations Guide).
Speaker
Stand
Screw
Tighten securely.
Ensure the speaker cable
is centered in the groove.
_: White
`:Blue
Push!
Press the speaker
cable into the groove.
Insert the wire fully.
Assembled!
String (not included)
Thread from the wall to the
speaker and tie tightly.
Rear of the
speaker
Wall
Approx.
150 mm
Screw eye
(not included)
EB-setup guide.fm Page 3 Friday, March 10, 2006 11:37 AM

4
How you set up your speakers can affect the bass and the sound field. Note the following points:
≥Place speakers on flat secure bases.
≥Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick
curtains.
≥Left and right speakers are interchangeable, but front and surround speakers are not.
≥Place the front, center, and surround speakers at approximately the same distance from the seating position.
The angles in the diagram are approximate.
≥Use only supplied speakers
Using other speakers can damage the unit, and sound
quality will be negatively affected.
≥Set the speakers up on an even surface to prevent them
from falling. Take proper precautions to prevent the
speakers from falling if you cannot set them up on an
even surface.
Main unit
[Note]
≥Keep your speakers at least 10 mm away from the system
for proper ventilation.
≥To allow for proper ventilation and to maintain good
airflow around the main unit, position it with at least 5 cm
of space on all sides.
≥Do not block the ventilation holes of the main unit.
Center speaker
≥Vibration caused by the center speaker can disrupt the
picture if it is placed directly on the television. Put the
center speaker on a rack or shelf.
≥To prevent the speakers from falling, do not place directly
on top of the television.
Subwoofer
Place to the right or left of the television, on the floor or a
sturdy shelf so that it will not cause vibration. Leave about
30 cm from the television.
Caution
≥Do not stand on the base.
Be cautious when children are
near.
≥Do not touch the netted
area of the speakers.
STEP2Positioning the speakers
Setup example
Main unit
FRONT
(L, R)
SURROUND
(L, R)
CENTER SUBWOOFER
Setup example
Main unit
FRONT
(L, R)
SURROUND
(L, R)
CENTER SUBWOOFER Speaker label
Do not use a front
speaker as a
surround speaker or
vice versa. Verify the
type of speaker with
the label on the rear
of the front speaker.
e.g. Front speaker
e.g. [HT540] Surround speaker
EB-setup guide. fm Page 4 Tuesday, February 28, 2006 9:49 AM

5
Notes on speaker use
≥You can damage your speakers and shorten their useful
life if you play sound at high levels over extended periods.
≥Reduce the volume in the following cases to avoid
damage:
– When playing distorted sound.
– When the speakers are reverberating due to a record
player, noise from FM broadcasts, or continuous signals
from an oscillator, test disc, or electronic instrument.
– When adjusting the sound quality.
– When turning the unit on or off.
If irregular coloring occurs on your television
The front and center speakers are designed to be used
close to a television, but the picture may be affected with
some televisions and setup combinations.
If this occurs, turn the television off for about
30 minutes.
The demagnetizing function of the television should correct
the problem. If it persists, move the speakers further away
from the television.
Caution
≥The main unit and supplied speakers are to be used
only as indicated in this setup. Failure to do so may
lead to damage to the amplifier and/or the speakers,
and may result in the risk of fire. Consult a qualified
service person if damage has occurred or if you
experience a sudden change in performance.
≥
Do not attempt to attach these speakers to walls using
methods other than those described in this manual.
STEP3Speaker connections
4
4
2
2
6
6
53
5
3
1
1
SURROUND
Rch
Rch
SURROUND
Rch
Rch
FRONT
WOOFER
SUB
Lch
Lch Lch
CENTER
Lch
SURROUND
SURROUND
FRONT
SUB
WOOFER
FRONT
FRONT
CENTER
FRONT
Lch
Rch
SURROUND
Rch
FRONT
2
Rch
FRONT
FRONT
Lch
Rch
SURROUND
CENTER
5
CENTER
5
Lch
SURROUND
Lch
SURROUND
2
11
4 4
33
SUB
WOOFER
6
Be careful not to cross
(short-circuit) or
reverse the polarity of
the speaker wires as
doing so may damage
the speakers.
2 sheets of speaker cable stickers
≥Attach the speaker-cable stickers to
make connection easier.
Speaker cable sticker
2FRONT (R)
1FRONT (L)
4SURROUND (R)
3SURROUND (L)
5CENTER
Main unit
Insert the wire fully.
i: White
j: Blue
Push!
6SUBWOOFER
Speaker cables
[HT540]
≥1kshort cable: For center speaker
≥2klong cables: For surround speakers
Push!
[HT990]
≥1kshort cable:
For center speaker
Insert the
wire fully.
i: White
j: Blue
EB-setup guide. fm Page 5 Tuesday, February 28, 2006 9:49 A

6
≥Do not connect through the video cassette recorder.
Due to copy guard protection, the picture may not be displayed properly.
≥Turn the television off before connecting, and refer to the television’s operating instructions.
To improve picture quality, you can change the video signal output from the SCART (AV) terminal.
Select “RGB/No Output” from QUICK SETUP (➜page 10).
≥This connection will also enable you to play audio from your television through your home theater system.
Refer to “Operating other equipment” (➜page 37, Operations Guide).

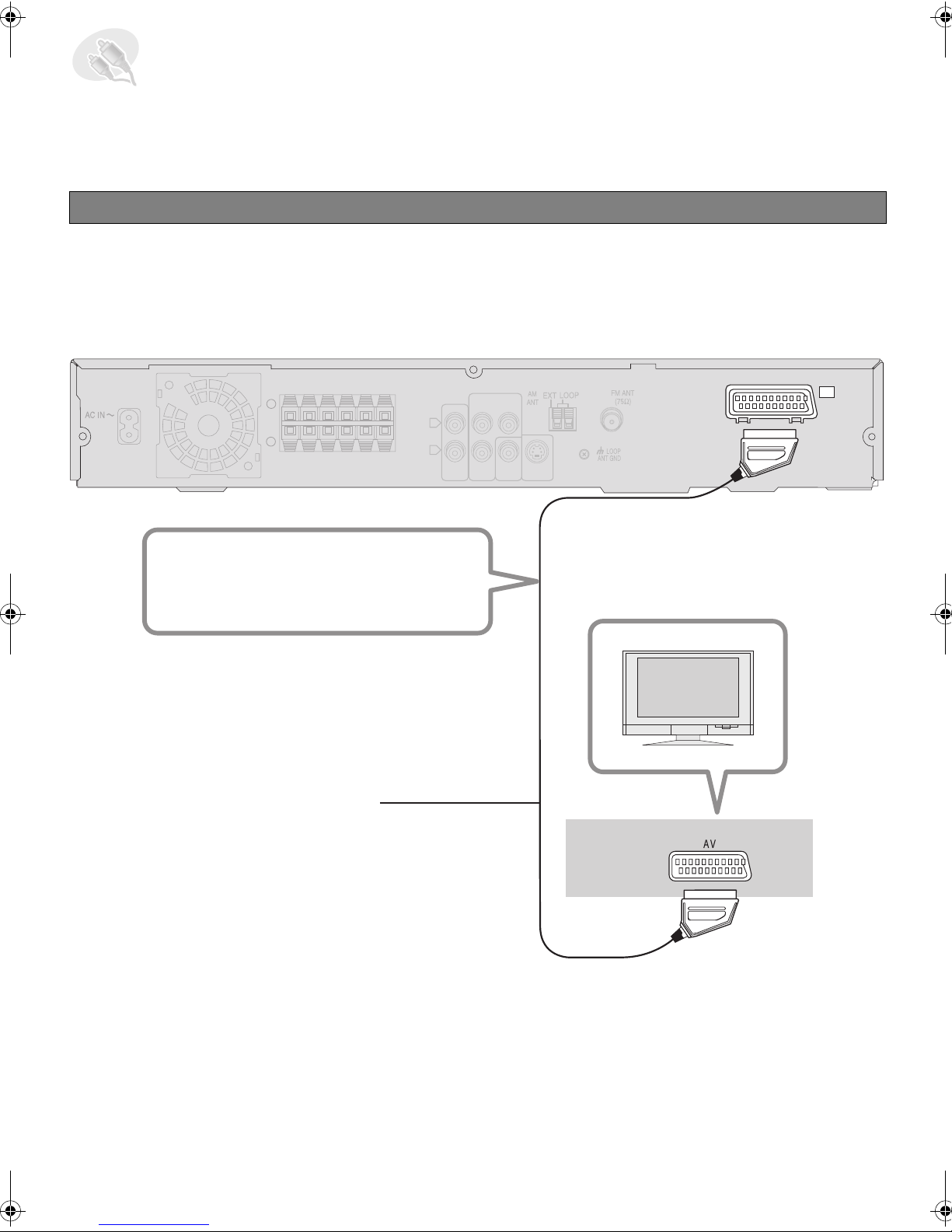

Connecting to a television with SCART (AV) terminal
STEP4Audio and video connections
P B
P R
Y
INTERLACE)
(PROGRESSIVE/
COMPONENT VIDEO OUT
VIDEO
VIDEO
OUT
OUT
r
s
S-VIDEO
S-VIDEO
OUT
OUT
R
L
AUX
AUX
AV
Television
(not included)
Back of the main unit
Sound from the television
Press [EXT-IN] to select the “TV” audio input
on the remote control (➜page 37, Operations
Guide).
Scart cable (not included)
≥To listen to the sound from the
television, select the appropriate audio
out (e.g., Monitor) on the television.
EB-setup guide.fm Page 6 Friday, March 10, 2006 11:53 AM

7
∫Television with an S-VIDEO IN terminal
The S-VIDEO OUT terminal achieves a more vivid picture than the VIDEO OUT terminal by separating the chrominance
(C) and luminance (Y) signals. (Actual results depend on the television.)
Connecting to a television with AUDIO/VIDEO terminals
Using other video connections for improved picture quality
P B
P R
Y
INTERLACE)
(PROGRESSIVE/
COMPONENT VIDEO OUT
S-VIDEO
S-VIDEO
OUT
OUT
AV
r
s
R
L
AUX
AUX
VIDEO
VIDEO
OUT
OUT
AUDIO
OUT
L
R
VIDEO IN
AUDIO
IN
VIDEO OUT
§This audio connection will enable you to play audio from your television through your home theater system. Refer to
“Operating other equipment” (➜page 37, Operations Guide).
Television
(not included)
Back of the main unit
Video cable
(not included)
Audio cable §
(not included)
P B
P R
Y
INTERLACE)
(PROGRESSIVE/
COMPONENT VIDEO OUT
VIDEO
VIDEO
OUT
OUT
AV
r
s
S-VIDEO
S-VIDEO
OUT
OUT
R
L
AUX
AUX
VIDEO IN
S-VIDEO
IN
Television
(not included)
S-video cable
(not included)
Back of the main unit See above for the audio connection.
EB-setup guide.fm Page 7 Friday, March 10, 2006 11:43 AM

8

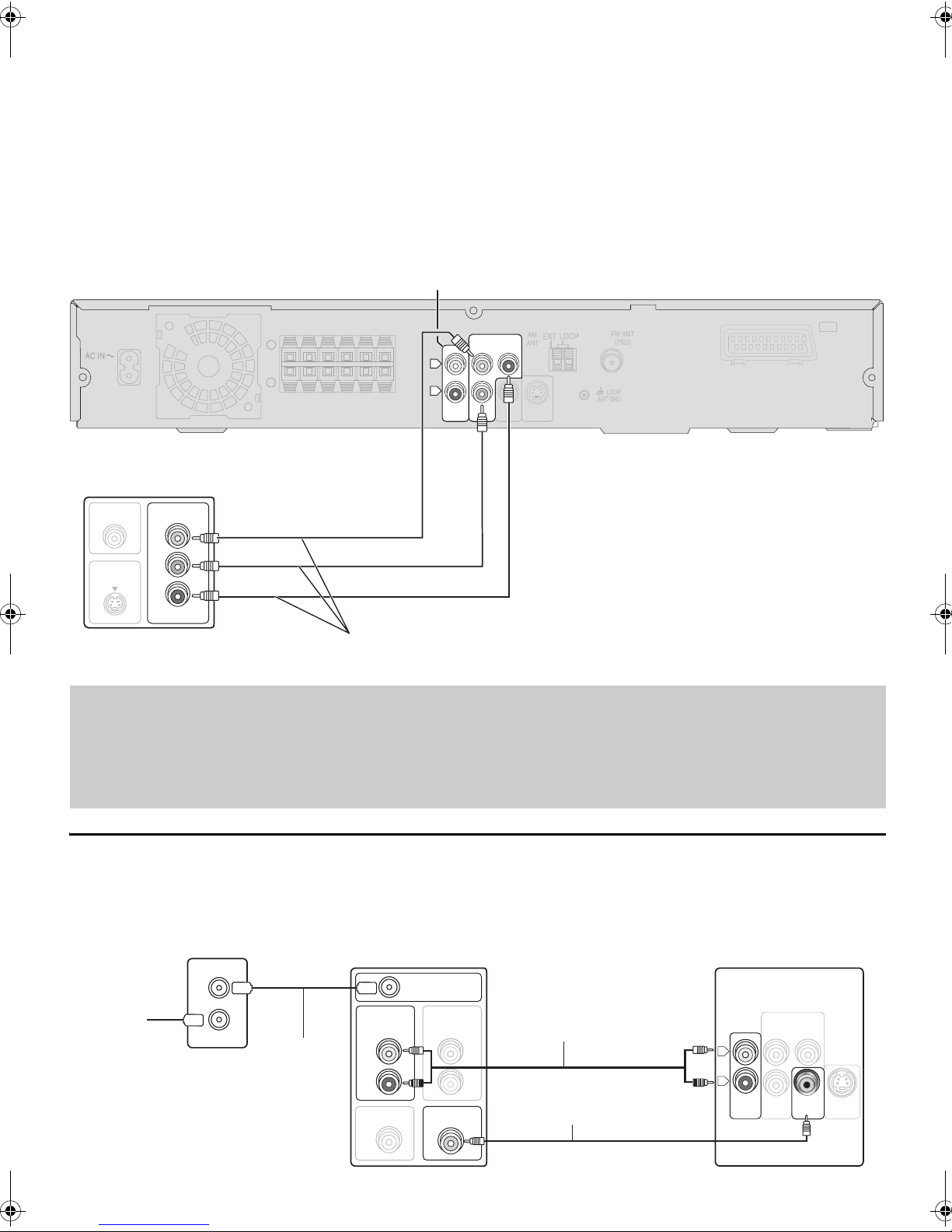

∫Television with COMPONENT VIDEO IN terminals
The COMPONENT VIDEO OUT terminals provides a purer
picture than the S-VIDEO OUT terminal. These terminals
can be used for either interlaced or progressive output.
Connection using these terminals outputs the color
difference signals (PB/PR) and luminance signal (Y)
separately in order to achieve high fidelity in reproducing
colors.
≥The description of the component video input terminals
depends on the television or monitor (e.g. Y/PB/PR, Y/B-Y/
R-Y, Y/CB/CR). Connect to terminals of the same color.
≥When making this connection, select “Video/YPbPr” or
“S-Video/YPbPr” from QUICK SETUP (➜page 10). If
“RGB/No Output” is selected, the RGB signal is output
from the SCART (AV) terminal, but no signal is output
from the component video output terminals.
∫Set Top Box or video cassette recorder connection
To enjoy progressive video
≥Connect to a progressive output compatible television.
≥Set “Video Output Mode” to “480p” or “576p”, and then follow the instructions on the menu screen (➜page 26,
Picture Menu, Operations Guide).
≥Panasonic televisions with 625 (576)/50i·50p, 525 (480)/60i·60p input terminals are progressive compatible. Consult
the manufacturer if you have another brand of television.
P B
P R
Y
R
L
AUX
AUX
INTERLACE)
(PROGRESSIVE/
COMPONENT VIDEO OUT
VIDEO
VIDEO
OUT
OUT
S-VIDEO
S-VIDEO
OUT
OUT
AV
r
s
VIDEO IN
S-VIDEO
IN
COMPONENT
VIDEO IN
P R
P B
Y
Television
(not included)
Back of the main unit
Video cables
(not included)
See page 7 for the audio connection.
RF IN
RF OUT
RF IN
AUDIO
OUT
L
R
VIDEO IN
AUDIO
IN
VIDEO OUT
VIDEO
VIDEO
OUT
OUT
S-VIDEO
OUT
INTERLACE)
(PROGRESSIVE/
COMPONENT VIDEO OUT
P B
P R
Y
L
R
AUX
AUX
L
R
Television
(not included)
Video cable
(not included)
Back of the main unit
Audio cable (not included)
≥You can use the scart cable
connection (➜page 6)
instead of this connection.
RF cable
(not included)
Set Top Box or
video cassette recorder
(not included)
To the
aerial
In addition to the audio and video connections, you can also connect your Set Top Box or video cassette recorder.
EB-setup guide.fm Page 8 Saturday, March 11, 2006 8:49 AM

9
Conserving power
The main unit consumes a small amount of power, even when it is turned off (approx. 0.5 W). To save power when the unit
is not to be used for a long time, unplug it from the household mains socket.
You will need to reset some memory items after plugging in the unit.
[Note]
The included AC mains lead is for use with this unit only. Do not use it with other equipment. Also, do not use cords for
other equipment with this unit.
STEP5Radio and AC mains lead connections
Adhesive tape
To household
mains socket
(AC 230–240 V,
50 Hz)
AC mains lead
Main unit
AM loop antenna
Stand the antenna up on its base.
Place the antenna where reception is best.
Keep loose antenna cable away from other
wires and cables.
Click!
AM loop antenna FM indoor antenna AC mains lead
FM indoor antenna
Affix this end of the antenna
where reception is best.
≥Connect the AC mains lead after all other connections are complete.
≥Using an outdoor antenna (optional) (➜page 33, Operations Guide).
Re-tighten
the terminal
screw.
Loosen the terminal
screw with a Phillips-
head screwdriver.
White
Red
Black
While pushing, insert the wire fully.
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 4 IN
OPERATIONS GUIDE BEFORE CONNECTION.
EB-setup guide.fm Page 9 Friday, March 10, 2006 11:43 AM

10
Do not:
≥mix old and new batteries.
≥use different types at the same time.
≥heat or expose to flame.
≥take apart or short circuit.
≥attempt to recharge alkaline or manganese batteries.
≥use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage
which can severely damage the remote control.
Remove the batteries if the remote control is not going to
be used for a long period of time. Store in a cool, dark
place.
∫Use
Aim at the remote control signal sensor (➜page 15,
Operations Guide), avoiding obstacles, at a maximum
range of 7 m directly in front of the unit.
The QUICK SETUP screen assists you to make necessary settings.
To display the picture from the main unit, turn on your television and change its video input mode (e.g. VIDEO 1,
AV 1, etc.).
≥To change your television’s video input mode, refer to its operating instructions.
≥This remote control can perform some basic television operations (➜page 37, Operations Guide).
To change these settings later
Select “QUICK SETUP” in the “Others” tab (➜page 30,
Operations Guide).
STEP6Preparing the remote control
R6/LR6, AA
1
3
2
Remote control Batteries
Insert so the poles (iand j) match those in the
remote control.
≥Do not use rechargeable
type batteries.
STEP7Performing QUICK SETUP
ENTER
DVD
SETUP
RETURN
1Turn on the unit.
2Select “DVD/CD”.
3Press and hold to show
the QUICK SETUP screen.
4Follow the messages and
make the settings.
5Press to finish QUICK
SETUP.
6Press and hold to exit.
Select
Register
ENTER
EB-setup guide.fm Page 10 Friday, March 10, 2006 11:43 AM

11
MEMO
EB-setup guide. fm Page 11 Tuesday, February 28, 2006 9:49 A

Matsushita Electric Industrial Co., Ltd.
Web Site: http://www.panasonic.co.jp/global/
RQT8723-B
F0306NK0
p
EB-setup guide. fm Page 12 Tuesday, February 28, 2006 9:49 A
