Master MFG SSBK-340 User manual

HAVING TROUBLE? CALL SUPPORT AT: 800.825.5397
SSBK-340 BOOM ASSEMBLY 340-AC
TOOLS
2.
Secure Boom Assembly to Boom Upright Brackets with 1”
Bolts and Flange Nuts. Tighten with Socket Wrench.
Use remaining 1” Bolts and Flange Nuts to install Boom
Assembly with Boom Upright Brackets to Mount Kit.
Attaches Boom Uprights to Boom Assembly
NOTE: Boom Upright
Brackets may not be needed.
Consult Mount Kit Assembly
instructions.
PARTS
TOOLS
PARTS
For each Nozzle Body, insert a Strainer, Gasket and Deflector Fan
Nozzle as shown here.
Push Nozzle Cap onto the Nozzle Body and twist to secure it.
Repeat for remaining Nozzle.
Installs Nozzles, Strainers & Caps
1.
None
Deflector Nozzle (3)
DF3.0
Flange Nuts (6)
33-100113
1” Bolts (6)
33-100116
10’ Boom Assembly (1)
34-100009
TOOLS REQUIRED
NOTE:
IF YOU PURCHASED A COMPLETED BROADCAST SPRAYER,
FOLLOW THE SPOT SPRAYER MANUAL AND MOUNT KIT
ASSEMBLY INSTRUCTIONS BEFORE YOU COMPLETE BOOM
ASSEMBLY STEPS.
1/2” SOCKET WRENCH KNIFE
INCLUDED
COMPONENTS
PRAYING
IMPLE
S
MOBILE SPRAY ASSISTANT
INTEGRATE YOUR SPRAY EQUIPMENT AND ACREAGE. CALCULATE YOUR NEEDED LIQUID AND APPLICATION SPEED.
Boom Upright Bracket (2)
31-100160
FREE
Gasket (3)
G-G00002020
Ball Check Strainer (3)
NS-50BC
Deflector Nozzle Cap (3)
G-8253051
Additional bolts and nuts included.
Not all will be used for assembly.

HAVING TROUBLE? CALL SUPPORT AT: 800.825.5397
SSBK-340 BOOM ASSEMBLY 340-AC
TOOLS
PARTS
Locate Boom Hose and make sure there is a Washer in the end of
Boom Cap.
Thread the Boom Hose to the Shut-Off Valve.
Connects Boom Assembly to Shut-Off Valve
3.
NOTE: Use a Knife to cut zip
tie from Boom Assembly to
free the Boom Hose.
ID Part Number Description Qty
1 3C38 3/8” Flat Seat Hose Barb 1
2 31-100371 Right Boom Section 1
3 31-400010 Nozzle Body Clip 3
4 33-100211 Wire Clamp 4
5 33-103966 Nylon Washer 4
6 350-004 5/16” Hose Clamp 6
7 CTB8-40 Cable Tie 4
8 G-8231013 Nozzle Body 1
9 3B34 3/4” Knurled Swivel Nut 1
10 31-400008 3/8” Nozzle Body 2
11 33-103153 3/8” Rubber Hose 1
12 31-100370 Left Boom Section 1
13 31-100372 Center Boom Section 1
14 33-100212 Spring 2
15 W406V 1” Washer 1
16 33-103148 1/4-20 x 1/2 Bolt 4
17 33-100061 1/4”-20 Hex Nut 16
18 33-200062 Lock Washer 8
19 33-100187 1/4”-20 Nylock Nut 4

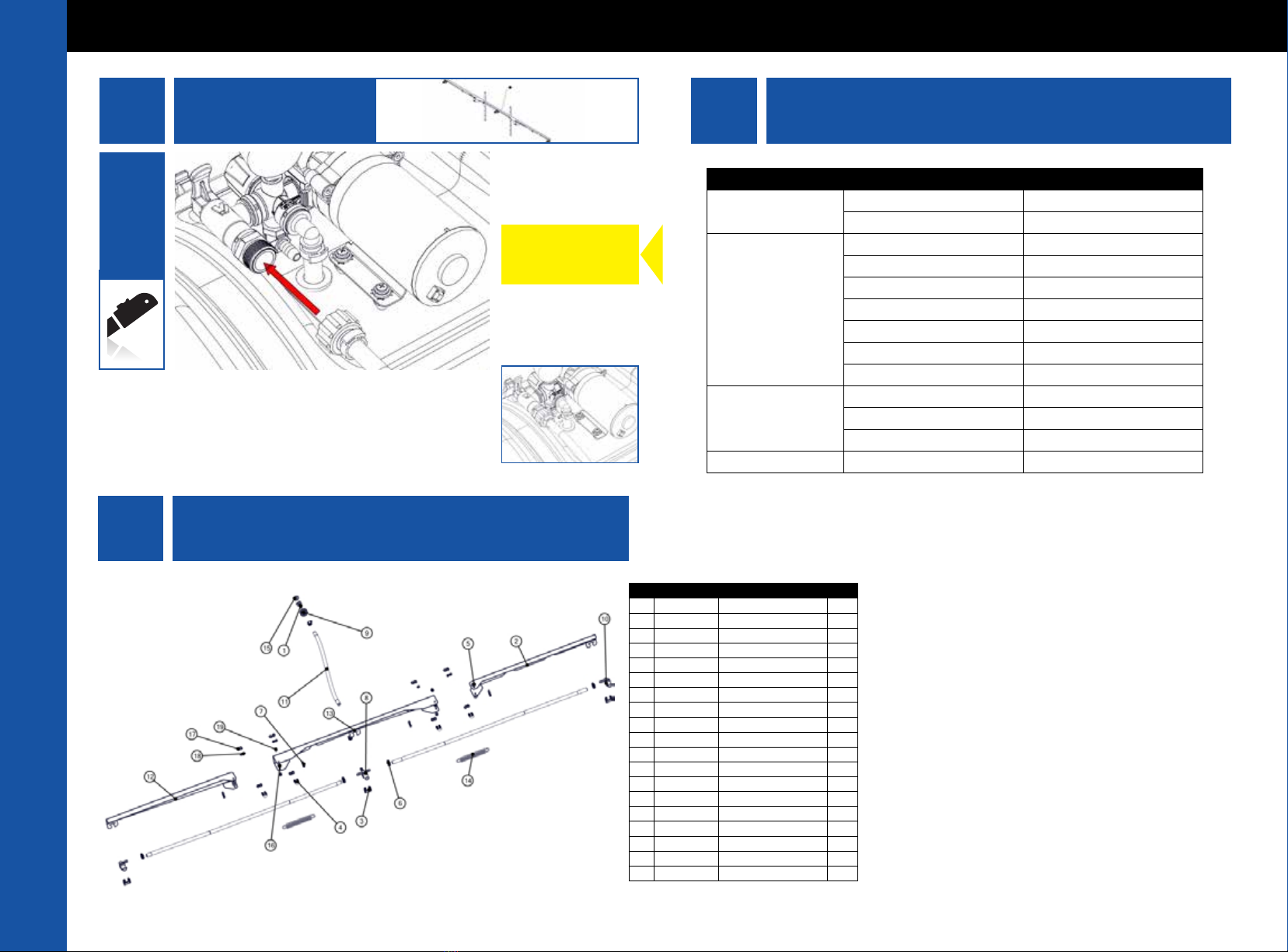

B. SSBK-340 BOOM BREAKDOWN
PROBLEM CAUSE SOLUTION
Boom Doesn't Spray Bad Electrical Connection Check Battery Connections
Boom Shut-Off Valve Flip On Shut-Off Valve
Irregular Spray Pattern Clogged Strainer Unclog Strainer
Pinched Or Clogged Hose Unpinch or Unclog Hose
Clogged Nozzles Unclog Nozzles
Damaged Spray Nozzles Replace Nozzles
No Nozzles In Boom Install Nozzles Into Boom
Incorrect Nozzle Size Replace with Correct Nozzles
Nozzle Facing Wrong Direction Adjust Nozzle To Correct Designation
Boom Leaks Loose Fasteners Tighten Fasteners
Loose Connection To Shut-Off Valve Tighten Boom To Shut-Off Valve
Damaged Boom Hose Replace Hose or Boom Kit
Nozzles Drip After Use No Ball Check Strainers Install Ball Check Strainers
SSBK-340 BOOM TROUBLESHOOTING
T.
