MasterForce 261-1680 User manual

OPERATOR’S MANUAL
3000 PSI/1.1 GPM
ELECTRIC PRESSURE WASHER
261-1680
5100094VT
GPW3001
To Reduce The Risk Of Injury, User Must Read
CAUTION
And Understand Operator’s Manual. Save These Instructions For
Future Reference.

TABLE OF CONTENTS
Safety Symbols........................................................................................................... Page 2
Safety Instructions...................................................................................................... Page 3
Overview..................................................................................................................... Page 7
Specications ............................................................................................................. Page 7
Assembly .................................................................................................................... Page 8
Operation.................................................................................................................. Page 10
Maintenance ............................................................................................................ Page 13
Troubleshooting ........................................................................................................ Page 14

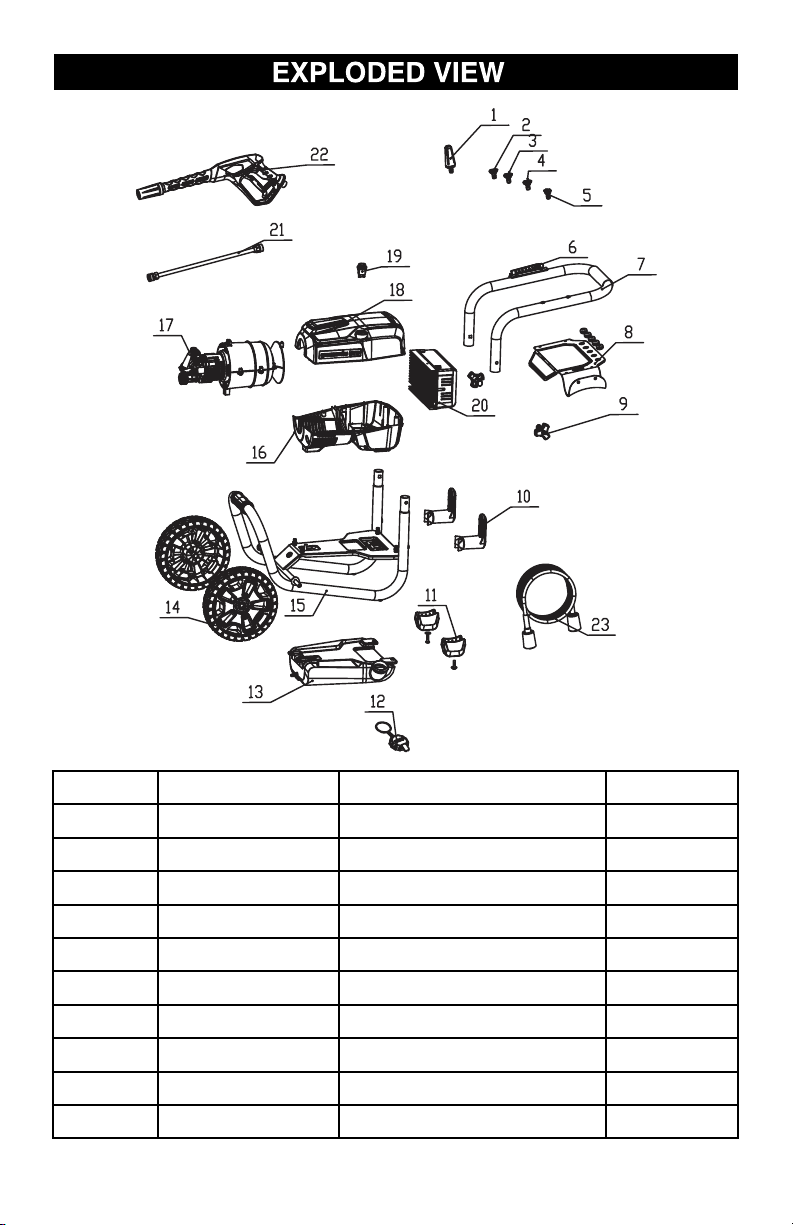

Exploded view........................................................................................................... Page 16
Note .......................................................................................................................... Page 18
Warranty ................................................................................................................... Page 21

Page 2

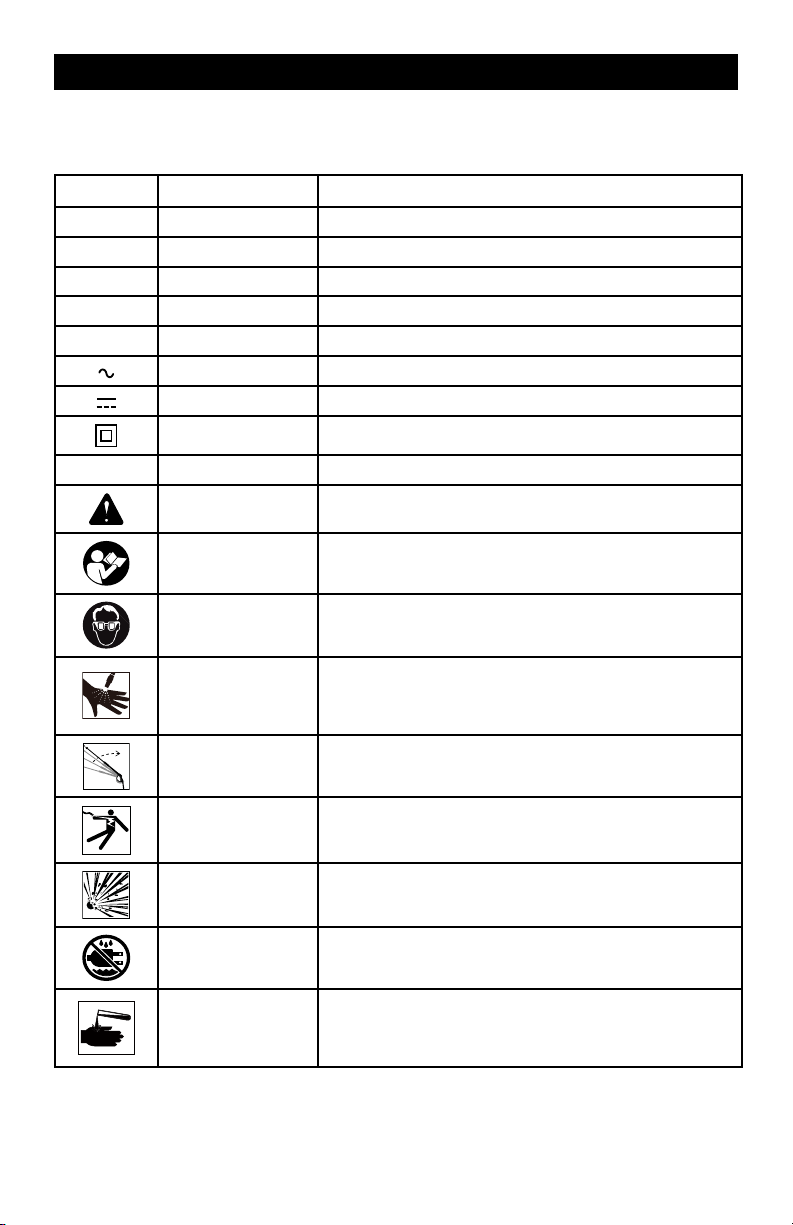

SAFETY SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better
and safer.
Symbol Name Designation / Explanation
VVolts Voltage
AAmperes Current
Hz Hertz Frequency (cycles per second)
WWatts Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
Class II Construction Double-insulated construction.
/min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
Safety Alert Precautions that involve your safety.
Read The Operator’s
Manual
To reduce the risk of injury user must read and understand
operator’s manual before using this product.
Eye Protection Always wear eye protection with side shields marked to
comply with ANSI Z87.1 when operating this equipment.
Risk of Injection
To reduce the risk of injection or injury, never direct a water
stream towards people or pets or place any body part in
the stream. Leak ing hoses and ttings are also capable of
causing injection injury. Do not hold hoses or ttings.
Kickback To reduce the risk of injury from kickback, hold the spray
lance securely with both hands when the machine is on.
Electric Shock Failure to use in dry conditions and to observe safe
practices can result in electric shock.
Risk of Explosion Fuel and its vapors are explosive and can cause severe
burns or death.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Chemical Burns
To reduce the risk of injury or damage, DO
NOT USE ACIDS, ALKALINES, BLEACHES,
SOLVENTS, FLAMMABLE MATERIAL, OR
INDUSTRIAL GRADE SOLUTIONS in this product.

Page 3
SAFETY INSTRUCTIONS
The purpose of safety symbols is to attract our attention to possible dangers. The safety
symbols, and the explanations with them, deserve your careful attention and understanding.
The symbol warnings do not by themselves eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident prevention measures.
Failure to obey this safety warning CAN result in death or serious
injury to yourself or to others. Always follow the safety precautions to reduce the risk of
re, electric shock and personal injury.
WARNING
Failure to obey this safety warning MAY result in personal injury
to yourself or others or property damage. Always follow the safety precautions to
reduce the risk of re, electric shock and personal injury.
CAUTION
Failure to obey this warning WILL result in death or serious injury
to yourself or to others. Always follow the safety precautions to reduce the risk of fire,
electric shock and personal injury.
DANGER
Be sure to read and understand all safety instructions in this
manual, including all safety alert symbols such as “DANGER”, “WARNING” and
“CAUTION”, before using this power tool. Failure to follow all instructions listed below
may result in electric shock, re and/or serious personal injury.
WARNING
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION. May be used
in conjunction with other symbols or pictographs.

Page 4
SAFETY INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
READ ALL INSTRUCTIONS
BEFORE USING (THIS
APPLIANCE)
WARNING Read and
understand all instructions before using
this product. Failure to follow all
instructions listed below may result in
electric shock, re, and/or serious
personal injury. When using an electrical
appliance, basic precautions should
always be followed, including the
following:
GENERAL POWER TOOL
SAFETYWARNINGS
• The machine is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
• Learn the machine's applications and
limitations as well as the specied potential
hazards related to this tool by studying this
manual.
• Never operate the machine with any guard
or cover removed or damaged.
• Do not operate the product while under
the influence of drugs, alcohol, or any
medication.
• Do not wear loose clothing, gloves,
neckties, or jewelry. They can get caught
and draw you into moving parts.
• Rubber gloves and non-skid footwear are
recommended when working outdoors.
Also wear protective hair covering to
contain long hair. Wear footwear that will
protect your feet and improve your grip on
slippery surfaces.
• Don't overreach or stand on unstable
support. Keep proper footing and balance
at all times.
• Check the work area before each use.
Remove all objects such as rocks, broken
glass, nails, wire, or string which can
be thrown or become entangled in the
machine.
• Avoid dangerous environments. Don’t
expose to rain. Keep work area well lit.
• Before starting any cleaning operation,
close doors and windows. Clear the area
to be cleaned of debris, toys, outdoor
furniture, or other objects that could create
a hazard.
• Don’t use the appliance within range
of persons unless they wear protective
clothing.
ELECTRICAL SAFETY
WARNINGS
• Ground Fault Circuit Interrupter (GFCI)
protection should be provided on the
circuit(s) or outlet(s) to be used for the
product.
• Disconnect from the electrical power
supply before carrying out user
maintenance.
• Use only extension cords that have
watertight connections and are intended
for outdoor use. Use only extension cords
having an electrical rating not less than the
rating of the product. Examine extension
cord before using and replace if damaged.
Do not abuse extension cord and do not
pull on any cord to disconnect. Keep cord
away from heat and sharp edges. Always
disconnect the extension cord from the
receptacle before disconnecting the
product from the extension cord.
• Do not use the appliance if a supply
cord or important parts of the appliance
are damaged, e.g. safety devices, high
pressure hoses, trigger gun.
• Inadequate extension cords can be
dangerous.
• To reduce the risk of electrocution, keep all
connections dry and off the ground. Do not
touch plug with wet hands.
• Do not abuse the cord. Never use the cord
to carry the product or to disconnect the
plug from an outlet. Keep cord away from
heat, oil, sharp edges, or moving parts.

Page 5
• Replace damaged cords immediately.
Damaged cords increase the risk of
electric shock.
• Inspect extension cords periodically and
replace if damaged. Keep handles dry,
clean, and free from oil or grease.
PRESSURE WASHER SAFETY
WARNINGS
• Read all the instructions before using the
product.
• To reduce the risk of injury, close
supervision is necessary when a product
is used near children.
• Know how to stop the product and bleed
unit pressure quickly. Be thoroughly
familiar with the controls.
• Stay alert – watch what you are doing.
• Do not operate the product when fatigued
or under the inuence of alcohol or drugs.
• Keep operating area clear of all persons.
• Do not overreach or stand on unstable
support. Keep good footing and balance at
all times.
• Follow the maintenance instructions
specied in the manual.
• This product is provided with a ground fault
circuit interrupter built into the power cord
plug. if replacement of the plug or cord is
needed, use only identical replacement
parts.
• Risk of injection or injury– Do not direct
discharge stream at persons.
• Keep the motor away from flammables and
other hazardous materials.
Keep product dry,
clean, and free
from oil and grease. Always use a clean
cloth when cleaning. Never use brake
fluids, gasoline, petroleum-based products,
or any solvents to clean product.
To reduce the risk of electrocution, keep all
connections dry and off the ground. Do not
touch plug with wet hands.
SAFETY INSTRUCTIONS
GROUND FAULT CIRCUIT
INTERRUPTER PROTECTION
• This pressure washer is provided with a
ground-fault circuitinterrupter (GFCI) built
into the plug of the power-supply cord.
This device provides additional protection
from the risk of electric shock. Should
replacement of the plug or cord become
necessary, use only identical replacement
parts that include GFCI protection.
SERVICING OF A
DOUBLEINSULATED
APPLIANCE
• In a double-insulated product, two
systems of insulation are provided instead
of grounding. No grounding means is
provided on a double-insulated product,
nor should a means for grounding be
added to the product. Servicing a double-
insulated product requires extreme
care and knowledge of the system, and
should be done only by qualified service
personnel. Replacement parts for a double-
insulated product must be identical to
the parts they replace. A doubleinsulated
product is marked with the words “DOUBLE
INSULATION” or “DOUBLE INSULATED.”
EXTENSION CORDS
• Use only extension cords that are intended
for outdoor use. These extension cords
are identied by a marking “Acceptable for
use with outdoor appliances; store indoors
while not in use.” Use only extension cords
having an electrical rating not less than the
rating of the product. Do not use damaged
extension cords. Examine extension cord
before using and replace if damaged.
Do not abuse extension cord and do not
yank on any cord to disconnect. Keep
cord away from heat and sharp edges.
Always disconnect the extension cord from
the receptacle before disconnecting the
product from the extension cord.
WARNING

Page 6
SAFETY INSTRUCTIONS
CHILD SAFETY
Tragic accidents can occur if the operator is
not aware of the presence of children.
• Keep children out of the working area and
under the watchful care of a responsible
adult.
• Do not allow children under the age of 14
to operate this machine. Children who are
14 years of age and older must read and
understand the operating instructions and
safety rules in this manual and must be
trained and supervised by a parent.
• Stay alert, and turn the machine off if
a child or any other person enters the
working area.
• Use extreme care when approaching blind
corners, doorways, shrubs, trees, or other
objects that may obscure your view of
a child who may run into the path of the
machine.
PROPOSITION 65
This product contains a chemical known to
the state of California to cause cancer, birth
defects or other reproductive harm. Some dust
created by power sanding, sawing, grinding,
drilling, and other construction activities
contains chemicals known to cause cancer,
birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement
and other masonry products;
• Arsenic and chromium from chemically
treated lumber.
Your risk of exposure to these chemicals
varies depending on how often you do this
type of work. To reduce your exposure to these
chemicals, work in a well-ventilated area, and
work with approved safety equipment, such as
dust masks that are specially designed to lter
out microscopic particles.
SAVE THESE INSTRUCTIONS

Page 7
OVERVIEW
SPECIFICATIONS
Universal Motor 120V~ 60 Hz, 14 Amps
Max. Pounds Per Square Inch Pressure 3000 PSI
Rated Gallons Per Minute 1.1 GPM
Maximum Inlet Water Temperature 104 °F (40 °C)
Cleaning Units 3300 C.U.
Weight 47.0 lbs. (21.3 kg)
SPAY GUN
UPPER PANEL
SPRAY GUN HOLDER
SPRAY WAND
WATER INLET
WATER OUTLET
WHEEL
DETERGENT
TANK
POWER CORD
CORD
STORAGE
ARM
POWER SWITCH
HIGH
PRESSURE
HOSE
HOSE HOOK

Page 8
UPPER PANEL
SCREWUPPER PANEL
1. Aligh the screw sleeves of the front panel
with the screw holes on the upper handle.
2. Tighten them with a Phillips screwdriver
(not included).
SPRAY GUN HOLDER
SCREW
SPRAY GUN HOLDER
1. Aligh the screw sleeves of the spray gun
holder with the screw holes on the upper
handle.
2. Tighten them with a Phillips screwdriver
(not included).
ASSEMBLY
UNPACKING
This product requires assembly.
• Carefully remove the product and any
accessories from the box.
• Inspect the product carefully to make sure
no breakage or damage occurred during
shipping.
• Do not discard the packing material
until you have carefully inspected and
satisfactorily operated the product.
• If any parts are damaged or missing, please
call 1-844-MSTR4CE (844-678-7423) for
assistance.
ELECTRICAL CONNECTION
This machine has a precisely built electrical
motor. It should be connected to a power
supply that is 120V, 60 Hz, AC only
(household). Do not operate this machine on
direct current (DC). A considerable voltage
drop will cause a loss of power and the motor
will be overheated.
PREPARE A DRIP LOOP
Recommend the use of a drip loop as below
so the water can not run along the power cord
even possibly reach the electrical outlet and
plug.
Keep the extension
cord clear of the
working area. Position
the cord so that it will not get caught on lumber,
tools, or other obstructions while you are
working with a power tool. Failure to do so can
result in serious personal injury.
WARNING
FIG. 1
FIG. 2
FIG. 3

Page 9
ASSEMBLY
SPRAY WAND
SPRAY WAND
TRIGGER
HANDLE
1. Push the end of the spray wand into the
trigger handle and rotate clockwise to
secure.
2. Pull on the spray wand to be certain it is
properly secured.
Make sure that the
connection has no
leakage.
HIGH PRESSURE HOSE
HIGH PRESSURE
HOSE
WATER
OUTLET
COUPLER
1. Push and turn clockwise one end of the
high pressure hose into the inlet coupler.
2. Install and tighten the other end of the
high pressure hose onto the water outlet
coupler.
POWER CORD
STORAGE ARMS
STORAGE ARM
1. Attach each of the power cord storage
arms into the two separate positions on the
lower handle of the xture.
2. Align the screw with the holes in each of
the two power cord storage arms.
3. Push the screw through and tighten both
power cord storage arms with a Phillips
head screw driver (not included).
UPPER HANDLE
BOLT
KNOB
UPPER
HANDLE
LOWER
HANDLE
1. Align the holes on the upper handle and
the lower handle.
2. Insert the handle bolts and use the handle
knobs to tighten them.
FIG. 4
FIG. 5
FIG. 6
FIG. 7
WARNING

Page 10
There must be a
minimum of 10 feet
of free hose between the water inlet and the
water supply.
USE THE SPRAY GUN
For safe control,
keep your hands on
the spray gun at all times.
TRIGGER
LOCK-OUT
BUTTON
1. Pull and hold the spray gun trigger to start
the machine.
2. Release the spray gun trigger to stop water
flow through the spray tip.
Unlock the spray gun trigger
1. Push the trigger safety lock-out button down
until it clicks into the slot.
Lock the spray gun trigger
1. Push the trigger safety lock-out button up
and into it's original position.
Make sure that all the
connections are tight
and have no leakage before operation.
CONNECT THE WATER SUPPLY
TO THE MACHINE
For easy operation, please use a self-coiling
garden hose (not provided).
When you operate
the self-coiling hose,
make sure that the hose has no blockage.
• The water supply must come from the water
main.
• Do not use hot water.
• Do not use water from ponds or lakes.
Always observe all the local regulations when
you connect the garden hose to the water
supply. Direct connection through a receiver
tank or backow preventer is usually permit-
ted.
Inspect the lter in
the water inlet con-
nector before you connect the garden hose.
• If the lter is damaged, do not use the
machine until the lter is replaced.
• If the lter is dirty, clean the lter.
HIGH
PRESSURE
HOSE
WATER
INTLET
1. Uncoil the garden hose.
2. Let the water flow through the garden hose
for 30 seconds.
3. Turn the water supply off.
4. Install and tighten the end of the garden
hose to the water inlet connector.
OPERATION
FIG. 6
FIG. 1
FIG. 2
WARNING
CAUTION
CAUTION
WARNING
WARNING

Page 11
40
O
White - Wide fan tip (40° )
• The white 40 degree tip,
referred to as the “fan” tip creates
the widest area of cleaning with
relatively low pressure. This
pressure washer tip is best used
for light or delicate cleaning
applications. It is recommended
for light cleaning on wood
decks and other soft or delicate
surfaces.
SOA
P
Black - Soap spray tip
• The black soap spray tip, is
used for soap application. Soap is
applied under low pressure high
volume for optimum performance.
Soap cannot be applied under
high pressure with this machine.
Turbo nozzle tip
• The nozzle rotates in a zero
to 15 degree spray pattern in a
circular motion to break down
tough dirt and grime. The spray
pattern can cover area of 4 to
8 inches wide, depending on a
distance between the tip and the
surface being cleaned.
Before you change
the spray tip:
1. Pull the spray gun trigger to release
water pressure.
2. Engage the trigger safety lock-out on the
spray gun.
3. Stop the machine.
Do not point the spray wand at your face or
others'.
NSTALL THE SPRAY TIP
1. Pull back the quick-connect collar on the
spray wand.
2. Insert the spray tip onto the spray wand.
3. Release the quick-connect collar to attach
the spray tip.
4. Pull on spray tip to ensure it is properly
installed and does not pull out.
SPRAY TIP
A
B
Click
Pull
back
SPRAY
TIP
APPLICATION
15
O
Yellow - Narrow fan tip (15° )
• The yellow pressure washer
tip provides high versatility with
its 15 degree angle tip. Referred
to as the washing tip, because it
provides adequate pressure to
remove dirt from surfaces, but is
designed to not damage many
surfaces. This pressure washer
tip is designed for “sweeping”
foliage or debris given its wide
angle. This tip is versatile due
to its wide area of cleaning and
strong pressure application.
25
O
Green - Narrow fan tip (25° )
• The green pressure washer tip
provides high versatility with its
25 degree angle tip. Referred to
as the washing tip, because it
provides adequate pressure to
remove dirt from surfaces, but is
designed to not damage many
surfaces. This pressure washer
tip is designed for “sweeping”
foliage or debris given its wide
angle. This tip is versatile due
to its wide area of cleaning and
strong pressure application.
OPERATION
WARNING
FIG. 1
FIG. 3

Page 12
ADD DETERGENT
Do not use
household
detergents, acids, alkalines, bleaches,
solvents, flammable material, or industrial
grade solutions, which can do damage to the
pump.
Read the instructions on the solution bottle to
prepare detergent.
NOTE: f it is necessary, use a funnel to
prevent the spill of detergent. Clean and dry
the spilled detergent when you ll the tank.
NOTE: Soap/detergent can only be applied
with this machine when the black nozzle(75
degree) is installed.
DETERGENT
TANK
1. Place the pressure washer upright on a flat
surface.
2. Open the cap on the detergent tank.
3. Pour detergent into tank.
4. Reinstall cap.
NOTE: Do not let detergent dry on the surface
to prevent streaks.
START THE MACHINE
Do not operate
without the water
supply connected.
Before you start the
machine:
1. Turn the water supply on.
2. Pull the gun trigger to release air pressure.
3. If a stable stream of water come into view,
release the spray gun trigger.
OPERATION
FIG. 4
ON/OFF SWITCH
1. Connect the machine to the power supply.
2. Press down on the ON/OFF switch once to
set the power switch to the "ON" ( | )
position.
3. Turn the water supply on.
4. Pull the spray gun trigger.
STOP THE MACHINE
1. Release the spray gun trigger.
2. Press down on the ON/OFF switch, once
again, to set the power switch to the "OFF"
(O) position.
If you do not use the
machine:
• Stop the machine.
• Turn the water supply off.
• Disconnect the power cord from the outlet.
• Pull the spray gun trigger to release the
remaining pressure from the machine.
• Engage the trigger safety lock-out on the
spray gun.
THERMAL RELIEF VALVE
FUNCTION
The thermal relief valve is a thermal protector
for the pressure washer pump. This pump
feature will prevent water temperatures from
reaching harmful levels by releasing a small
amount of water. Opening temperature is
140°F. The valve will reset automatically once
the pump relives.
WARNING
WARNING
FIG. 4
CAUTION
CAUTION
FIG. 5

Page 13
MAINTENANCE
Before maintenance, make sure that you
• Stop the machine.
• Wait until all the moving parts stop.
• Disconnect the plug from the power source.
Do not use strong solvents or detergents on
the plastic housing or components.
Do not let brake fluids, gasoline, petroleum-
based materials touch the plastic parts.
Chemicals can cause damage to the
plastic, and make the plastic unserviceable.
Replace the power cord by an approved
service center.
SPRAY TIP MAINTENANCE
Remove the spray tip
1. Pull back the quick-connect collar on the
spray wand.
2. Remove the spray tip from the spray
wand.
Clean the spray tip
1. Use a straight paper clip or cleaning tool
to clean the spray tip.
2. Flush and clean the unwanted materials
out of the spray tip with the garden hose.
3. Install the clean spray tip (18) back into
the spray wand.
TRANSPORTATION AND
STORAGE
Disconnect the
power cord and
watter supply hose before transportation and
storage.
Move the machine
• Point the spray wand in a safe direction.
• Only hold the machine with the handgrip.
Store the machine
Make sure that the
spray gun, the high pressure hose and the
pump are dry.
WARNING
WARNING
WARNING
Make sure the machine is out of the reach of
children.
NOTE: Use a recommended pump protector
to prevent cold weather damage during
storage in winter.
• Disconnect the garden hose from
machine.
• Wind the power cord and the high
pressure hose.
• Clean housing and the plastic
components with a moist and soft cloth.
• Make sure that the machine does not have
loose or damaged parts. If it is necessary,
follow these steps/instructions:
• Replace the damaged parts.
• Tighten the bolts.
• If needed, call the customer service
phone number (enter number here) for
servicing instructions.
• Store the machine in a dry, isolated and
frost-free area.

Page 14
PROBLEM POSSIBLE CAUSE SOLUTION
The motor does
not start.
The power button
is in the "OFF"
(O) position.
Set the power switch to the “ON” ( | ) position.
The power cord is
not plugged in.
Connect the power cord to the power supply.
Electrical outlet
does not supply
sufcient power.
Try another electrical outlet.
The circuit breaker
is tripped.
Let it cool, and start the machine again.
The power switch
is on, but you do
not pull the spray
gun trigger.
Pull the spray gun trigger.
The machine does
not reach high
pressure.
The diameter of
garden hose is too
small.
Replace with a 1” (25 mm) or 5/8” (16 mm)
garden hose.
Water supply is
restricted.
Check garden hose for kinks, leaks, and
blockage.
The water supply
is not sufcient.
Open the water supply fully.
The motor is
overloaded.
1. Remove the trimmer head from the grass.
2. The motor will recover to work as soon as
the load is removed.
3. When you cut, move the trimmer head in
and out of the grass to be cut and remove
no more than 8" in each pass.
Spray tip has not be
installed onto the
spray wand properly.
Remove lter and rinse in warm water.
The water intake
lter is clogged.
Install the battery pack again.
TROUBLESHOOTING

Page 15
The output pressure
varies high and low.
The water supply
is not sufcient.
Open water supply fully. Check garden hose
for kinks, leaks, or blockage.
The pump is drawing
in air.
1. Make sure that the hoses and tting are
airtight.
2. Turn "OFF" machine.
3. Purge pump by squeezing trigger gun until a
stead flow of water comes out the spray tip.
The water intake
lter is clogged.
Remove the lter and Rinse in warm water.
The supply voltage
is low.
Make sure that only the pressure washer is
running on the circuit.
The gun, hose or
nozzle are calcied.
Run distilled vinegar through detergent tank.
The motor buzzes,
but the machine
does not start.
The supply voltage
is low.
Make sure that only the pressure washer is
running on the circuit.
The pump system
has residual pressure.
1. Turn "OFF" the machine.
2. Pull the spray gun trigger on spray wand to
release pressure.
3. Turn the machine "ON".
Voltage loss due to
use of an improper
extension cord.
Disconnect the extension cord, and connect
the machine directly into the outlet.
Pressure washer
not used for long
periods.
Call customer service.
Residual friction
among components.
Unit might emit a
humming noise.
1. Disconnect the water supply.
2. Power "ON" the machine for 2 to 3 seconds.
3. Repeat the above step a couple of times or
until the motor starts.
There is no water. The water supply
is off.
Turn the water supply on.
The garden hose is
kinked.
Remove kink in garden hose.
TROUBLESHOOTING

Page 16
ITEM NO. PART NO. DESCRIPTION QTY
131208363 Turbo Nozzle 1
2C1102 283 - 0 0 40°spray Tip 1
3C1105300-00 15°spray Tip 1
4C1102 282- 00 25°spray Tip 1
534139319 Soap Tip 1
6C4100577-00 Spray Gun Holder 1
7C3200440-00 Upper Handle 1
8C3200441-00 Nozzle Storage Panel Assembly 1
93410835 -3 Nut 2
10 341013231 Power Cord Storage 2

Page 17
ITEM NO. PART NO. DESCRIPTION QTY
11 C4200043-00 Frame Food Pad 2
12 342011635 Detergent Tank Cap 1
13 C4100486-00 Detergent Tank 1
14 C4102173 - 00 Wheel Assembly 1
15 C3200440-00 Lower Handle 2
16 C4100493-00 Lower Housing 2
17 C1101044-00 Motor Assembly 1
18 C4100491-00 Upper Housing 1
19 C6200015-00 Power Switch 1
20 C1101065-00 PCB Board 1
21 C11015 54- 0 0 Spray Wand 1
22 C1104426-00 Spray Gun 1
23 31131163 5 High Pressure Hose 1

Page 18
NOTE

Page 19
NOTE
