Matador ARiUS User manual

Wireless Outdoor Speaker
Solar Powered Models

1

ARIUS- Everywhere life takes you.
Now you can enjoy your home stereo ( or any output) outside
without running wires. You can even plug in your i–Pod directly to
the speaker. The best of all, you can enjoy the music continuously
powered by Sun without the need of getting up from your sun
lounge. This weather proof speaker produces a very strong 15
Watts of sound with two powerful speakers. 900 MHz technology
transmits the signal thru walls, floors, and ceilings up to 150 feet
from transmitter. And there is no tuning --- ever.
This wireless solar speaker comes with remote control, 360
degree angle. It also has been thoroughly tested to ensure it
meets our uncompromising quality standards. Please just take a
few minutes to review this manual before using this product.
PLEASE SAVE THIS INSTRUCTION
In a safe place so you can refer to them if needed.
2
Wireless Solar Outdoor Speaker

Battery Installation Process
3
Step 1.
Step 2.
Step 3.

The time it takes to charge the batteries is significantly relevant
to the operation (time /volume usage.) This speaker can be
operating as well as in charging conditions. The battery under
the digital screen shows running mode while it is externally
powered and recharged. The rechargeable batteries, contained
in the speaker, will automatically disconnect when fully charged.
At least 12 hours of recharging time by the supplied
adapter (contained in the box.) is needed before using
(RECOMMENDED.) The speaker also can be charged by the
Sun. All you have to do is set the solar power mode switch in
“ON” position under the top panel. The batteries will be charged
slowly by the Sun. A “SUN” icon, on the digital screen, indicates
whether or not the solar power mode is in “ON” position. The
batteries can not be charged by the Sun when the switch is
turned to the “OFF” position. Also, there is no “SUN” icon
showed on the digital screen if the switch is turned to the “OFF”
position. The battery meter on the screen will show running
mode while it is externally powered or recharged by the Sun.
When fully charged, the battery meter in the screen stop
showing the running mode, and it will automatically be
disconnected.
When the charging process is interrupted or surged, which
means external power is disconnected, the battery sign on the
digital screen starts to show the energy amount in the battery
compartment . You can check how much power is available and
when to fast charge, when needed, by pushing the “BATTERY”
icon button on the speaker panel. Our “Manual Power Meter
Activator” (battery icon button ) always allow you to know
the amount of charge available.
4
Charging The Built-in Battery Process
1.
2.

3.Make sure that this speaker only operates with the supplied AC
adapter. It must only be powered from 100-240V~50/60Hz,
always keeping the charging process indoor and must be in dry
environment.
4.Substituting the supplied AC adapter in this package for another
may damage the charging circuit insides and void the warranty.
5.Charging Instruction: plug the supplied AC adapter insert
connection into the power plug-in located on the bottom of the
speaker. Then insert the AC adapter power plug into a standard
house outlet (AC100-240V~50/60Hz electrical sockets).
Observe that the battery meter on the digital screen now shows
running mode.
6.Charging time is approximately 12 hours for a full charge.
7.Built-in rechargeable battery runs up to 8 hours on a single
charge.
8.The battery meter on the digital screen blinks when the battery
is low.
9.You can use the built-in battery to power the unit, or you can
leave the unit plugged in and use electric power.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
1.
5

Battery Care & Disposal Guide
‧Never dispose of the rechargeable batteries in a fire. Dispose of
rechargeable batteries properly.
‧Never leave batteries where a child or pet could ever reach or
play with. If batteries are swallowed, contact a physician
immediately.
‧Batteries may explode if mistreated. Do not attempt to
disassemble batteries.
‧Failure to comply with local, State & Federal regulations can
result in fines, or imprisonment.
This is not a TOY, Keep away from Children.
‧
‧
‧
‧
‧
Warning:
disassembled.
2.Do not place speaker near heat sources such as fire pit
or heating vents.
3.This speaker is specifically for use in normal environment,
do not place it in extreme condition such as refrigerator
or heating area.
4.ALWAYS turn the transmitter and speaker power OFF
when not in use.
1.The limited guarantee may void if the speaker is
1.
1.
1.
1.
1.
6

Statement of FCC Compliance
‧This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
‧Reorient or relocate the receiving antenna.
‧Increase the distance between the equipment and receiver.
‧Connect the equipment to an outlet on a circuit different from
which the receiver is connected.
‧Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1.This equipment may not cause harmful interference.
2.This equipment must accept any interference received, including
interference that may cause undesired operation.
‧
‧
‧
‧
‧
‧
‧
‧
‧
2.
7

Parts Diagram
8
9 10 11 12
15
16
17
TRANSMITTER :
1.Transmitter Power Indicator
2.Off, Ch1, Ch2, Ch3
3.DC 12V
4.R/L Line In
REMOTE CONTROL
6.Power
7.Bass
8.Light
:
5.Volume “-,+”
Speaker :
9.
10.Power
11.Bass
12.Light
13.Digital Screen
14.Manual Power
Meter Activator
15.Channel Indicator
16.Screws
17.Battery Compartment
Cover
Volume
14.
15.
23 4
1
TRANSMITTER
5
6
78
REMOTE CONTROL
Speaker
14
13

Transmitter Operation
9
Charging the Wireless Transmitter
1.Insert one end of the AC adapter into the Transmitter's 12V DC
power plug-in and the supplied adapter into an electrical outlet.
(The charging indicator illuminate red indicating it is charging.)
IMPORTANT:
When charging the transmitter for the first time, charging time is
approximately five hours for a full charge.
2.Charging time is approximately five hours each time.
3.The charging indicator illuminates green when the unit is fully
charged.
4.Built-in Rechargeable battery runs up to five hours on a single
charge.
5.The POWER INDICATOR illuminates red when the battery is low.
6.You can use the built-in battery to power the transmitter by
switching the channel to either CH1, CH2 or CH3, or you can
leave the transmitter plugged in and use supplied AC adapter.
1.
1.
1.
1.
1.
1.

Transmitter Operation ( Continued )
When the audio source is from:
1.Left & Right RCA output jacks:
You only can use the DUAL RCA CABLE.1.
2.A Stereo headphone jack:
You can use both the Y type 3.5MM CABLE or Dual RCA CABLE.
Dual RCA CABLE Audio SourceTransmitter
Warning:
1.Do not USE or Charge in Rain or damp condition.
2.The power adapters, contained in the box, are for indoor
use ONLY.
3.For a better signal reception, the use of Supplied AC
adapter (contained in the box) is always recommended.
4.Batteries operated transmitter can be used up to 5 hours
when the batteries are fully charged.
Do NOT connect the dual RCA CABLE to audio terminals on
TV or any incompatible audio source. This MAY damage
the transmitter, TV or Audio Source.
1.
1.
1.
1.
1.
1.
10
Y type 3.5MM CABLETransmitter MP3 Player

11

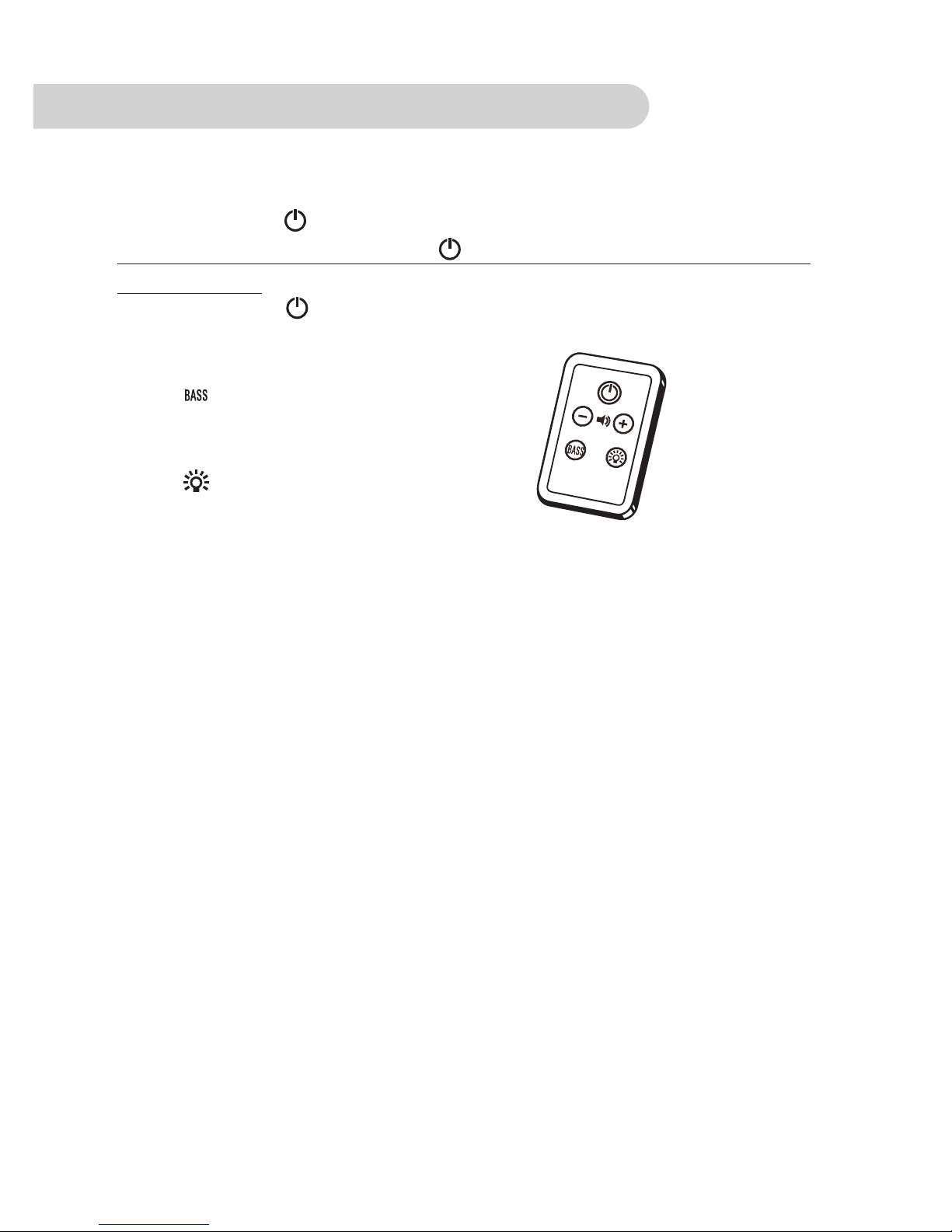

Remote Control Operation
TURNING THE UNIT ON/OFF
Press and hold to turn the unit on.
IMPORTANT: PLEASE HOLD at least 1 sec. to allow the unit
to power ON.
Press and hold again to turn the unit OFF
ADDING BASS
Press to add bass effect.
ADDING LIGHTS
Press to add light effect.
ADJUSTING THE VOLUME
Press + or - to adjust the volume to your desired listening level.
or press and hold + or - to adjust the volume at a faster rate.
Before use, pull the battery tab from the remote control's battery
compartment. To use the remote control, point it to the speaker to
get the best reception.
NOTE: Even if the remote control is within effective range,
operation may be compromised by obstacles between the remote
control and the speaker. If the remote control is operated near
other units that generate RF signal or if other remote control
devices using RF are used near the main unit, the remote control
may operate incorrectly. Conversely, it is possible that the remote
control may make other units operate incorrectly.
REPLACING THE REMOTE CONTROL BATTERY
1.Remove the battery compartment cover.
2.Remove the old batteries and insert 2 pcs of "AAA” Alkaline
batteries. (Replacement Batteries are not included.) according
to polarity indicators inside the compartment.
3.Replace the Battery compartment cover.
2.
2.

Picture 3.
DC 9- 12V
Speaker Operation
12
Picture 1.
This speaker can be powered by two ways.
1.Supplied AC adapter. (contain in the box.)
2.Solar Powered.
If you prefer to use the supplied AC adapter
( RECOMMENDED always):
Simply insert one end of the
adapter into DC 9V at the
bottom of the speaker, and
the other end into an
electrical outlet.
If you prefer to use by SOLAR POWER:
1.At least 12 hours recharging time by the Supplied AC
Adapter (contained in the box.) is needed when first time
usage. Charge the speaker indoor ONLY.
2.Turn the Solar Power switch to
“ON” position under the
TOP PANEL.
3.Place the speaker under
the SUN for the best solar
cell absorption and for longer
operation ( time usage).
(Picture 1.)
(Picture 2.)
(Picture 3.)
1.
1.
1.
1.
1.
1.
1.
1.
Picture 2.

13
Exclusive Charging Technology by Rechargeable
Battery:
This speaker is powered by brand rechargeable batteries. DO NOT
attempt to disassemble. Substituting the supplied brand
rechargeable batteries will damage the charging circuit inside
and void the warranty.
Good for 1000+ cycles.
Replacements available at customer service.
([e-mail] )
or toll free at 1-877-350-4184
Brand
Speaker Operation (Continued )

Speaker Operation (Continued )
1.Before turning the speaker on, always turn the transmitter on
first. The light on transmitter will light up by switching channel
from OFF to channels 1,2 and Picture 1)and turn CH1, Ch2,
CH3 on the speaker to the same channel selected on the
transmitter(picture 2) .
1.
1.
1.
1.
3 (
2.Press Power on the speaker and the Speaker Power Mode
lights up.
3. Press Volume & to adjust the speaker volume to your
desired listening level. The or lights up
4. Press BASS to turn on the bass. The BASS mode lights up.
5. Press Lights to turn the lights on. The LIGHTS mode lights
up.
2.
3.
5.
Picture 2.
Warning:
1.When signal turns weak ( interference occurs), turn the
channel on both speaker & the transmitter in sync.
2.Always press (Power mode)to turn the power off when
not in use.
3.Always remove the batteries to avoid the leakage in the
battery cell in speaker.
4.Slide the channel to the OFF
position on the transmitter
when not in use.
1.
1.
3.
4.
4.
14
Picture 1.
A.
B.

Specifications
Transmitter:
Range:--------------------------------150 feet
Fine Tuning----------------------------Automatic
Number of Channels ------------------3
Dimension-----------------------------1.6” x 5.48” x 4.84”
Power Supply—Solar & AC/DC Adapters
Speaker:
Power On/Off--------------------------Yes
Volume Control------------------------Yes
Fine Tuning----------------------------Automatic
Speaker Unit --------------------------5” Woofer, 1” Tweeter
Frequency Level ---------------------- 50kHz-20kHz
Dimension-----------------------------8.5" x 9.25" x 15.5"
Power Supply- 8“AA”rechargeable batteries
(Ni-MH 2000 mAh recyclable batteries)
Digital Screen-------------------------Yes
USA Office
145 N. Sierra Madre Blvd. Ste. 2. Pasadena, CA 91107
Tel : [phone]
Fax : [phone]
Toll Free Line: 1-877-350-4184
Or contact us by email at:
E-mail : [e-mail]
