Tema Telecomunicazioni AD633C User manual

AD633C
VoIP SIP 12W PoE Ceiling Speaker
with IP54 flameproof cover
Serie Audio Over IP Network
PRODUCT MANUAL
Version HW 1.0 - Version SW 1.10
Revision
Date
Revision reason
Prepared
Checked/A
pproved
1 21/02/2018 Update MM, DP DP, FL
TE
MA TELECOMUNICAZIONI
“IP COMMUNICATION AND SECURITY COMPANY”
WWW.TEMATLC.IT
Products for VoIP SIP LAN networking Communications, Paging Amplifiers Systems and
Audio Applications. Zone Announcements, Night Ringer, Multicast general call,
Background music, Standard SIP call or Emergency call, SD memory with pre-recorded
me
ssages, Relays for LAN drives.

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 2 of 48
We, TEMA TELECOMUNICAZIONI SRL Via C. Girardengo, 1/4 - 20161 MILANO
declare under our sole responsibility that the product:
Product name Altoparlante VoIP SIP 12W PoE da soffitto con calotta antifiamma IP54
Trade name TEMA TELECOMUNICAZIONI Srl
Type or model AD633C
and accessories --
to which this declaration relates is in conformity with the essential requirements and other
relevant requirements of the R&TTE Directive ( 1999/5/EC, 2006/95/EC, 2004/108/EC ).
The product is in conformity with the followings standards and/or other normative documents:
HEALT & SAFETY EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011
EMC EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006
EN 61000-3-3 :2008
MILANO, 20 February 2017 TEMA TELECOMUNICAZIONI SRL
D. Pontillo
I. IMPORTANT INFORMATIONS REGARDING THE RECOVERY AND RECYCLING OF THIS
ELECTRONIC DEVICE
DICHIARAZIO
NE DI CONFORMITÀ CE
DECLARATION OF CONFORMITY CE
The crossed
-
out wheeled bin symbol below indicates that this electronic equipment is
intended to be disposed in a separate collection and not in an unsorted municipal
waste, in order to provide for the treatment of WEEE (Waste Electrical and Electronic
Equipment) using best available recovery and recycling techniques. Specific treatment
for WEEE is indispensable in order to avoid the dispersion of pollutants and other
hazardous substances into the waste stream, while recycling leads to reduction of
disposal of waste and the negative impacts on environment and human health. That is,
priority is given to reuse of WEEE in its components, subassemblies and
consumables. As the final holder, the user has an important role in contributing to
reuse, recycling and other forms of recovery of WEEE and is responsible to return this
waste in the collection facilities set up by EC Member States and to fulfill other duties
in compliance with Directive 2002/96/EC and local laws.
UNI EN ISO 9001:2008
TEMA TELECOMUNICAZIONI is a certified company
The crossed
-
out wheeled bin symbol below indicates that this electron
ic equipment is
intended to be disposed in a separate collection and not in an unsorted municipal
waste, in order to provide for the treatment of WEEE (Waste Electrical and Electronic
Equipment) using best available recovery and recycling techniques. Specific treatment
for WEEE is indispensable in order to avoid the dispersion of pollutants and other
hazardous substances into the waste stream, while recycling leads to reduction of
disposal of waste and the negative impacts on environment and human health. That is,
priority is given to reuse of WEEE in its components, subassemblies and
consumables. As the final holder, the user has an important role in contributing to
reuse, recycling and other forms of recovery of WEEE and is responsible to return this
waste in the collection facilities set up by EC Member States and to fulfill other duties
in compliance with Directive 2002/96/EC and local laws.
UNI EN ISO 9001:20
15
TEMA TELECOMUNICAZIONI is a certified company

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 3 of 48
RECOMMENDATIONS
1. It is recommended to read this entire manual before proceeding to the installation of the device.
2. The installation and commissioning of the device can only be performed by specialized technicians.
3. The device is accurately manufactured and tested. In any case, the product is not recommended for use
where an error of operations can cause property damage and/or injury to persons.
4. It is expressly not recommended maintenance inside the device which must be carried out by Tema
Telecomunicazioni, the removal of the closures will invalidate the warranty and makes accessible internal
parts with risk of electric shock.
5. Tema Telecomunicazioni accepts no responsibility for damage to property and/or persons resulting from
incorrect use of the equipment or by procedures that do not comply with the instructions in this manual.
Tema Telecomunicazioni reserves the right to make modification to the technical and functional
specifications at any time and without any notice.
6. Products powered via PoE (Power over Ethernet) may only be connected with cables coming from the
internal network company (inside the building), are not allowed connections LAN cables coming from outside
the building.
7. Use for this device only and exclusively original spare parts and consumables supplied by Tema
Telecomunicazioni. The company is not responsible for damage caused by the use of materials not supplied
by the same.
8. Do not expose the unit to direct sunlight, protect from heat, dust, humidity and chemicals.
9. Tema Telecomunicazioni reserves the right to vary the product characteristics for improvement without prior
notice. Check the WWW.TEMATLC.IT website for any updates to the latest firmware, manuals, and
technical documentation.
10. This document is property of Tema Telecomunicazioni, It is forbidden any duplication and reproduction, even
partial, as well as storage on any medium without written permission of Tema Telecomunicazioni.
This symbol in the descriptions indicates a general warning or a damage danger
to equipment or people.
This symbol in the descriptions indicates useful information or a suggestion for
the optimization of the device functionality.

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 4 of 48
1. PRESENTATION ........................................................................................................................................ 5
2. FEATURES.................................................................................................................................................. 7
3. PACKING LIST ........................................................................................................................................... 7
4. TECHNICAL SPECIFICATIONS ............................................................................................................... 8
5. OPERATION................................................................................................................................................ 9
5.1. D EVICE CONNECTION DIAGRAMS ..........................................................................................................................9
6. OPERATING MODES............................................................................................................................... 10
6.1. C ALLS TO DEVICES ...........................................................................................................................................10
6.2. RELAY FUNCTION ...........................................................................................................................................10
6.3. C ALLS GENERATED FOR ACQUISITION OF EXTERNAL CONTACTS FOR SPECIAL SIGNALINGS ........................................10
6.4. M ULTICAST A UDIO S TREAMING .........................................................................................................................11
7. COMMANDS AND CODES...................................................................................................................... 11
8. INSTALLATION OF THE DEVICE .......................................................................................................... 12
M OUNTING AND POSITIONING OF THE AD633C SYSTEM ..............................................................................................12
A CCESS TO INTERNAL PARTS - CABLE ROUTING ..........................................................................................................12
8.1. C ONNECTING OF THE AD633C INTERNAL MODULE ..............................................................................................13
8.2. C ORRECT CONNECTION OF AN ADDITIONAL PASSIVE SPEAKER ..............................................................................15
8.3. 100V AUDIO LINE FOR ADDITIONAL SPEAKERS AWAY FROM AD633C IP S PEAKER ...................................................16
9. PROGRAMMING ...................................................................................................................................... 17

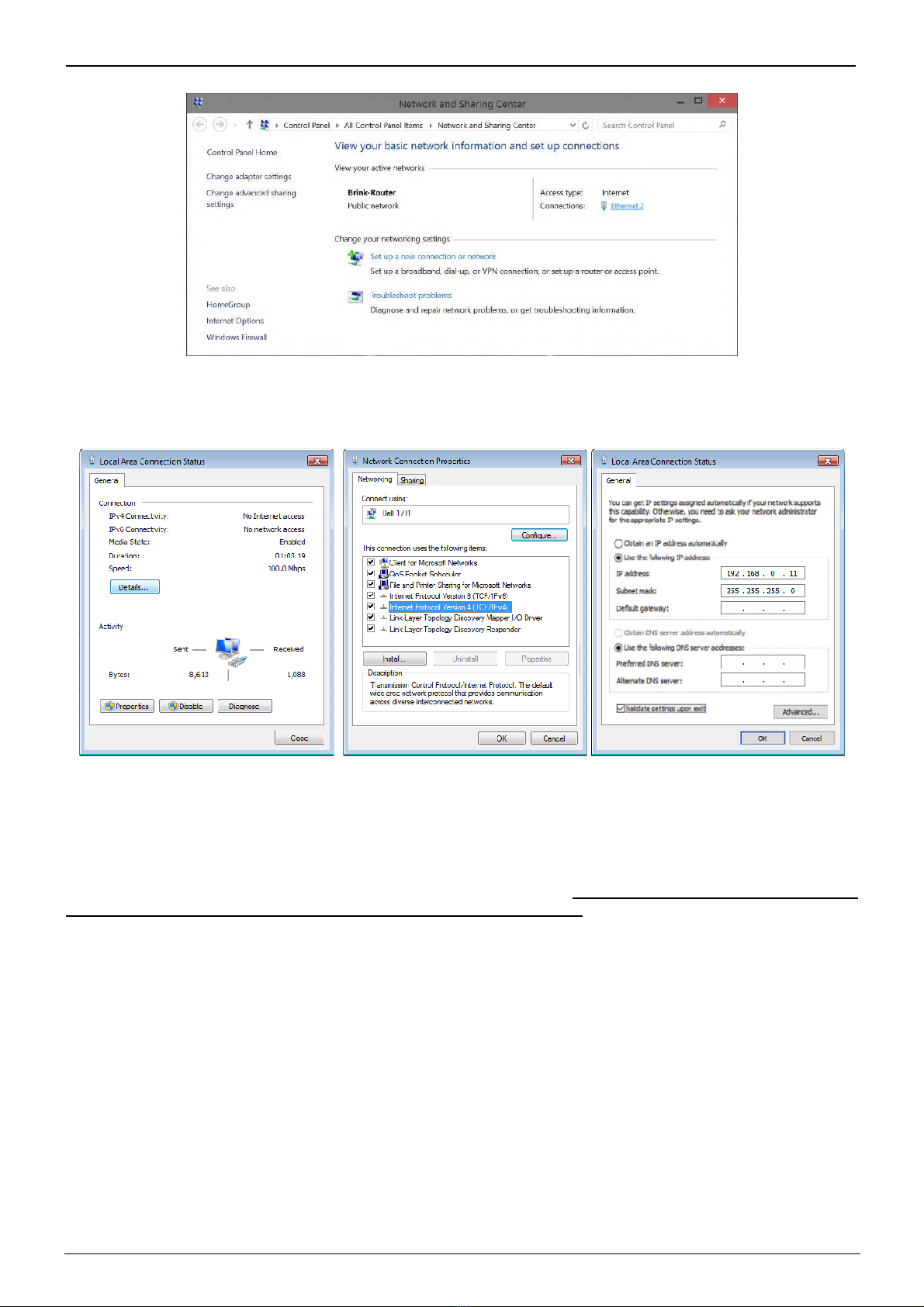

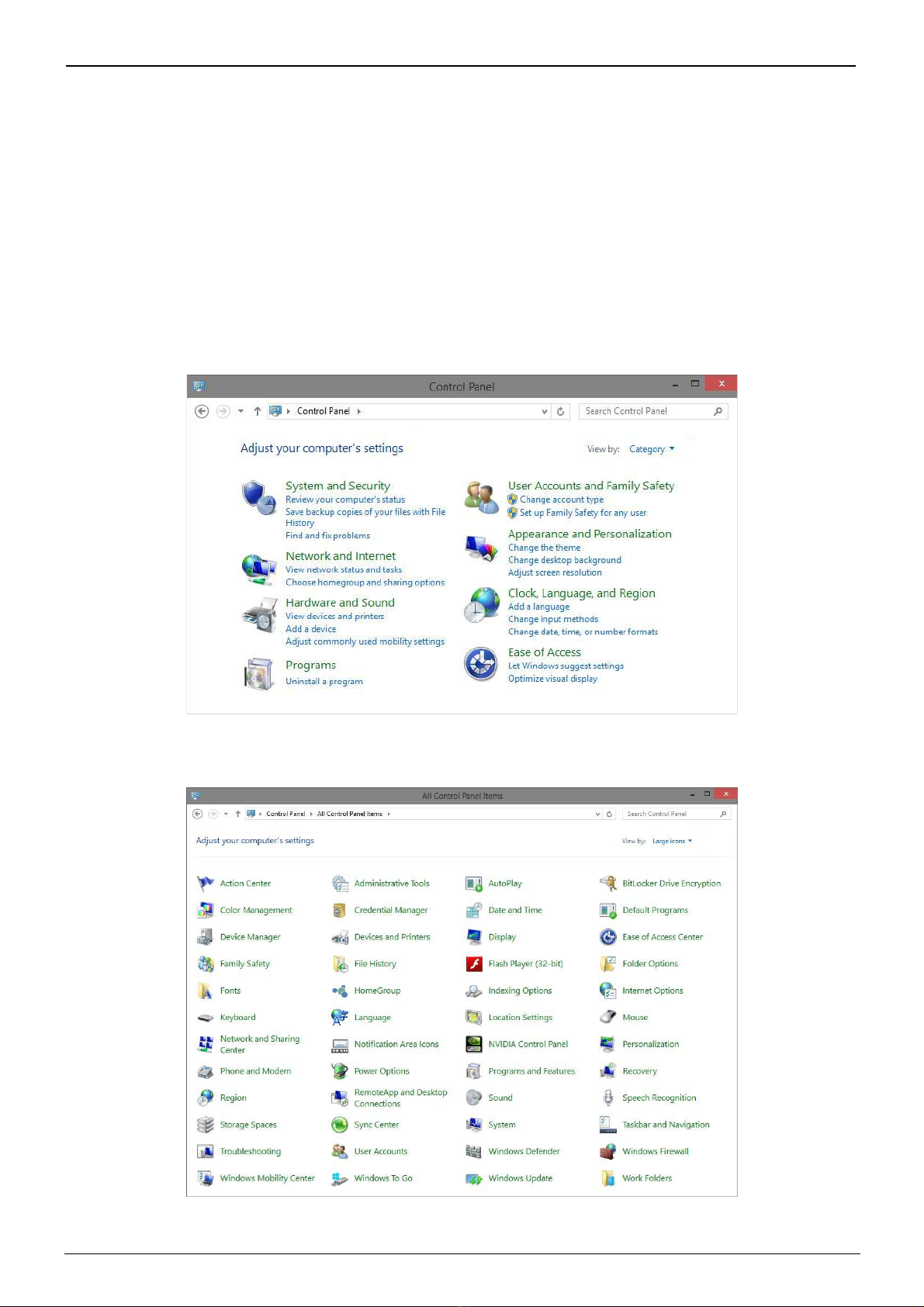

9.1. P REPARATION FOR THE SYSTEM PARAMETERS PROGRAMMING ..............................................................................17
9.2. A CCESS TO PROGRAMMING ...............................................................................................................................19

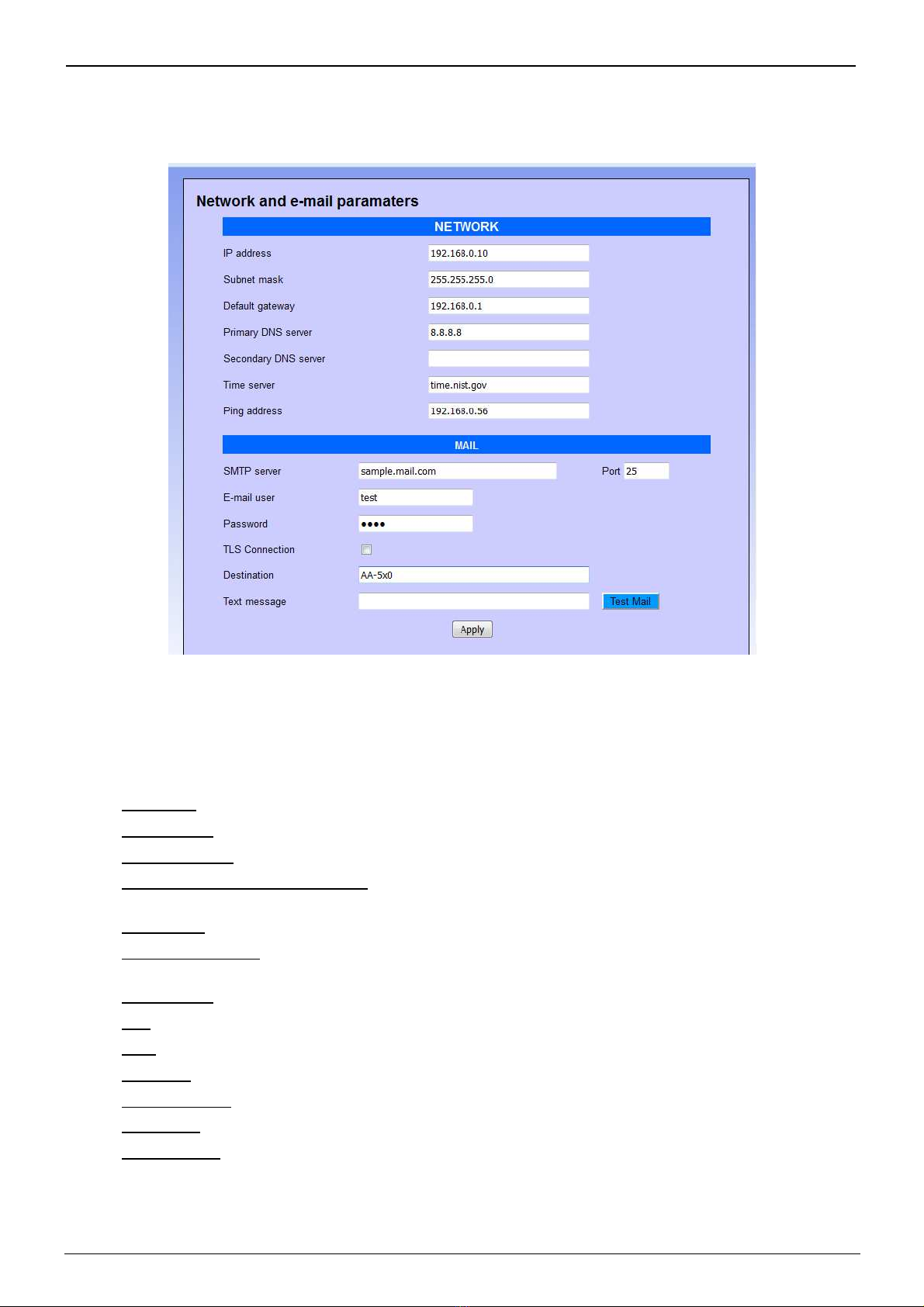

9.3. N ETWORK PARAMETERS ...................................................................................................................................20
9.4. SIP P ARAMETERS ...........................................................................................................................................21
9.5. G ENERAL PARAMETERS ....................................................................................................................................22
9.6. S ET OF THE OPERATING MODE ..........................................................................................................................23
9.7. R ELAY AND ALARM INPUT SETTINGS ...................................................................................................................24
9.8. C AMERA .........................................................................................................................................................25
9.9. C ALL BUTTONS ................................................................................................................................................26
9.10. M ESSAGES MANAGEMENT ...........................................................................................................................27
9.11. A UTOMATIC A NNOUNCEMENTS .....................................................................................................................29
9.12. C ALLS R EPORT ..........................................................................................................................................31
10. MAINTENANCE........................................................................................................................................ 32
10.1. S YSTEM ....................................................................................................................................................32
10.2. L OGIN CREDENTIALS ...................................................................................................................................33
10.3. D IAGNOSTIC LOGS ......................................................................................................................................33
11. PRESENTATION AND USE OF THE "AA Video Console" SOFTWARE ........................................ 34
11.1. P RESENTATION ..........................................................................................................................................34
11.2. S OFTWARE CONFIGURATION FOR SIP S ERVER MODE .....................................................................................35
11.3. S OFTWARE CONFIGURATION FOR P EER -T O -P EER MODE .................................................................................36
12. Introduction to AA-Video Console APP version for operating systems iOS............................... 37
12.1. D OWNLOADING AND INSTALLING THE APP ......................................................................................................37
12.2. U SING THE APPLICATION .............................................................................................................................39
13. Introduction to AA-Video Console APP version for ANDROID systems ...................................... 39
13.1. D OWNLOADING AND INSTALLING THE APP ......................................................................................................39
13.2. U SING THE APPLICATION .............................................................................................................................41
14. APPENDIXES............................................................................................................................................ 43
14.1. A PPENDIX 1: O THER EXAMPLES OF M ULTICAST A UDIO S TREAMING APPLICATIONS .............................................43
14.2. A PPENDIX 2: U SE OF THE VLC M EDIA P LAYER SOFTWARE AS A M ULTICAST E NCODER FOR AUDIO FILES ..............45
14.3. A PPENDIX 3: U SE OF THE AUDACITY SOFTWARE FOR AUDIO FILES RECORDING ...............................................46
14.4. A PPENDIX 4: C ABLING OF A UTP RJ45 NETWORK CABLE ACCORDING TO THE STANDARD EIA568B.....................47
INDEX PAGE

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 5 of 48
1. PRESENTATION
AD633C allows to realize Paging Amplification Audio Sound Systems in a standard LAN network completely
integrating with IP-PBX SIP in order to be able to play announcements from any telephone in the internal network
and any technologies: analog, SIP, Smartphones and Softphones.
Access can be authorized by Password with code to be typed before starting the announcement. Two internal
relays can be programmed to be automatically activated when it is called or to be controlled from the phone via
LAN that originated the call to the AD633C speaker, eg. to report the event to any auxiliary devices connected
downstream.
The system programming is done remotely via LAN thanks to the integrated Web server. AD633C incorporates an
efficient Class-D 10W (2x5W) amplifier.
2nd SIP Account – Night Ringer. AD633C can be registered on the PBX with a second telephone number,
different from the one used for ads and inserted in the night ring group. To the arrival of an incoming call, the
system plays a sound (user selectable) to all the network speakers. The volume can be adjusted independently of
the others managed audio channels.
Inputs from external contact with a variety of functions, for example: provide to make a SIP call to a
preprogrammed number and inform the operator of the event with an appropriate voice message. The signaling
can be repeated a number of programmable times, the operator can interrupt the sequence with a keyboard code.
Other examples of use will follow in this manual.
Multicast Audio Streaming for music and announcements diffusion. AD633C handles up to 5 multicast channels
in LAN with priority levels to allow the background music broadcasting on loudspeakers network. The generation of
musical programs in streaming audio can be managed from a PC of the LAN/WAN network with special software or
special TEMA Encoder.
Service "SIP Security Info Call" - Emergency SIP Call. By connecting a button or an external contact, AD633C
can call a phone number programmed to alert the event with a specific warning message. It is a security service for
emergencies or simple request for help and information, and allows a one-way phone call.
Total remote management via LAN, integrated Web Server. Programming, configuration, loading and listening to
audio files, firmware release update, audio volume adjustment, backup and restore the configuration, device
reboot.
Possibility to connect one or more external passive loudspeakers on the 2nd amplifier to expand audio coverage
of the served area.
AD633C can be powered with an external power supply, or only from the LAN cable via PoE, the two power
sources can coexist.
Tested with most popular P X brands:
SIEMENS - AVAYA - ALCATEL – PANASONIC – SAMSUNG - NEC -
LG
WILDIX - AASTRA - ASCOM - VT NITSUKO - SELTA – PHILIPS

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 6 of 48

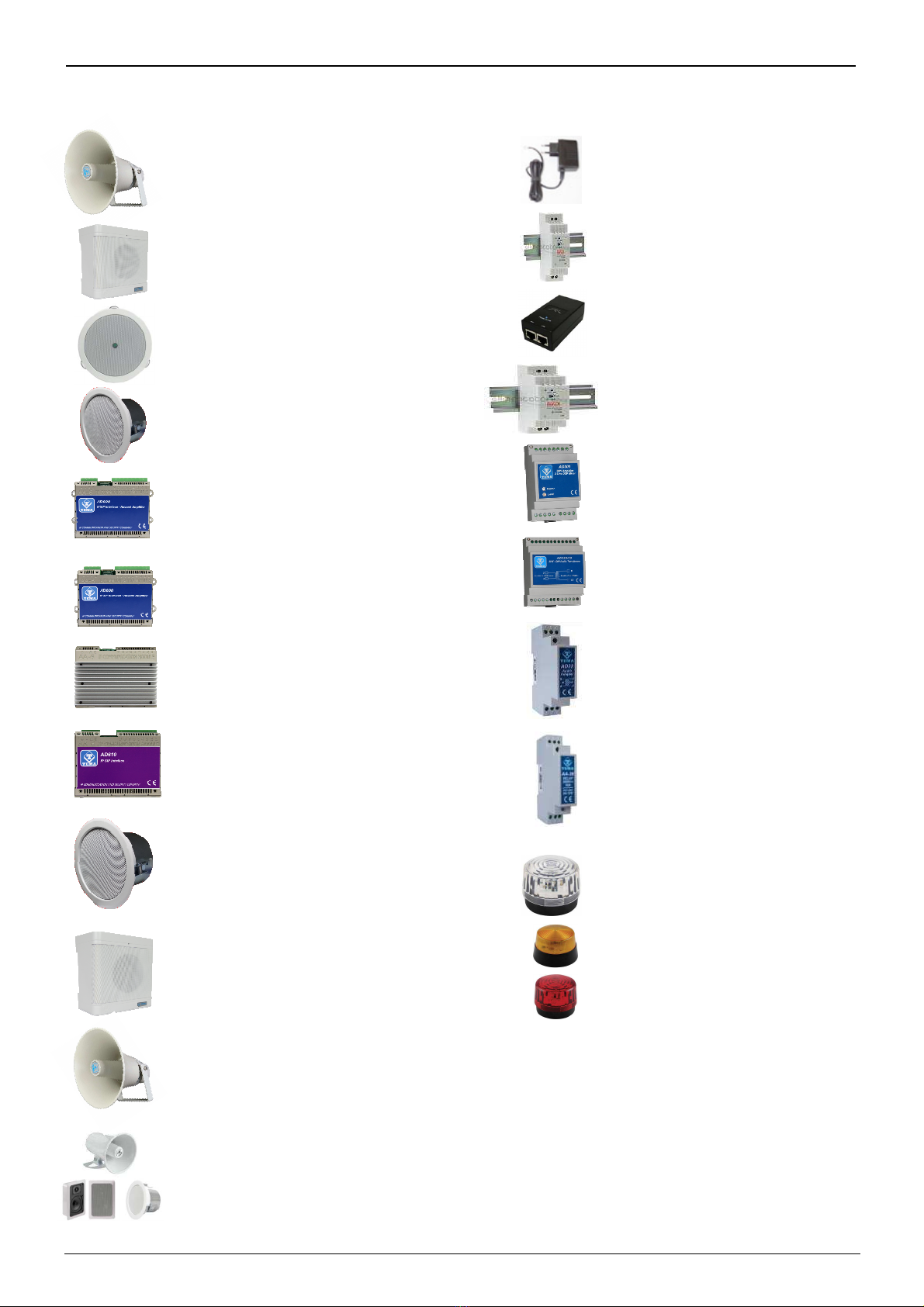

VoIP SIP Amplifiers-Speakers Products and Accessories of the AD600 “SipComStage” series
AD610
2X2W PoE IP-
SIP Amplifier Module,
External Amplifier Adapter with Sound Isolation
Transformer. Directly pilot external power
amplifiers or 8 Ohm external passive speakers.
AD611
IP-
SIP PoE 10W Amplifier Module
(2X5W). Directly pilot 8 Ohm external passive
speakers.
AD633
IP-SIP speaker 12W PoE
ceiling mount version.
AD635
IP-
SIP PoE 12W speaker for wall
mounting with the possibility of integrating a PoE
injector adapter.
AD333/12XTP
Passive 8 Ohm 12W
speaker with anti-
flame cover (AD333/12TP
without cover), internal transformer for 100V
audio line. Ideal for connecting to AD610-611-
612
or as 2nd speaker to the AD63x series IP-
SIP
speakers.
AD335/06TP
Passive 8 Ohm 6W speaker
with 100V audio line
transformer. Ideal for
connecting to AD610-611-
612 or as 2nd speaker
to the AD63x series IP-SIP speakers.
AD330/25T
Passive horn speaker 25W 8
ohm with transformer for 100V audio lin
e. Ideal
for connecting to the AD610-611-
612 modules or
as 2nd speaker for AD63x IP-
SIP speakers
series.
AD330/
Are available Speakers of
different power, H
orns and Loudspeakers for
flush and ceiling mount.
AA
-
39DL
Plug Power Supply 220Vac/12Vdc-1,0A.
AA
-
39D1A
DIN Power Supply 220Vac/15Vdc-1,0A.
A
A
-
39P4
PoE injector 230Vac/48Vdc 0,5A.
AA
-
39E3 /
-
E6V
DIN Power Supplies 220Vac/24Vdc-1,5A
220Vac/24Vdc-2,5A.
AA
-
36
Prote
cted Power Relay
Actuator 250Vac/16A/4KVA, command in
AC/DC 12V/24V, 1 contact, Led, contacts
protected by electric arcs.
Ideal for
driving loads up to 4.000W.
AD612
IP-
SIP PoE 40W (2x20W) Amplifier
Module when powered with an external power
supply. D
irectly pilot 8 Ohm external passive
speakers.
AA
-
699
Flash lights with Xeon
lamp or high brightness LEDs. Ideal to be
controlled by the relay of the IP-
SIP
speakers of the AD630 series or by the
IP-
SIP amplifier AD610, AD611, AD612
modules, with a call in progress add a
light signal to the acoustic signal.
AD320/30
PA 100V audio line
transformer 30W, constant voltage, high
efficiency toroidal type with low magnetic
flux leakage.
AD32
Isolation transformer, balanced,
mixer, attenuator, audio signal filter, low
impedance output. Ideal for decoupling
devices of audio sources to other
amplifiers to eliminate noises.
AD615/S
Audio Encoder Module from
analog to digital on LAN Network in
Multicast/Broadcast Channels.
AD30
1R
30W analog amplifier,
2 channels, Volume-High-Low +/-
12dB
controls
AD630
IP-
SIP PoE 25W Horn Speaker
with 40W internal amplifier (2x20W) IP65
protection.
AD633C
SIP IP-
12W PoE Speaker ceiling
mount version with IP54 flameproof cover.

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 7 of 48
2. FEATURES
• IP Speaker 12W PoE with flameproof cover for indoor installation.
• Audio output power 10W (2x5W)
• Possibility to register a second SIP account for the "Night Ringer" feature
• 5 RX Multicast Channels for Music/Ads/Messages diffusion with 5 priority levels
• 2 remote controlled relays via LAN
• 1 multifunction input from external contact
• Possibility of playing a pre-recorded announcement, associated with the available input, or up to 6
announcements by making a call and sending the respective code via telephone
• Notification service with dedicated messages following external event
• 2 buttons inputs for direct call to SIP numbers differentiated by communication/alert
• “SIP Security Info Call” warning/emergency telephone call, sending of pre-recorded messages on
loudspeakers and on the called
• "Push to Talk" function to control the direction of communication from an external button (Not included)
• Independent adjustment of audio volumes: communications, multicast, night ringtone, alert tones
• SD memory card with audio files from 16sec. customizable by the user (opt. up to 960min. - 16h audio)
• Great versatility with ease of use and programming
• VoIP connection with standard SIP Proxy Server protocol
• Compatibility with all IP-PBX of the most prestigious brands
• P2P (Peer to Peer) for operation also without IP-PBX
• Power supply via PoE (Power over Ethernet) with a single UTP cable or external power supply, also at the
same time
• Free APP developed for smartphones/tablets with iOS and Android operating systems
• AA-Videoconsole software for Windows XP/7/10 PC for management of TEMA IP terminals included
• Programming via dedicated Web Interface with password protection
• Possibility of software / firmware update via LAN
• Integration with the local LAN, 100BaseT Ethernet LAN port with RJ45 connector
• Integrated PoE 802.af, one UTP cable for connection
• Dimensions diameter 200 mm, depth 160mm, 190mm with connected cables (200mm fixing hole)
• Retractable fasteners with sealing spring
• Mounting on vertical panels, false ceilings, etc.
• Possibility of receiving and sending MULTICAST RTP audio streaming, for paging audio announcements, up
to 16 priority levels (in reception) and with different volumes for each channel
• Audio streaming with high quality codecs
• Possibility of diffusing pre-recorded announcements at pre-established times (up to 5 for each day of the
week)
• Possibility of diffusing a pre-recorded daily announcement, at a set time or manually controlled, with
programmable interval and repetitions
3. PACKING LIST
The systems are supplied with the parts included in the following list:
• One speaker device code AD633C
• A 3mt LAN cable connected internally to the system for pre-installation test functions
• A printed system documentation, installation, programming, use manual
• A CD-ROM with complete documentation

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 8 of 48
4. TECHNICAL SPECIFICATIONS
LAN
TCP/IP Network 10/100BaseTx
Protocols
SIP 2.0, RFC 32
61
RTP Multicast audio Streaming
G711µ, G711a, G722, L16 from 16 to 44 kHz
Connection
SIP Server (IP
-
PBX) o
r
P2P (Peer To Peer)
Power Supply
PoE, PoE Injector and/or
external
Ac/Dc
power supply
PoE
802.3af class
0 12,95W
External Power Supply
(Op
t
.)
230Vac / 12
-
15
Vdc
-
1A, 24Vdc
-
2A
Tec
hnology
IMX25 400MHz
Microprocessor
Memory
256MB Ram, Micro
-
SD Flash 2GB
Programming
practical Web interface and password
APP
for
Smartphones
iOS, Android
Messagges/S
o
unds
prerecorded in the internal SD memory card
Audio File Format
Windows .wav
–
8K
–
16 bit
Duration
16sec each
. Standard (Option up to 960 min.
16H audio)
Bandwidth
80Hz
–
20KHz
Power
Class
-
D 10W
(2x5W)
a
mplifier
S
ound pressure
105dB A (SPL)
D
ispersion angle
160° @ 2KHz
Audio communication
Unidirectional / Bidirectional / Push to Talk
Internal Microphone
Omni
-
directional electret 30Hz
-
18KHz
A
dditional speaker output
1 output for external speaker, pass
ive
,
impedance 8 Ohm
A
utomatic
c
heck mode
Through self audio feedback
Inputs from buttons
or external contacts
2
for
buttons + 1 for warning
/alarm
Integrated relays
2
R
elay contacts
c
apacity
max 30Vdc
–
1,5A
Signalings
Active call Led, call tone, Ding
-
dong ads
Installa
t
ion
Paneling, i
n false ceilings
Housing M
aterial
Painted metal
,
with anti
-
flame c
over
Grade of protection
IP54
Storage temperature
From
-
20°
to
+65°C
Operating temperature
From
-
20° to
+55°C
Relative humidity
Up
to 90% non
-
condensing
Dimension
s
Diamet
er
220
mm
depth
160
mm,
190
mm
with cables
Weight
1,7 Kg
Mounting hole
Diameter 200mm (or 185mm + 3 grooves for block springs)
Maximum panel thickness
Maximum thickness of the panel 30mm
W
arrant
y
2
years, possibili
ty of extension (
O
ption)
Compatibility
CE, ROHS
Cable gland
s
for external
connections
Call in
progress
Led
Micro
pho
n
e
Clam
ping
springs to the
ceiling panel

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 9 of 48
5. OPERATION
In stand-by and correctly configured, the system waits for incoming calls.
The device allows also the “streaming” Multicast sound diffusion. In this case the RTP audio diffused in LAN will be
played amplified by AD633C. Differing from the announce mode on direct call, with multicast mode, more devices
can diffuse the same message at the same time, useful for general pre-recorded ads or for music sound diffusion.
The operator who want to make an announcement on the device will make a call, from any extension of the PBX, to
the number to which the device is registered or to its IP address in the case of Peer-to-Peer connection.
It is always monitored the change status of an alarm input to which it is possible to associate a number to call and a
message to be played to the called party answer. It is possible to make common adjustment of the level output of
the speakers to better suit the acoustic characteristics of the served area.
The system can activate a relay contact for signaling to external devices.
5.1. Device connection diagrams
Access Point
IP PBX
ZON
E
2
AD633C IP Speaker
with other passi e
loudspeakers on a 100V line
made by adding an AD320 / 30
transformer
ZON
E
1
AD633C IP
Speaker with relay
remote control and call
button
“Push To Talk”
call button
Appli
cation with IP
-
PBX or Peer to Peer
Each IP Speaker can be reached from SIP phones, Smart-
phone and other registered terminals in the IP-PBX that can
launch ads. The integrated relay can be operated from the
SIP phone that originated the call. With a Network PC with
installed the free software TEMA "Videoconsole" it is possible
to make calls to IP speakers. If the free sofware "VLC" is also
installed, it will possible to send on Streaming Audio speakers
multicast channels, interrupted by ads as background music.
In each AD600 series speaker, it is possible to independently
adjust the audio olume reproduced ia LAN thanks to the
integrated web ser er.
IP SIP
Phone
Network PC
Smartphone
with
TEMA APP
An
alog
Audio
IP PBX
Acce
ss Point
IP SIP
Phone
Network PC used as a
multicast control
station with VLC
Smartphone with
TEMA APP
Zon
e
1
Zon
e
2
Zon
e
3
TEMA
AD615/S
Mini Encoder
Multicast Audio Streaming for sound diffusion
Each AD633C is accessible from IP-PBX registered SIP phones and smartphones that can launch an
ad ertisement. With the help of an encoder TEMA AD615 it is possible to stream music on
multicast channels managed by AD633C, the music is taken in analogue audio from the PC (or any
audio player) and sent to the Encoder that will redistribute on the LAN. The announcement from a
SIP call to a specific AD633C de ice will stop the music that will be automatically restored at the
end.
AD633C

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 10 of 48
6. OPERATING MODES
6.1. Calls to devices
Call from the PBX phones to the AD633C system allows to make announcements to the network speaker.
However, it is a normal telephone call, typically unidirectional although AD633C makes possible to hear the sound
present in its vicinity, being equipped with an internal microphone. Calling the extension number connected to the
systems, they will answer after a set time. It is also possible to have an appropriate code to protect the function
from unauthorized access. Hang up to end the announcement. Any background music will be automatically
restored after some seconds.
6.2. RELAY function
The relays are typically used to signal to any auxiliary external devices that the announce is played, automatic
activation call per call. If not used for the function described above it is available and can be controlled with an
appropriate code from the caller's telephone.
6.3. Calls generated for acquisition of external contacts for special signalings
Are the calls that the system generates on his line to alert after triggering the alarm by the equipment input contact
connected (aux devices or a button available to users in the proximity of the device). At the answer it is played to
the called a pre-recorded message. It is possible to assign a phone number or an IP address that will be called
when the input is activated. It is possible to determine the activation status of the same. It is the closure of the
external contact that triggers the sequence of signaling but it is also possible to reverse this logic, in this way the
signaling can take place after the opening of the contact (normally closed) connected to the input.
AD633C continuously monitors the status of the contact in the event of the condition of the activation stored on
non-volatile memory card. As soon as possible it will begin to call the person who will manage the situation found at
the telephone number programmed reproducing the message associated with the event. It is also possible to
choose to play on a local speaker and on any connected audio output a pre-recorded message, which will be
played prior to the call to alert the present persons in the area served by the system detected event. It is possible to
define an acquisition/silencing code of alarm signaling that the called must type to inform the device of the alarm
acknowledgment. If the called number is busy or does not reply, or in any other case where AD633C does not
receive the capture/acknowledgment code, at the end of each call attempt return in standby and prepares itself for
a new alarm notification
When the systems receive the correct acquisition/acknowledgment code related to the alarm in progress, the alter
signaling will stop and will not be carried out further alarm notification calls. In order to be ready again, it is
necessary that the condition which had triggered the previous notification returns in standby. Only at the
occurrence of a new activation of the contact condition the calls cycle with the alert notification will start again. In
practice: if a connected contact is closed and it is detected its activation, AD633C starts to make warning calls.
In the event that the person called by the system answers and successfully enter the acknowledge code, the alert
calls will be terminated. If the contact that had triggered the alert, however, remained closed (this obviously
depends by the external device that controls the contact) will NOT be triggered another warning cycle! To have new
alerts for this contact, it is necessary that come back in standby before (reopening) and then to its new next
possible closure will be detected from AD633C system with new telephone alerts.

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 11 of 48
6.4. Multicast Audio Streaming
In a LAN network, the Multicast term indicates the possibility to distribute an information like data, audio or video, to
a group of IP terminals of the Ethernet network. For Multicast are used class D IP addresses and they range from
224.x.x.x to 239.x.x.x. In our case the AD633C system is able to receive audio in Multicast into the specific IP
channel and play it amplified. The audio can be generated from a PC software application (for example VLC) or by
a IP SIP phone. The received audio stream is played without the intervention of any operator, this function is useful
for playing back voice messages and information or emergency announcements (also called "Paging" mode).
Obviously the Multicast audio streaming is unidirectional, the audio stream is sent from source to destination, but
not vice-versa. The audio stream can be sent simultaneously to multiple terminals (same IP Multicast), or only to
distinct terminals (each provided with its own IP address). It is possible to program up to 16 audio receive
addresses, each with its own priority and its playback volume, so that the same terminal, if it is already playing
audio (eg music) can be interrupted by a higher priority stream (for example an announcement) and with a different
volume (typically an announcement must be played at a higher volume than background music). The audio
supported by this mode is in the G.711 format (aLaw or µLaw), G722 or linear high quality 16 bit (proprietary
format, diffused through the AD615 device or an Intercom AA-540).
Example 1
In a plant, there are two systems, connected to the same network switch. From a suitable phone, it is possible to
make a voice announcement via multicast address 239.255.12.42:
Both systems will play the announcement audio message. Many more devices than those given in the example can
be connected, since there are no limits.
Example 2
In the plant there are two systems with different Multicast addresses.
The phone, selecting to send the multicast voice to one or other address of the terminal, will decide which device
must play the streaming message.
7. COMMANDS AND CODES
During the announcement will be possible to send the commands described here (which will be these by default):
DTMF Command Function Description
#1 - #2 Activate the relay contact
1 or 2
Used to manually activate the relays if not
programmed to be automatically activated per
announcement.
#5 Extension of announcement
time
AD633C alert the operator with some tones 30
seconds before the expiration of the time for the
announcement. Having to extend the announcement
over the set time it is possible to recharge original time
to continue the conversation (with this code).
Phone Extension
designed for
Multicast
LAN Switch
AD633
n. 1 Multicast
address
239.255.12.42
AD633 n. 2
Multicast
address
239.255.12.42
Phone Extension
designed for
Multicast
LAN Switch
AD633
n. 1 Multicast
addr
ess
239.255.12.42
AD633 n. 2
Multicast address
239.255.12.41

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 12 of 48
8. INSTALLATION OF THE DEVICE
Mounting and positioning of the AD63
3C
system
The AD633C speaker is designed to be mounted on a suspended ceiling panel. The
loudspeaker incorporates three pivoted wings with retaining springs on its metal
basket, which must be locked once the loudspeaker is inserted on the ceiling panel.
For this, having already incorporating such mounting blocks, no other accessory is
not provided. Mounting requires the execution of a suitable diameter hole on the
support panel. The hole will allow the ceiling between the ceiling and the ceiling of
the loudspeaker to enter into the cavity of the loudspeaker while the outer flange will
remain visible and also "aesthetically close" the hole.
Access to internal parts - cable routing
The correct connection involves the arrival of the cables needed to operate the
AD633C directly to the hole on the support panel, the cables come from the gap
between the ceiling and the ceiling panel. Le operazioni per il montaggio si possono
riassumere in:
•Drill the panel, insert the outer ring with the flange (1) on the panel hole, from
inside, loosen the springs first straightened to lock the ring to the panel
•Remove the cables from the ring, pass the required cables into the cable glands
of the rear cap (2), connect as necessary to the module terminals (3)
•Insert the rear cap (2) on the previously fixed ring before locating the two slots on
the two fastening screws on the outer ring flat flange (visible from below) and
finally tighten the screws to lock the cap
•Insert the shaped slots in the protective grille of the loudspeaker on the outer
pins and rotate it until it is correctly positioned so that it remains hung as shown,
with the pins located in the slots of the slots (5)
The panel must be able to support the weight of the
speaker once the installation is completed. Make sure.
1
2
3
4
5
Overall view of AD633C reassembled, once mounted on the panel
Rotation of the
locking ring with its
return spring
Speaker flange
position after
mounting
Panel with hole,
thickness max 30mm
Then place the
springs to insert into
the hole
Position that will
keep the
loudspeaker locked
Flange position
before assembly
Screw driving /
housing of the cap
to be inserted
View of the springs and outer ring to fit on the support panel hole

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 13 of 48
8.1. Connecting of the AD633C internal module
AD633C contains an electronic module for managing the communication functions on the VoIP network and for
amplifying the audio signal. The connection of the signal cables from the field must be carried out by qualified
technical personnel, operate checking that no cable is under tension, also strictly comply with the directions of the
voltage and current values for the power supplies and other parts of the system.
Follow the instructions below in the drawing block for the correct electrical connection of the system. On the
following page there is the detail of each terminal shown.
9 8 7 6 5 4 3 2 1
A C
1
ING1
(In
put
1)
2 GND
3 K2.NA
4 K2.CC (Relay 2)
5 K1.NA
6 K1.CC
7 K1.NC (Relay 1)
8 SP1-
9
SP1+
(2
nd
Speak
.)
Power supply
input “C” “A”
terminals
Shaped slots with a
handle for
loudspeaker
positioning in the
outer ring
when fixed to the
support panel
RJ45
LAN
cable
E
le
c
tronic
Module
Loudspeaker
Connector
1
P1
for external 2 GND
buttons 3 GND
P1 and P2 4 P2
Microphone and
led housing
1 2 3 4

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 14 of 48
4-pin removable terminal block (screw connector inserted to the electronic module)
+Vout Terminal block from which it is possible to withdraw unregulated power supply, POSITIVE
GND Terminal block from which it is possible to withdraw unregulated power supply, NEGATIVE
A Terminal block to power the system, irrelevant polarity
C Terminal block to power the system, irrelevant polarity
RJ45 LAN port (present on the electronic module)
AD633C requires a LAN cable to connect to the network. If the port cable has also PoE, it will not be necessary to
supply the module with other power sources (up to max 10W powers). For higher powers will be necessary to
supply the module with other power source of 24 Vdc 2A or max 18Vac 2.5A.
9-pin removable terminal block (screw connector inserted to the electronic module)
9 SP1+ Class-D amplifier 1st output terminal block for connection of a speaker, positive pole
8 SP1- Class-D amplifier 1st output terminal block for connection of a speaker, negative pole
7 K1.NC Terminal block of the K1 relay - NC contact, normally closed
6 K1.CC Terminal block of the K1 relay - CC contact, central contact (contact load max 30V 1.5A)
5 K1.NA Terminal block of the K1 relay - NO contact, normally open
4 K2.CC Terminal block of the K2 relay - CC contact, central contact (contact load max 30V 1.5A)
3 K2.NA Terminal block of the K2 relay - NO contact, normally open
2 GND Terminal block referred to the negative of the system power supply, for the alarm contact
1 ING1 Terminal block for the detection of the external alarm contact
4-pin removable terminal block (connector inserted to the electronic module)
P1 Connect here the dry contact of the button named P1
GND Reference terminal of the P1 button contact
GND Reference terminal of the P1 button contact
P2 Connect here the dry contact of the button named P2
At the "+Vout" output there is a + 12Vdc volta
ge when the device is powered via PoE, otherwise, at
this output the voltage will be the same as at the terminals A-C. The use of "+Vout" is permitted as
long as it is not exceeded a maximum 200mA current consumption and the load has a protection on
the input current. Improper use of this output will permanently damage the unit.
Devices powered via PoE (Power over Ethernet) may only be connected with c
ables coming from
inside the building, they are not allowed connections to LAN cables coming from outside the
building.
To terminals 1 (INP1) and 2 (GND) must only be connected a relay contact or a button free from any
voltage to prevent permanent damage to the device.
To terminal
s 1 (P1) and 2 (GND) / 4 (P2) an
d 3 (GND)
must only be connected a relay contact or a
button free from any voltage to prevent permanent damage to the device.

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 15 of 48
8.2. Correct connection of an additional passive speaker
The power amplified SP1 is an output where it is possible to connect an external additional speaker passive paying
attention to its polarity but especially to the load impedance which cannot be lower than 8 Ohm.
Furthermore, it must be respected the maximum output power from the amplifiers using adequate power speakers.
In the simplest case just connect an 8 ohm speaker of at least 20W power or higher. Use cables with different
colors, section of at least 1.5 mm2 and limit the distance from the amplifier to no more than 30m.
Below are some examples of mixed combinations, to serve a wider area but with distributed power.
Correspondence cables AWG / mm
2
AWG20 > 0,518 mm
2
resistance 33,31 Ohm/Km
AWG19 > 0,653 mm
2
resistance 26,42 Ohm/Km
AWG18 > 0,823 mm
2
resistance 20,95 Ohm/Km
AWG17 > 1,04 mm
2
resistance 16,61 Ohm/Km
AWG16 > 1,31 mm
2
resistance 13,17 Ohm/Km
AWG15 > 1,65 mm
2
resistance 10,45 Ohm/Km
AWG14 > 2,08 mm
2
resistance 8,286 Ohm/Km
AWG13 > 2,62 mm
2
resistance 6,571 Ohm/Km
AWG12 > 3,31 mm
2
resistance 5,211 Ohm/Km
AWG11 > 4,17 mm
2
resistance 4,132 Ohm/Km
AWG10 > 5,26 mm
2
resistance 3,277 Ohm/Km
SP +
SP
-
4 Ohm
10W
4 Ohm
10W
SP +
SP
-
8 Ohm
5W
8 Ohm
5W
8 Ohm
5W
8 Ohm
5W
8 Ohm
20W
SP1
+
(positive)
SP1
–
(negative)
Minimum cable section 2x1,6
mm
2
(AWG15), ideal 2x2,5 mm
2
(AWG13), 2 colors or polarized
strip, maximum recommended
distance 30 meters

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 16 of 48
8.3. 100V audio line for additional speakers away from AD633C IP Speaker
For special applications it is possible to generate from AD633C an audio line at a constant voltage of 100V of max
20W power using a Tema AD320/30 transformer to connect on the SP1 power output. In this way it is possible to
install several other additional speakers (with internal transformer suitable for 100V line and selectable power) even
at distances up to 200 meters from AD633C. The total sum of the power the installed speakers must not exceed
the maximum power of 20W.
Some examples of speakers available on Tema catalog (not amplified, passive models)
AD330/15T Horn Speaker 15W / 8Ohm with transf. 100V, sockets 15/7.5/3.7/1.9 W
response 300Hz - 7KHz, Dim. Diam. 210 x 240 mm
AD330/25T Horn Speaker 25W / 8Ohm with transf. 100V, sockets 25/12.5/6.25/3.12 W
response 300Hz - 7KHz, Dim. Diam. 240 x 290 mm
AD335/06TP Wall Speaker 6W / 8Ohm Transf. 100V sockets 6/3/1.5 W
response 180Hz - 16KHz, Dim. 218 x 216 x 120 mm
AD334/20TP Vandal proof Projector 20W with transf. 100V, outdoor, sockets 20/10/5 W, IP65
response 150Hz - 15KHz, Dim. Diam. 180 x 145 mm, weight 2.4kg, grey color
AD337/06TP Oval wall speaker 6W / 8Ohm with transf. 100V sockets 6/3/1.5W
response 180Hz - 10KHz, Dim. 258 x 169 x 72 mm, 0,8Kg
AD333/12TP Round speaker wall/ceiling flush mounting, 12W with Transformer 12/6/3 W
response 80Hz - 15KHz, Dim. Diam. 200 x 62 mm (Hole 160-165mm)
D333/12XTP Round speaker ceiling flush mounting, 12W with Transf. 12/6/3 W
Band 80Hz - 20KHz, Dim. Diam. 220 x 130 mm (Hole 200-205mm)
with flameproof cover AD333/12YC
100
V line
for additional speakers
AD320/30
Transformer for
100V-30W line
SP1 +
SP1
-
AD633C
2x5W SIP Speaker
Minimum cable section
2 x 0,75mmq (AWG18)
2 colors or polarized strip, maximum
recommended distance 200 meters
8 Ohm
1…5W
8 Ohm
1…5W
8 Ohm
1…5W
8 Ohm
1…5W
+
-
LAN
The speakers l
isted above are not produced by
TEMA, but a selec
tion of the best third
-
parties
quality producers that are best suited to our production amplifiers and PA analog speaker
systems and IP VoIP SIP for audio LAN. The components offered however fall into the corporate
policies in terms of warranty and technical support.

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 17 of 48
9. PROGRAMMING
9.1. Preparation for the system parameters programming
Programming is done via the WEB interface. To gain access, simply connect an Ethernet cable from a PC or from a
switch to the LAN port of AD633C.
The default IP address of AD633C is "192.168.0.10".
Remember that in order to successfully connect to the web interface of AD633C, it is necessary that, in the IP
addresses configuration of your PC, is present the subnet 192.168.0.x, where "x" is any number between 1 and
254 and different from 10. See below how to configure your PC to reach the correct subnet. The shown procedure
applies to Windows® operating systems.
Open the Windows Control Panel and set the field "View by": "Category" "Large Icons" or "Small Icons".
Choose "Network and Sharing Center" as shown in the first figure, detect your LAN connection, choosing the one
referring to the network card that you are using to connect with AD633C.

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 18 of 48
Once the correct connection is identified, click on it and it will appear the window where it is necessary to click on
the "Properties" button. It will then open the window where must be selected "Internet Protocol Version 4
(TCP/IPv4)" and then click the Properties button again. See the following figures:
If the PC is already on subnet 192.168.0.x with a mask 255.255.255.0, ignore the following steps. Otherwise,
proceed as follows. (The address of the PC configuration should not be 192.168.0.10). Remember the current
TCP/IP configuration of your computer for any subsequent restore of the correct parameters. Click "Use the
following IP address" and type in the appropriate field the following IP address: 192.168.0.11 (instead of "11" used
in the example it is possible to enter any number between 1 and 254, but excluding the 10 which is the default
address of the system to be programmed). In the "Subnet Mask" enter the netmask 255.255.255.0. Click OK to
confirm the changes. The PC is now ready to configure the door phone. Remember at the end of programming to
restore the network configuration of the PC to its original state if necessary.
Once the IP address of your PC is successfully configured, it is possible to reach the Web interface to configure
AD633C at the address 192.168.0.10 .

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 19 of 48
9.2. Access to programming
To program the device, it is sufficient to use a standard browser such as Explorer, Firefox, Chrome or others. The
default address of the device is 192.168.0.10 with a mask of 255.255.255.0, and the user/password with which to
connect are master/master. Make sure to have access to this network segment from your computer. Once logged
in, it is possbile to change the administrative password for the maximum safety of your device. Once logged in, it is
possbile to change the administrative password for the maximum safety of your device.
The use is very simple and intuitive, it is always visible on the left the menu for selecting the functions to be
programmed, while on the right is shown the configuration window that is currently active. Any change will be
confirmed by pressing the "Apply" or "Save" buttons. Closing the browser or changing the page without selecting
those buttons will make lost any change .
Any changes do not require restarting the device (except the change of IP address, and the software update).

TEMA TELECOMUNICAZIONI VoIP SIP 12W PoE Speaker AD633C
MAS-AD633C-REV01EN Page 20 of 48
9.3. Network parameters
On this page it is possible to set the network parameters, such as IP address, netmask, etc.:
The default IP address of the device is 192.168.0.10 . Gateway and DNS are only needed if you want the device to
have the ability to access the Internet (for example to get the current date / time, in the example from the site
time.nist.gov).
The changes to the network settings are taken over by the device until the next reboot. Once you have completed
the configuration steps so be sure to reboot the system and if necessary, change the network segment of your
computer so that it can connect to the new address.
•IP address: specify the IP address you want to assign to AD633C.
•Subnet mask: indicate the subnet mask to be assigned to AD633C.
•Default gateway: indicate the gateway that can enable AD633C to access to internet.
•Primary and secondary DNS server: indicate the addresses of two DNS servers you want to use to resolve
IP addresses.
•Time server: indicate the address of the server you want to use for time synchronization device.
•Test address (ping): if inserted, this address is used by the system to verify the correct operation of the
network connection.
•SMTP server: name or IP address of the mail server.
•Port: TCP port for the connection. Usually is 25
•User: authenticated user on the SMTP server
•Password: SMTP authentication password
•TLS connection: activate the secure connection
•Destination: email destination
•Text message: text to be included in the email sent
The button “Test Mail” can be used to test immediately if the configuration works.
