MatchX M2 Pro User manual

MatchX M2 Pro
16 Channels LPWAN Gateway
User Guide

Copyright c 2017 MatchX Inc./MatchX GmbH
WWW.MATCHX.IO
No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from MatchX
Inc./MatchX GmbH All rights reserved.
Release 1.0, March 2020

Contents
1Introduction .................................................... 5
1.1 Product overview 5
1.2 Product overview 6
1.2.1 LoRa............................................................ 6
1.2.2 WiFi............................................................. 6
1.2.3 GPS ............................................................ 6
1.2.4 ProcessorSubsystem ............................................... 6
1.3 Interface and Connectors 7
1.3.1 ConnectorpaneloftheGateway .................................... 7
1.3.2 Ledstatus........................................................ 7
1.3.3 Consoleaccess ................................................... 8
1.3.4 Antennaconnectors ............................................... 8
2Quick Installation Guide ........................................ 9
2.1 Software requirements 9
2.2 Hardware requirements 9
2.3 Power connection 10
2.3.1 PoEpowersupply................................................. 10
2.3.2 USB-Cpowersupply............................................... 10
2.4 Accessing the Gateway and Internet connection 11
2.4.1 Ethernetconnection .............................................. 11
2.4.2 WiFiconnection.................................................. 11

4
2.5 Mounting 11
2.5.1 WallMounting ................................................... 11
2.5.2 Polemounting ................................................... 13
2.6 Surge protection and Shielded Ethernet cable 13
3Product specification .......................................... 14
3.1 Hardware Specification 14
3.2 WiFi specification 15
3.3 LoRa Radio specification 15
3.4 GPS Antenna Performance 16
3.5 LoRa Antenna Performance 16
3.6 Operational frequencies 16
4Package content .............................................. 18
5Revision History ................................................ 19
6Important Notice .............................................. 20

1. Introduction
1.1 Product overview
MX190x is an outdoor LPWAN gateway equipped with dual LoRa radio capable of simultaneously
receive on 16 frequency channels. It is based on the newest SX1302 LoRaWAN Gateway chip which
allows it to use spreading factors from SF5 to SF12. This greatly improves the throughput and
decreases the data collisions in dense networks with many sensor nodes compared with previous
generation of gateways based on older SX1301. Improvement on performance comes together with
significant reduction of power consumption which reduces the cost of operation and increases long
time reliability of the devices.
This guide covers the MX1901 and MX1902 version of MatchX M2 Pro Gateway, with the
MatchX LPWAN controller version 1.0 or above. The main differences between them are listed in
the Table 1.1:
Item MX1902 MX1901
Band 902-928MHz 863-873MHz
Maximum
Conducted Power +27dBm +27dBm
LBT Yes Yes
No. of Channels 16 16
SF 5-10 5-12
Certification IEC 60950 -1 EN 300200
FCC PART 15.247 EN 301489
IP Rating IP66 IP66
Table 1.1: Comparison of MX1901 and MX1902

6Chapter 1. Introduction
1.2 Product overview
•Dual LoRa radio with 16 Rx channels
•Half duplex LoRa communication with 2 Tx paths
•2 LoRa antenna connectors
•Build in GNSS receiver with GNSS engine for GPS/QZSS, GLONASS
•Build in WiFi module with full function of 802.11b/g/n over 2.4GHz
•100Mbase Ethernet connection with passive PoE 24V power supply
•USB-C interface for debug with Power Delivery capability for power supply
•USB-A general purpose interface
•Internal storage on SD-Card or optional flash SSD
•Secure element for key storage, secure boot and provisioning
•Accelerometer and pressure sensor for temper detection
•Auto diagnostic functions
•IP66, outdoor enclosure
•Industrial temperature range -40◦C to +85◦C
1.2.1 LoRa
The MatchX M2 Pro fully supports LoRaWAN protocol, covering a massive vicinity of up to 20km+
in open spaces. Thanks to 16 frequencies channels and Spreading Factors as low as SF5 this gateway
provides exceptionally good coverage in places with huge number of sensor devices. Based on the
newest LoRa chipset SX1302 the Gateway is able to simultaneously demodulated more data packets
then it was possible before reducing data collision and allowing for more dense sensor deployment
in applications like smart farming, home automation or asset tracking.
1.2.2 WiFi
The MX1901/2 Gateways provide build in WiFi connectivity according to 2.4GHz 802.11b/g/n
specification. Thanks to build in antenna no extra installation is needed. WiFi connection can be
used to provide internet connection to the Gateway or to access the Web UI configuration page to
manage the Gateway. If WiFi connection is not needed it can be disabled to save power.
1.2.3 GPS
The Gateway is equipped with Ublox MAX-7Q GNSS receiver with additional LNA to improve
sensitivity and lower time to fix. The GNSS is not only used for location finding of the Gateway but
also for time synchronization and precise time stamping of the received LoRa packets.
1.2.4 Processor Subsystem
MatchX M2 Pro gateways are based on the industry standard i.MX6 MCIMX6G2CVM05AB
processor from NXP equipped with 256MB of DDR3 RAM and 256MB of Flash memory and
it is rated for extended temperature range. The low power consumption, high reliability and
security options make this processor ideal for industrial application where those features are at most
importance.

1.3 Interface and Connectors 7
Figure 1.1: Connector panel of the Gateway.
1.3 Interface and Connectors
1.3.1 Connector panel of the Gateway
The get access to the connector box of the gateway the cover needs to be removed. The cover is
fixed with two screws which secure the cover from falling off during strong winds or when or during
interaction with wildlife. After unscrewing the screws and pulling down the cover the connector box
is easily accessible and shown on Figure 1.1. The following interfaces are available:
1. Grounding screw connector - connect this with a copper wire to to ground.
2. User button - used for resetting the Gateway to the factory settings.
3. RGB LED - this is the status LED. Description of the possible status can be found in Table
1.2.
4. USB-C connector - can be used for accessing the console terminal and to power the Gateway.
5. Ethernet connector with passive 24V PoE capability for internet connection and powering the
Gateway.
6. USB-A 2.0 - USB host for connecting extension devices like mass storage.
1.3.2 Led status
The Gateway uses an RGB LED to indicate a various status and its condition. Description of the
LED status can be found in Table 1.2.
LED Color Activity
Flashing Blue Initializing
Steady Blue Connected to Internet, no LoRaWAN is configured
Alternative Blue and Red Device is busy, don’t unplug power
Steady Red No Internet connection or LoRaWAN sever not available
Flashing Green Configuring Box
Steady Green Indicates that the Gateway is connected and working normally
Table 1.2: LED activity of the Gateway

8Chapter 1. Introduction
1.3.3 Console access
On default the console terminal of the Gateway can be accessed through USB-C connector. Internally
CP2104 UART-USB converter is used, if the drivers for this device are not automatically installed on
the PC operating system they can be downloaded from Silicon Labs website.
The PC should detect the Gateway as Virtual COM port. Any terminal software capable of
communicating through COM port can be used e.g. PuTTY or RealTerm. The default settings are:
•Baud rate - 115200
•Parity - none
•Stop bit - one
•Data bits - 8 bits
If the console output on USB-C port is not desirable it can be disabled in software.
1.3.4 Antenna connectors
The Gateway is equipped with four high grade SMA connectors. The connectors are waterproof and
located on the top of the Gateway. The RF antennas can be attached directly to SMA connectors or
can be connected with RF cable if the antenna is to be mounted in different location or the physical
size of the antenna doesn’t allow for direct connection.
The location and numbering of the connectors can be seen on Figure 1.2. The functions are as
follows:
1. LoRa radio 1
2. LoRa radio 2
3. Spare connector - can be used for optional 3G/4G modem or WiFi
4. GNSS
Figure 1.2: Antenna connectors of MX1901/2 Gateway.

2. Quick Installation Guide
The MX1901/2 Gateway is preconfigured "Plug ’n Play" device, which mean installation is extremely
easy. At first power up the Gateway will connect to MatchX network without any need of setup. This
installation guide will guide through process of configuring the Gateway and it’s LoRa parameters.
Every Gateway comes with a unique serial number and QR code placed under the cover of cable
compartment. Ether of them can be used for setting up the GW on the Cloud server. The list and
links to the Cloud servers can be found on MatchX website under https://www.matchx.io/
2.1 Software requirements
To use the MatchX M2 Pro Gateway no special software is required, as the Gateway is preconfigured
to connect to the MatchX Cloud server. To access the Cloud Server a computer or mobile devices
with a web browser such as Chrome or Firefox is sufficient.
To make the installation easy it is possible to use a mobile device with QR code reader for easy
registration on the chosen Cloud Server.
2.2 Hardware requirements
The hardware of the MatchX M2 Pro Gateway is design in such a way that it needs minimum number
of external components to make it functional. The user has few different connection options he/she
can choose from to make the installation easy and convenient.
Depending on the installation option (described in next sections) the following components can
be needed:
•PC computer or Mobile device
•Ethernet cable
•USB-C cable
•Access to AC power outlet
•WiFi router or Ethernet switch
•Screw driver and similar tools

10 Chapter 2. Quick Installation Guide
2.3 Power connection
The Gateway offers two ways of supplying power:
•Passive 24V DC PoE
•USB-C
2.3.1 PoE power supply

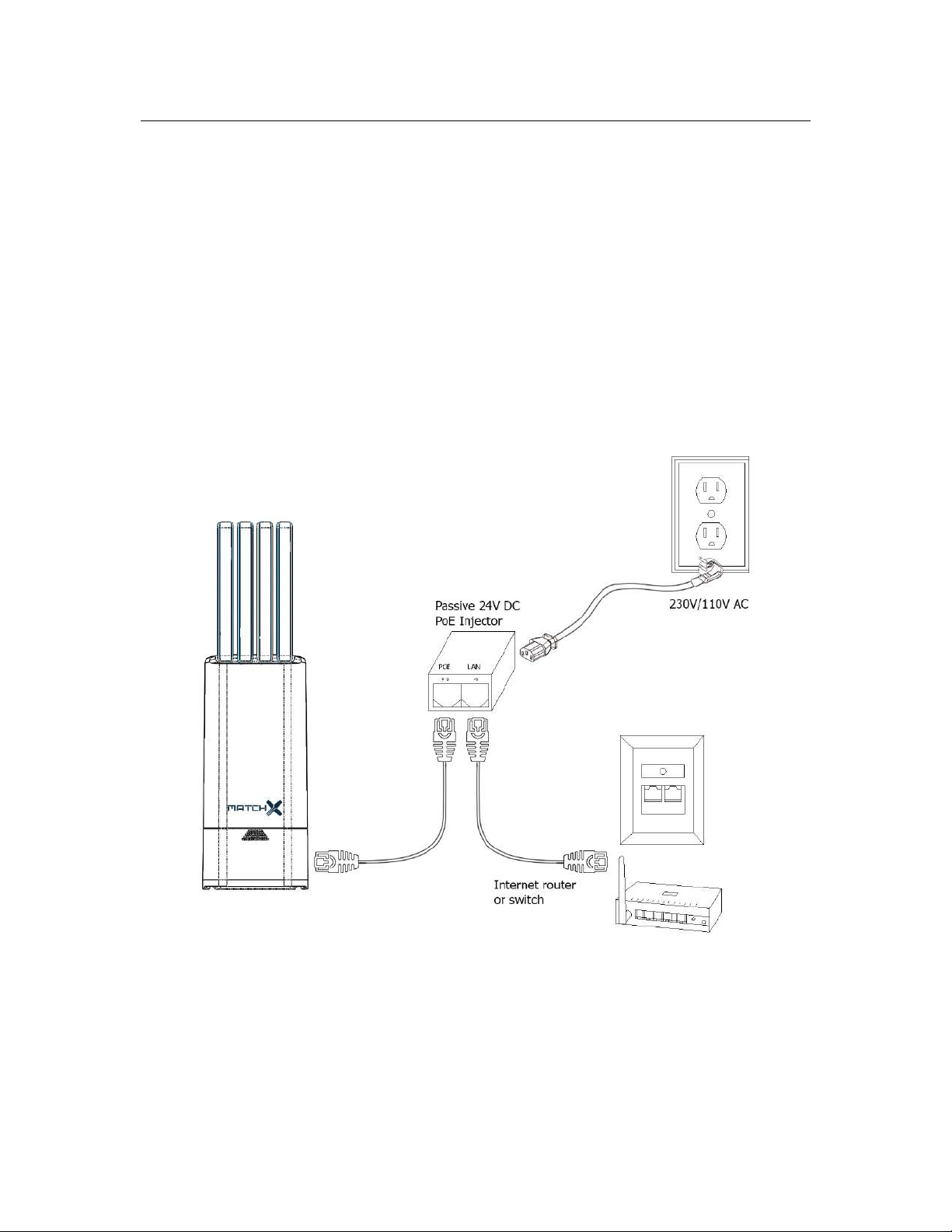

On Figure 2.1 the PoE connection is illustrated. The injector has two RJ45 connectors marked as
POE and LAN. It is important to pay attention to correct connection of this connectors:
• POE connector needs to be connected with Ethernet cable to the RJ45 connector of the
Gateway.
•LAN connector needs to be connected with Ethernet cable to Internet router or switch.
The PoE injector needs to connected to 230/110V AC power outlet.
Figure 2.1: Connection of MX1901/2 Gateway.
2.3.2 USB-C power supply
MX1901/2 Gateways can be powered from USB-C connector. It does implement USB PD rev 2.0
and is interoperable with USB PD rev 3.0 standard up to 22V.

2.4 Accessing the Gateway and Internet connection 11
!
It is recommended to use a dedicated USB-C power supply which implements USB PD standard
and has enough power capability. Powering the Gateway from USB port of PC or similar is not
recommended because of limited current capabilities of those ports.
2.4 Accessing the Gateway and Internet connection
The Gateway needs internet connection in order to communicate with LoRaWAN server such as
MatchX Cloud Server. There are two primary ways to provide such connection: Ethernet cable
(preferred) or WiFi. For 3G/4G connection option please contact MatchX support or sales department.
2.4.1 Ethernet connection
Ethernet cable is a preferred way of connecting because it provides more reliable internet access and
the same cable can be used to deliver 24V DC power to the Gateway. The PoE injector power supply
is included together with Gateway so the user doesn’t need to spend time searching for compatible
model. The connection between Gateway, PoE injector and Internet router should look like the one
depicted on Figure 2.1.
After power up the Gateway should automatically get IP address assigned by the DHCP server
usually running in the network. To find out the assigned IP address user can login to the router and
see the list of assigned IP addresses or scan the entire local network using any available software
tool like AngryIP, the gateway will appear with its serial number as hostname. After obtaining the IP
address it can be used directly in the web browser like Chrome or Firefox to get access to Gateways
web configuration interface if needed. If gateways autoconfiguration process was successful and
internet access is available the LED should turn steady green.
2.4.2 WiFi connection
The WiFi interface of the Gateway works in Access Point mode by default. The SSID of the network
generated by the device has a general format of: MatchX_MX190x_yyyy, where: yyyy - 4 last bytes
of MAC address. The default password of the WiFi network is the serial number of the Gateway.
After connecting to the network IP address will be automatically assigned to the PC or mobile device.
The Web User Interface of the Gateway can be accessed by its IP address (192.168.0.1).
From the Web Interface it is possible to configure the Gateway to connect to other WiFi network
and use it for internet connection. In this case there is no need to connecting a Ethernet cable between
LAN port of the PoE injector and Internet router.
2.5 Mounting
This device must be professionally installed by qualified person. The Gateway is IP67 rated and
can be mounted outside in vertical position. Vertical position is crucial to ensure the environmental
resistance of the Gateway. Keep in mind that PoE power injector is not waterproof and has to be
additionally protected if it is to be placed outside.
2.5.1 Wall Mounting
The screws and screw anchors are included in the package, users can drill two 6mm hole on the wall
and apply screw anchors to them.
•Determine the place of mount, it should be an even surface.

12 Chapter 2. Quick Installation Guide
• Mark two holes that are going to be drilled, the distance between them. should be 54mm, and
they should be horizontally aligned .
•Drill two 6mm hole, apply screw anchors and screws.
•Adjust the screw spacing.
• Push the screws heads through the larger opening hole of the Gateways fixture and then pull
the Gateway down so the screws get locked in position.
Figure 2.2: Mounting the MX1901/2 Gateway to the wall.
Figure 2.3: Mounting the MX1901/2 Gateway to the pole.

2.6 Surge protection and Shielded Ethernet cable 13
2.5.2 Pole mounting
The Gateway can be easily connected to a pole using a stainless steel clamp included in the box. The
Gateways fixture is specially designed to fit to poles curvature. To make the mounting even more
stable it is a good idea to use two clamps spaced as far apart as possible.
•Determine the place of mount, we recommend a round pole
•Position the Gateway on desired place, and fasten the stainless steel clamp.
• Tighten the screw of the clamp enough to make the mounting stable but not to much to brake
the plastic fixture of the Gateway.
2.6 Surge protection and Shielded Ethernet cable
We highly recommend to use the shielded RJ45 cable to connect the Box, in order to protect the
device from any possible lightning or electricity surges. Both shielded FTP and S-FTP cable from
Cat5e are recommended. To protect the Gateway and Ethenet equpiment connected to it we highly
recomend using lightning and surge protectors near the Gateway and near the PoE.

3. Product specification
3.1 Hardware Specification
Feature Description
CPU NXP MCIMX6G2CVM05AB, 528MHz, Arm Cortex-A7
Memory 256MB DDR3 RAM/ 256MB NAND FLASH
Storage Memory Optional SSD up to 32GB or industrial SD-Card
LoRa Radio Two independent radio channels
SX1302 chipsets, 16 frequency channels
SF5-SF12, 27dBm output power
8 x 8 channels LoRa packet detectors per radio channel
Supports EU868, US915, AS920, AS923, AU915, KR920, IN865 regions
WiFi 2.412GHz – 2.484GHz, IEEE 802 Part 11b/g/n (802.11b/g/n)
GPS UBlox Max 7Q GNSS receiver with additional LNA
Ethernet RJ45 10/100 Mbit LAN with 24V POE
Console through USB-C as virtual COM port
LEDs RGB LED status indicator
Interface USB-C with PD for console UART and Power
USB-A 2.0 Host
Reset Button
Internal Sensors 3-Axis Accelerometer
Pressure Sensor
Temperature Sensors
Voltage and Current monitoring
Antenna interface 4x SMA connectors, waterproof
Power Supply 24V DC passive PoE or USB-C PD rev 2.0 up to 22V
Power Consumption 3.5W in average, peak 6W
Operating Temperature -40◦C to 85◦C

3.3 LoRa Radio specification 15
Feature Description
Enclosure ASA plastic, anti-UV
Size (without antennas) 101 x 226 x 73mm
Weight 0.4kg
Installation method Pole or Wall mounting
Table 3.1: Key hardware specifications.
3.2 WiFi specification
Feature Description
Chipset Broadcom 43362
WLAN Standards IEEE 802 Part 11b/g/n (802.11b/g/n)
Antenna Port Support Single Antenna for WiFi
Frequency Band 2.412 GHz – 2.484 GHz
Number channels 14
Modulation OFDM, DSSS (Direct Sequence Spread Spectrum),
DBPSK, DQPSK, CCK , 16QAM, 64QAM
Supported rates 1,2, 5.5,11,6,9,12,24,36,48,54 Mbps
Maximum receive level -10dBm (with PER < 8%)
Output Power 17 dBm +2/-2 dBm for 1, 2, 5.5, 11Mbps
14 dBm +2/-2 dBm for 6, 9, 12, 18, 24, 36, 48, 54 Mbps
12 dBm +2/-2 dBm for 11n (HT20)
Internal Antenna Gain 2 dBi (Typical)
Internal Antenna Polarity Linear
Antenna Azimuth Beamwidth Omni-directional
PER <8%, Rx Sensitivity @ 1 Mbps -94 dBm Typical
PER <8%, Rx Sensitivity @ 11 Mbps -87 dBm Typical
PER <10%, Rx Sensitivity @ 54 Mbps -73 dBm Typical
PER <10%, Rx Sensitivity @ MCS0 -86 dBm Typical
PER <10%, Rx Sensitivity @ MCS7 -70 dBm Typical
Table 3.2: Key WiFi specification.
3.3 LoRa Radio specification
Feature Description
Chipset 2x Semtech SX1302
Operating Frequency MX1901 EU868, IN865
Operating Frequency MX1902 US915, AS923, AU915, KR920
Frequencies channels 8 LoRa R channels multi-data rates (SF5 - SF12 / 125 kHz) +
per SX1302 chipset + 2 mono-data rate (LoRa R 250 / 500 kHz and FSK 50 kbps)
Antenna Port 2x SMA
Transmit Power 27 dBm

16 Chapter 3. Product specification
Feature Description
Typical sensitivity level -141 dBm at SF12 BW 125 kHz
(EU868/US915) -127 dBm at SF7 BW 125 kHz
-111 dBm at FSK 50 kbps
Table 3.3: LoRa Radio specification.
3.4 GPS Antenna Performance
Feature Description
Frequency range 1574 - 1606MHz
Impedance 50ohms
VSWR <1.2:1
Max gain 2.5dbi
Polarization Vertical
Radiation Pattern Omni-directional
Connector SMA(M)
Length 108mm
IP Rating IP66
Table 3.4: GPS Antenna performance
3.5 LoRa Antenna Performance
Feature Description
Frequency range 863-873MHz
Or 902-928MHz
Impedance 50ohms
VSWR <1.2:1
Max gain 2.5dbi
Polarization Vertical
Radiation Pattern Omni-directional
Connector SMA(M)
Length 108mm
IP Rating IP66
Table 3.5: Lora Antenna performance
3.6 Operational frequencies
MatchX Gateways are tested to work with regional frequency specifications regulated by the au-
thorities responsible for given region. The user needs to pay attention to the local regulation and

3.6 Operational frequencies 17
configure the Gateway to use proper regional settings. Table 3.6 shows example of the frequency
allocation in EU868 region. Other geographic regions need to comply with their specific set of rules.
LoRa Alliance is regularly publishing a summary of the regulations on their website.
Operational Fre-
quency band
Maximum e.r.p
Channel access and
occupation rules
(e.g. Duty cycle or
LBT + AFA)
Band num-
ber from
EC Decision
2013/752/EU
[i.3]
Class 1 sub-
class number
according
Commission
Decision
2000/299/EU
[i.7]
K
863,000 MHz to
865,000 MHz 25 mW e.r.p.
≤ 0,1% duty cycle
or polite spectrum
access
46a 66
L
865,000 MHz to
868,000 MHz
25 mW e.r.p.
Power density:
-4,5 dBm/100
kHz
≤ 1 % duty cycle or
polite spectrum ac-
cess
47 67
M
868,000 MHz to
868,600 MHz 25 mW e.r.p.
≤ 1% duty cycle or
polite spectrum ac-
cess
48 28
N
868,700 MHz to
869,200 MHz 25 mW e.r.p.
≤ 0,1% duty cycle
or polite spectrum
access
50 29
O
869,400 MHz to
869,650 MHz 25 mW e.r.p.
≤ 0,1% duty cycle
or polite spectrum
access
54a 130
P
869,400 MHz to
869,650 MHz 500 mW e.r.p.
≤ 10 % duty cycle
or polite spectrum
access
54b 30
Q
869,700 MHz to
870,000 MHz 5 mW e.r.p. No requirement 56a 31
R
869,700 MHz to
870,000 MHz 25 mW e.r.p.
≤ 1% duty cycle or
polite spectrum ac-
cess
56c 69
Table 3.6: EU wide harmonized national radio interfaces.

4. Package content
MatchX M2 Pro LPWAN Gateway comes in a package containing:
•Gateway
•LPWAN and GNNS antennas
•Power Supply and power cord
•Mounting facilities (screw anchors, screws and stainless steel camp)
The package doesn’t contain Ethernet cables as their length and type is specific to installation setup.
MX1901/2 Gateway (1 pcs) Antenna (3 pcs) 30mm M6 Screw anchor,M4 Screw (3 sets)
Stainless Steel Clamp (1 pcs) 24V POE ( 1 pcs) Power cords (1 pcs)

5. Revision History
Revision Description Date
1.0 Initial Release 15.03.2020

6. Important Notice
The information contained herein is believed to be reliable. MatchX makes no warranties regarding
the information contained herein. MatchX assumes no responsibility or liability whatsoever for any
of the information contained herein. MatchX assumes no responsibility or liability whatsoever for
the use of the information contained herein. The information contained herein is provided "AS IS,
WHERE IS" and with all faults, and the entire risk associated with such information is entirely with
the user. All information contained herein is subject to change without notice. Customers should
obtain and verify the latest relevant information before placing orders for MatchX products. The
information contained herein or any use of such information does not grant, explicitly or implicitly,
to any party any patent rights, licenses, or any other intellectual property rights, whether with regard
to such information itself or anything described by such information.
MatchX products are not warranted or authorized for use as critical components in medical,
life-saving, or life-sustaining applications, or other applications where a failure would reasonably be
expected to cause severe personal injury or death.
