Matco Tools M148 User manual

Part # 520.0148 / 520.0208
Processes
MIG/MAG(GTAW) Arc Welding
Flux-Cored (FCAW) Arc Welding
115 & 220VAC 50/60Hz
.
2016.11
M148 / M208
INVERTER MIG WELDING MACHINE
IMPORTANT: Read this Owner’s Manual Completely before attempting to use this
equipment. Save this manual and keep it handy for quick reference. Pay particular
attention to the safety instructions we have provided for your protection. Contact your
distributor if you do not fully understand this manual.
OPERATOR’S MANUAL

II
CONTENT
§1 SAFETY ................................................................................................................................1
§1.1 SIGNAL EXPLANATION........................................................................................................1
§1.2ARC WELDING DAMAGE.....................................................................................................1
§1.3THE KNOWLEDGE OF ELECTRIC AND MAGNETIC FIELDS.......................................................5
§2 OVERIVEW...........................................................................................................................7
§2.1 BRIEF INTRODUCTION.......................................................................................................7
§2.2WORKING PRINCIPLE.........................................................................................................8
§2.3VOLT-AMPERE CHARACTERISTIC ........................................................................................8
§3 INSTALLATION AND ADJUSTMENT ................................................................................10
§3.1 PARAMETERS..................................................................................................................10
§3.2 DUTY CYCLE &OVER HEAT..............................................................................................10
§3.3EQUIPMENT CONNECTION................................................................................................11
§4 OPERATION .......................................................................................................................12
§4.1 LAYOUT FOR THE FRONT AND REAR PANEL........................................................................12
§4.2 WELDING OPERATION ......................................................................................................13
§4.2.1 VOLTAGE SETTING ....................................................................................................13
§4.2.2 WIRE SPEED SETTING...............................................................................................13
§4..3 WELDING PARAMETERS..................................................................................................13
§4.4OPERATION ENVIRONMENT..............................................................................................13
§4.5OPERATION NOTICES ......................................................................................................14
§5 MAINTENANCE & TROUBLESHOOTING ........................................................................15
§5.1 MAINTENANCE ................................................................................................................15
§5.2TROUBLESHOOTING ........................................................................................................15
§5.3 MACHINE SPARE PARTS DRAWING.....................................................................................15
§5.4 MIG TORCH CONSUMABLE PARTS……………………………………………………………………………………………16
§5.5 MACHINE WIRING SCHEMATIC………………………………………………………………………………………………..17

1
§1 Safety
§1.1 Signal Explanation
The above signals mean warning! Notice! Running parts and getting an electric shock or
thermal parts will take damage for your body or others. The corresponding notices are as follows.
It is quite a safe operation after taking several necessary protection measures.
§1.2 Arc Welding Damage
The following signals and word explanations are to some damages for your body or others
happening on the welding operation. While seeing these, please remind of yourself or others to
be dangerous.
Only ones who are trained professionally can install, debug, operate, maintain and repair the
equipment.
During the operation, non-concerned people should be lift, especially for children.
After shut off the machine power, please maintain and examine the equipment according to §5
because of the DC voltage existing in the electrolytic capacitors.
ELECTRIC SHOCK CAN KILL.
Never touch electrical parts.
Wear dry, hole-free gloves and clothes to insulate yourself.
Insulate yourself from work and ground using dry insulation. Make certain the insulation is large
enough to cover your full area of physical contact with work and ground.
Take carefully when using the equipment in small place, falling-off and wet circumstance.
Never close the machine power before installation and adjustment.
Ensure to install the equipment correctly and ground the work or metal to be welded to a good
electrical (earth) ground according the operation manual.
The electrode and work (or ground) circuits are electrically “hot” when the welder is on. Do not

SAFETY
2
touch these “hot” parts with your bare skin or wet clothing. Wear dry, hole-free gloves to insulate
hands.
In semiautomatic or automatic wire welding, the electrode, electrode reel, welding head, nozzle
or semiautomatic welding gun are also electrically “hot”.
Always be sure the work cable makes a good electrical connection with the metal being welded.
The connection should be as close as possible to the area being welded.
Maintain the electrode holder, work clamp, welding cable and welding machine in good, safe
operating condition. Replace damaged insulation.
Never dip the electrode in water for cooling.
Never simultaneously touch electrically “hot” parts of electrode holders connected to two
welders because voltage between the two can be the total of the open circuit voltage of both
welders.
When working above the floor level, use a safety belt to protect yourself from a fall should you
get a shock.
FUMES AND GASES CAN BE DANGEROUS.
Welding may produce fumes and gases hazardous to health. Avoid breathing these fumes and
gases. When welding, keep your head out of the fume. Use enough ventilation and/or exhaust at
the arc to keep fumes and gases away from the breathing zone. When welding with electrodes
which require special ventilation such as stainless or hard facing or on lead or cadmium plated
steel and other metals or coatings which produce highly toxic fumes, keep exposure as low as
possible and below Threshold Limit Values using local exhaust or mechanical ventilation. In
confined spaces or in some circumstances, outdoors, a respirator may be required. Additional
precautions are also required when welding on galvanized steel.
Do not weld in locations near chlorinated hydrocarbon vapors coming from degreasing,
cleaning or spraying operations. The heat and rays of the arc can react with solvent vapors to
form phosgene, a highly toxic gas, and other irritating products.
Shielded gases used for arc welding can displace air and cause injury or death. Always use
enough ventilation, especially in confined areas, to insure breathing air is safe.
Read and understand the manufacturer’s instructions for this equipment and the consumables

SAFETY
3
to be used, including the material safety data sheet and follow your employer’s safety practices.
ARC RAYS CAN BURN.
Use a shield with the proper filter and cover plates to protect your eyes from sparks and the
rays of the arc when welding or observing open arc welding.
Use suitable clothing made from durable flame-resistant material to protect your skin and that
of your helpers from the arc rays.
Protect other nearby personnel with suitable, non-flammable screening and /or warn them not
to watch the arc nor expose themselves to the arc rays or to hot spatter or metal.
SELF-PROTECTION
Keep all equipment safety guards, covers and devices in position and in good repair. Keep
hands, hair, clothing and tools away from V-belts, gears, fans and all other moving parts when
starting, operating or repairing equipment.
Do not put your hands near the engine fan. Do not attempt to override the governor or idler by
pushing on the throttle control rods while the engine is running.
DO NOT adds the fuel near an open flame welding arc or when the engine
is running. Stop the engine and allow it to cool before refueling to prevent spilled fuel from
vaporizing on contact with hot engine parts and igniting. Do not spill fuel when filling tank. If fuel
is spilled, wipe it up and do not start engine until fumes have been eliminated.
WELDING SPARKS can cause fire or explosion.
Remove fire hazards from the welding area. If this is not possible, cover them to prevent the
welding sparks from starting a fire. Remember that welding sparks and hot materials from
welding can easily go through small cracks and openings to adjacent areas. Avoid welding near
hydraulic lines. Have a fire extinguisher readily available.
Where compressed gases are to be used at the job site, special precautions should be used to

SAFETY
4
prevent hazardous situation.
When not welding, make certain no part of the electrode circuit is touching the work or ground.
Accidental contact can cause overheating and create a fire hazard.
Do not heat, cut or weld tanks, drums or containers until the proper steps have been taken to
insure that such procedures will not cause flammable or toxic vapors from substances inside.
They can cause an explosion even though they have been “cleaned”.
Vent hollow castings or containers before heating, cutting or welding. They may explode.
Sparks and spatter are thrown from the welding arc. Wear oil free protective garments such as
leather gloves, heavy shirt, cuff less trousers, high shoes and a cap over your hair. Wear ear
plugs when welding out of position or in confined places. Always wear safety glasses with side
shields when in a welding area.
Connect the work cable to the work as close to the welding area as practical. Work cables
connected to the building framework or other locations away from the welding area increase the
possibility of the welding current passing through lifting chains, crane cables or other alternate
circuits. This can create fire hazards or overheat lifting chains or cables until they fail.
UNSECURED CYLINDERS may be dangerous.
Use only compressed gas cylinders containing the correct shielding gas and properly operating
regulators designed for the gas and cylinder pressure.
Always keep cylinders:
-Upright position securely chained to an undercarriage or fixed support.
-Away from areas where they may be struck or subjected to physical damage.
-A safe distance from welding or cutting operations and any other source of heat, sparks, or
flame.
Keep your head and face away from the cylinder valve outlet when opening.
Valve protection caps should always be in place and hand tight except when the cylinder is in
use or connected for use.

SAFETY
5
§1.3 Knowledge of Electric and Magnetic Fields
Electric current flowing through any conductor causes localized Electric and Magnetic Fields
(EMF). The discussion on the effect of EMF is ongoing all the world. Up to now, no material
evidences show that EMF may have effects on health. However, the research on damage of EMF
is still ongoing. Before any conclusion, we should minimize exposure to EMF as few as possible.
In order to minimize EMF, we should use the following procedures:
Route the electrode and work cables together – Secure them with tape or sleeve.
All cables should be kept as far away from the operator as possible.
Never coil the power or earth cables around operator body.
Connect the work cable to the workpiece as close as possible to the area being welded.
The people with heart-pacemaker should be away from the welding area.

OVERVIEW
6
§2 Overview
§2.1 Brief Introduction
The M-Series of MIG, MAGINVERTER arc welding machine adopts the latest pulse width
modulation (PWM) technology and insulated gate bipolar transistor (IGBT) power module, which
can change work frequency to medium frequency so as to replace the traditional hulking work
frequency transformer with the compact medium frequency transformer. This technology provides
a compact, lightweight, portable power supply with high output power and superior efficiency.
M-Series arc welding machines are designed to use active gas（Ar+O2、Ar+CO2and inactive
gas（Ar) for MIG/MAG welding or Flux-Cored wire for non-shield gas welding.
The MGI Series arc welding machine has automatic protection functions with intelligent to
over-voltage, over-current and over-heat sensing with auto-reset. If any one of the above
problems happens, the alarm lamp on the front panel will illuminate and output current will be
shut off automatically to protect itself and prolong the equipment using life.
M-SERIES Features:
1. Digital control system with infinitely adjustable (non-step) settings for power & wire speed
2. Electronic inverter power source provides high performance and efficiency
3. Waveform control provides stable welding arc on all materials and power settings
4. IGBT technology insures low power dissipation in compact package
5. Superior 40% duty cycle inverter design for professional welding.
The M-Series arc welding machine is suitable for all positions welding for various materials
including stainless steel, carbon steel, alloy steel, etc. common in the auto body repair, light
fabrication, pipe installment, petrochemical, architectural, general construction, farming and
restoration industries.
MAG--Metal Active Gas Welding (Mixed Argon, CO2or O2)
MIG--Metal Insert Gas Welding (Argon or Helium Gas)
FLUX-CORED—Arc Welding (No-Gas)

OVERVIEW
7
§2.2 Working Principle

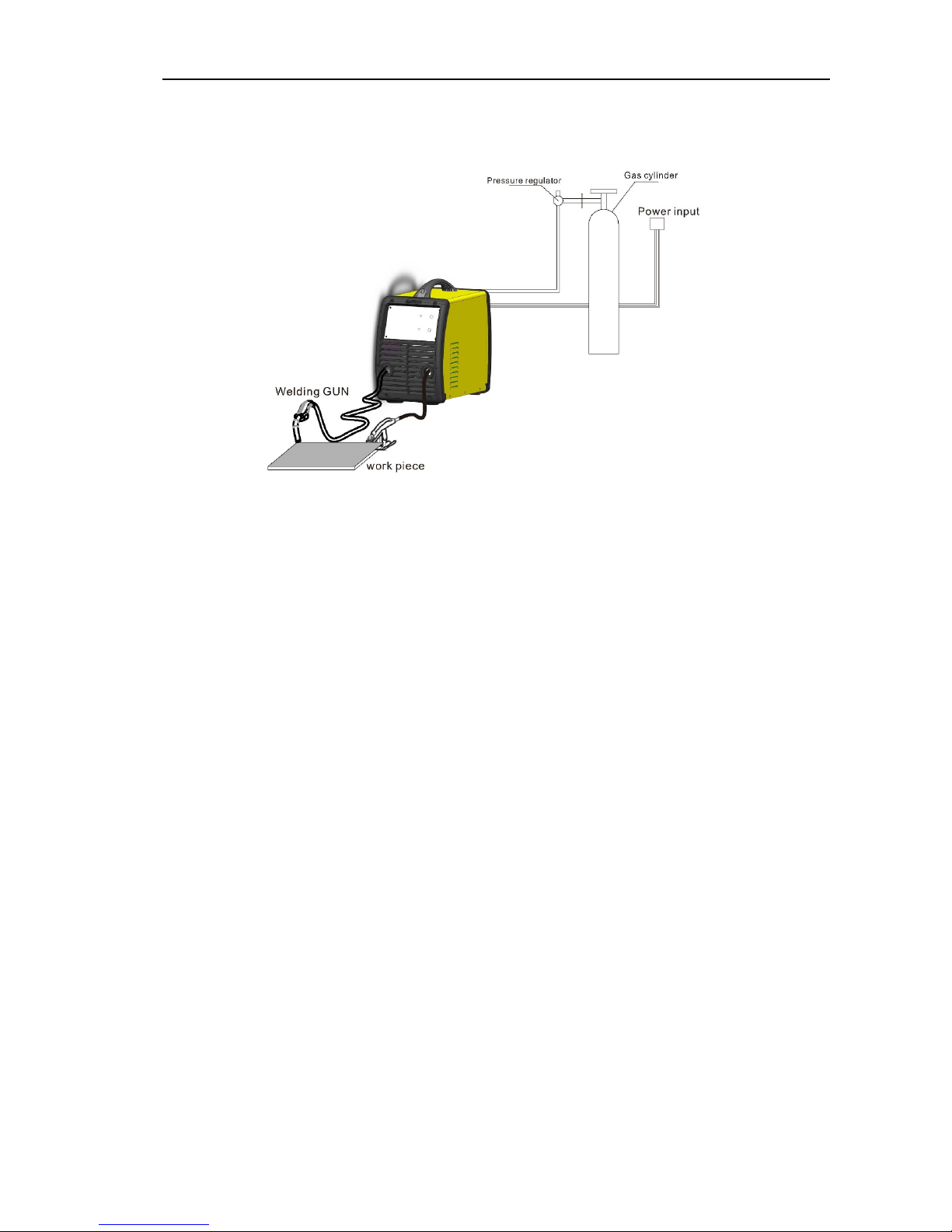

The working principle of M-SERIES arc welding machine is shown as the following figure.
single-phase 110 or 220V work frequency AC is rectified into DC（154V）, then is converted to
medium frequency AC (about 37KHz) by inverter device (IGBT), after reducing voltage by
medium transformer (the main transformer) and rectifying by medium frequency rectifier (fast
recovery diodes), and is outputted by inductance filtering. Meanwhile, the welding current
parameter can be adjusted infinitely to meet with the requirements of welding application.
§2.3 Volt-Ampere Characteristic
The inverter has an excellent volt-ampere characteristic, whose graph is shown as the
following figure. The relation between the rated loading voltage U2and welding current I2is as
follows: U2=14+0.05I2(V)
44
14
0600 Io（A）
Uo（V）
Working point
Volt-ampere characteristic The relation between the rated loading
voltage and welding current

OVERVIEW
8
§2.4Principles of welding

INSTALLATION AND ADJUSTMENT
9
§3 Installation and Adjustment
§3.1 Parameters
Model
Parameters
M148 (110VAC) M208 (220VAC)
Input Voltage
（
V
）
1~110/115±10%1~208-240±5%
Input Current
（
A
）
20 (max.) 20 (max.)
Input Power
（
KW
）
4.2 5.7
Welding
Current
（
A
）
35~140 50~200
No-load
Voltage
（
V
）
48 57
Duty cycle
（
4
0℃）
40%130A 100%95A
25%200A 100%120A
Diameter(mm)
Fe
：
0.6/0.8/0.9 SS: 0.6/0.8/0.9 Flux-Cored
：
0.8/0.9/1.0
Protection
class
IP23
Insulation
class
H
Dimensions
（
mm
）
465*214*395 465*214*395
Weight
（
Kg
）
12.5 Kg.
Note: The above parameters are subject to chan.
§3.2 Duty cycle and Over-temp
The rated duty cycle is defined as the proportion of the time that a machine can work
continuously over a 10 minute cycle when set at 100% of rated output welding current in 40C
(104F) ambient environment.
When the transformer reaches an over-heat condition, the heat sensor inside it will open and
will output an instruction to circuit board to cut AC relay and the output welding current while
illuminating the over-heat pilot lamp in the front panel. At this time, all welding operations should
cease for 15 minutes allowing the cooling fan to reduce the temperature. The unit will auto-reset
when correct temperature has been achieved and pilot light will go out. If the machine reached
the over-temp capacity again, the welding output current or the arc cycle should be reduced.

INSTALLATION AND ADJUSTMENT
10
§3.3 Equipment Connection
Operation Steps：
1. Connect the NEMA plug power cord of welding machine to matching electric outlet.
2. Connect input shield gas hose from regulator to input fitting on back of machine.
3. Connect the negative (-) cable clamp to the work piece (base metal).
4. Install spool of welding wire on spool holder with tension spring to hold in place.
5. Confirm drive roll V-groove and torch contact tip size “match” wire diameter on spool.
6. Lift idler roller arm and guide wire over V-groove on drive roll and into torch liner.
7. Secure idler roller arm in place and tighten tensioning spring.
8. Remove gas nozzle and contact tip from torch neck.
9. Set wire speed control to 100%, turn ON machine and, holding torch neck away from
face, push trigger to feed wire into torch cable through torch neck.
10. Turn machine OFF and replace contact tip over wire.
11. Install gas nozzle and clip wire to ¼” from tip.
12. Turn on shield gas valve and set regulator flow rate.
13. Ready to weld.

OPERATION
11
§4 Operation
§4.1 Layout for the front and rear panel

OPERATION
12
1. Voltage Display: Set desired welding voltage before welding. Displays actual welding
voltage when machine is working.
2. Alarm Led: When the machine senses LINE over voltage or low voltage, output over
current or over heat condition, the alarm pilot lamp will be on.
3. Power Led: Power led is illuminated when LINE voltage is applied to the machine.
4. Wire Feed & Current Display: Set desired wire speed before welding. Actual welding
current displayed when machine is working.
5. Wire Speed & Current Knob: Set the wire speed for desired welding current.
6. Current LED：When illuminated, display is actual output welding current.
7. Wire Speed LED：When illuminated, display is the desired wire speed.
8. Trigger Function Select: 2T = ON/OFF 4T = ON/Latch & Latch/OFF
9. Wave Control Knob: Controls arc characteristic or the rate at which the amperage
rises when a short circuit is produced.
10. Welding Voltage Knob: Set the welding volts
11. Earth Output Connector：This polarity must connect the work piece.
12. MIG Gun Connector: Euro-connect for torch cable to machine.
§4.2 Welding Operation
§4.2.1 Output Voltage Setting (V)
Turn knob to desired WELDING VOLTAGE “V” based on wire size, type and material being
welded per 4.3 below.
§4.2.2 Wire Speed Setting
Turn knob to desired WIRE SPEED “M/Min” based on wire size, type and material being
welded per 4.3 below.

OPERATION
13
§4.3 Welding parameters
Welding current（A）Welding volt（V）Wave control
Wire speed
φ0.6 φ0.8 φ1.0
40A
13
～
15V
1-2
2--3
60A
14
～
16V
2-4
3--5
2--3
80A
15
～
17V
3-5
6--8
3--5
2--3
100A
16
～
19V
3-5
8--10
3--6
2-3
120A 17～20V 4-6 4--7 3--5
140A 19～21V 5-10 5--8 3--5
160A 20～22V 5-10 6--9 4--7
180A 21～23V 5-10 6--9
200A 22～24V 5-10 8--12
§4.3 Operation Environment
●Height above sea level is below 3200 Ft. (1000 meters).
● Operation range: temperature 140F-1040F (-100C-400C) & relative humidity below 90 % (200C).
● Ventilation of at least 1 foot (30cm) free space between the machine and any structure.
§4.4 Operation Notices
▲Read §1 carefully before attempting to use this equipment.
▲NEMA power cord plug must be inserted directly into GROUNDED outlet by others.
▲Insure that the input LINE circuit is rated at nameplate voltage with 20-amp (Min.) breaker.
▲ Ensure good ventilation of the machine to improve duty-cycle ratio.
▲ Make certain welding area is free of all flammable or combustible materials.
▲ Turn off the power switch when the operation finished for economize energy sources.
▲When output shuts off and ALERT lamp illuminates, do not restart it until problem is resolved.
Otherwise, the range of problem will be extended and machine may be damaged.
▲In case of problems, contact your local dealer or authorized repair center.

THANK YOU FOR USING OUR PRODUCTS
14
s§5 Maintenance & Troubleshooting
§5.1 Maintenance
In order to guarantee that arc welding machine works high-efficiently and in safety, it must be
maintained regularly. Let customers understand the maintenance methods and means of arc
welding machine more , enable customers to carry on simple examination and safeguarding by
oneself, try one's best to reduce the fault rate and repair times of arc welding machine, so as to
lengthen service life of arc welding machine .Maintenance items in detail are in the following
table.
● Warning: For safety while maintaining the machine, please shut off the supply
power and wait for 5 minutes, until capacity voltage already drop to safe voltage 36V.
Frequency
Maintenance items
Daily
examination
If the power switch does not correctly snap in position, please replace
immediately. Contact service department for replacement switch.
After power ON, watch/listen to confirm arc welding machine cooling fan
is on and there is vibration or peculiar smell. If there is one of the above
problems, disconnect power cord and remove cover to determine blockage
and remove.
Observe LED display lamp and confirm POWER lamp is continuously
illuminated. If this lamp id flickering, LINE voltage is too high or low.
Observe that both voltage “V” and wire speed “S” knobs are functional and
turn easily. If not, replace potentiometers.
Confirm all welding cables are not damaged and all terminal connections
are secure. Loose connectors will quickly over heat cables and terminals
causing permanent damage.
Observe shield gas hose and fittings are in good condition and securely
fastened to regulator and machine. Cylinder control valve should be turned
OFF when machine is not in use to insure there is no loss of shield gas.
Monthly
examination
Using dry compressed air, clear the inside of arc welding machine of dust
and contamination on main voltage transformer, inductor coil, IGBT module
& diode aluminum finned heat sinks as well as across the surface of the PCB.
Check the terminal lugs in arc welding machine, if loose, please secure. If
burnt, please replace. If rusty, remove oxidation on bolt with emery cloth or
steel wool to ensure good electrical contact.
Quarter-
yearly
examination
All welding wires, cables and connections must be in good condition and
attached securely. Machine cooling fan must be operable and no excessive
dirt or dust should be built-up on internal components.

THANK YOU FOR USING OUR PRODUCTS
15
§5.2 Troubleshooting
All welding machines have undergone 100% inspection before leaving the factory.
Disconnect power cord from LINE before any trouble shooting and only professional
maintenance personal should perform any action on the machine!
Item Trouble Reasons Solution
1 Power switch “ON” but the
power light not illuminated
Breaker open or damaged Check circuit breaker
Power switch damaged Replace switch
Power cord damaged Replace cord
2 Machine over-
heat LED
illuminated bu
t fan is not
functioning
Fan damaged Clear obstruction or replace
The cable is loosen Secure the cable tightly
3
Depress
trigger
switch, no
output
shielded gas
No output
gas when test
gas
No gas in cylinder or closed Open valve or fill cylinder
Low gas flow or leaks in
hose and fittings
Adjust regulator flow, secure fittings
Gas solenoid valve problem Check and replace if required
Output gas
when test gas
Control switch damaged Repair the switch
Control circuit damaged Check the board
4
Depress
trigger
switch, no
wire feed
Wire feeder
doesn’t turn
Motor damaged Check and replace
Control circuit damaged Check and replace wire feed board
Wire feed
turns but no
wire feed at
nozzle
Welding wire skids over
drive roller wheel
Check tension arm & tighten
Welding wire skids over
drive roller wheel
Confirm roller groove matches wire dia.
Drive roller worn Replace
Wire won’t feed through
gun with tip removed
Replace torch wire conduit liner
Wire won’t feed through
gun with tip installed
Wrong size or worn contact tip, change
5
No striking arc and no
output voltage
Output cable is connected
incorrectly or loose terminal
Screw it down or change it
Control circuit damaged Check the circuit
6
Welding stops and over-
temp light illuminates
Machine has reached duty-
cycle limit or internal dust
Stop welding for 10-minutes to allow
cool down. Auto-reset will turn lamp off
7 Welding current is run away
and can be not controlled
The potentiometer damaged Check or change it
The control circuit damaged Check the circuit
8
The crater current can be not
adjusted
The PCB damaged Check it
9 Weld is inconsistent Inadequate or wrong gas Change cylinder to correct

THANK YOU FOR USING OUR PRODUCTS
16
§5.3 Wire Feeding Maintenance
The welding wire must travel smoothly and freely from the spool all the way to the weld pool for
controlled welding. Poor welding performance is many times a result of mechanical feeding
problems with the wire through the torch. Check for smooth feeding without welding by holding
gun 1’ from wood surface and feeding wire at 60-degree angle. It should feed smoothly as it
bows up from the surface. If not, maintenance needs to be performed.
1. Drive Roll: Check the wear of the feed roll “V” groove and clean the groove with wire
brush and/or compressed air.
2. Idle Roll: Check for signs of wear and good bearing support. Change is necessary.
3. Wire Guide: Pressure of the feed rolls removes copper plating from the welding wire’s
surface which then finds its way to the wire guide. If the wire guide is not cleaned, it
gradually clogs up and causes wire feed malfunctions. Clean the wire guide in the
following manner：
a. Cut the wire and remove the welding gun from the feeder.
b. With a pneumatic pistol, blow compressed air through the wire guide.
c. Blow the wire feed mechanism and reel housing clean with compressed air.
d. Reattach the torch, install wire, feed wire, install and tighten the contact tip with
wrench and install nozzle.
4. Wire Liner Replacement: If the wire liner in the MIG gun cable is too worn or totally
clogged, change it to a new one according to the following instructions:
a. Remove MIG gun mounting nut which exposes the brass liner nut.
b. Remove liner nut and withdraw the wire conduit liner from the gun cable.
c. Push a new liner in to the gun making sure that it enters all the way to the contact
tip’s base. Trim to length to lightly contact base of tip.
d. File the sharp edges of the cut-off end round for smooth feeding
e. Tighten the wire liner nut in place and reattach the gun to machine.
f. Feed wire through gun and reinstall contact tip, tighten with wrench.

THANK YOU FOR USING OUR PRODUCTS
17
§5.4 Changing the Feed Roll
The wire feed roller is factory set for welding filler wires 0.8 – 0.9mm (.030” - .035”). The
roller has a 0.6mm (.023”) diameter groove on the other side; therefore, the feed roller side must
be changed if you use 0.6mm thick filler wire. In order to thread the filler wire, follow these steps:
1. Open the wire cabinet housing by pressing on the opening button and install the wire
spool in such a way that it rotates counter clockwise. You can use either a diameter
200mm (8”) or 100mm (4”) wire reel in the machine.
2. Attach the reel onto the spool holder being sure to locate drive detent on 200mm (8”)
reels and be sure to install spring pressure plate directly under tension nut.
3. Unfasten the wire end from the reel, but hold on it all the time.
4. Straighten the wire end 20 cm out and cut the wire in the straightened location.
5. Open the pressure control level which then exposes the drive roll wire groove.
6. Thread the wire through the wire’s rear guide, over the roller making certain it aligns with
groove, feed 10 cm into the gun’s wire guide.
7. Close the feed gear and fasten it with the pressure control lever. Make sure that the wire
runs in the feed roll groove.
8. Adjust the compression pressure with the pressure control lever no higher than to the
middle of the scale. If the pressure is too high, it removes metal fragments from the wire
surface and may damage the wire. On the other hand, if the pressure is too low, the feed
gear slips and the wire does not run smoothly.
9. Make sure the gun nozzle and contact tip are removed.
Note：When driving the wire into the gun, do not point the gun at yourself or others.
10. Press the welding gun trigger to feed the wire into the gun. Once it extends out, reinstall
tip using wrench to tighten. Reinstall nozzle.

THANK YOU FOR USING OUR PRODUCTS
18
§5.5 Replacement Exploded Parts Drawing
No.
Part Number
Description
Qty.
1
520.3010
Handle, Machine CP
1.00
2
520.3050
Cabinet, Cover 148/208
1.00
3
520.3011
Latch, Wire Feed Door CP
1.00
4
520.3051
Cabinet, Wire Feed Door 148/208
1.00
5
520.3052
Cabinet, Rear Panel 148/208
1.00
6
538.0017
Power Switch
1.00
7
520.3012
Solenoid Valve, Two-Way
1.00
8
520.3053
Fan Mouting Plate CP
1.00
9
538.0055
Fan Cover CP
1.00
10
520.3013
Cooling Fan CP
1.00
11
520.3054
Cabinet Center Panel 148/208
1.00
12
520.3014
Spool Holder Assembly CP
1.00
13
520.3015
Spool Holder Shaft Assembly CP
1.00
14
520.3055
Cabinet Base 148/208
1.00
15
520.3016
Hinge Base CP
1.00
16
520.3017
Hinge Lever CP
2.00
17
520.3018
Wire Feeder Insulation Board CP
1.00
18
520.3019
Wire Feed Drive Motor 148/208
1.00
19
520.3020
Motor Cover 148/208
1.00
20
520.3021
Wire Guide 148/208
1.00
21
520.3022
Central Adaptor Mount 148/208
1.00
22
520.3023
Central Adaptor Socket 148/208
1.00
