Congratulations on purchasing the MS7057CT mainboard.
The MS7057CT mainboard is an ATX mainboard that uses a
4-layer printed circuit board and measures 304.8 mm x 220
mm. The mainboard features a Socket 370 that accommo-
dates the Intel Celeron 533A CPU and Intel Celeron CPUs at
566 MHz and above. It also supports Pentium III processors
up to 133 MHz.
The MS7057CT incorporates the Intel 815EP B-step chipset,
which combines support for SDRAM, ATA-100, and 4xAGP.
The 82801BA I/O controller hub makes a direct connection
between the graphics system, the IDE controller, and the PCI
bus and uses accelerated hub architecture to double the
bandwidth between these components enabling more lifelike
audio and video. The 82801BA I/O controller hub includes an
integrated audio-codec controller that lets the processor more
effectively decode sound generated by the integrated audio
system.
C
Ch he ec ck kl li is st t
Compare the mainboard’s package contents with the following
checklists:
Standard Items
•One mainboard
•One diskette drive ribbon cable and bracket
•One IDE drive ribbon cable and bracket
•One auto-install software support CD
•This user’s manual

2
F
Fe ea at tu ur re es s
Processor The MS7057CT mainboard uses a Socket 370 that
has the following features:
•Accommodates the Intel Celeron 533A CPU
and Celeron CPUs at 566 MHz and above
•Accommodates Intel Pentium III/Tualatin CPUs
that support a FSB of 100 or 133 MHz
Chipset The Intel 815EP B-step chipset is based on an in-
novative and scaleable architecture with proven
reliability and performance. A few of the chipset’s
advanced features are:
•82815 Memory Controller Hub (MCH) built on
Intel Graphics Technology, featuring a back-
wards compatible unified graphics driver
•82801BA I/O Controller Hub (ICH2) which de-
livers twice the I/O bandwidth as traditional
bridge architecture
•Two USB controllers double the bandwidth to
24 Mbps across four ports
•Integrated AC 97 audio that supports full sur-
round sound with up to 6 channels
•An ATA 100 interface on the chipset, which
helps boost system performance by providing a
high-speed connection to ATA 100 Hard Disk
Drives, delivering maximum sustained data
transfer rates of 100 MB/sec
Additional key features include support for 4 USB
ports, an AC 97 link for audio and modem, hard-
ware monitoring, and ACPI/OnNow power
management.
Memory Supports SDRAM up to 512 MB, uses a 3 piece
3.3V unbuffered 168 pin socket, accommodates 3
double sided DIMMs at 100 MHz system memory
bus, also supports 2 double sided or 3 single sided
DIMMs at 133 MHz system memory bus

3
VGA The MS7057CT includes a 4xAGP slot that
provides four times the bandwidth of the original
AGP specification. AGP technology provides a di-
rect connection between the graphics sub-system
and the processor so that the graphics do not have
to compete for processor time with other devices
on the PCI bus.
AC 97 Audio
Codec The AC 97 Audio codec is compliant with the AC
97 2.1 specification, supports 18-bit ADC (Analog
Digital Converter) and DAC (Digital Analog Con-
verter) resolution as well as 18-bit stereo full-
duplex codec with independent and variable sam-
pling rates. Further features include support for
four analog line-level stereo inputs.
Expansion
Options The mainboard comes with the following expansion
options:
•Six 32-bit PCI slots
•One 4xAGP slot
•One Communications Network Riser (CNR)
slot
•Two IDE channels and one floppy disk drive
interface
The MS7057CT supports Ultra DMA bus mastering
with transfer rates of 33/66/100 MB/sec.
Integrated I/O The mainboard has a full set of I/O ports and con-
nectors:
•Two PS/2 ports for mouse and keyboard
•Two serial ports
•One parallel port
•One MIDI/game port
•Two USB ports
•Audio jacks for microphone, line-in and line-out
BIOS
Firmware This mainboard uses Award BIOS that enables
users to configure many system features including
the following:
•Power management
•Wake-up alarms
•CPU parameters
•CPU and memory timing
The firmware can also be used to set parameters
for different processor clock speeds

4
M

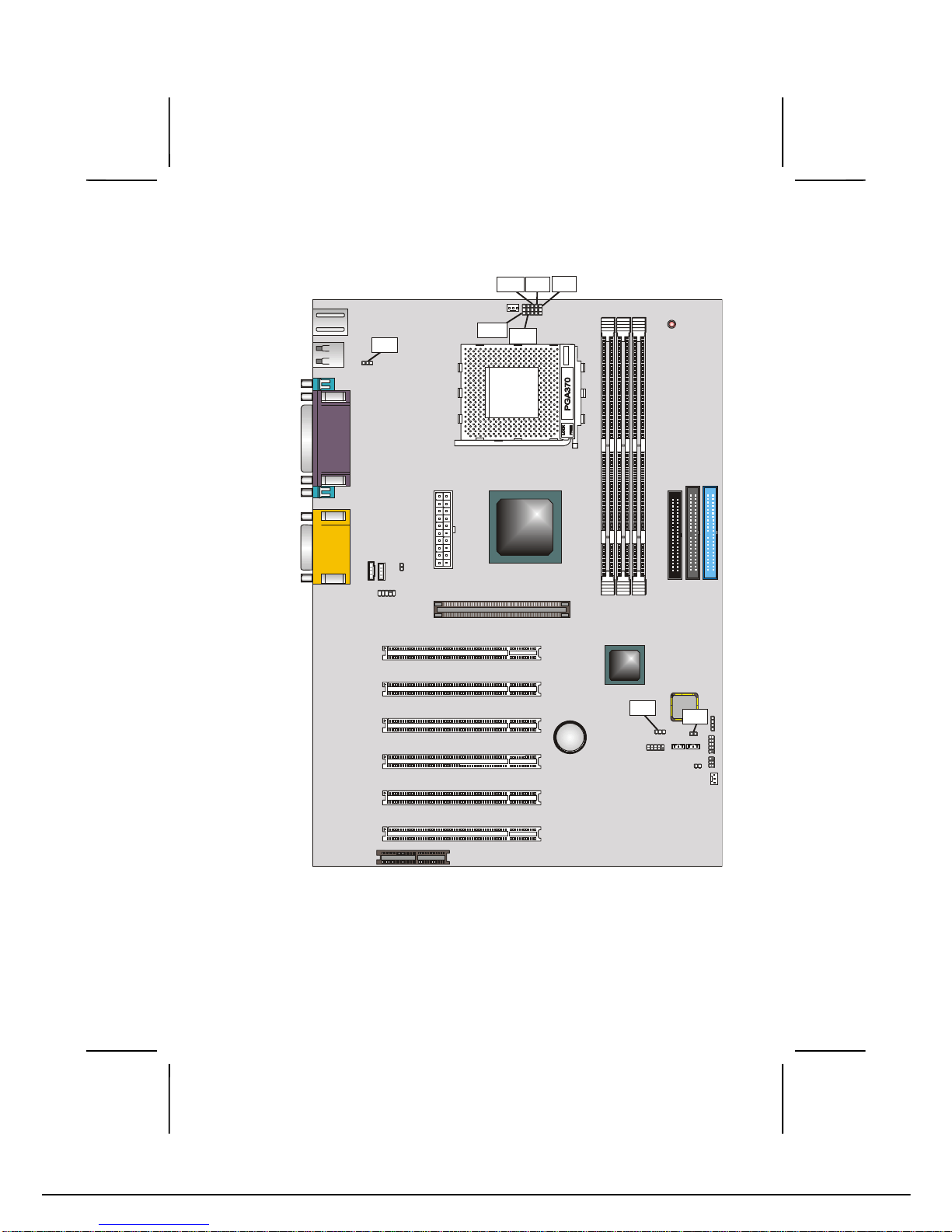

Ma ai in nb bo oa ar rd d C Co om mp po on ne en nt ts s
CPUFAN1
CASFAN1
DIMM1 DIMM2
DIMM3
LED1
IDE2
ATX1
J3
J1
CD1
AGP1
PCI1
PCI2
PCI3
PCI4
PCI5
PCI6
CNR1
BAT1 USB2
JP1
WOL1 WOM1
SPEAKER1
PANEL1
SIR1
FDD1
J4
JP2
CD2
IDE1
JP3
JP12
JP11
JP10
JP9 JP8
1
11111
1
11
1
1
11
1
1
11
1
1
11
1
1
11
1
1
AGP1
PCI1
PCI2
PCI3
PCI4
PCI6
PCI5
CNR1
BT1
USB2
WOL1 WOM1 SIR1
PANEL1
SPEAKER1
LED1
IDE1
IDE2
DIMM3
DIMM2
DIMM1
CPU SOCKET
CPUFAN1
ATX1
J3
CD1 CD2
J1
CASFAN1
J4
FDD1
AGP1
PCI1
PCI2
PCI3
PCI4
PCI6
PCI5
CNR1
BT1
USB2
WOL1 WOM1 SIR1
PANEL1
SPEAKER1
LED1
IDE1
IDE2
DIMM3
DIMM2
DIMM1
CPU SOCKET
CPUFAN1
ATX1
J3
CD1 CD2
J1
CASFAN1
J4
FDD1

5

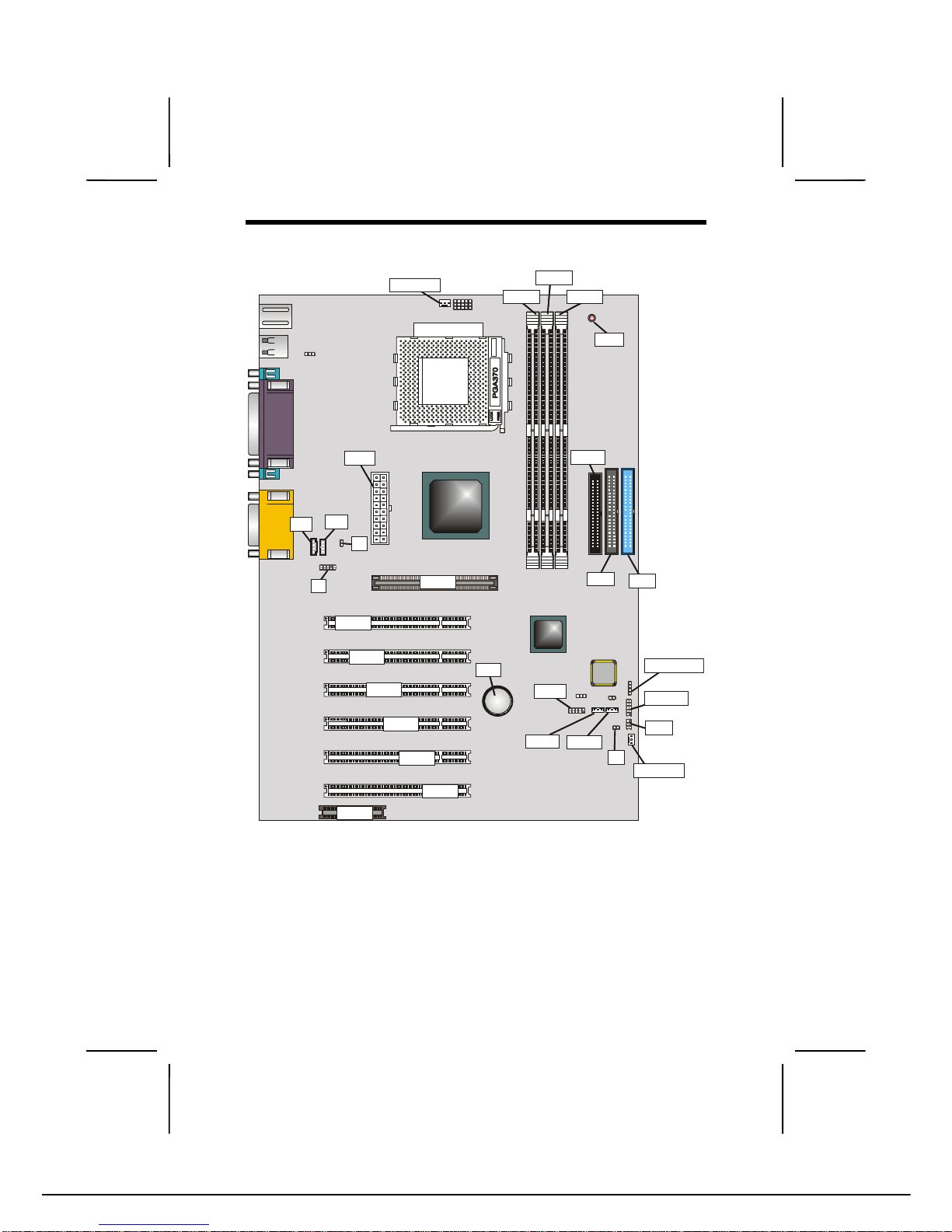

Table of Mainboard Components
Label Component
AGP1 Accelerated Graphics Port
ATX1 Power connector
BT1 Three volt realtime clock battery
CASFAN1 Auxiliary case cooling fan
CD1 Primary CD-in connector
CD2 Secondary CD-in connector
CNR1 Communications Networking Riser slot
CPU SOCKET Socket 370 for Intel Celeron and Pentium III
processors
CPUFAN1 Cooling fan for CPU
DIMM1 ~ DIMM3 Three 168-pin DIMM sockets
FDD1 Floppy disk drive connector
IDE 1 Primary IDE channel
IDE 2 Secondary IDE channel
J1 Case open alarm header
J3 Extra MIC/line-out header
J4 Sleep switch
LED11Red 3 VSB LED for SDRAM
PANEL1 Connector for case front panel switches and
LED indicators
PCI1 ~ PCI6 Six 32-bit add-on card slots
SIR1 Serial infrared cable header
SPEAKER1 Speaker connector
USB2 Front panel USB headers
WOL1 Wake On LAN wakeup connector
WOM1 Wake On Modem wakeup connector
1The red indicator LED1 turns on if your system is still pow-
ered, at which time memory modules cannot be installed or
uninstalled.

6

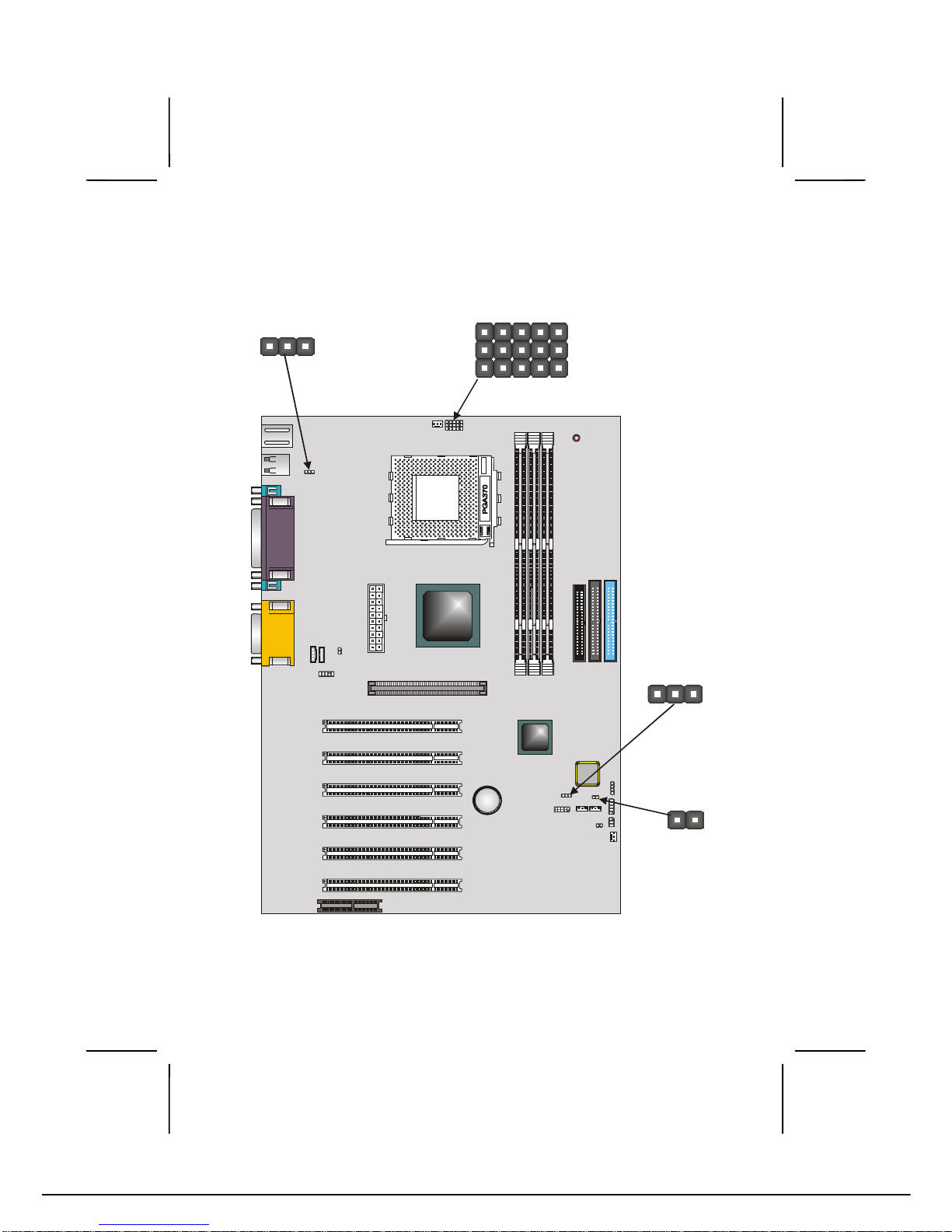

Jumpers
CPUFAN1
CASFAN1
DIMM1 DIMM2
DIMM3
LED1
IDE2
ATX1
J3
J1
CD1
AGP1
PCI1
PCI2
PCI3
PCI4
PCI5
PCI6
CNR1
BAT1 USB2
JP1
WOL1 WOM1
SPEAKER1
PANEL1
SIR1
FDD1
J4
JP2
CD2
IDE1
JP3
JP12
JP11
JP10
JP9 JP8
1
11111
1
11
1
1
11
1
1
11
1
1
11
1
1
11
1
1
JP1 JP2
JP10
JP12 JP11
JP9 JP8
JP3

7

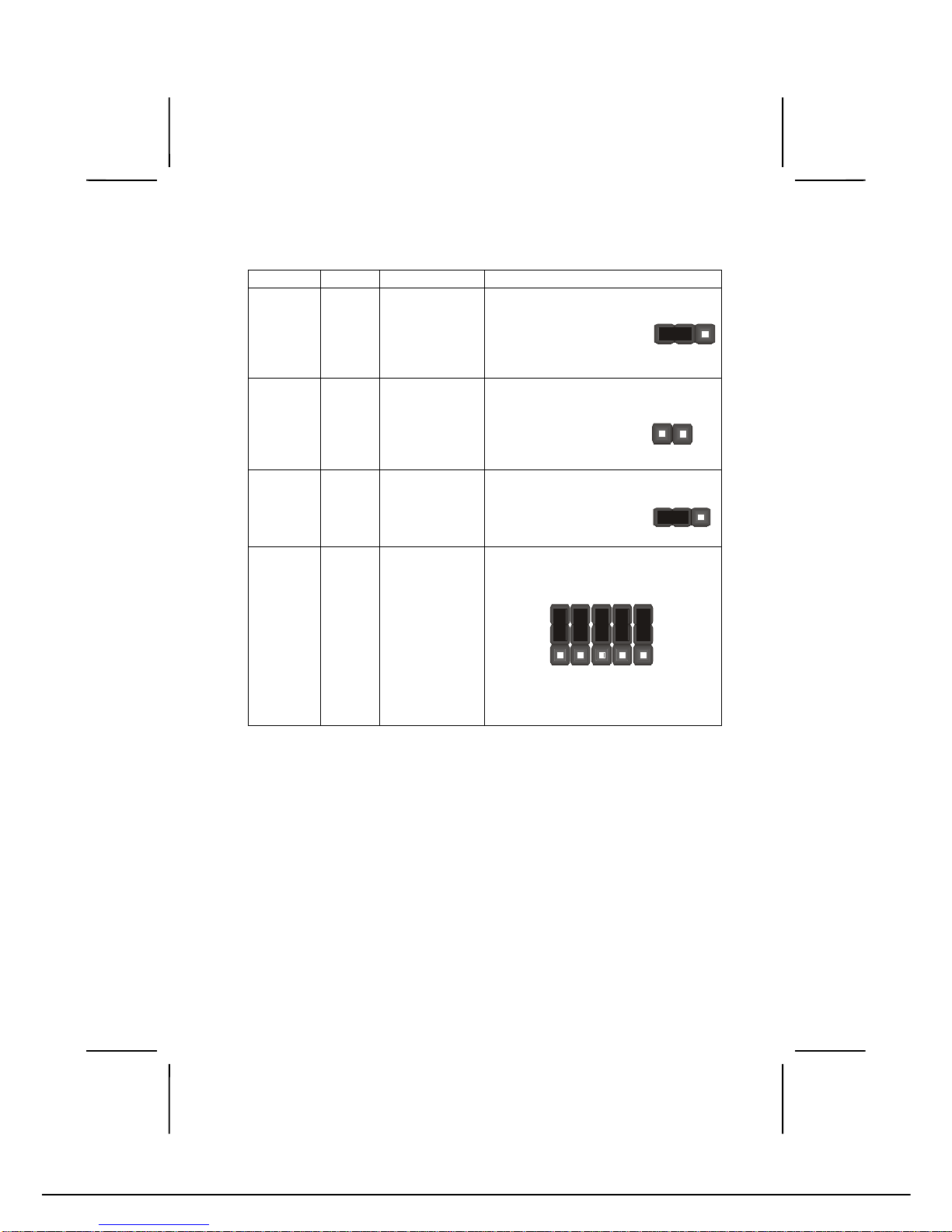

Table of Jumpers
Label Component
JP1 Clear BIOS jumper
JP2 BIOS flash protection jumper
JP3 Keyboard power on jumper
JP8 – JP12 CPU core voltage jumpers

8
C
Ch ho oo os si in ng g a a C Co om mp pu ut te er r C Ca as se e
There are many types of computer cases on the market. The
mainboard complies with the specifications for the ATX sys-
tem case. Some features on the mainboard are implemented
by cabling connectors on the mainboard to indicators and
switches on the system case. Ensure that your case supports
all the features required. The mainboard can support one
floppy diskette drive and four enhanced IDE drives. Ensure
that your case has sufficient power and space for all the
drives that you intend to install.
Most cases have a choice of I/O templates in the rear panel.
Make sure that the I/O template in the case matches the I/O
ports installed on the rear edge of the mainboard.
This mainboard has an ATX form factor of 220 mm x 304.8
mm. Choose a case that accommodates this form factor.
This concludes Chapter 1. Chapter 2 explains how to install
the mainboard.

C
Ch ha ap pt te er r 2 2
Installing the Mainboard
S
Sa af fe et ty y P Pr re ec ca au ut ti io on ns s
Follow these safety precautions when installing the mainboard:
•Wear a grounding strip attached to a grounded device
to avoid damage from static electricity.
•Discharge static electricity by touching the metal case
of a safely grounded object before working on the
mainboard.
•Leave components in the static-proof bags they came
in.
•Hold all circuit boards by the edges. Do not bend cir-
cuit boards.

10
Q
Qu ui ic ck k G Gu ui id de e
This Quick Guide suggests the steps you can take to build
your system with the mainboards.
The following table describes installing specific components:
Locating Mainboard Components Go to page 4
Installing Jumpers Go to page 11
Installing the Mainboard in a Case Go to page 16
Installing Case Components Go to page 17
Installing the CPU Go to page 19
Installing Memory Go to page 22
Installing an HDD and CD-ROM Drive Go to page 24
Installing an FDD Go to page 27
Installing Add-on Cards Go to page 28
Connecting Options Go to page 30
Connecting Peripheral (I/O) Devices Go to page 33
Note: The appendix provides a quick reference for jumper
settings.

11
C
Ch he ec ck ki in ng g J Ju um mp pe er r S Se et tt ti in ng gs s
This section explains how to set jumpers for correct configu-
ration of the mainboard.
Setting Jumpers
Use the mainboard jumpers to set system configuration op-
tions. Jumpers with more than one pin are numbered. When
setting the jumpers, ensure that the jumper caps are placed
on the correct pins.
Short Open
This illustration shows a 2-pin
jumper. When the jumper cap is
placed on both pins, the jumper is
SHORT. If you remove the jumper
cap, or place the jumper cap on
just one pin, the jumper is OPEN.
123
This illustration shows a 3-pin
jumper. Pins 1 and 2 are SHORT.

12
Checking Jumper Settings
In the following illustration, pin 1 is shown.
CPUFAN1
CASFAN1
DIMM1 DIMM2
DIMM3
LED1
IDE2
ATX1
J3
J1
CD1
AGP1
PCI1
PCI2
PCI3
PCI4
PCI5
PCI6
CNR1
BAT1 USB2
JP1
WOL1 WOM1
SPEAKER1
PANEL1
SIR1
FDD1
J4
JP2
CD2
IDE1
JP3
JP12
JP11
JP10
JP9 JP8
1
11111
1
11
1
1
11
1
1
11
1
1
11
1
1
11
1
1
JP11
JP10
JP9JP8
JP12
JP3
JP2
JP1
1
11111
1
11
1

13
Jumper Settings
Jumper Type Description Setting (default)
JP1 3 pin Clear CMOS 1-2: Normal
2-3: Clear CMOS JP1
1
JP2 2 pin BIOS flash
protection Open: Unlock
Short: Lock JP2
JP3 3 pin KB power on 1-2: Enable
2-3:Disable JP3
1
JP8
JP9
JP10
JP11
JP12
3 pin CPU core
voltage select
V
ID25mv
(JP12)
1
VID0
(JP8)
Refer to the table on page 15 for
pin information.

14
Jumper 1 – This jumper enables you to clear the BIOS:
1. Turn the system off.
2. Short pins 2 and 3 on jumper 1.
3. Return the jumper to the normal setting.
4. Turn the system on. The BIOS is returned to the de-
fault settings.
Jumper 2 – This jumper enables you to prevent the BIOS
from being updated (flashed). Set the jumper to unlock to up-
date your BIOS. After updating the BIOS, change it to the
locked setting. For instructions on updating, the BIOS refer to
Chapter 3.
Jumper 3 – This jumper allows the system to be awaken from
power saving mode upon any keyboard activity.
Jumper 8 ~ Jumper 12 –Use these 3 x 5 pin jumpers to
manually set the CPU core voltage.
Refer to the table on the next page for pin information.

15
Jumper 8 – 12 pin settings
Pin Settings
Volt. VID0 VID1 VID2 VID3 VID25mv
Auto* 1-2 1-2 1-2 1-2 1-2
1.050V 2-3 2-3 Open 2-3 2-3
1.075V 2-3 2-3 Open 2-3 Open
1.100V Open Open 2-3 2-3 2-3
1.125V Open Open 2-3 2-3 Open
1.150V 2-3 Open 2-3 2-3 2-3
1.175V 2-3 Open 2-3 2-3 Open
1.200V Open 2-3 2-3 2-3 2-3
1.225V Open 2-3 2-3 2-3 Open
1.250V 2-3 2-3 2-3 2-3 2-3
1.275V 2-3 2-3 2-3 2-3 Open
1.300V Open Open Open Open 2-3
1.325V Open Open Open Open Open
1.350V 2-3 Open Open Open 2-3
1.375V 2-3 Open Open Open Open
1.400V Open 2-3 Open Open 2-3
1.425V Open 2-3 Open Open Open
1.450V 2-3 2-3 Open Open 2-3
1.475V 2-3 2-3 Open Open Open
1.500V Open Open 2-3 Open 2-3
1.525V Open Open 2-3 Open Open
1.550V 2-3 Open 2-3 Open 2-3
1.575V 2-3 Open 2-3 Open Open
1.600V Open 2-3 2-3 Open 2-3
1.625V Open 2-3 2-3 Open Open
1.650V 2-3 2-3 2-3 Open 2-3
1.675V 2-3 2-3 2-3 Open Open
1.700V Open Open Open 2-3 2-3
1.725V Open Open Open 2-3 Open
1.750V 2-3 Open Open 2-3 2-3
1.775V 2-3 Open Open 2-3 Open
1.800V Open 2-3 Open 2-3 2-3
1.825V Open 2-3 Open 2-3 Open
*Auto: When all 1-2 pins are shorted, the core voltage will auto-
matically be determined.
Note: These values are for reference only. It is not recommend-
ed to change the settings for jumper 8 ~ 12. Please notice
that the CPU will burn out if the core voltage is higher
than the default value.
