Caution! When installing a CPU heatsink and
cooling fan make sure that you DO
NOT scratch the motherboard or any of
the surface-mount resistors with the clip
of the cooling fan. If the clip of the
cooling fan scrapes across the main-
board, you may cause serious damage
to both the mainboard and the proces-
sor.
On most mainboards, there are small
surface-mount resistors near the proces-
sor socket, which may be damaged if
the cooling fan is carelessly installed.
Avoid using cooling fans with sharp
edges on the fan casing and the clips.
Also, install the cooling fan in a well-lit
work area so that you can clearly see
the mainboard and processor socket.
C
ool
i
ng
f
an and
heat sink
CPU socket
Important Information
Copyright
This publication, including all photographs, illustrations and
software, is protected under international copyright laws, with all
rights reserved. Neither this manual, nor any of the material
contained herein, may be reproduced without the express writ-
ten consent of the manufacturer.
Version 1.0
Disclaimer
The information in this document is subject to change without
notice. The manufacturer makes no representations or warranti-
es with respect to the contents hereof and specifically disclaims
any implied warranties of merchantability or fitness for any par-
ticular purpose. Further, the manufacturer reserves the right to
revise this publication and to make changes from time to time in
the content hereof without obligation of the manufacturer to no-
tify any person of such revision or changes.

ii
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of
Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered
trademarks of Intel Corporation.
Other product names used in this manual are the properties of
their respective owners and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency en-
ergy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is en-
couraged to try to correct the interference by one or more of the
following measures:
!Reorient or relocate the receiving antenna.
!Increase the separation between the equipment and the
receiver.
!Connect the equipment onto an outlet on a circuit differ-
ent from that to which the receiver is connected.
!Consult the dealer or an experienced radio/TV technician
for help.
Shielded interconnect cables and a shielded AC power cable
must be employed with this equipment to ensure compliance
with the pertinent RF emission limits governing this device.
Changes or modifications not expressly approved by the sys-
tem’s manufacturer could void the user’s authority to operate the
equipment.

iii
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is
subject to the following conditions:
!This device may not cause harmful interference, and
!This device must accept any interference received, in-
cluding interference that may cause undesired operation.
Canadian Department of Communications
This class B digital apparatus meets all requirements of the Ca-
nadian Interference-causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exi-
gences du Réglement sur le matériel brouilieur du Canada.

iv
About the Manual
The manual consists of the following chapters:
Introduction
Use the Introduction Chapter to learn about the features of the
mainboard, and verify the checklist of items that are shipped
with the package.
Installation
Use the Installation Chapter to learn how to install the main-
board and get your system up and running.
Setup
Use the Setup Chapter to configure the mainboard for optimum
performance.
Software
Use the Software Chapter to learn how to install the software
drivers and support programs that are provided with this main-
board.

v
Contents
Important Information i
Copyright i
Disclaimer i
Trademark Recognition ii
Federal Communications Commission (FCC) ii
Declaration of Conformity iii
Canadian Department of Communications iii
About the Manual iv
CHAPTER 1: INTRODUCTION 1
Welcome 1
Checklist 2
Recommendations 2
Features 3
CHAPTER 2: INSTALLATION 7
Quick Installation Table 7
Before You Begin 8
Static Electricity 8
Choosing a Case 9
Preparing the Mainboard 10
Mainboard Guide 10
I/O Ports Side View 12
Check the Jumper Settings 13
Installing the Mainboard in a Case 17
Connecting Internal Components 18
Installing Other Hardware 20
Installing the Processor 20
Install the Memory Modules 22
Installing a Hard Disk Drive and CD-ROM 24
Installing a Floppy Diskette Drive 27
Using the Expansion Slots 28
Add-in Card Options 30
Making External Connections 31
External Connector Color Coding 32
CHAPTER 3: SETUP 33
About the Setup Utility 33
Entering the Setup Utility 34
BIOS Navigation Keys 35

vi
Using BIOS 36
How to Flash a New BIOS 37
Standard CMOS Setup Option 38
Advanced CMOS Setup Option 41
Advanced Chipset Features Option 45
Integrated Peripherals Option 48
Power Management Setup Option 52
PNP/PCI Configuration Option 58
PCI Health Status Option 60
Frequency Control Option 61
Load Fail-Safe Defaults Option 62
Load Optimized Defaults Option 62
Set Supervisor and User Passwords Options 63
Save & Exit Setup Option 64
Exit Without Saving Option 64
CHAPTER 4: SOFTWARE 65
Folders for this Mainboard 65
Utility Folder Installation Notes 66
Mainboard (MS7127C) Installation Notes 68
APPENDIX: JUMPER SETTING REFERENCE 69
Quick Jumper Setting Reference 69

1
C
Ch ha ap pt te er r 1 1: : I In nt tr ro od du uc ct ti io on n
Welcome
Congratulations on purchasing the MS7127C mainboard. The
MS7127C mainboard is an ATX mainboard that uses a 4-layer
printed circuit board and measures 304 mm x 190 mm. The
mainboard features a Socket 370 that accommodates PPGA
Celeron, FC-PGA Pentium III, and Cyrix III processors that sup-
port frontside bus (FSB) speeds up to 133 MHz.
The MS7127C uses the VIA family chipset and features the AC
97 audio codec. The mainboard is equipped with a 2xAGP (Accel-
erated Graphics Port) slot and two PCI Bus Master Ultra DMA
(UDMA) ports that support up to four ATAPI (AT Attachment Packet
Interface) devices. The PCI IDE also supports PIO Mode 3 and 4,
UDMA33/66 IDE (UDMA100 is optional), and an ATAPI CD-ROM.
Note: The MS7127C supports two VIA South Bridge chipsets—
the VIA VT82C686A and the VIA VT82C686B. The VIA
VT82C686A is standard and supports UDMA33/66. The VIA
VT82C686B is optional and supports UDMA100.
The mainboard accommodates PC 100 SDRAM (Synchronous
DRAM) up to 1.5 GB using three 3.3V unbuffered DIMM modules.
The MS7127C also has a full set of I/O ports, such as dual channel
IDE interfaces, a floppy controller, two FIFO serial port connectors,
an EPP/ECP-capable bi-directional parallel port connector, a dual
USB (Universal Serial Bus) connector, and PS/2 keyboard and
mouse connectors.
One AGP slot, four PCI local bus slots, two ISA slots, and one
audio modem riser (AMR) slot provide expandability for add-on
peripheral cards.

2
This chapter contains the following information:
!Checklist comprises a list of the standard and optional
components that are shipped with this mainboard
!Recommendations lists some Do’s and Don’ts from the
manufacturer to help ensure reliability and performance
from this product
!Features highlights the functions and components that
make this one of the best value mainboards on the market
Checklist
Compare the contents of your mainboard package with the stan-
dard checklist below. If any item is missing or appears damaged,
please contact the vendor of your mainboard package.
Standard Items
!One mainboard
!One diskette drive ribbon cable and bracket
!One IDE drive ribbon cable and bracket
!This user’s manual
!Software support CD-ROM disc
Recommendations
This mainboard automatically determines the CPU clock fre-
quency and system bus frequency for the kind of processor that
you install. You may be able to change these automatic settings
by making changes to jumpers on the mainboard, or changing
the settings in the system Setup Utility. We strongly recommend
that you do not overclock the mainboard to run processors or
other components faster than their rated speed.
Warning: Overclocking components can adversely affect the reliabil-
ity of the system and introduce errors into your system. Overclocking
can permanently damage the mainboard by generating excess heat
in components that are run beyond the rated limits.

3
Components on this mainboard can be damaged by discharges
of static electricity. Handle the board carefully holding it by the
edges. Do not flex or stress the circuit board. Keep the board in
its static-proof packing until you are ready to install it. Follow the
static guidelines given at the beginning of Chapter 2.
Features
The key features of this mainboard are the wide range of proc-
essors that can be installed, and the high level of integration.
Value-class Processors
Functioning as a platform for a value PC, the MS7127C features
a Socket 370 that accommodates PPGA Celeron, Pentium III,
and Cyrix III processors. The MS7127C supports 66/100/133
MHz FSB speeds.
VIA North Bridge Chipset
This board features the VIA VT82C693A NB (North Bridge)
chipset, enabling synchronous and asynchronous frequency op-
eration between the processor and the memory over a wide
frequency range. The NB chipset is optimized for Pentium III
processors at 66/100/133 MHz Front Side Bus (FSB) frequency
and supports 32-bit processor bus addressing. The following
host/DRAM clocking configurations are supported:
•66/66
•66/100
•100/66
•100/100
•100/133
•133/100
•133/133.
The integrated DRAM controller supports up to three double-
sided DIMMs or six banks up to 1.5 GB using 256 MB DRAM
technology. The NB chipset provides SDRAM with a 64-bit data
interface.

4
The AGP interface is AGP specification Rev 2.0 compliant, and
supports 2x devices. The PCI bus interface complies with PCI
Rev. 2.2, and supports 3.3V and power supplies. Five PCI bus
masters are supported in addition to the host and PCI-to-ISA I/O
bridge.
VIA South Bridge Chipset
Note: The MS7127C supports two VIA South Bridge chipsets—
the VIA VT82C686A and the VIA VT82C686B. The VIA
VT82C686A is standard and supports UDMA33/66. The VIA
VT82C686B is optional and supports UDMA100.
The VIA VT82C686A SB (South Bridge) chipset comes in a 352-pin
BGA package. The PCI to ISA Bridge has an integrated ISA bus
controller with integrated DMA, timer, and interrupt controllers. The
VIA VT82C686A chipset supports UDMA33/66.
As an option you can get the MS7127C with the VIA VT82C686B
SB chipset, which supports UDMA100.
The Real Time Clock features extended 256 byte CMOS RAM
and a day and month alarm for the ACPI (Advanced Configura-
tion and Power Interface).
There is an integrated USB controller with a built-in root hub and
four function ports. The integrated Ultra DMA33/66 master mode
EIDE controller with enhanced PCI bus commands.
The UltraDMA33/66 Master Mode PCI EIDE controller features
dual channel master mode PCI supporting Enhanced IDE (EIDE)
devices and employ transfer rates up to 33 MB/sec to cover PIO
mode 4, multi-word DMA mode 2 drives, and UltraDMA-33 in-
terface. The SB chipset also supports ATAPI compliant devices
including DVD devices and four USB 1.1 ports for serial trans-
fers at 12 or 1.5 Mbits/sec.
The integrated super IO controller supports two serial ports, an
IR port, parallel port, and floppy disk controller functions. There
is also system monitor support, providing system feedback of
voltage, temperature, and fan speed conditions.

5
Inexpensive Memory
The board has three DIMM sockets for the installation of 168-pin,
3.3V non-buffered DIMM memory modules. The DIMM memory
modules can be SDRAM or VCM memory chips.
AGP Graphics Adapter Slot
The MS7127C includes a 2xAGP slot that provides twice the
bandwidth of the original AGP specification. AGP technology
provides a direct connection between the graphics sub-system
and the processor so that the graphics do not have to compete
for processor time with other devices on the PCI bus.
The AGP design allows the graphics controller to use part of the
main memory when it needs it, for example, in handling the very
large texture maps required by virtual reality and 3D video
games and applications.
AC 97 Audio Codec
The AC 97 Audio codec is compliant with the AC 97 2.1 specifi-
cation, and supports 18-bit ADC (Analog Digital Converter) and
DAC (Digital Analog Converter) resolution as well as 18-bit
stereo full-duplex codec with independent and variable sampling
rates. Further features include support for four analog line-level
stereo inputs.
Expansion Options
Four 32-bit PCI slots, two 8/16-bit ISA slots, an AGP slot, and an
AMR slot provide plenty of expansion potential. The MS7127C
PCI slots support Ultra DMA33/66 bus mastering with transfer
rates up to 33/66 MB/sec.
Integrated I/O
The mainboard has a full set of I/O ports and connectors. The
I/O template on the backplane includes two PS/2 ports for
mouse and keyboard, two serial port, one parallel port, one
MIDI/game port, two USB ports with an onboard header provid-
ing two extra USB ports, and audio jacks for microphone, line-in
and line-out. The board includes two PCI IDE channels and a
floppy disk drive interface.

6
Keyboard Power on Feature
Using the system BIOS setup program, you can configure the
system to turn on by pressing any key. A green keyboard is not
required.
Programmable Firmware
The mainboard includes Award BIOS that allows BIOS setting of
CPU parameters. This fully programmable firmware enhances
the system features and allows users to set such items as power
management, CPU and memory timing, and modem wake-up
alarms. The firmware can also be used to set parameters for
different processor clock speeds so that you don’t need to
change mainboard jumpers and switches.
This concludes Chapter 1. The next chapter will cover installing
and building a working system.

7
C
Ch ha ap pt te er r 2 2: : I In ns st ta al ll la at ti io on n
Quick Installation Table
This chapter explains how to successfully install the mainboard
into a computer case and build a working system.
The installation procedure is as follows:
Before you
Begin Provides advice on choosing a case,
avoiding static electricity damage, and set-
ting jumpers.
Preparing the
Mainboard Provides a guide to the mainboard and I/O
port locations, full details on the jumper
settings, and advice on installing the main-
board in the system case.
Installing Other
Hardware Provides guidance on installing essential
hardware: processor, memory, hard disk
drive, CD-ROM, floppy disk drive, and ex-
pansion cards.
Making
External
Connections
Provides advice on using the external I/O
ports to install peripheral devices such as a
keyboard, a monitor, a mouse, a printer,
and loudspeakers.
Appendix The Appendix provides a quick reference
for the jumper settings on this mainboard.

8
Before You Begin
Before you begin to install your mainboard, take care not to
damage the product from static electricity. Ensure too that you
are installing the mainboard into a suitable case.
Static Electricity
In adverse conditions, static electricity can accumulate and dis-
charge through the integrated circuits and silicon chips on this
product. These circuits and chips are sensitive and can be per-
manently damaged by static discharge.
•If possible, wear a grounding wrist strap clipped to a
safely grounded device during the installation.
•If you don’t have a wrist strap, discharge any static by
touching the metal case of a safely grounded device be-
fore beginning the installation.
•Leave all components inside their static-proof bags until
they are required for the installation procedure.
•Handle all circuit boards and electronic components
carefully. Hold boards by the edges only. Do not flex or
stress circuit boards.

9
Choosing a Case
The mainboard complies with the specifications for the Micro
ATX system case. Some features on the mainboard are imple-
mented by cabling connectors on the mainboard to indicators
and switches on the system case. Ensure that your case sup-
ports all the features required. The mainboard can support one
or two floppy diskette drives and four enhanced IDE drives. En-
sure that your case has sufficient power and space for all the
drives that you intend to install.
The mainboard has a set of I/O ports on the rear edge. Ensure
that your case has an I/O template that supports the I/O ports
and expansion slots.

10
Preparing the Mainboard
Mainboard Guide

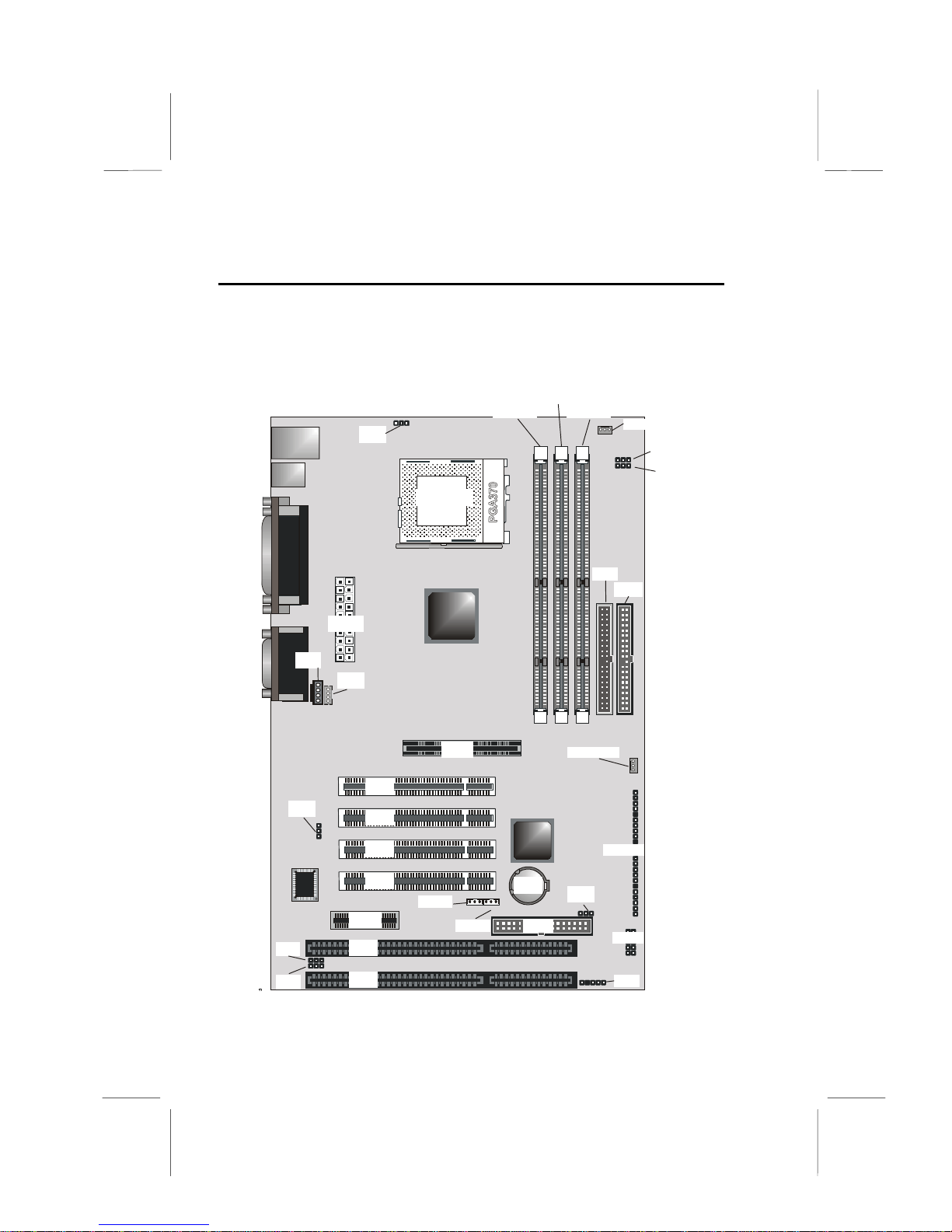

Use the following illustration and key to identify the components
on your mainboard.
LOCKFREE
3V+
ATX1
AGP1
LTI1
FDD1IDE1IDE2 DIMM1
AMR1
CD1
PWRFAN1CPUFAN1
J1
JP1
DIMM2DIMM3
PCI1
PCI2
CD2
BT1J2 JP17JP16
JP1
JP6
JP14
JP2
VID1VID2 VID3VID4VID5
JP9JP7JP8
JP10
JP15JP3JP4JP5
SIR1
VGA1PPGA1
DIMM1DIMM3DIMM2
AGP1
LTI1
AMR1 IDE1
FDD1
SIR1
PWRFAN1
CPUFAN1
PANE
ATX1
PCI1
PCI2
CD1CD2
BT1
LOCKFREE
3V+
ATX1
AGP1
LTI1 FDD1IDE1IDE2
DIMM1
AMR1
CD1
PWRFAN1CPUFAN1
J1
JP1
DIMM2DIMM3
PCI1
PCI2
CD2BT1J2JP17JP16
JP1
JP6
JP14
JP2
VID1VID2 VID3VID4VID5
JP9JP7JP8JP10
JP15JP3
JP4JP5
SIR1
VGA1PPGA1
DIMM1DIMMDIMM2
AGP1
LTI1
AMR1 IDE1
FDD1
SIR1
PWRFAN1
CPUFAN1
PANE
ATX1
PCI1
PCI2
CD1CD2
BT1
3V
+
ATX1
AGP1
PPGA1
FDD1
IDE1
IDE2
DIMM1
WOM1WOL1
CD1
PWRFAN1
CPUFAN1
PANEL1
DIMM2 DIMM3
PCI1
PCI3
PCI4
PCI2
CD2
ISA2
ISA1
JP1
JP4
JP3
JP2
JP5
JP7
JP6
SIR1
BT1
USB2
1
1
1
1
1
1
1
1
1
AMR1
Socket 370
ATX1
DIMM 1 DIMM 2 DIMM 3
JP6
JP7
JP1
JP2
SIR1
CPUFAN1
FDD1
IDE1IDE2
PWRFAN1
PANEL1
WOM1
WOL1
JP4
JP3
BT1
PCI1
AGP1
AMR1
PCI2
PCI3
PCI4
ISA1
ISA2
CD1 CD2
USB2
JP5

11
Key to Mainboard Components
Component Description
JP2 Keyboard wake up jumper
PPGA1 PGA 370 CPU socket
DIMM 1, 2, 3 Three slots for 168-pin DRAM memory module
CPUFAN1 Power connector for CPU1 cooling fan
JP6, 7 CPU frequency select jumpers
ATX1 Power connector for case cooling fan
IDE1, IDE2 Primary and secondary IDE channels
CD1 Audio connector for CD-ROM/DVD drive
CD2 Auxiliary connector for CD-ROM/DVD drive
AGP1 Accelerated Graphics Port slot
PCI1 ~ PCI4 Four 32-bit PCI slots
AMR1 Audio modem riser (AMR) slot
ISA1/ISA2 Two 8/16-bit ISA slots
PWRFAN1 Connector for power supply fan
JP5 Slave/master AMR card jumper
PANEL1 Panel connector for switches and indicators
BT1 3 volt battery for realtime clock
JP1 Clear the system CMOS jumper
WOL1 Connector for LAN wake up
WOM1 Connector for modem wake up
FDD1 Connector for floppy disk drives
USB2 Connector for USB port
SIR1 Serial infrared connector
JP3 BIOS flash protection jumper
JP4 Onboard/AMR slot codec select jumper

12
I/O Ports Side View
PS/2
mouse
PS/2
keyboard USB ports
Parallel port (LPT1)
Serial port
COM 1 Serial port COM 2 Line-in
Game port
Microphone
Line-out
Key to I/O Ports
Component Description
PS/2 mouse PS/2 port for pointing device (upper port)
PS/2 keyboard PS/2 port for keyboard (lower port)
USB ports Two stacked Universal Serial Bus ports
LPT1 External parallel port
COM1 External serial port COM 1
COM2 External serial port COM 2
Game port External MIDI/game port
Audio ports Audio jacks for (from left to right) line out, line
in, microphone

13
Check the Jumper Settings
Check the mainboard jumpers to ensure that the board is con-
figured correctly.
How to Set Jumpers
A jumper consists of two or more pins mounted on the main-
board. Some jumpers might be arranged in a series with each
pair of pins numbered differently. Jumpers are used to change
the electronic circuits on the mainboard. When a jumper cap (or
shunt) is placed on two jumper pins, the pins are SHORT. If the
jumper cap is removed (or placed on just a single pin), the pins
are OPEN.
Short Open
This illustration shows a 2-pin jumper.
When the jumper cap is placed on
both pins, the jumper is SHORT. If
you remove the jumper cap, or place
the jumper cap on just one pin, the
jumper is OPEN.
This illustration shows a 3-pin jumper.
The jumper cap is placed on pins 2
and 3, so this jumper setting is
SHORT PINS 2-3.
This illustration shows the same 3-pin
jumper. The jumper cap is placed on
pins 1 and 2, so this jumper setting is
SHORT PINS 1-2.
In this manual, all the jumper illustrations clearly show the pin
numbers. When you are setting the jumpers, make sure that the
jumper caps are placed on the correct pins to select the function
or feature that you want to enable or disable.

14
3V
+
ATX1
AGP1
PPGA1
FDD1
IDE1
IDE2
DIMM1
WOM1WOL1
CD1
PWRFAN1
CPUFAN1
PANEL1
DIMM2 DIMM3
PCI1
PCI3
PCI4
PCI2
CD2
ISA2
ISA1
JP1
JP4
JP3
JP2
JP5
JP7
JP6
SIR1
BT1
USB2
1
1
1
1
1
1
1
1
1
AMR1
JP1
JP3
JP7
JP4
JP6
JP
2
JP5
1
1
1
1
1
1

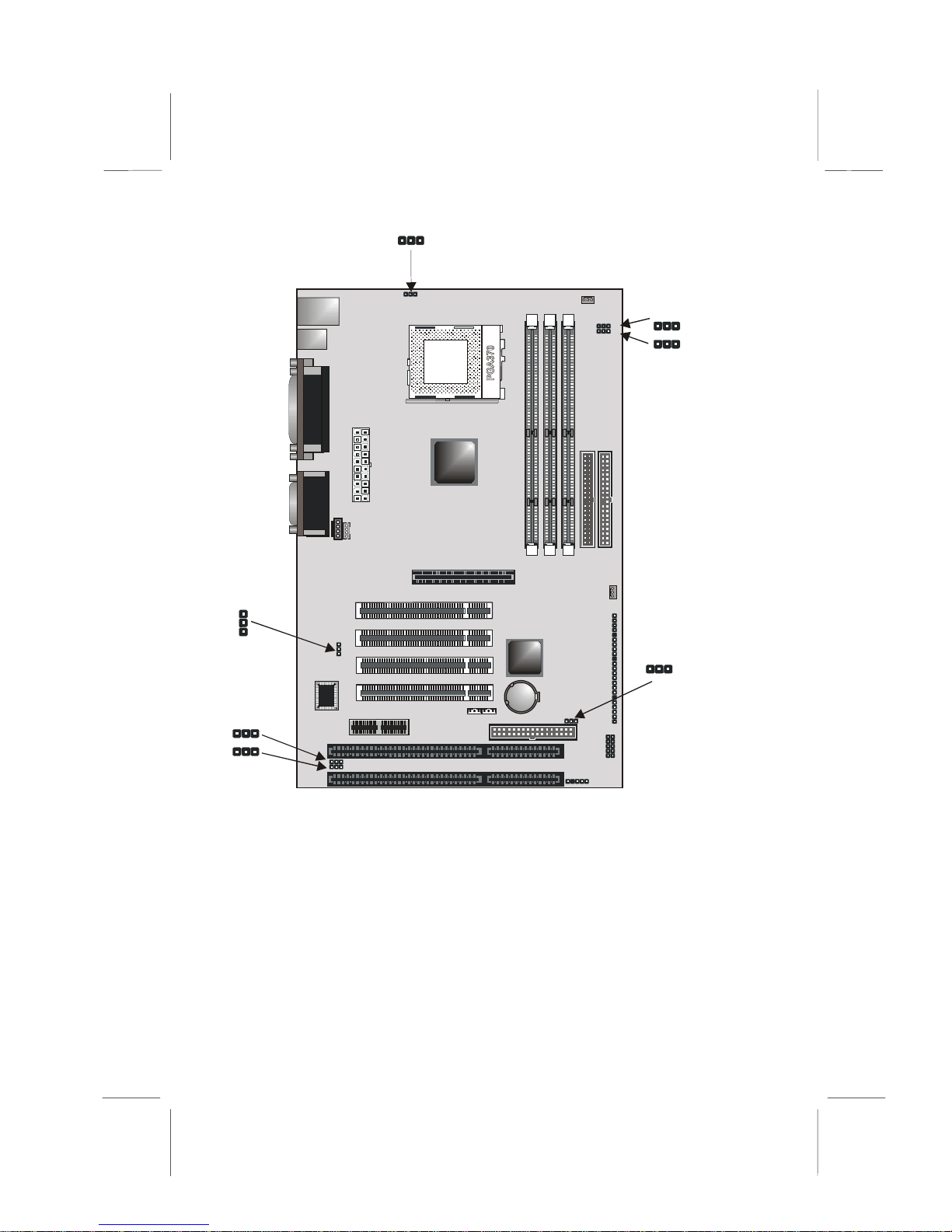

1
JP1: Clear CMOS jumper
Use this jumper to clear the contents of the CMOS memory. You
may need to clear the CMOS memory if the settings in the BIOS
Setup Utility are incorrect and are preventing your mainboard from
operating. To clear the CMOS memory, disconnect all the power
cables from the mainboard and then move the jumper cap into the
Clear CMOS memory setting for a few seconds. CMOS is cleared.
