MATSUYAN Vesta K User manual

Product Manual
Model: M793

TABLE OF CONTENTS
SAFETY INSTRUCTIONS ------------------------------------------------------ 1
— SAFETY INSTRUCTIONS
— WARNING
— BATTERY AND RECHARGING INSTRUCTIONS
SPECIAL FEATURES ------------------------------------------------------------ 5
MAJOR COMPONENTS AND ATTACHMENTS -------------------------- 5
M793 OVERVIEW --------------------------------------------------------------- 6
INSTALLATION GUIDE ------------------------------------------------------ 7
— Installing and Removing Side Brush
— Battery Installation and Removal
— Recharging Battery
GENERAL OPERATION ------------------------------------------------------ 10
— Preparation for Operation

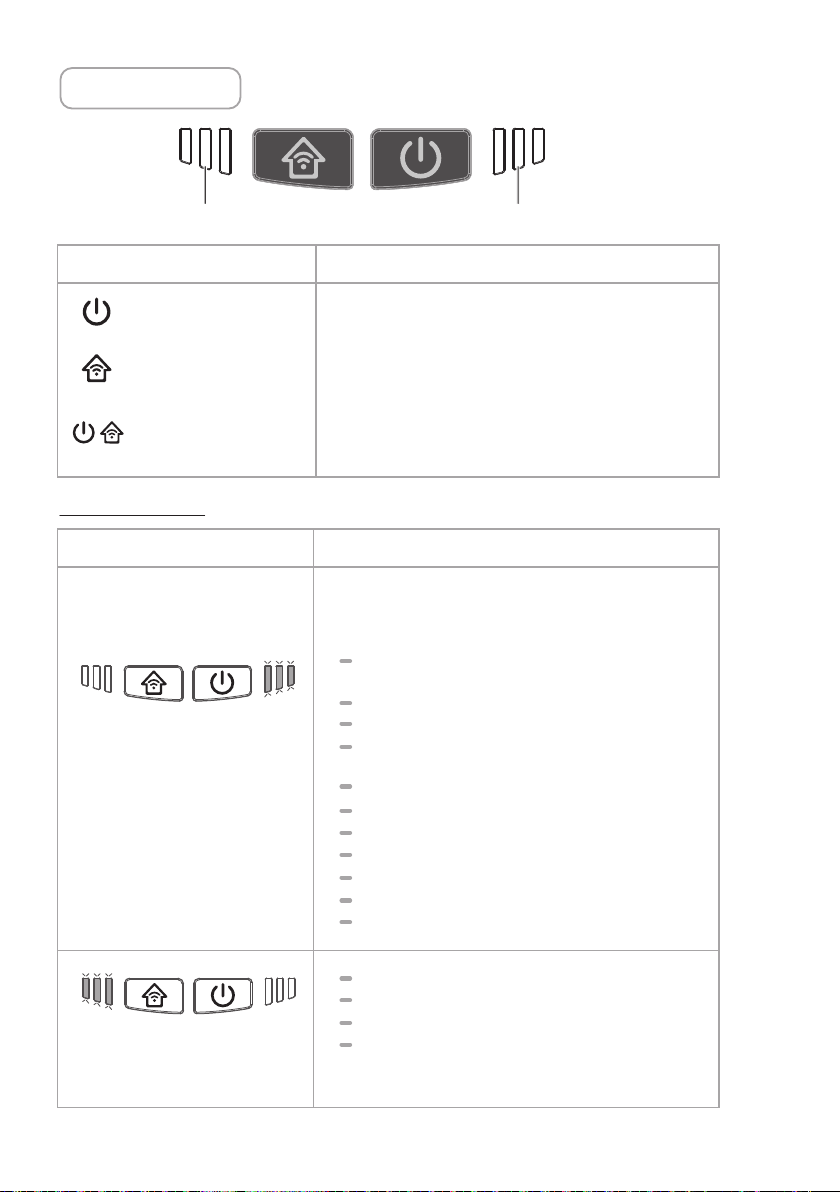

— Control Panel
— Start

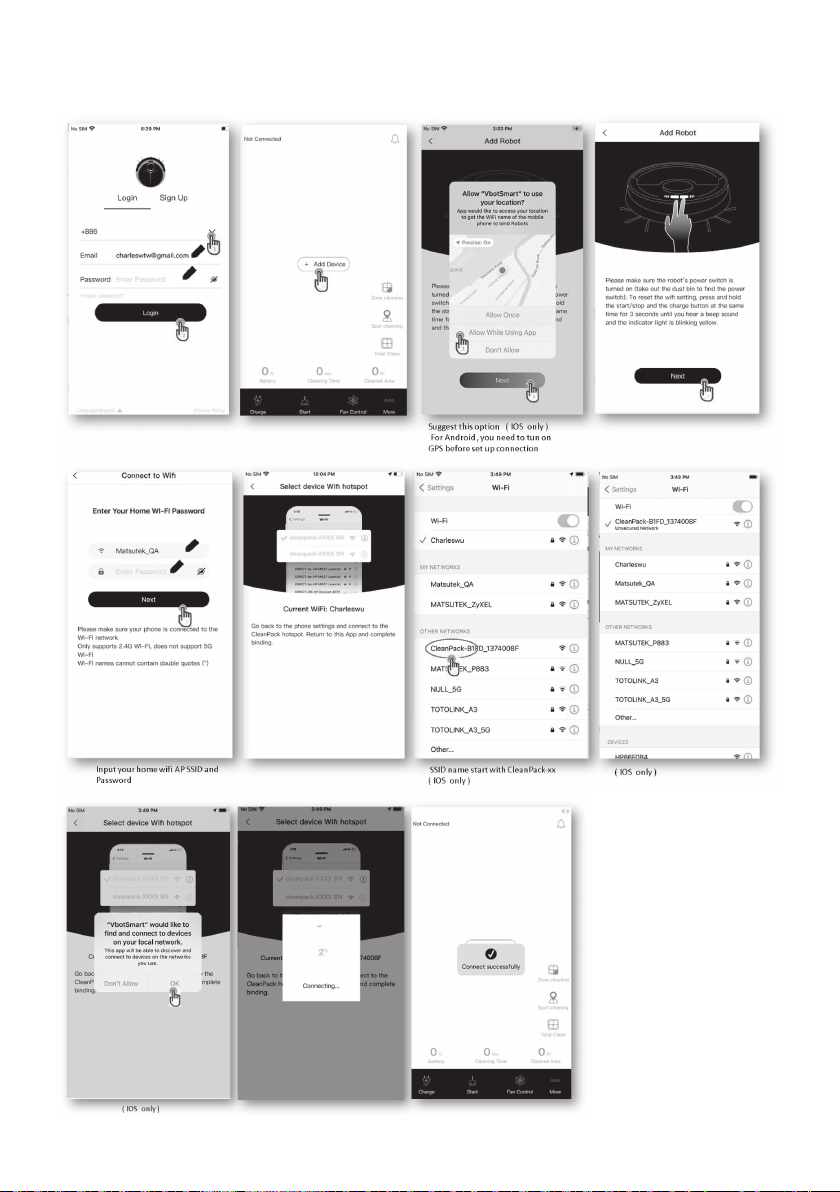

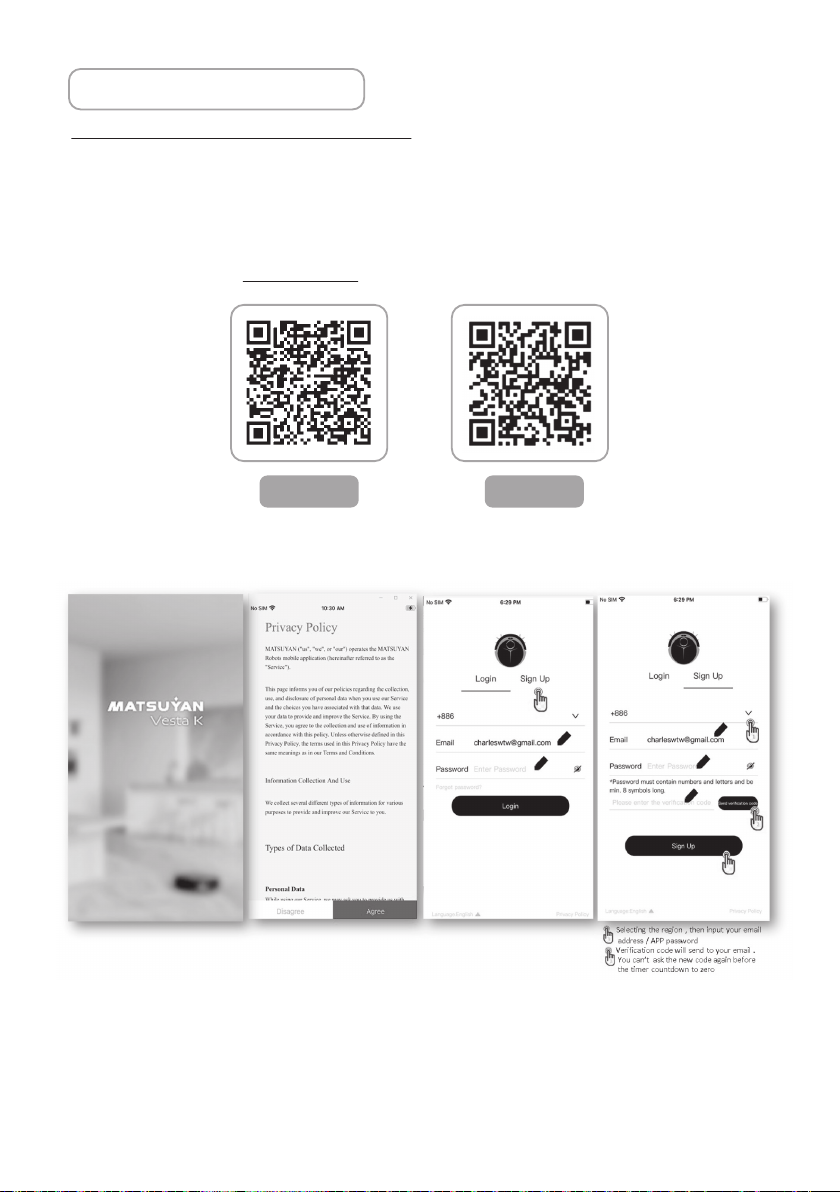

— APP Download and Install
CLEANING AND MAINTENANCE ------------------------------------------ 16
— Maintenance Method

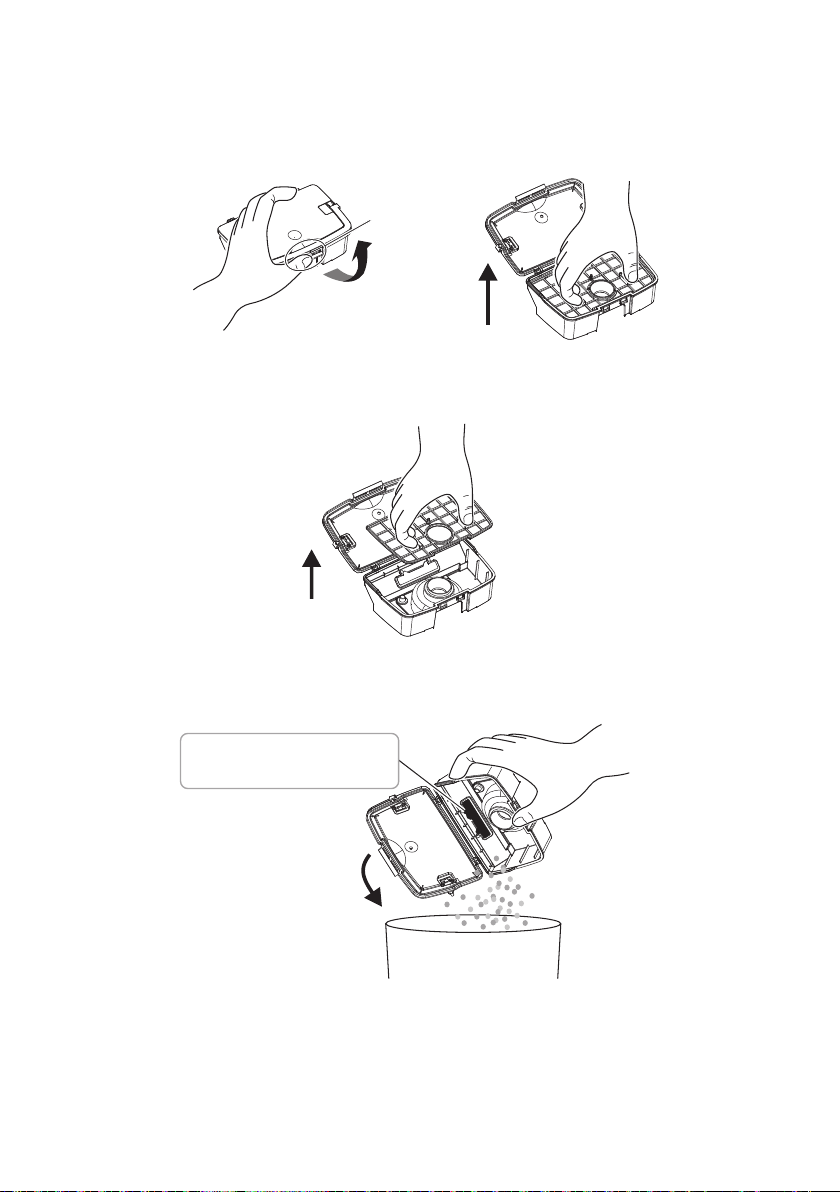

— Cleaning Dust Bin
— Cleaning Side Brushes
— Cleaning Intake
— Cleaning Brush Roll & Inlet
INTAKE VALVE INSTALLATION (Optional) ----------------------------- 22
UV-C STERILIZER INSTALLATION (Optional) -------------------------- 23
TROUBLE SHOOTING -------------------------------------------------------- 24
SPECIFICATIONS -------------------------------------------------------------- 25

Instructions: Please read the safety instructions in the Operation
Manual before operating your M793 unit. Keep this manual handy
for your future reference. Make sure to observe the safety protocols
to prevent any occurrence of fire, electric shock, and personal
injury.
Please read the Operation Manual before operating the unit.
Do not operate your unit outdoors.
Before starting the unit, make sure to install its dust bin filter
properly in case of any damage to it.
Do not operate on wet floors or moist conditions such as the
bathroom or an outdoor patio. Water and moisture can and will
damage the unit’s circuit board.
Prior to operating the unit, make sure to remove any loose items
on the floor including clothing, paper, cables, and extension
cords. Lift curtains and drapes off the floor to avoid entangle-
ment. Cables entangled with the unit might cause damage to
tables, chairs, cabinets, and anything else on top of them.
Never sit, stand, or kick the unit. Watch out for children or pets
while the unit is in operation.
Never use the unit to clean up lit cigarette butts or burning
embers from your fireplace.
While the unit is in operation, make sure all doors leading
outside the room are closed.
During operation, ensure that the unit’s heat vent is not clogged
to prevent damage.
If the unit malfunctions or is damaged by force, do not operate
the unit under any circumstances. Kindly get in touch with your
local dealer for service information.
Turn off the power and remove the battery from your unit if you
do not expect to use it for an extended amount of time.
The appliance can be used by children aged 8 and above,
persons of reduced physical, sensory, or mental capabilities, or
people with limited experience or knowledge of the product
provided they are under supervision and have been given
explicit instructions regarding the operation of the appliance.
1.
2.
3.
4.
5.
6.
7.
8.
9.
q.
w.
e.
SAFETY INSTRUCTIONS
Matsuyan
01
SAFETY INSTRUCTIONS:

The plug must always be removed from the socket or outlet
before cleaning or performing maintenance on the unit.
Make sure that the appliance can move freely around the room,
with zero or limited obstructions. Make sure there is nothing the
appliance can overturn or break during its operation. (example:
candle, vase or other fragile objects)
r.
t.
M793 | Product Manual - Safety Instructions
Life made simple 02
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of FCC
Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction, may cause
harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular instal-
lation.
If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the inter-
ference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to oper-
ate the equipment.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
WARNING:

1.
2.
3.
4.
5.
6.
7.
8.
Please apply the same model’s battery (INR18650-3S2P 10.95V
5200mAh or ICR18650-3S2P 10.8V 5700mAh) and adaptor (PA-
1240-18XX 20V 1200mA or MP24-200120-AU 20V 1200mA) as
equipped with the packing.
The external flexible cable or cord of this adaptor cannot be
replaced; if the cord is damaged, the adaptor shall be scrapped.
When placing the batteries into the reservoir, please be sure that
the polarity of the batteries matches with the indication marked
inside the battery reservoir. Otherwise, the power cannot be
switched on.
Forbid any non-rechargeable or different type/model battery.
Applying a non-rechargeable battery will cause the machine
malfunctions.
The battery is rechargeable. Please use the voltage and current
specified on the packing. If you are not sure of the voltage and
current of your house, please contact your local power company
or a licensed electrician.
Use only the battery supplied with your M793.
Charging adapter is for indoors only.
The appliance is only to be used with the power supply unit
provided with the appliance.
BATTERY AND RECHARGING INSTRUCTIONS:
RF Exposure Warning: This Wireless LAN ( local area network)
device has been evaluated under FCC Bulletin OET 65 and found
compliant to the requirements as set forth in CFR 47 Sections
2.1091, 2.1093, and 15.247 (b) (4) addressing RF exposure from
radio frequency devices. The radiated output power of this Wireless
LAN device is far below the FCC radio frequency exposure limits.
Nevertheless, this device should be used in such a manner that the
potential for human contact ( closer than 8”) during normal opera-
tion is minimized. When nearby persons have to be kept to ensure
RF exposure compliance, in order to comply with RF exposure
limits established in the ANSI C95.1 standards, the distance
between the antennas and the user should be greater than 20 cm
( approx. 8”). This equipment complies with FCC RF radiation expo-
sure limits set forth for an uncontrolled environment. This device
and its antenna(s) must not be co-located or used in conjunction
with any other antenna or transmitter.
Matsuyan
03

9.
q.
w.
e.
r.
t.
y.
u.
i.
Do not recharge the battery if the cable or plug of the battery is
damaged.
Never touch the charger, plug or cable with damp hands.
If M793 requires cleaning, unplug the adaptor, switch off the
unit and take out the battery.
The battery must be removed from the appliance before it is
scrapped.
The appliance must be disconnected from the supply mains
when removing the battery.
To extend the battery life, we suggest to keep the product being
always charged when not in use. Recharge M793 as soon as pos-
sible following use; waiting several days can damage the battery.
If you plan not to use M793 over 6 months, please fully charge
the battery, then turn off the power and remove the battery
from the vacuum cleaner and store it separately. And to
recharge the battery (in the vacuum cleaner) till the Green light
goes on, every 3 months to activate the battery capacity.
The battery is to be disposed of safely. Attention should be
drawn to the environmental aspects of battery disposal. Don't
throw used batteries in the dustbin. Please contact your retailer
in order to protect the environment.
Leakage from battery packs can occur under extreme usage or
temperature conditions. If the liquid gets on skin, wash quickly
with water. If the liquid gets into the eyes, flush them immedi-
ately with clean water for a minimum of 10 minutes.
Seek medical attention.
Contact a specialist dealer or Customer Services to replace the
battery pack. Never replace the battery pack yourself.
Life made simple 04
M793 | Product Manual - Safety Instructions

M793 Cleaner x1 Adaptor x1
Rechargeable Battery x1
(1pc Installed in the cleaner)
Dust Bin Filter x1
(1pc Installed in the dustbin)
UV-C Sterilizer x1
(Optional)
Intake Valve x1
(Optional)
Side Brush x2 pairs Docking Station x1
Operation Manual x1
Operation
Manual
Congratulations on your new M793! The best LDS Robotic vacuum
cleaner. We equipped your new friend with LIDAR - anavigation
system that works with the powerful suction system so it can do
the very best job at keeping those floors spotless. You talk to it
through the <Vesta K> app, where it can let you decide where your
M793 can and can’t go, as well as give it a schedule and even tell it
to clean a room twice! Leave it to your M793. Let yourself do less so
you can do more!
SPECIAL FEATURES
MAJOR COMPONENTS AND ATTACHMENTS
Matsuyan
05

Life made simple 06
Battery
Contact Plates
Front Small Wheel
Side
Brush
Wheel
Cover
Speaker
Left & Right
Wheels
Intake Valve
& Brush Roll
Heat Vent
Anti-Cliff
Sensor
Anti-Cliff
Sensor
Side Brush
Top Cover
(dustbin and power switch inside)
Lidar
Bumper
Control Panel
Power Indicator
Contact Plates
M793 OVERVIEW
M793 | Product Manual - Overview

Matsuyan
07

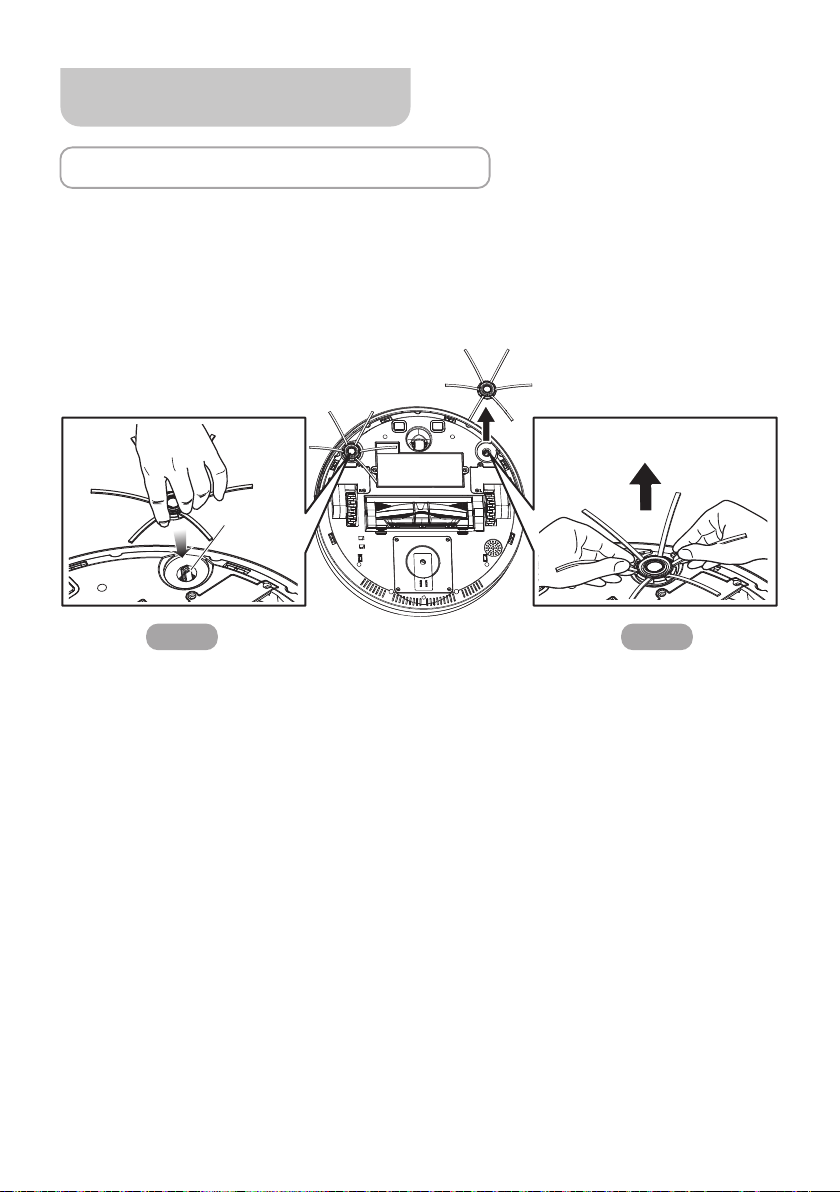

To install: Install the side brush by pushing it firmly onto the holder.
(Fig. 1)
To remove: Take it out by pulling two opposite sides of the brush
(Fig. 2) then evenly pull both sides upward.
Fig. 1 Fig. 2
INSTALLATION GUIDE
Installing and Removing Side Brush:
PRESS
CLICK
PULL UP!
Side brush
holder

Life made simple 08
Battery
Battery
Connector
Battery Plug
Battery Connector
“CLICK”when
it’s connected well

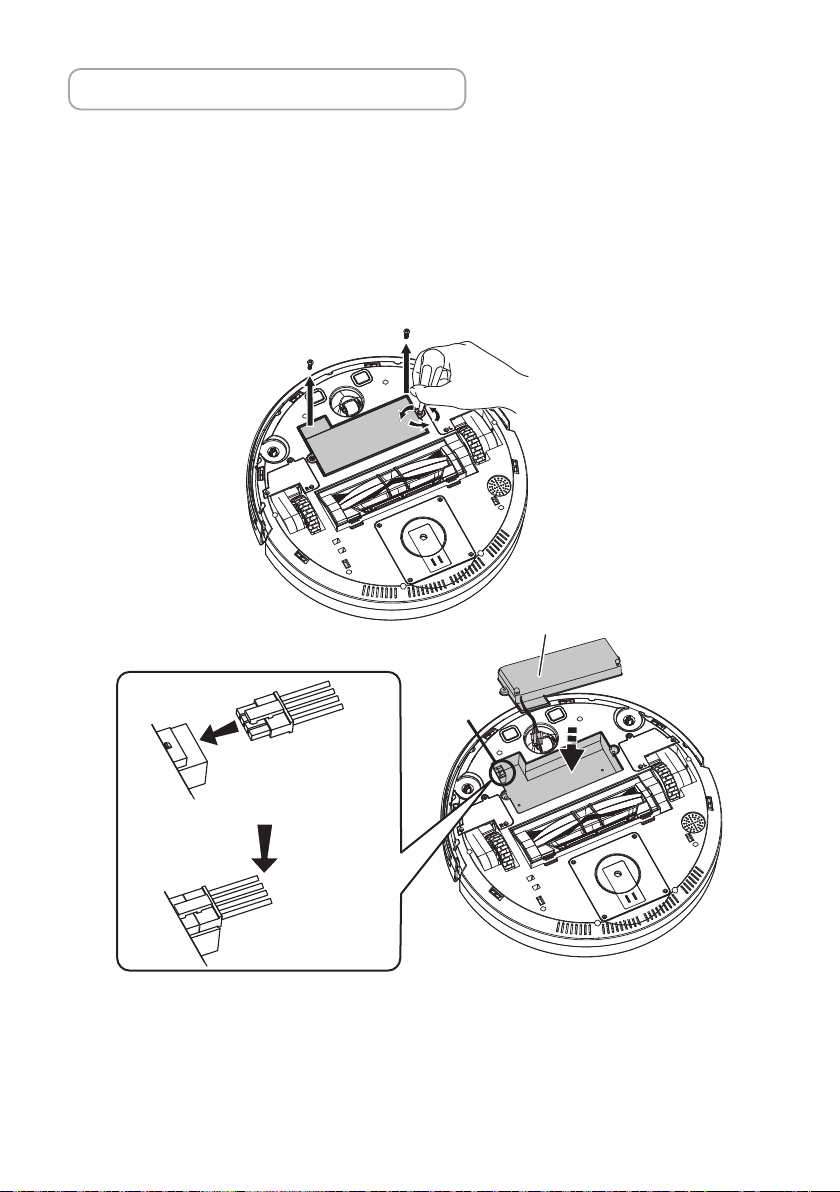

Battery Installation and Removal:

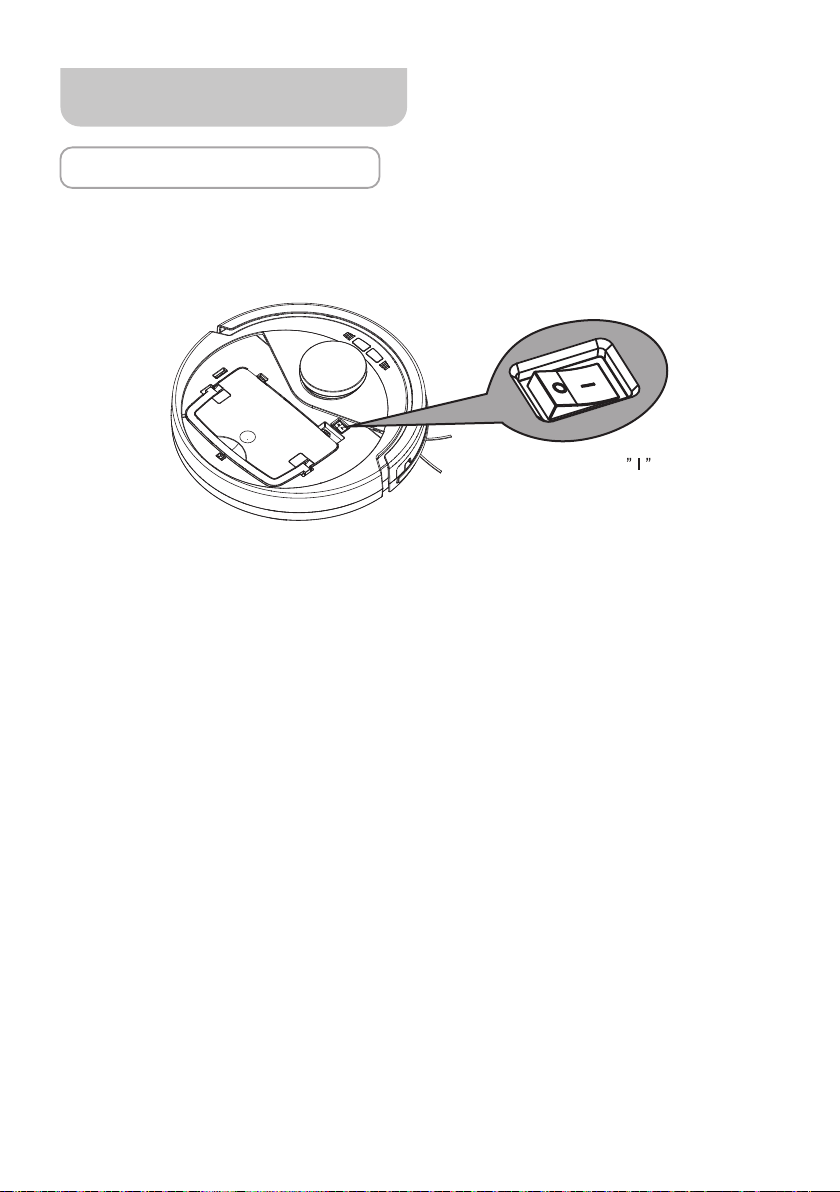

Turn off the power switch before installing the battery.
The method of replacing the battery: Unscrew the screws from
the bottom case and remove the battery. Install the new battery
inside the compartment with correct connection and screw it
back to the bottom housing. Be sure to orient the battery contacts
with those of the unit.
1.
2.
M793 | Product Manual - Installation Guide

Matsuyan
09

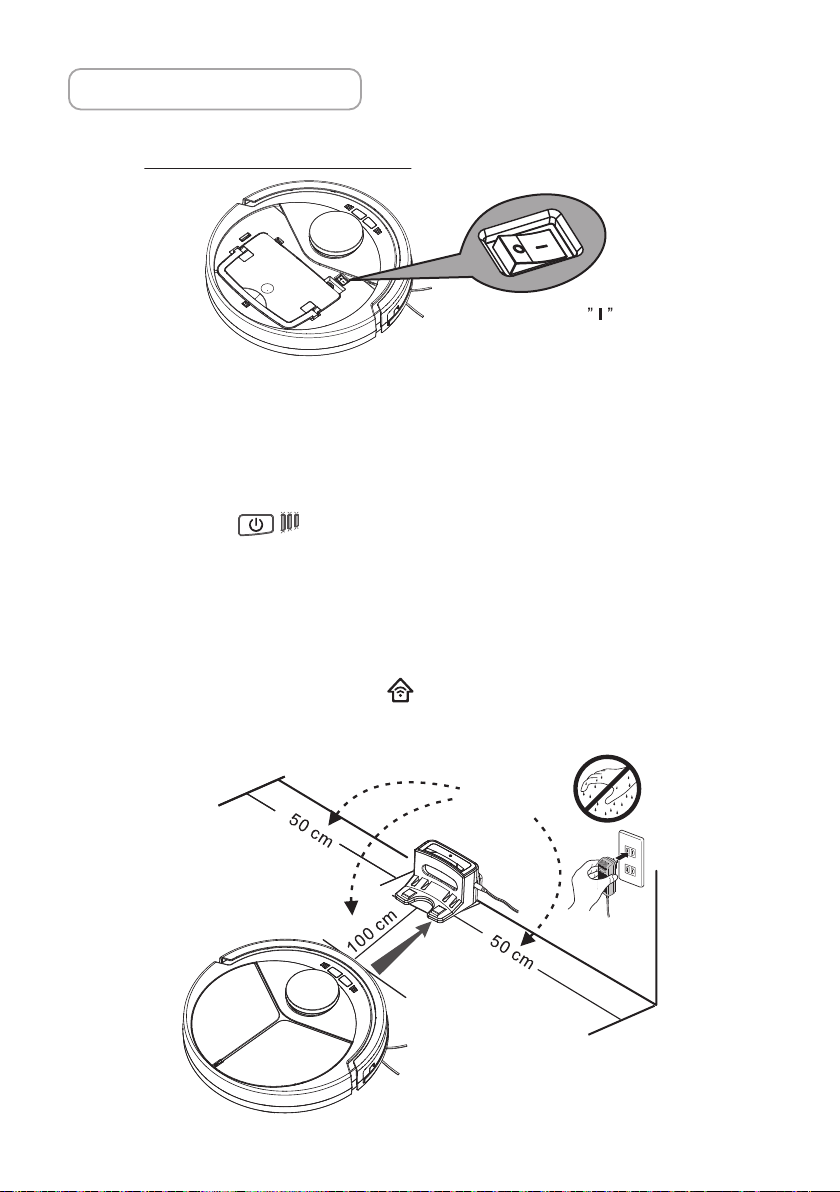

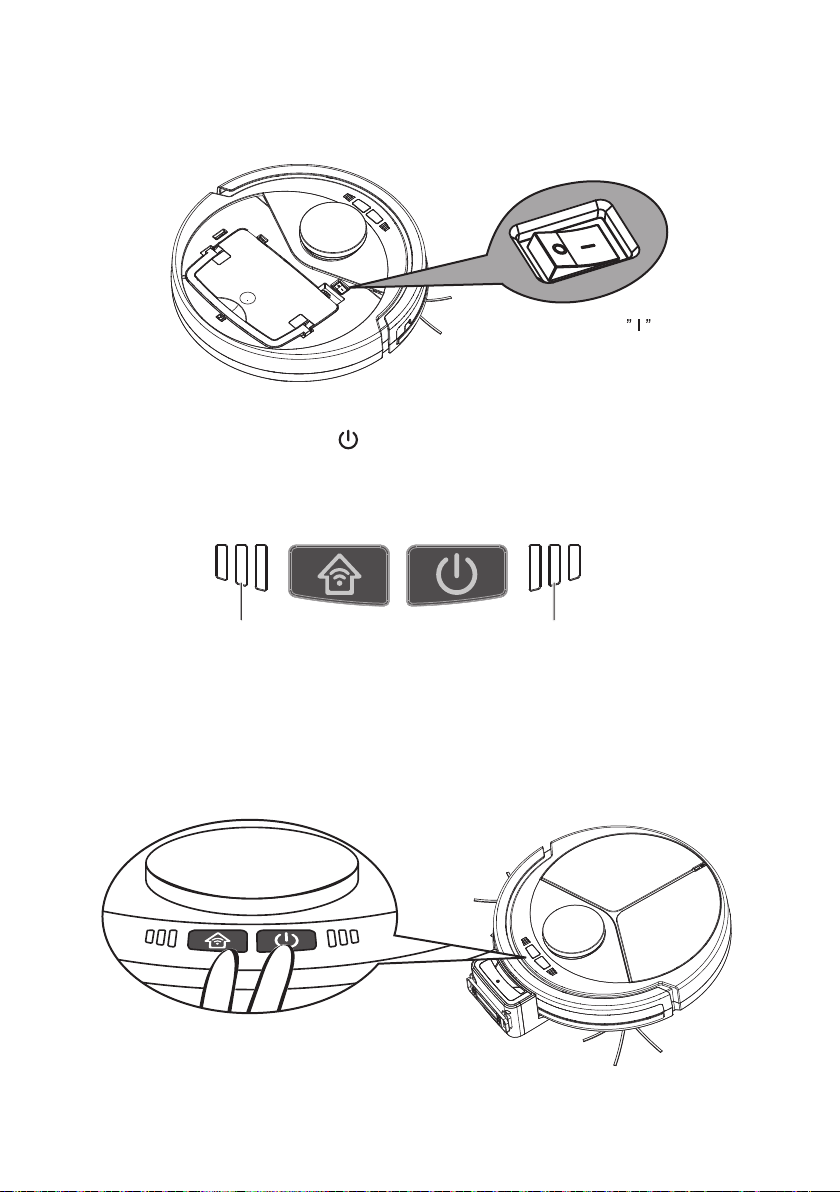

Before recharging please check if the battery is properly mounted
and turn on the power switch.
There are two ways to charge the battery:
A. Manual charging
Push the unit onto its docking station, making sure the contact
points at the bottom of the unit are aligned with the docking
station’s contact plate. When charging, the LED indicator
between the should flash blue. And it will stay blue when
the cleaner has been uninterruptedly charged for 4-6 hours.
B. Automatic charging
Put the unit in front of its docking station, ensuring there is at
least a meter of free space between the unit and the dock.
Press the docking button “ ” on the panel to tell your unit to
seek the docking station for charging.
Power switch to
Open Space
Recharging the Battery:
1.
2.

Life made simple 10
Power switch to
Make sure the side brushes are securely installed on the unit.
Turn on the power switch under the top cover of the unit and
charge the battery for 4-6 hours prior to the first operation.
Make sure that the floor is free of big obstacles or clutter like
clothes, papers, and cables, and that the drapes and curtains are
not touching the floor. If in case a cable gets entangled with your
unit, the cable could move around as the cleaner is working and
might topple down the table, chairs and even cabinet or cup-
boards.
GENERAL OPERATION
Preparation for operation:
1.
2.
3.
M793 | Product Manual - General Operation

Matsuyan
11
Button Function withVocal Message
Power Button
Docking Button
Power + Docking
Compound key
Push toturn on/off or start/pause
/stop the cleaning
Push tostart/pause docking
Press for3 seconds to
enter WiFi setting mode
Wifi indicator Power/Warning indicator
LED Indication
Warning Indicator:
LED Beside power button
(Blue/Red)
WiFi Indicator:
LED Beside docking button
(Blue)
LED Indicator
The indicator will turn on under the
following conditions:
The bumper, wheels, side brushes, or fan are
stuck.
The battery’s temperature is too high.
The dust bin is misaligned.
The unithas been elevated for more than 1
second.
The anti-cliff sensor is activated for seconds.
There is no battery installed.
Constant Blue: Working/ Stand-by
Pulsing Blue: Initiation/Charging
Constant Red: Low Battery
Flashing blue: Searching the docking station
Off: All turned off
Flashing: connecting / pairing.
Constant blue: Connected.
Fast flashing blue: setting failed.
Off: Wifi off. The receiver will turn off if it has
not been paired in 10 minutes.
Description
Control Panel:

Life made simple 12
M793 | Product Manual - General Operation
Power switch to
Fig. 3
Start:
Before turning it on:Make sure your unit is fully charged and the
docking station is plugged in. Press the power button “ ” on the
panel for 3 seconds and wait 20 seconds for your unit to warm up.
Clean: While in standby mode, press the power button “ ” to initiate a
room-wide cleaning until finished or the power button is pressed again.
The unit will then enter sleep mode after 10 minutes of inactivity.
Dock: While in standby mode, press the docking button “ ” to start the
docking process.
Deep Sleep: While in standby mode, press the power button “ ” for 3
seconds to turn off the WiFi connection and enter Deep Sleep mode. If
you will not be using the unit for a long period of time, please turn off the
power switch (Fig. 3) under the top cover completely.
Power On:Switch on the power switch under the top cover and then
hold the power button for 3 seconds (you will hear a tune).
1.
2.
3.
4.

Matsuyan
13
Android iOS
App Download & Install:
Making the most out of your M793
Supports:
— Android 7.0 and newer versions
— iOS 11 and newer versions.
Please download Vesta K APP from Google Play or APP store.
You can’t ask the new verification code again before the timer count-
down to zero.
Check your spam email if you didn’t receive the verification code.
1.
2.
Note:
1. Open the APP ,then follow up the guidance to register your
app account as below.

Life made simple 14
Power switch to
Press the Power & Docking buttons
at the same time
Wifi indicator Power/Warning indicator
Open the top lid to find the power switch and switch to on.
Press the power button “ ” on top of the robot for 3 seconds to power
on the robot. Wait for few seconds (20-30 secs) to complete the power-on
process. robot speaks: robot is ready.
To begin pairing to the APP, hold the Power button and the Docking
button at the same time for 3 secs (robot speaks: WiFi reset, please follow
the instruction of APP to connect robot with WiFi).
1.
2.
3.
2. Add New Robot And Set Up The Robot Connection.
M793 | Product Manual - General Operation

Matsuyan
15
Login to the APP with your email address and APP password. Then follow
up the guidance as below.
4.

Life made simple 16
Push the cover from “A” position to open the top cover of the
cleaner.
Pull up the grip handle to take out the dustbin from the cleaner.
CLEANING & MAINTENANCE
Cleaning Dust Bin:
1.
2.
Maintaining your M793 unit is simple and fast. All you have to do
is to clean out the dustbin and filter after every use.
Maintenance Method:
A
Pull up
Grip
M793 | Product Manual - Cleaning and Maintenance

Matsuyan
17
Open the upper cover of the dust bin by pressing the side buckle.
Lift up and take out the filter.
Throw away the dust and dirt from the dustbin.
3.
4.
5.
Side Buckle
ATTENTION:
Do not throw the mylar.
