General Information

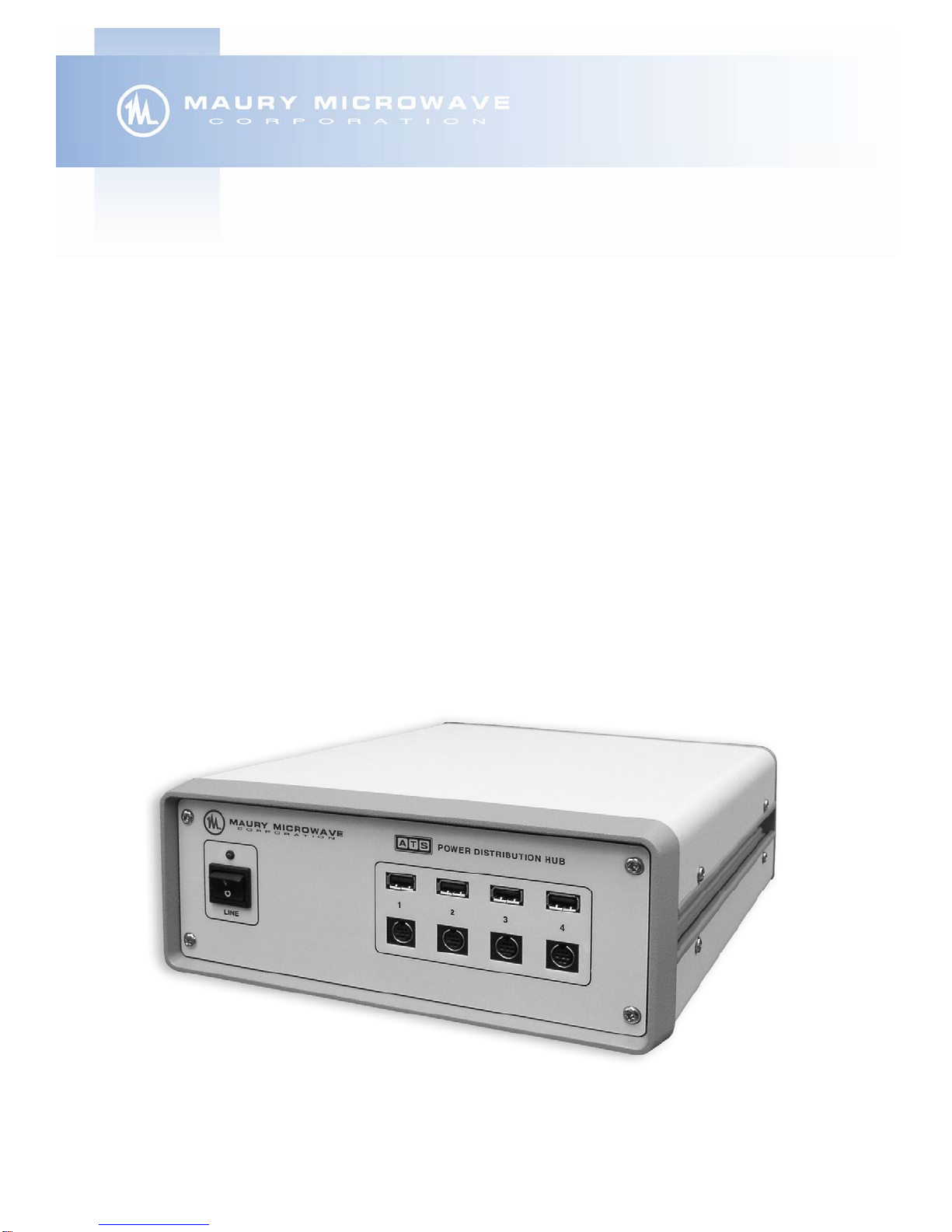

MT1020B Automated Tuner System Power Distribution Hub
The MT1020B Automated Tuner System Power Distribution Hub is designed to provide power and interface
control for the Maury USB series of automated mechanical tuners. As many as four units may be controlled
through this device. Connection to the host computer is made via a standard USB interface.
Specifications
USB Interface...................................USB 1.1 and USB 2.0 compatible
Power Requirements........................ 100 to 264 VAC @ 47 to 63 Hz, 3 Amps
Mains supply voltage fluctuations not exceeding ±10% of the nominal
voltage. Transient over voltages according to over voltage category II
Output Power ................................... +5 VDC @ 5 Amps
+24 VDC @ 3.4 Amps
USB Power....................................... +5 VDC @ 500 mA per port
Environmental .................................. Indoor use only
Relative humidity, 90% non-condensing
Altitude up to 2000 meters
Pollution degree 2
Accessories Supplied
Qty Part No. Description
1 499-F-173-21 Spare fuse (5x20 mm, 3.1 A, slow-blow)
1 499-C-722 USB cable assembly
1 499-C-082 Power cord for 115 VAC (USA)
or 499-C-469 Power cord for 230 VAC (Europe, CE certified)
or 499-C-718 Power cord (China, CCC certified)

2MT1020-340 (Rev B) 12/11
Table 1. Safety Symbol Definitions

MT1020-340 (Rev B) 12/11 3
Installation
Power Requirements
The model MT1020B power distribution hub contains an internal universal switching supply which requires input
power of single phase 100 to 264 VAC at 47 to 63 Hz. The unit contains a four port USB 2.0 hub and a power
entry module consisting of a power cord receptacle and fuse holder (see Figure 1). The fuse holder contains a
5x20 mm, 250 VAC, 3.15 A, slow-blow fuse.

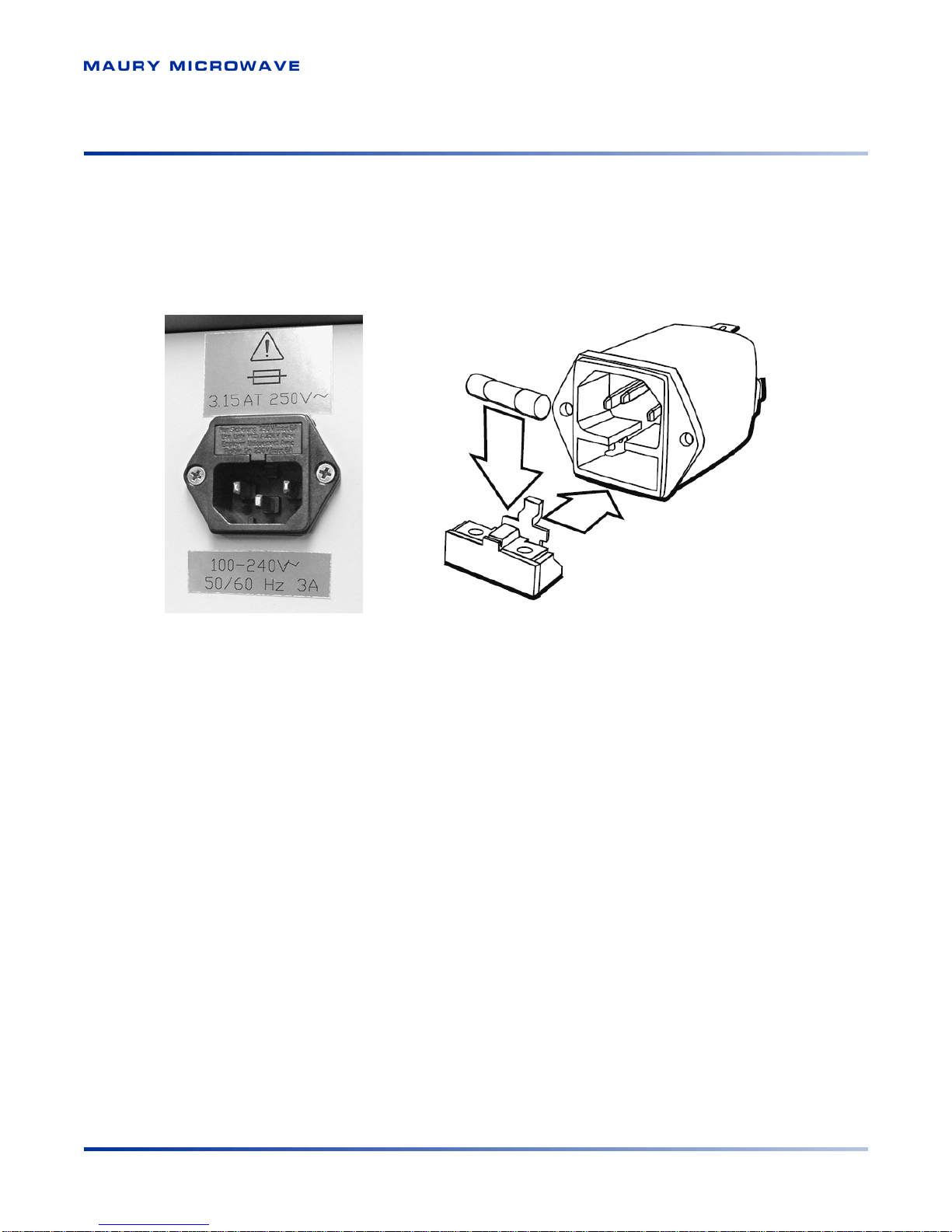

Figure 1. Power Entry Module with Fuse Holder
Ground Requirements
To minimize shock hazard, the instrument chassis must be connected to an electrical protective earth ground.
The instrument must be connected to the AC mains through a grounded power cable, with the ground wire firmly
connected to an electrical ground at the power outlet. Any interruption of the protective (grounding) conductor or
disconnection of the protective earth ground will cause a potential shock hazard that could result in personal
injury.
Operational Temperature and Humidity
The MT1020B ATS Power Distribution Hub is designed to operate within the specified performance limits over a
temperature range extending from 0° to 50° C (-32° to 122° F) and operate at a maximum (non-condensing)
relative humidity of 90% (measured at the fan intake). The fan located on the rear panel assembly cools the
instrument by drawing air through the bottom of the instrument case, and exhausting air through the fan opening
on the rear panel. Operating the instrument outside the temperature range for extended periods will result in
degradation of electrical performance and eventual malfunction.
NOTE: Because the MT1020B is fan cooled, it must be installed in a location that allows sufficient (non-
restricted) space below the instrument case for adequate circulation of air.
Connecting the Devices
The MT1020B Power Distribution Hub is designed to interface with all Maury USB controlled automated
mechanical tuners. The cable assembly required to interface with each tuner is provided with the instrument when
shipped from the factory.

4 MT1020-340 (Rev B) 12/11
Operation
WARNING: Always set the MT1020B power switch to the OFF position before installing or removing the
combination USB/Power cable assembly to prevent possible damage to the instrument.
•Set the power switch to the OFF position.
•Inspect each connector on the tuner, controller and cable assembly to ensure that all connections are
clean and undamaged.
•Align the cable connectors with the tuner and controller connectors and attach. Verify that all connectors
are fully engaged before continuing.
•Install a USB cable assembly between the host computer and the MT1020B Power Distribution Hub. Set
the MT1020B power switch to the ON position.
To be fully functional, the Power Distribution Hub requires at least one attached USB instrument.. The 4 port USB
hub is a standard USB 2.0 hub assembly and will be detected by the computer’s Windows operating system.
Operation of the USB tuners will be controlled using Maury ATS software version 4.00 or later. No software is
required for operation of the MT1020B Power Distribution Hub itself.
Connectors, Controls and Indicators
Figures 2 and Figure 3 identify the front and rear panel connectors, controls and indicators.

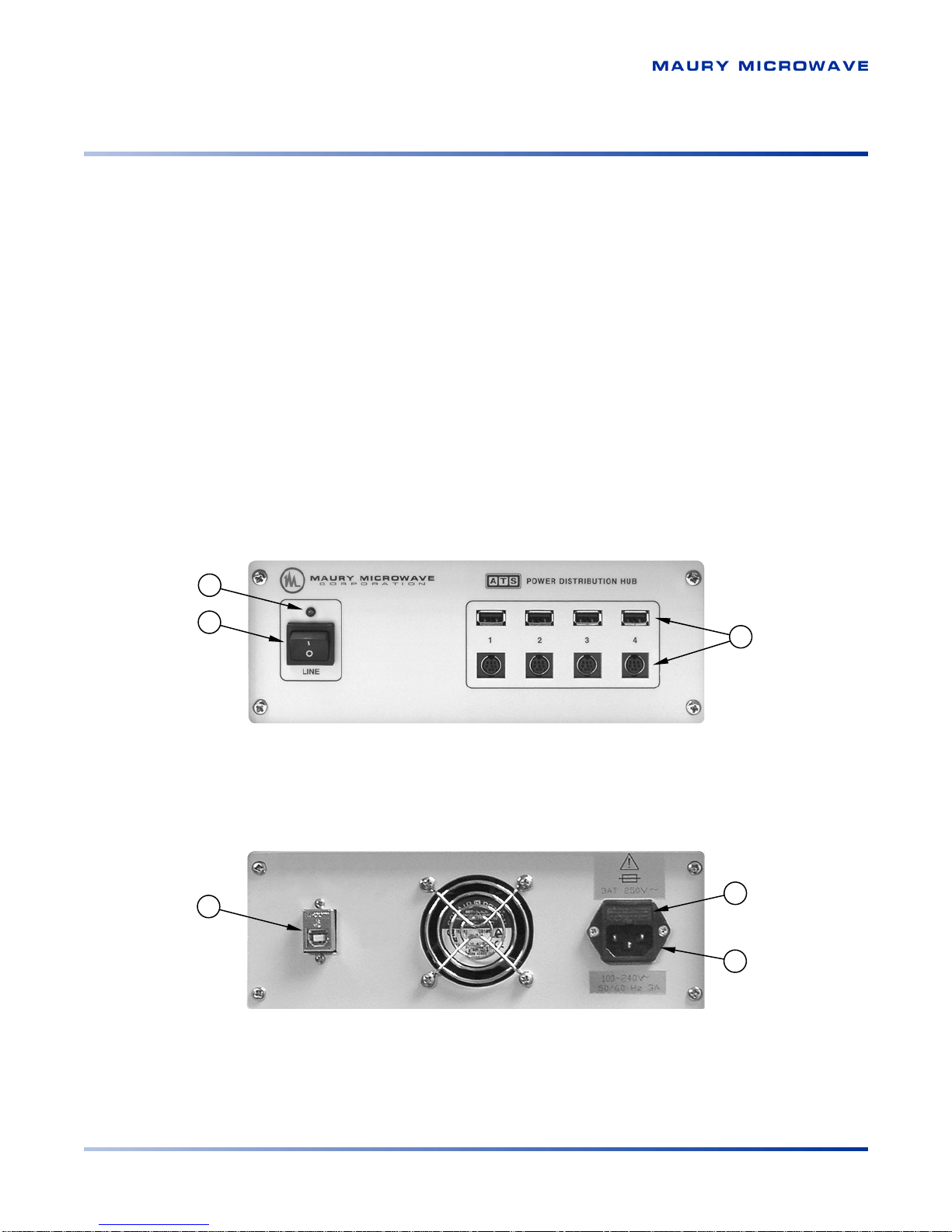

Figure 2. Front Panel
1. Line power switch
2. Power ON indicator
3. Power and USB connectors
Figure 3. Rear Panel
4. AC power entry module
5. Fuse holder (part of power entry module)
6. USB input connector
1
2
3
4
5
6

MT1020-340 (Rev B) 12/11 5
Appendix
Shipping Package
If it becomes necessary to return the MT1020B ATS Power Distribution Hub to the factory for warranty, repair or
maintenance, it is important to protect the unit during transit. To insure this, use of the original packaging
materials is suggested. If you do not have the original packaging materials, contact your Maury representative or
the factory and a packaging kit will be provided. The instructions provided below will properly prepare the unit for
return to the factory.
•Package the MT1020B ATS Power Distribution Hub using the original carton and foam pads supplied with
the unit as shown in Figure A1.
•Seal carton seams using minimum 2 inch (5 cm) wide adhesive tape.
•After the unit is packaged into the primary carton and sealed, then package this carton inside a larger
carton, properly dunnaged, to prevent shipping damage.
Figure A 1. Packaging Kit
