Maverick MK2 Wash User manual

Quick Reference Guide
English EN
Español ES
Français FR
Nederlands NL

Maverick MK2 Wash QRG EN
2
About This
Guide
The Maverick MK2 Wash Quick Reference Guide (QRG) has basic product
information such as connection, mounting, menu options, and DMX values.
Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change
without notice.
Safety Notes
•DO NOT open this product. It contains no user-serviceable parts.
•DO NOT look at the light source when the product is on.
•To eliminate unnecessary wear and improve its lifespan, during periods of non-
use completely disconnect the product from power via breaker or by unplugging
it.
•CAUTION: When transferring product from extreme temperature
environments, (e.g., cold truck to warm humid ballroom) condensation may
form on the internal electronics of the product. To avoid causing a failure, allow
product to fully acclimate to the surrounding environment before connecting it
to power.
•CAUTION: This product’s housing may be hot when lights are operating.
•Mount this product in a location with adequate ventilation, at least
20 in (50 cm) from adjacent surfaces.
•DO NOT leave any flammable material within 50 cm of this product while
operating or connected to power.
•USE a safety cable when mounting this product overhead.
•DO NOT operate this product outdoors or in any location where dust, excessive
heat, water, or humidity may affect it. (IP20)
•DO NOT operate this product if the housing, lenses, or cables appear damaged.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
•ONLY use the mounting brackets or the handles to carry this product. Do not
carry by the moving head.
•In the event of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 113 °F (45 °C). Do not operate this
product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your
distributor to request support or return a product. From the U.S.,
UK, Ireland,
Mexico, or Benelux, use the information in Contact Us at the end of this QRG.
What Is
Included
•Maverick MK2 Wash
•Seetronic Powerkon power cord
•2 Omega brackets with mounting hardware
•Warranty Card
•Quick Reference Guide
AC Power
This product has an auto-ranging power supply that can work with an input voltage
range of 100–240 VAC, 50/60 Hz.
To eliminate unnecessary wear and improve its lifespan, during periods of non-
use completely disconnect the product from
power via breaker or by
unplugging it.
Power Linking
You can link up to 2 Maverick MK2 Wash products at 120 V, 4 products at 208 V,
or 5
products at 230 V. Never exceed this number. Power linking cords can be
purchased separately.
AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green

Maverick MK2 Wash QRG EN
3
Replacing The
Fuse
1. Disconnect this product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.
Signal
Connections
You can link the Maverick MK2 Wash to a controller or controller software using a
DMX connection, an Ethernet connection, or both. If using other Art-Net™, sACN
,
or Kling-Net -compatible products with the Maverick MK2 Wash
, you can control
each individually on a single network. See the User Manual for information about
how to connect and configure the product for these signals.
Control
Personalities
The Maverick MK2 Wash uses DMX, Art-Net™, sACN, WDMX, and Kling-Net
for its control personalities:
Single Control
Dual Control Movement
Dual Control Pixel
Tour (146-channel)
Tour (146-channel)
Tour (146-channel)
Advanced (122-channel)
Advanced (26-channel)
Advanced (96-channel)
Standard (68-channel)
Standard (20-channel)
Standard (48-channel)
Basic (20-channel)
Basic (8-channel)
Basic (36-channel)
Uses DMX, Art-Net™,
sACN, or WDMX
Uses DMX, Art-Net™, or
sACN
Uses DMX, Art-Net™,
sACN, or Kling-Net
DMX Connection
The Maverick MK2 Wash will work with a DMX controller using a 3- or 5-pin
DMX data connection. A DMX Primer is available from
www.chauvetprofessional.com.
Art-Net™
Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount
of DMX512 data using a
Neutrik® etherCON® RJ45 connection over a large
network. An Art-
Net™ protocol document is available from
www.chauvetprofessional.com.
Chauvet Professional recommends using unicast
Art-Net™ for best results.
Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
sACN Connection
Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the
layering and formatting of Architecture for Control Networks to transport DMX512
data over IP or any other ACN compatible network. ACN is maintained by the
Professional Lighting and Sound Association (PLASA).
Kling-Net
Connection
Kling-Net is a network protocol that allows auto configuration of display devices
using a Neutrik® etherCON® RJ45 Ethernet connection. Refer to the ArKaos
software manual for detailed instructions on programming this product.
For smooth-running operation, ArKaos Kling-Net requires a gigabit (1000
Mbps) Ethernet card and network router.
ArKaos Kling-Net will only run Standard Pixel or Basic Pixel modes.

Maverick MK2 Wash QRG EN
4

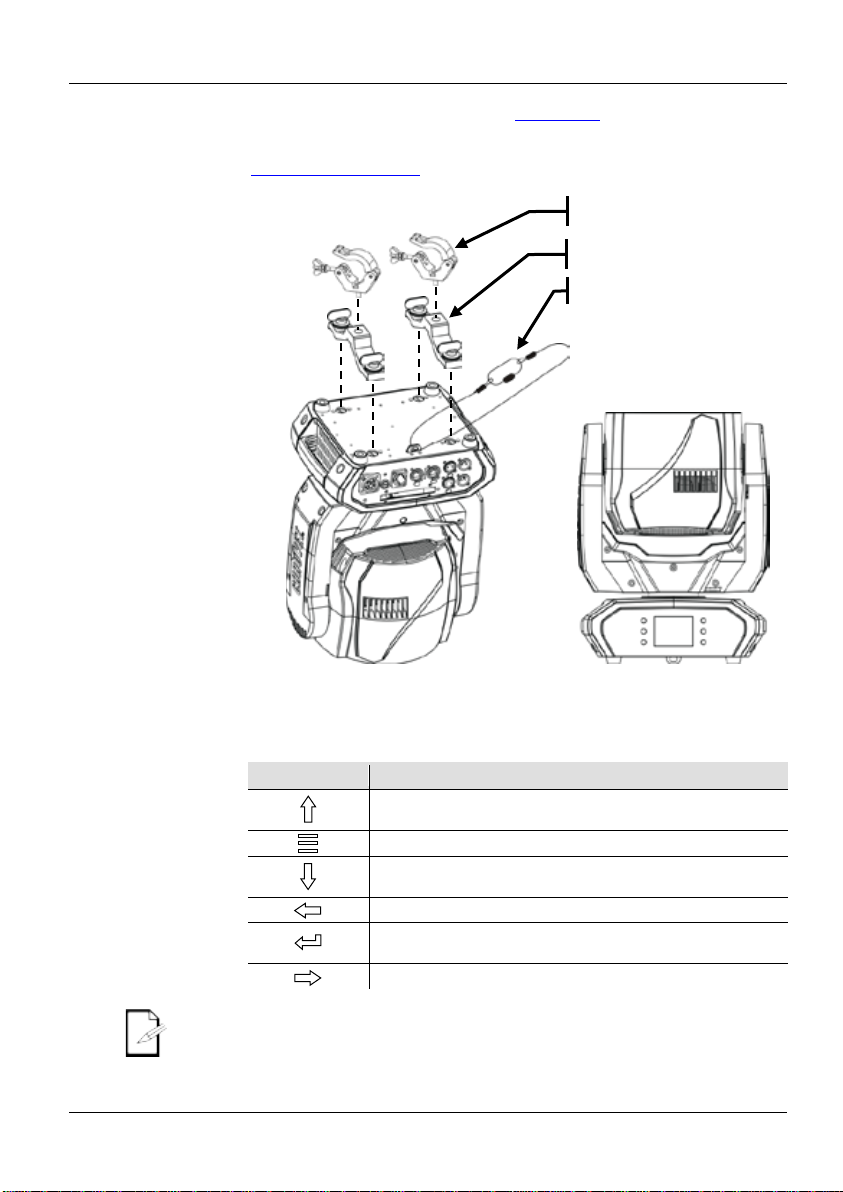

Mounting
Before mounting this product, read the Safety Notes. Use at least two mounting
points
per product. Make sure the mounting clamps are capable of supporting the
weight of the product. For our Chauvet line of mounting clamps, g
o to
http://trusst.com/products/.
Product
Mounting
Diagram
Touchscreen
Control Panel
The Maverick MK2 Wash has a touchscreen display as well as 6 control buttons.
The touchscreen can be locked and calibrated through the Setup
options in the
menu.
Control Panel
Description
Button
Function
Navigates upwards through the menu list or increases the
numeric value when in a function
Exits from the current menu or function
Navigates downwards through the menu list or decreases the
numeric value when in a function
Navigates leftwards through the menu list
Enables the currently displayed menu or sets the currently
selected value into the selected function
Navigates rightwards through the menu list
In Dual Control mode, the movement protocol and the pixel protocol cannot be the same.
Overhead Mounting
Floor Mounting
Mounting
Clamp
Safety Cable
Omega Bracket
< >
< >
< >
< >
< >
< >

Maverick MK2 Wash QRG EN
5
Menu Map
Programming Levels
Description
Control Settings
Control Settings Main Level
Control Settings
Single
Control
DMX Personality
Basic
Sets the DMX personality, from
Basic (20CH), Standard (68CH),
Advanced (122CH) or Tour (146CH)
Standard
Advanced
Tour
Start Address
001–512
Sets the DMX starting address
ArtNet Personality
Basic
Sets the Art-Net™ personality, from
Basic (20CH), Standard (68CH),
Advanced (122CH) or Tour (146CH)
Standard
Advanced
Tour
Start Address
001–512
Sets the Art-Net™ starting address
Universe
0–254
Sets the Art-Net™ universe
sACN Personality
Basic
Sets the sACN personality, from
Basic (20CH), Standard (68CH),
Advanced (122CH) or Tour (146CH)
Standard
Advanced
Tour
Start Address
001–512
Sets the sACN starting address
Universe
0–255
Sets the sACN universe
WDMX Personality
Basic
Sets the WDMX personality, from
Basic (20CH), Standard (68CH),
Advanced (122CH) or Tour (146CH)
Standard
Advanced
Tour
Start Address
001–512
Sets the WDMX starting address
Dual
Control
Movement
DMX Personality
Basic
Sets the DMX personality, from
Basic (8CH), Standard (20CH),
Advanced (26CH) or Tour (146CH)
Standard
Advanced
Tour
Start
Address
001–512 Sets the DMX starting address
ArtNet
Personality
Basic
Sets the Art-Net™ personality, from
Basic (8CH), Standard (20CH),
Advanced (26CH) or Tour (146CH)
Standard
Advanced
Tour
Start
Address
001–512 Sets the Art-Net™ starting address
Universe
0–254
Sets the Art-Net™ universe
sACN
Personality
Basic
Sets the sACN personality, from
Basic (8CH), Standard (20CH),
Advanced (26CH) or Tour (146CH)
Standard
Advanced
Tour
Start
Address
001–512 Sets the sACN starting address
Universe
0–255
Sets the sACN universe
Pixels
DMX Personality
Basic
Sets the DMX personality, from
Basic (36CH), Standard (48CH),
Advanced (96CH) or Tour (146CH)
Standard
Advanced
Tour
Start
Address
001–512 Sets the DMX starting address
ArtNet Personality
Basic
Sets the Art-Net™ personality, from
Basic (36CH), Standard (48CH),
Advanced (96CH) or Tour (146CH)
Standard
Advanced
Tour

Maverick MK2 Wash QRG EN
6
Menu Map (cont.)
Programming Levels
Description
Control Settings
Dual
Control
(cont.)
Pixels
(cont.)
ArtNet
(cont.)
Start
Address
001–512 Sets the Art-Net™ starting address
Universe
0–254
Sets the Art-Net™ universe
sACN
Personality
Basic
Sets the sACN personality, from
Basic (36CH), Standard (48CH),
Advanced (96CH) or Tour (146CH)
Standard
Tour
Advanced
Start
Address
001–512 Sets the sACN starting address
Universe
0–255
Sets the sACN universe
KlingNet Personality
Basic
Sets the Kling-Net personality, from
Basic (36CH) or Standard (48CH)
Standard
Test Mode
Test Mode Main Level
Test Mode
Auto test
Auto test all functions
Manual test
Pan
000–255 Manually control and test all
settings through the control panel
Tilt
P/T Speed
Red
Green
Blue
White
CTC
Color
Pattern
LED Macro
LED Ma. Speed
LED Ma. Fade
Background
Background Dim.
Dimmer
Shutter
Function
Zoom
Setup
Setup Main Level
Setup
Network Settings
Ethernet To DMX
NO
Do not convert ethernet in to DMX
YES
Convert ethernet in to DMX out
IP Mode
Manual
Manually set IP address
DHCP
Network sets IP address
Static
Product sets IP address
IP
xxx.xxx.xxx.xxx
Set IP address in Manual mode
SubMask
xxx.xxx.xxx.xxx
Set Subnet Mask in Manual mode
Pan Reverse
NO
Normal pan
YES
Reversed pan
Tilt Reverse
NO
Normal tilt
YES
Reversed tilt
Zoom Reverse
NO
Normal Zoom
YES
Reversed Zoom
Screen Reverse
NO
Normal display
YES
Inverted display
AUTO
Automatic display orientation
Pan Angle
540
540° pan range
360
360° pan range
180
180° pan range

Maverick MK2 Wash QRG EN
7
Menu Map (cont.)
Programming Levels
Description
Setup (cont.)
Setup Main Level (cont.)
Setup (cont.)
Tilt Angle
540
540° tilt range
270
270° tilt range
180
180° tilt range
BL. O. P/T Move
NO
Do not black out while pan/tilt
YES
Blackout while pan/tilt
Calibration
NO
Keep current settings
YES
Calibrate touchscreen
Touchscreen Lock
NO
Display responds to touch
YES
Display does not respond to touch
Lock Screen
NO
Lock the buttons and touch screen
Passcode: 0920
YES
Swap XY
NO
Do not swap pan and tilt
YES
Pan controls tilt, tilt controls pan
XY Mode
Slow
Slow pan and tilt
Fast
Fast pan and tilt
WDMX Reset
NO
Do not reset WDMX
YES
Reset WDMX
Backlight Timer
30S
Display turns off after 30 seconds
1M
Display turns off after 1 minute
5M
Display turns off after 5 minutes
ON
Display stays on
Loss of Data
Hold
Holds last signal received
Close
Blacks out fixture
Fans Auto
Fan speed according to product
temperature
Full
Fan speed set on high
ECO
Quiet mode
C Mixing Mode
RGBW
Additive color mixing (0–100%)
CMY
Subtractive color mixing (100%–0)
Dimmer Curve
Linear
Set the dimmer curve
Square
I Squa
SCurve
Dimmer Speed
Smooth
Change the dimmer speed
Fast
Color Balance
Red
100–255
Sets red LED maximum value
Green
Sets green LED maximum value
Blue
Sets blue LED maximum value
White
Sets white LED maximum value
Reset Function
Pan
NO
Reset individual functions or all
functions from start-up
YES
Tilt
NO
YES
All
NO
YES
Factory Settings
NO
Reset to factory default settings
YES

Maverick MK2 Wash QRG EN
8
Menu Map (cont.)
Programming Levels
Description
Sys Info
Sys Info Main Level
Sys Info
Fixture Information
Ver
VX
Shows firmware version
Running Mode
Xxx
Shows current running mode
Address
xxx
Shows current starting address
Temperature xx
Shows current product
temperature in °C
Fixture Hours xxxxx
Shows number of hours product
has been powered on
IP
xxx.xxx.xxx.xxx
Shows current IP address
SubMask
xxx.xxx.xxx.xxx
Shows current Subnet Mask
MAC
xx.xx.xx.xx.xx.xx
Shows current MAC address
Fan Information
Head Fan1 Speed
xxxx
Shows speed of head fans in rpm
Head Fan2 Speed
xxxx
Error Information
No Error!*
Shows any errors, or No Error!
Channel
Information
Frequency
xxx Shows all current values from
input signals, 000–255
Pan
Pan Fine
Tilt
Tilt Fine
CTC
Color
Pattern
LED Macro
LED Ma. Speed
LED Ma. Fade
Background
Background Dim.
Bg. Dim. Fine
Dimmer
Dimmer Fine
Shutter
Zoom
Function
Red (all, 1–12)
Red Fine (all, 1–12)
Green (all, 1–12)
Green Fine (all, 1–12)
Blue (all, 1–12)
Blue Fine (all, 1–12)
White (all, 1–12)
White Fine (all, 1–12)
Zones For
Pixel
Control
1
2
3
4
5
6
7
8
9
10
11
12

Maverick MK2 Wash QRG EN
9
Single Control Values
Tour Mode
(Advanced)
(146CH)
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Pan Fine
000ó255
0–100%
3
Tilt
000ó255
0–100%
4
Tilt Fine
000ó255
0–100%
5 CTC
000
No Function
001ó255
Color Temperature 19000K – 2700K
6 Color
000
No Function
001ó255
Color Macros
7 On/Off Preset
000ó009
No function
010ó255
On/Off presets (Indexed)
8 LED Macro /
Auto Program
000ó015
No function
016ó135
LED macros
136ó255
Auto programs
9 LED Macro / Auto
Program Speed
000ó127
Fast to slow
128
Hold
129ó255
Slow to fast
10
LED built-in delay
000ó255
Fast to slow
11 Background Color
000
No function
001ó002
white 2700K(R=156
，
G=118
，
B=0
，
W=63)
003
ó
004
white 3200K(R=156
，
G=141
，
B=5
，
W=89)
005ó006
white 4200K(R=156
，
G=141
，
B=14
，
W=255)
007
ó
008
white 5600K(R=156
，
G=207
，
B=54
，
W=255)
009ó010
white 8000K(R=130
，
G=255
，
B=96
，
W=255)
011
blue
（
R=0
，
G=0
，
B=255
，
W=0
）
012
ó
048
R=0
，
G+
，
B=255
，
W=0
049
cyan
（
R=0
，
G=255
，
B=255
，
W=0
）
050
ó
086
R=0
，
G=255
，
B-
，
W=0
087
green
（
R=0
，
G=255
，
B=0
，
W=0
）
088
ó
124
R+
，
G=255
，
B=0
，
W=0
125
yellow
（
R=255
，
G=255
，
B=0
，
W=0
）
126
ó
162
R=255
，
G-
，
B=0
，
W=0
163
red
（
R=255
，
G=0
，
B=0
，
W=0
）
164ó200
R=255
，
G=0
，
B+
，
W=0
201
magenta
（
R=255
，
G=0
，
B=255
，
W=0
）
202ó238
R+
，
G=0
，
B=255
，
W=0
239
blue
（
R=0
，
G=0
，
B=255
，
W=0
）
240ó247
Color change, fast to slow
248ó255
Color jump, fast to slow
12
BC Dimmer
000ó255
0–100%
13
BC Fine Dimmer
000ó255
0–100%
14
Main Dimmer
000ó255
0–100%
15
Fine Main Dimmer
000ó255
0–100%
16 Shutter
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On

Maverick MK2 Wash QRG EN
10
Tour Mode
Channel
Function
Value
Percent/Setting
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pulse) fast to slow
245ó255
On
17
Zoom
000ó255
Narrow to wide
18 Control
000ó009
No function
010ó014
Pan/tilt blackout
015ó019
No function (reserved for future use)
020ó024
RGBW color mixing mode (additive)
025ó029
CMY color mixing mode (subtractive)
030ó049
No function (reserved for future use)
050ó054
Pan reset
055ó059
Tilt reset
060ó064
Zoom reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó109
No function (reserved for future use)
110ó114
Pan/tilt speed fast
115ó119
Pan/tilt speed slow
120ó124
Fan mode slow
125ó129
Fan mode full
130ó134
Fan mode auto
135ó139
Dimmer mode fast
140ó144
Dimmer mode slow
145ó255
No function (reserved for future use)
19
R (C) Main
000ó255
0–100%
20
R (C) Main Fine
000ó255
0–100%
21
G (M) Main
000ó255
0–100%
22
G (M) Main Fine
000ó255
0–100%
23
B (Y) Main
000ó255
0–100%
24
B (Y)Main Fine
000ó255
0–100%
25
W Main
000ó255
0–100%
26
W Main Fine
000ó255
0–100%
27
Dimmer 1
000ó255
0–100%
28
Dimmer 1 Fine
000ó255
0–100%
29
R (C) 1
000ó255
0–100%
30
R (C) 1 Fine
000ó255
0–100%
31
G (M) 1
000ó255
0–100%
32
G (M) 1 Fine
000ó255
0–100%
33
B (Y) 1
000ó255
0–100%

Maverick MK2 Wash QRG EN
11
Tour Mode
Channel
Function
Value
Percent/Setting
34
B (Y)1 Fine
000ó255
0–100%
35
W 1
000ó255
0–100%
36
W 1 Fine
000ó255
0–100%
37
Dimmer 2
000ó255
0–100%
38
Dimmer 2 Fine
000ó255
0–100%
39
R (C) 2
000ó255
0–100%
40
R (C) 2 Fine
000ó255
0–100%
41
G (M) 2
000ó255
0–100%
42
G (M) 2 Fine
000ó255
0–100%
43
B (Y) 2
000ó255
0–100%
44
B (Y)2 Fine
000ó255
0–100%
45
W 2
000ó255
0–100%
46
W 2 Fine
000ó255
0–100%
47
Dimmer 2
000ó255
0–100%
48
Dimmer 2 Fine
000ó255
0–100%
49
R (C) 2
000ó255
0–100%
50
R (C) 2 Fine
000ó255
0–100%
51
G (M) 2
000ó255
0–100%
52
G (M) 2 Fine
000ó255
0–100%
53
B (Y) 2
000ó255
0–100%
54
B (Y)2 Fine
000ó255
0–100%
55
W 2
000ó255
0–100%
56
W 2 Fine
000ó255
0–100%
57
Dimmer 2
000ó255
0–100%
58
Dimmer 2 Fine
000ó255
0–100%
59
R (C) 2
000ó255
0–100%
60
R (C) 2 Fine
000ó255
0–100%
61
G (M) 2
000ó255
0–100%
62
G (M) 2 Fine
000ó255
0–100%
63
B (Y) 2
000ó255
0–100%
64
B (Y)2 Fine
000ó255
0–100%
65
W 2
000ó255
0–100%
66
W 2 Fine
000ó255
0–100%
67
Dimmer 2
000ó255
0–100%
68
Dimmer 2 Fine
000ó255
0–100%
69
R (C) 2
000ó255
0–100%
70
R (C) 2 Fine
000ó255
0–100%
71
G (M) 2
000ó255
0–100%
72
G (M) 2 Fine
000ó255
0–100%
73
B (Y) 2
000ó255
0–100%
74
B (Y)2 Fine
000ó255
0–100%
75
W 2
000ó255
0–100%
76
W 2 Fine
000ó255
0–100%
77
Dimmer 2
000ó255
0–100%
78
Dimmer 2 Fine
000ó255
0–100%
79
R (C) 2
000ó255
0–100%
80
R (C) 2 Fine
000ó255
0–100%
81
G (M) 2
000ó255
0–100%
82
G (M) 2 Fine
000ó255
0–100%
83
B (Y) 2
000ó255
0–100%

Maverick MK2 Wash QRG EN
12
Tour Mode
Channel
Function
Value
Percent/Setting
84
B (Y)2 Fine
000ó255
0–100%
85
W 2
000ó255
0–100%
86
W 2 Fine
000ó255
0–100%
87
Dimmer 2
000ó255
0–100%
88
Dimmer 2 Fine
000ó255
0–100%
89
R (C) 2
000ó255
0–100%
90
R (C) 2 Fine
000ó255
0–100%
91
G (M) 2
000ó255
0–100%
92
G (M) 2 Fine
000ó255
0–100%
93
B (Y) 2
000ó255
0–100%
94
B (Y)2 Fine
000ó255
0–100%
95
W 2
000ó255
0–100%
96
W 2 Fine
000ó255
0–100%
97
Dimmer 2
000ó255
0–100%
98
Dimmer 2 Fine
000ó255
0–100%
99
R (C) 2
000ó255
0–100%
100
R (C) 2 Fine
000ó255
0–100%
101
G (M) 2
000ó255
0–100%
102
G (M) 2 Fine
000ó255
0–100%
103
B (Y) 2
000ó255
0–100%
104
B (Y)2 Fine
000ó255
0–100%
105
W 2
000ó255
0–100%
106
W 2 Fine
000ó255
0–100%
107
Dimmer 2
000ó255
0–100%
108
Dimmer 2 Fine
000ó255
0–100%
109
R (C) 2
000ó255
0–100%
110
R (C) 2 Fine
000ó255
0–100%
111
G (M) 2
000ó255
0–100%
112
G (M) 2 Fine
000ó255
0–100%
113
B (Y) 2
000ó255
0–100%
114
B (Y)2 Fine
000ó255
0–100%
115
W 2
000ó255
0–100%
116
W 2 Fine
000ó255
0–100%
117
Dimmer 2
000ó255
0–100%
118
Dimmer 2 Fine
000ó255
0–100%
119
R (C) 2
000ó255
0–100%
120
R (C) 2 Fine
000ó255
0–100%
121
G (M) 2
000ó255
0–100%
122
G (M) 2 Fine
000ó255
0–100%
123
B (Y) 2
000ó255
0–100%
124
B (Y)2 Fine
000ó255
0–100%
125
W 2
000ó255
0–100%
126
W 2 Fine
000ó255
0–100%
127
Dimmer 2
000ó255
0–100%
128
Dimmer 2 Fine
000ó255
0–100%
129
R (C) 2
000ó255
0–100%
130
R (C) 2 Fine
000ó255
0–100%
131
G (M) 2
000ó255
0–100%
132
G (M) 2 Fine
000ó255
0–100%
133
B (Y) 2
000ó255
0–100%

Maverick MK2 Wash QRG EN
13
Tour Mode
Channel
Function
Value
Percent/Setting
134
B (Y)2 Fine
000ó255
0–100%
135
W 2
000ó255
0–100%
136
W 2 Fine
000ó255
0–100%
137
Dimmer 12
000ó255
0–100%
138
Dimmer 12 Fine
000ó255
0–100%
139
R (C) 12
000ó255
0–100%
140
R (C) 12 Fine
000ó255
0–100%
141
G (M) 12
000ó255
0–100%
142
G (M) 12 Fine
000ó255
0–100%
143
B (Y) 12
000ó255
0–100%
144
B (Y) 12 Fine
000ó255
0–100%
145
W 12
000ó255
0–100%
146
W 12 Fine
000ó255
0–100%
Advanced
Mode
(122CH)
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3
Tilt
000ó255
0–100%
4
Fine Tilt
000ó255
0–100%
5 CTC
000
No function
001ó255
Color temperature 1900K to 2700K
6 Color Macro
000
No function
001ó255
Color macros
7 On/Off Preset
000ó009
No function
010ó255
On/Off presets
8 LED Macro /
Auto Program
000ó015
No function
016ó135
LED macros
136ó255
Auto programs
9 LED Macro / Auto
Program Speed
000ó127
Fast to slow
128
Hold
129ó255
Slow to fast
10
LED Macro Fade
000ó255
Fast to slow
11
Background Color
Macro
000
No function
001ó255
Background color macros
12
Background
Dimmer
000ó255 0–100%
13
Background Fine
Dimmer
000ó255 0–100%
14
Main Dimmer
000ó255
0–100%
15
Main Fine Dimmer
000ó255
0–100%

Maverick MK2 Wash QRG EN
14
Advanced
Mode
(122CH
cont.)
Channel
Function
Value
Percent/Setting
16 Shutter
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pulse) fast to slow
245ó255
On
17
Zoom
000ó255
Narrow to wide
Advanced
Mode
(122
CH
cont.)
Channel
Function
Value
Percent/Setting
18 Control
000ó009
No function
010ó014
Pan/tilt blackout
015ó019
No function (reserved for future use)
020ó024
RGBW color mixing mode (additive)
025ó029
CMY color mixing mode (subtractive)
030ó049
No function (reserved for future use)
050ó054
Pan reset
055ó059
Tilt reset
060ó064
Zoom reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó109
No function (reserved for future use)
110ó114
Pan/tilt speed fast
115ó119
Pan/tilt speed slow
120ó124
Fan mode slow
125ó129
Fan mode full
130ó134
Fan mode auto
135ó139
Dimmer mode fast
140ó144
Dimmer mode slow
145ó255
No function (reserved for future use)
19
Main Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Main Red Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
21
Main Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
22
Main Green Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
23
Main Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
24
Main Blue Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
25
Main White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0

Maverick MK2 Wash QRG EN
15
Advanced
Channel
Function
Value
Percent/Setting
26
Main White Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
27
Red 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
28
Red Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
29
Green 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
30
Green Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
31
Blue 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
32
Blue Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
33
White 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
34
White Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
35
Red 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
36
Red Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
37
Green 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
38
Green Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
39
Blue 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
40
Blue Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
41
White 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
42
White Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
43
Red 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
44
Red Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
45
Green 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
46
Green Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
47
Blue 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
48
Blue Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
49
White 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
50
White Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
51
Red 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
52
Red Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
53
Green 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
54
Green Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
55
Blue 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
56
Blue Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
57
White 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
58
White Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
59
Red 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
60
Red Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
61
Green 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
62
Green Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
63
Blue 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
64
Blue Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
65
White 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
66
White Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
67
Red 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
68
Red Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
69
Green 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
70
Green Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
71
Blue 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
72
Blue Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
73
White 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
74
White Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
75
Red 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0

Maverick MK2 Wash QRG EN
16
Advanced
Channel
Function
Value
Percent/Setting
76
Red Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
77
Green 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
78
Green Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
79
Blue 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
80
Blue Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
81
White 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
82
White Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
83
Red 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
84
Red Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
85
Green 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
86
Green Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
87
Blue 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
88
Blue Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
89
White 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
90
White Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
91
Red 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
92
Red Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
93
Green 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
94
Green Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
95
Blue 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
96
Blue Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
97
White 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
98
White Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
99
Red 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
100
Red Fine 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
101
Green 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
102
Green Fine 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
103
Blue 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
104
Blue Fine 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
105
White 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
106
White Fine 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
107
Red 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
108
Red Fine 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
109
Green 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
110
Green Fine 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
111
Blue 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
112
Blue Fine 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
113
White 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
114
White Fine 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
115
Red 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
116
Red Fine 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
117
Green 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
118
Green Fine 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
119
Blue 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
120
Blue Fine 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
121
White 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
122
White Fine 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0

Maverick MK2 Wash QRG EN
17
Standard
Mode
(68CH)
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3
Tilt
000ó255
0–100%
4
Fine Tilt
000ó255
0–100%
5 CTC
000
No function
001ó255
Color temperature 1900K to 2700K
6 Color Macro
000
No function
001ó255
Color macros
7 On/Off Preset
000ó009
No function
010ó255
On/Off presets
8 LED Macro /
Auto Program
000ó015
No function
016ó135
LED macros
136ó255
Auto programs
9 LED Macro / Auto
Program Speed
000ó127
Fast to slow
128
Hold
129ó255
Slow to fast
10
LED Macro Fade
000ó255
Fast to slow
11
Background Color
Macro
000
No function
001ó255
Background color macros
12
Background
Dimmer
000ó255 0–100%
13
Main Dimmer
000ó255
0–100%
14 Shutter
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pulse) fast to slow
245ó255
On
15
Zoom
000ó255
Narrow to wide

Maverick MK2 Wash QRG EN
18
Standard
Mode
(68
CH
cont.)
Channel
Function
Value
Percent/Setting
16 Control
000ó009
No function
010ó014
Pan/tilt blackout
015ó019
No function (reserved for future use)
020ó024
RGBW color mixing mode (additive)
025ó029
CMY color mixing mode (subtractive)
030ó049
No function (reserved for future use)
050ó054
Pan reset
055ó059
Tilt reset
060ó064
Zoom reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó109
No function (reserved for future use)
110ó114
Pan/tilt speed fast
115ó119
Pan/tilt speed slow
120ó124
Fan mode slow
125ó129
Fan mode full
130ó134
Fan mode auto
135ó139
Dimmer mode fast
140ó144
Dimmer mode slow
145ó255
No function (reserved for future use)
17
Main Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
18
Main Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
19
Main Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Main White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
21
Red 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
22
Green 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
23
Blue 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
24
White 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
25
Red 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
26
Green 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
27
Blue 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
28
White 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
29
Red 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
30
Green 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
31
Blue 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
32
White 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
33
Red 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
34
Green 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
35
Blue 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
36
White 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
37
Red 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
38
Green 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
39
Blue 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
40
White 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
41
Red 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
42
Green 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
43
Blue 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
44
White 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0

Maverick MK2 Wash QRG EN
19
Standard
Mode
(68
CH
cont.)
Channel
Function
Value
Percent/Setting
45
Red 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
46
Green 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
47
Blue 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
48
White 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
49
Red 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
50
Green 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
51
Blue 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
52
White 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
53
Red 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
54
Green 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
55
Blue 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
56
White 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
57
Red 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
58
Green 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
59
Blue 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
60
White 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
61
Red 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
62
Green 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
63
Blue 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
64
White 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
65
Red 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
66
Green 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
67
Blue 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
68
White 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
Basic Mode
(20CH)
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3
Tilt
000ó255
0–100%
4
Fine Tilt
000ó255
0–100%
5 CTC
000
No function
001ó255
Color temperature 1900K to 2700K
6 Color Macro
000
No function
001ó255
Color macros
7 On/Off Preset
000ó009
No function
010ó255
On/Off presets
8 LED Macro /
Auto Program
000ó015
No function
016ó135
LED macros
136ó255
Auto programs
9 LED Macro / Auto
Program Speed
000ó127
Fast to slow
128
Hold
129ó255
Slow to fast
10
LED Macro Fade
000ó255
Fast to slow
11
Background Color
Macro
000
No function
001ó255
Background color macros
12
Background
Dimmer
000ó255 0–100%
13
Main Dimmer
000ó255
0–100%

Maverick MK2 Wash QRG EN
20
Basic Mode
(20CH
cont.)
Channel
Function
Value
Percent/Setting
14 Shutter
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pulse) fast to slow
245ó255
On
15
Zoom
000ó255
Narrow to wide
16 Control
000ó009
No function
010ó014
Pan/tilt blackout
015ó019
No function (reserved for future use)
020ó024
RGBW color mixing mode (additive)
025ó029
CMY color mixing mode (subtractive)
030ó049
No function (reserved for future use)
050ó054
Pan reset
055ó059
Tilt reset
060ó064
Zoom reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó109
No function (reserved for future use)
110ó114
Pan/tilt speed fast
115ó119
Pan/tilt speed slow
120ó124
Fan mode slow
125ó129
Fan mode full
130ó134
Fan mode auto
135ó139
Dimmer mode fast
140ó144
Dimmer mode slow
145ó255
No function (reserved for future use)
17
Main Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
18
Main Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
19
Main Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Main White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
