USER’S GUIDE

MP-2000 User’s Guide
Information to the user
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, with can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-. Consult the dealer or an experienced radio/TV technician for help.
Warning
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.

MP-2000 User’s Guide
CONTENTS
1. Introduction ………………………………………………………….. 1
2. Getting Started ……………………………………………………….. 2
2.1 System Requirements ……………………………………………….. 2
2.2 Unpacking ………………………………………………………….. 3
2.3 System Overview ………………………………………………….. 4
2.3.1 Button Controls ……………………………………………….. 4
2.3.2 LCD Display …………………………………………….. 6
2.3.3 Inserting and Removing Flash Memory Cards …………………. 7
2.3.4 Connecting the Player to the PC ……………………………….. 7
2.4 Charging the Battery ……………………………………………….. 8
2.4.1 Charging the Player …………………………………………….. 8
2.4.2 Battery Level Indication During Operation …………………… 8
3. How to Use the Special Edition MP -2000 …………………………… 9
3.1 Power ON/OFF ……………………………………………………… 9
3.1.1 Power ON ……………………………………………………… 9
3.1.2 Power OFF ……………………………………………………… 10
3.2 Modes of Operation ………………………………………………… 11
3.2.1 Music Mode ……………………………………………… 11
3.3 Music Mode Functions …………………………………………… 12
3.3.1 Selecting Music from Memory Card ………………………… 12
3.3.2 Play/Pause ……………………………………………………… 12
3.3.3 Cue/Review …………………………………………………… 12
3.3.4 Stopping Play …………………………………………………… 13
3.3.5 Volume Control ………………………………………………… 13
3.3.6 Intro Scan/Rep eat One/Repeat All/Random …………………… 14
3.3.7 A-B Sampling ………………………………………………… 15
3.3.8 Preset Equalizer Settings ……………………………………… 16
3.3.9 Changing LCD Display ………………………………………… 17
3.3.10 Hold Function ………………………………………………… 17
4. Troubleshooting……………………………………………………… 18

MP-2000 User’s Guide
Your new Special Edition MP-2000 is an easy-to-use, pocket-sized, state-of-
the-art digital music player. Your favorite digital music is combined in this
small-but -powerful personal stereo system. Wherever you take the MP -2000,
you can enjoy CD-quality, stereo sound.
With the user-friendly MP-2000 and your PC, you can customize a mix of
your favorite audio tracks, and store custom music selections on the solid-
state, removable, reusable, 32MB CompactFlash™ memory cartridge
included in this package. MP-2000 connects to your PC through a USB cable
so you can upload audio from the Internet or from your personal audio
collection. The unit will recognize and play audio files in four popular
compression formats: AAC, ePAC, WMA andMP3.
The unit is powered by a built-in, rechargeable NiMH battery, allowing up to
four continuous hours of stereo music playback. Connecting the external
battery pack (included) gives you up to 10 hours of continuous playback time.
The full-featured system will repeat whatever you choose: a whole collection
of tracks, one track, or a selected passage of any length. You can tell your
MP-2000 to play tracks in either a set order or random order.
The liquid crystal display (LCD) screen displays the name of the song and
the artist and also lets you choose from five different equalizer settings to
maximize your personal audio experience. It displays the length of each song
and shows all the currently-selected settings and functions.
We hope you will enjoy the flexibility of selecting, downloading, storing, and
playing your favorite audio tracks using the MP-2000. This User’s Guide will
help you get the most from the digital audio product that puts you in control.
Copyright Laws
Intellectual property, including music, is protected worldwide by copyright
laws. It is permitted to make one copy of legally acquired music (from your
personal CD or tape collection, for example) for your personal use. It is not
permitted to sell or give these copies to third parties. Take care when
downloading MP3 files from the Internet. Check that files offered are
properly licensed, and that the seller has proper rights to distribute the tracks
being offered.
1. INTRODUCTION
1

MP-2000 User’s Guide
2.1 System Requirements
The following system is recommended:
•Microsoft Windows 98/2000
•Pentium 133MHz or faster
•16MB RAM or higher
•30MB minimum free hard disc space
•CD-ROM drive (8x or better recommended)
•1 USB Port
•Internet Explorer 4.0 (or newer)
2. Getting Started
2

MP-2000 User’s Guide
2.2 Unpacking
Your MP -2000 came with 8 components. Please take a moment to ensure the
following items came in your box:
MP-2000 DigitalMusic Player
w/ InternalRechargeable Battery
DirectUSB InterfaceCable
Stereo Earphone Installation Software
Neck Strap D.C.WallAdapter
32MB CompactFlash
TM
Memory Card
External Battery Pack
1 x “AA”
2. Getting Started
3

MP-2000 User’s Guide

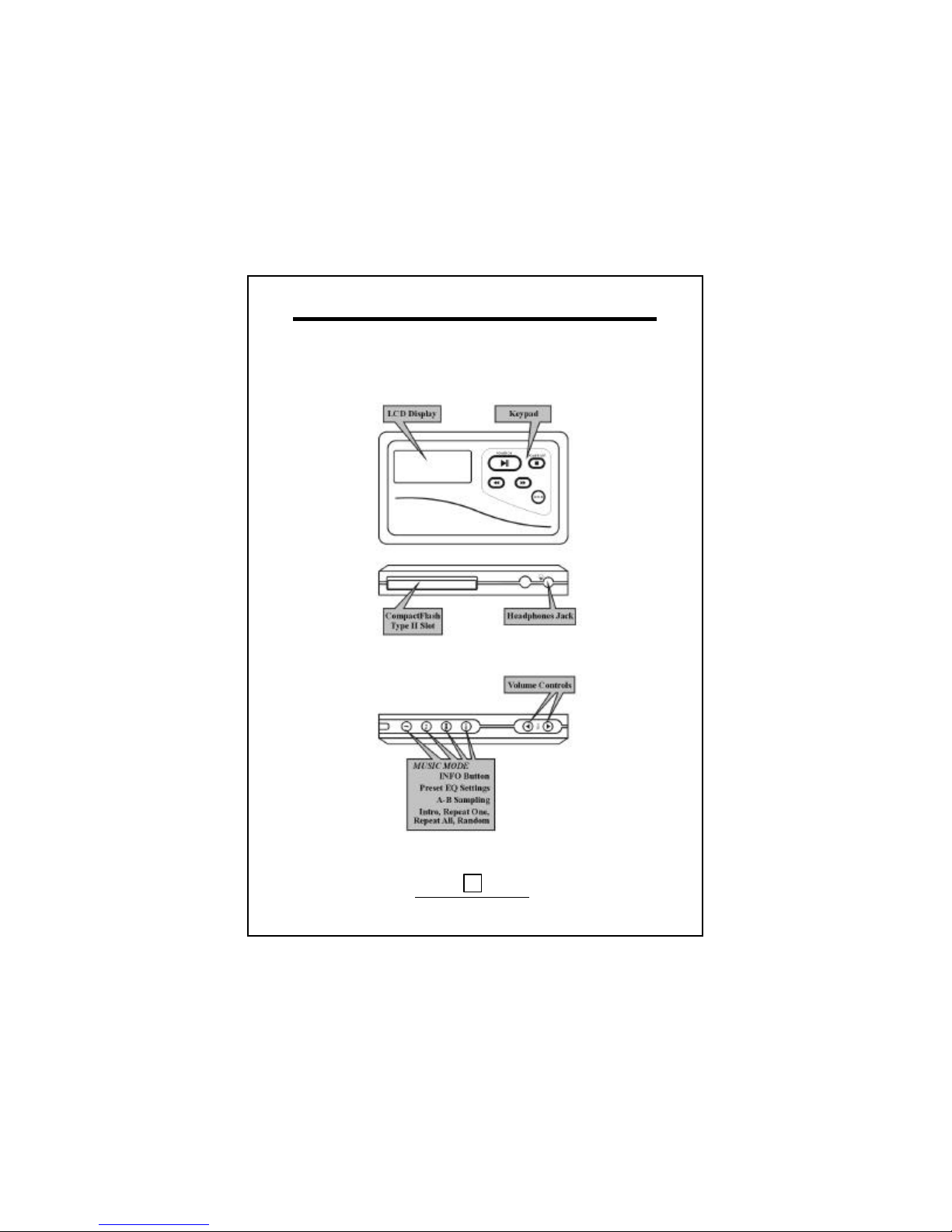

2.3 System Overview
2.3.1 Button Controls
2. Getting Started
4

MP-2000 User’s Guide
2. Getting Started
5

MP-2000 User’s Guide
2.3.2 LCD Display
2. Getting Started
6

MP-2000 User’s Guide
2.3.3 Inserting and Removing Flash Memory Cards
1. Turn player off.
2. Ensure the card is in the correct position.
3. Insert the card into the player, press firmly until you feel the card lock in place.
4. To remove the card, firmly grasp the card and slide the card out of the player.
2.3.4 Connecting the Player to the PC
To enjoying digital music away from your computer, you must first connect
your MP -2000 to your computer via USB and download your songs onto the
player’s removable flash memory card.
1. Turn player off.
2. Connect the square connector of the
USB cable to the player’s USB port
located on the side.
3. Connect the rectangular connector of
the USB cable to the back of your
computer.
4. Turn player on.
5. When the player is properly connected,
the LCD displays “USB Connect”.
6. Refer to your MVP software
manual for specific instructions on downloading music to the player.
Do not pull the card out while
music is playing. Always turn
the player off before inserting or
removing flash memory cards.
2
. Getting Started
7

MP-2000 User’s Guide
2.4 Charging the Battery
A built-in rechargeable NiMH Battery powers your MP -2000. Attaching the
external battery pack (1xAA external battery holder) will extend playback
time up to 10 hours.
2.4.1 Charging The Player
1. Turn the player off.
2. Remove the external battery pack if attached.
3. Connect the AC power adapter to the slot labeled DC IN located on the
right side of the player and to the wall outlet.
4. Allow the player to charge overnight (12 hours if using the
player for the first time) before turning on the player.
2.4.2 Battery Level Indication During Operation
The BATTERY LEVEL icon will be continuously displayed while the
player is on. The icon will change to indicate:
Note : As the external battery pack provides different voltage than internal
rechargeable battery, Battery Level Indication for external battery pack is not
accurate.
If using the player for
the first time, charge
the battery for at least
15 hours.
2. Getting Started
8

MP-2000 User’s Guide
3.1 Power ON/OFF
3.1.1 Power ON
1. Hold down the ( ) button for 2 seconds.
2. The LCD display will show model number and installed software
version for 4 seconds.
3. The player will start in either MUSIC mode, depending on the last
shutdown.
3. How use the Special Edition MP-2000
9

MP-2000 User’s Guide
3.1.2 Power OFF
Hold down the STOP ()button for 2 seconds. While holding down the
STOP button, the LCD will display “Powering Off”.
To turn the player off during music playback, press the STOP ( ) button
once to stop music play, then press and hold the STOP button to power off.
Hold the ( ) button down until the “Powering Off”message
disappears.
In MUSIC mode only, the player will automatically power off
after 1minute of inactivity.
3. How use the Special Edition MP-2000
10

MP-2000 User’s Guide
3.2 Modes of Operation
3.2.1 Music Mode
Press the button on the keypad to start MUSIC mode.
Types of Music Formats:
AAC = Dolby
EPAC = Enhanced Perceptual Audio Coder
WMA = Windows media
MP3 = MP3
3. How use the Special Edition MP-2000
11

MP-2000 User’s Guide
3.3 Music Mode Functions
This section describes the features available to you while enjoying music
from your CompactFlashTM memory card.
3.3.1 Selecting Music From Memory Card
•Ensure player is in MUSIC mode by pressing the button.
•Press the ( ) or ( ) buttons to scan forward/backward to select a
song.
•For each song, the LCD display will scroll the song’s title and
artist information, and show the music format and song track
number.
3.3.2 Play / Pause ( )
•Press the ( ) button to play the selected track.
•Press the ( ) button again to pause
•During pause, the pause icon ( ) appears.
•During playback, song title/artist, EQ setting, track number, and
time elapsed appear.
3.3.3 Cue / Review ( , )
•During music playback, press the ( ) or ( ) once to select the
previous or next track.
•Hold down the ( ) or ( ) buttons to scan backward/forward
within a song.
A memory card must be
inserted before using the
player in MUSIC mode
3. How use the Special Edition MP-2000
12

MP-2000 User’s Guide
3.3.4 Stopping Play ( )
Press the ( ) button once to stop music playback.
3.3.5 Volume Control
•Press the volume controls on the top side of the player to
increase/decrease volume during playback.
•When you use the volume controls, the LCD will display the
volume level, ranging from 00 to 30.
If you hold down the ( )
button for more than
two
seconds, the player will
shut off.
3. How use the Special Edition MP-2000
13

MP-2000 User’s Guide
3.3.6 Intro Scan/Repeat One/Repeat All/Random
Press ( ) once for INTRO playback.
The INTRO icon will appear. The player will play the first
10 seconds of each song.
Pressing( ) twice will only repeat the currently
selected song. The REPEAT ONE icon will appear.
Press ( ) again to repeat all songs stored on the
memory card. The REPEAT ALL icon will appear.
Press ( ) a fourth time to play all songs in a
random order. The RANDOM icon will appear.
3. How use the Special Edition MP-2000
14

MP-2000 User’s Guide
3.3.7 A-B Sampling
During music playback, press the ( ) button once
to set the start point of the song segment you want to repeat.
Press the ( ) button again to set the end point of
the song segment. The player will repeat the song segment from
point A to B.
Press the ( ) button a third time to return to normal
playback.
The A-B Sampling function
only works during music
playback.
3. How use the Special Edition MP-2000
15

MP-2000 User’s Guide
3.3.8 Preset Equalizer Settings
The MP-2000 has the following preset equalizer settings:
•Rock
•Jazz
•Dance
•Latin
•Flat
To change the equalizer setting, press the ( ) button
repeatedly until you reach your desired setting.
3. How use the Special Edition MP-2000
16

MP-2000 User’s Guide
3.3.9 Changing LCD Display
During music playback, you can change the information
displayed in the LCD by pressing the ( ) button.
This additional information will be displayed for 5 seconds.
3.3.10 Hold Function
To lock the player button controls, press the HOLD button on the keypad.
The word “HOLD”will be displayed in the LCD.
To unlock, press the HOLD button a second time.
3. How use the Special Edition MP-2000
17
After Pressing ( ) Button:
