TABLE OF CONTENTS
Page
Dryer Safety oo. .ccceeeeeeeeesssssssssssnssiieeeeeeeeeeeeeeeesseeeeeenninnieeenees 2
TOONS & Parts ...cccssseesseseeeeceeeeeeesesesseeasssesedeeeeeeeeeeeeeeessesseeeaaaaes 5
DirmensionsS/Clearances ....cccccccccccceceessssesseseceecnsecceteceeesssteess 6
Gas Dryer Installation Requirements .......cccccccsssssssssssseseeeeees 7
Electric Dryer Installation Requirements ....ccccccccccsecssseeseees 10
Dryer Venting RequireMent .......cccccccccccssseeeeeccssseeeaceaaeesces 13
Gas Supply COnmection .....ccccccccsscsseeeeeeeeseeeeeeeeeeeeneeeeeeeeeeees 15
installing Leveling Legs, Coin Slide, and Coin Box .......c6000 17
Electric Dryer Electrical CONM@CtIONS ........c:cscccsscceeecessesssees 18
LOVGHIAG ....cccccecccsssssesssncncncsceeeeccescesssesssanaaaacacecaceeeeseessessaens 22
Complete Installation oo... cccccsssssssssseeeeeeeesteseseeseeeeeeeeeeseseeees 23
Reversing Dryer Door SWING .......::::ccccceeeeeeeeeeeseeeeeeeeeeeeeeeeees 24
Changing to a 30- or 60-Minute Timing Car .....cccccesessseees 25
Maintenance Instructions ......ccccccsccceeseeeeeeeeeeeeeeeeeeeeeseeeeeees 26
If You Need ASSISTANCE .oiccccccsssssssssssceeeeeeeceeeeeeeeeeeaeeeeeeseeeeees 26
Warranty ..ccccocsecccsssccsssesonsesonsnscnsaseessescasescasaseasaseesausesanauss 27
W10184576C
W10184577C — SP
INSTALLATION
INSTRUCTIONS
Commercial Dryer
Gas or Electric
INSTRUCTIONS
D' INSTALLATION
Sécheuse a usage
commercial
a gaz ou électrique
TABLE DES MATIERES
Sécurité de la sécheuse
Outils Ct PIGCOS ...cccccssssecensssssseeeeeeeneeseseeeeeasnssseeeeeeeeeeeneeeees
Dimensions/Distances de dégagement .........::ccsssseeceseeeeees 32
Exigences d’installation pour la s€cheUSE & BaZ....scccsccceeers 33
Exigences d’installation pour la sécheuse électrique ......... 36
Exigences concernant l’évacuation de la sécheuse .......06606 38
Raccordement a la canalisation de Gaz ......ccssssssscnsssecnseeesees 40
installation des pieds de nivellement, de la glissiére
a monnaie et de la caisse & MONNAIE ......ccsssssssseeeeeeeeeeeeeeeees 42
NiVEH@Me@nt .....ccccccceeceeeeeeeeeeeeeeeceesecseeeeeeeeeseeseseesaeeaeeeeeeeeeeees 43
Achever Vinstallation .........ccccssccssssssssnnsececcseeseeessessseeessnanaes 44
Inversion du sens d’ouverture de la POrte .......ccsssssesssseeseeees 45
installation d’une came de minutage de 30 ou 60 minutes ..46
INStPUCTIONS C’ANTLETION ......c:cccssssccccccessessseesssnnssssnassnasceeeeees 47
Si vous avez besoin d’assiStance .......ccssssccsscesseessessssessssenaes 47
CE) ga | 6 | ee 48
www.maytagcommerciallaundry.com

DRYER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
A DANGER follow instructions.
You can be killed or seriously injured if you don't follow
y'X WARNING instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
yn WARNING = “Risk of Fire”
- Clothes dryer installation must be performed by a qualified installer.
- Install the clothes dryer according to the manufacturer’s instructions and local codes.
- Do not install a clothes dryer with flexible plastic venting materials or flexible metal
(foil type) duct. If flexible metal duct is installed, it must be of a specific type identified
by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting
materials are known to collapse, be easily crushed, and trap lint. These conditions will
obstruct clothes dryer airflow and increase the risk of fire.
- To reduce the risk of severe injury or death, follow all installation instructions.
- Save these instructions.
@ It is recommended that the owner post, in a prominent location, instructions for the customer’s use in the event the customer
smells gas. This information should be obtained from your gas supplier.
@ Post the following warning in a prominent location.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

DRYER SAFETY
WARNING: For your safety, the information in this manual must be followed to minimize
the risk of fire or explosion, or to prevent property damage, personal injury, or death.
~ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
e Do not try to light any appliance.
e Do not touch any electrical switch; do not use any phone in your building.
e Clear the room, building, or area of all occupants.
e Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
e If you cannot reach your gas supplier, call the fire department.
~ Installation and service must be performed by a qualified installer, service agency, or
the gas supplier.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the “What to do if you smell gas” instructions.
In the State of Massachusetts, the following installation instructions apply:
@ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by
the State of Massachusetts.
@ If using a ball valve, it shall be a T-handle type.
@ A flexible gas connector, when used, must not exceed 3 feet.
IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas
Code, ANSI 2223.1/NFPA 54 or the Canadian Natural Gas and Propane Installation Code, CSA B149.1.
The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70 or Canadian Electrical Code, CSA C22.1.
IMPORTANT: When discarding or storing your old clothes dryer, remove the door.

DRYER SAFETY
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using the dryer.
This dryer is intended only for drying clothes anc textiles
that have been washed in water. Do not use for any
other purpose.
WARNING: If you smell gas, do not use the dryer or any
electrical equipment nearby. Warn other people to clear
the area. Contact the dryer owner immediately.
Do not place iterns exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to
a chemical reaction that could cause a load to catch fire.
Do not dry articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, other flammable, or explosive
substances as they give off vapors that could ignite
or explode.
Do not dry unwashed items in the dryer.
Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children.
Before the dryer is removed from service or discarded,
remove the doors to the dryer compartment.
Do not reach into the dryer if the drum is moving.
Do not open door while dryer is in operation. It will stop.
Do not install or store the dryer where it will be exposed
to the weather.
Do not tamper with controls.
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the dryer, follow basic precautions,
including the following:
Clean dryer lint screen before or after each load.
Do not use this dryer without the lint screen in place.
Do not repair or replace any part of the dryer or attempt
any servicing unless specifically recommenced in this
Installation Instructions or in published user-repair
instructions that you understand and have the skills
to carry out.
Do not use fabric softeners or products to eliminate static
unless recommended by the manufacturer of the fabric
softener or product.
Do not use heat to dry articles containing foam rubber or
similarly textured rubber-like materials.
The final part of a tumble dryer cycle occurs without heat
(cool-down cycle} to ensure that the articles are left at
a temperature that ensures that the items will not be
damaged.
WARNING: Never stop a tumble dryer before the end of
the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated. (Avoids risk of
spontaneous combustion).
Keep area around the exhaust opening and adjacent
surrouncing areas free from the accumulation of lint,
dust, and dirt.
The interior of the dryer and cryer exhaust vent should
be cleaned periodically by qualified service personnel.
See “Electrical Requirements” section for grounding
instructions.
SAVE THESE INSTRUCTIONS

TOOLS & PARTS
Tools Needed:
—t fy
a = O==D
8" (200 mm) 8" (200 mm) or 10" (250 mm) flat-blade screwdriver phillips screwdriver
or 10" (250 mm) adjustable wrench
pipe wrench that opens to 1" (25 mm}
— A, ——_
C==) CaS ee} ee
Torx" T-20 security 1" (25 mm) hex-head 5/16" (8 mm) socket wrench pliers (that open to
screwdriver or bit socket wrench L/1s" [39 mm])
Ce TN eso
utility knife 1/4" (6 mm) nut driver 27" (686 mm)
wood block
caulk gun and caulk vent clamps pipe-joint compound putty knife
(for installing new exhaust vent) suitable for gas type
flashlight (optional) 1" (25 mm) ruler or measuring tape
open-end wrenches
Parts Supplied:
CS ETS C
eZ SS
as Ey
foot boots (4) leveling legs (4) security cone
‘oe
CI
Cj
E
a 9
5/16" hex head— 3-pin 60-minute timing cam 6-pin 30-minute timing cam
18 x 2°4" security bolt
+® TORX is a registered trademark of Saturn Fasteners, Inc.

DIMENSIONS /CLEARANCES
Dimensions
Front View
a7"
(686 mm)
e
e
©
427/6"
(1.089 m)
4 uu
(25 mm)
Back View
<2 7
Lanne , (686 mm)
t
Lani
iElectrié
at 131/2" A
(343 mm) 35"
ad- 4G pe) (889 mm)
(406 mm) (electric models)
1/4" 37"
(32 mm) | |<< 4" dia (940 mm)
\ (102 min) (gas modeis)
53/eh" Gas bh '
(137 mm) CD
ym domed.
f 13" uu
—® | (330 mm) f“- 3t/4
(83 mm)
Clearances
Side View
2911/4"
t—— (743 mim) —s}
Non-coin-operated
7 2671/2" » models:
(673 mm) { Tt/e"
prettene (181 mm)
i Coin-operated
L models:
‘ 77/3"
(200 mm)
35" i
(889 mm)
31/4"
(83 mm)
CL v
YY
ik Ed
1071/4" 4
3/4 (260 mm) — a
(21 mm)
Bottom exhaust
O Oo
Tia"
(184 mm)
Cy
Oo 7 9g
i —_—_—_==z=__—J
at {3°
(330 mm)
Recessed front view
q5"
(381 mm)
lo/0}
o" | 0"
(Oo mm)-"] = —>| La (0 mm)
41"
Closet side view
14"
<~ (356 mm)
(25 mm) ~<-
| | (0 mm)

GAS DRYER INSTALLATION REQUIREMENTS
Location Requirements
A WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Do not install in a garage.
Failure to do so can result in death, explosion, or fire.
Your dryer can be installed in a basement, laundry room, or
recessed area.
Companion appliance location requirements should also be
considered.
IMPORTANT: Do not install or store the dryer where it
will be exposed to the weather. Proper installation is your
responsibility.
You will need:
@ A grounded electrical outlet located within 6 ft. (1.8 m) of
where the power cord is attached to the back of the dryer.
See “Electrical Requirements.”
@ A level floor with a maximum slope of 1" (25 mm) under
entire dryer. Installing the dryer on soft floor surfaces,
such as carpets or surfaces with foam backing, is not
recommended.
Gas dryer installation clearances
@ The location must be large enough to allow the dryer door
to be fully opened.
@ Additional spacing should be considered for ease of
installation and servicing. The door opens more than 180°.
@ Additional clearances might be required for wall, door, and
floor moldings.
@ Additional spacing of 1" (25 mm) on all sides of the dryer is
recommended to reduce noise transfer.
When installing a gas dryer:
IMPORTANT: Observe all governing codes and ordinances.
@ Check code requirements: Some codes limit or do not
permit installation of clothes dryers in garages, closets, or
sleeping quarters. Contact your local building inspector.
@ Make sure that lower edges of the cabinet, plus the back
and bottom sides of the dryer, are free of obstructions to
permit adequate clearance of air openings for combustion
air. See “Recessed Area and Closet Installation Instructions”
below for minimum spacing requirements.
Recessed Area and Closet Installation Instructions
This dryer may be installed in a recessed area or closet. For
recessed area and closet installations, minimum clearances
can be found on the warning label on the rear of the dryer
or in “Dimensions/Clearances.”
The installation spacing is in inches and is the minimum
allowable. Additional spacing should be considered for ease
of installation, servicing, and compliance with local codes and
ordinances.
If closet door is installed, the minimum unobstructed air
opening in the top and bottom is required. Louvered doors
with equivalent air openings are acceptable.
The dryer must be exhausted outdoors.
No other fuel-burning appliance may be installed in the same
closet as the dryer.
48 in? A
(310 cr’) 3"
i (76 mm)
front closet
view door
3
(76 mm)
24 in?
(155 crm’)

GAS DRYER INSTALLATION REQUIREMENTS
Electrical Requirements
Gas Dryer Grounding
AWARNING
GROUNDING INSTRUCTIONS
Q @ For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
- breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
Electrical Shock Hazard This dryer uses a cord having an equipment-grounding
; conductor and a grounding plug. The plug must be plugged
Plug into a grounded 3 prong outlet. into an appropriate outlet that is properly installed and
Do not remove ground prong. grounded in accordance with all local codes and ordinances.
Do not use an adapter. @ For a permanently connected dryer:
This dryer must be connected to a grounded metal,
Don n extension cord. i : ;
© not use an extension cord permanent wiring system, or an equipment-grounding
Failure to follow these instructions can result in death, conductor must be run with the circuit conductors and
tire, or electrical shock. connected to the equipment-grounding terminal or lead on
the dryer.
IMPORTANT: The dryer must be electrically grounded in . . .
accordance with local codes and ordinances or, in the absence WARNING: Improper connection of the equipment-
of local codes, with the National Electrical Code, ANSI/NFPA 70, grounding conductor can result in a risk of electric shock.
latest edition, or Canadian Electrical Code, CSA C22.1. If codes Check with a qualified electrician or service representative
permit and a separate ground wire is used, it is recommended or personnel if you are in doubt as to whether the dryer is
that a qualified electrical installer determine that the ground properly grounded. Do not modify the plug on the power
path is adequate. supply cord: if it will not fit the outlet, have a proper outlet
A copy of the above code standards can be obtained from: installed by a qualified electrician.
National Fire Protection Association SAVE THESE INSTRUCTIONS
One Batterymarch Park, Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
@ Do not ground to a gas pipe.
@ Do not have a fuse in the neutral or ground circuit.
@ A 120 volt, 60 Hz, AC only, 15- or 20-amp, fused electrical
circuit is required. A time-delay fuse or circuit breaker is
also recommended. It is recommended that a separate
circuit serving only this dryer be provided.
@ This dryer is equipped with a power supply cord having a
3-prong grounding plug.
@ To minimize the possibility of shock, the cord must be
plugged into a mating, 3 prong, grounding-type outlet,
grounded in accordance with local codes and ordinances.
If a mating outlet is not available, it is the personal
responsibility and obligation of the customer to have the
properly grounded outlet installed by a qualified electrician.
@ If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.
@ Check with a qualified electrician if you are not sure the
dryer is properly grounded.

GAS DRYER INSTALLATION REQUIREMENTS
Gas Supply
AWARNING
Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
if connected to LP, have a qualified person make sure
gas pressure does not exceed 13" (330 mm) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.
IMPORTANT: Observe all governing codes and ordinances.
This installation must conform with all local codes and
ordinances. In the absence of local codes, installation must
conform with American National Standard, National Fuel Gas
Code ANSI Z223.1/NFPA 54 or CAN/CSA B149.
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park, Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575
The design of this dryer has been certified by CSA International
for use at altitudes up to 10,000 feet (3048 m) above sea level
at the B.T.U. rating indicated on the model/serial plate. Burner
input adjustments are not required when the dryer is operated
up to this elevation.
When installed above 10,000 feet (3048 m), a four percent
(4%) reduction of the burner B.T.U. rating shown on the model/
serial plate is required for each 1,000 foot (305 m) increase in
elevation. For assistance when converting to other gas types
and/or installing above 10,000 feet (3048 m) elevation, contact
your local service company.

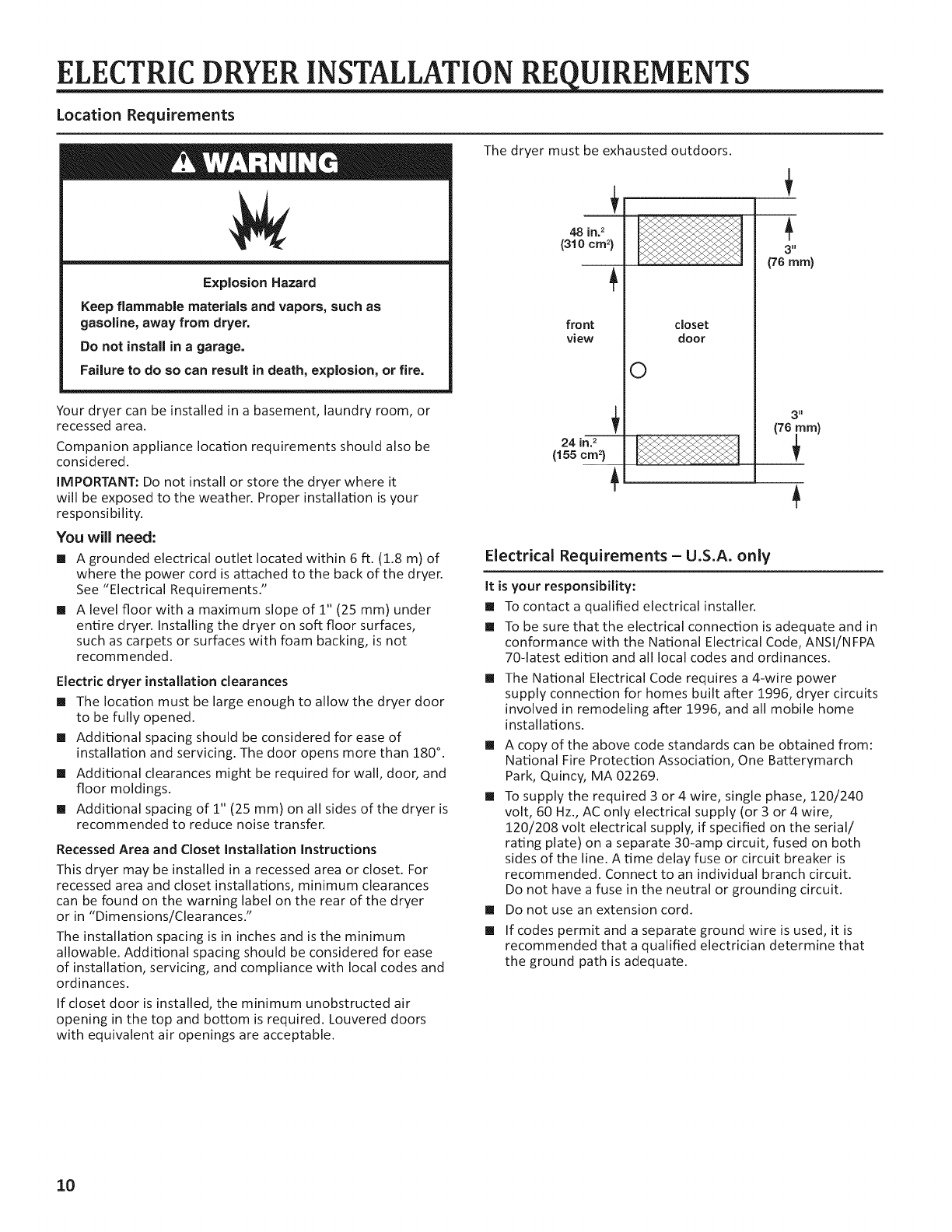

ELECTRIC DRYER INSTALLATION REQUIREMENTS
Location Requirements
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Do not install in a garage.
Failure to do so can result in death, explosion, or fire.
Your dryer can be installed in a basement, laundry room, or
recessed area.
Companion appliance location requirements should also be
considered.
IMPORTANT: Do not install or store the dryer where it
will be exposed to the weather. Proper installation is your
responsibility.
You will need:
@ A grounded electrical outlet located within 6 ft. (1.8 m) of
where the power cord is attached to the back of the dryer.
See “Electrical Requirements.”
@ A level floor with a maximum slope of 1" (25 mm) under
entire dryer. Installing the dryer on soft floor surfaces,
such as carpets or surfaces with foam backing, is not
recommended.
Electric dryer installation clearances
@ The location must be large enough to allow the dryer door
to be fully opened.
@ Additional spacing should be considered for ease of
installation and servicing. The door opens more than 180°.
@ Additional clearances might be required for wall, door, and
floor moldings.
@ Additional spacing of 1" (25 mm) on all sides of the dryer is
recommended to reduce noise transfer.
Recessed Area and Closet Installation Instructions
This dryer may be installed in a recessed area or closet. For
recessed area and closet installations, minimum clearances
can be found on the warning label on the rear of the dryer
or in “Dimensions/Clearances.”
The installation spacing is in inches and is the minimum
allowable. Additional spacing should be considered for ease
of installation, servicing, and compliance with local codes and
ordinances.
If closet door is installed, the minimum unobstructed air
opening in the top and bottom is required. Louvered doors
with equivalent air openings are acceptable.
10
The dryer must be exhausted outdoors.
4 WARNING |
Y
48 in? A
(31 QO cm) > gn
i (76 mm)
front closet
view door
y (76 mm)
f
24 in.?
(155 crn?}
Electrical Requirements — U.S.A. only
It is your responsibility:
@ Tocontact a qualified electrical installer.
@ To be sure that the electrical connection is adequate and in
conformance with the National Electrical Code, ANSI/NFPA
70-latest edition and all local codes and ordinances.
@ The National Electrical Code requires a 4-wire power
supply connection for homes built after 1996, dryer circuits
involved in remodeling after 1996, and all mobile home
installations.
@ A copy of the above code standards can be obtained from:
National Fire Protection Association, One Batterymarch
Park, Quincy, MA 02269.
@ To supply the required 3 or 4 wire, single phase, 120/240
volt, 60 Hz., AC only electrical supply (or 3 or 4 wire,
120/208 volt electrical supply, if specified on the serial/
rating plate) on a separate 30-amp circuit, fused on both
sides of the line. A time delay fuse or circuit breaker is
recommended. Connect to an individual branch circuit.
Do not have a fuse in the neutral or grounding circuit.
@ Do not use an extension cord.
@ If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that
the ground path is adequate.

ELECTRIC DRYER INSTALLATION REQUIREMENTS
Electrical Requirements — U.S.A. only (cont.)
Electrical Connection
To properly install your dryer, you must determine the type
of electrical connection you will be using and follow the
instructions provided for it here.
@ This dryer is manufactured ready to install with a 3-wire
electrical supply connection. The neutral ground conductor
is permanently connected to the neutral conductor (white
wire) within the dryer. If the dryer is installed with a 4-wire
electrical supply connection, the neutral ground conductor
must be removed from the external ground connector
(green screw), and secured under the neutral terminal
(center or white wire) of the terminal block. When the
neutral ground conductor is secured under the neutral
terminal (center or white wire) of the terminal block, the
dryer cabinet is isolated from the neutral conductor.
@ Iflocal codes do not permit the connection of a neutral
ground wire to the neutral wire, see “Optional 3-wire
connection” section.
@ A 4-wire power supply connection must be used when the
appliance is installed in a location where grounding through
the neutral conductor is prohibited. Grounding through the
neutral is prohibited for (1) new branch-circuit installations
and (2) areas where local codes prohibit grounding through
the neutral conductor.
Electric Dryer Grounding
GROUNDING INSTRUCTIONS
@ For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer uses a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
@ For a permanently connected dryer:
This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the dryer.
WARNING: improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug on the power
supply cord: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS
Electric Dryer Power Supply Cord
CL;
4
Fire Hazard
Use a new UL listed 30 amp power supply cord.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal.
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
if using a power supply cord:
Use a UL listed power supply cord kit marked for use with
clothes dryers. The kit should contain:
@ A UL listed 30-amp power supply cord, rated 120/240
volt minimum. The cord should be type SRD or SRDT and
be at least 4 ft. (1.22 m)} long. The wires that connect to
the dryer must end in ring terminals or “U” shaped spade
terminals with upturned ends.
@ A UL listed strain relief.
if your outlet looks like this:
Then choose a 4-wire power supply cord with ring
© or spade terminals and UL listed strain relief. The
[| | 4-wire power supply cord, at least 4 ft. (1.22 m)
5] long, must have four 10-gauge copper wires and
match a 4-wire receptacle of NEMA Type 14-30R.
d-wire he ground wire (ground conductor) may be
receptacle ¢cither green or bare. The neutral conductor must
(14-30R) be identified by a white cover.
If your outlet looks like this:
Then choose a 3-wire power supply cord with ring
or spade terminals and UL listed strain relief. The
3-wire power supply cord, at least 4 ft. (1.22 m)}
long, must have three 10-gauge copper wires and
match a 3-wire receptacle of NEMA Type 10-30R.
3-wire
receptacle
(10-30R)
11

ELECTRIC DRYER INSTALLATION REQUIREMENTS
Direct Wire
Ch)
4
Fire Hazard
Use 10 gauge copper wire.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal.
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2 supply wires to remaining
2 terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
Electrical Requirements — Canada only
if connecting by direct wire:
Power supply cable must match power supply (4-wire or
3-wire) and be:
@ Flexible armored cable or nonmetallic sheathed copper
cable (with ground wire}, covered with flexible metallic
conduit. All current-carrying wires must be insulated.
@ 10-gauge solid copper wire (do not use aluminum).
@ Atleast 5 ft. (1.52 m) long.
A WARNING
°
@ Do not use an extension cord.
If you are using a replacement power supply cord,
it is recommended that you use Power Supply Cord
Replacement Part Number 9831317. For further
information, please reference the service numbers
located in the “Assistance or Service” section.
Electrical Shock Hazard
Plug into a grounded 4 prong outlet.
Failure to do so can result in death or electrical shock.
It is your responsibility:
@ To contact a qualified electrical installer.
@ To be sure that the electrical connection is adequate
and in conformance with the Canadian Electrical Code,
C22.1 — latest edition and all local codes. A copy of the
above codes standard may be obtained from: Canadian
Standards Association, 178 Rexdale Blvd., Toronto, ON M9W
1R3 CANADA.
@ To supply the required 4 wire, single phase, 120/240 volt,
60 Hz., AC only electrical supply on a separate 30-amp
circuit, fused on both sides of the line. A time-delay fuse
or circuit breaker is recommended. Connect to an individual
branch circuit.
@ This dryer is equipped with a CSA International
Certified Power Cord intended to be plugged O
into a standard 14-30R wall receptacle. The (| |
cord is 5 ft (1.52 m) in length. Be sure wall 5]
receptacle is within reach of dryer’s final
location. 4-wire
receptacle
(14-30R)
12
GROUNDING INSTRUCTIONS
@ For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes
and ordinances.
WARNING: improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug provided with
the dryer: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS

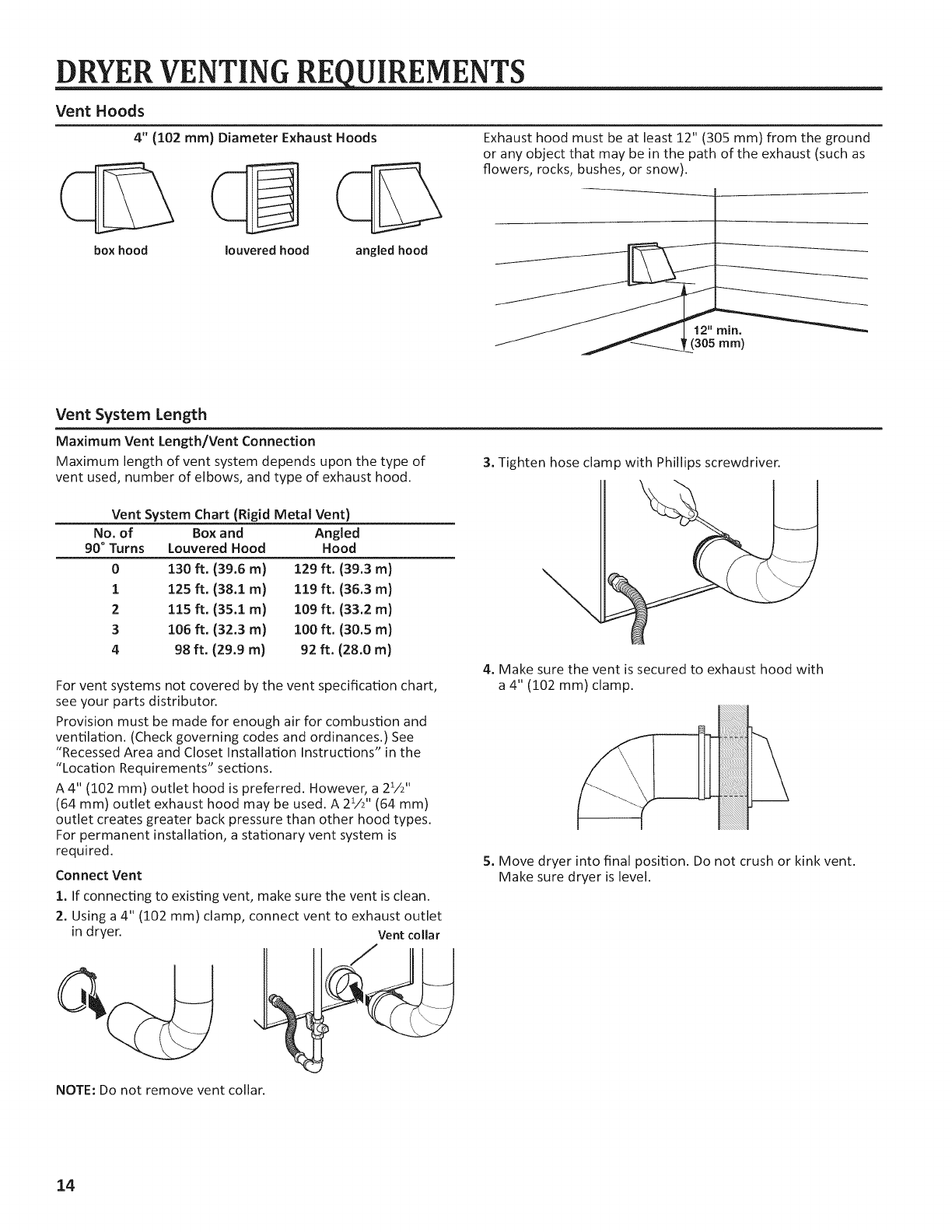

DRYER VENTING REQUIREMENTS
ts
Gh)
é
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in death
or fire.
WARNING: To reduce the risk of fire, this dryer MUST BE
EXHAUSTED OUTDOORS.
IMPORTANT: Observe all governing codes and ordinances.
Dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling, attic, crawlspace, or a concealed space
of a building. Only rigid or flexible metal vent shall be used for
exhausting.
4
(102 mm)
4" (102 mm) heavy, metal exhaust vent
@ Only a4" (102 mm) heavy, metal exhaust vent and clamps
may be used.
@ Do not use plastic or metal foil vent.
Rigid metal vent:
@ Recommended for best drying performance and to avoid
crushing and kinking.
Flexible metal vent: (Acceptable only if accessible to clean)
@ Must be fully extended and supported in final dryer
location.
@ Remove excess to avoid sagging and kinking that may result
in reduced airflow and poor performance.
@ Do not install in enclosed walls, ceilings, or floors.
@ The total length should not exceed 7°/ ft. (2.4 m).
NOTE: If using an existing vent system, clean lint from entire
length of the systern and make sure exhaust hood is not
plugged with lint. Replace plastic or metal foil vents with rigid
metal or flexible metal vents. Review “Vent System Chart” and
if necessary, modify existing vent system to achieve best drying
performance.
Elbows:
@ 45° elbows provide better airflow than 90° elbows.
Clamps:
@ Use clamps to seal all joints.
@ Exhaust vent must not be connected or secured with screws
or other fastening devices that extend into interior
of duct and catch lint. Do not use duct tape.
improper venting can cause moisture and lint to collect
indoors, which may result in:
@ Moisture damage to woodwork, furniture, paint, wallpaper,
carpets, etc.
@ Housecleaning problems and health problems.
13

DRYER VENTING REQUIREMENTS
Vent Hoods
4" (102 mm) Diameter Exhaust Hoods
louvered hood angled hood
Vent System Length
Exhaust hood must be at least 12" (305 mm) from the ground
or any object that may be in the path of the exhaust (such as
flowers, rocks, bushes, or snow).
a
L$
12" ee
———__V (305 mm)
Maximum Vent Length/Vent Connection
Maximum length of vent system depends upon the type of
vent used, number of elbows, and type of exhaust hood.
Vent System Chart (Rigid Metal Vent)
No. of Box and Angled
90° Turns _ Louvered Hood Hood
0 130 ft. (39.6 m) 129 ft. (39.3 m)
1 125 ft. (38.1 m) 119 ft. (36.3 m)}
2 115 ft. (35.1 m) 109 ft. (33.2 m)
3 106 ft. (32.3 m) 100 ft. (30.5 m)
4 98 ft. (29.9 m) 92 ft. (28.0 m)
For vent systems not covered by the vent specification chart,
see your parts distributor.
Provision must be made for enough air for combustion and
ventilation. (Check governing codes and ordinances.) See
“Recessed Area and Closet Installation Instructions” in the
“Location Requirements” sections.
A 4" (102 mm) outlet hood is preferred. However, a 21/2"
(64 mm) outlet exhaust hood may be used. A 2!" (64 mm)
outlet creates greater back pressure than other hood types.
For permanent installation, a stationary vent system is
required.
Connect Vent
1. If connecting to existing vent, make sure the vent is clean.
2. Using a 4" (102 mm) clamp, connect vent to exhaust outlet
in dryer.
Vent collar
NOTE: Do not remove vent collar.
14
3. Tighten hose clamp with Phillips screwdriver.
4. Make sure the vent is secured to exhaust hood with
a 4" (102 mm) clamp.
Ss
5. Move dryer into final position. Do not crush or kink vent.
Make sure dryer is level.

DRYER VENTING REQUIREMENTS
If an Exhaust Hood Cannot be Used Multiple Dryer Venting
The outside end of main vent should have a sweep elbow
directed downward.
| (A
t 24" min.
12" min. (610 mm)
(305 re
If main vent travels vertically through the roof, rather than
through wall, install a 180° sweep elbow on end of vent at least
2 ft. (610 mm) above surface of roof.
The opening in wall or roof shall have a diameter 1/2" (13 mm)
larger than vent diameter. Vent should be centered in opening.
eS
*Minimum clearance above
any accumulation of snow,
ice, or debris such as leaves
Do not install screening over end of vent for best performance.
A main vent can be used for venting a group of dryers. The
main vent should be sized to remove 5663 |/min. (200 CFM)
of air per dryer. Large-capacity lint screens of proper design
may be used in main vent if checked and cleaned frequently.
The room where the dryers are located should have make-up
air equal to or greater than CFM of all the dryers in the room.
Back-draft Damper Kit, Part No. 3391910, is available from
your distributor and should be installed in the vent of each
dryer to keep exhausted air from returning into dryers and to
keep exhaust in balance within main vent. Unobstructed return
air openings are required.
Each vent should enter the main vent at an angle pointing in
the direction of the airflow. Vents entering from the opposite
side should be staggered to reduce the exhausted air from
interfering with the other vents.
Looe
The maximum angle of each vent entering the main vent
should be no more than 30°.
Keep air openings free of dry cleaning fluid fumes. Fumes
create acids which, when drawn through the dryer heating
units, can damage dryers and items being cried.
A clean-out cover should be located on the main vent for
periodic cleaning of the vent system.
GAS SUPPLY CONNECTION
Make Gas Connection
A WARNING
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
1. Remove red cap from gas pipe on back of dryer.
2. Connect gas supply to dryer. Use a pipe thread compound
approved for the type of gas supplied. If flexible metal
tubing is used, be certain there are no kinks.
If necessary for service, open the toe panel by removing the
2'/" hex-head screws from the bottom of the panel. Then
lift up on the panel while pulling the bottom of the panel
away from the dryer.
3. Open the shut-off valve in the gas supply line and make sure
the dryer has its own gas supply opened.
4. Test all connections by brushing on an approved
noncorrosive leak-detection solution. Bubbles will show
a leak. Correct any leaks found.
15

GAS SUPPLY CONNECTION
Type of Gas
This dryer is equipped for use with natural gas. It is design-
certified by CSA International for LP (propane and butane}
gases with appropriate conversion. No attempt shall be made
to convert dryer from gas specified on serial/rating plate for use
with a different gas without consulting the serving gas supplier.
Conversion must be done by a qualified service technician.
Gas conversion kit part numbers are listed on gas valve burner
base.
Gas Supply Line
Recommended Method
Provide a gas supply line of 1/2" (13 mm) rigid (IPS) pipe to
dryer location. Pipe joint compounds that resist action of LP
gas must be used. Do not use TEFLON®T tape. With LP gas,
piping or tubing size can be 1/2" (13 mm) minimum. Usually,
LP gas suppliers determine size and materials used in the
system.
Gas Supply Pressure Testing
A 1/8" (3 mm) NPT minimum plugged tapping, accessible for
gauge testing, must be installed immediately downstream of
the installed shut-off valve to the dryer (as shown above}. The
dryer must be disconnected from the gas supply piping system
during any pressure testing of the system at test pressures in
excess of 1/2" psig (352 kg/m’).
Aiternate Method
The gas supply may also be connected using 3/8" (10 mm)
approved copper or aluminum tubing. If the total length of
the supply line is more than 20 ft. (6.1 m), larger tubing will
be required.
If using natural gas, do not use copper tubing. Pipe joint
compounds that resist action of type of gas supplied must
be used.
Shut-off valve required
The supply line must be equipped with a manual shut-off
valve installed within 6 ft. (1.8 m) of dryer in accordance
with National Fuel Gas Code, ANS! Z223.1. This valve should
be located in same room as dryer. It should be in a location
that allows ease of opening and closing. Do not block access to
shut-off valve. In Canada, an individual manual shut-off valve
must be installed in accordance with the B149 installation
codes CAN/CGA B149.1 and CAN/CGA B149.2.
16
Flexible Metal Appliance Connector
It is recommended that a new flexible stainless steel gas line,
design-certified by CSA International, be used for connecting
the dryer to the gas supply line. (The gas pipe which extends
through the lower rear of the dryer is provided with 3/8"
[10 mm] male pipe thread.)
NOTE: Do not kink or damage the flexible stainless steel gas
line when moving the dryer.
Rigid Pipe Connection
The rigid pipe connection requires a combination of pipe
fittings to obtain an in-line connection to the dryer.
t®TEFLON is a registered trademark of E.|. Du Pont De Nemours and Company.

INSTALLING LEVELING LEGS, COIN SLIDE, AND COIN BOX
The console houses the factory-installed accumulator timer
with actuating arm and button.
The factory-installed timer is set to provide 45 minutes (4 pins}
of drying time when activated by the coin slide. Timer cams
for 30-minute (6 pins} and 60-minute (3 pins} drying times are
included in the parts bag.
The coin slide mechanism, control panel lock and key, and coin
box lock and key are not included and are available from the
usual industry sources.
A WARNING
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
1. Prepare dryer for leveling legs
NOTE: Slide dryer onto cardboard or hardboard before moving
to avoid damaging floor covering.
Using two or more people, move dryer to desired installation
location.
Take tape off front corners of dryer. Open dryer and remove
the literature and parts packages. Wipe drum interior with a
damp cloth to remove any dust.
Take two cardboard corners from the dryer carton and place
them on the floor in back of the dryer. Firmly grasp the body
of the dryer and gently lay it on its back on the cardboard
corners.
2. Screw in leveling legs
Examine leveling legs and find diamond
marking. Screw legs into leg holes by
hand. Use an adjustable wrench or
1" (25 mm) hex-head socket wrench
to finish turning legs until diamond
marking is no longer visible. Then fit
a covered foot boot over each leg foot.
To avoid damage to the floor, use a large piece of cardboard
from the dryer carton. Stand dryer up on the cardboard. Slide
the dryer until it is close to its final location. Leave enough
room for electrical connection and to connect the exhaust
vent.
diamond
marking
3. Install coin slide and coin box
Remove the service coor of the meter case by lifting it up
at the back. Install the money-accepting device. (Refer to
manufacturer’s instructions for proper installation.)
For dryers using coin slides, use the adapter kit supplied with
the dryer.
Replace the meter case service door. Put the coin vault with
lock and key in the meter case opening.
Remove cardboard or hardboard from under dryer. Adjust the
legs of the dryer up or down until the dryer is level.
4. Install added security device
Check that power is not supplied to the dryer.
Open and remove the service door.
Insert the narrow part of the security cone into the oblong
hole in the bottom rear of the meter case assembly.
Pass the security bolt through this cone and thread it by hand
into the cage nut below the oblong hole.
Tighten the security bolt by hand a few turns before using a
wrench to tighten until snug.
security
oo" bolt
__ security
cone
vom
Cape
Nut
NOTE: Installing the security bolt provides added security, but
will add to the service time when the top needs to be removed
for servicing the dryer.
17

ELECTRIC DRYER ELECTRICAL CONNECTIONS
Strain Relief
Remove Terminal Block Cover Power Supply Cord Strain Relief
1. Insert strain relief.
Z
AAU
\
cA
AN
WY
Y
Wy
Strain Relief
Direct Wire Strain Relief
1. Insert strain relief. 2. Insert conduit into strain relief and tighten clamp.
18

ELECTRIC DRYER ELECTRICAL CONNECTIONS
Connection Options
Power Cord Direct Wire
4-wire receptacle (NEMA Type 14-30R}
4-wire direct
I
3-wire receptacle (NEMA Type 10-30R)
3-wire direct
Connecting 4-Wire Connection: Power Supply Cord
IMPORTANT: A 4-wire connection is required for mobile
homes and where local codes do not permit the use of 3-wire
connections.
Standard Power Supply Cord Connectors Connecting Direct Wire Ground
3. Connect ground wire (green or bare) with external ground
Cy Os) connector screw.
Flanged spade connector Ring Connector
Connecting Ground and Neutral Wires
1. Remove center terminal block screw and the ground wire
by removing the external ground connector screw.
Connecting Remaining Wires
4, Connect remaining wires with outer terminal block screws.
19

ELECTRIC DRYER ELECTRICAL CONNECTIONS
Connecting 3-Wire Connection: Power Supply Cord
Standard Power Cord Connectors 2. Connect neutral wire to center terminal block.
me XS
Flanged spade connector Ring Connector
Connecting Neutral Wire
1. Loosen or remove center terminal block screw.
| block screws.
Connecting 4-Wire Connection: Direct Wire
IMPORTANT: A 4-wire connection is required for mobile Connecting Ground and Neutral Wires
homes and where local codes do not permit the use of 3-wire 1. Remove center terminal block screw and the ground wire
connections. by removing the external ground connector screw.
Direct wire cable must have 5 ft. (1.52 m) of extra length so
dryer can be moved if needed.
Strip 5" (127 mm) of outer covering from end of cable,
leaving bare ground wire at 5" (127 mm). Cut 172" (38 mm)
from 3 remaining wires. Strip insulation back 1" (25 mm).
Shape ends of wires into a hook shape.
20
