Maytag MED7500YW User manual

W10445417B
Para obtener acceso
al Manual de uso y
cuidado en español, o para
obtener información adicional
acerca de su producto, visite:
www.maytag.com.
ELECTRIC DRYER
Use & Care Guide
If you have any problems or questions, visit us at www.maytag.com

2
DRYER SAFETY
ELECTRIC DRYER
TABLE OF CONTENTS
DRYER SAFETY ............................................................2
OPERATING INSTRUCTIONS ......................................4
CONTROL PANEL AND FEATURES..................................4
CYCLE GUIDE...................................................................5
USING YOUR DRYER .......................................................6
DRYER CARE....................................................................7
INSTALLATION INSTRUCTIONS..................................9
INSTALLATION REQUIREMENTS .....................................9
LOCATION REQUIREMENTS..........................................10
ELECTRICAL REQUIREMENTS ......................................12
ELECTRIC INSTALLATION ..............................................13
VENTING .........................................................................18
CONNECT VENT.............................................................20
LEVEL DRYER.................................................................21
TROUBLESHOOTING .................................................22
WARRANTY.................................................................27
ASSISTANCE OR SERVICE ........................Back Cover

3

4
CONTROL PANEL AND FEATURES
START BUTTON
Press to start a cycle. Indicator light will glow to indicate
the cycle has started.
TEMPERATURE BUTTON
The Temperature Control button lets you choose between
a normal and low drying temperature.
NOTE: Always refer to the care label on the garment to
determine whether it can be tumble dried.
Normal
The Normal temperature setting is for sturdy fabrics, such
as cotton, linen, and denim. If the Temperature Control
button is not pressed in, the temperature setting is Normal.
Low
The Low setting is for synthetics, such as cotton/polyester
blend, rayon, acetate, washable silk, or nylon. If the
Temperature Control button is pressed in, the temperature
setting is Low.
1
24
5
POWER BUTTON
Press to turn the dryer on and off. Indicator light will ash
to indicate the power is on.
CYCLE CONTROL KNOB
Use your dryer’s Cycle Control knob to select available
cycles on your dryer. Turn the knob to select a cycle for
your laundry load. Indicator light will ash to indicate a
cycle has been selected. See “Cycle Guide” for detailed
descriptions of cycles.
POWER INDICATOR
This light ashes when the power is on and glows when a
cycle is running.
1
2
3
4
5
3
END OF CYCLE SIGNAL
The dryer sounds a signal to let you know when the cycle is
complete. The signal is not adjustable and cannot be turned off.
The signal is helpful when you are drying permanent press,
synthetics, and other items that should be removed promptly
at the end of the cycle.
OPERATING INSTRUCTIONS

5
CYCLE GUIDE — SENSOR DRY CYCLES
Regular
Heavy cottons and denims More Dry Normal
Cottons and linens Normal Normal
Synthetics
White and colorfast permanent press Normal Low
White and colorfast items that require ironing Iron Dry Low
Polyester/acrylic blends, rayon, acetate Damp Dry Low
Washable silk and nylon Damp Dry Low
Items to dry: Cycle: Temperature
Setting:
Use Sensor Dry Cycles for better fabric care and energy savings
When you are using the GentleBreeze™Drying System with IntelliDry®Sensor, two metal strips located on the dryer determine the
dryness of the load. When there is moisture left in the clothes, the dryer will continue to run. As clothes begin to dry, the amount of
water left in the clothes decreases, and the timer advances through the remainder of the cycle. When the selected dryness level is
reached, the dryer goes into a cool-down period of up to 15 minutes.
Sensor dry cycles may be used for most loads. Sensor dry cycles give the best drying results in the shortest time. Drying time varies
according to the type of fabric, size of the load, and dryness setting.
After drying a load, check the dryness.
n If the load is drier than you like, select a setting closer to Iron Dry the next time you dry a similar load.
n 
If a load is not as dry as you like, complete drying using a Timed cycle. Select a setting closer to More Dry the next time you dry
a similar load.
CYCLE GUIDE — TIMED DRY CYCLES
Use this cycle to get up to 60 minutes of heated drying time or to complete drying if items are still damp after the automatic cycle.
Timed Dry is also useful for:
n Heavyweight items and work clothes that require a long drying time.
n Lightweight items, such as lingerie, blouses, and knits that require a short drying time.
Heavy cottons and denims 60 Normal
Cottons and linens 40 Normal
White and colorfast permanent press 40 Low
White and colorfast items that require ironing 40 Low
Polyester/acrylic blends, rayon, acetate 40 Low
Washable silk and nylon 40 Low
Items to dry: Time
(Minutes):
Temperature
Setting:

6
3. Press POWER
Press the POWER button to turn on the dryer. The indicator
light will ash to indicate that the power is on.
USING YOUR DRYER
1. Clean the lint screen
Clean the lint screen before each load. Pull the lint screen
straight up. Open lint screen. Roll lint off the screen with your
ngers. Do not rinse or wash screen to remove lint. Wet lint is
hard to remove. Close lint screen. Push the lint screen rmly
back into place.
For additional cleaning information, see “Dryer Care.”
2. Load the dryer
Open the door by pulling on the handle. Place laundry in the
dryer. Add a static reducing sheet to wet load, if desired. Close
the door.
IMPORTANT: Do not tightly pack the dryer. Items need to
tumble freely. Tightly packing the load can lead to poor drying
performance and may increase wrinkling and tangling.
WARNING: To reduce the risk of re, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
4. Press TEMPERATURE
Press the TEMPERATURE button to select the recommended
temperature setting for the type of load being dried.

7
5. Select the desired cycle
Select the desired cycle for your load. See the “Cycle Guide”
for more information about each cycle.
NOTE: Most loads may be dried using the Normal dryness
level, which is shown in bold letters on the control panel.
Normal is the energy preferred dryness level and will use
the least energy.
6. Press START to begin cycle
Press and hold the START button to begin the cycle.
To stop your dryer at any time:
Turn the Cycle Control knob to the STOP position or open
the door.
To restart the dryer:
1. Close the door.
2. Select a new cycle and temperature (if desired).
3. After the beep sounds, press the START button.
To change the cycle or temperature after pressing
START:
1. Open the dryer door.
2. Press the TEMPERATURE button to change the
temperature (if desired).
3. Turn the cycle knob to the new desired position.
4. After the beep sounds, press the START button.
DRYER CARE
CLEANING THE DRYER LOCATION
Keep dryer area clear and free from items that would
block the air ow for proper dryer operation. This includes
clearing piles of laundry in front of the dryer.
CLEANING THE DRYER INTERIOR
To clean dryer drum
1. Use a mild hand dish detergent mixed at a low
concentration with very warm water, and rub with
a soft cloth.
2. Rinse well with a wet sponge or towel.
3. Tumble a load of clean clothes or towels to dry drum
OR
Use a microber cloth and hot water in a spray bottle
to clean the drum and a second microber towel to dry.
NOTE: Garments that contain unstable dyes, such as
denim blue jeans or brightly colored cotton items, may
discolor the rear of the dryer interior. These stains are
not harmful to your dryer and will not stain future loads
of clothes. Dry unstable dye items inside out to avoid
transfer of dye.
REMOVING ACCUMULATED LINT
From Inside the Dryer Cabinet
Lint should be removed every 2 years, or more often,
depending on dryer usage. Cleaning should be done by a
qualied appliance servicer or ventilation system cleaner.
From the Exhaust Vent
Lint should be removed every 2 years, or more often,
depending on dryer usage.

8
CLEANING THE LINT SCREEN
Every load cleaning
The lint screen is located in the door opening of the dryer.
The control panel has an indicator light to remind you to
clean the lint screen before each load. A screen blocked
by lint can increase drying time.
To clean:
1. Pull the lint screen straight up. Open lint screen. Roll lint
off the screen with your ngers. Do not rinse or wash
screen to remove lint. Wet lint is hard to remove.
2. Close lint screen. Push the lint screen rmly back into
place.
IMPORTANT:
n Do not run the dryer with the lint screen loose,
damaged, blocked, or missing. Doing so can cause
overheating and damage to both the dryer and fabrics.
n If lint falls off the screen into the dryer during removal,
check the exhaust hood and remove the lint. See
“Venting Requirements.”
As needed cleaning
Laundry detergent and fabric softener residue can build
up on the lint screen. This buildup can cause longer drying
times for your clothes, or cause the dryer to stop before
your load is completely dry. The screen is probably clogged
if lint falls off while the screen is in the dryer.
Clean the lint screen with a nylon brush every 6 months,
or more frequently, if it becomes clogged due to a residue
buildup.
To wash:
1. Roll lint off the screen with your ngers.
2. Wet both sides of lint screen with hot water.
3. Wet a nylon brush with
hot water and liquid detergent.
Scrub lint screen with the brush
to remove residue buildup.
4. Rinse screen with hot water.
5. Thoroughly dry lint screen with a clean towel.
Reinstall screen in dryer.
VACATION, STORAGE, AND MOVING CARE
Install and store your dryer where it will not freeze. Because
some water may stay in the hoses, freezing can damage
your dryer. If storing or moving your dryer during freezing
weather, winterize it.
Non-Use or Storage Care
Operate your dryer only when you are at home. If you will
be on vacation or not using your dryer for an extended
period of time, you should:
1. Unplug dryer or disconnect power.
2. Clean lint screen. See “Cleaning the Lint Screen.”
Moving Care
For power supply cord-connected dryers:
1. Unplug the power supply cord.
2. Make sure leveling legs are secure in dryer base.
3. Use masking tape to secure dryer door.
For direct-wired dryers:
1. Disconnect power.
2. Disconnect wiring.
3. Make sure leveling legs are secure in dryer base.
4. Use tape to secure dryer door.
Reinstalling the Dryer
Follow the “Installation Instructions” to locate, level, and
connect the dryer.

9
INSTALLATION REQUIREMENTS
TOOLS AND PARTS
Gather the required tools and parts before starting installation.
Tools needed:
Flat-blade screwdriver Wood block
Adjustable wrench that
opens to 1" (25 mm) or
hex-head socket wrench
Wire stripper (direct wire
installations)
Tin snips (new vent
installations)
1/4" (7 mm) nut driver
(recommended)
Level
Parts supplied:
Caulking gun and
compound (for installing
new exhaust vent)
Coupling
Parts needed: (Not supplied with dryer)
Parts package is located in dryer drum. Check that all parts
are included.
NOTE: Do not use leveling legs supplied if installing with
a pedestal or a stack kit.
If using a power supply cord:
Use a UL listed power supply cord kit marked for use with
clothes dryers. The kit should contain:
nA UL listed 30-amp power supply cord, rated 120/240 volt
minimum. The cord should be type SRD or SRDT and be
at least 4 ft. (1.22 m) long. The wires that connect to
the dryer must end in ring terminals or spade terminals
with upturned ends.
nA UL listed strain relief.
Torx®T20 screwdriver
® TORX is a registered trademark of Saturn Fasteners, Inc.
Options: (Not supplied with dryer)
Vent clamps
Vent elbows and ductwork
Additional parts may be required, depending on your
installation. Check local codes. Check existing electrical
supply and venting. Read “Electrical Requirements” and
“Venting Requirements” before purchasing parts.
Pedestal
You may order a pedestal
separately for this dryer. This
pedestal will add about 12"
(305 mm) to the height of your unit
for a total height of approximately
45" (1.14 m).
To order, call the dealer from
whom you purchased your dryer
or refer to the “Assistance or
Service” section of this manual.
Ask for Model Number LAB0050PQ.
Stack kit
Are you planning to stack your washer and dryer? Your dryer is
shipped with Stack Kit W10178021, which ts Maytag washer
models starting with MHWC.
If you have any other washer model, call the dealer from whom
you purchased your dryer or refer to the “Assistance or Service”
section of this manual.
INSTALLATION INSTRUCTIONS

10
DRYER DIMENSIONS
233/8"
(594 mm)
331/4"
(845 mm)
231/4"
(603 mm)
39"
(991 mm)
Back view:
31/4"
(83 mm)
113/4"
(299 mm)
27"
(686 mm)
NOTE: Most installations
require a minimum of
5" (127 mm) clearance
behind dryer for exhaust
vent with elbow. See
“Venting Requirements.”
LOCATION REQUIREMENTS
Check code requirements. Some codes limit, or do not permit,
installing dryer in garages, closets, mobile homes, or sleeping
quarters. Contact your local building inspector.
You will need:
nA location allowing for proper exhaust installation.
See “Venting Requirements.”
nA separate 30 amp circuit.

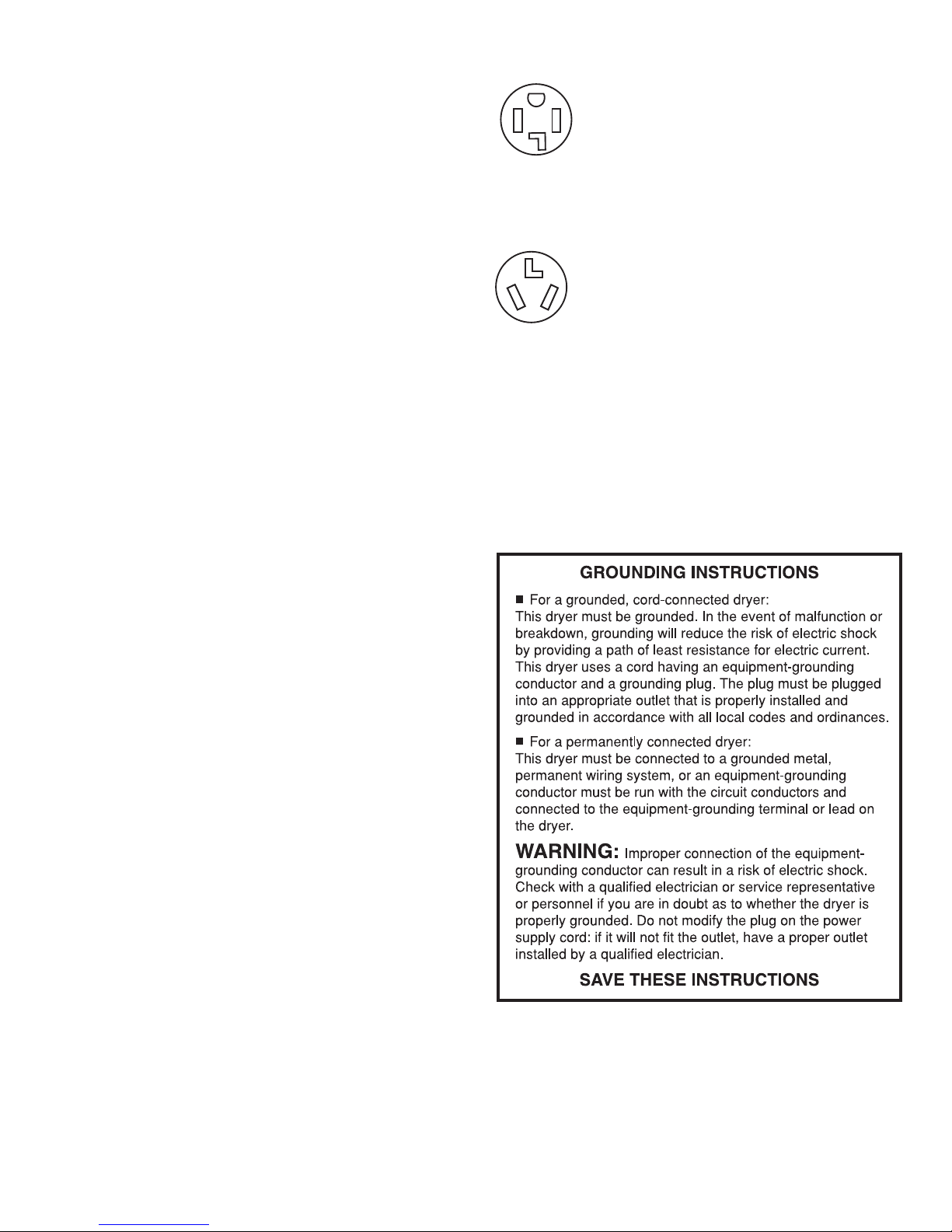

nIf using power supply cord, a grounded electrical outlet
located within 2 ft. (610 mm) of either side of dryer.
See “Electrical Requirements.”
nFloor must support dryer weight of 115 lbs. (52 kg).
Also consider weight of companion appliance.
nLevel oor with maximum slope of 1" (25 mm) under entire
dryer. If slope is greater than 1" (25 mm), install Extended
Dryer Feet Kit, Part Number 279810. If not level, clothes
may not tumble properly and automatic sensor cycles may
not operate correctly.
nFor garage installation, place dryer at least 18" (460 mm)
above oor. If using a pedestal, you will need 18" (460 mm)
to bottom of dryer.
nThe dryer must not be installed or stored in an area where
it will be exposed to water and/or weather.
IMPORTANT: Do not operate, install, or store dryer where
it will be exposed to water, weather, or at temperatures below
45° F (7° C). Lower temperatures may cause dryer not to
shut off at end of sensor cycles, resulting in longer drying times.
Installation Clearances
For each arrangement, consider allowing more space for ease
of installation and servicing, spacing for companion appliances,
and clearances for walls, doors, and oor moldings. Space
must be large enough to allow door to fully open. Add spacing
on all sides of dryer to reduce noise transfer. If a closet door
or louvered door is installed, top and bottom air openings
in door are required.
Check code requirements. Some codes limit, or do not permit,
installation of the dryer in garages, closets, mobile homes, or
sleeping quarters. Contact your local building inspector.
Side view:
Front view:
Power supply
cord/cable
Vent
