Maytag MED5801TW0 User manual

TOP AND CONSOLE PARTS
1
10−07 Printed in U.S.A. (LT) Part No. W10167656 Rev. A

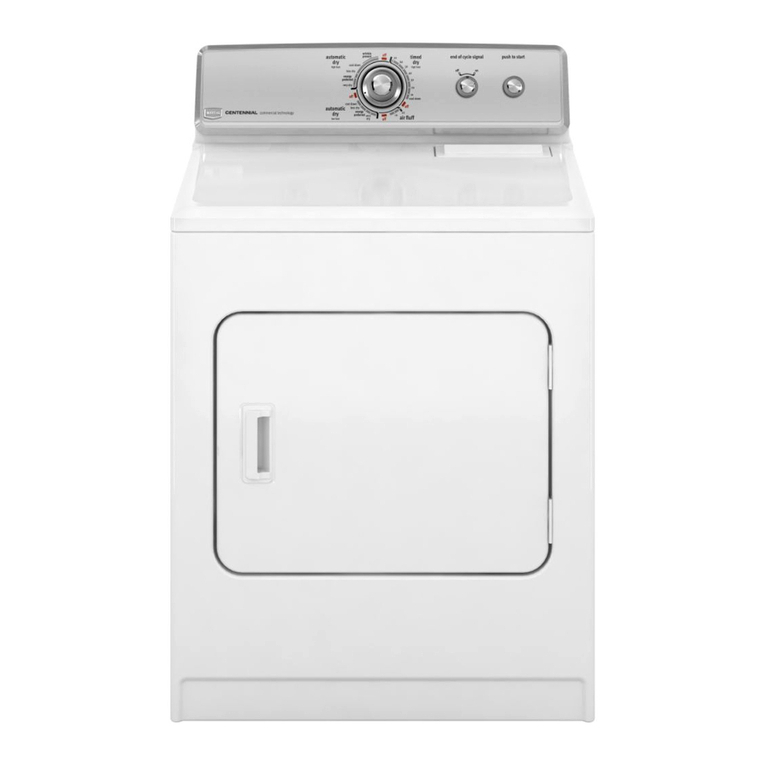

27"ELECTRIC DRYER
For Models: MED5801TW0
(White/Grey)

TOP AND CONSOLE PARTS
2W10167656
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 Literature Parts
W10151000 Wiring Diagram
W10155113 Dryer Cycle
Sheet
W10155107 Guide, Use & Care
2 8317305 Panel, Rear
Console
3 8566184 Timer, 60 Hz.
4
W10112569 Badge Assembly
5 3398094 Switch,
Push−To−Start
6 3391885 Connector, Edge
7 3395683 Connector
(Motor)
8 8578354 Switch, Rotary
Temperature
9 3405156 Switch, Rotary
10 8533971 Screw, 8−18 x 5/16
11 3347243 Connector,
6−Circuit
12 694419 Buzzer, Mini
13 8536939 Clip, Spring
14 8312709 Clip, Console
15 8576583 Cover, Terminal
Block
16 3397269 Connector, Timer
17 3390814 Screw, 8−18 x 3/8
18
W10110035 Knob, Control (3)
19
W10150995 Harness, Electric
20
W10110036 Knob, Timer
Assembly
21
W10110037 Knob Assembly
Push−To−Start
22 90767 Screw, Ground
23 3936144 Connector
24 8274462 Top
25 94614 Terminal
26 693995 Screw, 8−18 x 3/8
27
W10112601 Console & Control
Panel Assembly
(Includes
Items. 4 & 14)
28 3391018 Tie, Cable
(Push−Mount)
29 8558178 Control,
Electronic
30 3390647 Screw, 8−18 1/2
31 8568314 Strap, Console
32 3394427 Clip, Harness
For Models: MED5801TW0
(White/Grey)

CABINET PARTS
3
W10167656
For Models: MED5801TW0
(White/Grey)

CABINET PARTS
4W10167656
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
For Models: MED5801TW0
(White/Grey)
1 697773 Screw, 6−20 x 7/8
2 693152 Bumper
3 8533974 Screw, Ground
4 3397659 Block, Terminal
5 3394881 Switch, Broken
Belt
6 3398948 Wire, Jumper
(Broken Belt
Switch)
7 8310656 Cabinet
8 3392100 Foot, Dryer
279810 Foot − Optional
(Extended Length
Package Of 2)
(Not Included)
9 660658 Clamp, Motor (2)
10 3387374 Spring, Idler
11 3389420 Retainer, Idler
12 697750 Plug, Multivent
13 3388672 Pulley Assembly
14 279318 Terminal, Brass
& Tinned (3)
(Includes Illus. 33)
15 3390646 Screw, 8−18 x 5/16
16 3394081 Wire, Belt Switch
17 690081 Catch, Door
Assembly
18 233520 Washer, Thrust
19 297092 Clip (2)
20
W10121334 Washer
21 3387560 Hinge, Door (R.H.)
3387559 Hinge, Door (L.H.)
22 3387565 Spring, Door (2)
23 8066120 Lever, Snap
Switch
24 3394331 Cover−Plate
25 8563747 Exhaust Pipe
& Bracket
26 697215 Toe Panel
(Includes
Item. 2)
27 8538263 Motor, Assembly
60 HZ.
28 49026 4" − 90 Elbow
29 8578220 Pulley, Motor
30 3387610 Belt, Drive
31 8281212 Screw, 8−18 x 3/8
32 3387118 Bracket, Motor
33 279393 Terminal Block
Screw Kit (For
Terminal Block)
34 98129 Screw,
6−20 x 1 3/8
35 8563750 Exhaust Pipe
(Short)
36
W10116360 Handle, Door
37 8563749 Exhaust Pipe
(Long)
38 343641 Screw,
10−16 x 1/2
39 3388674 Idler Bracket
40 3357011 Screw, 10−16 x 1/2
41 3406107 Door Switch
Assembly
42 3387242 Seal, Front Panel
43 3388229 Retainer
44 697655 Door, Rear
45 694091 Screw, 8−18 x 3/8
46 697221 Door, Front
47 697227 Upper Front Panel
48 696144 Strike, Door
49 3393008 Screw, 10−16 x 1/2
50 3390736 Seal, Door
Optional Parts Not Included
Dryer Exhaust Kit
(For Side & Bottom Venting)
51 279818 White

BULKHEAD PARTS
5
W10167656
For Models: MED5801TW0
(White/Grey)

BULKHEAD PARTS
6W10167656
Illus. Part
No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION Illus. Part No. No. DESCRIPTION
1 8575324 Shaft, R.H. Thread
2 90767 Screw, 8−18 x 3/8
3 3390647 Screw, 8−18 x 1/2
4 3394984 Door, Lint
Screen
5 697354 Air Duct Assembly
6 697813 Seal, Outlet
Housing
7 697814 Seal, Drum Front
8 3934666 Nut,3/8 x 16(R.H.)
9 8066086 Drum Hole
Plug
10 3402841 Lens, Drum Light
11 8533971 Screw, 8−18 x 5/16
12 359625 Screw, 8−18 x 1/2
13 3392258 Wire
14 3387747 Heater Element
15 279457 Terminal Wire
Kit (For Heater
Element Wiring
Harness Repair)
16
W10001120 Nut, 3/8−16 (L.H.)
17 8520836 Bulkhead, Rear
18 3387459 Washer, Support
19 8575325 Shaft, L.H. Thread
20 690997 Ring, Tri
21 8536973 Roller, Support
22 695240 Screw, 8−18 x 1/2
23 3394985 Outlet Housing
Assembly
24 3394986 Spring, Lint
Screen Door
25 8318215 Complete Drum
Assembly
26
W10109200 Screw, 11−16 x 3/4
27 697694 Seal, Drum
29 8572105 Clip, Exhaust
30 8533971 Screw
31 489463 Screw
32 8066224 Exhaust Pipe
33 3406124 Bulb, Light
34 3387223 Electrode, Sensor
35 3977373 Bracket,
Drum Light
36
W10136369 Socket Assembly
37 697772 Wheel, Blower
38 8066208 Clip, Spring
39
W10128629 Shield,
Blower Housing
40 697770 Seal, Cover Plate
41 8066170 Lint Screen
42 8318268 Thermostat,
Internal−Bias
43 487909 Screw, 8−15 x 1/2
44 8544362 Housing, Blower
45 8066168 Lint Duct Assembly
46 3392537 Heater Box
47 3977394 Thermal Cut−Off
(Includes
Illus. 48)
48 3390291 Thermostat 250 F
(122 C)
49 3392519 Thermal Fuse
50 8066099 Bracket,
Heater Box
51 3357011 Screw, 10−16 x 1/2
52 697693 Baffle, Drum
53 697557 Bulkhead, Front
54 8299979 Grill, Outlet
55 8571651 Bracket, Bulkhead
Upper Mounting
For Models: MED5801TW0
(White/Grey)

OPTIONAL PARTS (NOT INCLUDED)
7
W10167656
Illus. Part
No. No. DESCRIPTION
For Models: MED5801TW0
(White/Grey)
ACCESSORY PARTS
80047 Kit,
Dryer Repair
8522199 Kit, Dryer
Vent Testing
3406911 Dry Rack
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
