Maytag MGDC415EW User manual

W10562354C
W10562355C - SP
ELECTRIC OR GAS DRYER
USE AND CARE GUIDE
Table of Contents Table des matières
DRYER SAFETY ..................................................................2
CHECK YOUR VENT SYSTEM
FOR GOOD AIR FLOW ......................................................4
USE SENSOR DRY/AUTOMATIC DRY CYCLES FOR
BETTER FABRIC CARE AND ENERGY SAVINGS .....4
CONTROL PANEL & FEATURES .....................................5
CYCLE GUIDE ......................................................................6
USING YOUR DRYER........................................................7
DRYER CARE .......................................................................9
TROUBLESHOOTING ......................................................11
WARRANTY ........................................................................13
ASSISTANCE OR SERVICE .................... BACK COVER

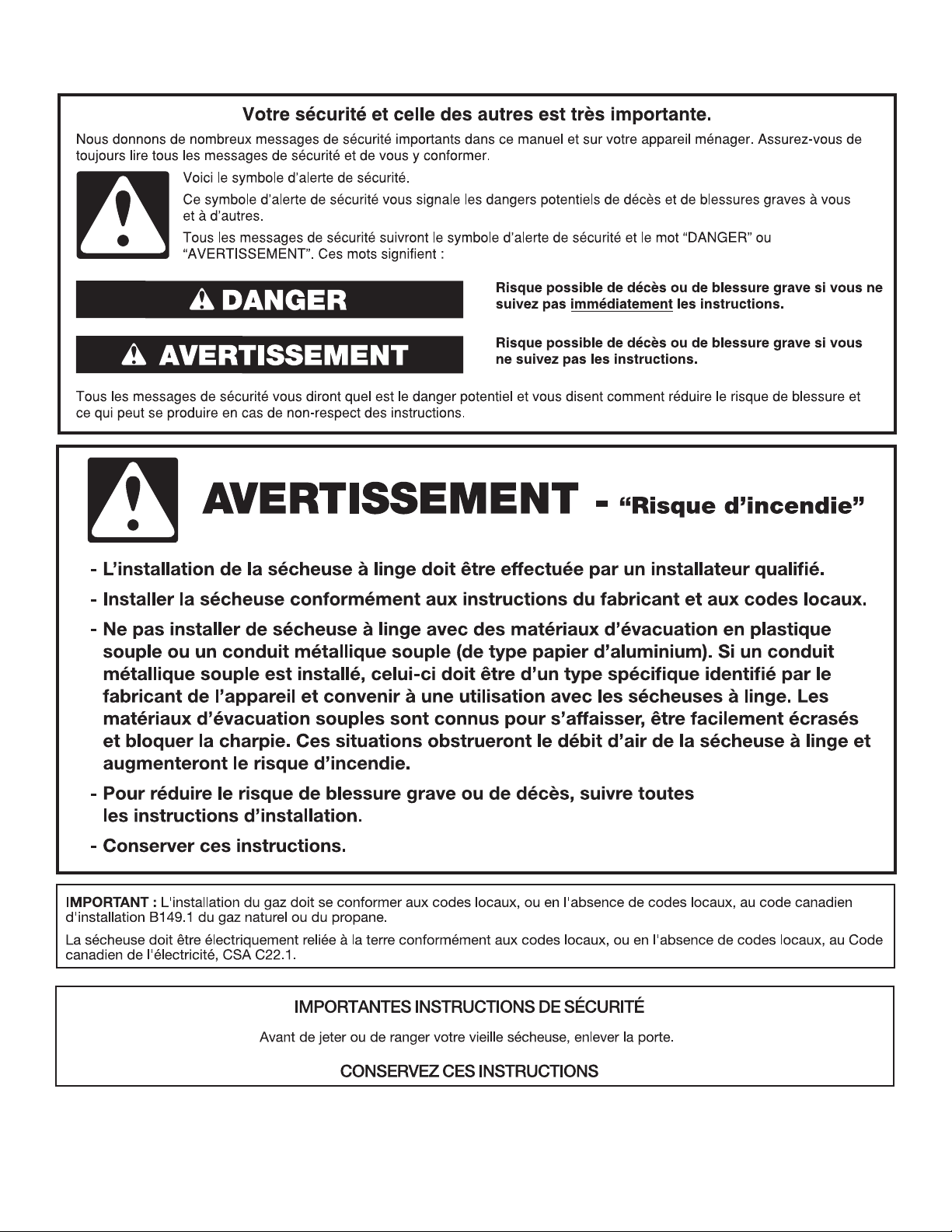

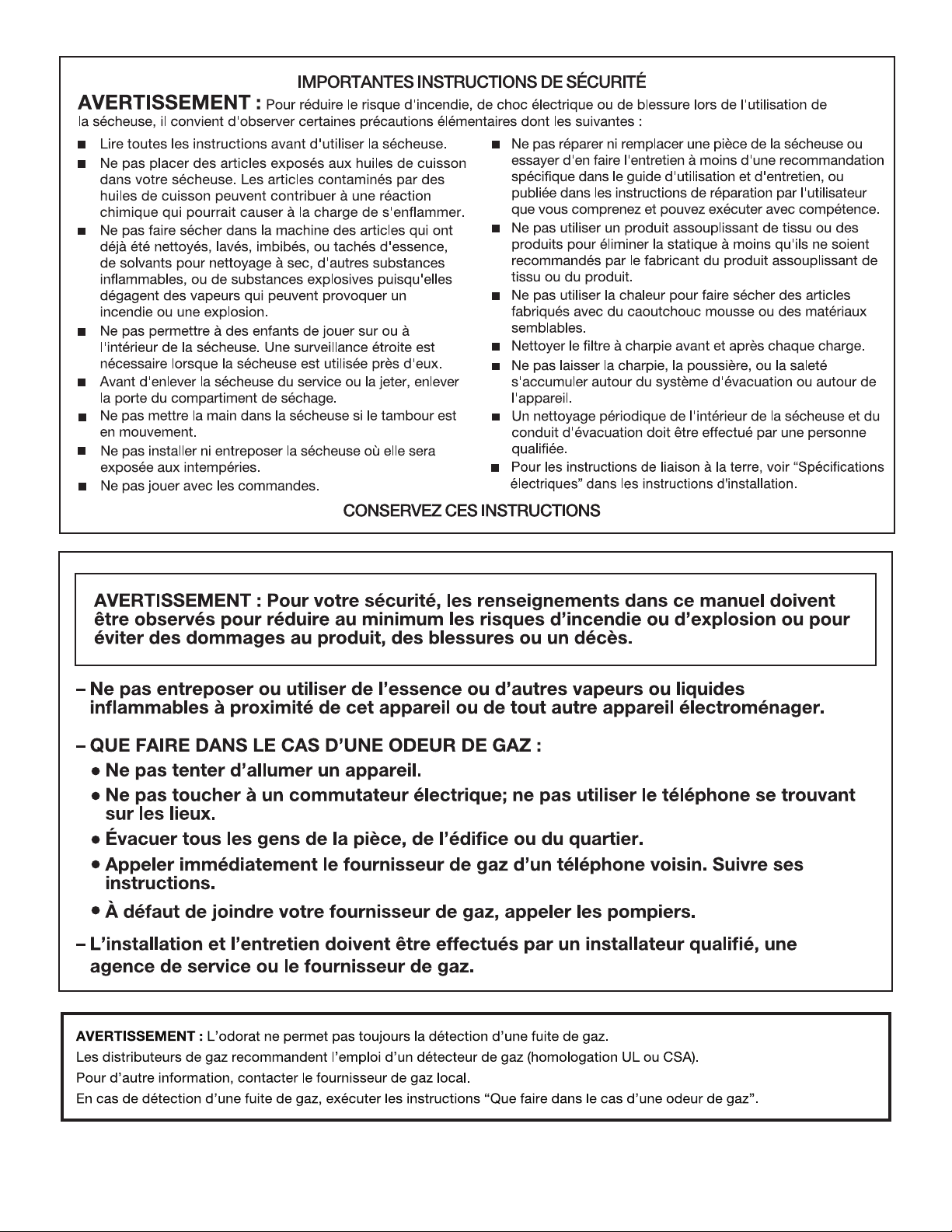

SÉCURITÉ DE LA SÉCHEUSE ......................................14
VÉRIFICATION D’UNE CIRCULATION D’AIR
ADÉQUATE POUR LE SYSTÈME D’ÉVACUATION ..16
UTILISATION DES PROGRAMMES DE
SÉCHAGE PAR DÉTECTION/PROGRAMMES
AUTOMATIQUES POUR UN MEILLEUR SOIN
DU TISSU ET DAVANTAGE D’ÉCONOMIES
D’ÉNERGIE.........................................................................16
TABLEAU DE COMMANDE
ET CARACTÉRISTIQUES ................................................17
GUIDE DE PROGRAMMES ...........................................18
UTILISATION DE LA SÉCHEUSE..................................19
ENTRETIEN DE LA SÉCHEUSE................................... 21
DÉPANNAGE..................................................................... 23
GARANTIE.......................................................................... 26
ASSISTANCE OU
SERVICE.................................. COUVERTURE ARRIÈRE
SÉCHEUSE
ÉLECTRIQUE OU À GAZ
GUIDE D’UTILISATION
ET D’ENTRETIEN
Para una versión de estas instrucciones en español, visite www.maytag.com

2
DRYER SAFETY

3

4
CHECK YOUR VENT SYSTEM FOR GOOD AIR FLOW
Good air flow
Along with heat, dryers require good air flow to efficiently
dry laundry. Proper venting will reduce your drying times and
improve your energy savings. See Installation Instructions.
The venting system attached to the dryer plays a big role in
good air flow. Blocked or crushed vents as well as improper
venting installation will reduce air flow and dryer performance.
Service calls caused by improper venting are not covered by
the warranty and will be paid by the customer, regardless of
who installed the dryer. To clean or repair venting, contact a
venting specialist.
Maintain good air flow by:
Good Better
USE SENSOR DRY/AUTOMATIC DRY CYCLES FOR BETTER
FABRIC CARE AND ENERGY SAVINGS
Use the Sensor Dry/Automatic Dry cycles to provide the most energy savings and enhanced fabric care from the dryer. During
Sensor Dry/Automatic Dry cycles, drying air temperature or moisture level is sensed in the load. This sensing occurs throughout
the drying cycle and the dryer shuts off when the load reaches the selected dryness. The Energy Preferred cycle will provide optimal
energy savings.
With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to over-drying.
Use Timed Dry for the occasional damp load that needs a little more drying time or when using the drying rack.
■Cleaning your lint screen before each load.
■Replace plastic or foil vent material with 4" (102 mm)
diameter heavy, rigid vent material.
■Use the shortest length of vent possible.
■Use no more than four 90° elbows in a vent system;
each bend and curve reduces air flow.
■Remove lint and debris from the exhaust hood.
■Remove lint from the entire length of the vent system at least
every 2 years. When cleaning is complete, be sure to follow
the “Installation Instructions” supplied with your dryer for
final product check.
■Clear away items from the front of the dryer.

5
CONTROL PANEL & FEATURES
TEMPERATURE/FABRIC
Select a drying temperature based on the fabrics in your load.
If you are unsure of the temperature to select for a load, select
the lower setting rather than the higher setting.
CYCLE KNOB
Use Cycle Knob to select available cycles on your dryer. Turn
the knob to select a cycle for your laundry load. See Cycle
Guide for detailed descriptions of cycles.
TIMED DRY
Will run the dryer for the specified time on the control.
On models with a selectable temperature knob, you may
choose a setting based on the fabrics in your load. On
some models, temperature is included in the cycle
selections. Drying time and temperature will depend on
your dryer model.
SENSOR DRY/AUTOMATIC DRY
Senses moisture in the load or air temperature and shuts
off when the load reaches the selected dryness level.
Gives the best drying in the shortest time. Drying time
will vary based on fabric type, load size, and temperature
setting.
1
2
3
WRINKLE CONTROL Feature (on some models)
The WRINKLE CONTROL feature will run after your drying
cycle is complete. It periodically starts and stops the dryer,
tumbling the load without heat to help avoid wrinkling.
On some models, WRINKLE CONTROL automatically
starts at the end of the cycle. Opening the door will stop
this feature.
NOTE: A signal will sound periodically when the WRINKLE
CONTROL setting is selected, but only if the End of Cycle
signal is also selected.
WRINKLE CONTROL option (on some models)
When you are unable to remove a load of clothes from the
dryer as soon as it stops, wrinkles can form. The WRINKLE
CONTROL option periodically tumbles, rearranges, and fluffs
the load to help keep wrinkles from forming.
■Get up to 90 minutes of heat-free, periodic tumbling at
the end of a cycle. Turn the WRINKLE CONTROL knob
to select OFF or 90 min. at any time before the cycle has
ended.
PUSH TO START/END OF CYCLE SIGNAL
The End of Cycle Signal produces an audible sound when the
drying cycle is finished. Promptly removing clothes at the end
of the cycle reduces wrinkling.
Turn the END OF CYCLE SIGNAL knob to select the desired
setting (On or Off). Press the PUSH TO START knob to start
the dryer.
Not all features and options are available on all models.
Appearance may vary.
4
4
21
42 31

6
SENSOR DRY/AUTOMATIC DRY - Senses moisture in the load or air temperature and shuts off when the load reaches the selected
dryness level. Choose ENERGY PREFERRED cycle for optimal energy savings.
Not all cycles and settings are available on all models. Settings and options shown in bold are default settings for that cycle.
Items to dry: Temperature
Fabric:
Available Options: Cycle Details:
End of Cycle Signal
Wrinkle Control
CYCLE GUIDE — SENSOR DRY/AUTOMATIC DRY CYCLES
CYCLE GUIDE — TIMED DRY CYCLES
TIMED DRY - Will run the dryer for the specified time on the control.
Not all cycles and settings are available on all models.
NOTE: If loads do not seem as dry as you would like, select More Dry next time you dry a similar load. If loads seem drier than you like,
select Less Dry next time you dry a similar load.
Casual, shirts, pants,
lightweight items,
synthetics, delicates,
athletic wear
End of Cycle Signal
Wrinkle Control
Setting the Drying Temperature
If your dryer has multiple heat settings:
A High temperature setting may be used for drying heavyweight
items such as towels and work clothes.
A Low to Medium temperature setting may be used for drying
medium-weight items such as sheets, blouses, dresses,
underwear, permanent press fabrics, and some knits.
Use the Air Fluff (no heat) setting for foam, rubber, plastic, or
heat-sensitive fabrics.
Line dry bonded or laminated fabrics.
NOTE: If you have questions about drying temperatures for
various loads, refer to the care label directions.
Jeans, heavy work clothes,
towels
More Dry
Energy Preferred
Less Dry
More Dry
Energy Preferred
Less Dry
More Dry
Energy Preferred
Less Dry
End of Cycle Signal
Wrinkle Control
Automatic cycles give the best drying in the
shortest time. Drying time varies based on
fabric type, load size, and dryness setting.
Select a drying temperature based on the
fabrics in your load. If you are unsure of the
temperature to select for a load, select the
lower setting rather than the higher setting.
Dryness Level:
High
Medium or
Low
Low
Work clothes, medium
weight fabrics, sheets
Items to dry: Temperature:Cycle: Available
Options: Cycle Details:
Rubber, plastic, heat
sensitive fabrics Air Fluff Air Fluff End of Cycle Signal No heat drying.
Any load Freshen Up Any End of Cycle Signal Use low to medium temperature to smooth
out wrinkles, such as those found in
clothes packed in a suitcase or in items
wrinkled from being left in the dryer too
long.
Heavy or bulky
items Heavy Dry Any End of Cycle Signal Completes drying if items are still damp.
Any load Damp Dry Any End of Cycle Signal Dries items to a damp level or for items
that do not require an entire drying cycle.

7
USING YOUR DRYER
1. Clean the lint screen
Clean the lint screen before each load. Pull the lint screen out of
its holder. Roll lint off the screen with your fingers. Do not rinse
or wash screen to remove lint. Push the lint screen firmly back
into place.
For additional cleaning information, see “Dryer Care”.
2. Load the dryer
Place laundry in the dryer. Close the door.
Do not tightly pack the dryer; clothes should be able to
tumble freely.
NOTE: Your model may have a different door than the one
shown. Some models have drop down doors.
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this dryer.
Before using your dryer, wipe the dryer drum with a damp cloth
to remove dust from storing and shipping.

8
7. Press PUSH TO START to begin cycle
Push and hold the PUSH TO START knob to begin the cycle.
4. Set temperature (on some models)
Select temperature by turning the knob to the desired position or
select the Automatic Dry Cycle that has the temperature included
in the cycle selections. See “Setting the Drying Temperature”.
NOTE: Not all options and settings are available with all cycles.
3. Select the desired cycle
Select the desired cycle for your load. See the Cycle Guide
for more information about each cycle.
SENSOR DRY/AUTOMATIC DRY Cycles
You can select a different dryness level, depending on your load,
by turning the knob to dryness level.
Selecting More Dry, Energy Preferred, or Less Dry automatically
adjusts the dryness level of the fabrics at which the dryer will
shut off.
Sensor Dry/Automatic Dry cycles give the best drying in the
shortest time. Drying time varies based on fabric type, load size,
and dryness setting. Choose Energy Preferred for optimal
energy savings. Less Dry removes less moisture and is used for
loads you may want to put on a hanger to complete drying.
More Dry removes more load moisture. Energy Preferred is used
for a starting point for Sensor Dry/Automatic Dry cycles.
6. Select End of Cycle Signal (if desired)
Turn the END OF CYCLE SIGNAL knob to select the desired
setting (On or Off). The End of Cycle Signal produces an
audible sound when the drying cycle is finished. Promptly
removing clothes at the end of the cycle reduces wrinkling.
DRYING RACK ACCESSORY
To purchase a drying rack for your dryer, please refer to
“Assistance or Service” on the back cover of the manual or
contact the dealer from whom you purchased your dryer.
Part Number Accessory
3406839 Drying rack - fits 29" Super Capacity Plus
5. Set Wrinkle Control (on some models)
Select Wrinkle Control by turning the knob to the desired
position.
Get up to 90 minutes of heat-free, periodic tumbling at the
end of a cycle. Turn the WRINKLE CONTROL knob to OFF
or 90 min. at any time before the cycle has ended.
NOTE: Not all options and settings are available with all
cycles.

9
DRYER CARE
Keep dryer area clear and free from items that would block the
air flow for proper dryer operation. This includes clearing piles
of laundry in front of the dryer.
Cleaning the lint screen
Every load cleaning
The lint screen is located in the dryer. A screen blocked by lint
can increase drying time.
To clean:
1. Pull the lint screen out of its holder. Roll lint off the screen
with your fingers. Do not rinse or wash screen to remove
lint. Wet lint is hard to remove.
2. Push the lint screen firmly back into place.
IMPORTANT:
■ Do not run the dryer with the lint screen loose, damaged,
blocked, or missing. Doing so can cause overheating and
damage to both the dryer and fabrics.
■ If lint falls off the screen into the dryer during removal,
check the exhaust hood and remove the lint. See Venting
Requirements.
As needed cleaning
Laundry detergent and fabric softener residue can build up
on the lint screen. This buildup can cause longer drying times
for your clothes, or cause the dryer to stop before your load is
completely dry. The screen is probably clogged if lint falls off
while the screen is in the dryer.
Clean the lint screen with a nylon brush every 6 months,
or more frequently, if it becomes clogged due to a residue
buildup.
To wash:
1. Roll lint off the screen with your fingers.
2. Wet both sides of lint screen with hot water.
3. Wet a nylon brush with hot water and liquid detergent.
Scrub lint screen with the brush to remove residue buildup.
4. Rinse screen with hot water.
5. Thoroughly dry lint screen with a clean towel. Reinstall
screen in dryer.
Cleaning the dryer interior
To clean dryer drum
1. Apply a liquid, nonflammable household cleaner to the
stained area of the drum and rub with a soft cloth until
stain is removed.
2. Wipe drum thoroughly with a damp cloth.
3. Tumble a load of clean cloths or towels to dry the drum.
NOTE: Garments that contain loose dyes, such as denim blue
jeans or brightly colored cotton items, may discolor the dryer
interior. These stains are not harmful to your dryer and will
not stain future loads of clothes. Dry these items inside out to
avoid drum staining.
Removing accumulated lint
From Inside the Dryer Cabinet
Lint should be removed every 2 years, or more often, depending
on dryer usage. Cleaning should be done by a qualified servicer.
From the Exhaust Vent
Lint should be removed every 2 years, or more often, depending
on dryer usage.
Cleaning the dryer location

10
Vacation, storage, and moving care
Non-Use or Storage Care
Operate your dryer only when you are at home. If you will be on
vacation or not using your dryer for an extended period of time,
you should:
1. Unplug dryer or disconnect power.
2. (For gas dryers only): Close shut-off valve to gas supply
line.
3. Clean lint screen. See “Cleaning the Lint Screen.”
Moving Care
For power supply cord-connected dryers:
1. Unplug the power supply cord.
2. Make sure leveling legs are secure in dryer base.
3. Use tape to secure dryer door.
For direct-wired dryers:
1. Turn off power at fuse or breaker box.
2. Disconnect wiring.
3. Make sure leveling legs are secure in dryer base.
4. Use tape to secure dryer door.
For gas dryers:
1. Unplug or disconnect power to dryer.
2. Close shut-off valve in gas supply line.
3. Disconnect gas supply line pipe and remove fittings
attached to dryer pipe.
4. Cap the open fuel supply line.
5. Make sure leveling legs are secure in dryer base.
6. Use tape to secure dryer door.
Reinstalling the Dryer
Follow the Installation Instructions to locate, level, and
connect the dryer.
Changing the drum light
(on some models)
1. Unplug dryer or disconnect power.
2. Open the dryer door. Locate the light bulb cover on the
back wall of the dryer. Using a Phillips-head screwdriver,
remove the screw located in the lower right-hand corner
of the cover. Remove the cover.
3. Turn bulb counterclockwise. Replace the bulb with
a 10-watt appliance bulb only. Replace the cover and
secure with the screw.
4. Plug into a grounded outlet or reconnect power.
