Maytag PAV2300AWW Manual

Repair
Parts
List
MODEL NUMBER
PAV2300AWW
When requesting service or ordering parts, always
provide the following information:
- Product Type - Part Number
- Model Number - Part Description
WASHER
©2005 Maytag Services

Section: CONTROL PANEL
LW11-122
Model: PAV2300AWW
1

CONTROL PANEL
No. Part No. Description
Section:
Series Qty
1 21001729 PANEL, CONTROL (WHT) 10 1
2 21001519 ENDCAP (WHT-LT) Note: CAP, END (LT) (WHT) 10 1
- 25-3092 SCREW Note: SCREW, END CAP 10 2
- 25-3092 SCREW Note: SCREW, END CAP 10 2
3 21001523 ENDCAP (WHT-RT) Note: CAP, END (RT) (WHT) 10 1
4 21001226 SWITCH, WATER TEMP. 4 POSITION 10 1
- 25-3092 SCREW Note: SCREW, SWITCH 10 2
5 21001554 SWITCH, WATER LEVEL 10 1
5 21001554 SWITCH, WATER LEVEL 16 1
5 21001882 SWITCH, PRESSURE (EMZ) 18 1
5 21001882 SWITCH, PRESSURE (EMZ) 20 1
5 21001882 SWITCH, PRESSURE (EMZ) 15 1
- 25-3092 SCREW Note: SCREW, SWITCH 10 2
6 21001600 SKIRT, TIMER (WHT) 10 1
7 21001594 KNOB, TIMER (WHT) 10 1
8 21001517 SHIELD, CONTROL (1 POS.) 10 2
- 31001193 PAD, SHIELD 10 3
- 53-2504 SPACER, CONTROL SHIELD 10 2
9 21001604 FRAME, CONTROL PANEL (WHT) 10 1
10 21001527 SHIELD, REAR (BACK PANEL) 10 1
- 25-3457 SCREW, SEMS Note: SCREW, REAR SHIELD (SEMS) 10 1
- 25-3092 SCREW Note: SCREW, REAR SHIELD 10 2
11 21001522 TIMER 10 1
- 25-3092 SCREW Note: SCREW, TIMER 10 2
12 21001525 KNOB, SELECTOR (WHT) Note: KNOB, SELECTOR (WHT) 10 1
- 21001571 MANUAL, USE & CARE Note: INSERT, USE & CARE 10 1
- 21001419 MANUAL, LAUNDERING TIPS 10 1
- 21001717 MANUAL, USE & CARE (TRILINGUAL 10 1
- 21001883 HARNESS, WIRING 18 1
- N 21001787 HARNESS, WIRE 16 1
- 21001883 HARNESS, WIRING 15 1
- N 21001787 HARNESS, WIRE 10 1
- 21001883 HARNESS, WIRING 20 1
- 12002417 WIRE KIT (HERRIN LAUNDRY) 10 1
2
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

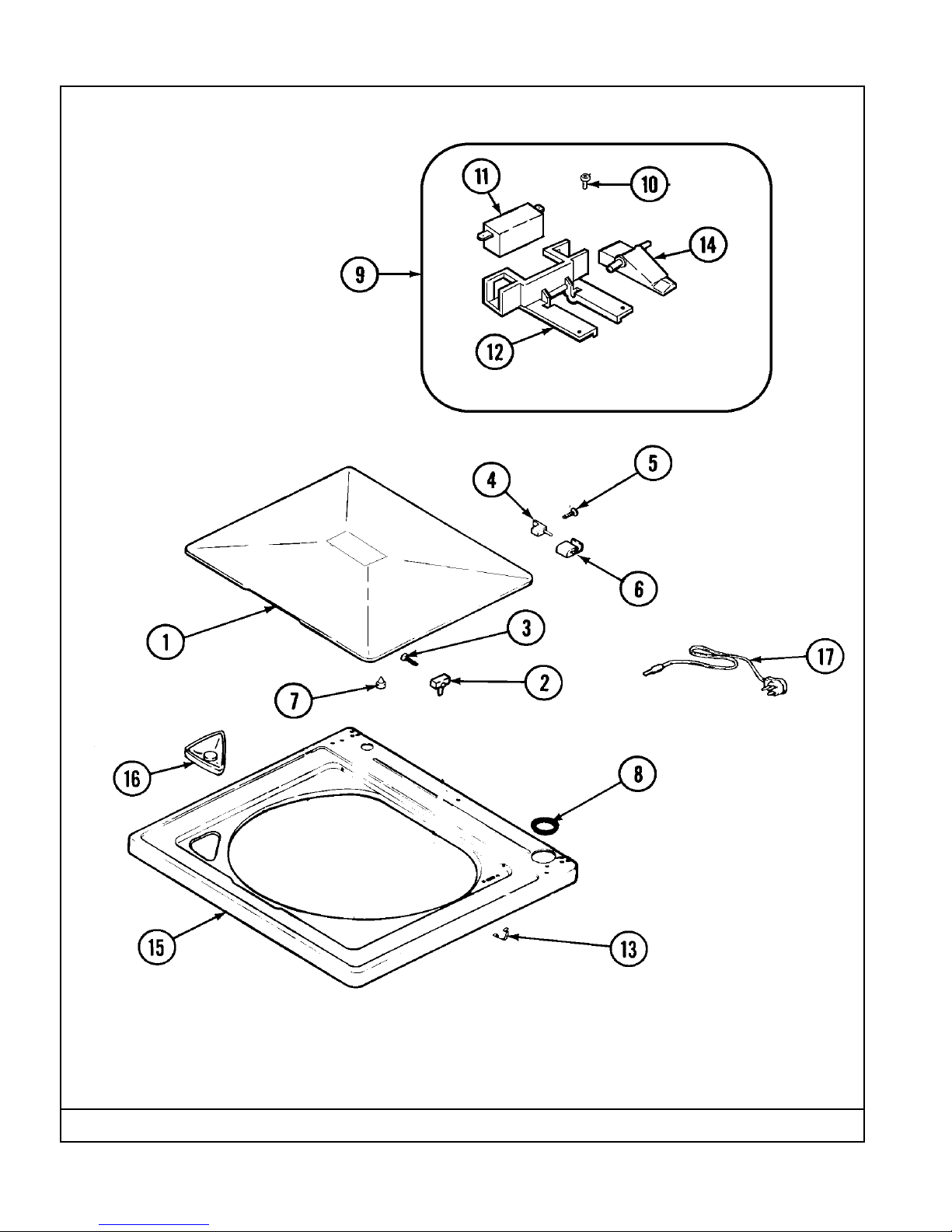

Section: TOP
LW16-12
Model: PAV2300AWW
3

TOP
No. Part No. Description
Section:
Series Qty
1 35-2026 LID (WHT) (DOOR) 10 1
2 43-0057 ACTUATOR, DOOR SWITCH 10 1
3 25-7438 SCREW Note: SCREW, ACTUATOR 10 1
4 35-2045 PIN, HINGE 10 2
5 25-7893 SCREW Note: SCREW, HINGE PIN 10 2
6 35-2044 HINGE, LID 10 2
7 35-0581 BUMPER, DOOR (LID) Note: BUMPER, LID 10 2
8 35-2063 BUSHING, INSULATOR Note: BUSHING, INSULATOR (LARGE) 10 1
9 21001137 LID SWITCH ASSY.-W/LEADS Note: LID SWITCH ASSY. (W/LEADS) 10 1
10 21001136 SCREW, SWITCH/HOUSING Note: SCREW, LID SWITCH 10 2
11 21001148 SWITCH, LID/DOOR SAFETY SPIN 10 1
12 21001135 HOUSING, LID SWITCH 10 1
13 N 25-7878 CLIP Note: CLIP, LID SWITCH LEVER 10 1
14 21001134 LEVER, LID SWITCH 10 1
15 21001602 TOP, CABINET (WHT) 10 1
16 21001597 DISPENSER, BLEACH 10 1
17 21001592 CORD, POWER 10 1
4
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

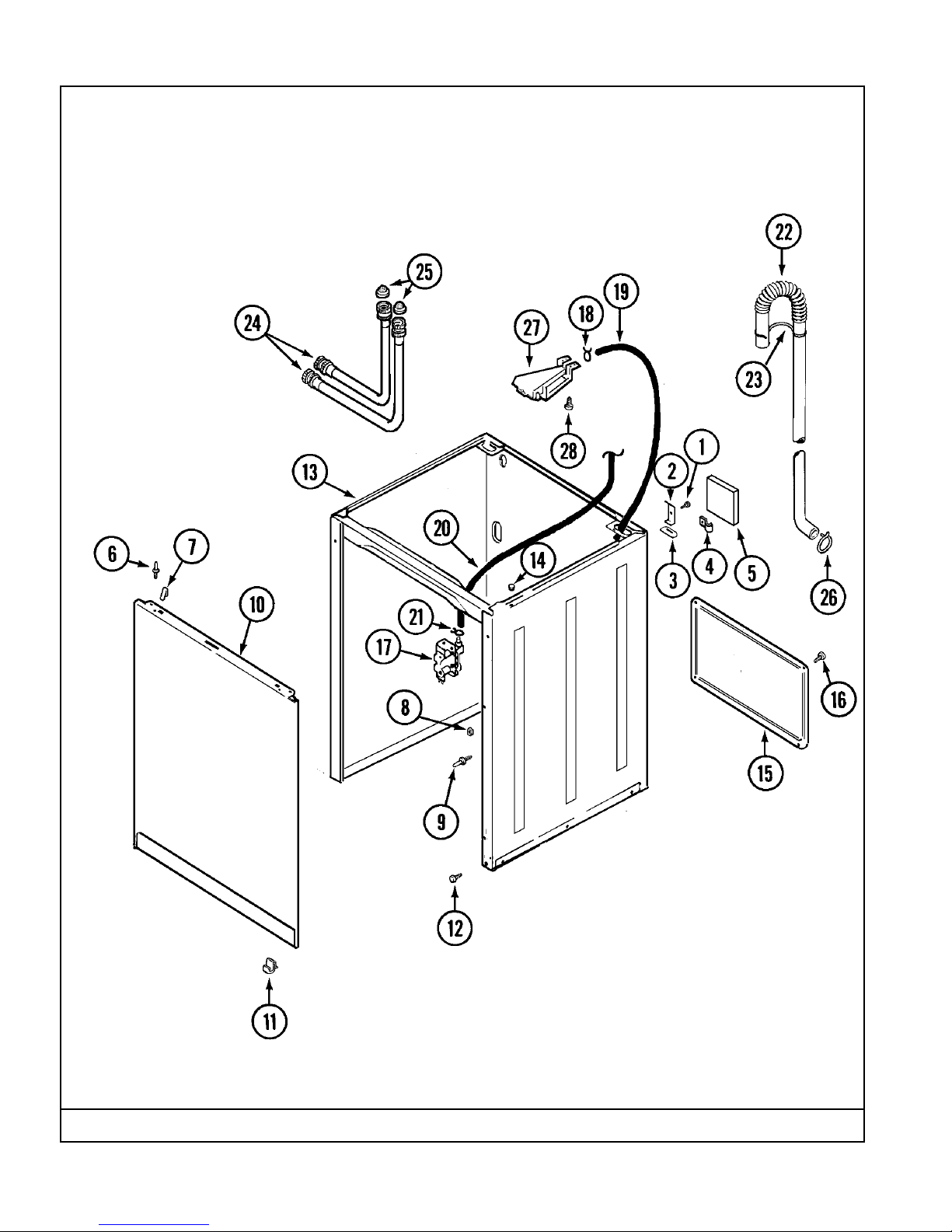

Section: CABINET
LW12-3
Model: PAV2300AWW
5

CABINET
No. Part No. Description
Section:
Series Qty
1 25-7893 SCREW Note: SCREW, HINGE 10 2
2 35-2846 HINGE, CABINET TOP 14 2
2 21001751 HINGE, CABINET (PLASTIC) 13 2
2 35-2846 HINGE, CABINET TOP 10 2
3 35-4128 PAD, HINGE 10 2
4 25-7027 CLIP, WIRING Note: CLIP, FOAM PAD 10 1
5 N 35-0706 PAD, FOAM 10 1
6 53-0643 PIN, LOCATOR 10 2
7 25-7220 CLIP, CABINET TOP 10 2
8 25-0224 NUT, LOCATOR PIN 10 2
9 53-0643 PIN, LOCATOR 10 2
- 53-0200 SLEEVE, LOCATOR PIN 10 2
10 35-2084 PANEL, FRONT (WHT) 10 1
- 21001281 DAMPER, SOUND PAD 10 2
- 25-7732 SCREW Note: SCREW, CLIP 10 2
11 53-0120 CLIP, FRONT PANEL 10 2
12 35-4129 BUMPER, CABINET 10 4
13 35-2106 CABINET ASSY. (WHT) Note: CABINET ASSEMBLY (WHT) 10 1
13 12001801 KIT, CABINET/REAR SHIELD (WHT) 14 1
13 21001753 ASSEMBLY, CABINET (WHT) 13 1
14 33-2653 BUMPER, CABINET Note: BUMPER, CABINET 10 1
15 35-2108 SHIELD,REAR(NLA,ORDER CAB KIT) 10 1
16 25-7732 SCREW Note: SCREW, REAR SHIELD 10 2
17 21001396 VALVE, WATER (120V) 10 1
17 21001747 VALVE, WATER 14 1
18 25-7867 CLAMP Note: CLAMP, INLET HOSE 10 2
19 35-2378 HOSE, FLUME/DIVERTER (RUBBER) 10 1
20 21001060 HOSE, PRESSURE SWITCH 10 1
21 25-7796 CLAMP, PRESSURE SWITCH HOSE 10 2
22 21001512 HOSE, DRAIN (CUFF) 10 1
23 33-9537 RETAINER Note: RETAINER, DRAIN HOSE 10 1
24 33-7891 HOSE, 4' INLET 10 1
24 35-0874 HOSE, INLET 10 1
25 33-4264N STRAINER & WASHER KIT 10 2
26 25-7080 CLAMP, DISCHARGE HOSE Note: CLAMP, DRAIN HOSE 10 1
27 35-2051 FLUME, WATER INLET 10 1
28 25-3092 SCREW Note: SCREW, FLUME 10 2
6
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

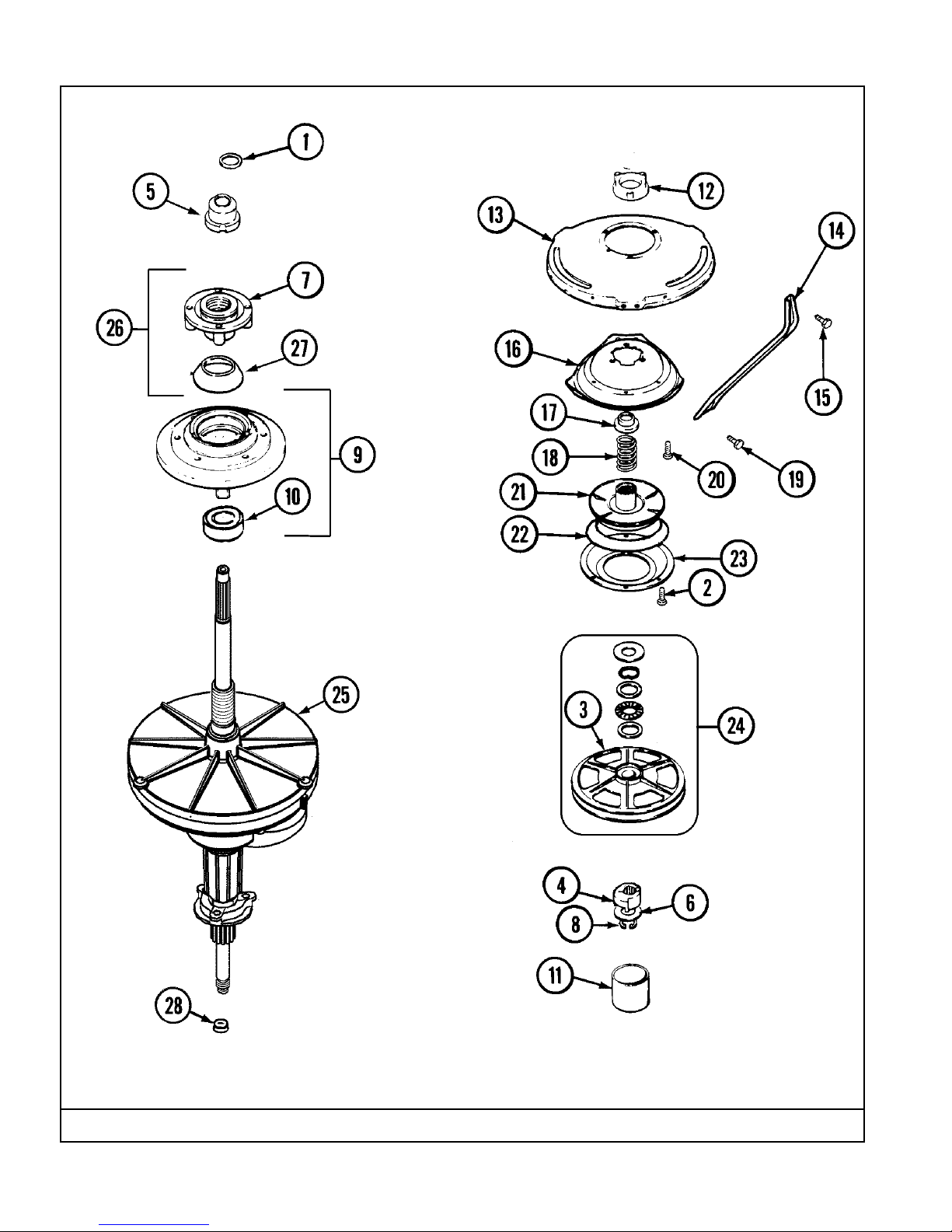

Section: TRANSMISSION
LW15-23
Model: PAV2300AWW
7

TRANSMISSION
No. Part No. Description
Section:
Series Qty
1 25-7941 "O" RING Note: "O" RING, AGTR DRIVE SHAFT 10 1
2 21001065 SCREW,#10-24X.50 HXNIBHD Note: SCREW, STATOR 10 6
3 12001797 KIT, PULLEY & DUST CAP 12 1
3 35-3829 PULLEY, DRIVE Note: PULLEY, DRIVE (PLASTIC) 10 1
4 LA-2007 CAM REPLACEMENT KIT 10 1
5 21001533 SEAL NUT ASSEMBLY 10 1
- 35-2132 WASHER,1.25ODX.530IDX.032 Note: WASHER, FLAT 10 1
6 35-2082 WASHER,1.25ODX.530IDX.062 Note: WASHER, FLAT 10 1
7 21001515 BASKET HUB ASSEMBLY 10 1
8 25-7854 RING, RETAINING 10 1
9 21001508 HOUSING/BEARING ASSY. 10 1
10 35-2205 BEARING, SPIN 10 1
11 35-2007 CAP, DUST 10 1
11 ------ NOT REQUIRED PART OR SEE NOTE Note: KITTED WITH PULLEY ITEM #3 12 1
12 21001511 HOUSING/LWR.BEARING ASSY. 10 1
- 35-2205 BEARING, SPIN 10 1
13 21001518 SUPPORT, TUB 10 1
14 21001532 BRACE, TUB 10 3
15 25-7895 SCREW, SUSP HSG TO LWR BRG ASY Note: SCREW, TUB BRACE 10 6
16 21001163 HOUSING, SUSPENSION 10 1
17 35-2017 RETAINER, BRAKE SPRING 10 1
18 31001285 SPRING, BRAKE 10 1
19 25-7930 SCREW 5/16-18X3/4 Note: SCREW, TUB BRACE 10 6
20 21001509 SCREW,HIGH PERFORMANCE PLASTIC Note: SCREW, SUSPENSION HOUSING 10 3
21 35-2948 BRAKE ROTOR & LINING ASSY Note: BRAKE ROTOR & LINING ASSEMBLY 10 1
22 21001161 SNUBBER 10 1
23 35-2018 STATOR, BRAKE 10 1
24 12500036 THRUST BEARING KIT 10 1
25 21001536 TRANS. ASSY.(W/O SEAL/BEARING) Note: TRANSMISSION ASSY.(DUAL DRIVE)COMPONENTS OF
THIS ASSEMBLY NOT SOLD SEPARATELY
10 1
26 12001598 TUB SEAL ASSEMBLY Note: (INCL TUB SEAL, TUB GASKET BASKET GASKET) 10 1
27 35-2974 TUB SEAL/HUB ASSY (HT TRANS) Note: SEAL, TUB 10 1
28 35-2010 SEAL,TRANSMISSION HOUSING(LIP) 10 1
8
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

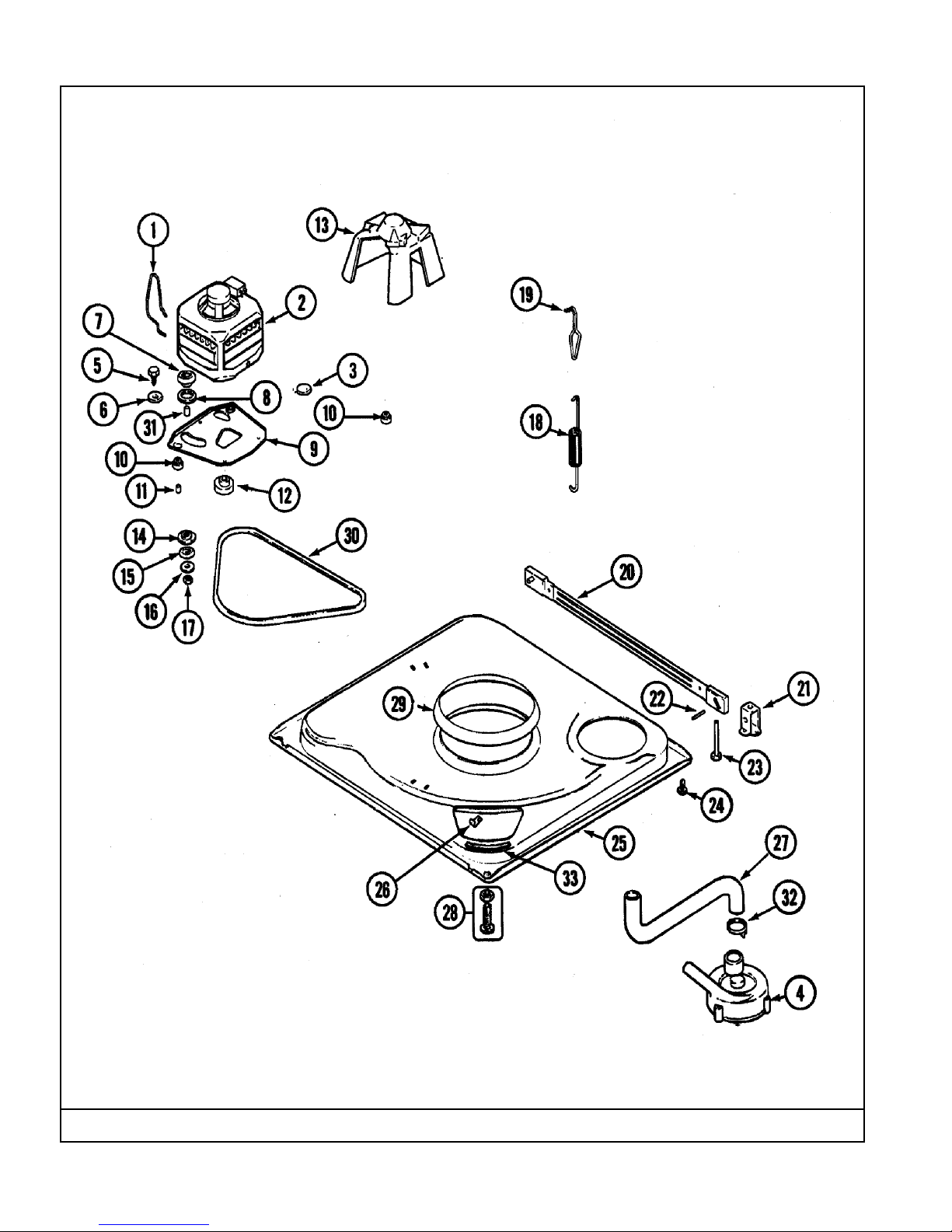

Section: BASE
LW10-36
Model: PAV2300AWW
9

BASE
No. Part No. Description
Section:
Series Qty
1 21001110 SPRING, MOTOR PIVOT 10 1
2 21001516 MOTOR & PULLEY ASSY. 10 1
3 21001109 SLIDE, FOOT 10 1
4 21001873 PUMP 16 1
4 35-2099 PUMP ASSY (COMPLETE) Note: PUMP ASSEMBLY (COMPLETE) 10 1
5 25-7833 SCREW 10 2
6 25-7834 WASHER 10 2
7 33-9946 ISOLATOR, MOTOR 10 2
8 35-3570 WASHER, MOTOR PIVOT Note: WASHER, PIVOT 10 2
9 21001111 PLATE, MOTOR 10 1
10 35-3646 ISOLATOR, MOTOR PLATE 10 3
11 25-7831 SPACER Note: SPACER, MOUNTING 10 2
- 25-7117 SET SCREW Note: SCREW, SET 10 1
12 21001506 PULLEY, MOTOR-60 HZ 10 1
13 22002721 SHIELD, MOTOR 10 1
14 35-3571 SLIDE, MOTOR PIVOT Note: SLIDE, MOTOR 10 2
15 33-9967 WASHER, MOTOR ISOLATOR 10 2
16 25-7047 WASHER, FLAT 10 2
17 25-7325 NUT, MOTOR PLATE ASY TO MOTOR Note: NUT, MOTOR PLATE ASSEMBLY 10 2
18 21001598 SPRING, SUSPENSION 10 6
19 21001166 HOOK, SUSPENSION SPRING 10 3
20 35-2049 BAR, STABILIZER (WITH GUIDE) 10 1
21 35-2046 BRACKET, STABILIZER 10 2
22 35-2052 PIN, STABILIZER 10 2
23 35-3020 FOOT PAD ASSY. (REAR) Note: FOOT & PAD ASSEMBLY (REAR) 10 2
24 31001041 SCREW Note: SCREW, BRACKET/BASE 10 6
25 21001893 BASE, WASHER 16 1
25 21001169 BASE 10 1
26 25-7845 SPEEDNUT Note: SPEEDNUT, MOTOR 10 2
27 35-3584 HOSE, TUB TO PUMP Note: HOSE, TUB 10 1
27 21001915 HOSE, TUB TO PUMP 16 1
28 35-3507 FOOT & PAD ASSY Note: FOOT & PAD ASSEMBLY (FRONT) 10 2
29 21001161 SNUBBER 10 1
30 21352320 BELT, DRIVE 10 1
- 35-2512 BELT SHIELD Note: SHIELD, BELT 10 1
31 25-7830 SPACER 10 2
32 25-6068 CLAMP, HOSE 10 2
33 35-2065 PAD, MOTOR PLATE 10 1
10
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: WIRING INFORMATION
15002615
Model: PAV2300AWW
11

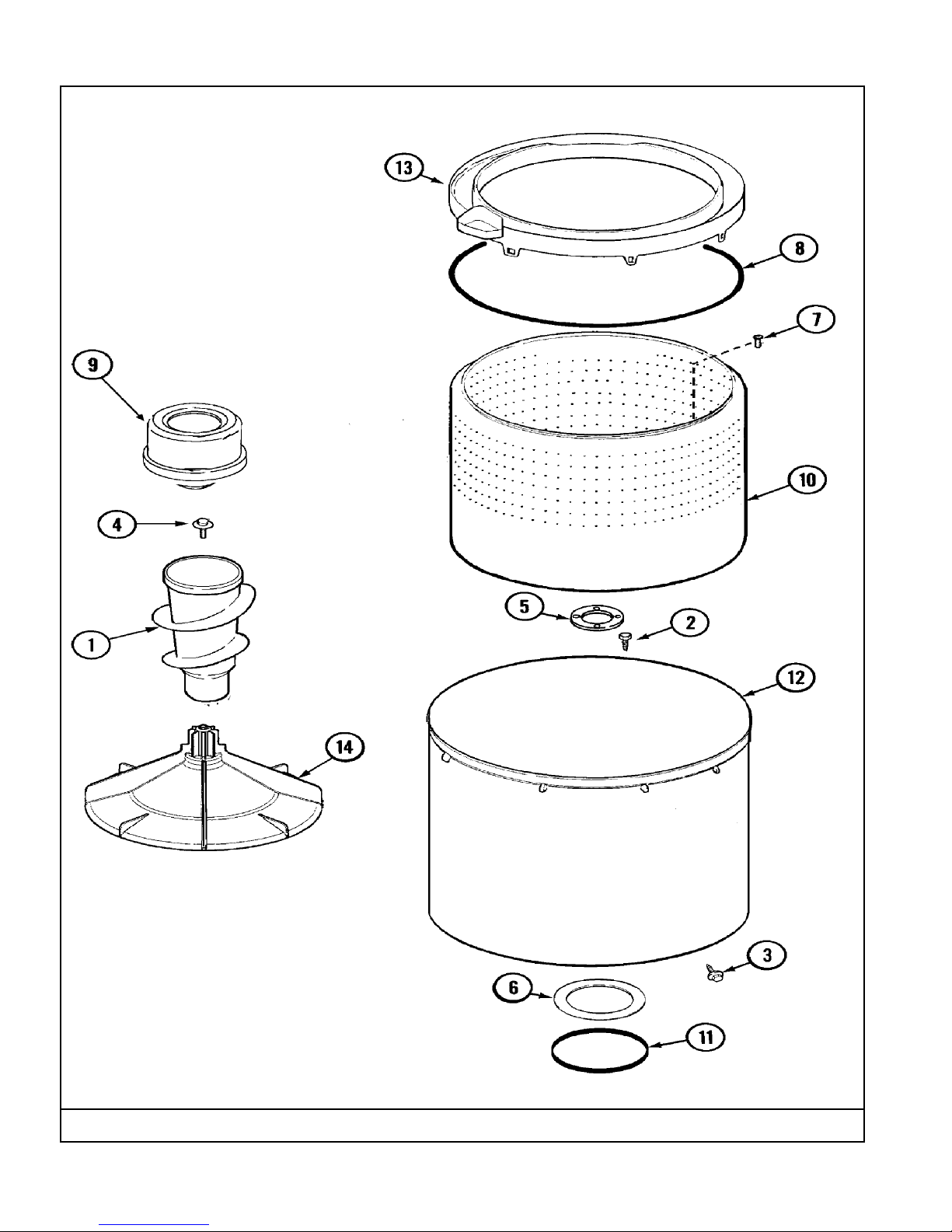

Section: TUB (PAV2300)
LW13-58
Model: PAV2300AWW
12

TUB (PAV2300)
No. Part No. Description
Section:
Series Qty
1 22003437 ASSY, AUGER & POST(ASPK-PRFP) 10 1
2 21001510 SCREW Note: SCREW, TUB 10 4
3 25-7953 SCREW Note: SCREW, TUB 10 6
4 25-7948 SCREW, AGITATOR RETENTION Note: BOLT, AGITATOR 10 1
5 35-3685 GASKET, BASKET TO CENTERPOST Note: GASKET, BASKET 10 1
6 35-3686 GASKET, TUB TO HOUSING Note: GASKET, TUB 10 1
7 25-7967 SCREW, SHOULDER Note: SCREW, BASKET 10 4
8 35-2328 SEAL, TUB TOP Note: SEAL, TUB TOP 10 1
9 21001905 DISPENSER, FABRIC (ONE PIECE) 10 1
10 21001529 BASKET ASSEMBLY (PLASTIC) 10 1
11 35-2978 SEAL, TUB/HOUSING 10 1
12 35-3700 TUB ASSEMBLY (PLASTIC) Note: TUB ASSEMBLY 10 1
13 21001531 TOP, TUB (PLASTIC) Note: TOP, TUB 10 1
14 21001530 BASE, AGITATOR 10 1
13
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

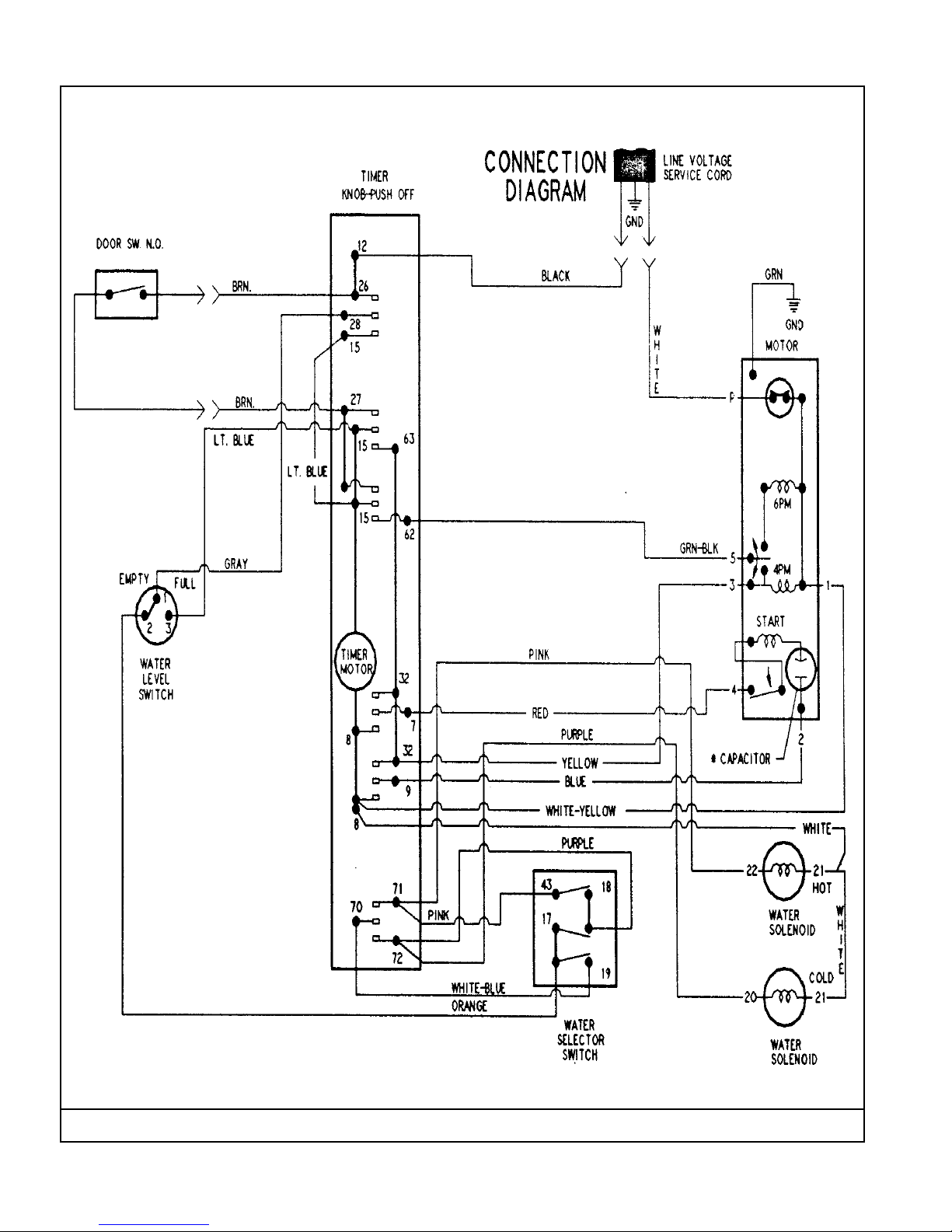

Section: WIRING INFORMATION PAV2300AWW SERIES 15
15003059
Model: PAV2300AWW
14

WIRING INFORMATION PAV2300AWW SERIE
No. Part No. Description
Section:
Series Qty
- N 15003059 WIRING INFORMATION 15 1
15
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

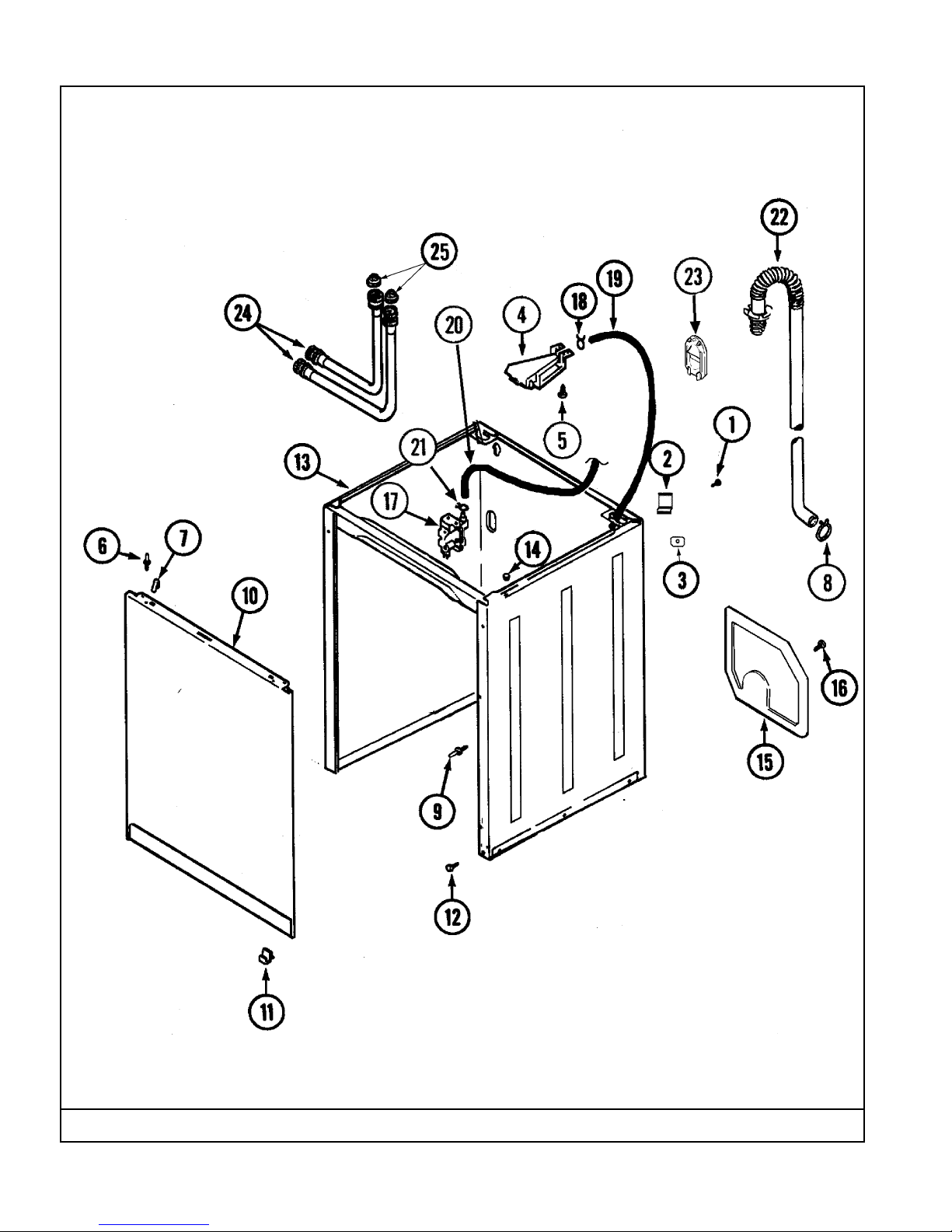

Section: CABINET (PAV2300AWW SERIES 16)
LW12-100
Model: PAV2300AWW
16

CABINET (PAV2300AWW SERIES 16)
No. Part No. Description
Section:
Series Qty
1 25-7893 SCREW 16 2
2 35-2846 HINGE, CABINET TOP 16 2
3 35-4128 PAD, HINGE 16 2
4 21001760 FLUME ASSEMBLY /WATER DIVERTER 16 1
5 25-3092 SCREW 16 2
- 53-0200 SLEEVE, LOCATOR PIN 16 2
- 25-0224 NUT, LOCATOR PIN 16 2
6 53-0643 PIN, LOCATOR 16 2
7 25-7220 CLIP, CABINET TOP 16 2
8 21001875 CLAMP, HOSE 16 1
9 21001829 POST, LOCATING 16 2
10 35-2084 PANEL, FRONT (WHT) 16 1
- 21001281 DAMPER, SOUND PAD 16 2
- 25-7732 SCREW 16 2
11 53-0120 CLIP, FRONT PANEL 16 2
12 35-4129 BUMPER, CABINET 16 2
13 21001871 CABINET (WHT) 16 1
14 33-2653 BUMPER, CABINET 16 6
15 21001876 SHIELD, REAR 16 1
16 25-7732 SCREW 16 2
17 21001747 VALVE, WATER 16 1
18 25-7867 CLAMP 16 2
19 35-2378 HOSE, FLUME/DIVERTER (RUBBER) 16 1
20 21001749 HOSE, PRESSURE SWITCH 16 1
21 25-7796 CLAMP, PRESSURE SWITCH HOSE 16 2
22 21001872 HOSE, DRAIN (W/BEND&STAY) 16 1
23 21001874 OUTLET, DRAIN HOSE 16 1
24 33-7891 HOSE, 4' INLET 16 1
24 35-0874 HOSE, INLET 16 1
25 33-4264N STRAINER & WASHER KIT 16 1
17
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: TRANSMISSION (SERIES 17)
LW15-43
Model: PAV2300AWW
18

TRANSMISSION (SERIES 17)
No. Part No. Description
Section:
Series Qty
1 25-7941 "O" RING 17 1
2 21001065 SCREW,#10-24X.50 HXNIBHD 17 6
3 12001797 KIT, PULLEY & DUST CAP 17 1
4 LA-2007 CAM REPLACEMENT KIT 17 1
5 21001533 SEAL NUT ASSEMBLY 17 1
6 35-2082 WASHER,1.25ODX.530IDX.062 17 1
6 35-2132 WASHER,1.25ODX.530IDX.032 17 1
7 21001868 SEAL HUB ASSEMBLY (HT TRAN) 17 1
8 25-7854 RING, RETAINING 17 1
9 21001867 HT TRANS/SEAL HUB ASSEMBLY 17 1
10 35-2018 STATOR, BRAKE 17 1
11 21001161 SNUBBER 17 1
- 35-2205 BEARING, SPIN 17 1
12 21001511 HOUSING/LWR.BEARING ASSY. 17 1
13 21001518 SUPPORT, TUB 17 1
14 21001532 BRACE, TUB 17 3
15 21001858 SCREW 5/16-18X1/2 17 6
16 21001163 HOUSING, SUSPENSION 17 1
17 35-2017 RETAINER, BRAKE SPRING 17 1
18 21001647 SPRING, BRAKE 17 1
19 25-7930 SCREW 5/16-18X3/4 17 6
20 21001509 SCREW,HIGH PERFORMANCE PLASTIC 17 3
21 35-2948 BRAKE ROTOR & LINING ASSY 17 1
22 12500036 THRUST BEARING KIT 17 1
23 35-2010 SEAL,TRANSMISSION HOUSING(LIP) 17 1
19
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
