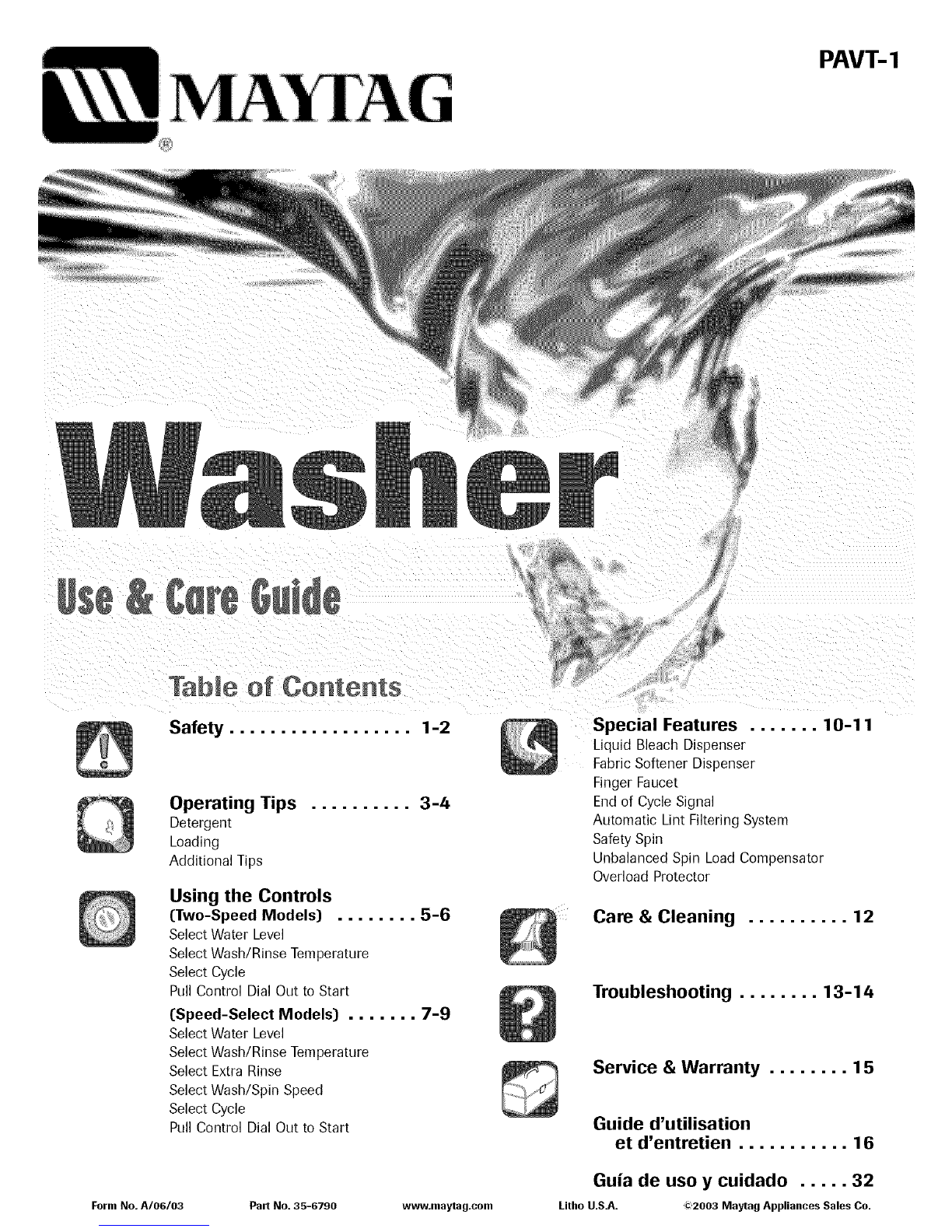

Maytag PAVS234AWW User manual

PAVT- 1
!
Safety .................. 1-2
Operating Tips
Detergent
Loading
Additional Tips
.......... 3-4
Using the Controls
(Two-Speed Models) ........ 5-6
Select Water Level
Select Wash/Rinse Temperature
Select Cycle
Pull Control Dial Out to Start
(Speed-Select Models) ....... 7-9
Select Water Level
Select Wash/Rinse Temperature
Select Extra Rinse
Select Wash/Spin Speed
Select Cycle
Pull Control Dial Out to Start
Form No. A/06/03 Part No. 35-6790 www.maytag.com
Special Features ....... 10-11
Liquid Bleach Dispenser
Fabric Softener Dispenser
Finger Faucet

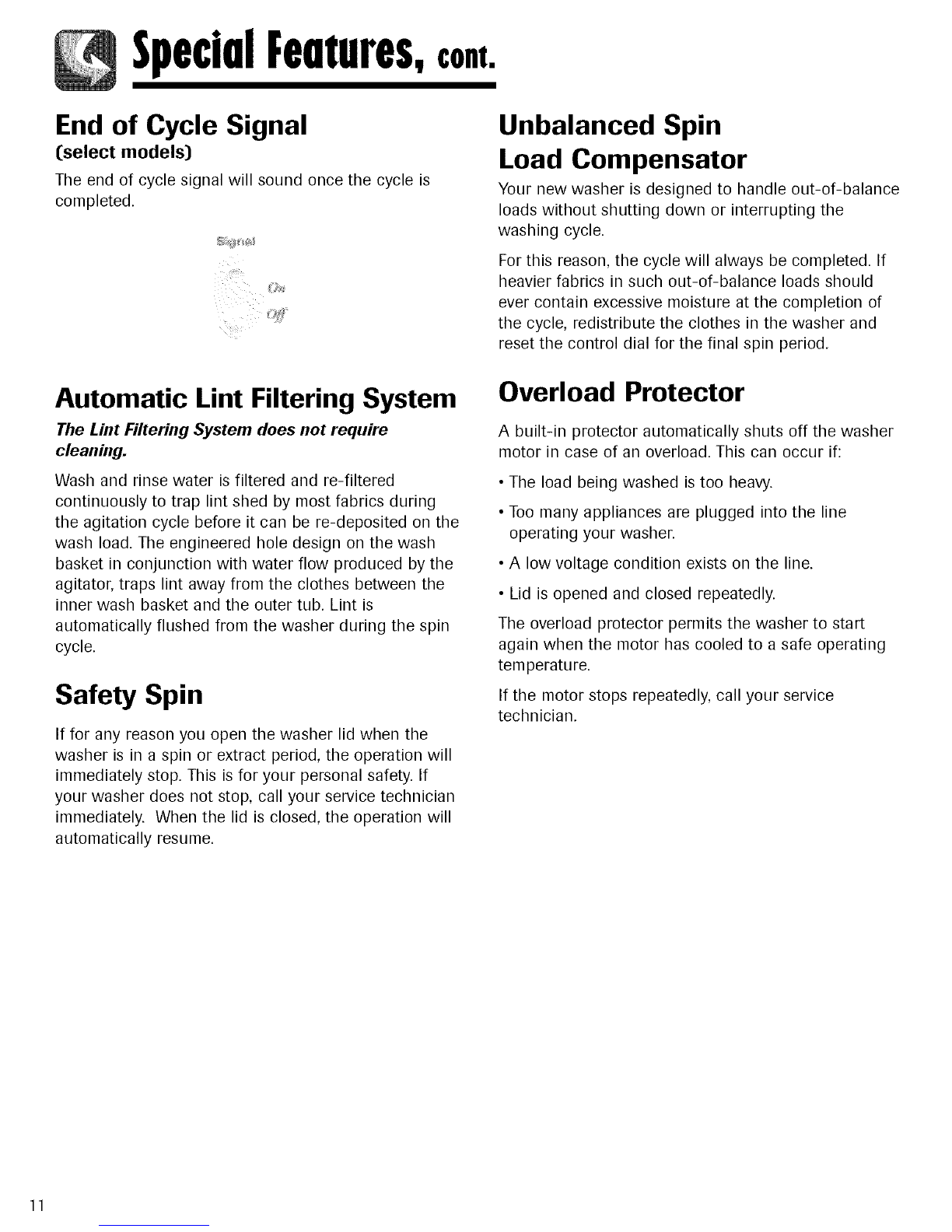

End of Cycle Signal
Automatic Lint Filtering System
Safety Spin
Unbalanced Spin Load Compensator
Overload Protector
Care & Cleaning .......... 12
Troubleshooting ........ 13-14
Service & Warranty ........ 15

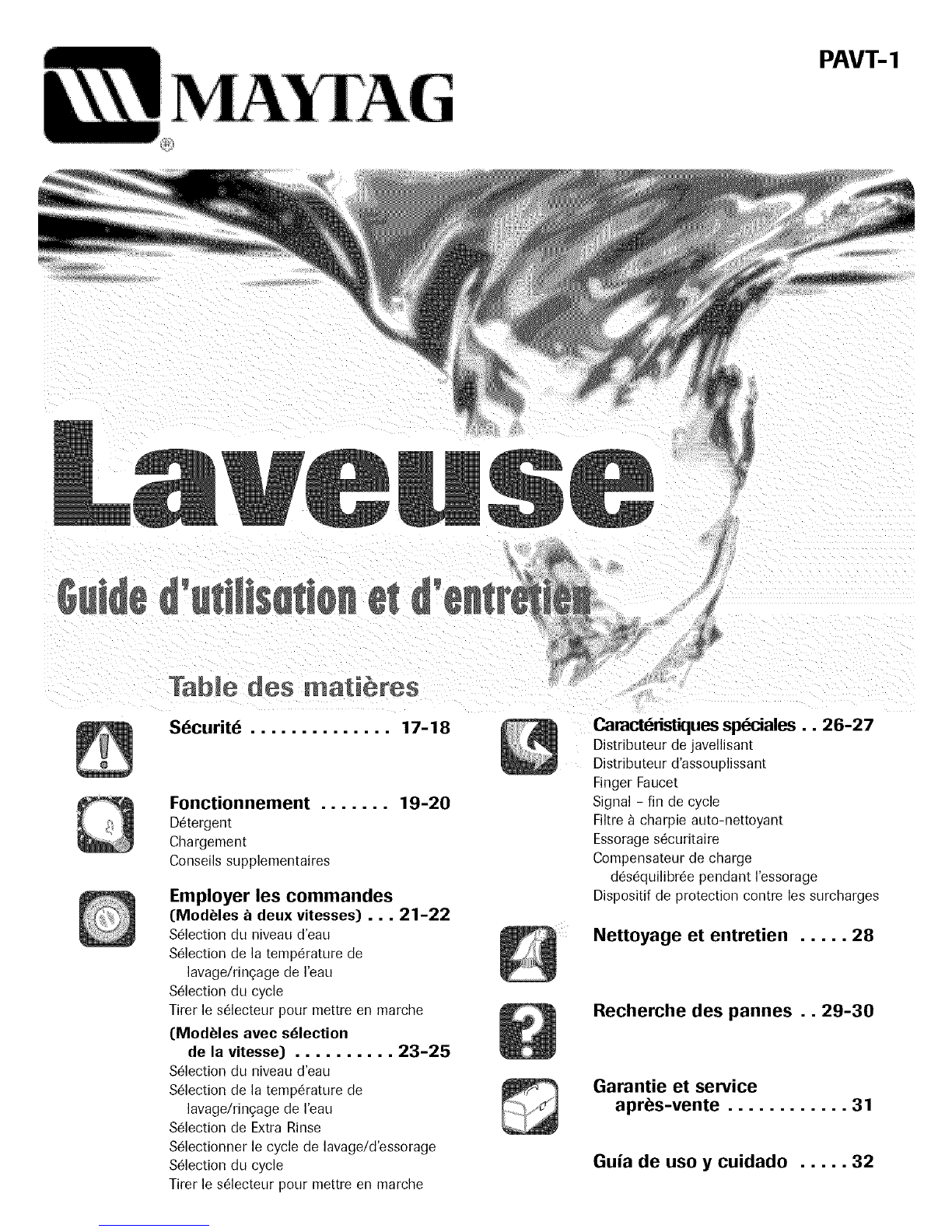

Guide d'utUisation
et d'entretien ........... 16
Guia de uso y cuidado ..... 32
Litho U.S.A. _2003 Maytag Appliances Sales Co.

5ofetv
What You Need to Know About
Safety Instructions
Warning and Important Safety Instructions appearing in
this manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining or operating appliance.
Always contact your dealer, distributor, service agent or
manufacturer about problems or conditions you do not
understand.
Recognize Safety Symbols, Words,
Labels

Sofetv
.
Read all instructions carefully before using the
washen Retain all instructions for future reference.
Properly install and locate in accordance with the
Installation Instructions.
Must be properly grounded-see Installation
Instructions.
Should anyone get an electric shock from the
washer, disconnect electrical power. Do not
operate until it has been repaired by a qualified
service technician.
Install or store where it will not be exposed to
temperatures below freezing or exposed to the
weather.
Connect to a properly rated, protected and sized
power supply circuiL See ElectMcal Requirements.
Connect to adequate plumbing and drain facilities.
Have a qualified service technician install your
washen
To prevent injury to children:
Do not allow children to play inside, on, or with the
washer.
Close supervision of children is necessary when
using the washer.
When children are mature enough, instruct them in
the safe, correct use of the washer.
Keep alllaundry aids out of the reach of children,
preferably in a locked cabineL Use laundry aids
only as directed by the manufacturer observing all
warnings on container labels.
.
.
6.
.
.
10.
11.
Destroy the carton and plastic bags after
unpacking the washer. Cartons covered with rugs,
bedspreads, or plastic sheet can create a chamber
with inadequate ventilation.
Remove the door to the washing compartment
before the washer is removed from service or
discarded.
Do not reach into the washer if the tub or agitator
is moving. The washer is equipped with a safety
switch for your protection. If action does not stop
when the washer lid is opened during the spin
cycle, disconnect the electrical power to the
washer. Do not operate the washer until it has
been repaired by a qualified technician.
Do not tamper with the operating controls.
To prevent personal injury and damage to the
washer, do not repair or replace any part of the
washer or attempt any servicing. Servicing should
be referred to a qualified service technician.
Do not wash fiberglass articles unless
recommended by manufacturer.
Flame resistant finishes - improper laundering
could remove them. Follow garment manufacturer's
instructions carefully.
When moving, have the washer checked and
properly installed by a qualified technician.
Inlet hoses are subject to damage and deterioration
over time. Check the hoses periodically for bulges,
kinks, cuts, wear or leaks and replace them every
five years.
Do not allow pets to be inside, on, or in front of the
washer.
SAVE THESE iNSTRUCTiONS

OperatingTips
Detergent
•Use either liquid or granular laundry detergent. For
best results, be sure detergent is added to the
washer BEFORE the load and be sure the wash
water is above 65 ° F.
• Use the correct amount of detergent for the load size,
soil level and water conditions. Use more detergent if
you have hard water and very soiled loads.
If you have soft water or a lightly soiled load, use less
detergent. (See manufacturer's instructions.)
• Wipe up any detergent spills on the washer.
Loading
• Put dry, unfolded clothes loosely in the tub, up to the
top row of holes for a maximum load.
• Do not wrap large items like sheets around the agitator.
• Mix large and small items for best circulation. Wash
bulky items like blankets separately.
• When laundering wrinkle free items or items of
delicate construction, washable woolens or loosely
knit items, never use less than the MEDIUM water
level setting. This will minimize shrinkage, wrinkling
and pulling of seams.
• For best results add the detergent to the washtub
before adding the load.
• Close lid carefully to avoid slamming.

OperatingTips
Additional tips
•During the spin, it is possible for the load to become
unevenly distributed in the tub. If this happens, push
in the control knob, open the lid, redistribute the
load, close the lid and pull out the control knob. The
spin will resume at the point it was interrupted.
• The washer will pause briefly throughout each cycle.
These pauses are normal.
• This washer is designed so that it will not spin when
the lid is open. It will, however, fill and agitate with
the lid open so water is available for pretreating
stains or diluting fabric softener.
• If you open the lid during a spin cycle, the washer
will stop. When the lid is closed and the control dial
pulled out, the washer will continue the cycle at the
point it was interrupted.

UsingtheControls- Two-SpeedModels
i¸_
_,i !i!,iii!_li7 ,S_ .....
, q" @ii!!!i}il
M_ ;_iiii!Fi}ili_ii/iii_,¸¸¸ iii, @iiii!iii[@i
niiiii!iliiii ii,
W_ sh R_ _se _T%mp
Select Water Level
Determine the selected setting based on clothes load
size. Selection should provide sufficient water to permit
clothes to circulate freely during agitation.
It may become necessary, due to bulky fabrics, to
adjust the water level after agitation begins. To adjust
the water level, turn the control to reset and then back
to the desired setting.
Mini 1/4 Full
Medium 1/4 - 1/2 Full
Large 1/2 - 3/4 Full
Oversize 3/4- Full
JNote
•Items must circulate freely for best results.
Select Wash/Rinse Temperature
Your washer gives you a choice of hot, warm or cold
water for washing and cold or warm water for rinsing.
Use the chart below as a guide.
White and heavily soiled, color-fast
Hot/Cold items
Warm/Warm Delicate items
Warm/Cold Moderately soiled, colored items;
most permanent press items
Cold/Cold Brightly colored, lightly soiled
items; washable woolens
Note
•In wash water temperatures below 65°F,
detergents do not dissolve well or clean well. Care
labels define cold water as up to 85° F.

Control features vary by model.
Select Cycle
To select a cycle, push the control dial IN (off position)
and turn it to the right (clockwise) until the pointer is
at the soil level needed for the wash load in the
Regular, Wrinkle Free Fabrics or Delicates cycles.
Regular Fabrics Cycle
Provides normal agitation and normal spin speeds to
wash cottons and heavily soiled items. For maximum
cleaning, set the dial at Extra Heavy.
Wrinkle Free Fabrics Cycle
Provides normal agitation and slow spin speed to
protect wrinkle free fabrics.
Delicates Cycle
Provides slow agitation speed and slow spin speed for
delicates and knits.
Pul Control Dial Out to Start
You may stop the washer at any time by simply
pushing the control dial IN. Therefore it is possible to
obtain a non-agitated soak or to shorten, skip or
repeat any part of a cycle. The control dial must be
pushed IN (off position) when you change the setting.
Note
• Do not attempt to turn the control dial
counterclockwise. Damage to the timer will result.

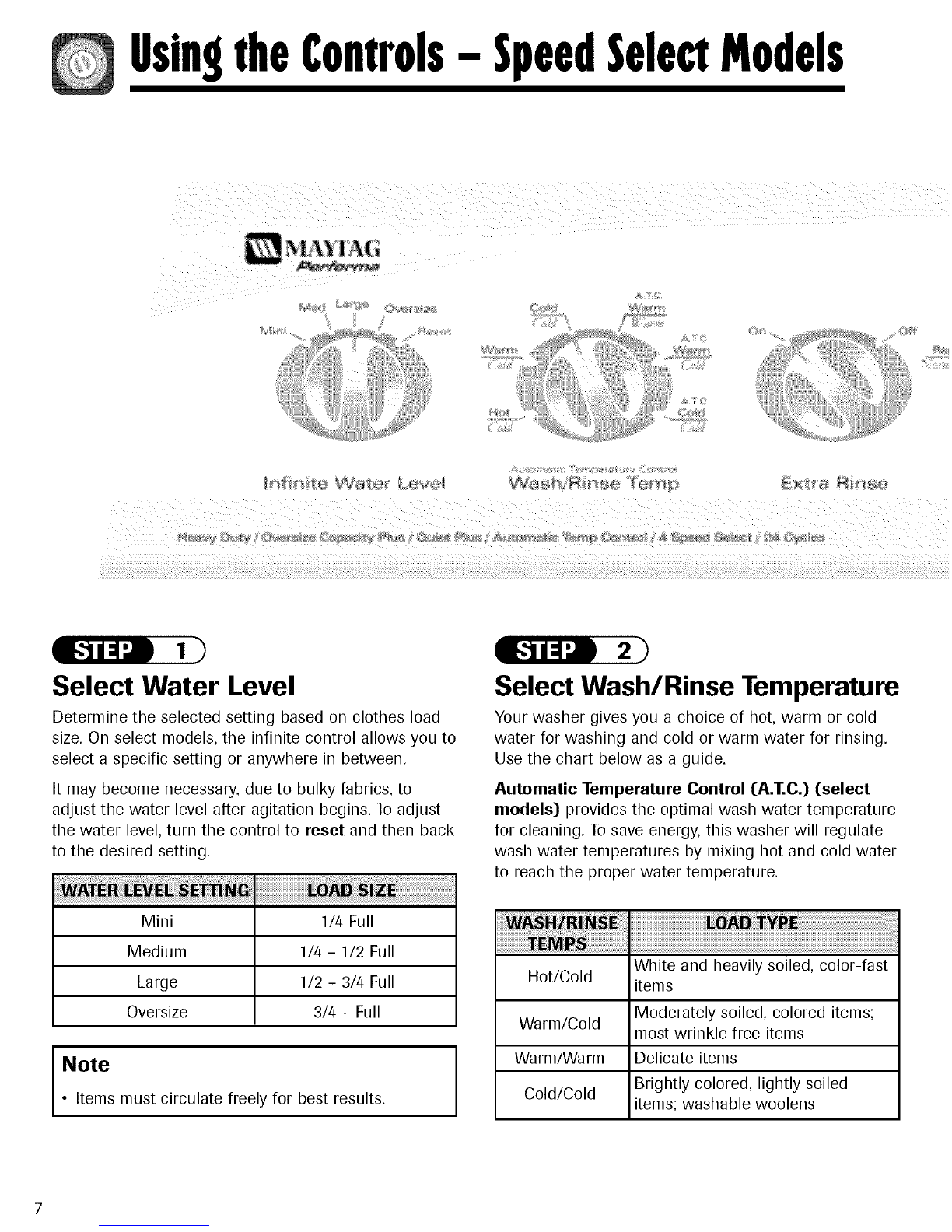

UsingtheControls- SpeedSelectModels
/._ _ {j_ _ :_,@ _:,__ _
I '_ffm l:e _2at÷_ Lev®t _¢Vas h!R _sse Tern p
i/¸ :L¸¸¸¸¸{I//?i//i{i ¸¸¸¸Li¸:¸¸: /ii/i{i ¸¸¸¸¸¸//i{i¸¸¸¸/{I¸/{i//¸¸¸¸¸¸¸¸:¸¸¸¸¸¸ /// {?/¸¸¸¸: i/¸¸Li'?i:i ¸¸i/i ¸¸:¸?i//i{i ¸¸¸¸L/i ¸¸:¸?i//i{i ¸¸¸¸¸¸//i{i¸¸¸¸/{I¸/{ ¸¸¸¸¸¸¸¸s?: yi/{i// :
:i!! i!i!i¸ !iil!!!i¸_i!! i¸¸!i!! i¸¸!iil!! iii! !i_i!! i¸¸!i!! i¸!! i¸¸!i!! i¸!i!¸! i¸¸!i!! i¸!iif!! i¸ii! iif!! i¸!! i¸!iif!! i¸!i¸i!! i¸!i:: ii i !iil!!!i¸_i!! i¸¸!i!! i¸!i!¸i¸¸ !i¸¸il!!!i¸_i!! i¸¸!i!! i¸!! i¸¸!i!! i¸!i!¸! i¸¸!i!!!i¸_i!i¸¸ !i¸if!! i¸!i!! i!i!! i¸!iif!! i¸ii!
Select Water Level
Determine the selected setting based on clothes load
size. On select models, the infinite control allows you to
select a specific setting or anywhere in between.
It may become necessary, due to bulky fabrics, to
adjust the water level after agitation begins. To adjust
the water level, turn the control to reset and then back
to the desired setting.
Mini 1//4 Full
Medium 1//4 - 1/2 Full
Large 1/2 - 3//4 Full
Oversize 3//4- Full
I Note
• Items must circulate freely for best results.
Select Wash/Rinse Temperature
Your washer gives you a choice of hot, warm or cold
water for washing and cold or warm water for rinsing.
Use the chart below as a guide.
Automatic Temperature Control (A.T.C.) [select
models[} provides the optimal wash water temperature
for cleaning. To save energy, this washer will regulate
wash water temperatures by mixing hot and cold water
to reach the proper water temperature.
Hot/Cold White and heavily soiled, color-fast
items
Warm/Cold Moderately soiled, colored items;
most wrinkle free items
Warm/Warm Delicate items
Cold/Cold Brightly colored, lightly soiled
items; washable woolens

Control features vary by model.
These settings feature Automatic Temperature Control:
A.T.C.Warm/Warm Assures warm water wash
temperature of 95° E Provides
A.T.C.Warm/Cold optimum cleaning results
A.T.C. Cold/Cold Assures cold water wash
temperature of 75° Fto properly
activate detergent
Note
• In wash water temperatures below 65° F,
detergents do not dissolve well or clean well. Care
labels define cold water as up to 85° F.
Select Extra Rinse (if desired)
(select models)
When the knob is in the "On" position, an additional
rinse at the end of the Regular and Wrinkle Free
Fabrics cycles is provided to more completely remove
laundry additives, suds, perfumes, etc.
Select Wash/Spi# Speed
Your washer has selectaNe wash and spin speed
combinations.
Sturdy fabrics needing maximum
Regular water extraction like jeans, towels
Normal/Fast and bedding
Wrinkle Free Sturdy fabrics needing a slower spin
Normal/Slow speed to reduce wrinkling, such as
dress shirts and dress pants
Delicate fabrics needing slower spin
Delicate
Gentle/Slow speed because of clothing
construction
Hand Wash Intermittent slow agitation and soak
Ex. Gentle/Slow to gently wash the most delicate
(selectmodels) items
cont.

UsingtheControls- SpeedSelectModels

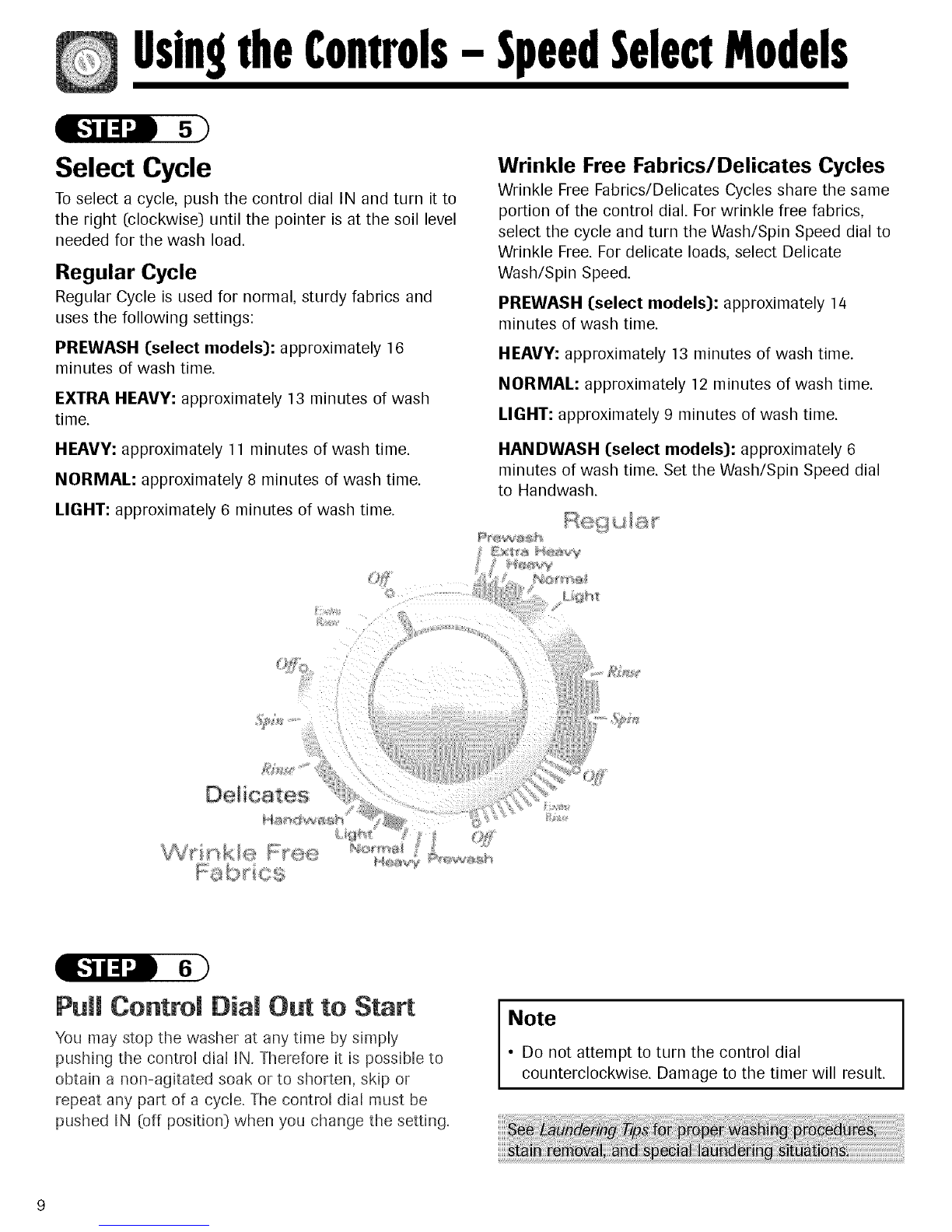

Select Cycle
To select a cycle, push the control dial IN and turn it to
the right (clockwise) until the pointer is at the soil level
needed for the wash load.
Regular Cycle
Regular Cycle is used for normal, sturdy fabrics and
uses the following settings:
PREWASH [select models): approximately 16
minutes of wash time.
EXTRA HEAVY: approximately 13 minutes of wash
time.
HEAVY: approximately 11 minutes of wash time.
NORMAL: approximately 8 minutes of wash time.
LIGHT: approximately 6 minutes of wash time.
Wrinkle Free Fabrics/Delicates Cycles
Wrinkle Free Fabrics/Delicates Cycles share the same
portion of the control dial. For wrinkle free fabrics,
select the cycle and turn the Wash/Spin Speed dial to
Wrinkle Free. For delicate loads, select Delicate
Wash/Spin Speed.
PREWASH [select models): approximately 14
minutes of wash time.
HEAVY: approximately 13 minutes of wash time.
NORMAL: approximately 12 minutes of wash time.
LIGHT: approximately 9 minutes of wash time.
HANDWASH [select models): approximately 6
minutes of wash time. Set the Wash/Spin Speed dial
to Handwash.
Pull ControJ Dial Out to Start
You may stop the washer at any time by simply
pushing the control dial IN. Therefore it is possible to
obtain a non-agitated soak or to shorten, skip or
repeat any part of a cycle. The control dial must be
pushed IN (off position} when you change the setting.
Note
• Do not attempt to turn the control dial
counterclockwise. Damage to the timer will result.

SpecialFeatures
Liquid Bleach Dispenser
The dispenser automatically dilutes liquid chlorine
bleach before it reaches your wash load. To use, follow
these steps:
1. Measure liquid chlorine bleach carefully, following
the instructions on the bottle.
2. Add the bleach to the dispenser before adding the
load. Avoid splashing or over-filling the dispenser.
Note
• Never pour undiluted liquid chlorine bleach
directly onto the load or into the wash tub. It is a
powerful chemical and can cause fabric damage,
such as tearing or color loss, if not used properly.
• If you prefer to use color-safe, non-chlorine
bleach, pour it into the wash tub with your
detergent. Do not pour non-chlorine bleaches into
the bleach dispenser.
/:........... * *h' ...............
Pour liquid chlorine bleach into
bleach dispenser.
Fabric Softener Dispenser
The dispenser automatically releases liquid fabric
softener at the proper time during the cycle. To use,
follow these steps:
1. Pour a measured amount of fabric softener into
the dispenser to fill line only.
2. If fabric softener comes below line, add warm
water.
If it is necessary to clean the dispenser:
.
2.
Pull the dispenser off of the top of the agitator.
Soak for one hour in sink or container in hot water
and dishwashing liquid.
Hold hands over top and bottom of dispenser and
shake to loosen buildup.
/4. Rinse with clean, hot water. _.,, "..
5. Repeat process if necessary. ' /
6. Replace dispenser on agitator. _ _t _."
Do not use dishwashing liquid ,_:# _j"
inside the washer. Oversudsing ;_r ....
can occur.
Finger Faucet
(select models)
Provides a flow of water when holding the switch in
the "On" position.
10

SpecialFeatures,cont.
End of Cycle Signal
[select models)
The end of cycle signal will sound once the cycle is
completed.
Unbalanced Spin
Load Compensator
Your new washer is designed to handle out-of-balance
loads without shutting down or interrupting the
washing cycle.
For this reason, the cycle will always be completed. If
heavier fabrics in such out-of-balance loads should
ever contain excessive moisture at the completion of
the cycle, redistribute the clothes in the washer and
reset the control dial for the final spin period.
Automatic Lint Filtering System
The Lint Filtering System does not require
cleaning.
Wash and rinse water is filtered and re-filtered
continuously to trap lint shed by most fabrics during
the agitation cycle before it can be re-deposited on the
wash load. The engineered hole design on the wash
basket in conjunction with water flow produced by the
agitator, traps lint away from the clothes between the
inner wash basket and the outer tub. Lint is
automatically flushed from the washer during the spin
cycle.
Safety Spin
If for any reason you open the washer lid when the
washer is in a spin or extract period, the operation will
immediately stop. This is for your personal safety. If
your washer does not stop, call your service technician
immediately. When the lid is closed, the operation will
automatically resume.
Overload Protector
A built-in protector automatically shuts off the washer
motor in case of an overload. This can occur if:
• The load being washed is too heavy.
• Too many appliances are plugged into the line
operating your washer.
• A low voltage condition exists on the line.
• Lid is opened and closed repeatedly.
The overload protector permits the washer to start
again when the motor has cooled to a safe operating
tern peratu re.
If the motor stops repeatedly, call your service
technician.
11

Care& Cleanin9
.
.
After washing, leave the lid open until the interior
is dry.
Check hoses to be sure there are no kinks or
knots.
Your washer should not be installed where
temperatures will go below freezing, as damage to
the washer could result.
To clean, occasionally wipe exterior with a clean
damp sponge or cloth. Do not use polish on plastic
parts.
Lifetime lubrication is done at the factory, so your
washer never needs to be oiled or greased.
Do not lay heavy or sharp objects on top of your
washer.
.
10.
11.
The top of the washer should not be used for
removing stains from garments. Some stain
removers, such as rust remover, will mar the finish.
Remove pins, buckles or other sharp objects from
clothes to prevent scratching interior parts.
Clothes should not be stored in washer.
Bleach, detergent, solvents, etc. spilled on the top
of your washer that are allowed to remain will
remove the glossy finish. Remove all spills with a
damp, soft cloth.
If you close your home for the winter, have a
service technician drain the washer. Unplug cord
from electrical outlet and disconnect hoses from
faucets.
Cleaning the Interior
The interior of the washer should be cleaned
periodically to remove dirt, soil, odor or bacteria
residue that may remain in the washer as a result of
washing clothes. We recommend taking the following
steps every 60 to 120 days to clean and freshen your
washer interior. The frequency with which the washer
should be cleaned and freshened depends on factors
such as usage, the amount of dirt, soil or bacteria being
run through your washer, or the use of cold water.
To clean and freshen the washer interior:
1. Add a measured amount of chlorine bleach to the
bleach dispenser, following package directions.
2. Add 1//4 cup of detergent to the tub.
3. Run the washer through a complete cycle using
hot water.
/4. Repeat the process if necessary.
12

Troubleshootin j
Won't Fill
Won't Agitate
Won't Spin or Drain
Load is Wet
Stops
Leaks Water
Is Noisy
Plug cord into live electrical outlet.
Check fuse or reset circuit breaker.
Turn the control knob to proper cycle and pull knob out to start the washer.
Turn both faucets on fully.
Straighten inlet hoses.
Disconnect hoses and clean screens. Hose filter screens may be plugged.
Check fuse or reset circuit breaker.
Make sure the lid is completely closed.
Turn the control knob to proper cycle and pull knob out to start the washer.
Close lid and pull knob out to start the washer.
Pauses are normal. Wait and see if the washer will start again.
Check fuse or reset circuit breaker.
Straighten drain hoses. Eliminate kinked hoses. If there is a home drain restriction,
call for drain service.
Close lid and pull knob out to start the washer. For your safety, washer will not spin
unless the lid is closed.
Suds lock - caused by too much suds. Rewash without detergent. Use correct
amount of a low-sudsing detergent.
Unevenly distributed load. Redistribute the load, close the lid and pull knob out.
Check for leveling. Be sure water level is acceptable for load size.
A normal spin speed is recommended for heavy loads like jeans or towels.
Plug cord into live electrical outlet.
Check fuse or reset circuit breaker.
Turn the control knob to proper cycle and pull knob out to start the washer.
Close lid and pull knob out to start the washer. For your safety, washer will not spin
unless lid is closed.
This may be a pause in the cycle. Wait briefly and it may start.
Make sure hose connections are tight.
Make sure end of drain hose is correctly inserted and secured to drain facility.
Avoid extended soaking - soak for 30 minutes or less.
Avoid overloading.
Be sure washer is leveled properly as outlined in installation manual.
Weak floors can cause vibration and walking.
Operating sounds will vary depending on agitation speed.
13

Troubleshooting
Fills with the Wrong
Temperature Water
Cycle Selector
Advances Through Off
•Turn both faucets on fully.
• If equipped with a temperature selector knob, be sure it is set directly on a
temperature setting and not between settings.
• Make sure temperature selection is correct.
• If Auto Temperature Control (select models) is selected, cold water may feel warmer
than cold water from the tap. (See page 7-8).
• Make sure hoses are connected to correct faucets and inlet connections. Be sure
water supply is regulated correctly. Flush water line before filling washer.
• Check the water heater. It should be set to deliver a minimum 120° F (49° C) hot
water at the tap. Also check water heater capacity and recovery rate.
• Disconnect hoses and clean screens. Hose filter screens may be plugged.
• Extra Rinse (select models) is selected.
14

Service&Narrant¥
What
1.
2,
3.
4.
is Not Covered By These Warranties:
Conditions and damages resulting from any of the
following:
a. Improper installation, delivery or maintenance.
b. Any repair, modification, alteration, or adjustment not
authorized by the manufacturer or an authorized
servicer.
c. Misuse, abuse, accidents or unreasonable use.
d. Incorrect electric current, voltage or supply.
e. Improper setting of any control.
Warranties are void if the original serial numbers have
been removed, altered or cannot be readily determined.
Products purchased for commercial or industrial use.
The cost of service or service call to:
a. Correct installation errors.
b. Instruct the user on the proper use of the product.
c. Transport the appliance to the servicer.
Consequential or incidental damages sustained by any
person as a result of any breach of these warranties.
Some states do not allow the exclusion or limitation of
consequential or incidental damages, so the above
exclusion may not apply.
To Obtain Warranty Service
To locate an authorized service company in your area,
contact the dealer from whom your appliance was
purchased; or call Maytag ServicessM,Maytag Customer
Assistance. Should you not receive satisfactory warranty
service, please call or write:
Maytag ServicessM
Attn: CAIR:_:Center
RO. Box 2370
Cleveland, TN 37320-2370
U.S.A. 1-800-688-9900
Canada 1-800-688-2002
U.S. Customers using TTY for deaf, hearing
impaired or speech impaired, call 1-800-688-2080.
Note
•When contacting Maytag ServicessM,Maytag Customer
Assistance about a service problem, please include the
following:
a. Your name, address and telephone number;
b. Model number and serial number (found on the
back center of the control panel) of your
appliance;
c. Name and address of your dealer and the date the
appliance was purchased;
d. A clear description of the problem you are having;
e. Proof of purchase.
Use & Care Guides, service manuals and parts catalogs are available from Maytag ServicessM,Maytag Customer Assistance.
MAYTAG • b,03 W. 4th Street N. • P.O. Box 39 • Newton, Iowa 50208
15

PAVT- 1
S_curit_ .............. 17-18
Fonctionnement .......
D6tergent
Chargement
Conseils supplementaires
19-20
Employer les commandes
(Modbles/I deux vitesses) ... 21-22
Selection du niveau d'eau
Selection de la temperature de
lavage/ringage de I'eau
Selection du cycle
Tirer le selecteur pour mettre en marche
(ModUles avec s_lection
de la vitesse) .......... 23-25
Selection du niveau d'eau
Selection de la temperature de
lavage/rin£;age de I'eau
Selection de Extra Rinse
Selectionner le cycle de lavage/d'essorage
Selection du cycle
Tirer le selecteur pour mettre en marche
Camct6dstiques sp_ciales.. 26-27
Distributeur de javellisant
Distributeur d'assouplissant
Finger Faucet
Signal - fin de cycle
Filtre a charpie auto-nettoyant
Essorage securitaire
Compensateur de charge
desequilibree pendant I'essorage
Dispositif de protection contre les surcharges
Nettoyage et entretien ..... 28
Recherche des pannes ..29-30
Garantie et service
aprbs-vente ............ 31
Guia de uso y cuidado ..... 32

Securit6
Ce qu'il faut savoir h propos
des consignes de s_curitd
Les consignes de s6curit8 et les mises en garde pr6sentSes
dans ce manuel ne couvrent pas toutes les situations
possibles. Faire preuve de jugement, de prudence et
d'attention Iors de rinstallation, de rentretien et de
rutilisation du propri_taire.
Lorsque survient un probl6me ou une situation inhabituelle,
toujours communiquer avec le d6taillant, le distributeur, le
technicien agr66 ou le fabricant.
Reconnaissez les _tiquettes, phrases
ou symboles sur la securite
17

Securit6
Lire attentivement toutes les instructions avant d'utiliser
la machine. Conserver les instructions pour rd6rence
ult6rieure.
Bien installer conform6ment aux instructions
d'installation.
Mettre _ la terre de fa£;onad6quate - voir les
instructions d'installation.
En cas d'61ectrocution, couper le courant. Ne pas faire
fonctionner tant qu'un technicien qualifi6 ne I'a pas
r@ar6.
Ne pas installer ou entreposer dans un endroit or) elle
est expos6e aux intemp6ries et Iorsque la temp6rature
est inf6rieure au point de cong61ation.
Raccorder _ un circuit d'alimentation dont la puissance
nominale, la protection et le calibre sont ad6quats. Voir
la section <<Normes 61ectriques >>.
Raccorder _ une canalisation sanitaire et une tuyauterie
ad6quates.
Faire appel _ un technicien qualifi6 pour I'installation de
la machine _ laver.
3. Pour 6viter les blessures aux enfants :
Ne pas laisser les enfants jouer sur,dans ou avec la
machine.
Une surveillance constante est n6cessaire quand la
machine est utilis6e en pr6sence d'enfants.
Lorsque les enfants sont assez matures, leur expliquer la
m6thode correcte et s6curitaire d'utilisation de la
machine _ laver.
Garder tousles produits pour la lessive hors de portee
des enfants, preferablement dans une armoire
verrouillee. Suivre toutes les mises en garde du
fabricant sur les etiquettes des produits pour la lessive.
5,
6.
Z
8.
9,
10.
11.
Detruire I'emballage en carton et les sacs en plastique
apres avoir deballe la machine _ laver. Les emballages
recouverts de tapis, de dessus de lit ou de plastique
peuvent creer une source de ventilation inadequate.
Retirer la porte du compartiment de la machine _ laver
avant de la mettre hors service ou de la faire r@arer.
Ne pas mettre la main ou le bras dans la machine si la
cuve ou I'agitateur est en mouvement. La machine est
equipee d'un commutateur de st_retepour votre
protection. Si la machine est toujours en marche Iorsque
le couvercle est ouvert durant le cycle d'essorage,
couper le courant. Ne pas faire fonctionner la machine
avant qu'elle n'ait ete r@aree par un technicien qualifie.
Ne pas modifier les mecanismes de commande.
Pour eviter les risques de blessures ou de dommages
la machine, ne pas r@arer ou remplacer une piece de la
machine ou proceder _ un d@annage. Les reparations
doivent etre effectuees par un technicien qualifie.
Ne pas laver d'articles en fibre de verre saul si le
fabricant le recommande.
Tissus _ I'@reuve du feu - un nettoyage inadequat peut
faire disparaitre la substance protectrice. Suivre les
instructions du fabricant du vetement.
Lors d'un demenagement, faire inspecter et installer
correctement la machine par un technicien qualifie.
Les tuyaux d'alimentation se deteriorent
progressivement. Inspecter les tuyaux _ intervalle
regulier; rechercher dilatations, ecrasements, coupures,
fuites et indices d'usure. Remplacer les tuyaux apres 5
ans de service.
Ne pas permettre aux animaux familiers de se tenir sur
I'appareil _ I'interieur ou en face de celui-ci.
CONSERVER CES iNSTRUCTiONS
18

Fonctionnement
Ddtergent
•Utiliser du d6tergent liquide ou en poudre. Pour des
r_sultats optimums, ajouter suffisamment de
d_tergent dans la machine AVANT de la remplir et
r_gler la temperature de I'eau _plus de 18° C (65 ° F).
•Utiliser la quantit6 de d6tergent qui convient _ la charge,
au degr6 de salet6 et _ la duret6 de I'eau. Utiliser plus de
d6tergent si I'eau est dure et que la charge est tr6s sale.
Si I'eau est douce ou que la charge est peu sale, utiliser
moins de d6tergent. (Voir les instructions du fabricant.)
Essuyer la machine si elle se trouve 6clabouss6e de
d6tergent.
Chargement
•Mettre le linge sec, non pli6 sans le tasser dans la
machine, en remplissant le panier jusqu'au rang sup6rieur
de trous pour une charge maximum.
Ne pas enrouler de grands articles tels que des draps
autour de I'agitateur.
Pour une meilleure circulation, m61anger les petits et les
grands articles. Laver les articles volumineux comme les
couvertures s@ar6ment.
Lors du lavage d'articles infroissables, fragiles, de lainages
lavables ou d'articles en tricot _ mailles I_ches, ne jamais
utiliser un niveau d'eau inf6rieur au r6glage MEDIUM
(moyen). IIs auront moins tendance _ r6tr6cir, _ se froisser
et les coutures tiendront mieux.
Pour des r6sultats optimums, mettre du d6tergent dans la
cuve avant d'ajouter le linge.
Refermer soigneusement le couvercle pour qu'il ne
claque pas.
19
