Mazda 2002 Tribute User manual

Introduction 4
Congratulations 4
Safety and environment protection 5
Symbol glossary 8
Instrument Cluster 14
Warning and control lights 14
Gauges 20
Entertainment Systems 23
AM/FM stereo with CD 23
AM/FM stereo cassette with 6-disc CD changer 42
Climate Controls 69
Manual heating and air conditioning 69
Lights 73
Headlamps 73
Bulb replacement 77
Driver Controls 82
Steering wheel adjustment 85
Power windows 88
Locks and Security 98
Keys 98
Locks 98
Anti-theft system 99
Table of Contents
1

Seating and Safety Restraints 109
Seating 109
Safety restraints 120
Air bags 131
Child restraints 140
Driving 150
Starting 150
Brakes 155
Transmission operation 159
Vehicle loading 178
Trailer towing 180
Recreational towing 185
Roadside Emergencies 186
Hazard flasher switch 188
Fuses and relays 189
Jump starting 202
Wrecker towing 207
Customer Assistance 209
Reporting safety defects (U.S. only) 219
Cleaning 220
Repairing paint chips 221
Underbody preservation 224
Table of Contents
2

Maintenance and Specifications 225
Hood 231
Engine compartment 233
Engine oil 235
Battery 239
Fuel information 246
Air filter(s) 261
Refill capacities 267
Engine data 269
Vehicle dimensions 269
Accessories 272
Cellular phone warning 272
Index 273
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Mazda Motor Corporation. Mazda may change the contents
without notice and without incurring obligation.
Copyright © 2001 Mazda Motor Corporation
Table of Contents
3

The following warning may be required by California law:
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or
other reproductive harm. In addition, certain fluids contained in
vehicles and certain products of component wear contain or
emit chemicals known to the State of California to cause cancer
and birth defects or other reproductive harm.
CONGRATULATIONS
Congratulations on acquiring your new Mazda Motor Corporation
product. Please take the time to get well acquainted with your vehicle by
reading this handbook. The more you know and understand about your
vehicle the greater the safety and pleasure you will derive from driving
it.
For more information on Mazda Motor Corporation and its products visit
the following website:
In the United States: www.mazdausa.com
In Canada: www.mazda.ca
Additional owner information is given in separate publications.
Introduction
4

WARNING: This Owner’s Guide describes every option and
model variant available and therefore some of the items
covered may not apply to your particular vehicle. Furthermore,
due to printing cycles it may describe options before they are
generally available.
WARNING: Remember to pass on the Owner’s Guide when
reselling the vehicle. It is an integral part of the vehicle.
WARNING: In the event of an accident the Fuel pump shut-off
switch will automatically cut off the fuel supply to the engine.
The switch can also be activated through sudden vibration (e.g.
collision when parking). To reset the switch, refer to the Fuel
pump shut-off switch in the Roadside emergencies chapter.
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury and prevent possible
damage to others, your vehicle and its equipment? In this guide, answers
to such questions are contained in comments highlighted by the warning
triangle symbol. These comments should be read and observed.
Introduction
5

Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
BREAKING-IN YOUR VEHICLE
There are no particular breaking-in rules for your vehicle. During the
first 1,600 km (1,000 miles) of driving, vary speeds frequently. This is
necessary to give the moving parts a chance to break in.
Introduction
6

SPECIAL NOTICES
Special instructions
For your added safety, your vehicle is fitted with sophisticated electronic
controls.
WARNING: By operating other electronic equipment (e.g.
mobile telephone without exterior aerial) electromagnetic
fields can occur which can cause malfunctions of the vehicle
electronics. Therefore you should observe the instructions of
the equipment manufacturers.
WARNING: Please read the section Air bag in the Seating and
safety restraints chapter. Failure to follow the specific
warnings and instructions could result in personal injury.
WARNING: Rear facing child or baby seats should NEVER be
used in front of a passenger side air bag.
Emission warranty
The New Vehicle Limited Warranty includes Bumper to Bumper
Coverage, Safety Restraint Coverage and Corrosion Coverage. In addition,
your vehicle is eligible for Emissions Defect and Emissions Performance
Warranties. For a detailed description of what is covered and what is not
covered, refer to the Warranty Guide that is provided to you along with
your Owner’s Guide.
Introduction
7

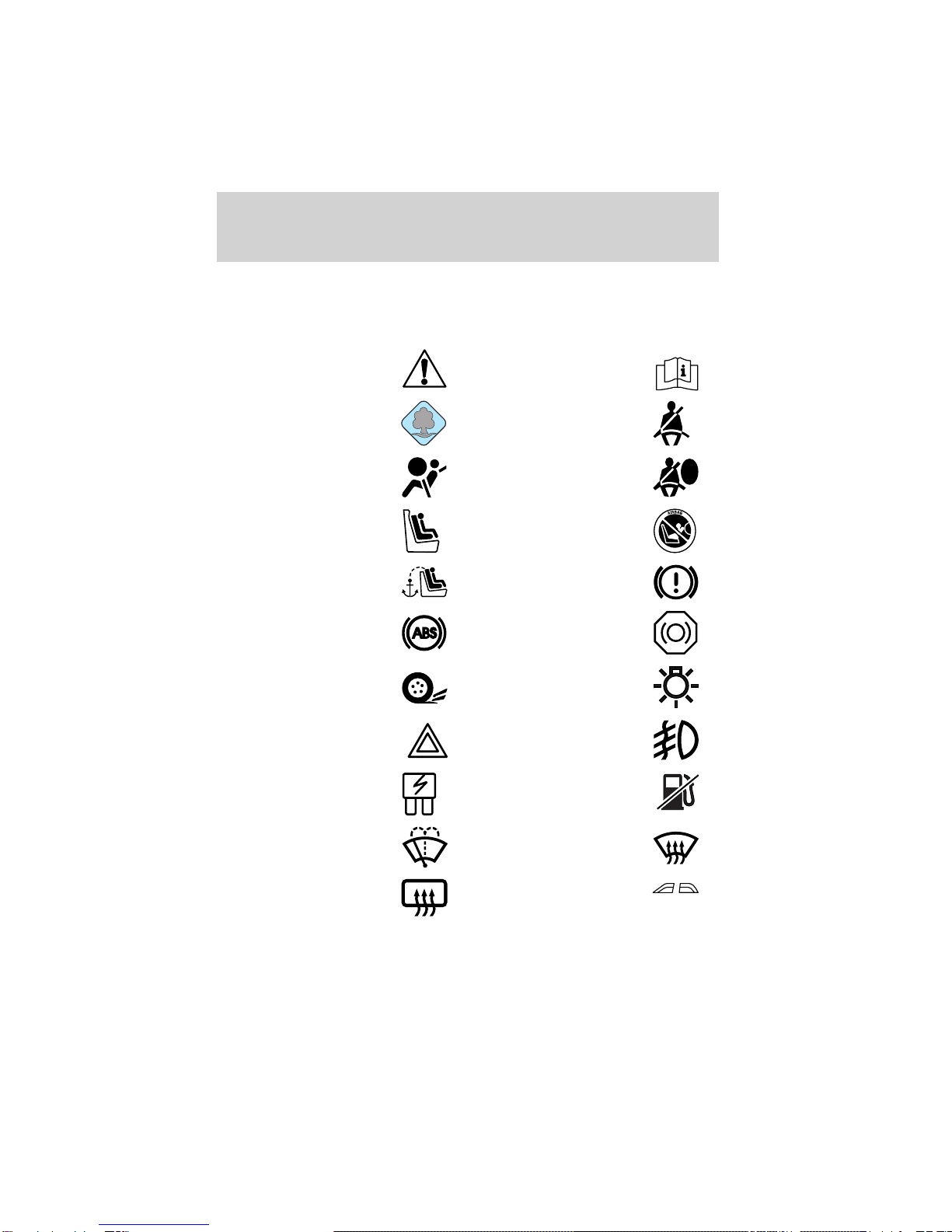

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert See Owner’s Guide
Protecting the
Environment Fasten Safety Belt
Air Bag-Front Air Bag-Side
Child Seat Child Seat Installation
Warning
Child Seat Tether
Anchorage Brake System
Anti-Lock Brake System Brake Fluid -
Non-Petroleum Based
Traction Control Master Lighting Switch
Hazard Warning Flasher Fog Lamps-Front
Fuse Compartment Fuel Pump Reset
Windshield Wash/Wipe Windshield
Defrost/Demist
Rear Window
Defrost/Demist
Power Windows
Front/Rear
Introduction
8

Vehicle Symbol Glossary
Power Window Lockout Child Safety Door
Lock/Unlock
Interior Luggage
Compartment Release
Symbol
Panic Alarm System
Feature
Engine Oil Engine Coolant
Engine Coolant
Temperature Do Not Open When Hot
Battery Avoid Smoking, Flames,
or Sparks
Battery Acid Explosive Gas
Fan Warning Power Steering Fluid
Maintain Correct Fluid
Level
MAX
MIN Emission System
Engine Air Filter Passenger Compartment
Air Filter
Jack Check fuel cap
Low tire warning
Introduction
9

INFORMATION ABOUT THIS GUIDE
The information found in this guide was accurate at the time of printing.
Mazda may change the contents without notice.
Introduction
10

Instrument Cluster
11

Instrument cluster
(pg. 14)
Windshield wiper/washer
control
(pg. 82)
Manual tilt steering
wheel lever
(pg. 85)
Driver air bag
(pg. 131)
Speed controls*
(pg. 90)
Instrument panel dimmer
control
(pg. 74)
Power mirror control*
(pg. 89)
Fog lamp control*
(pg. 74)
Headlamp and turn
signal control
(pg. 73)
* if equipped
Instrument Cluster
12

Audio system
(pg. 23)
4WD control*
(pg. 169)
Climate controls
(pg. 69) Auxiliary
power point
(pg. 87)
Rear window defroster
control
(pg. 72)
Hazard flasher control
(pg. 188)
Possible Variation*
Instrument Cluster
13

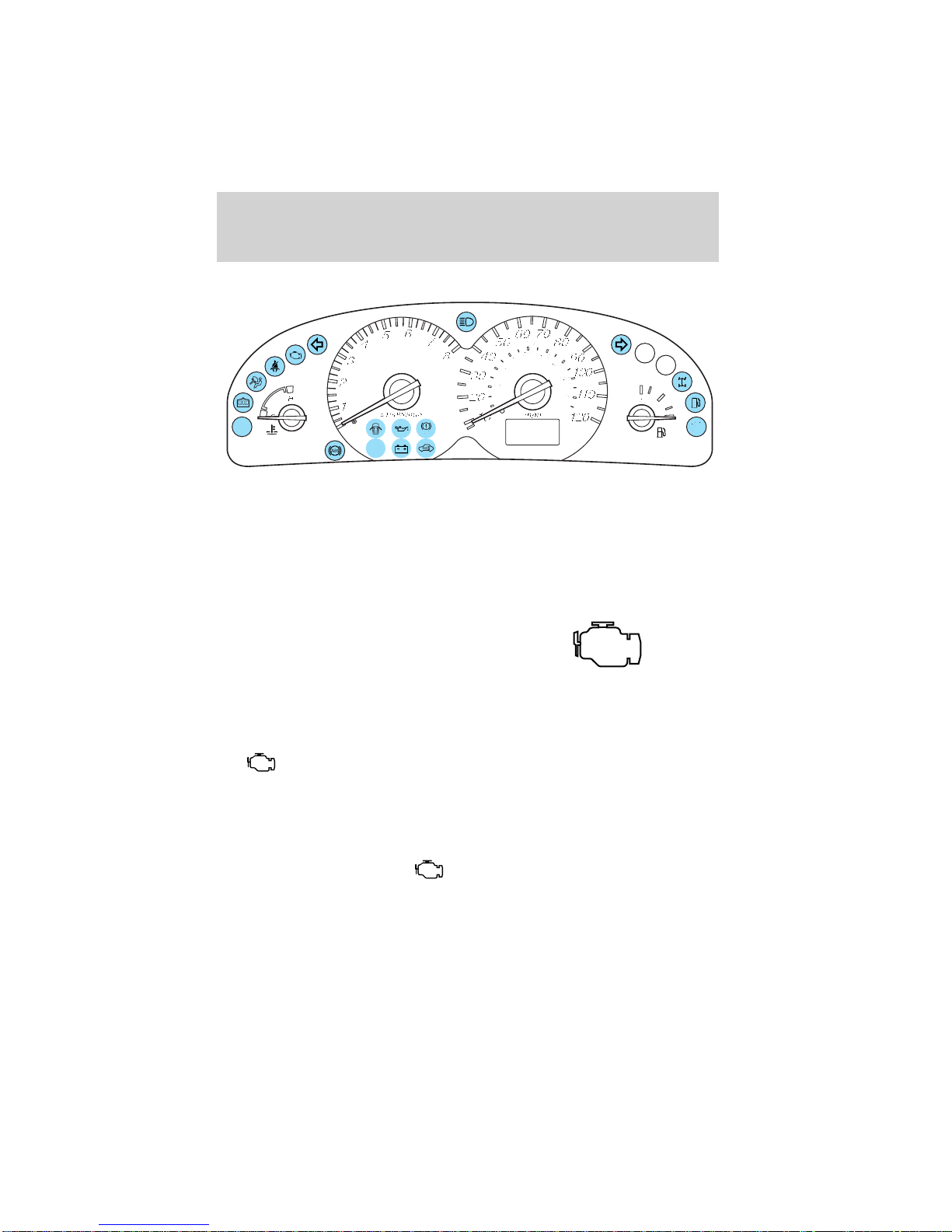

WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulb works. If any light remains on after starting the vehicle, have
the respective system inspected immediately.
Service engine soon
Your vehicle is equipped with a
computer that monitors the engine’s
emission control system. This
system is commonly known as the
On Board Diagnostics System (OBD II). The OBD II system protects the
environment by ensuring that your vehicle continues to meet
government emission standards. The OBD II system also assists the
service technician in properly servicing your vehicle.
The indicator light illuminates when the ignition is first turned to
the RUN position to check the bulb. If it comes on after the engine is
started, one of the engine’s emission control systems may be
malfunctioning. The light may illuminate without a driveability concern
being noted. The vehicle will usually be drivable and will not require
towing.
What you should do if the light illuminates
Light turns on (without blinking):
This means that the OBD II system has detected a malfunction.
CHECK
FUEL
CAP
Instrument Cluster
14

Temporary malfunctions may cause your light to illuminate.
Examples are:
1. The vehicle has run out of fuel. (The engine may misfire or run
poorly.)
2. Poor fuel quality or water in the fuel.
3. The fuel cap may not have been properly installed and securely
tightened.
These temporary malfunctions can be corrected by filling the fuel tank
with high quality fuel of the recommended octane and/or properly
installing and securely tightening the fuel cap. After three driving cycles
without these or any other temporary malfunctions present, the
light should turn off. (A driving cycle consists of a cold engine startup
followed by mixed city/highway driving.) No additional vehicle service is
required.
If the light remains on, have your vehicle serviced at the first
available opportunity.
NOTE:The light will illuminate if vehicle refueling is conducted
with the engine running.
WARNING: Never refuel vehicle with the engine running.
Light is blinking:
Engine misfire is occurring which could damage your catalytic converter.
You should drive in a moderate fashion (avoid heavy acceleration and
deceleration) and have your vehicle serviced at the first available
opportunity.
WARNING: Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components,
possibly causing a fire.
Low fuel
Illuminates when the fuel level in
the fuel tank is at, or near, empty
(refer to Fuel gauge in this chapter
for more information).
Instrument Cluster
15

Air bag readiness
Illuminates to confirm that the air
bags (front or side) are operational.
If the light fails to illuminate,
continues to flash or remains on,
have the system serviced
immediately.
Safety belt
Illuminates to remind you to fasten
your safety belts. For more
information, refer to the Seating
and safety restraints chapter.
Brake system warning
Illuminates if the parking brake is
engaged. Also momentarily
illuminates at start up to ensure the
circuit is functional. If the brake
warning lamp does not illuminate at
these times, or illuminates after releasing the parking brake, seek service
immediately. Refer to Brakes in the Driving chapter for more
information.
WARNING: Illumination after releasing the parking brake
indicates low brake fluid level and the brake system should be
inspected immediately.
Anti-lock brake system (ABS) (if equipped)
Illuminates to ensure the circuit is
functional.
!
BRAKE
ABS
Instrument Cluster
16

WARNING: If the light remains on, continues to flash or fails
to illuminate, have the system serviced immediately. With the
ABS light on, the anti-lock brake system is disabled and normal
braking is still effective unless the brake warning light also
remains illuminated with the parking brake released.
Turn signals
Illuminates when the turn signals or
the hazard lights are turned on. If
the lights stay on continuously or
flash faster, check for a burned-out
bulb.
High beams
Illuminates when the high beam
headlamps are turned on.
Speed control
Illuminates when the speed control
is activated.
Anti-theft system
Refer to SecuriLockypassive
anti-theft system in the Locks and
Security chapter.
Charging system
Illuminates when the battery is not
charging properly.
CRUISE
Instrument Cluster
17

Engine oil pressure
Illuminates when the oil pressure
falls below the normal range. Check
the oil level and add oil if needed.
Refer to Engine oil in the
Maintenance and specifications
chapter.
To avoid engine damage, stop the vehicle as soon as safely
possible and switch off the engine immediately. Check the oil
level and add oil if needed.
Four wheel drive indicator (if equipped)
Illuminates when the four-wheel
drive is engaged.
NOTE: If the light continues to
flash have the system serviced.
Door ajar
Illuminates when any door, liftgate
or liftgate window is open.
O/D off
Illuminates when the overdrive
function has been turned OFF using
the Transmission Control Switch
(TCS).
If the light does not come on or the light flashes steadily, have
your vehicle serviced as soon as possible, damage to the
transmission could occur.
O/D
OFF
Instrument Cluster
18

Low coolant (if equipped)
Illuminates when the coolant level in
the coolant reservoir is low and
more needs to be added. For more
information on adding engine
coolant, refer to Engine coolant in
the Maintenance and specifications chapter.
If the lamp stays on, to avoid engine damage you should allow the
engine to cool down, then check the coolant level inside the
reservoir.
Check fuel cap (if equipped)
Momentarily illuminates when the
ignition is turned to the ON position
to ensure your bulb is working.
When this light turns on, check the
fuel filler cap. Continuing to operate
the vehicle with the check fuel cap light on, can activate the
warning light. When the fuel filler cap is properly re-installed, the
light(s) will turn off after a period of normal driving. This period will
vary depending on driving conditions.
It may take a long period of time for the system to detect an
improperly installed fuel filler cap.
For more information, refer to Fuel filler cap in the Maintenance and
specifications chapter.
Safety belt warning chime
Sounds to remind you to fasten your safety belts.
BeltMinder chime
Sounds intermittently to remind you to fasten your safety belts.
Supplemental restraint system (SRS) warning chime
Sounds when a malfunction in the supplemental restraint system (front
or side airbags) has been detected. Have the supplemental restraint
system inspected immediately.
CHECK
FUEL
CAP
Instrument Cluster
19

Key-in-ignition warning chime
Sounds when the key is left in the ignition and the door, liftgate or
liftgate window is opened.
Headlamps ON warning chime
Sounds when the headlamps or parking lamps are on, the key is removed
from the ignition and the driver’s door is opened.
GAUGES
Engine coolant temperature gauge
Indicates the temperature of the
engine coolant. At normal operating
temperature, the needle remains
within the normal area (the area
between the “H” and “C”).
If it enters the red section, the
engine is overheating. Stop the vehicle as soon as safely possible,
switch off the engine immediately and let the engine cool. Refer to
Engine coolant in the Maintenance and care chapter.
WARNING: Never remove the coolant reservoir cap while the
engine is running or hot, this may result in serious burns.
CHECK
FUEL
CAP
Instrument Cluster
20
