Mazda CX-30 2020 User manual

Thank you for choosing a Mazda. We at Mazda design and build vehicles with
complete customer satisfaction in mind.
To help ensure enjoyable and trouble-free operation of your Mazda, read this
manual carefully and follow its recommendations.
Regular servicing of your vehicle by an expert repairer helps maintain both its
roadworthiness and its resale value. A world-wide network of Authorised Mazda
Repairers can help you with their professional servicing expertise.
Their specially trained personnel are best qualified to service your Mazda vehicle
properly and exactly. Also, they are supported by a wide range of highly specialized
tools and equipment specially developed for servicing Mazda vehicles. When
maintenance or service is necessary, consult an Authorised Mazda Repairer.
We assure you that all of us at Mazda have an ongoing interest in your motoring
pleasure and in your full satisfaction with your Mazda product.
Mazda Motor Corporation
HIROSHIMA, JAPAN
Important Notes About This Manual
Keep this manual in the glove compartment as a handy reference for the safe and enjoyable use of
your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.
All specifications and descriptions are accurate at the time of printing. Because improvement is a con-
stant goal at Mazda, we reserve the right to make changes in specifications at any time without notice
and without obligation.
Please be aware that this manual applies to all models, equipment and options. As a result, you
may find some explanations for equipment not installed on your vehicle.
©2019 Mazda Motor Corporation
November 2019 (Print2)
A Word to Mazda Owners
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

We want to help you get the most
driving pleasure from your vehicle.
Your owner's manual, when read from
beginning to end, can do that in many
ways.
Illustrations complement the words of
the manual to best explain how to
enjoy your Mazda. By reading your
manual, you can find out about the
features, important safety information,
and driving under various road
conditions.
You'll find several WARNINGs,
CAUTIONs, and NOTEs in the manual.
WARNING
A WARNING indicates a situation in
which serious injury or death could
result if the warning is ignored.
CAUTION
A CAUTION indicates a situation in
which bodily injury or damage to your
vehicle, or both, could result if the
caution is ignored.
NOTE
A NOTE provides information and
sometimes suggests how to make
better use of your vehicle.
The symbol below in this manual
means “Do not do this” or “Do not let
this happen”.
The following symbol, located on
some parts of the vehicle, indicates
that this manual contains information
related to the part.
Please refer to the manual for a
detailed explanation.
References to left hand and right hand
are made as if facing in the same
direction the vehicle faces. Although
this manual explains a left-hand-drive
model, it also applies to
right-hand-drive models.
Index: A good place to start is the
Index, an alphabetical listing of all
information in your manual.
How to Use This Manual
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

Table of Contents
Pictorial Index
Interior, exterior views and part identification of your Mazda.
1
Essential Safety Equipment
Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.
2
Before Driving
Use of various features, including keys, doors, mirrors and windows.
3
When Driving
Information concerning safe driving and stopping.
4
Interior Features
Use of various features for ride comfort, including air-conditioning
system and audio system.
5
Maintenance and Care
How to keep your Mazda in top condition.
6
If Trouble Arises
Helpful information on what to do if a problem arises with the
vehicle.
7
Customer Information
Important consumer information including warranties and add-on
equipment.
8
Specifications
Technical information about your Mazda.
9
Index
10
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

1Pictorial Index
Interior, exterior views and part identification of your Mazda.
Interior Overview (Left-Hand Drive
Model).................................... 1-2
Interior Equipment (View
A).........................................1-2
Interior Equipment (View
B)......................................... 1-4
Interior Equipment (View
C).........................................1-5
Interior Equipment (View
D)........................................ 1-6
Interior Equipment (View
E)......................................... 1-7
Interior Overview (Right-Hand Drive
Model).................................... 1-8
Interior Equipment (View
A).........................................1-8
Interior Equipment (View
B)....................................... 1-10
Interior Equipment (View
C).......................................1-11
Interior Equipment (View
D).......................................1-12
Interior Equipment (View
E)....................................... 1-13
Exterior Overview................... 1-14
1-1
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

Interior Equipment (View A)
▼Interior Equipment (View Atype A)
①High Beam Control System (HBC) switch..........................................page 4-100
②Adaptive LED Headlights (ALH) switch............................................. page 4-102
③Lighting control................................................................................. page 4-54
④Turn and lane-change signals............................................................. page 4-60
⑤Audio remote control switches...........................................................page 5-21
⑥INFO switch......................................................................................page 4-23
⑦Adjustable Speed Limiter (ASL) LIM switch........................................page 4-165
⑧Intelligent Speed Assistance (ISA) LIM switch.................................... page 4-169
⑨Mazda Radar Cruise Control (MRCC) switches................................. page 4-133
⑩Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) switches...........................................................................page 4-142
⑪Cruising & Trac Support (CTS) switches..........................................page 4-153
⑫Cruise control switches................................................................... page 4-227
⑬Wiper and washer lever..................................................................... page 4-61
Pictorial Index
Interior Overview (Left-Hand Drive Model)
1-2 The equipment and installation position varies by vehicle
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

▼Interior Equipment (View Atype B)
①Door-lock knob................................................................................ page 3-19
②Door-lock switch.............................................................................. page 3-16
③Outside mirror switches.....................................................................page 3-36
④i-ACTIVSENSE switch.........................................................................page 4-97
⑤360° view monitor switch................................................................page 4-191
⑥Parking sensor OFF switch............................................................... page 4-255
⑦TCS OFF switch................................................................................. page 4-82
⑧i-stop OFF switch.............................................................................. page 4-16
⑨Position memory buttons................................................................... page 2-10
⑩Power liftgate switch..........................................................................page 3-22
⑪Power window switches.....................................................................page 3-41
⑫Power window lock switch.................................................................page 3-41
Pictorial Index
Interior Overview (Left-Hand Drive Model)
The equipment and installation position varies by vehicle
1-3
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

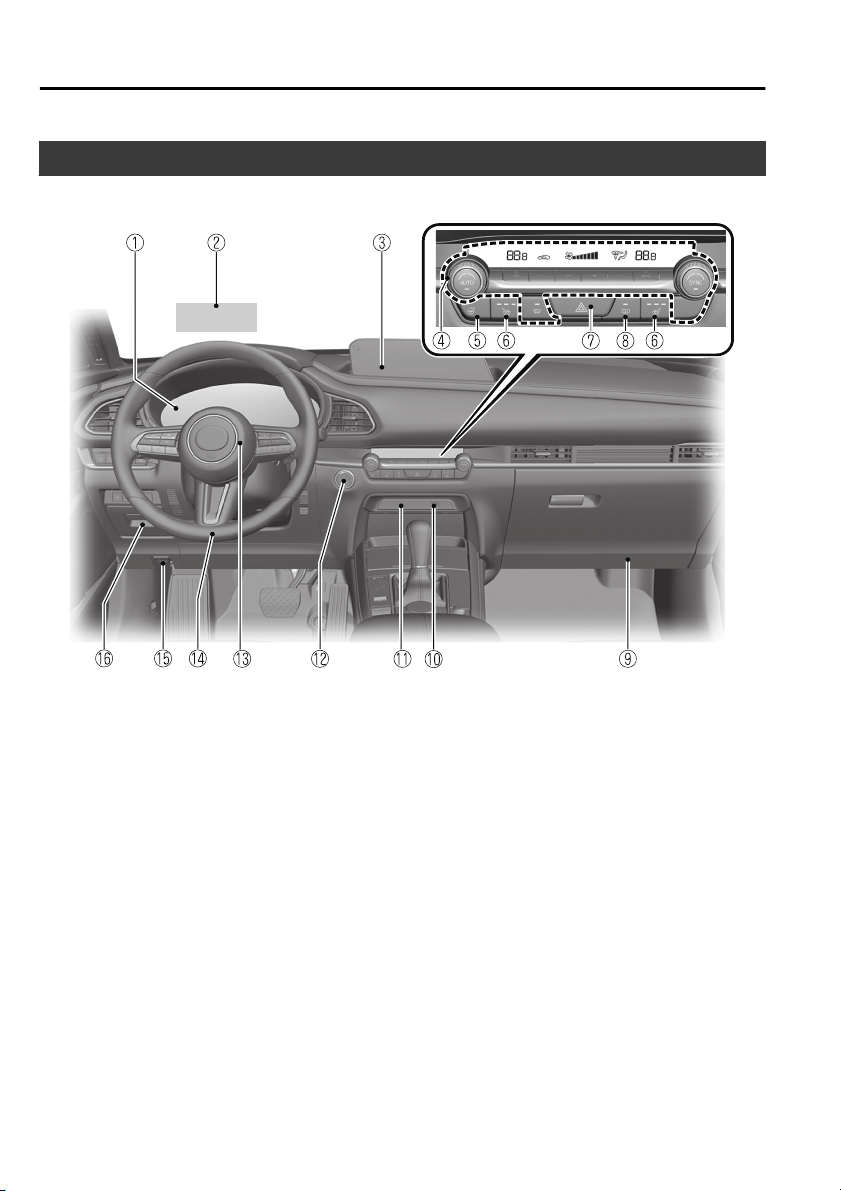

Interior Equipment (View B)
▼Interior Equipment (View B)
①Instrument cluster............................................................................. page 4-21
②Active driving display......................................................................... page 4-39
③Mazda Connect................................................................................ page 5-13
④Air-conditioning system....................................................................... page 5-2
⑤Heated steering wheel switch.............................................................page 2-18
⑥Seat warmer switches........................................................................ page 2-17
⑦Hazard warning flasher switch............................................................page 4-68
⑧Rear window defogger switch............................................................ page 4-66
⑨Glove compartment.......................................................................... page 5-40
⑩External input terminal.......................................................................page 5-13
⑪CD/DVD player................................................................................page 5-13
⑫Push button start.................................................................................page 4-4
⑬Horn................................................................................................ page 4-67
⑭Lock release lever................................................................................ page 2-4
⑮Bonnet release handle....................................................................... page 6-17
⑯Storage pocket.................................................................................. page 5-40
Pictorial Index
Interior Overview (Left-Hand Drive Model)
1-4 The equipment and installation position varies by vehicle
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

Interior Equipment (View C)
▼Interior Equipment (View C)
①Head restraint................................................................................... page 2-15
②Front seat........................................................................................... page 2-4
③Seat belt........................................................................................... page 2-20
④Bottle holder.....................................................................................page 5-38
⑤Vanity mirror.....................................................................................page 5-32
⑥Sunvisor........................................................................................... page 5-32
⑦Overhead light (front)/Map lights...................................................... page 5-33
⑧Overhead console............................................................................. page 5-39
⑨Sunroof switch.................................................................................. page 3-44
⑩Rearview mirror................................................................................ page 3-39
⑪Vent................................................................................................... page 5-3
⑫Cup holder....................................................................................... page 5-36
⑬Removable ashtray............................................................................ page 5-42
⑭Shift lever......................................................................................... page 4-41
⑮Selector lever.................................................................................... page 4-43
⑯Drive selection switch........................................................................page 4-90
⑰Commander switch...........................................................................page 5-17
⑱Electric Parking Brake (EPB) switch...................................................... page 4-69
⑲AUTOHOLD switch........................................................................... page 4-76
Pictorial Index
Interior Overview (Left-Hand Drive Model)
The equipment and installation position varies by vehicle
1-5
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

Interior Equipment (View D)
▼Interior Equipment (View D)
①Push knob........................................................................................ page 2-13
②Head restraint................................................................................... page 2-15
③Child safety lock................................................................................page 3-20
④Rear coat hook..................................................................................page 5-39
⑤Overhead light (rear)......................................................................... page 5-33
⑥Door-lock knob................................................................................ page 3-19
⑦Power window switch........................................................................page 3-41
⑧Assist grip......................................................................................... page 5-38
⑨Centre console..................................................................................page 5-40
⑩Accessory socket............................................................................... page 5-35
⑪External input terminal.......................................................................page 5-13
⑫Bottle holder.....................................................................................page 5-38
⑬Rear seat.......................................................................................... page 2-13
⑭Cup holder....................................................................................... page 5-36
⑮Armrest............................................................................................ page 2-14
⑯ISOFIX lower anchors........................................................................ page 2-42
⑰Seat belt........................................................................................... page 2-20
Pictorial Index
Interior Overview (Left-Hand Drive Model)
1-6 The equipment and installation position varies by vehicle
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

Interior Equipment (View E)
▼Interior Equipment (View E)
①Luggage compartment cover.............................................................. page 3-28
②Anchor brackets................................................................................ page 2-41
③Luggage compartment light................................................................page 5-33
Pictorial Index
Interior Overview (Left-Hand Drive Model)
The equipment and installation position varies by vehicle
1-7
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

Interior Equipment (View A)
▼Interior Equipment (View Atype A)
①High Beam Control System (HBC) switch..........................................page 4-100
②Adaptive LED Headlights (ALH) switch............................................. page 4-102
③Lighting control................................................................................. page 4-54
④Turn and lane-change signals............................................................. page 4-60
⑤Audio remote control switches...........................................................page 5-21
⑥INFO switch......................................................................................page 4-23
⑦Adjustable Speed Limiter (ASL) LIM switch........................................page 4-165
⑧Intelligent Speed Assistance (ISA) LIM switch.................................... page 4-169
⑨Mazda Radar Cruise Control (MRCC) switches................................. page 4-133
⑩Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) switches...........................................................................page 4-142
⑪Cruising & Trac Support (CTS) switches..........................................page 4-153
⑫Cruise control switches................................................................... page 4-227
⑬Wiper and washer lever..................................................................... page 4-61
Pictorial Index
Interior Overview (Right-Hand Drive Model)
1-8 The equipment and installation position varies by vehicle
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

▼Interior Equipment (View Atype B)
①i-stop OFF switch.............................................................................. page 4-16
②TCS OFF switch................................................................................. page 4-82
③O-Road Traction Assist switch.......................................................... page 4-84
④Parking sensor OFF switch............................................................... page 4-255
⑤360° view monitor switch................................................................page 4-191
⑥i-ACTIVSENSE switch.........................................................................page 4-97
⑦Door-lock knob................................................................................ page 3-19
⑧Door-lock switch.............................................................................. page 3-16
⑨Power window switches.....................................................................page 3-41
⑩Power window lock switch.................................................................page 3-41
⑪Outside mirror switches.....................................................................page 3-36
⑫Power liftgate switch..........................................................................page 3-22
⑬Position memory buttons................................................................... page 2-10
Pictorial Index
Interior Overview (Right-Hand Drive Model)
The equipment and installation position varies by vehicle
1-9
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

Interior Equipment (View B)
▼Interior Equipment (View B)
①Air-conditioning system....................................................................... page 5-2
②Seat warmer switches........................................................................ page 2-17
③Hazard warning flasher switch............................................................page 4-68
④Rear window defogger switch............................................................ page 4-66
⑤Heated steering wheel switch.............................................................page 2-18
⑥Mazda Connect................................................................................ page 5-13
⑦Active driving display......................................................................... page 4-39
⑧Instrument cluster............................................................................. page 4-21
⑨Storage pocket.................................................................................. page 5-40
⑩Bonnet release handle....................................................................... page 6-17
⑪Horn................................................................................................ page 4-67
⑫Lock release lever................................................................................ page 2-4
⑬Push button start.................................................................................page 4-4
⑭CD/DVD player................................................................................page 5-13
⑮External input terminal.......................................................................page 5-13
⑯Glove compartment.......................................................................... page 5-40
Pictorial Index
Interior Overview (Right-Hand Drive Model)
1-10 The equipment and installation position varies by vehicle
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

Interior Equipment (View C)
▼Interior Equipment (View C)
①Vent................................................................................................... page 5-3
②Rearview mirror................................................................................ page 3-39
③Overhead light (front)/Map lights...................................................... page 5-33
④Overhead console............................................................................. page 5-39
⑤Sunroof switch.................................................................................. page 3-44
⑥Sunvisor........................................................................................... page 5-32
⑦Vanity mirror.....................................................................................page 5-32
⑧Bottle holder.....................................................................................page 5-38
⑨Seat belt........................................................................................... page 2-20
⑩Head restraint................................................................................... page 2-15
⑪Front seat........................................................................................... page 2-4
⑫AUTOHOLD switch........................................................................... page 4-76
⑬Electric Parking Brake (EPB) switch...................................................... page 4-69
⑭Commander switch...........................................................................page 5-17
⑮Drive selection switch........................................................................page 4-90
⑯Shift lever......................................................................................... page 4-41
⑰Selector lever.................................................................................... page 4-43
⑱Cup holder....................................................................................... page 5-36
Pictorial Index
Interior Overview (Right-Hand Drive Model)
The equipment and installation position varies by vehicle
1-11
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

Interior Equipment (View D)
▼Interior Equipment (View D)
①Assist grip......................................................................................... page 5-38
②Power window switch........................................................................page 3-41
③Door-lock knob................................................................................ page 3-19
④Overhead light (rear)......................................................................... page 5-33
⑤Rear coat hook..................................................................................page 5-39
⑥Cup holder....................................................................................... page 5-36
⑦Child safety lock................................................................................page 3-20
⑧Head restraint................................................................................... page 2-15
⑨Push knob........................................................................................ page 2-13
⑩Seat belt........................................................................................... page 2-20
⑪ISOFIX lower anchors........................................................................ page 2-42
⑫Armrest............................................................................................ page 2-14
⑬Rear seat.......................................................................................... page 2-13
⑭Bottle holder.....................................................................................page 5-38
⑮Centre console..................................................................................page 5-40
⑯Accessory socket............................................................................... page 5-35
⑰External input terminal.......................................................................page 5-13
Pictorial Index
Interior Overview (Right-Hand Drive Model)
1-12 The equipment and installation position varies by vehicle
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

Interior Equipment (View E)
▼Interior Equipment (View E)
①Luggage compartment cover.............................................................. page 3-28
②Anchor brackets................................................................................ page 2-41
③Luggage compartment light................................................................page 5-33
Pictorial Index
Interior Overview (Right-Hand Drive Model)
The equipment and installation position varies by vehicle
1-13
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

①Windscreen wiper blades...................................................................page 6-32
②Sunroof............................................................................................ page 3-44
③Door................................................................................................ page 3-11
④Window........................................................................................... page 3-41
⑤Touch sensor.....................................................................................page 3-13
⑥Fuel-filler flap....................................................................................page 3-34
⑦Outside mirror.................................................................................. page 3-36
⑧Liftgate............................................................................................. page 3-20
⑨Electric liftgate opener....................................................................... page 3-21
⑩Rear window wiper blade.................................................................. page 6-35
Pictorial Index
Exterior Overview
1-14 The equipment and installation position varies by vehicle
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

2Essential Safety Equipment
Important information about safety equipment, including seats,
seat belt system, child-restraint systems and SRS air bags.
Seats....................................... 2-2
Seat Precautions.................... 2-2
Front Seat..............................2-4
Rear Seat.............................2-13
Head Restraints................... 2-15
Seat Warmer/Heated Steering
Wheel................................... 2-17
Seat Warmer
*
...................... 2-17
Heated Steering Wheel
*
........2-18
Seat Belt Systems.................... 2-20
Seat Belt Precautions............2-20
Seat Belt..............................2-22
Seat Belt Warning Systems.... 2-24
Seat Belt Pretensioner and Load
Limiting Systems.................. 2-24
Child Restraint........................2-27
Child-Restraint Precautions..........
.......................................... 2-27
Child-Restraint System
Installation.......................... 2-31
Child-Restraint System Suitability
for Various Seat Positions
Table...................................2-36
Installing Child-Restraint
Systems...............................2-41
SRS Air Bags........................... 2-44
Supplementary Restraint System
(SRS) Precautions.................2-44
Front Passenger Air Bag
Deactivation Switch
*
............ 2-50
Supplementary Restraint System
Components....................... 2-53
How the SRS Air Bags
Work.................................. 2-54
SRS Air Bag Deployment
Criteria............................... 2-57
Limitations to SRS Air Bag.....2-59
Constant Monitoring............2-61
*Some models. 2-1
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52

Seat Precautions
▼Seat Precautions
WARNING
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that are
not securely locked are dangerous. In a
sudden stop or collision, the seat or
seatback could move, causing injury.
Make sure the adjustable components
of the seat are locked in place by
attempting to slide the seat forward
and backward and rocking the
seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is
dangerous as it could result in serious
injury if a child's hands or feet become
caught in the seat.
Do not drive with the seatback
unlocked:
All of the seatbacks play an important
role in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Adjust a seat only when the vehicle is
stopped:
If the seat is adjusted while the vehicle
is being driven, the seating posture
may become unstable and the seat
could move unexpectedly resulting in
injury.
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag components
essential to the supplementary restraint
system. Such modifications could
damage the supplementary restraint
system and result in serious injury.
Consult an expert repairer (we
recommend an Authorised Mazda
Repairer) if there is any need to
remove or reinstall the front seats.
Do not drive with damaged front
seats:
Driving with damaged front seats, such
as seat cushions torn or damaged
down to the urethane, is dangerous. A
collision, even one not strong enough
to inflate the air bags, could damage
the front seats which contain essential
air bag components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an expert repairer
(we recommend an Authorised Mazda
Repairer) inspect the front seats, front
seat belt pretensioners and air bags
after a collision.
Essential Safety Equipment
Seats
2-2
CX30_8HQ1-EE19I_Edition2_new 2019-10-17 16:47:52
