MAZDA3 2004
SPECIAL CAUTIONS
AIR BAG
Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag
Special Cautions.
PAINT CODE LOCATION
Paint code located on left lock pillar.
CLEAR COAT IDENTIFICATION
All colors are clear coat.
INFORMATION LABELS

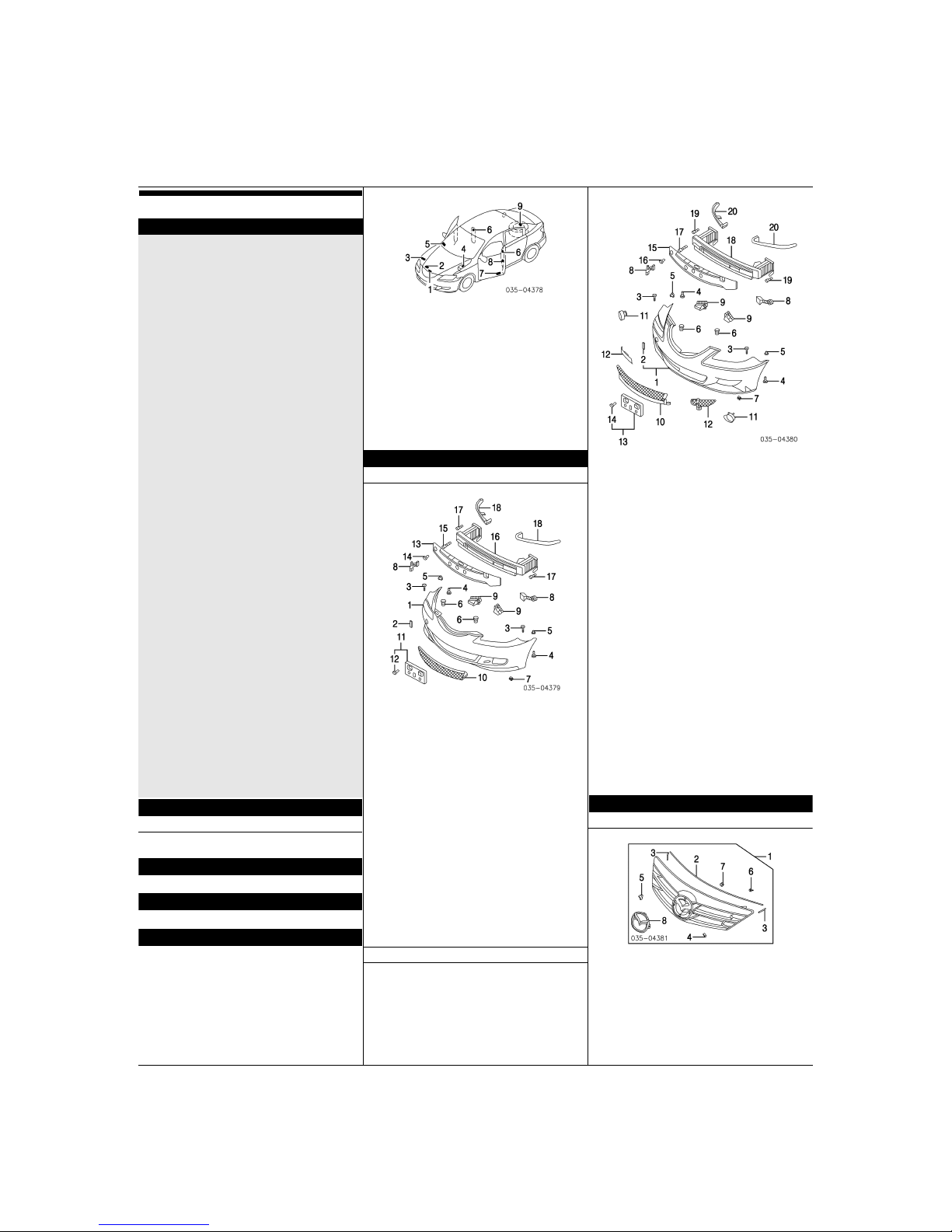

Illustration Located in Next Column
1
Label, Cooling Fan YF47-15-031
2
Label, A/C Caution BN8P-61-439A
3
Label, Emission
2.0L Eng
w/Calif Emission BN8B-69-036B
w/o Calif Emission BN8P-69-036B
2.3L Eng
w/Calif Emission BN8K-69-036B
w/o Calif Emission BN8L-69-036B
4
Label, Battery FA01-69-064B
5
Label, Fuel Economy
2.0L Eng
Man Trans BN8P-69-042A
Auto Trans BN8S-69-042A
2.3L Eng
Man Trans BN8K-69-042A
Auto Trans BN8M-69-042A
6
Label, Air Bag Caution R/L FE01-57-K92
7
Label, Tire Info
2.0L Eng BN8P-69-014A
2.3L Eng BN8K-69-014
8
Label, Safety Panel FA11-69-C31B
9
Label, Temporary Tire LD47-69-074
Label, Burglar Alarm EC01-66-201
Label, Air Bag BN8S-57-K93
FRONT BUMPER
HATCHBACK
1 Cover, Front (P) BN8F-50-031D-AA
(P) Paint to Match
2
Cover, Tow Hook
Arctic White (Code A4D) BN8F-50-A11-33
Black (Code 16W) BN8F-50-A11-08
Canary Yellow (Code 25C) BN8F-50-A11-34
Crystal Silver (Code 22V) BN8F-50-A11-67
Passion Orange (Code 27Y) BN8F-50-A11-07
Strato Blue (Code 25E) BN8F-50-A11-38
Titanium Gray (Code 29Y) BN8F-50-A11-01
Velocity Red (Code 27A) BN8F-50-A11-87
Winning Blue (Code 27B) BN8F-50-A11-94
3
Bolt, Upper R/L 9YA5-90-602A
4
Bolt, Lower R/L 9CF6-00-516B
5
Grommet, Side R/L GJ6A-50-0Z5
6
Fastener, Cover R/L D350-50-E21
7
Nut, Clip (11) B455-56-135
8
Retainer, Cover R BP4K-50-0T1D
L BP4K-50-0U1D
9
Plate, Bumper R/L BN8F-50-2A1A
10
Grille, Front Cover BN8F-50-1T1A
11
Holder Assy, License Plate BN8F-50-170
12
Screw, Holder¶ (2) 9CD6-00-620
¶Included w/License Plate Holder Assy
13
Absorber, Impact BN8P-50-111A
14
Fastener, Absorber R/L FD01-68-AC3
15
Hook, Tow BN8P-50-EJ0B
16
Bar, Reinforcement BNYP-50-07Y
17
Bolt, Bar (4/Side) R/L BPYK-50-0Z2A
18
Bracket, Bumper R BP4K-50-151B
L BP4K-50-161A
SEDAN
Illustration Located in Next Column
1
Cover Assy, Front (P)
Sport Type BNYK-50-03XD
Std Type BNYP-50-03XC
(P) Paint to Match
2
Cover, Tow Hook¶
Arctic White (Code A4D) BN8V-50-A11A-33
Black (Code 16W) BN8V-50-A11A-08
Canary Yellow (Code 25C) BN8V-50-A11A-34
Crystal Silver (Code 22V) BN8V-50-A11A-67
New Light Blue (Code 28A) BN8V-50-A11A-90
Nordic Green (Code 27C) BN8V-50-A11A-97
Passion Orange (Code 27Y) BN8V-50-A11A-07
Sparkling Silver (Code 24E) BN8V-50-A11A-28
Strato Blue (Code 25E) BN8V-50-A11A-38
Titanium Gray (Code 29Y) BN8V-50-A11A-01
Velocity Red (Code 27A) BN8V-50-A11A-87
Winning Blue (Code 27B) BN8V-50-A11A-94
¶Included w/Front Cover Assy
3
Bolt, Upper R/L 9YA5-90-602A
4
Bolt, Lower R/L 9CF6-00-516B
5
Grommet, Side R/L GJ6A-50-0Z5
6
Clip, Cover R/L BC1D-56-145
7
Nut, Clip (11) B455-56-135
8
Retainer, Cover R BN8V-50-0T1C
L BN8V-50-0U1C
9
Plate, Bumper R BN8P-50-2A1B
L BN8P-50-2B1B
10
Grille, Front Cover
Sport Type BN9C-50-1T1A
Std Type BN8V-50-1T1B
Cover, Lamp Hole
11 Sport Type R BN9C-50-C12A
L BN9C-50-C22A
12 Std Type R BN8V-50-C11
L BN8V-50-C21
13
Holder Assy, License Plate
Sport Type BN8K-50-170
Std Type BN8F-50-170
14
Screw, Holder¶ (2) 9CD6-00-620
¶Included w/License Plate Holder Assy
15
Absorber, Impact BN8P-50-111A
16
Fastener, Absorber R/L FD01-68-AC3
17
Hook, Tow BN8P-50-EJ0B
18
Bar, Reinforcement BNYP-50-07Y
19
Bolt, Bar (4/Side) R/L BPYK-50-0Z2A
20
Bracket, Bumper R BN8V-50-151B
L BN8V-50-161A
GRILLE
HATCHBACK
1 Grille Assy
Arctic White (Code A4D) BP4S-50-710C-33
Black (Code 16W) BP4S-50-710C-08
Canary Yellow (Code 25C) BP4S-50-710C-34
Crystal Silver (Code 22V) BP4S-50-710C-67
Passion Orange (Code 27Y) BP4S-50-710C-07
Strato Blue (Code 25E) BP4S-50-710C-38
Titanium Gray (Code 29Y) BP4S-50-710C-01
Velocity Red (Code 27A) BP4S-50-710C-87
Winning Blue (Code 27B) BP4S-50-710C-94
2
Protector, Center¶ BP4L-50-794A
3
Protector, Side¶ R/L BP4N-50-794A
4
Protector, Lower¶ R/L BP4S-50-794
SECTION INDEX
A/C /HEATER/VENTILATION................................................................ 3
A/C REFRIGERANT CAPACITIES ....................................................... 3
ABS/BRAKES ....................................................................................... 4
AIR BAG SYSTEM................................................................................ 4
AIR CLEANER ...................................................................................... 6
BACK WINDOW.................................................................................. 14
CENTER CONSOLE............................................................................. 9
CLEAR COAT IDENTIFICATION .......................................................... 1
COOLING.............................................................................................. 3
COWL & DASH ..................................................................................... 8
ELECTRICAL........................................................................................ 7
EMISSION SYSTEM............................................................................. 7
ENGINE UNDER COVER ..................................................................... 6
ENGINE/TRANS ................................................................................... 6
ENGINE/TRANS MOUNTS................................................................... 6
EXHAUST ............................................................................................. 7
FRONT BUMPER ................................................................................. 1
FRONT DOOR.................................................................................... 11
FRONT DRIVE AXLE............................................................................ 5
FRONT FENDER .................................................................................. 3
FRONT INNER STRUCTURE............................................................... 3
FRONT LAMPS..................................................................................... 2
FRONT SEAT...................................................................................... 10
FRONT STEERING LINKAGE/GEAR................................................... 5
FRONT SUSPENSION ......................................................................... 5
FUEL TANK......................................................................................... 17
GRILLE ................................................................................................. 1
HOOD ................................................................................................... 2
INFORMATION LABELS....................................................................... 1
INSTRUMENT PANEL .......................................................................... 8
LIFTGATE ........................................................................................... 16
LUGGAGE LID.................................................................................... 15
PAINT CODE LOCATION...................................................................... 1
QUARTER GLASS.............................................................................. 15
QUARTER PANEL .............................................................................. 15
REAR BODY ....................................................................................... 17
REAR BUMPER.................................................................................. 19
REAR DOOR ...................................................................................... 12
REAR LAMPS..................................................................................... 19
REAR SEAT ........................................................................................ 11
REAR SUSPENSION.......................................................................... 17
ROCKER/PILLARS/FLOOR.................................................................. 9
ROOF.................................................................................................. 14
SEAT BELTS ....................................................................................... 11
SPECIAL CAUTIONS............................................................................ 1
STEERING PUMP ................................................................................ 5
STEERING WHEEL/COLUMN ............................................................. 5
SUNROOF .......................................................................................... 14
UNDERHOOD DIMENSIONS............................................................... 3
WHEEL ................................................................................................. 4
WINDSHIELD........................................................................................ 7

MAZDA3 2004
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629.
2madpl1_g01_
Page 2—April 22, 2004—13:28:06—Version Manufacturer
GRILLE Cont’d
HATCHBACK Cont’d
5 Cap, Grille¶ (2/Side) R BP4S-50-705
L BP4T-50-705
6
Bolt, Grille¶
No. 1 (4) BP4K-50-7M5
No. 2 BP4L-50-7M5
7
Clip, Grille¶ (2) BP4M-51-SJ3
8
Emblem (Adhesive)¶ LD47-51-731
¶Included w/Grille Assy
SEDAN
SPORT TYPE
1 Grille Assy
Arctic White (Code A4D) BN9G-50-710B-33
Black (Code 16W) BN9G-50-710B-08
Canary Yellow (Code 25C) BN9G-50-710B-34
Crystal Silver (Code 22V) BN9G-50-710B-67
New Light Blue (Code 28A) BN9G-50-710B-90
Nordic Green (Code 27C) BN9G-50-710B-97
Passion Orange (Code 27Y) BN9G-50-710B-07
Sparkling Silver (Code 24E) BN9G-50-710B-28
Strato Blue (Code 25E) BN9G-50-710B-38
Titanium Gray (Code 29Y) BN9G-50-710B-01
Velocity Red (Code 27A) BN9G-50-710B-87
Winning Blue (Code 27B) BN9G-50-710B-94
2
Emblem (Adhesive)¶ LD47-51-731
¶Included w/Grille Assy
3
Bolt, Grille R/L 9YA5-90-602A
SEDAN
STD TYPE
1 Grille Assy
w/Black Bar BN8V-50-710B
w/o Black Bar
Arctic White (Code A4D) BN8W-50-710A-33
Black (Code 16W) BN8W-50-710A-08
Canary Yellow (Code 25C) BN8W-50-710A-34
Crystal Silver (Code 22V) BN8W-50-710A-67
New Light Blue (Code 28A) BN8W-50-710A-90
Nordic Green (Code 27C) BN8W-50-710A-97
Passion Orange (Code 27Y) BN8W-50-710A-07
Sparkling Silver (Code 24E) BN8W-50-710A-28
Strato Blue (Code 25E) BN8W-50-710A-38
Titanium Gray (Code 29Y) BN8W-50-710A-01
Velocity Red (Code 27A) BN8W-50-710A-87
Winning Blue (Code 27B) BN8W-50-710A-94
2
Emblem (Adhesive)¶ LD47-51-731
¶Included w/Grille Assy
3
Bolt, Grille R/L 9YA5-90-602A
FRONT LAMPS
COMBINATION LAMP
HALOGEN
Illustration Located in Next Column
1
Lens & Body
Hatchback R BN8F-51-0K0D
L BN8F-51-0L0D
Sedan R BN8P-51-0K0B
L BN8P-51-0L0B
2
Bulb, High Beam R/L 9070-37-550
3
Bulb, Low Beam R/L 9070-32-550
4
Bulb, Park/Signal R/L 0000-11-1157-NA
5
Cover, High Beam Bulb R/L T061-51-0A1
6
Cover, Low Beam Bulb R/L BN4G-51-0A1
7
Holder, Bulb R/L B28V-51-0A3
8
Socket, Park/Signal R/L S09A-51-064
9
Rivet, Attaching R/L B27K-51-PS7
10
Nut, Lamp (2/Side) R/L 9YB3-10-603
COMBINATION LAMP
HID
1 Lens & Body
Hatchback R BN8G-51-031C
L BN8G-51-041C
Sedan R BN8R-51-031A
L BN8R-51-041A
2
Bulb, High Beam R/L 9070-37-550
3
Bulb, Low Beam R/L 9070-36-350
4
Bulb, Park/Signal R/L 9970-13-210Y
5
Cover, High Beam Bulb R/L T061-51-0A1
6
Cover, Low Beam Bulb R/L BP4L-51-0A1
7
Socket, Park/Signal R/L S09A-51-064
8
Rivet, Attaching R/L B27K-51-PS7
9
Nut, Lamp (2/Side) R/L 9YB3-10-603
10
Module, HID R/L D391-51-0H3
11
Gasket, Module R/L D391-51-0B2
SIDE REPEATER LAMP
1 Lamp, Repeater R/L GJ6A-51-120C
FOG LAMP
HATCHBACK
1 Lamp Assy, Fog R BN8G-51-680B
L BN8G-51-690B
2
Bulb, Fog¶ R 9070-37-550
L 9070-37-550
3
Stopper, Lamp¶ R BN8F-51-687
L BN8F-51-687
4
Bracket, Lamp¶ R BN8F-51-684A
L BN8F-51-694A
5
Nut, Lamp¶ R/L GG2M-51-689
¶Included w/Fog Lamp Assy
FOG LAMP
SEDAN
SPORT TYPE
1 Lamp Assy, Fog R BN8R-51-680A
L BN8R-51-690A
2
Bulb, Fog¶ R 9070-37-550
L 9070-37-550
3
Bracket, Lamp¶ R BN9C-51-684
L BN9C-51-684
¶Included w/Fog Lamp Assy
FOG LAMP
SEDAN
STD TYPE
1 Lamp Assy, Fog R BN8P-51-680A
L BN8P-51-690A
2
Bulb, Lamp R/L 9070-37-550
3
Cover, Lamp¶ R BN8V-51-677A
L BN8V-51-678A
4
Nut, Lamp¶ R/L FD01-50-803
¶Included w/Fog Lamp Assy
HOOD
1 Panel, Hood
Hatchback BPYK-52-31X
Sedan BNYV-52-31X
2
Hinge, Hood R B32H-52-410A
L B32H-52-420A
3
Insulator, Hood
Hatchback B32T-56-681A
Sedan B33H-56-681B
4
Fastener, Insulator
Hatchback (11) GA2A-56-694
Sedan (13) GA2A-56-694
5
Weatherstrip Assy, Hood BN8V-56-770
6
Rivet, W/Strip¶ (11) J001-56-741
¶Included w/Hood Weatherstrip Assy
7
Seal Assy, Front Hood BP4K-56-750
8
Fastener, Seal¶ (16) BC1D-58-762
¶Included w/Front Hood Seal Assy
9
Seal Assy, Rear-See Cowl & Dash Section
10 Cushion, Front Hood R/L BC1M-56-786
11
Cushion, Side Hood R/L GJ6A-56-786A
Latch, Hood
12 Hatchback
w/Burglar Alarm System BN8F-56-62X
w/o Burglar Alarm System BP4K-56-62X
13 Sedan

MAZDA3 2004
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629. 3
madpl1_g01_
Page 3—April 22, 2004—13:28:08—Version Manufacturer
w/Burglar Alarm System BN8P-56-620
w/o Burglar Alarm System BN8V-56-620
14
Lever, Latch BN8F-56-625
15
Cable, Latch Release
To 11-1-03 BP4K-56-720B
From 11-1-03 BP4K-56-720C
16
Clip, Front Cable GJ6A-56-731A
17
Clip, Center Cable LA89-67-C41
18
Clip, Cable Rear D001-56-731
19
Rod, Prop
Hatchback BP4K-56-651A
Sedan BN8V-56-651A
COOLING
1 Radiator Assy Z602-15-200C
2
Cock, Drain¶ Z602-15-203
¶Included w/Radiator Assy
3
Bracket, Upper Rad R/L Z601-15-240F
4
Mount, Lower Rad
w/ A/C R/L Z603-15-202A
w/o A/C R/L Z601-15-202B
5
Hose, Radiator
Upper LF50-15-186F
Lower LF50-15-185D
6
Shroud & Fan Z602-15-025B
7
Harness, Fan Z601-66-991
8
Tank, Coolant LF50-15-350
9
Cap, Tank LF50-15-205A
10
Hose, Coolant Tank R Z601-15-383E
L LF50-15-381B
Hose, By-Pass
11 No. 1 L309-15-260
12 No. 2 LF70-15-260E
13
Thermostat Assy
To 2-1-04 LF50-15-170
From 2-1-04 LF50-15-170A
14
Gasket, Cover¶ LF02-15-165
¶Included w/Thermostat Assy
15
Outlet, Water L327-15-17Z
16
Gasket, Outlet LF01-15-169
17
Pump Assy, Water LF01-15-100
18
Gasket, Water Pump¶ LF01-15-116
¶Included w/Water Pump Assy
19
Pulley, Water Pump LF50-15-131
Belt, Drive
2.0L Eng
Man Trans LF51-15-909
Auto Trans LF50-15-909A
2.3L Eng
Man Trans L373-15-909
Auto Trans L372-15-909A
A/C REFRIGERANT CAPACITIES
A/C R-134a Refrigerant Capacity
2004: 18.6 Ozs (1.16 Lbs)
A/C /HEATER/VENTILATION
1 Condenser Assy BPYK-61-48Z
2
Receiver/Drier¶ BP4K-61-501
3
Bracket, Receiver¶ BP4K-61-502
¶Included w/Condenser Assy
4
Hose, High Pressure BP4S-61-4G0B
5
Hose, Low Pressure BP4S-61-462C
6
Pipe Assy, Condenser BP4K-61-46X
7
Switch, Pressure¶ B01A-61-503
¶Included w/Condenser Pipe Assy
8
Compressor Assy BP4S-61-K00
9
Pulley Kit¶ BP4S-61-L20
¶Included w/Compressor Assy
10
Bracket, Compressor BP4S-61-458B
11
Evaporator/Heater Assy
w/ A/C BNYR-61-42Y
w/o A/C BN8P-61-130F
12
Case, Heater Upper¶ R/L BP4K-61-B01-2
13
Case, Heater Lower¶
w/ A/C R BP4K-61-A02A
L BN8P-61-A01A
w/o A/C R BP4L-61-A02A
L BN8P-61-A01A
14
Motor & Fan Unit¶ BP4K-61-B10
15
Lining, Blower¶ BP4K-61-B04
16
Resistor, Blower¶ BP4K-61-B15
17
Link Set, Temp¶ BP4K-61-A20
18
Link Set, Mode¶ BP4K-61-A30
19
Evaporator¶ BPYK-61-J1Z
20
Sensor, Valve¶ BP4K-61-J22
21
Core, Heater¶ BP4K-61-A10
22
Case, Evaporator¶ BP4K-61-A03
23
Valve, Expansion¶ BP4K-61-J14
Seal, Cooling Unit¶
24 Upper BP4K-61-J31
25 Lower Outer
w/ A/C BP4K-61-J06
w/o A/C BP4L-61-J06
26 Lower Inner BP4K-61-J12
27
Pipe, Evaporator¶ BP4K-61-J15
¶Included w/Evaporator/Heater Assy
FRONT FENDER
1 Fender
Hatchback R BP4K-52-111C
L BP4K-52-211C
Sedan R BN8V-52-111C
L BN8V-52-211C
2
Bracket, Fender R BP4K-53-290
L BP4K-54-290
3
Liner, Fender
Sport Type R BP4L-56-130D
L BP4L-56-140D
Std Type R BP4K-56-130E
L BP4K-56-140E
4
Fastener, Liner
w/Mudguard (23) NA01-56-145
w/o Mudguard (27) NA01-56-145
5
Mudguard Assy R BP4K-51-840A
L BP4K-51-850A
6
Clip, Mudguard¶ R/L BP4K-51-SJ3
¶Included w/Mudguard Assy
7
Grommet, Clip R/L GJ6E-51-832A
8
Rivet, Mudguard (2/Side) R/L B092-51-833
Lamp, Repeater-See Front Lamps Section
UNDERHOOD DIMENSIONS
Information not available at time of publication.
FRONT INNER STRUCTURE
FRONT
1 Support Assy, Radiator BP4K-53-110F
2
Nut, Support Mounting¶ (6) FB01-50-133C
¶Included w/Radiator Support Assy
3
Support, Hood Lock BP4K-52-15YA
4
Plate, Seal R BP4K-56-251
5
Guide, Air L BP4K-56-L21
6
Fastener, Air Guide L GD7A-50-EA1
7
Cover, Hole BP4K-56-078A
SIDE
Illustration Located in Next Column
1
Apron & Sidemember Assy R BPY0-53-20X
L BPY0-54-20X
2
Apron Assy¶ R BP4K-53-210L
L BP4K-54-210J

MAZDA3 2004
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629.
4madpl1_g01_
Page 4—April 22, 2004—13:28:09—Version Manufacturer

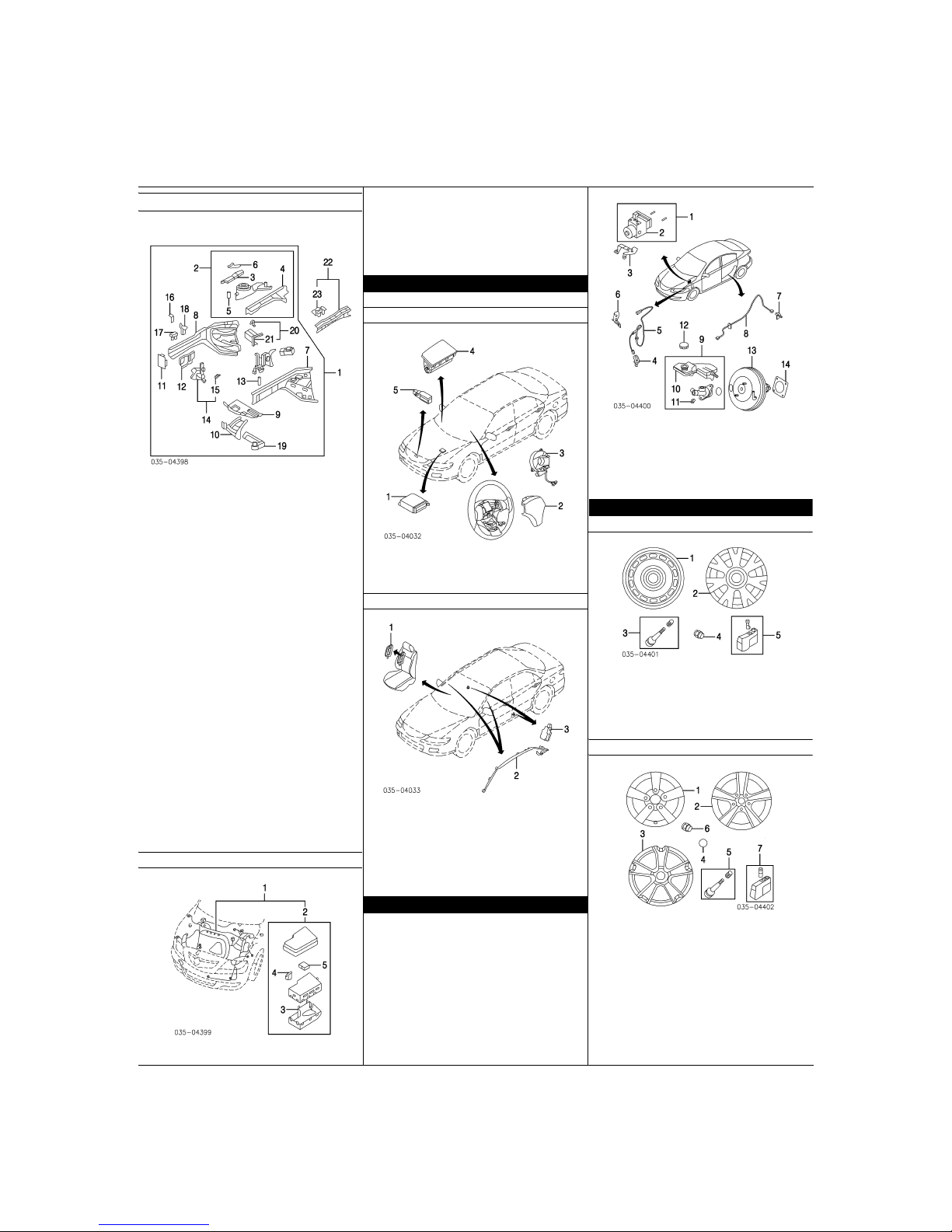

FRONT INNER STRUCTURE Cont’d
SIDE Cont’d
3 Apron, Front¶ (a) R BP4L-23-220C
L BP4K-23-221
4
Reinforcement, Apron¶ (a) R BP4K-53-261A
L BP4K-54-261A
5
Bracket, Apron¶ (a) R BP4K-53-243
L BP4L-53-243
6
Reinf, Mounting¶ (a) RN.A.
L BP4K-54-490B
(a) Included w/Apron Assy
7
Frame, Outer¶ R BP4K-53-321
L BP4K-54-321A
8
Frame, Inner¶ R BP4K-53-3A0A
L BP4K-54-3A0A
9
Frame, Front Upper¶ R BP4K-53-393A
L BP4K-54-393A
10
Frame, Front Lower¶ R BP4K-53-390C
L BP4K-54-390C
11
Bracket, Front Bumper¶ R BP4K-53-33X
L BP4K-54-33X
12
Reinf, Rail Outer¶ L BP4K-54-353
13
Reinf, Rail Inner¶ R BP4K-53-353A
L BP4L-53-353A
14
Panel Assy, Side Support¶ R BP4K-53-120C
L BP4K-54-120
15
Bracket, Side Panel¶ (a) R/L BP4K-53-243
(a) Included w/Side Support Panel Assy
16
Bracket, Battery Carrier¶ L BP4K-54-25Y
17
Bracket, Outer Frame¶ L BP4L-54-350A
18
Bracket, Inner Frame¶ L BP4K-54-350A
19
Box, Torque¶ R BP4K-53-380B
L BP4K-54-380B
20
Sidemember Assy, Rear¶ RN.A.
L BP4K-54-3E0C
21
Sidemember, Rear¶ (a) R BP4K-53-3DY
L BP4L-54-3DY
¶Included w/Apron & Sidemember Assy
(a) Included w/Rear Sidemember Assy
22
Reinforcement Assy, Rear
Hatchback R BP4K-53-27YC
L BP4K-54-27YB
Sedan R BN8V-53-27YB
L BN8V-54-27YA
23
Reinf, Shroud¶
Hatchback R BP4K-53-15XA
L BP4K-54-15XA
Sedan R BN8V-53-15XA
L BN8V-54-15XA
¶Included w/Rear Reinforcement Assy
ELECTRICAL COMPONENTS
1 Harness Assy, Engine Wiring¶
w/ABS BP8R-67-010H
w/o ABS BN8K-67-010G
¶Order by Application
2
Block Assy, Main Fuse (a) BP4K-66-760B
3
Cover, Lower Fuse/Relay (a) (b) BP4K-66-767
Cover, Main Fuse Block (a) (b)
4 Front BP4K-66-761A
5 Rear BP4K-66-762
(a) Included w/Engine Wiring Harness Assy
(b) Included w/Main Fuse Block Assy
AIR BAG SYSTEM
FRONT
1 Control Unit, Diagnosis BP4K-57-K30B
2
Module, Driver Air Bag BN8P-57-K00
3
Clockspring BP4K-66-CS0
4
Module, Passenger Air Bag BP4K-57-K50C
5
Sensor, Front Impact BP4K-57-K1XA
SIDE
1 Module, Side Air Bag¶ R BN8P-57-KA0
L BN8P-57-KB0
¶Included w/Seat Back Assy-listed in Front Seat Section
2
Module, Side Curtain Air Bag
Hatchback R BP4K-57-KM0C
L BP4K-57-KN0C
Sedan R BN8V-57-KM0D
L BN8V-57-KN0D
3
Sensor, Side Air Bag R/L BP4K-57-KC0
Pretensioner, Seat Belt¶-See Seat Belts Section
¶Serviced w/Front Seat Belt
ABS/BRAKES
Illustration Located in Next Column
1
Actuator Assy, ABS BVSN-43-7AZA
2
Control, ABS¶ BPYK-67-65XB
¶Included w/ABS Actuator Assy
3
Bracket, Actuator BP4K-43-310A
4
Sensor, Front ABS R/L BP4K-43-701A
5
Harness, Front ABS Sensor R/L BP4K-67-SH1D
6
Bracket, Front Sensor R BP4K-43-741D
L BP4K-43-742D
7
Sensor, Rear ABS R/L BP4K-43-711A
8
Harness, Rear ABS Sensor R BP8L-67-SH0C
L BP4N-67-SH0C
9
Cylinder Assy, Brake Master BPYS-43-40Z
10
Reservoir¶ BPYL-43-55Z
11
Nut, Mounting¶ (4) D350-43-954
¶Included w/Brake Master Cylinder Assy
12
Cap, Tank BN8F-43-55YA
13
Booster, Brake
To 9-30-03 BPYL-43-80ZB
From 9-30-03 BPYL-43-80ZB
14
Gasket, Booster BP4K-43-443A
WHEEL
STEEL WHEEL
1 Wheel, Steel
15x6" 9965-L4-6050
16x6-1/2" 9965-40-6560
2
Cover, Wheel
15x6" Wheels BP4K-37-170B
16x6-1/2" Wheels BN8B-37-170A
3
Stem, Valve 9963-60-4130
4
Nut, Lug 0603-26-161A
5
Sensor, Wheel FE01-37-140A
ALLOY WHEEL
Wheel, Alloy
1 15x6" 9965-L8-6050
2 16x6-1/2"
Front 9965-41-6560
Rear 9965-42-6560
3 17x6-1/2"
Front 9965-02-6570
Rear 9965-03-6570
4
Emblem, Wheel GJ6G-37-192
5
Stem, Valve 9963-60-4130
6
Nut, Lug B002-37-160A
7
Sensor, Wheel FE01-37-140A

MAZDA3 2004
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629. 5
madpl1_g01_
Page 5—April 22, 2004—13:28:11—Version Manufacturer
SPARE WHEEL & HARDWARE
Wheel, Spare
1 2.0L Eng 9965-35-4050
2 2.3L Eng 9965-23-4060
3
Bolt, Spare Wheel 8532-56-961
4
Clamp, Spare Wheel GA5R-56-971C
5
Insulator, Spare Wheel B01C-68-8L1
6
Jack GA5R-37-790B
7
Bolt, Jack B001-56-170C
8
Handle, Jack GJ21-37-810A
FRONT SUSPENSION
1 Bolt, Axle R/L 9YA0-21-083D
2
Rotor, Brake
2.0L Eng R/L BP4Y-33-25XB
2.3L Eng R/L BP6Y-33-25XD
3
Hub Assy
w/ABS R/L BP4K-33-15XB
w/o ABS R/L BN8B-33-15XB
4
Bolt, Hub¶ (5/Side) R/L BP4K-33-062
¶Included w/Hub Assy
5
Shield, Splash R/L N.A.
6
Knuckle, Steering
w/ABS R/L BP4K-33-021C
w/o ABS R/L BN8B-33-021B
7
Sensor, Front ABS-See ABS/Brakes Section
8 Caliper, Brake R BPYK-33-61XA
L BPYK-33-71XA
9
Support, Caliper
2.0L Eng R/L BPYK-33-28X
2.3L Eng R/L BPYS-33-28XA
10
Pad Set, Brake B3YH-33-23Z
11
Hose, Brake R/L BP4K-43-980D
12
Strut
2.0L Eng R BP4K-34-700E
L BP4K-34-900E
2.3L Eng R B32T-34-700D
L B32T-34-900D
13
Spring, Coil
2.0L Eng
Man Trans R/L BP4N-34-011B
Auto Trans R/L B32T-34-011B
2.3L Eng
Man Trans R/L B32T-34-011B
Auto Trans R/L BN8H-34-011B
14
Boot, Dust R/L BP4K-34-0A5B
15
Bumper, Rebound R/L BP4K-34-111A
16
Bushing, Mounting R/L BP4K-34-38XA
17
Support, Mount R/L BP4K-34-380B
18
Stiffener, Mount R BP4K-34-007B
L BP4K-34-008B
19
Arm, Lower Control R B32H-34-300
L B32H-34-350
20
Bar, Stabilizer
Hatchback BP4L-34-151A
Sedan
15" Wheels BP4K-34-151D
16" Wheels, 17" Wheels BP4L-34-151A
21
Link, Stabilizer BP4K-34-170C
22
Bracket, Stabilizer R/L BP4K-34-810A
23
Bushing, Bar R/L BP4K-34-156A
24
Bracket, Bushing R/L BP4K-28-155B
25
Crossmember, Susp BP4K-34-800F
26
Bolt, Front Crossmember R/L 9YA0-11-201B
27
Bolt, Rear Crossmember R/L 9YA0-21-601A
FRONT DRIVE AXLE
1 Shaft, Axle
Hatchback
w/ABS R GR27-25-50XB
L GR27-25-60XB
w/o ABS R GG27-25-500C
L GG27-25-600C
Sedan
w/ABS R GR27-25-50XB
L GR27-25-60XB
w/o ABS R GG27-25-500C
L GG27-25-600C
2
Shaft, Joint GG27-25-700B
3
Clip, Shaft R/L G054-25-421
FRONT STEERING LINKAGE/GEAR
1 Gear Assy, Steering BP4L-32-110
2
Valve Assy, Steering¶ BP4L-32-380
3
Sensor¶ (a) BP4L-32-J20
(a) Included w/Steering Valve Assy
4
Seal, Dust¶ BP4L-32-NA1
5
Yoke Set¶ BP4L-32-11X
6
Rack, Steering Gear¶ BP4L-32-119
7
Seal, Rack¶ BP4L-32-180
8
Cover, Housing¶ BP4L-32-202
9
Bushing, Mount¶ R/L BP4L-32-123
10
Boot, Rack¶ R/L BP4L-32-12X
11
Rod, Inner Tie¶ R/L BP4L-32-240
12
Pipe, Pressure¶ BP4L-32-460
13
Pipe, Return¶ R BP4L-32-FD0
L BP6L-32-FD0
¶Included w/Steering Gear Assy
14
End, Tie Rod R BP4L-32-280
L BP4L-32-290
15
Nut, Lock R/L BP4L-32-131
16
Cover, Valve BP4L-32-112
17
Insulator, Gear BP4L-32-229C
STEERING PUMP
1 Pump Assy, Steering BP4L-32-650E
2
Pump, Steering¶ BP4L-32-600
3
Bracket, Front Pump¶ BP4L-32-603A
4
Bracket, Rear Pump¶ B32H-32-603
5
Hose, Return¶ BP4L-32-682B
¶Included w/Steering Pump Assy
6
Hose, Suction BP4L-32-688A
7
Reservoir, Fluid BP4L-32-690A
8
Pipe, Steering BP4L-32-47YC
STEERING WHEEL/COLUMN
WHEEL & TRIM
1 Wheel Assy, Steering
Leather BN8D-32-980A
Urethane
w/Switch
w/Cruise Control BN8B-32-980A
w/o Cruise Control BP4L-32-980B
w/o Switch BP4K-32-980B
2
Switch, Steering¶
w/Cruise Control BN8P-66-4M0
w/o Cruise Control BP4K-66-4M0A
¶Included w/Steering Wheel Assy
3
Cap, Wheel R/L BC1D-32-9L1
4
Module, Driver Air Bag-See Air Bag System Section
5 Clockspring-See Air Bag System Section
6 Body, Combination Switch BP4K-66-1B1
7
Switch, Wiper
Hatchback
w/Adjustable Wheel BP4N-66-128
w/o Adjustable Wheel BP4K-66-128
Sedan
w/Adjustable Wheel BN8W-66-128
w/o Adjustable Wheel BN8V-66-128
8
Switch, Dimmer/Signal
Hatchback
w/Auto H/Lamps BP8M-66-122
w/o Auto H/Lamps BN8R-66-122
Sedan
w/Auto H/Lamps
w/Fog Lamps BP8M-66-122
w/o Fog Lamps BP8L-66-122

MAZDA3 2004
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629.
6madpl1_g01_
Page 6—April 22, 2004—13:28:13—Version Manufacturer
STEERING WHEEL/COLUMN Cont’d
WHEEL & TRIM Cont’d
w/o Auto H/Lamps
w/Fog Lamps BN8R-66-122
w/o Fog Lamps BP8L-66-122
9
Cover Assy, Column BP4K-60-21XE
10
Screw, Tapping¶ (2) G030-60-248
11
Case, Lamp¶ BP4K-60-245
12
Lens¶ BP4K-60-246
¶Included w/Column Cover Assy
13
Bulb B456-60-223
14
Lock Set, Complete
Hatchback
Man Trans BN8G-09-010B
Auto Trans BN8J-09-010B
Sedan
Man Trans
w/Burglar Alarm System BN8R-09-010C
w/o Burglar Alarm System
w/Keyless Entry BP8M-09-010C
w/o Keyless Entry BN8L-09-010D
Auto Trans
w/Burglar Alarm System BN8T-09-010C
w/o Burglar Alarm System
w/Keyless Entry BP8P-09-010D
w/o Keyless Entry BN8N-09-010D
15
Lock, Steering¶
Man Trans BP4K-66-150
Auto Trans N.A.
16
Switch, Ignition¶ BP4K-66-151
17
Immobilizer¶ BP4K-66-938
18
Cylinder Assy, Door Lock¶-See Front Door Section
19 Clip, Door Lock¶ (a)-See Front Door Section
(a) Included w/Door Lock Cylinder Assy
20
Cylinder Assy, Lid Lock¶-See Luggage Lid Section
21 Clip, Lid Lock¶ (a)-See Luggage Lid Section
Cylinder, Liftgate Lock¶-See Liftgate Section
¶Included w/Complete Lock Set
(a) Included w/Lid Lock Cylinder Assy
COLUMN TILT
1 Column, Steering
Man Trans
To 10-8-03 BP4K-32-10XE
From 10-8-03 BP4K-32-10XF
Auto Trans BN8D-32-10XD
2
Bracket, Harness BP4K-67-B31A
3
Bolt, Shaft B455-32-099A
4
Cover, Joint BP4K-32-AZ1A
ENGINE/TRANS
2.0L ENG
Illustration Located in Next Column
1
Pulley, Crankshaft
w/Calif Emission LF26-11-400A
w/o Calif Emission LF50-11-400A
2
Cover Assy, Timing L807-10-500C
3
Seal, Oil¶ LF01-10-602
4
Seal, Rubber¶ (2) 9XG0-64-34X9
¶Included w/Timing Cover Assy
5
Cover, Rear LF01-11-310
6
Cover, End Plate LF17-10-903
7
Cover Assy, Valve LF64-10-210D
8
Cap, Oil Filler¶ LF04-10-250
9
Gasket, Cover¶ LF02-10-230
¶Included w/Valve Cover Assy
10
Pan, Engine Oil
To 10-1-03 LF50-10-400B
From 10-1-03 LF50-50-400C
11
Dipstick, Engine Oil LF13-10-450A
12
Tube, Eng Dipstick LF13-10-440A
13
Pan, Trans Oil FN11-21-51X
2.3L ENG
1 Pulley, Crankshaft
Man Trans LF13-11-400
Auto Trans LF50-11-400A
2
Cover Assy, Timing L322-10-500A
3
Seal, Oil¶ LF01-10-602
4
Seal, Rubber¶ L309-10-533A
¶Included w/Timing Cover Assy
5
Cover, Rear LF01-11-310
6
Cover, End Plate LF17-10-903
7
Cover Assy, Valve L374-10-210D
8
Cap, Oil Filler¶ LF04-10-250
9
Gasket, Cover¶ LF02-10-230
¶Included w/Valve Cover Assy
10
Pan Assy, Engine Oil L372-10-400C
11
Baffle, Front¶ L372-10-406
12
Plate, Rear¶ L309-10-402
¶Included w/Engine Oil Pan Assy
13
Dipstick, Eng Oil L309-10-450A
14
Tube, Eng Dipstick L309-10-440
15
Pan, Trans Oil FN11-21-51X
ENGINE/TRANS MOUNTS
Illustration Located in Next Column
1
Mount, Eng Front
2.0L Eng BP4S-39-060C
2.3L Eng B32T-39-060A
2
Mount, Eng Side BP4S-39-040
Bracket, Eng Side Mount
3 Man Trans BP4S-39-010A
4 Auto Trans
To 1-1-04 BP4N-39-010A
From 1-1-04 BP4N-39-010B
5
Mount, Trans BP4N-39-070C
6
Bracket, Trans Mount
Man Trans BP4S-39-080A
Auto Trans B32T-39-080A
ENGINE UNDER COVER
1 Cover, Front Under BP4K-56-112
2
Cover, Rear Under BP4K-56-111G
3
Cover, Side Rear R BP4K-56-114D
L BP4K-56-115E
4
Fastener, Under Cover (3) GD7A-50-EA1
5
Fastener, Side Cover R/L NA01-56-145
AIR CLEANER
1 Cleaner Assy, Air
w/Calif Emission LF67-13-320A
w/o Calif Emission LF50-13-320B
2
Cover Assy, Upper¶
w/Calif Emission LF67-13-Z1X
w/o Calif Emission LF50-13-Z1X
3
Cover, Upper¶ (a)
w/Calif Emission LF67-13-Z01A
w/o Calif Emission LF50-13-Z01B
4
Collar¶ (a) LF50-13-Z11
5
Nut, Clip¶ (a) FB01-50-133C
(a) Included w/Upper Cover Assy
6
Element, Cleaner¶ LF50-13-Z40A
7
Case, Lower¶ LF50-13-Z02B
¶Included w/Air Cleaner Assy
8
Duct, Fresh Air LF50-13-201B
9
Baffle, Air Intake LF50-13-204B
10
Meter Assy, Air Flow ZL01-13-215R-00
11
O-Ring, Meter¶ ZL01-13-214
¶Included w/Air Flow Meter Assy
12
Hose, Air LF67-13-221

MAZDA3 2004
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629. 7
madpl1_g01_
Page 7—April 22, 2004—13:28:15—Version Manufacturer
13 Chamber, Resonator LF50-13-195A

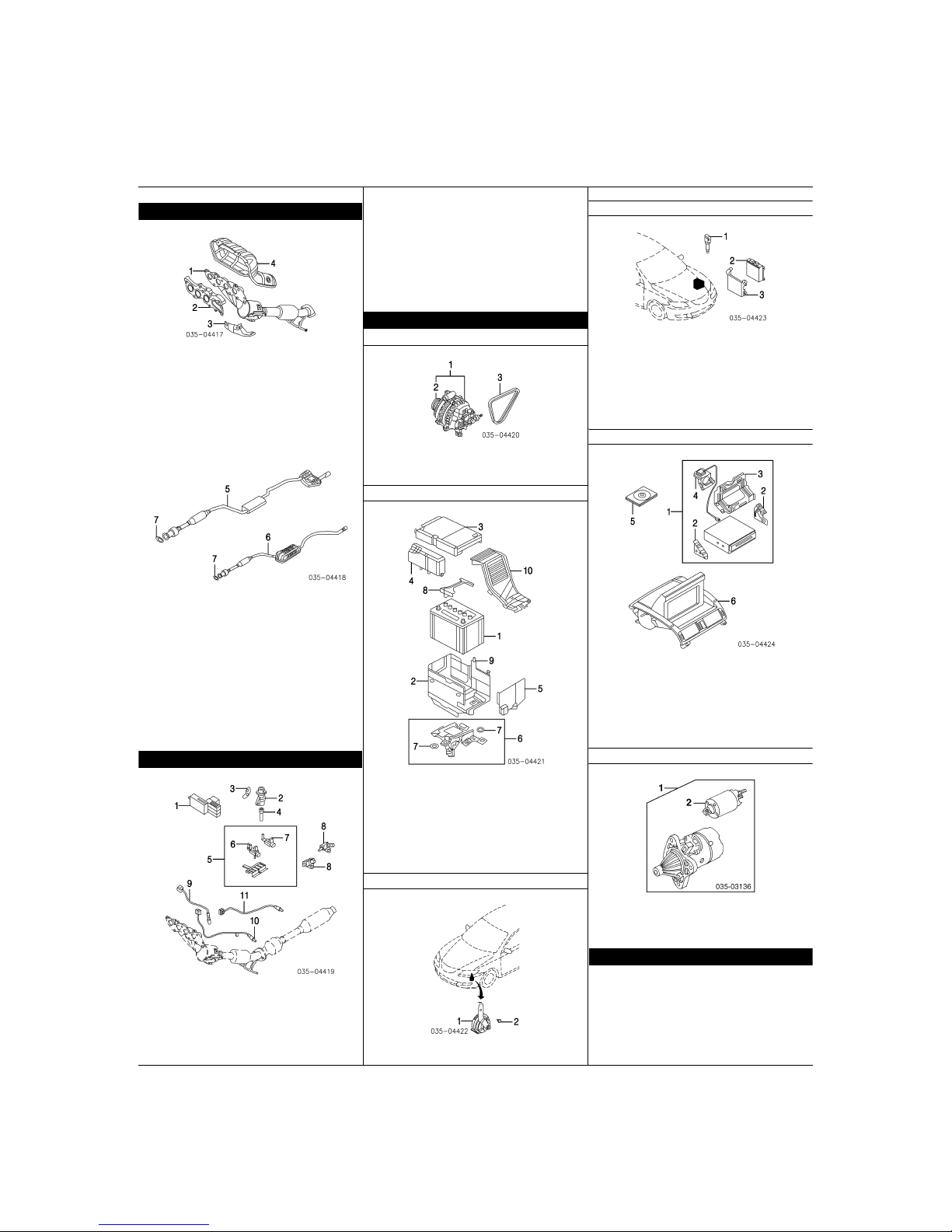

EXHAUST
1 Manifold/Converter
2.0L Eng
w/Calif Emission
To 9-29-03 LF14-20-50XC
From 9-29-03 LF14-20-50XC
w/o Calif Emission LF13-20-50XF
2.3L Eng L328-20-50XD
2
Gasket, Manifold L327-13-460A
3
Bracket, Manifold LF07-40-071B
4
Shield, Manifold
w/Calif Emission
To 9-29-03 LF67-13-390C
From 9-29-03 LF67-13-390D
w/o Calif Emission LF50-13-390B
Pipe, Exhaust
5 w/Calif Emission
To 10-21-03 LF14-20-55XD
From 10-21-03 to 11-5-03 LF14-20-55XE
From 11-5-03 LF14-20-55XF
6 w/o Calif Emission
Man Trans
Hatchback L352-20-55XA
Sedan L351-20-55XA
Auto Trans
2.0L Eng LF13-20-55XD
2.3L Eng
Hatchback L327-20-55XD
Sedan L326-20-55XD
7
Gasket, Pipe
To 11-1-03 LF07-40-305
From 11-1-03 LF07-40-305A
Sensor, Oxygen Exh Manifold-See Emission System Section
Sensor, Front Oxygen-See Emission System Section
Sensor, Rear Oxygen-See Emission System Section
EMISSION SYSTEM
1 Canister, Vapor
w/Calif Emission LF67-13-970B
w/o Calif Emission LF66-13-970B
2
Valve, EGR LF01-20-300
3
Gasket, EGR Valve LF01-20-305
4
Pipe, EGR Valve LF01-20-310
5
Valve Assy, Solenoid
2.0L Eng LF82-18-740
6
Valve, Front Solenoid¶ LF15-18-741
7
Valve, Rear Solenoid¶ LF82-18-741
¶Included w/Solenoid Valve Assy
8
Valve, Solenoid (2)
2.3L Eng L301-18-741
9
Sensor, Oxygen Exh Manifold
w/Calif Emission LF63-18-8G1B
w/o Calif Emission LF66-18-861B
10
Sensor, Front Oxygen
2.0L Eng
w/Calif Emission LF67-18-861A
w/o Calif Emission LF68-18-861B
2.3L Eng L3A1-18-861A
11
Sensor, Rear Oxygen
To 10-29-03 LF69-18-861B
From 10-29-03 LF69-18-861C
ELECTRICAL
ALTERNATOR
1 Alternator Assy LF50-18-300A
2
Pulley, Alternator¶ LF50-18-W11
¶Included w/Alternator Assy
3
Belt, Drive-See Cooling Section
BATTERY
1 Battery N.A.
Cable, Battery N.A.
2
Box, Battery BP4K-56-040G
3
Cover, Box Upper Z601-18-593D
4
Cover, Box Front Upper LF50-18-593D
5
Cover, Box End Z601-18-591B
6
Tray Assy, Battery BP4S-56-03YD
7
Rubber, Mounting¶ (2) LF50-13-363A
¶Included w/Battery Tray Assy
8
Clamp, Battery BP4K-56-031B
9
Bracket, Clamp BP4K-56-043
10
Duct, Battery Z601-18-59YC
HORN
1 Horn BN8P-66-78Y
2
Screw, Mounting GJ6A-67-5D7
IGNITION
1 Coil, Ignition (4)
To 10-1-03 LF16-18-100
From 10-1-03 LF16-18-100B
2
Module, Powertrain Control¶
2.0L Eng
Man Trans LFYJ-18-881
Auto Trans LFYK-18-881
2.3L Eng
Man Trans L3Z3-18-881
Auto Trans L3Z2-18-881B
¶Order by Application
3
Bracket, Module LF50-18-786D
NAVIGATION SYSTEM
Navigation Unit-See Instrument Panel Section
Bracket, Navigation-See Instrument Panel Section
1 Control Assy, Navigation BN8R-66-DF0A
Bracket, Navigation¶
2 Side R BP4K-66-9B2
L BP4K-66-9B3
3 Center BP4K-66-9B1
4
Antenna, GPS¶ BP4K-66-DY0
¶Included w/Navigation Control Assy
5
CD, Navigation BN8R-66-DZ0
6
Display, Navigation BN8R-66-EV0
STARTER
1 Starter Assy
2.0L Eng L813-18-400
2.3L Eng L327-18-400
2
Switch, Magnetic¶ L327-18-X10
¶Included w/Starter Assy

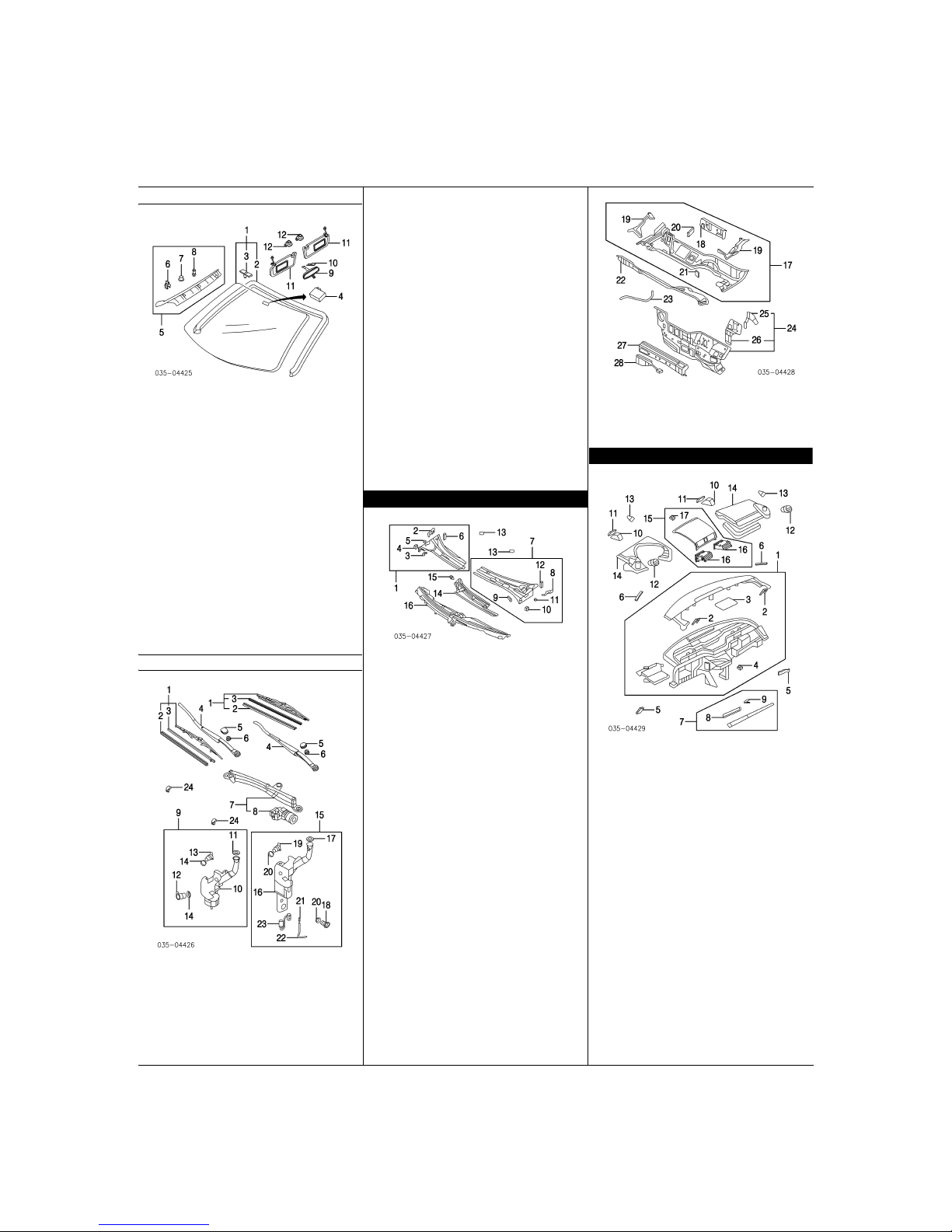

WINDSHIELD
Illustration Located in Next Column
1
Glass Assy, Windshield
Mazda
w/Rain Sensor BN8R-63-900C
w/o Rain Sensor BN8P-63-900B

MAZDA3 2004
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629.
8madpl1_g01_
Page 8—April 22, 2004—13:28:16—Version Manufacturer
WINDSHIELD Cont’d
2 Moulding, Reveal¶ BP4P-50-601A
3
Pin, Glass¶ (2) BP4K-63-938
¶Included w/Windshield Glass Assy
4
Sensor, Rain BP4K-66-5G0
5
Trim Assy, Pillar
w/Side Curtain Air Bag
Corn Beige R BP4K-68-160D-30
L BP4K-68-170D-30
Gray R BP4K-68-160D-77
L BP4K-68-170D-77
w/o Side Curtain Air Bag
Corn Beige R BP4L-68-160E-30
L BP4L-68-170E-30
Gray R BP4L-68-160E-77
L BP4L-68-170E-77
6
Spring, Plate¶ (2/Side) R/L LB82-64-345
7
Clip, Trim¶ R/L GJ6A-68-162
8
Grommet, Clip¶ R/L GJ6A-68-155A
¶Included w/Pillar Trim Assy
9
Mirror, Rear View
w/GDO BP4L-69-220A
w/o GDO BP4K-69-220
10
Cover, Mirror Base R BP4L-69-1C1B
L BP4L-69-1C7C
11
Visor, Sun¶
w/Sunroof R BP8R-69-270C-77
L BP8R-69-320C-77
w/o Sunroof R BN8P-69-270C-77
L BN8P-69-320C-77
¶Gray listed, Order by Application
12
Adapter, Sun Visor
Beige R/L LC62-69-261A-80
Corn Beige R/L LC62-69-261A-30
Gray R/L LC62-69-261A-77
WIPER SYSTEM
1 Blade Assy, Wiper R B32L-67-330
L B32H-67-330
2
Insert, Blade¶ R B32H-67-333
L B32L-67-333
3
Plate, Backing¶ R B32L-67-332
L B32H-67-332
¶Included w/Wiper Blade Assy
4
Arm, Wiper R BN8F-67-321B
L BN8G-67-321A
5
Cover, Wiper Arm R/L BP4K-67-395
6
Nut, Wiper Arm R/L 9090-10-801
7
Motor & Linkage Assy BP4K-67-37XB
8
Motor, Wiper¶ BP4K-67-340
¶Included w/Motor & Linkage Assy
9
Tank Assy, Washer
Small
Hatchback BP4N-67-480C
Sedan BN8V-67-480C
10
Tank, Washer¶
Hatchback BP4N-67-481B
Sedan BN8V-67-481B
11
Cap, Tank¶ BP4K-67-483
12
Pump, Front Washer¶ G22C-67-482
13
Pump, Rear Washer¶ BP4K-67-482
14
Grommet, Washer Tank¶
Hatchback (2) G22C-67-491
Sedan G22C-67-491
¶Included w/Washer Tank Assy
15
Tank Assy, Washer
Large
Hatchback BN8F-67-480B
Sedan BN8P-67-480B
16
Tank, Washer¶
Hatchback BN8F-67-481A
Sedan BN8P-67-481A
17
Cap, Tank¶ BP4K-67-483
18
Pump, Front Washer¶ G22C-67-482
19
Pump, Rear Washer¶ BP4K-67-482
20
Grommet, Washer Tank¶
Hatchback (2) G22C-67-491
Sedan G22C-67-491
21
Tube, Tank¶ BP6W-67-501A
22
Joint, Tube¶ DB05-67-502
23
Switch, Level¶ BP4K-67-488
¶Included w/Washer Tank Assy
24
Nozzle, Washer
Hatchback R BP4L-67-510
L BP4K-67-510
Sedan R BN8W-67-510
L BN8V-67-510
COWL & DASH
1 Grille Assy, Right Cowl
Hatchback BP4K-50-7R0C
Sedan BN8V-50-7R0C
2
Moulding, Fender¶
Hatchback R BP4K-51-PB1A
Sedan R BN8V-51-PB1A
Gasket, Grille¶
3 No. 1 BP4K-50-795
4 No. 2 BP4L-50-795
5 No. 3 BP4M-50-795
6 No. 4 BP4N-50-795
¶Included w/Right Cowl Grille Assy
7
Grille Assy, Left Cowl
Hatchback BP4K-50-7S0C
Sedan BN8V-50-7S0C
8
Moulding, Fender¶
Hatchback L BP4K-51-PC1A
Sedan L BN8V-51-PC1A
Gasket, Grille¶
9 No. 1 BP4K-50-795
10 No. 2 BP4L-50-795
11 No. 3 BP4M-50-795
12 No. 4 BP4N-50-795
¶Included w/Left Cowl Grille Assy
13
Cap, Cowl Top R/L BP4M-50-705
14
Grille, Center Cowl BP4K-50-7P1A
15
Clip, Grille (3) BC1D-56-145
16
Panel, Cowl Grille BP4K-53-520B
Seal Assy, Rear
Hatchback BP4K-56-760
Sedan BN8V-56-760
Fastener, Seal¶ (16) BC1D-58-762
¶Included w/Rear Seal Assy

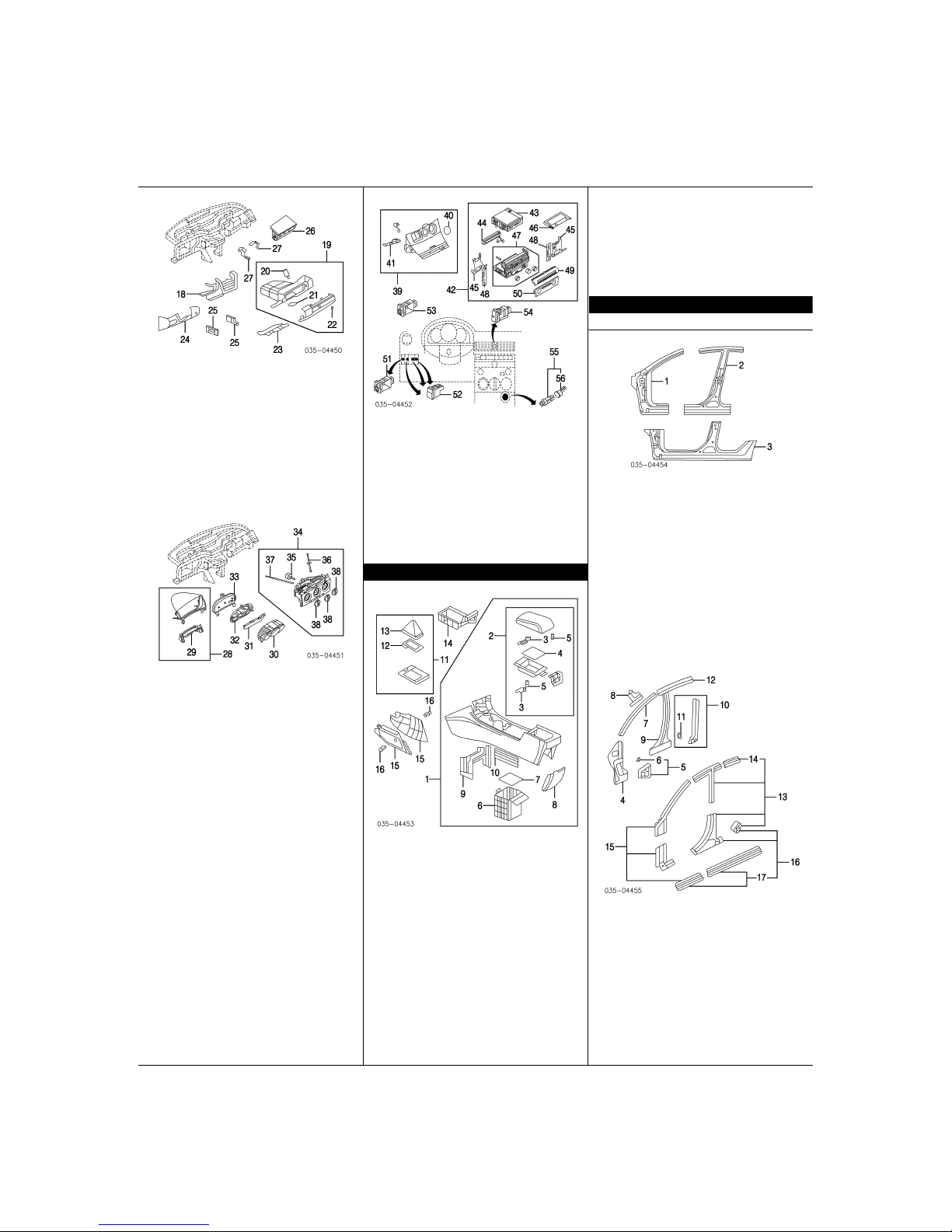

Illustration Located in Next Column
17
Panel Assy, Upper Dash BP4K-53-500G
18
Bracket, Cowl¶ BP4K-54-54XA
Bracket, Wiper¶
19 No. 1 R BP4K-53-5DXB
L BP4K-54-5DXB
20 No. 2 BP4K-54-5EXA
21 No. 3 BP4K-54-5FXA
¶Included w/Upper Dash Panel Assy
22
Crossmember, Cowl BP4K-56-H10A
23
Hose, Drain BP4K-56-0D1A
24
Panel Assy, Lower Dash BPY0-53-4A0A
25
Reinf, Dash Panel¶ BP4K-54-42X
26
Bracket, Lower Dash¶ BP4K-54-440
¶Included w/Lower Dash Panel Assy
27
Crossmember, Lower BP4K-53-450B
28
Insulator, Front Dash
To 11-20-03 BP4K-56-17XD
From 11-20-03 BP4K-56-17XE
INSTRUMENT PANEL
1 Panel Assy, Instrument BN8P-60-42XL
Tape, Seal¶
2 No. 1 R/L BP4K-55-165
3 No. 2 BP4K-55-162A
4
Nut, Spring¶ (2) BP4K-60-408A
¶Included w/Instrument Panel Assy
5
Bracket, Instrument R BP4K-60-412A
L BP4K-60-413A
6
Seal, Upper R/L BP4K-55-164
7
Plate Assy, Decoration
2.0L Eng BP4K-55-150C
2.3L Eng BP4M-55-150D
8
Plate, Decoration¶ BP4K-55-257
9
Spring, Plate¶
No. 1 S47P-64-345
No. 2 J001-64-345
¶Included w/Decoration Plate Assy
10
Duct, Outer R BP4K-64-741
L BP4K-64-841
11
Gasket, Duct R/L BP4K-55-163A
12
Grille, Ventilation R/L BP4K-64-730B
13
Grille, Demister R BP4K-60-160C
L BP4K-60-170C
14
Pad, Instrument Panel R BP4K-60-35XE
L BP4K-60-360D
15
Panel Assy, Center Vent B32H-55-31XE
16
Grille, Center Vent¶ R B32H-64-930D
L B32J-64-930D
17
Spring, Center Panel¶ (5) S47P-64-345
¶Included w/Center Vent Panel Assy
Illustration Located in Next Column
18
Panel, Frame Center
Black BP4K-60-401C-02
Corn Beige BP4K-60-401C-30

MAZDA3 2004
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629. 9
madpl1_g01_
Page 9—April 22, 2004—13:28:18—Version Manufacturer
19 Box Assy, Glove¶
w/Navigation System BN8R-64-030G-02
w/o Navigation System BN8P-64-030G-02
¶Black listed, Order by Application
20
Damper, Glove Box (a) BN8P-64-08X
21
Cover, Lock (a) BP4K-64-115A
22
Cylinder, Glove Box (a)
Black GE4T-64-09YB-00
Corn Beige GE4T-64-09YB-30
(a) Included w/Glove Box Assy
23
Cover, Under R BP4K-64-520E
24
Panel, Lower
Black L BN8P-64-280B-02
Corn Beige L BN8P-64-280B-30
25
Bracket, Inst Panel R BP4K-60-4A1B
L BP4K-60-4B1A
26
Module, Passenger Air Bag-See Air Bag System Section
27 Bracket, Air Bag Module R BP4K-60-A30A
L BP4K-60-A21A
28
Hood Assy, Meter BP4K-55-420D
29
Cover, Front¶ BP4K-55-182C
¶Included w/Meter Hood Assy
30
Panel, Meter
2.0L Eng BP4K-55-214
2.3L Eng BP4L-55-214
31
Lens, Meter BP4K-55-447
32
Plate, Window
2.0L Eng BP4K-55-446
2.3L Eng BP4L-55-446
33
Speedometer
2.0L Eng
Man Trans
w/Calif Emission BN8B-55-471
w/o Calif Emission BN8R-55-471
Auto Trans
w/Calif Emission BN8D-55-471A
w/o Calif Emission BN8T-55-471A
2.3L Eng
Man Trans BN8F-55-471
Auto Trans BN8H-55-471A
34
Control Assy, Heater
2.0L Eng
w/ A/C BN8R-61-190B
w/o A/C BN8P-61-190B
2.3L Eng
w/ A/C BN8L-61-190B
w/o A/C BN8K-61-190B
35
Switch, Fan¶ BP4K-61-C50
36
Wire, Temp Control¶ BP4K-61-C25
37
Wire, Mode Control¶ BP4K-61-C35
38
Knob, Control¶ (3) BP4K-61-191
¶Included w/Heater Control Assy
Illustration Located in Next Column
39
Panel Assy, Center BP4M-55-210E
40
Cover, Hole¶ BP4M-55-574A
41
Lamp, Ashtray¶ BP4K-64-61YA
¶Included w/Center Panel Assy
42
Radio Assy
w/CD Player BN8F-66-9R0A
w/o CD Player BN8S-66-9RXA
43
Player, CD¶ GK1R-66-AG0
44
Navigation Unit¶ BP4K-66-EV0
45
Bracket, Navigation¶ R BP4K-66-9B2
L BP4K-66-9B3
46
Bracket, Radio¶
w/o CD Player F151-66-9B1
47
Tuner, Radio¶ BN8P-66-AS0
48
Felt, Garnish¶ R/L BP4K-66-EG5
49
Cover, Upper¶ B32L-66-BG4
50
Cover, Lower¶
w/CD Player BP4K-66-BG4
w/o CD Player B32P-66-BG4
¶Included w/Radio Assy
51
Switch, Headlamp BP4K-66-6F0
52
Cover, Switch Hole (3) BP4K-55-225
53
Resistor Unit BP4K-66-6R0
54
Switch, Hazard BP4K-66-4H0
55
Lighter Assy, Cigarette F151-66-250
56
Ring, Illumination¶ F151-66-251
¶Included w/Cigarette Lighter Assy
CENTER CONSOLE
1 Console Assy, Center
Black BN8P-64-420E-02
Corn Beige BN8P-64-420E-30
2
Lid Assy, Console¶
Black BP4K-64-450A-02
Corn Beige BP4K-64-450A-30
3
Lock, Lid¶ (a) (2)
Black GJ6A-64-45Y-02
Corn Beige GJ6A-64-45Y-30
4
Mat, Console¶ (a) BP4L-64-449
5
Cushion, Lid¶ (a) (2) B092-64-046
(a) Included w/Console Lid Assy
6
Box, Console¶ BP4K-64-441B
7
Mat, Console Box¶ BP4K-64-449A
8
Panel, Rear Console¶
Black B32H-64-470-02
Beige B32H-64-470-30
9
Bracket, Rear Console¶ BP4K-64-428A
10
Plate, Console¶ BP4K-64-433
¶Included w/Center Console Assy
11
Plate Assy, Upper
Man Trans
w/Navigation System BP4L-64-340B
w/o Navigation System BP4K-64-340B
Auto Trans
w/Navigation System BP4P-64-340A
w/o Navigation System BP4N-64-340
12
Plate, Boot¶
Man Trans BP4K-64-334A
Auto Trans BP4N-64-332
13
Boot, Change Lever¶ BP4K-64-331A
¶Included w/Upper Plate Assy
14
Boot, Shifter BP4K-64-43YC
15
Panel, Finish
Black R BP4K-64-231B-02
L BP4K-64-241B-02
Corn Beige R BP4K-64-231B-30
L BP4K-64-241B-30
16
Fastener, Panel
Black R/L GJ21-68-885B-02
Corn Beige R/L GJ21-68-885B-36
ROCKER/PILLARS/FLOOR
SHEET METAL
1 Pillar, Outer Hinge
Hatchback R BPYL-70-221
L BPYL-71-221
Sedan
w/Spoiler R BNYA-70-221
L BNYA-71-221
w/o Spoiler R BNYV-70-221
L BNYV-71-221
2
Pillar, Outer Center
Hatchback R BPYL-70-351
L BPYL-71-351
Sedan
w/Spoiler R BNYA-70-351
L BNYA-71-351
w/o Spoiler R BNYV-70-351
L BNYV-71-351
3
Panel, Outer Rocker
Hatchback R BNYF-70-271
L BNYF-71-271
Sedan
w/Side Spoiler R BNYC-70-271
L BNYC-71-271
w/o Side Spoiler R BNYB-70-271
L BNYB-71-271
4
Panel, Cowl Side R BP4K-70-230C
L BP4K-71-230D
5
Reinforcement Assy, Cowl Side
Hatchback R BP4K-70-65Z
L BP4K-71-65Z
Sedan R BN8V-70-65Z
L BN8V-71-65Z
6
Bracket, Fender¶
Hatchback-Not Serviced
Sedan R/L BN8V-70-21Y
¶Included w/Cowl Side Reinforcement Assy
7
Pillar, Inner Front R BPYK-70-240
L BPYK-71-240
8
Reinf, Front Pillar R BP4K-70-244A
L BP4K-71-244A
9
Pillar, Inner Center R BPYK-70-080
L BPYK-71-080
10
Reinforcement Assy, Center Pillar R BP4K-70-360A
L BP4K-71-360A

MAZDA3 2004
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629.
10 madpl1_g01_
Page 10—April 22, 2004—13:28:20—Version Manufacturer
ROCKER/PILLARS/FLOOR Cont’d
SHEET METAL Cont’d
11 Plate, Nut¶ (2/Side) R/L GE4T-70-46X
¶Included w/Center Pillar Reinforcement Assy
12
Rail, Roof Inner
Hatchback R BP4K-70-05YA
L BP4K-71-05YA
Sedan R BN8V-70-05Y
L BN8V-71-05Y
13
Reinforcement Assy, Upper Pillar
Hatchback R BNYF-70-360
L BNYF-71-360
Sedan R BNYB-70-360
L BNYB-71-360
14
Reinf, Roof Rail¶
Hatchback R BP4K-70-252
L BP4K-71-252
Sedan R BN8V-70-252
L BN8V-71-252
¶Included w/Upper Pillar Reinforcement Assy
15
Reinf, Lower Pillar R BPYK-70-24Z
L BPYK-71-24Z
16
Reinforcement Assy, Lower R BNYF-70-130
L BNYF-71-130
17
Reinf, Rocker¶ R BP4K-70-130C
L BP4K-71-130D
¶Included w/Lower Reinforcement Assy
18
Panel, Inner Rocker R BP4K-53-950D
L BP4K-54-950D
19
Pan Assy, Front Floor BPY0-53-60XE
20
Crossmember, Floor¶ R/L BP4K-53-650
21
Bracket, Seat¶ R BP4K-53-630A
L BP4K-54-630A
22
Frame, Floor¶ R BP4K-53-660E
L BP4L-54-660B
¶Included w/Front Floor Pan Assy
EXTERIOR TRIM
1 Moulding Assy, Rocker
Arctic White (Code A4D) R BP4K-51-P40B-33
L BP4K-51-P50B-33
Black (Code 16W) R BP4K-51-P40B-08
L BP4K-51-P50B-08
Canary Yellow (Code 25C) R BP4K-51-P40B-34
L BP4K-51-P50B-34
Crystal Silver (Code 22V) R BP4K-51-P40B-67
L BP4K-51-P50B-67
New Light Blue (Code 28A) R BP4K-51-P40B-90
L BP4K-51-P50B-90
Nordic Green (Code 27C) R BP4K-51-P40B-97
L BP4K-51-P50B-97
Passion Orange (Code 27Y) R BP4K-51-P40B-07
L BP4K-51-P50B-07
Sherbet Green (Code 28A) R BP4K-51-P40B-90
L BP4K-51-P50B-90
Sparkling Silver (Code 24E) R BP4K-51-P40B-28
L BP4K-51-P50B-28
Strato Blue (Code 25E) R BP4K-51-P40B-38
L BP4K-51-P50B-38
Titanium Gray (Code 29Y) R BP4K-51-P40B-01
L BP4K-51-P50B-01
Velocity Red (Code 27A) R BP4K-51-P40B-87
L BP4K-51-P50B-87
Winning Blue (Code 27B) R BP4K-51-P40B-94
L BP4K-51-P50B-94
2
Protector, Moulding¶ (2/Side) R/L B28C-50-814B
Clip, Moulding¶
3 No. 1 (11/Side) R/L G18K-51-SJ3
4 No. 2 (5/Side) R/L BP4L-51-SJ3
¶Included w/Rocker Moulding Assy
5
Rivet, Moulding (2/Side) R/L B092-51-833
INTERIOR TRIM
1 Trim Assy, Pillar-See Windshield Section
2 Panel, Cowl Trim
Black R BP4K-68-370D-02
L BP4K-68-390D-02
Corn Beige R BP4K-68-370C-30
L BP4K-68-390C-30
3
Trim Assy, Upper Center Pillar
Corn Beige R BP4K-68-190B-30
L BP4K-68-210B-30
Gray R BP4K-68-190B-77
L BP4K-68-210B-77
4
Cover, Shoulder Adj¶
Corn Beige R/L BP4K-57-969-30
Gray R/L BP4K-57-969-77
¶Included w/Upper Center Pillar Trim Assy
5
Trim, Lower Center Pillar
Black R BP4K-68-220C-02
L BP4K-68-230C-02
Corn Beige R BP4K-68-220C-30
L BP4K-68-230C-30
6
Plate, Front Scuff
Black R BP4K-68-710F-02
L BP4K-68-720G-02
Corn Beige R BP4K-68-710F-30
L BP4K-68-720F-30
7
Plate, Rear Scuff
Black R BP4K-68-730D-02
L BP4K-68-740D-02
Corn Beige R BP4K-68-730D-30
L BP4K-68-740D-30
FRONT SEAT
PASSENGER SIDE
1 Cushion Assy, Seat¶ BP4P-88-110A-03
2
Trim, Seat Cushion¶ (a) BP4P-88-111A-03
¶Black/Blue listed, Order by Application
(a) Included w/Seat Cushion Assy
3
Sensor, Seat BN8P-67-SW0
4
Back Assy, Seat (a)
w/Side Air Bag BN8L-88-130D-03
w/o Side Air Bag BN8K-88-130-03
(a) Black/Blue listed, Order by Application
5
Module, Side Air Bag¶-See Air Bag System Section
6 Trim, Seat Back¶ (a)
w/Side Air Bag BN8L-88-131-03
w/o Side Air Bag BN8K-88-131-03
(a) Black/Blue listed, Order by Application
7
Wire, Mounting¶ BP4K-88-139
8
Guide, Headrest¶
Black R BP4K-88-1G9-02
L BP4K-88-1G8-02
Corn Beige R BP4K-88-1G9-30
L BP4K-88-1G8-30
¶Included w/Seat Back Assy
9
Headrest (a) BP4K-88-140A-02
(a) Black listed, Order by Application
10
Cover, Seat Cushion
Black R BN8P-88-1G1-02
L BN8P-88-1G3-02
Corn Beige R BN8P-88-1G1-30
L BN8P-88-1G3-30
Gray R BN8P-88-1G1-73
L BN8P-88-1G3-73
11
Cover, Recliner
Black R BN8P-88-1F4-02
L BN8P-88-1F7-02
Corn Beige R BN8P-88-1F4-30
L BN8P-88-1F7-30
Gray R BN8P-88-1F4-73
L BN8P-88-1F7-73
12
Knob, Recliner
Black BN8P-88-1G5-02
Corn Beige BN8P-88-1G5-30
Gray BN8P-88-1G5-73
13
Cover, Anchor
Black BN8P-57-046-02
Corn Beige BN8P-57-046-30
14
Cover, Adjuster Front
Black R BN8P-57-041A-02
L BN8P-57-042A-02
Corn Beige R BN8P-57-041A-30
L BN8P-57-042A-30
15
Cover, Adjuster Rear
Black R BN8P-57-051A-02
L BN8P-57-052A-02
Corn Beige R BN8P-57-051A-30
L BN8P-57-052A-30
16
Adjuster, Seat Track
Black BN8P-88-A00-02
Corn Beige BN8P-88-A00-30
Gray BN8P-88-A00-73
DRIVER SIDE
1 Cushion Assy, Seat¶ BP4P-88-160A-03
2
Trim, Seat Cushion¶ (a) BP4P-88-161A-03
¶Black/Blue listed, Order by Application
(a) Included w/Seat Cushion Assy
3
Back Assy, Seat (a)
w/Side Air Bag BN8L-88-180D-03
w/o Side Air Bag BN8K-88-180-03
(a) Black/Blue listed, Order by Application
4
Module, Side Air Bag¶-See Air Bag System Section
5 Trim, Seat Back¶ (a)
w/Side Air Bag BN8L-88-181-03
w/o Air Bag BN8K-88-181-03
(a) Black/Blue listed, Order by Application
6
Wire, Mounting¶ BP4K-88-139
7
Guide, Headrest¶
Black R BP4K-88-1G9-02
L BP4K-88-1G8-02
Corn Beige R BP4K-88-1G9-30
L BP4K-88-1G8-30
¶Included w/Seat Back Assy
8
Headrest (a) BP4K-88-140A-02
(a) Black listed, Order by Application
9
Lever, Lumbar Support
Black BP4S-88-188-02
Corn Beige BP4S-88-188-30
Gray BP4S-88-188-73

MAZDA3 2004
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629. 11
madpl1_g01_
Page 11—April 22, 2004—13:28:21—Version Manufacturer

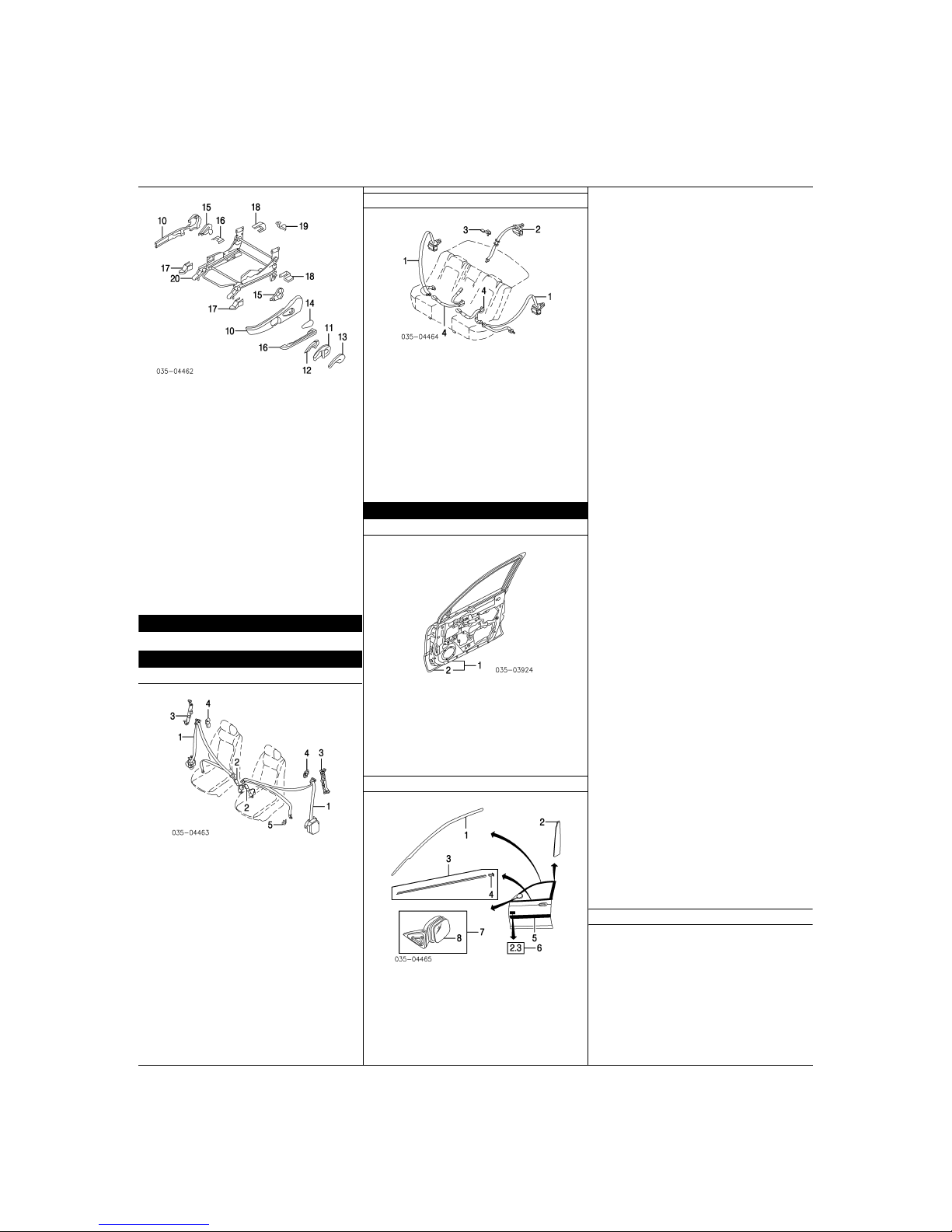

10 Cover, Seat Cushion¶ R B33D-88-1H1-02
L B33D-88-1H3-02
¶Black listed, Order by Application
11
Lever, Seat GJ6A-88-15Y
12
Cover, Lever
Black BP4K-88-4E5-02
Corn Beige BP4K-88-4E5-30
Gray BP4K-88-4E5-73
13
Lever, Lifter
Black BP4K-88-857-02
Corn Beige BP4K-88-857-30
Gray BP4K-88-857-73
14
Knob, Knuckle
Black B33D-88-1H5-02
Corn Beige B33D-88-1H5-30
Gray B33D-88-1H5-73
15
Cover, Recliner¶ R BP4K-88-1F4-02
L BP4K-88-1F7-02
16
Cover, Seat Lower¶ R B33D-88-1K8-02
L B33D-88-1K7-02
17
Cover, Adjuster Front¶ R B33D-57-043A-02
L BP4K-57-041C-02
18
Cover, Adjuster Rear¶ R B33D-57-053A-02
L B33D-57-054A-02
¶Black listed, Order by Application
19
Protector, Rear R/L BP4K-88-091
20
Adjuster, Seat Track
STA BN8P-88-H50
STX BN8P-88-A50
REAR SEAT
SEAT BELTS
FRONT
1 Belt, Front Seat
Black R BN8P-57-630C-02
L BN8P-57-690-02
Corn Beige R BN8P-57-630C-30
L BN8P-57-690-30
2
Buckle, Seat Belt
Black R B32H-57-L20-02
L BP4K-57-L80-02
Corn Beige R B32H-57-L20-30
L BP4K-57-L80-30
3
Adjuster, Shoulder Belt
Corn Beige R/L BP4K-57-960B-30
Gray R/L BP4K-57-960B-77
Cover, Belt Anchor
4 Upper
Corn Beige R/L BP4K-57-631A-30
Gray R/L BP4K-57-631A-77
5Lower
Black R/L BP4L-57-631A-02
Corn Beige R/L BP4L-57-631A-30
REAR
1 Belt & Retractor, Outer
Hatchback R BP4K-57-730C-02
L BP4K-57-790C-02
Sedan
Black R BN8V-57-730B-02
L BN8V-57-790B-02
Beige R BN8V-57-730B-30
L BN8V-57-790B-30
2
Belt & Retractor, Center
Hatchback BN8F-57-740C-02
Sedan
Black BN8P-57-740D-02
Beige BN8P-57-740D-30
3
Anchor, Seat Belt GJ6A-57-77ZA
4
Buckle, Seat Belt
Black R BP4K-57-720A-02
L BP4K-57-780A-02
Beige R BP4K-57-720A-30
L BP4K-57-780A-30
FRONT DOOR
SHEET METAL
1 Shell Assy, Door
Hatchback R BPYK-58-02X
L BPYK-59-02X
Sedan R BNYV-58-02X
L BNYV-59-02X
2
Panel, Outer Repair¶
Hatchback R BP4K-58-031B
L BP4K-59-031B
Sedan R BN8V-58-031A
L BN8V-59-031A
¶Included w/Door Shell Assy
EXTERIOR TRIM
1 Moulding, Door Sash Upper R BP4K-50-8V1A
L BP4K-50-8W1A
2
Moulding, Door Sash Rear R BP4K-50-8V3A
L BP4K-50-8W3A
3
Moulding Assy, Outer Belt R BP4K-50-640D
L BP4K-50-650D
4
Protector, Moulding¶ R BP4K-50-645C
L BP4K-50-655C
¶Included w/Outer Belt Moulding Assy
5
Moulding, Side (Adhesive)
Arctic White (Code A4D) R BP4K-50-681-33
L BP4K-50-691-33
Black (Code 16W) R BP4K-50-681-08
L BP4K-50-691-08
Canary Yellow (Code 25C) R BP4K-50-681-34
L BP4K-50-691-34
Crystal Silver (Code 22V) R BP4K-50-681-67
L BP4K-50-691-67
New Light Blue (Code 28A) R BP4K-50-681-90
L BP4K-50-691-90
Nordic Green (Code 27C) R BP4K-50-681-97
L BP4K-50-691-97
Passion Orange (Code 27Y) R BP4K-50-681-07
L BP4K-50-691-07
Sparkling Silver (Code 24E) R BP4K-50-681-28
L BP4K-50-691-28
Strato Blue (Code 25E) R BP4K-50-681-38
L BP4K-50-691-38
Titanium Gray (Code 29Y) R BP4K-50-681-01
L BP4K-50-691-01
Velocity Red (Code 27A) R BP4K-50-681-87
L BP4K-50-691-87
Winning Blue (Code 27B) R BP4K-50-681-94
L BP4K-50-691-94
Paint to Match R BP0K-50-681
L BP0K-50-692
6
Nameplate (Adhesive)
"2.3" R/L N.A.
7
Mirror Assy, Rear View
Heated
Manual R BN8T-69-120E
L BN8T-69-180E
Power
Arctic White (Code A4D) R BP8M-69-120E-33
L BP8M-69-180E-33
Black (Code 16W) R BP8M-69-120E-08
L BP8M-69-180E-08
Canary Yellow (Code 25C) R BP8M-69-120E-34
L BP8M-69-180E-34
Crystal Silver (Code 22V) R BP8M-69-120E-67
L BP8M-69-180E-67
New Light Blue (Code 28A) R BP8M-69-120E-90
L BP8M-69-180E-90
Nordic Green (Code 27C) R BP8M-69-120E-97
L BN8T-69-180E-97
Passion Orange (Code 27Y) R BP8M-69-120E-07
L BP8M-69-180E-07
Sparkling Silver (Code 24E) R BP8M-69-120E-28
L BP8M-69-180E-28
Strato Blue (Code 25E) R BP8M-69-120G-38
L BP8M-69-180G-38
Titanium Gray (Code 29Y) R BP8M-69-120E-01
L BP8M-69-180E-01
Velocity Red (Code 27A) R BP8M-69-120E-87
L BP8M-69-180E-87
Winning Blue (Code 27B) R BP8M-69-120E-94
L BP8M-69-180E-94
Non-Heated
Manual R BN8P-69-120E
L BN8P-69-180E
Power
Arctic White (Code A4D) R BN8B-69-120G-33
L BN8B-69-180G-33
Black (Code 16W) R BN8B-69-120G-08
L BN8B-69-180H-08
Canary Yellow (Code 25C) R BN8B-69-120G-34
L BN8B-69-180G-34
Crystal Silver (Code 22V) R BN8B-69-120G-67
L BN8B-69-180G-67
New Light Blue (Code 28A) R BN8B-69-120G-90
L BN8B-69-180G-90
Nordic Green (Code 27C) R BN8B-69-120G-97
L BN8B-69-180G-97
Passion Orange (Code 27Y) R BN8B-69-120H-07
L BN8B-69-180G-07
Sparkling Silver (Code 24E) R BN8B-69-120H-28
L BN8B-69-180G-28
Strato Blue (Code 25E) R BN8B-69-120G-38
L BN8B-69-180H-38
Titanium Gray (Code 29Y) R BN8B-69-120G-01
L BN8B-69-180H-01
Velocity Red (Code 27A) R BN8B-69-120G-87
L BN8B-69-180G-87
Winning Blue (Code 27B) R BN8B-69-120G-94
L BN8B-69-180G-94
8
Glass, Mirror¶
Manual R BN8R-69-1G1
L BN8R-69-1G7
Power
Heated R BP8M-69-1G1
LBP8M-69-1G7
Non-Heated R BN8B-69-1G1
L BN8B-69-1G7
¶Included w/Rear View Mirror Assy
INTERIOR TRIM
Illustration Located in Next Column
1
Panel Assy, Trim
2.0L Eng
Man Windows
Black R BN8C-68-42YK-02
L BN8C-68-45YK-02
Corn Beige R BN8C-68-42YK-30
L BN8C-68-45YK-30
Pwr Windows
Black R BN8B-68-42YK-02

MAZDA3 2004
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629.
12 madpl1_g01_
Page 12—April 22, 2004—13:28:23—Version Manufacturer

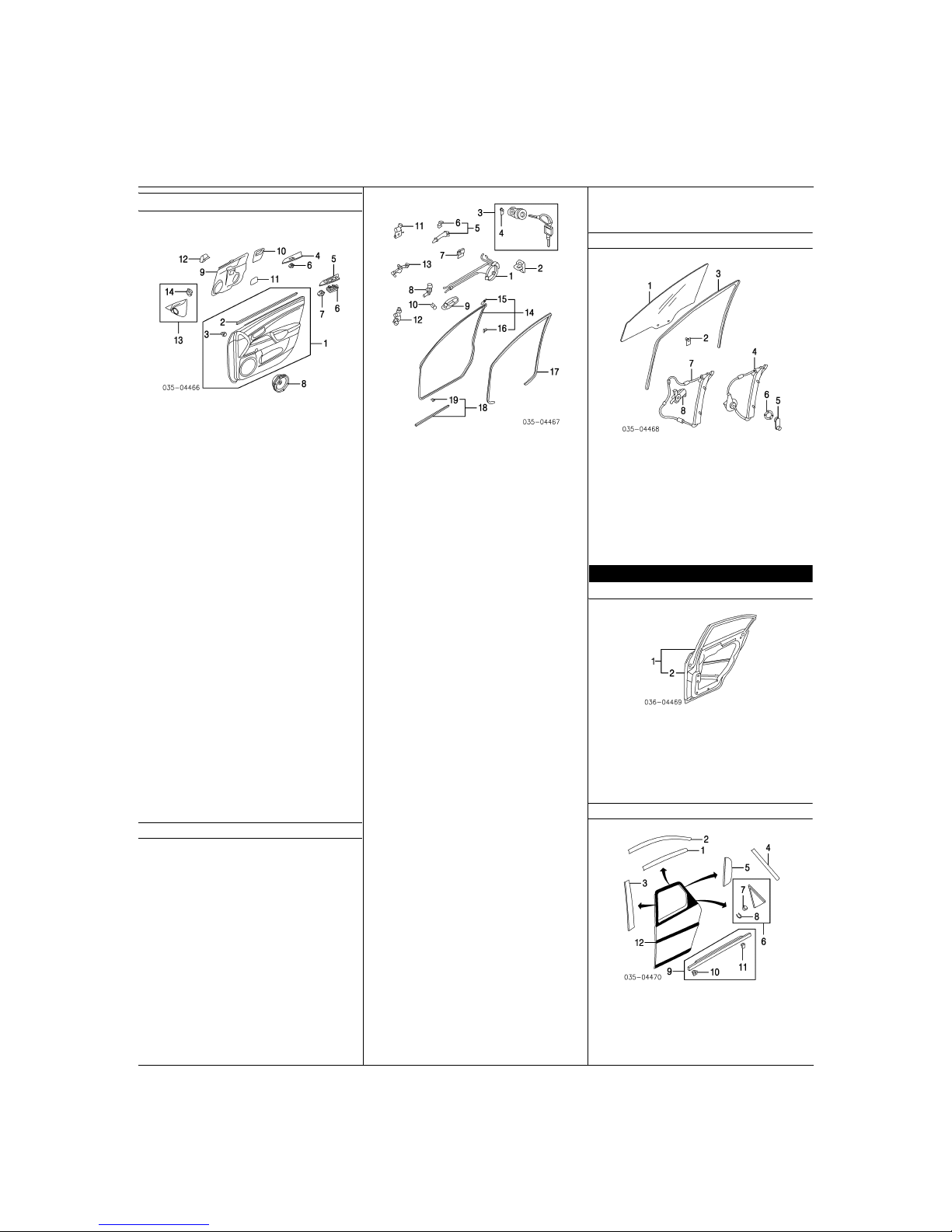

FRONT DOOR Cont’d
INTERIOR TRIM Cont’d
L BN8B-68-45YK-02
Corn Beige R BN8B-68-42YK-30
L BN8B-68-45YK-30
2.3L Eng
Cloth R BN8F-68-42YK-02
L BN8F-68-45YK-02
Leather R BN8G-68-42YL-02
L BN8G-68-45YL-02
2
Moulding, Inner Belt¶ R BP4K-58-821
L BP4K-59-821
3
Fastener, Trim¶
No. 1 R/L GJ6R-68-ABX
No. 2 (9/Side) R/L GJ6A-68-AB1
¶Included w/Trim Panel Assy
4
Panel, Right Switch
Man Windows
Black BP4L-68-4L1B-02
Corn Beige BP4L-68-4L1B-30
Pwr Windows
Black BN8F-68-AL1A-02
Corn Beige BN8F-68-AL1A-30
5
Panel, Left Switch
Man Windows
2.0L Eng
Black BP4L-68-4L6B-02
Corn Beige BP4L-68-4L6B-30
2.3L Eng BN8H-68-4L6-02
Pwr Windows
Black BP4K-68-4L6B-02
Corn Beige BP4K-68-4L6B-30
6
Switch, Pwr Window R B32H-66-370
L BN8F-66-350
7
Switch, Remote Mirror L BJ0E-66-600
8
Speaker, Radio R/L GJ6A-66-960
9
Shield, Moisture
Man Windows R BP4K-58-97XD
L BP4K-59-97XD
Pwr Windows R BP4L-58-97XD
L BP4L-59-97XD
Cover, Door Hole
10 Upper R BN8F-58-973B
L BN8F-59-973B
11 Lower R/L BP4K-58-972
12
Pad, Door R/L BN8F-58-960A
13
Garnish Assy, Inner Mirror
Man Mirror R BP4K-69-111C
L BP4K-69-171C
Pwr Mirror
4 Speaker System R BP4L-69-111C
L BP4L-69-171C
6 Speaker System R B32H-69-11YB
L B32H-69-17YC
14
Speaker, Tweeter¶ R/L GK2A-66-960
¶Included w/Inner Mirror Garnish Assy
HARDWARE
Illustration Located in Next Column
1
Latch, Door
Right
Manual BN8B-58-310B
Power
w/Keyless Entry BN8F-58-310B
w/o Keyless Entry BN8C-58-310B
Left
Manual BN8B-59-310B
Power BN8C-59-310B
2
Striker, Latch R/L B25D-58-361A
3
Cylinder Assy, Door Lock¶ R F1Y1-76-210A
L FEY1-76-220
4
Clip, Door Lock¶ (a) R D350-59-315
L S084-72-315
¶Included w/Complete Lock Set-listed in Steering Wheel/Column
Section
(a) Included w/Door Lock Cylinder Assy
5
Handle Assy, Outer
Right
w/Keyless Entry
Arctic White (Code A4D) GJ6A-58-410D-33
Black (Code 16W) GJ6A-58-410D-08
Canary Yellow (Code 25C) GJ6A-58-410D-34
Crystal Silver (Code 22V) GJ6A-58-410D-67
New Light Blue (Code 28A) GJ6A-58-410D-90
Nordic Green (Code 27C) GJ6A-58-410D-97
Passion Orange (Code 27Y) GJ6A-58-410D-07
Sparkling Silver (Code 24E) GJ6A-58-410D-28
Strato Blue (Code 25E) GJ6A-58-410D-38
Titanium Gray (Code 29Y) GJ6A-58-410D-01
Velocity Red (Code 27A) GJ6A-58-410D-87
Winning Blue (Code 27B) GJ6A-58-410D-94
Paint to Match D350-58-410E
w/o Keyless Entry
Arctic White (Code A4D) GJ6E-58-410E-33
Black (Code 16W) GJ6E-58-410E-08
Canary Yellow (Code 25C) GJ6E-58-410E-34
Crystal Silver (Code 22V) GJ6E-58-410E-67
New Light Blue (Code 28A) GJ6E-58-410E-90
Nordic Green (Code 27C) GJ6E-58-410E-97
Passion Orange (Code 27Y) GJ6E-58-410E-07
Sparkling Silver (Code 24E) GJ6E-58-410E-28
Strato Blue (Code 25E) GJ6E-58-410E-38
Titanium Gray (Code 29Y) GJ6E-58-410E-01
Velocity Red (Code 27A) GJ6E-58-410E-87
Winning Blue (Code 27B) GJ6E-58-410E-94
Paint to Match BP4R-58-410
Left
Arctic White (Code A4D) GJ6A-59-410E-33
Black (Code 16W) GJ6A-59-410E-08
Canary Yellow (Code 25C) GJ6A-59-410E-34
Crystal Silver (Code 22V) GJ6A-59-410E-67
New Light Blue (Code 28A) GJ6A-59-410E-90
Nordic Green (Code 27C) GJ6A-59-410E-97
Passion Orange (Code 27Y) GJ6A-59-410E-07
Sparkling Silver (Code 24E) GJ6A-59-410E-28
Strato Blue (Code 25E) GJ6A-59-410E-38
Titanium Gray (Code 29Y) GJ6A-59-410E-01
Velocity Red (Code 27A) GJ6A-59-410E-87
Winning Blue (Code 27B) GJ6A-59-410E-94
Paint to Match D350-59-410E
6
Clip, Outer Handle¶
Body Color R B455-58-411
L GT2G-58-315
Paint to Match R GT2G-59-315
L GT2G-58-315
¶Included w/Outer Handle Assy
7
Pad, Outside Handle R BN8G-58-950
L BN8G-59-950
8
Handle, Inside¶ R D351-58-330C-02
L D351-59-330C-02
¶Black listed, Order by Application
9
Cover, Inside Handle
Man Locks
Black R GJ6A-58-303B-02
L GJ6A-59-303B-02
Corn Beige R GJ6A-58-303B-30
L GJ6A-59-303B-30
Pwr Locks
Black R GK2A-58-303C-02
L GK2A-59-303C-02
Corn Beige R GK2A-58-303C-30
L GK2A-59-303C-30
Gray R GK2A-58-303C-73
L GK2A-59-303C-73
10
Switch, Pwr Lock R BN8G-66-660
L BN8F-66-660
11
Hinge, Upper R F151-58-210
L F151-59-210
12
Hinge, Lower R F151-59-210
L F151-58-210
13
Check, Door R/L BP4K-58-270D
14
Weatherstrip Assy, Door R BP4K-58-760
L BP4K-59-760
15
Fastener, W/Strip¶ R GJ6A-58-762
L GJ6A-59-762
16
Clip, W/Strip¶ (a) R/L BC1D-58-762
¶Included w/Door Weatherstrip Assy
(a) As Required
17
Welt, Seaming R BP4K-68-911A
L BP4K-68-912A
18
Weatherstrip Assy, Lower Door R/L BP4K-58-76X
19
Clip, W/Strip¶ (a) R/L BC1D-58-762
¶Included w/Lower Door Weatherstrip Assy
(a) As Required
GLASS & PARTS
1 Glass, Front Door
Mazda R BP4K-58-511A
L BP4K-59-511A
2
Grommet, Glass (2/Side) R/L D350-58-502
3
Run, Glass R BP4K-58-605B
L BP4K-59-605B
4
Regulator, Manual R BP4L-58-560
L BP4L-59-560
5
Handle, Regulator
Black R/L B25D-58-580A-02
Corn Beige R/L B25D-58-580A-30
6
Spacer, Handle R/L BP4L-58-959
7
Regulator, Power R BP4K-58-590
L BP4K-59-590
8
Motor, Regulator R/L GJ6A-58-58XB
REAR DOOR
SHEET METAL
1 Shell Assy, Door
Hatchback R BNYF-72-02X
L BNYF-73-02X
Sedan R BNYB-72-02X
L BNYB-73-02X
2
Panel, Outer Repair¶
Hatchback R BP4K-72-031C
L BP4K-73-031C
Sedan R BN8V-72-031C
L BN8V-73-031C
¶Included w/Door Shell Assy
EXTERIOR TRIM
Moulding, Door Sash Upper
1 Hatchback R BP4K-50-8V2A
LBP4K-50-8W2A
2 Sedan R BN8V-50-8V2
L BN8V-50-8W2
3
Moulding, Door Sash Front R BP4K-50-8V4A
LBP4K-50-8W4A
Moulding, Door Sash Rear

MAZDA3 2004
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629. 13
madpl1_g01_
Page 13—April 22, 2004—13:28:25—Version Manufacturer

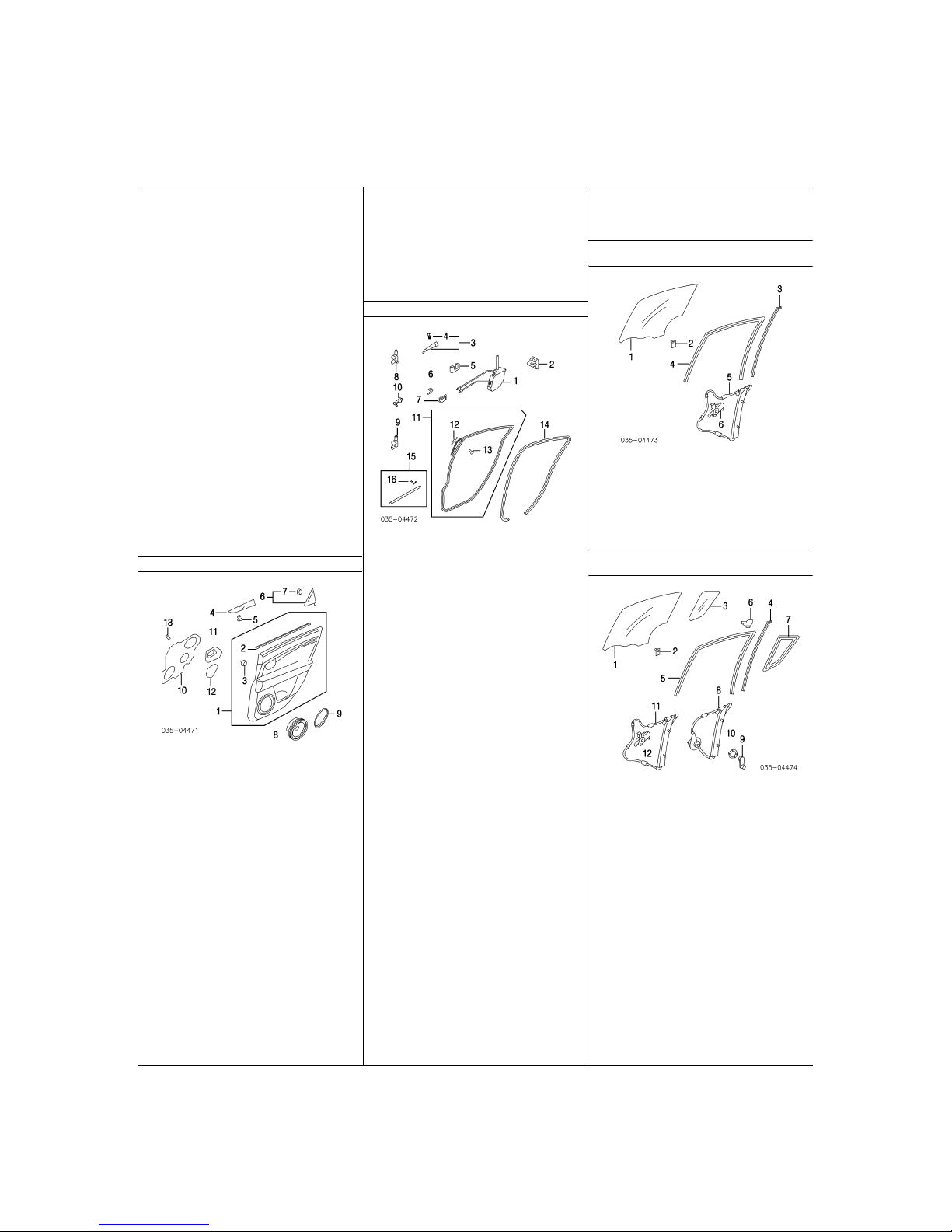

4 Hatchback R BP4K-50-8V6A
L BP4K-50-8W6A
5 Sedan R BN8V-50-8V6
LBN8V-50-8W6
6
Garnish Assy, Rear Corner
Hatchback R BP4K-50-M30C
L BP4K-50-M40C
7
Clip, Garnish¶ R/L G043-50-742
8
Gasket, Garnish¶ R/L T001-50-M37
¶Included w/Rear Corner Garnish Assy
9
Moulding Assy, Outer Belt
Hatchback R BP4K-50-660E
L BP4K-50-670E
Sedan R BN8V-50-660C
L BN8V-50-670C
10
Protector, Front Mldg¶ R BP4K-50-664B
L BP4K-50-674B
11
Protector, Rear Mldg¶ R BN8V-50-665
L BN8V-50-675
¶Included w/Outer Belt Moulding Assy
12
Moulding, Side (Adhesive)
Arctic White (Code A4D) R BP4K-50-682-33
L BP4K-50-692-33
Black (Code 16W) R BP4K-50-682-08
L BP4K-50-692-08
Canary Yellow (Code 25C) R BP4K-50-682-34
L BP4K-50-692-34
Crystal Silver (Code 22V) R BP4K-50-682-67
L BP4K-50-692-67
New Light Blue (Code 28A) R BP4K-50-682-90
L BP4K-50-692-90
Nordic Green (Code 27C) R BP4K-50-682-97
L BP4K-50-692-97
Passion Orange (Code 27Y) R BP4K-50-682-07
L BP4K-50-692-07
Sparkling Silver (Code 24E) R BP4K-50-682-28
L BP4K-50-692-28
Strato Blue (Code 25E) R BP4K-50-682-38
L BP4K-50-692-38
Titanium Gray (Code 29Y) R BP4K-50-682-01
L BP4K-50-692-01
Velocity Red (Code 27A) R BP4K-50-682-87
L BP4K-50-692-87
Winning Blue (Code 27B) R BP4K-50-682-94
L BP4K-50-692-94
Paint to Match R BP0K-50-682
L BP0K-50-692
INTERIOR TRIM
1 Panel Assy, Trim
Hatchback
Cloth R BN8F-68-52YH-02
L BN8F-68-55YH-02
Leather R BN8G-68-52YJ-02
L BN8G-68-55YJ-02
Sedan
Man Windows
Black R BN8B-68-52YJ-02
L BN8B-68-55YJ-02
Corn Beige R BN8B-68-52YJ-30
L BN8B-68-55YJ-30
Pwr Windows
2.0L Eng
Black R BN8C-68-52YJ-02
L BN8C-68-55YJ-02
Corn Beige R BN8C-68-52YJ-30
L BN8C-68-55YJ-30
2.3L Eng
Cloth R BN8F-68-52YH-02
L BN8F-68-55YH-02
Leather R BN8G-68-52YJ-02
L BN8G-68-55YJ-02
2
Moulding, Inner Belt¶ R BP4K-72-821
L BP4K-73-821
3
Clip, Trim Panel¶ (a)
No. 1 R/L GJ6R-68-ABX
No. 2 R/L GJ6A-68-AB1
¶Included w/Trim Panel Assy
(a) As Required
4
Panel, Switch
Black R B32H-68-5L1A-02
L B32H-68-5L6A-02
Corn Beige R B32H-68-5L1A-30
L B32H-68-5L6A-30
5
Switch, Pwr Window R/L B32H-66-370
6
Garnish Assy, Door Corner R BP4K-68-51XB
L BP4K-68-51YB
7
Clip, Garnish¶ (2/Side) R/L E120-68-AB1
¶Included w/Door Corner Garnish Assy
8
Speaker, Radio R/L GJ6A-66-960
9
Bracket, Speaker R/L N055-66-9B0
10
Shield, Moisture
Man Windows R BP4L-72-97XD
L BP4L-73-97XD
Pwr Windows R BP4K-72-97XD
L BP4K-73-97XD
Cover, Door Hole
11 Upper R BN8F-72-973B
L BN8F-73-973B
12 Lower R BP4L-72-973
L BP4L-73-973
13
Pad, Door R/L GJ6E-58-863A
HARDWARE
1 Latch, Door
Manual R BN8B-72-310B
L BN8B-73-310B
Power R BP4K-72-310B
L BP4K-73-310B
2
Striker, Latch R/L B25D-58-361A
3
Handle Assy, Outer
Arctic White (Code A4D) R GJ6A-58-410D-33
L G22C-59-410C-33
Black (Code 16W) R GJ6A-58-410D-08
L G22C-59-410C-08
Canary Yellow (Code 25C) R GJ6A-58-410D-34
L G22C-59-410C-34
Crystal Silver (Code 22V) R GJ6A-58-410D-67
L G22C-59-410C-67
New Light Blue (Code 28A) R GJ6A-58-410D-90
L G22C-59-410C-90
Nordic Green (Code 27C) R GJ6A-58-410D-97
L G22C-59-410C-97
Passion Orange (Code 27Y) R GJ6A-58-410D-07
L G22C-59-410C-07
Sparkling Silver (Code 24E) R GJ6A-58-410D-28
L G22C-59-410C-28
Strato Blue (Code 25E) R GJ6A-58-410D-38
L G22C-59-410C-38
Titanium Gray (Code 29Y) R GJ6A-58-410D-01
L G22C-59-410C-01
Velocity Red (Code 27A) R GJ6A-58-410D-87
L G22C-59-410C-87
Winning Blue (Code 27B) R GJ6A-58-410D-94
L G22C-59-410C-94
Paint to Match R BP4R-58-410
L DE60-59-410B
4
Clip, Outer Handle¶ R GT2G-59-315
L GT2G-58-315
¶Included w/Outer Handle Assy
5
Pad, Outside Handle R BN8F-58-950B
L BN8F-59-950B
6
Handle, Inside¶ R D351-58-330C-02
L D351-59-330C-02
¶Black listed, Order by Application
7
Cover, Inside Handle
Black R D350-58-303A-02
L D350-59-303A-02
Corn Beige R D350-58-303A-30
L D350-59-303A-30
8
Hinge, Upper R E112-72-210A
L E112-73-210A
9
Hinge, Lower R E112-72-240
L E112-73-240
10
Check, Door R/L BP4K-72-270D
11
Weatherstrip Assy, Door
Hatchback R BP4K-72-760B
L BP4K-73-760B
Sedan R BN8V-72-760C
L BN8V-73-760C
12
Fastener, W/Strip¶
Hatchback R BP4K-72-762
L BP4K-73-762
Sedan
No. 1 R BP4K-72-762
L BP4K-73-762
No. 2 R/L BN8V-72-762
13
Clip, Weatherstrip¶ (a)
No. 1 R/L BC1D-58-762
No. 2 R/L BP4K-58-762
¶Included w/Door Weatherstrip Assy
14
Welt, Seaming R BP4K-68-913B
L BP4K-68-914B
15
Weatherstrip Assy, Lower Door R/L BP4K-72-76X
16
Clip, Weatherstrip¶ (a) R/L BC1D-58-762
¶Included w/Lower Door Weatherstrip Assy
(a) As Required
GLASS & PARTS
HATCHBACK
1 Glass, Rear Door
Mazda R BP4K-72-511A
L BP4K-73-511A
2
Grommet, Glass R/L D350-58-502
3
Guide, Glass R BP4K-72-603
L BP4K-73-603
4
Run, Glass R BP4K-72-605A
L BP4K-73-605A
5
Regulator, Power R BP4K-72-590B
L BP4K-73-590B
6
Motor, Regulator R G22C-59-58XB
L GJ6A-58-58XB
GLASS & PARTS
SEDAN
1 Glass, Rear Door
Mazda R BN8V-72-511A
L BN8V-73-511A
2
Grommet, Glass R/L D350-58-502
3
Glass, Vent
Mazda R BN8V-72-661A
L BN8V-73-661A
4
Bar, Division R BN8V-72-602
L BN8V-73-602
5
Run, Channel R BN8V-72-605
L BN8V-73-605
6
Protector, Channel R BN8V-72-608
L BN8V-73-608
7
Weatherstrip, Vent R BN8V-72-651
L BN8V-73-651
8
Regulator, Manual R BP4L-72-560B
L BP4L-73-560B
9
Handle, Regulator
Black R/L B25D-58-580A-02
Corn Beige R/L B25D-58-580A-30
10
Escutcheon, Handle
Black R/L B001-58-582A-00
Corn Beige R/L B001-58-582A-35
11
Regulator, Power R BP4K-72-590B
L BP4K-73-590B
12
Motor, Regulator R G22C-59-58XB
L GJ6A-58-58XB

MAZDA3 2004
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629.
14 madpl1_g01_
Page 14—April 22, 2004—13:28:26—Version Manufacturer

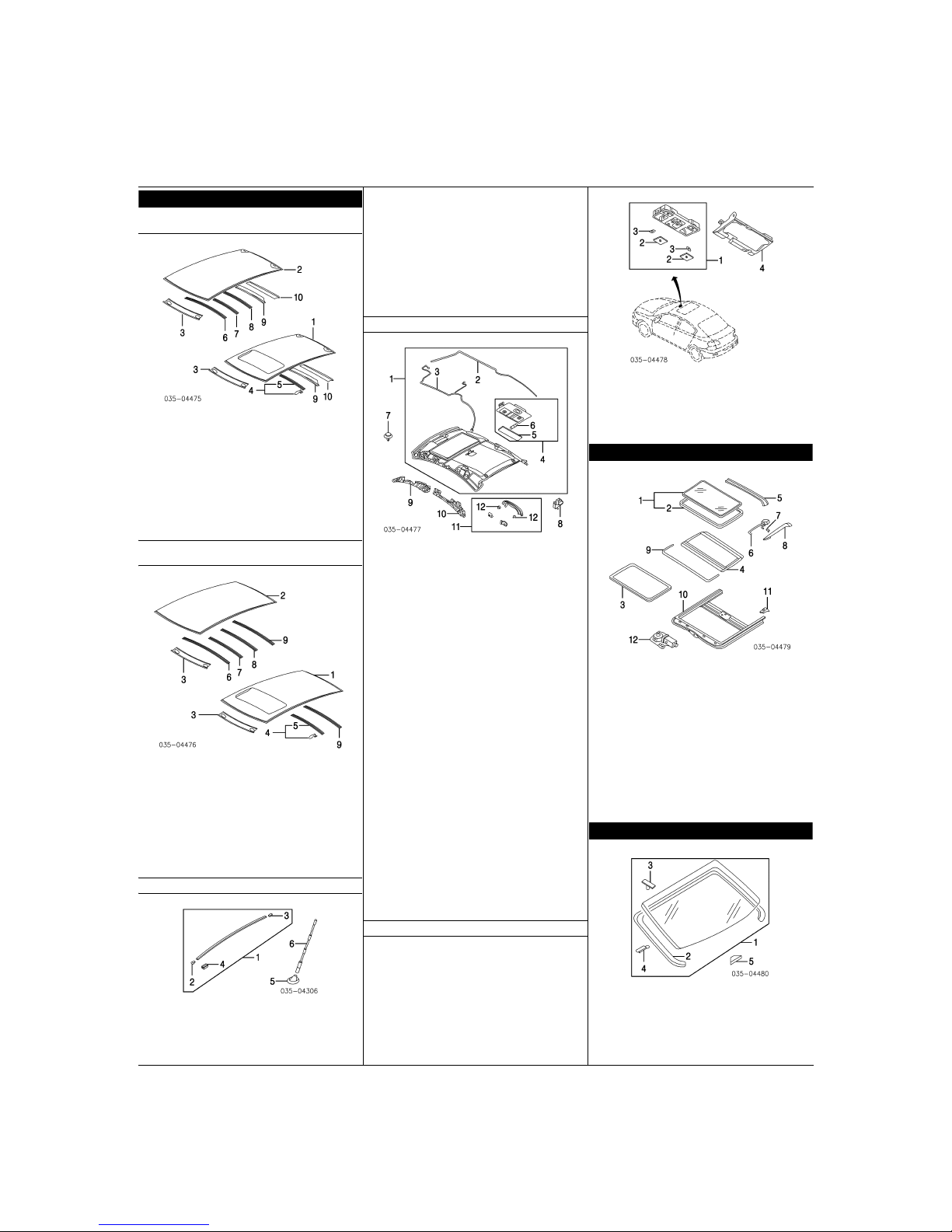

ROOF
SHEET METAL
HATCHBACK
Panel, Roof
1 w/Sunroof BPYM-70-600
2 w/o Sunroof BPYK-70-600
3
Panel, Front Header BP4K-70-640A
4
Reinforcement Assy, Roof
w/Sunroof BP4M-70-66X
5
Reinf, Roof¶ BP4K-70-663
¶Included w/Roof Reinforcement Assy
6
Reinf, Front Roof
w/o Sunroof BP4K-70-661
7
Reinf, Center Front
w/o Sunroof BP4K-70-662
8
Reinf, Center Rear
w/o Sunroof BP4K-70-663
9
Reinforcement, Rear BP4K-70-664
10
Panel, Rear Header BP4K-70-700B
SHEET METAL
SEDAN
Panel, Roof
1 w/Sunroof BNYW-70-600
2 w/o Sunroof BNYV-70-600
3
Panel, Front Header BP4K-70-641B
4
Reinforcement Assy, Roof
w/Sunroof BN8W-70-66X
5
Reinf, Roof¶ BN8V-70-663
¶Included w/Roof Reinforcement Assy
6
Reinf, Front Roof
w/o Sunroof BN8V-70-661
7
Reinf, Center
w/o Sunroof BN8V-70-662
8
Reinf, Rear
w/o Sunroof BN8V-70-663
9
Panel, Rear Header BN8V-70-700
EXTERIOR TRIM
1 Moulding Assy, Roof
Hatchback R B32H-50-9H0
L B32H-50-9L0
Sedan R B33D-50-9H0
L B33D-50-9L0
2
Protector, Front Mldg¶
Hatchback R BP4K-50-9H1
L BP4K-50-9L1
Sedan R BN8V-50-9H1
L BN8V-50-9L1
3
Protector, Rear Mldg¶
Hatchback R BP4K-50-9H2
L BP4K-50-9L2
Sedan R BN8V-50-9H2
L BN8V-50-9L2
4
Protector, Inner Mldg¶
Hatchback
No. 1 (3/Side) R/L BN8V-50-9H9
No. 2 (4/Side) R/L GJ6A-50-9H9
Sedan (5/Side) R/L BN8V-50-9H9
¶Included w/Roof Moulding Assy
5
Antenna, Radio GJ6A-66-930A
6
Mast, Antenna GJ6A-66-A30B
INTERIOR TRIM
1 Headliner Assy¶
Hatchback
w/Sunroof BN8J-68-030J-77
w/o Sunroof BN8H-68-030J-77
Sedan
w/Sunroof BN8L-68-030F-77
w/o Sunroof BP8T-68-030E-77
¶Gray listed, Order by Application
2
Harness, Antenna (a)
Hatchback
w/Sunroof BP4M-66-940D
w/o Sunroof BP4L-66-940B
Sedan
w/Sunroof BN8W-66-940B
w/o Sunroof BN8V-66-940B
3
Harness, Roof Lamp (a)
w/Sunroof BP4M-67-100A
w/o Sunroof BP4K-67-100
4
Lamp Assy, Room (a)
Corn Beige D350-51-310D-30
Gray D350-51-310D-77
5
Lens, Lamp (a) (b) D350-51-311B
6
Bulb (a) (b) 9970-05-100L
(a) Included w/Headliner Assy
(b) Included w/Room Lamp Assy
7
Fastener, Headliner (5)
Black GJ21-68-885B-02
Beige GJ21-68-885B-80
Gray GJ21-68-885B-03
8
Adapter, Center
Beige R/L LC62-69-261A-80
Corn Beige R/L LC62-69-261A-30
Gray R/L LC62-69-261A-77
9
Pad, Front Impact R BP4L-68-H10C
L BP4L-68-H20C
10
Pad, Rear Impact
Hatchback R BP4L-68-H50B
L BP4L-68-H60B
Sedan R BN8W-68-H50B
LBN8W-68-H60B
11
Handle Assy, Assist¶
Front D350-69-470-77
Rear R/L D351-69-470-77
12
Cap, Assist Handle¶ (a)
Front (2) R GJ6A-69-472-77
Rear (2/Side) R/L GJ6A-69-472-77
¶Gray listed, Order by Application
(a) Included w/Assist Handle Assy
OVERHEAD CONSOLE
Illustration Located in Next Column
1
Console Assy, Overhead
w/Sunroof
Corn Beige GJ6R-69-970A-30
Gray GJ6R-69-970A-77
w/o Sunroof
Corn Beige GJ6A-69-970-30
Gray GJ6A-69-970-77
2
Lens, Console¶ R GJ6A-69-973
L GJ6E-69-973
3
Bulb¶ R/L 0000-11-0194
Switch, Sunroof¶-Serviced w/Overhead Console Assy
¶Included w/Overhead Console Assy
4
Bracket, Console
w/Sunroof BP4M-69-98XC
w/o Sunroof BP4K-69-98XD
SUNROOF
1 Glass Assy, Sliding BP4M-69-810
2
W/Strip, Sunroof¶ GJ6R-69-825
¶Included w/Sliding Glass Assy
3
Welt, Seaming
Corn Beige BP4M-69-981A-30
Gray BP4M-69-981A-77
4
Sunshade
Corn Beige BP4M-69-890-30
Gray BP4M-69-890-77
5
Rail, Drip GJ6R-69-867
6
Link, Slide Stopper RBP4M-69-9H6
LBP4M-69-9H7
7
Pin, Link R BP4M-69-868
L BP4R-69-868
8
Guide, Rail R/L GJ6R-69-862-3
9
Deflector, Air BP4M-69-880A
10
Frame, Sliding Roof BP4M-69-840A
11
Pipe, Drain R BP4M-69-866
L BP4R-69-866
12
Motor, Sliding Roof GJ6R-69-870A
BACK WINDOW
1 Glass Assy, Back Window
Mazda BN8V-63-930B
2
Moulding, Reveal¶ BN8V-50-611A
3
Pin, Glass Mldg¶ (4) BP4K-63-938
4
Terminal, Glass¶ R/L GA2A-63-959
¶Included w/Back Window Glass Assy
5
Spacer, Glass GJ6A-50-897

MAZDA3 2004
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629. 15
madpl1_g01_
Page 15—April 22, 2004—13:28:28—Version Manufacturer
QUARTER PANEL
SHEET METAL
HATCHBACK
1 Panel Assy, Outer Quarter R BNYF-70-410A
L BNYF-71-410A
2
Plate, Nut¶ (2/Side) R/L GE4T-70-46X
¶Included w/Outer Quarter Panel Assy
3
Door, Fuel Filler R BP4K-42-410D
4
Opener, Fuel Door R B095-56-890E
5
Spring, Fuel Door
To 1-1-04 R BP4K-42-452A
From 1-1-04 R BP4K-42-452B
6
Stopper, Fuel Door (2) R GJ6A-42-459
7
Cable, Fuel Door Opener BP4K-56-880C
8
Lever, Opener BP4K-56-860A
9
Knob, Opener BP4K-56-862A-02
10
Chamber Assy, Extractor R/L BN8V-51-920
11
Valve, Extractor¶ (2/Side) R/L D350-51-923
12
Gasket, Extractor¶ R/L E016-51-922
¶Included w/Extractor Chamber Assy
13
Panel Assy, Inner Quarter R BNYF-70-100
L BNYF-71-100
14
Panel, Inner Quarter¶ R BP4K-70-110E
L BP4K-71-110F
15
Panel, Rear Side¶ R BP4K-70-113A
L BP4K-71-113A
16
Reinf, Rear Pillar¶ R BP4K-70-4H0A
L BP4K-71-4H0A
17
Reinf, Susp Housing¶ R BP4K-70-120
L BP4K-71-120A
¶Included w/Inner Quarter Panel Assy
18
Panel, Rear Lower R BP4K-70-4A1
L BP4K-71-4A1
SHEET METAL
SEDAN
1 Panel Assy, Outer Quarter R BNYB-70-410
L BNYC-70-410
2
Plate, Nut¶ (2/Side) R/L GE4T-70-46X
¶Included w/Outer Quarter Panel Assy
3
Door, Fuel Filler R BN8V-42-410C
4
Opener, Fuel Door R B095-56-890E
5
Spring, Fuel Door
To 1-1-04 R BP4K-42-452A
From 1-1-04 R BP4K-42-452B
6
Stopper, Fuel Door (2) R GJ6A-42-459
7
Cable, Fuel Door Opener BN8P-56-880A
8
Cable, Luggage Lid BN8P-56-870
9
Lever, Opener BN8P-56-860
10
Knob, Fuel Door Opener
Black BN8P-56-862-02
Corn Beige BN8P-56-862-30
11
Knob, Luggage Lid Opener
Black BN8P-56-861A-02
Corn Beige BN8P-56-861A-30
12
Chamber Assy, Extractor R/L BN8V-51-920
13
Valve, Extractor¶ (2/Side) R/L D350-51-923
14
Gasket, Extractor¶ R/L E016-51-922
¶Included w/Extractor Chamber Assy
15
Guard, Stone R BP4K-50-4P1A
L BP4K-50-4R1A
16
Panel Assy, Inner Quarter R BNYB-70-100
L BNYB-71-100
17
Panel, Rear Inner Quarter¶ R BN8V-70-110B
L BN8V-71-110B
¶Included w/Inner Quarter Panel Assy
18
Panel, Rear Lower R BN8V-70-110B
L BN8V-71-110B
19
Panel, Package Tray BN8V-70-500C
INTERIOR TRIM
HATCHBACK
1 Trim Assy, Upper Quarter
w/Side Curtain Air Bag R BP4K-68-250D-77
L BP4K-68-260E-77
w/o Side Curtain Air Bag R BP4L-68-250D-77
L BP4L-68-260E-77
Fastener, Trim
2 No. 1¶ R/L B01A-68-AB1
3 No. 2 (4/Side)¶ R/L GE4T-68-865A
4 No. 3 (2/Side)
Black R/L GJ21-68-885B-03
Corn Beige R/L GJ21-68-885B-36
¶Included w/Upper Quarter Trim Assy
5
Clip, Upper Trim R/L BP4K-68-AD2
6
Grommet R/L 9991-00-501
7
Trim, Wheelhouse R BP4K-68-760B-02
L BP4K-68-770B-02
8
Clip, Wheelhouse Trim R/L BN8V-68-AD2
9
Fastener, Trim¶ R/L GJ21-68-885B-73
¶As Required
10
Tray Assy, Package
Reversible Trunk Cover B32H-68-310E-02
Non-Reversible Trunk Cover BP4M-68-310E-02
11
Strap, Package Tray¶ R/L BP4K-68-315
12
Hook, Tray¶ B25H-68-323A
¶Included w/Package Tray Assy
INTERIOR TRIM
SEDAN
1 Trim Assy, Upper Quarter
w/Side Curtain Air Bag
Corn Beige R BN8V-68-250D-30
L BN8V-68-260D-30
Gray R BN8V-68-250D-77
L BN8V-68-260D-77
w/o Side Curtain Air Bag
Corn Beige R BN8W-68-250D-30
L BN8W-68-260D-30
Gray R BN8W-68-250D-77
L BN8W-68-260D-77
Fastener, Trim¶
2 No. 1 R/L B01A-68-AB1
3 No. 2 (4/Side) R/L GE4T-68-865A
¶Included w/Upper Quarter Trim Assy
4
Trim, Wheelhouse
Black R BN8V-68-760C-02
L BN8V-68-770C-02
Corn Beige R BN8V-68-760C-30
L BN8V-68-770C-30
5
Clip, Wheelhouse Trim R/L BN8V-68-AD2
6
Fastener, Trim¶
Black R/L GJ21-68-885B-02
Corn Beige R/L GJ21-68-885B-36
Gray R/L GJ21-68-885B-73
¶As Required
7
Trim Assy, Package Tray
Black BN8V-68-3A0F-02
Corn Beige BN8V-68-3A0F-30
8
Cover, Seat Belt¶ (3)
Black BN8V-68-3R1A-02
Corn Beige BN8V-68-3R1A-30
¶Included w/Package Tray Trim Assy
Clip, Tray Trim¶
9 No. 1 GJ6A-68-AB1
10 No. 2
Black GJ21-68-885B-02
Corn Beige GJ21-68-885B-36
Gray GJ21-68-885B-73
¶As Required
QUARTER GLASS
1 Glass, Quarter
Mazda R BP4K-62-950B
L BP4K-63-950B
2
Fastener, Glass R/L D204-50-896A
LUGGAGE LID
Illustration Located in Next Column
1
Lid, Luggage
w/Spoiler BNYW-52-61XA
w/o Spoiler BNYV-52-61XA
2
Latch, Lid BN8P-56-820
3
Striker, Latch B33D-56-840
4
Cylinder Assy, Lid Lock¶
w/Burglar Alarm System BNYP-76-230A
w/o Burglar Alarm System B3YD-76-230A
5
Clip, Lid Lock¶ (a) H260-58-315
¶Included w/Complete Lock Set-listed in Steering Wheel/Column
Section

MAZDA3 2004
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629.
16 madpl1_g01_
Page 16—April 22, 2004—13:28:29—Version Manufacturer
LUGGAGE LID Cont’d
(a) Included w/Lid Lock Cylinder Assy
6
Housing, Lock Cylinder BP4K-62-498B
7
Hinge Assy, Lid R BN8V-52-710B
L BN8V-52-720B
8
Cushion, Hinge¶ R/L GJ6A-56-802A
¶Included w/Lid Hinge Assy
9
Stopper, Hinge R/L BN8V-56-802
10
Stay, Lid
w/Spoiler R/L BN8W-56-930
w/o Spoiler R/L BN8V-56-930A
11
Stopper, Lid R/L GJ6E-56-802
12
Cover, Hole B499-62-868
13
Weatherstrip, Lid BN8V-56-951C
14
Emblem Assy BN8V-51-730A
15
Clip, Tubular¶ (2) LA01-51-958
¶Included w/Emblem Assy
16
Nameplate Assy
"MAZDA" BN8V-51-710A
17
Clip, Tubular¶ (3) LA01-51-958
¶Included w/Nameplate Assy
18
Nameplate (Adhesive)
"3" BN8V-51-721A
19
Spoiler Assy, Rear
Arctic White (Code A4D) BN8V-51-960B-33
Black (Code 16W) BN8V-51-960B-08
Canary Yellow (Code 25C) BN8V-51-960B-34
Crystal Silver (Code 22V) BN8V-51-960B-67
New Light Blue (Code 28A) BN8V-51-960B-90
Nordic Green (Code 27C) BN8V-51-960B-97
Passion Orange (Code 27Y) BN8V-51-960B-07
Sparkling Silver (Code 24E) BN8V-51-960B-28
Strato Blue (Code 25E) BN8V-51-960B-38
Titanium Gray (Code 29Y) BN8V-51-960B-01
Velocity Red (Code 27A) BN8V-51-960B-87
Winning Blue (Code 27B) BN8V-51-960B-94
20
Protector, Spoiler Front¶ BN8V-51-979A
21
Protector, Spoiler Rear¶ BN8W-51-979
22
Gasket, Spoiler¶ (4) R/L EA01-50-812
¶Included w/Rear Spoiler Assy
23
Fastener, Spoiler (5) BN8V-50-715A
Illustration Located in Next Column
24
Trim, Luggage Lid BN8P-68-8W1A
25
Fastener, Trim¶
Black GJ21-68-885B-02
Corn Beige GJ21-68-885B-36
Gray GJ21-68-885B-73
¶As Required
26
Lens, Interior Lamp B100-51-441
27
Bulb 0000-11-0194
LIFTGATE
SHEET METAL
1 Shell, Gate
w/Spoiler BPYN-62-02X
w/o Spoiler BPYL-62-02X
2
Weatherstrip, Liftgate BP4K-62-761B
3
Valve, Shutter R/L BS78-58-867A
4
Cushion, Stopper R/L D001-62-873B
5
Tape, Protector R/L G043-62-864A
6
Pad, Stopper R/L GJ6A-56-994A
7
Hinge Assy, Liftgate R/L D350-62-210
8
Gasket, Hinge¶ R/L D350-62-212
¶Included w/Liftgate Hinge Assy
9
Support, Liftgate
To 11-27-03 R BP4K-62-620B
L BP4K-63-620B
From 11-27-03 R BP4K-62-620C
L BP4K-63-620C
10
Bolt, Stud
Upper R/L D352-62-625
Lower R/L S084-62-625A
11
Latch, Liftgate
To 12-1-03 BP4L-62-310A
From 12-1-03 BP4L-62-310B
12
Striker, Latch D350-62-361
Cylinder, Liftgate Lock¶ N.A.
¶Included w/Complete Lock Set-listed in Steering Wheel/Column
Section
13
Handle, Outer BP4K-62-410A
EXTERIOR TRIM
Illustration Located in Next Column
1
Emblem Assy BP4K-51-730A
2
Clip, Tubular¶ (2) LA01-51-958
¶Included w/Emblem Assy
3
Nameplate Assy
"MAZDA" BP4K-51-710A
4
Clip, Tubular¶ (3) LA01-51-958
¶Included w/Nameplate Assy
5
Nameplate (Adhesive)
"3" BN8V-51-721A
6
Spoiler Assy, Rear
Arctic White (Code A4D) BP4K-51-960D-33
Black (Code 16W) BP4K-51-960D-08
Canary Yellow (Code 25C) BP4K-51-960D-34
Crystal Silver (Code 22V) BP4K-51-960D-67
Passion Orange (Code 27Y) BP4K-51-960D-07
Strato Blue (Code 25E) BP4K-51-960D-38
Titanium Gray (Code 29Y) BP4K-51-960D-01
Velocity Red (Code 27A) BP4K-51-960D-87
Winning Blue (Code 27B) BP4K-51-960D-94
7
Spoiler, Lower¶ BP4K-51-981D
Protector, Spoiler¶
8 No. 1 BP4K-51-979A
9 No. 2 (2/Side) R/L BP4L-51-979A
10 No. 3 R/L BP4M-51-979
11
Protector, Rear Spoiler¶ (10) G14V-51-954
Gasket, Spoiler¶
12 No. 1 (4) B22H-50-818
13 No. 2 EA01-50-812
¶Included w/Rear Spoiler Assy
14
Fastener, Spoiler R/L BN8V-50-715A
INTERIOR TRIM
1 Trim Assy, Upper Liftgate BP4L-68-930B-02
2
Spring, Plate¶ (2) S47P-64-345
3
Clip, Upper Trim¶ (a) GJ12-68-865
¶Included w/Upper Liftgate Trim Assy
(a) As Required
4
Trim Assy, Upper Side R/L BP4K-68-940D-02
5
Clip, Side Trim¶ (a) R/L GJ12-68-865
¶Included w/Upper Side Trim Assy
(a) As Required
6
Fastener, Side Trim (2/Side) R/L GJ21-68-885B-02
7
Strap, Hanger R/L BP4K-68-301A-02
8
Trim Assy, Lower BP4K-68-960G-02
9
Cover, Hole¶ BP4K-68-962A-02
10
Cap, Hole¶ BP4K-68-949C-02
11
Plate, Lower Trim¶ BP4K-68-967A-02
Fastener, Lower Trim¶
12 No. 1 (6) GE4T-68-865A
13 No. 2 (2) E120-68-AB1
¶Included w/Lower Trim Assy
14
Fastener, Upper R/L GJ21-68-885B-02
15
Cover, Recess GJ6A-68-966-02
GLASS & PARTS
Illustration Located in Next Column
1
Glass Assy, Liftgate
Mazda BP4K-63-930B
2
Pin, Stud¶
No. 1 BP4L-63-938
No. 2 BP4M-63-938
3
Fastener, Glass¶ BP4L-50-896
4
Spacer, Glass Lower¶ C001-50-897
¶Included w/Liftgate Glass Assy

MAZDA3 2004
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629. 17
madpl1_g01_
Page 17—April 22, 2004—13:28:31—Version Manufacturer

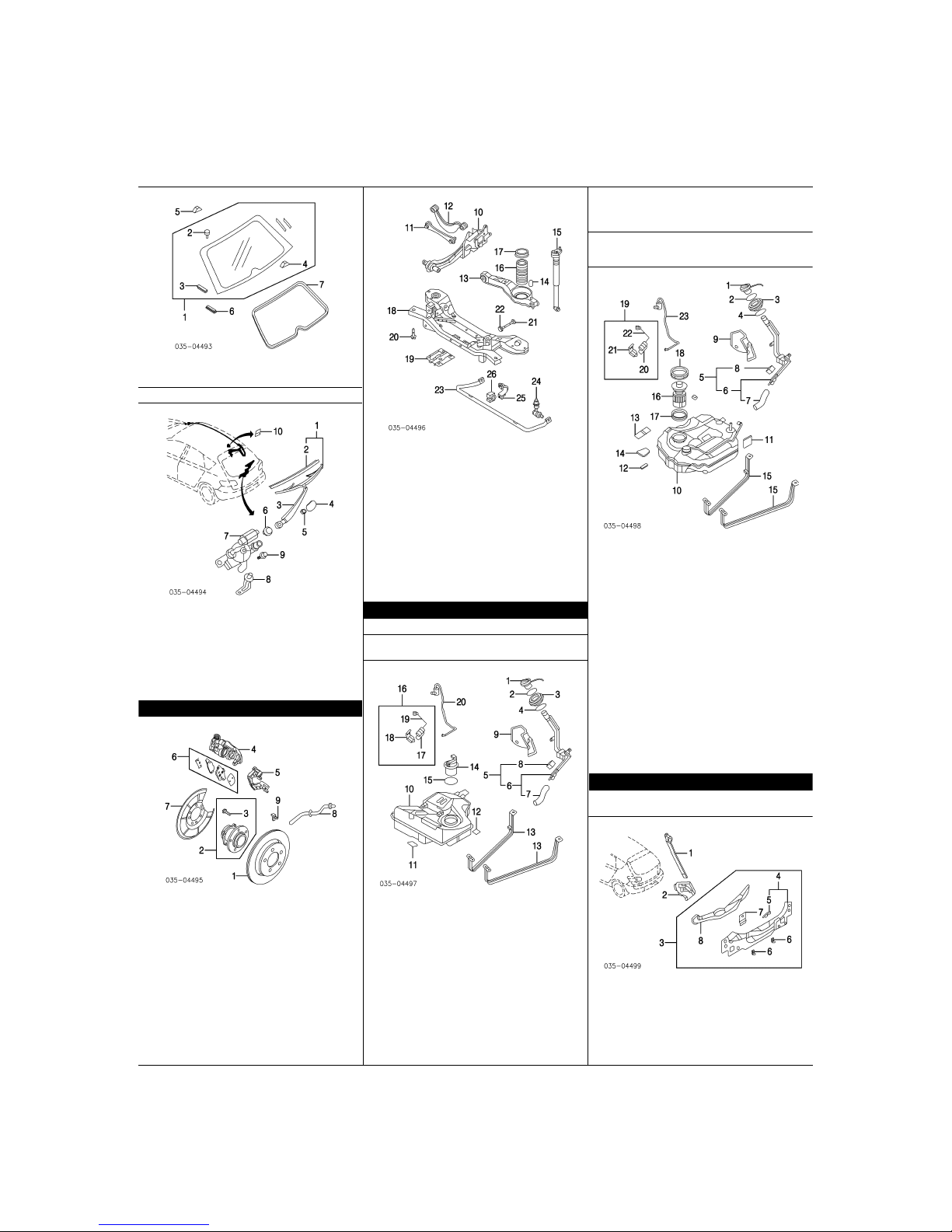

5 Spacer, Glass Upper C001-50-897
6
Fastener, Lower (2) D203-50-896A
7
Weatherstrip, Glass BP4K-50-899
WIPER SYSTEM
1 Blade Assy, Wiper BP4M-67-330A
2
Insert, Blade¶ BP4M-67-333A
¶Included w/Wiper Blade Assy
3
Arm, Wiper BP4K-67-421
4
Cover, Arm BP4M-67-395A
5
Nut, Arm 9994-00-801
6
Bushing, Arm BP4K-67-407A
7
Motor, Wiper BP4K-67-450
8
Bracket, Motor BP4K-67-34XA
9
Bolt, Motor (2) SLA1-13-366
10
Nozzle, Washer BP4N-67-510
REAR SUSPENSION
1 Rotor, Brake
2.0L Eng R/L BP4Y-26-251B
2.3L Eng R/L BP6Y-26-251C
2
Hub Assy
Hatchback
w/ABS R/L BP4K-26-15XA
w/o ABS R/L BN8B-26-15XB
Sedan
w/ABS R/L BP4K-26-15XA
w/o ABS R/L BN8B-26-15XB
3
Bolt, Hub¶ (5/Side) R/L BP4K-33-062
¶Included w/Hub Assy
4
Caliper, Brake R BPYK-26-61X
L BPYK-26-71X
5
Support, Caliper
2.0L Eng R/L BPYK-26-28X
2.3L Eng R/L BPYS-26-28X
6
Pad Set, Brake BPYK-26-48Z
7
Shield, Splash R/L BP4K-26-261A
8
Hose, Brake R/L BP4L-43-980D
9
Sensor, Rear ABS-See ABS/Brakes Section
10 Knuckle R BP4K-28-200E
L BP4K-28-250E
11
Link, Lateral R/L BN8B-28-500
12
Arm, Upper Control R/L BP4K-28-C10B
13
Arm, Lower Control R/L BN8B-28-300
14
Stopper, Bumper R/L BP4K-28-1B0A
15
Strut R/L BP4K-28-910D
16
Spring, Coil R/L BP4K-28-011B
17
Seat, Spring R/L BP4K-28-012A
18
Crossmember, Susp BP4K-28-800D
19
Bracket, Crossmember BP4K-28-8C1C
20
Bolt, Crossmember R/L 9YA0-21-20J
21
Bolt, Adjust R/L BP4K-28-66ZB
22
Plate, Cam R/L BP4K-28-473A
23
Bar, Stabilizer
15" Wheels B32L-28-151A
16" Wheels, 17" Wheels BP4K-28-151C
24
Link, Stabilizer R/L BP4K-28-170C
25
Bushing, Stabilizer Bar R/L BP4K-28-156C
26
Bracket, Stabilizer Bar R/L BP4K-28-155B
FUEL TANK
2.0L ENG
W/CALIF EMISSION
1 Cap, Filler BN8F-42-250A
2
Gasket, Upper GJ6A-42-252A
3
Cover, Dust B32H-42-241C
4
Gasket, Lower BP4K-42-252
5
Pipe Assy, Filler BN8B-42-280A
6
Joint Assy¶ BN8B-42-21X
7
Hose, Joint¶ (a) BN8B-42-231
(a) Included w/Joint Assy
8
Pad, Filler Pipe¶ BP4K-42-762
¶Included w/Filler Pipe Assy
9
Protector, Filler Pipe BN8B-42-298
10
Tank, Fuel BN8B-42-110A
Pad, Fuel Tank
11 No. 1 (2) BN8B-42-767A
12 No. 2 (3) BN8B-42-761
13
Band, Tank R BN8B-42-710A
L BN8B-42-720A
14
Gauge & Pump, Fuel LF67-13-35X
15
Gasket, Fuel Pump BN8B-42-165
16
Valve Assy, Solenoid BN8B-42-59XC
17
Sensor, Fuel Tank¶ LF66-18-581
18
Bracket, Sensor¶ LF66-18-586B
19
Wire, Sensor¶ LF66-18-791
¶Included w/Solenoid Valve Assy
20
Hose, Sensor BN8B-42-56XB
2.0L ENG
W/O CALIF EMISSION
2.3L ENG
1 Cap, Filler BN8F-42-250A
2
Gasket, Upper GJ6A-42-252A
3
Cover, Dust B32H-42-241C
4
Gasket, Lower BP4K-42-252
5
Pipe Assy, Filler BN8F-42-21XB
6
Joint Assy¶ BN8F-42-21X
7
Hose, Joint¶ (a) BN8F-42-231
(a) Included w/Joint Assy
8
Pad, Filler Pipe¶ BP4K-42-762
¶Included w/Filler Pipe Assy
9
Protector, Filler Pipe BN8B-42-298
10
Tank, Fuel BN8F-42-110
Pad, Fuel Tank
11 No. 1 (1) BN8F-42-761
12 No. 2 (3) S31F-42-761A
13 No. 3 (2) BP4K-42-761
14 No. 4 R BP4K-42-764
L GJ6A-42-763
15
Band, Tank R BP4K-42-710A
L BP4K-42-720A
16
Gauge & Pump, Fuel LF66-13-35XA
17
Gasket, Fuel Pump N.A.
18
Nut, Union N.A.
19
Valve Assy, Solenoid BN8B-42-59XC
20
Sensor, Fuel Tank¶ LF66-18-581
21
Bracket, Sensor¶ LF66-18-586B
22
Wire, Sensor¶ LF66-18-791
¶Included w/Solenoid Valve Assy
23
Hose, Sensor BN8B-42-56XB
REAR BODY
SHEET METAL
HATCHBACK
1 Rail, Rear R BPYK-70-44Y
L BPYK-71-44Y
2
Plate, Corner R BP4K-70-481
L BP4K-71-481
3
Panel Assy, Rear End B32H-70-750A
4
Panel Assy, Rear¶ B32H-70-75XA
5
Reinf, Rear Panel¶ (a) R/L BP4K-70-752
(a) Included w/Rear Panel Assy
6
Bracket, Rear Panel¶ R/L BP4K-70-753
7
Reinf, Latch Striker¶ BP4K-70-780

MAZDA3 2004
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629.
18 madpl1_g01_
Page 18—April 22, 2004—13:28:33—Version Manufacturer
REAR BODY Cont’d
SHEET METAL
HATCHBACK Cont’d
8 Crossmember, Rear Panel¶ BP4K-70-761
¶Included w/Rear End Panel Assy
9
Pan Assy, Luggage Compartment BN8F-53-710A
10
Reinf, Side¶ R BP4K-53-916
L BP4K-54-916
11
Reinf, Seat Mounting¶ R BP4K-53-7K0A
L BP4K-54-7K0A
12
Bracket, Seat Mounting¶ R/L BP4K-53-78XA
13
Bracket, Spare Wheel¶ 8531-53-790
14
Bracket, Hook¶ BP4K-54-890A
¶Included w/Luggage Compartment Pan Assy
15
Reinforcement Assy, Floor R BN8F-56-37YB
L BN8F-56-37ZC
16
Bracket, Seat¶ R/L BN8F-53-78XA
¶Included w/Floor Reinforcement Assy
17
Crossmember, Front BP4K-53-900C
18
Crossmember, Rear Center BP4K-53-920
19
Crossmember, Rear Side R BP4K-53-93ZA
L BP4K-54-93ZA
20
Sidemember Assy, Rear R BNY0-53-810D
L BNY0-54-810D
21
Bracket, Link¶ R BP4K-53-830A
L BP4K-54-830A
22
Gusset, Sidemember¶ R BP4K-53-84X
L BP4K-54-84X
23
Bracket, Hook¶ R BP4K-53-890
24
Bracket, Bumper¶ L BP4K-54-89X
¶Included w/Rear Sidemember Assy
SHEET METAL
SEDAN
1 Rail, Rear R BNYV-70-440
L BNYV-71-440
2
Plate, Corner R BNYV-70-480A
L BNYV-71-480A
3
Panel Assy, Rear End B33D-70-750A
4
Panel Assy, Rear¶ B33D-70-75XA
5
Reinf, Rear Panel¶ (a) R/L BP4K-70-752
(a) Included w/Rear Panel Assy
6
Bracket, Rear Panel¶ R/L BP4K-70-753
7
Reinf, Latch Striker¶ BN8V-70-780
8
Crossmember, Rear Panel¶ BN8V-70-761
9
Bracket, Trim¶ R/L C100-70-446A
¶Included w/Rear End Panel Assy
10
Pan Assy, Luggage Compartment BN8F-53-710A
11
Reinf, Side¶ R BP4K-53-916
L BP4K-54-916
12
Reinf, Seat Mounting¶ R BP4K-53-7K0A
L BP4K-54-7K0A
13
Bracket, Seat Mounting¶ R/L BP4K-53-78XA
14
Bracket, Spare Wheel¶ 8531-53-790
15
Bracket, Hook¶ BP4K-54-890A
¶Included w/Luggage Compartment Pan Assy
16
Reinforcement Assy, Floor R BN8F-56-37YB
L BN8F-56-37ZC
17
Bracket, Seat¶ R/L BN8F-53-78XA
¶Included w/Floor Reinforcement Assy
18
Crossmember, Front BP4K-53-900C
19
Crossmember, Rear Center BP4K-53-920
20
Crossmember, Rear Side R BP4K-53-93ZA
L BP4K-54-93ZA
21
Sidemember Assy, Rear R BNY0-53-810D
L BNY0-54-810D
22
Bracket, Link¶ R BP4K-53-830A
L BP4K-54-830A
23
Gusset, Sidemember¶ R BP4K-53-84X
L BP4K-54-84X
24
Bracket, Hook¶ R BP4K-53-890
25
Bracket, Bumper¶ L BP4K-54-89X
¶Included w/Rear Sidemember Assy
INTERIOR TRIM
HATCHBACK
1 Trim Assy, Rear Panel BP4K-68-89XB-02
2
Cover, End¶ BP4K-68-893A-02
¶Included w/Rear Panel Trim Assy
3
Bezel, Lock BP4K-68-894B-02
4
Fastener¶ GJ21-68-885B-02
¶As Required
5
Trim Assy, Upper Side R BP4K-68-84ZD-02
L BP4K-68-86ZE--02
6
Spring, Plate¶ (2/Side) R/L LB82-64-345
¶Included w/Upper Side Trim Assy
7
Cover, Trim R/L BP4K-68-843B-02
8
Trim Assy, Lower
Reversible Trunk Cover R/L B32H-68-850D-02
Non-Reversible Trunk Cover R BP4K-68-850D-02
L BN8F-68-870C-02
9
Cover, Lamp¶ R BP4K-68-853B-02
10
Lid, Trunk Side¶ L BP4K-68-8V0B-02
11
Clip, Trim¶ R/L GJ12-68-865
¶Included w/Lower Trim Assy
12
Fastener, Side Trim¶ R/L GJ21-68-885B-02
¶As Required
Cover, Trunk
Reversible
13 Rear BP4K-68-8H0B-02
14 Front BP4K-68-83XD-02
15
Cover Assy, Rear
Non-Reversible BN8F-68-81XC-02
16
Strap, Cover¶ R/L B28V-68-3B0
¶Included w/Rear Cover Assy
17
Pad, Lower BP4K-68-682A
18
Board, Floor Pan Center Rear
Reversible Trunk Cover
To 11-1-03 B32H-68-8F0A
From 11-1-03 B32H-68-8F0B
Non-Reversible Trunk Cover BP4K-68-8F0D
19
Board, Floor Pan Center Front
Reversible Trunk Cover
To 10-1-03 B32H-68-8E0C-02
From 10-1-03 B32H-68-8E0D-02
Non-Reversible Trunk Cover
To 10-1-03 BP4K-68-8E0C-02
From 10-1-03 BP4K-68-8E0D-02
20
Mat, Luggage Compt BN8F-68-670F-02
21
Bezel, Lever BP4K-68-6F1C-02
INTERIOR TRIM
SEDAN
1 Trim, Rear Panel BN8V-68-89XD
2
Bezel, Lock BN8V-68-894D
3
Trim, Side R B33D-68-850B
L B33D-68-870B
4
Lid, Trunk Side L BN8V-68-8V0-02
5
Fastener, Trim¶
Black GJ21-68-885B-02
Corn Beige GJ21-68-885B-36
Gray GJ21-68-885B-73
¶As Required
6
Cover, Rear BN8V-68-81XD
7
Pad, Lower BP4K-68-682A
8
Board, Floor
2.0L Eng BN8V-68-83XC
2.3L Eng BN8W-68-83XC
9
Mat, Luggage Compt
Black BN8F-68-670F-02
Corn Beige BN8F-68-670E-30
10
Bezel, Lever
Black BP4K-68-6F1C-02
Corn Beige BP4K-68-6F1C-30

MAZDA3 2004
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax [phone] or 858-549-0629. 19
madpl1_g01_
Page 19—April 22, 2004—13:28:35—Version Manufacturer

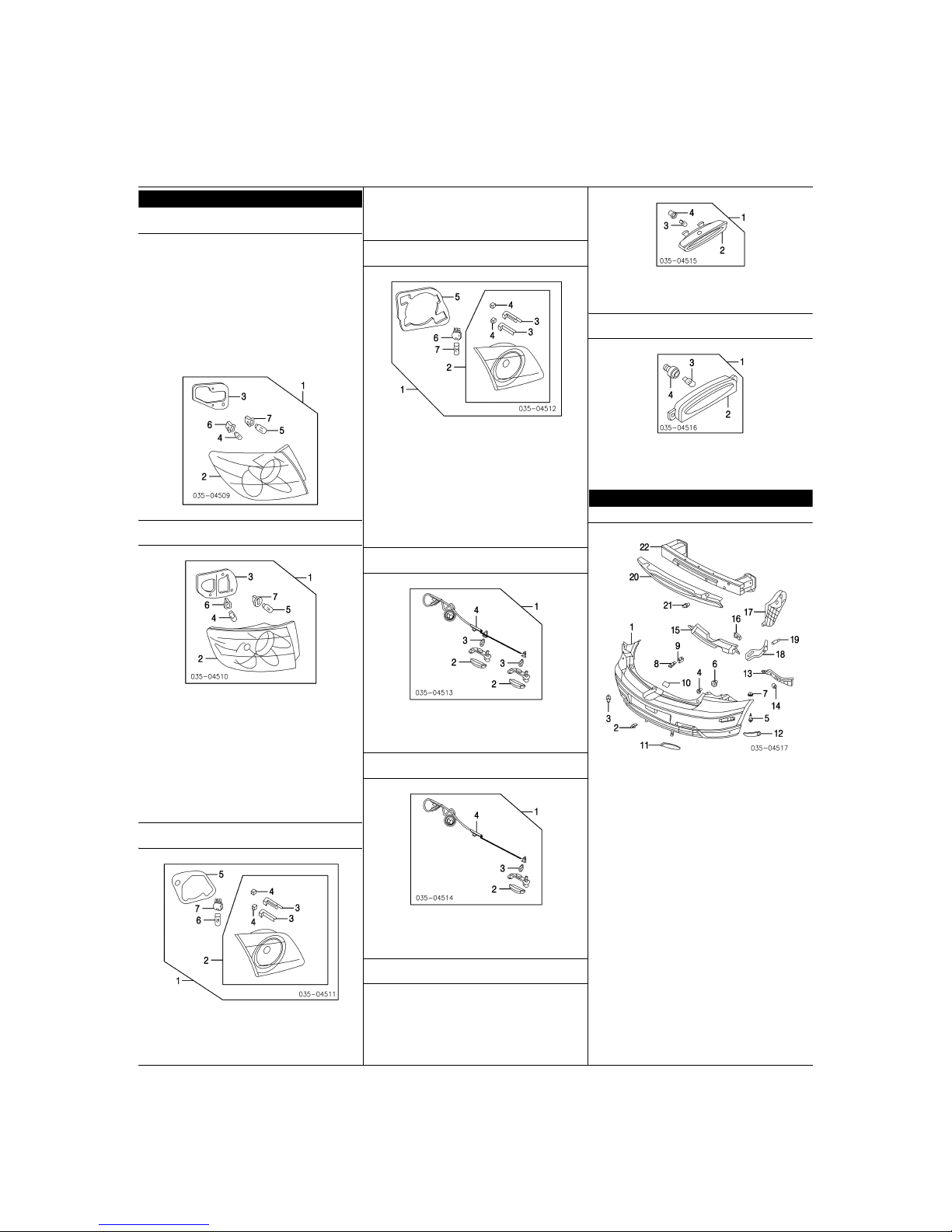

REAR LAMPS
COMBINATION LAMP
HATCHBACK
Illustration Located in Next Column
1
Lamp Assy, Combination R BN8F-51-150D
L BN8F-51-160D
2
Lens & Body¶ R BN8F-51-170C
L BN8F-51-180C
3
Gasket, Lamp¶ R BP4K-51-153B
L BP4K-51-163B
4
Bulb, Outer¶ R/L 9970-08-215
5
Bulb, Inner¶ R/L 9970-06-210
6
Socket, Outer¶ R/L G14S-51-3E7
7
Socket, Inner¶ R/L GF3H-51-3E7
¶Included w/Combination Lamp Assy
COMBINATION LAMP
SEDAN
1 Lamp Assy, Combination
Sport Type Bumper R BN8R-51-150C
L BN8R-51-160C
Std Type Bumper R BN8P-51-150C
L BN8P-51-160C
2
Lens & Body¶
Sport Type Bumper R BN8R-51-170C
L BN8R-51-180D
Std Type Bumper R BN8P-51-170C
L BN8P-51-180C
3
Gasket, Lamp¶ R/L BN8V-51-163
4
Bulb, Outer¶ R/L 9970-08-215
5
Bulb, Inner¶ R/L 9970-06-210
6
Socket, Outer¶ R/L G14S-51-3E7
7
Socket, Inner¶ R/L GF3H-51-3E7
¶Included w/Combination Lamp Assy
BACK-UP LAMP
HATCHBACK
1 Lamp Assy, Back-Up R BN8F-51-3F0C
L BN8F-51-3G0C
2
Lens & Body Assy¶ R BN8F-51-3H0B
L BN8F-51-3J0B
3
Bracket, Lamp¶ (a) (2/Side) R/L BP4K-51-3K7A
4
Nut, Flange¶ (a) (2/Side) R/L 9994-00-503
(a) Included w/Lens & Body Assy
5
Gasket, Lamp¶ R BP4K-51-3H8
L BP4K-51-3J8
6
Bulb¶ R/L 9970-06-210
7
Socket¶ R/L G14S-51-3B7
¶Included w/Back-Up Lamp Assy
BACK-UP LAMP
SEDAN
1 Lamp Assy, Back-Up
Sport Type Bumper R BN8R-51-3F0C
L BN8R-51-3G0C
Std Type Bumper R BN8P-51-3F0C
L BN8P-51-3G0C
2
Lens & Body Assy¶ R BN8R-51-3H0B
L BN8R-51-3J0B
3
Bracket, Lamp¶ (a) (2/Side) R/L BN8V-51-3K7
4
Nut, Flange¶ (a) R/L 9994-00-503
(a) Included w/Lens & Body Assy
5
Gasket, Lamp¶ R BN8V-51-3H8
L BN8V-51-3J8
6
Bulb¶ R/L 9970-06-210
7
Socket¶ R/L GF3H-51-3E7
¶Included w/Back-Up Lamp Assy
LICENSE LAMP
HATCHBACK
1 Lamp Assy, License BN8F-51-270B
2
Lens¶ R/L BP4K-51-274A
3
Bulb¶ R/L 0000-11-0194
4
Socket & Wire¶ BN8F-51-26XB
¶Included w/License Lamp Assy
LICENSE LAMP
SEDAN
1 Lamp Assy, License BN8P-51-270C
2
Lens¶ BP4K-51-274A
3
Bulb¶ 0000-11-0194
4
Socket & Wire¶ BN8P-51-26XB
¶Included w/License Lamp Assy
HIGH MOUNT STOP LAMP
HATCHBACK
Illustration Located in Next Column
1
Lamp Assy, Stop BP4K-51-580B
2
Lens & Body¶ BP4K-51-593B
3
Bulb¶ 0000-11-0921
4
Socket¶ D350-51-584
¶Included w/Stop Lamp Assy
HIGH MOUNT STOP LAMP
SEDAN
1 Lamp Assy, Stop BN8V-51-580B
2
Lens & Body¶ BN8V-51-593A
3
Bulb¶ 0000-11-0921
4
Socket¶ D350-51-584
¶Included w/Stop Lamp Assy
REAR BUMPER
HATCHBACK
1 Cover, Rear (P) BN8F-50-221J-AA
(P) Paint to Match
2
Clip, Cover (4) GD7A-50-EA1
3
Rivet, Cover R/L B092-51-833
Screw, Cover
4 No. 1 R/L GA2A-50-0Z6
5 No. 2 R/L 9CF6-00-516B
Grommet, Screw
6 No. 1 R/L H260-50-6K8
7 No. 2 R/L 9CF6-00-516B
8
Pin, Locator R GJ6A-50-1K5
L GJ6B-50-1K5
9
Grommet R/L BP4K-50-ES1
10
Seal, Rubber W612-50-2G2
11
Reflector, Rear R BN8R-51-5L0
L BN8R-51-5M0
12
Reflector, Side R D350-51-5L0C
L D350-51-5M0C
13
Retainer, Cover Side RBP4K-50-2H1C
LBP4K-50-2J1C
14
Rivet, Retainer (2/Side) R/L GJ6A-50-0Z1
15
Retainer, Cover Center BN8F-50-2R1
16
Clip, Center Retainer (4) GJ21-50-049
17
Shield, Splash R B32H-50-341C
L B32H-50-351C
18
Bracket, Splash Shield R BN8F-50-342A
L BN8F-50-352A
19
Rivet, Bracket (2/Side) R/L BN8F-50-355
20
Filler, Bumper BN8F-50-311B
21
Fastener, Filler R/L FD01-68-AC3
22
Bar, Reinforcement BN8F-50-260B
