Mazhaoli F30 User manual

F30
F30 Walk-Behind Floor Scrubber
User Manual
Tel: [phone]
Mazhaoli (Guangdong) Technology Co., LTD
Add: 1st Floor, No. 8, Xinxing Wei Industrial zone, Nanqu, Ronggui, Shunde District,
Foshan city, Guangdong Province
Mazhaoli (Guangdong) Technology Co., LTD
Attention: please read carefully, and after training before operation
7.1 All products must be carefully tested and inspected by the factory's quality inspectors before
they can leave the factory. Each product is guaranteed to be free of defects in parts and
7.2 We provide a one-year warranty for the product (except for vulnerable parts or damaged
parts), and regular return visits and inspections during the warranty period. All repair costs
and accessories costs caused by product quality problems shall be borne by the seller or by
the local After-sales service dealers contact Ma Zhaoli (Guangdong) Technology Co., Ltd.
7.3 Note: This warranty does not apply to repairs, negligence, abuse, product damage caused
by fire, or any accidents caused by operating the machine not in accordance with operating
7.4 In addition, wearing parts (wheels, rubber strips, absorbent rubber strips, brush trays,
needle holders) are not covered by the warranty. The battery is a special product, which is
related to the standard use of the operator. The warranty period is 6 months. If the battery
is used outside of this product, the warranty is invalid, and all communication and
transportation costs must be borne. Claims of any nature are not allowed. Please read the
product manual and maintenance manual carefully.
7. product quality commitment
assembly when leaving the factory.
requirements.

F30
CONTENTS
1．Product overview…………………………………………… 02
2． Key components and functions features… … … … … … … … 03
3． Operation panel and other functions features… … … … … … 03
4．Quick operation diagram and Cautions……………………03~05
5．Daily maintenance……………………………………………05~06
6．Troubleshooting guide……………………………………… 06
7．Quality commitment
Ma Zhaoli (Guangdong)
Technology Co., Ltd.
will serve you wholeheartedly, please
rest assuredto use and read this
manual carefully
1. Product overview
The F30 hand-push floor scrubber is a green and environmentally friendly product powered by a maintenance-free battery.
It is suitable for various commercial environments, such as office buildings, supermarkets, hospitals, schools, restaurants an
d other places where smooth and hard floors are laid for cleaning. A high-efficiency cleaning equipment that integrates floor
washing and water absorption functions. The floor scrubbing brush combined with high-efficiency cleaning agents can
quickly decompose oil or other stains on the ground. It is especially suitable for places with a work area of 1000-5000
square meters.
The F30 hand-push floor scrubber can make your cleaning work easier, faster and more efficient. It can quickly remove
dirt from the ground, and at the same time can completely remove the dirt from the site, ensuring that your ground can be
cleaned quickly. The entire work area does not need to close the passage, does not affect others to the greatest extent, only
needs one person to operate, and can complete a cleaning efficiency of about 1500 square meters per hour.
F30 hand-push floor scrubber has the advantages of imported similar models. Its compact design and flexible operation
can provide professional cleaning performance like large scrubbers. It is equipped with adjustable handles to provide more
flexibility for cleaning. Taking into account longer working hours and improving work efficiency, coupled with our perfect after-
sales service, you will surely use it with confidence.
1 PAGE 2 PAGE1 PAGE 2 PAGE
Unit
mm
kg
mm
L
L
㎡/h
v
h
kg
mm
V.Ah
w
w
Parameter
430
17/23
620
1
27
30
1500
DC 24V
5.5h@ECO Mode
116
900*650*700/1270
yes
12v*2 (85AH maintenance-free battery)
350
310
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Name
Scrubbing width
Brush pressure
Squeegee width
Number of floor brushes
Clean water tank capacity
Sewage tank capacity
Theoretical maximum work efficiency
Working voltage
Max working duration
Net weight
Length * width * height
Electric water control
Battery type
Brush motor
Suction motor
Mazhaoli (Guangdong) Technology Co., LTD
2．Key components and functions features
2.2 Battery: The standard battery is a maintenance-free lead-acid battery. You may also have the following configuration options
lithium battery,high capacity of high performance, no need to add fluid, price is on the high side.
2.1 Key components and functions feature
2.1.1 Sewage tank: it is the waste water recovery and storage place. When working, it is necessary to ensure that the water tank cover is
covered can it work normally.
whole machine. Please confirm whether there is liquid in the clean water tank before working.
the cleaning Angle of the brush plate can be automatically adjusted according to the fluctuation of the ground, so that the dirt can
be quickly separated from the ground.
2.1.4 Suction scraper system: Adaptive swinging mechanism and high quality rubber strip are adopted to make the sewage always
gather at the suction mouth and be inhaled into the sewage tank.
The original factory is equipped with high-quality special adhesive tape (red), suitable for use on the oil-
free ground. If you need to use in more oil-free ground, please purchase special oil-resistant adhesive tape

Note: The new machine may have processed meat left in the clean water tank,
so it is necessary to increase the frequency of cleaning the filter in the early stage of use.
F30
5.1 At the end of each work, check the capacity of the battery and decide whether to charge, so as not to affect the next day's work.
5.2 After the work is finished, empty the sewage and clean the sewage tank. Do not leave the sewage in the sewage tank,otherwise
it will breed bacteria, produce peculiar smell, and dirt deposits will block the drain pipe.
5.3 At the end of daily work, it is best to use up the cleaning agent in the clean water tank, and do not leave the liquid in the tank for
a long time.
5.4 It is best to rinse the parts of the machine in contact with the detergent with clean water after working every day, and wipe it with
a dry cloth.
5.5 After the work is completed, the squeegee must be lifted to maintain the elasticity and life of the rubber strip;
5.6 After finishing the work, remove the brush/needle holder, clean it and dry it. The steps for removing the brush are as follows:
Lift the suction rake, adjust the angle of the handle to a proper position, press the start button, tilt the front of the machine, and
continue to close the handle switch for about 8 seconds, release the handle switch, the brush/needle holder falls off, and the
machine pulls back.
1) It is strictly forbidden to add corrosive liquids (such as sulfuric acid, hydrochloric acid or other strong corrosive agents) into the
clean water tank. This will cause serious damage to the machine. The use of cleaning agents must be implemented in
accordance with local environmental protection requirements.
2) When the machine is charging, just press the start button to turn off the machine. The charging must be completed at one time.
Do not interrupt the charging randomly.
3) The charger and the battery are matched. Please use the original charger for charging to avoid damage to the battery.
4) It is strictly prohibited to turn on when charging.
5) When using ordinary lead-acid batteries, check the battery liquid level every week, and add distilled water in time for lack of liquid.
6) It is strictly forbidden to add any water other than distilled water to the battery, as this will cause damage to the battery.
7) Keep the clean water tank clean, if sundries fall into it, it may block the drainage pipe.
8) The adjustment of the squeegee strip will directly affect the suction effect of the squeegee. Keep the squeegee 90° perpendicular
to the ground. When the squeegee is worn out, adjust the height of the squeegee universal wheel as shown in the right picture
to make the squeegee Keep the rubber strip in place with the ground.
Precautions:
9) Keep the adhesive strips clean during the work, prepare a towel and pocket, and clean them up when the adhesive strips get
stuck in debris.
If the squeegee and the ground are not in the 90°position,
it may cause bad wiping at the center position of the squeegee, and cause the rubber strips at both ends to be too
close to the ground, excessive wear of the rubber strips, and even dislocation of the front rubber strips.
5．the work that should be done every day
5 PAGE 6 PAGE

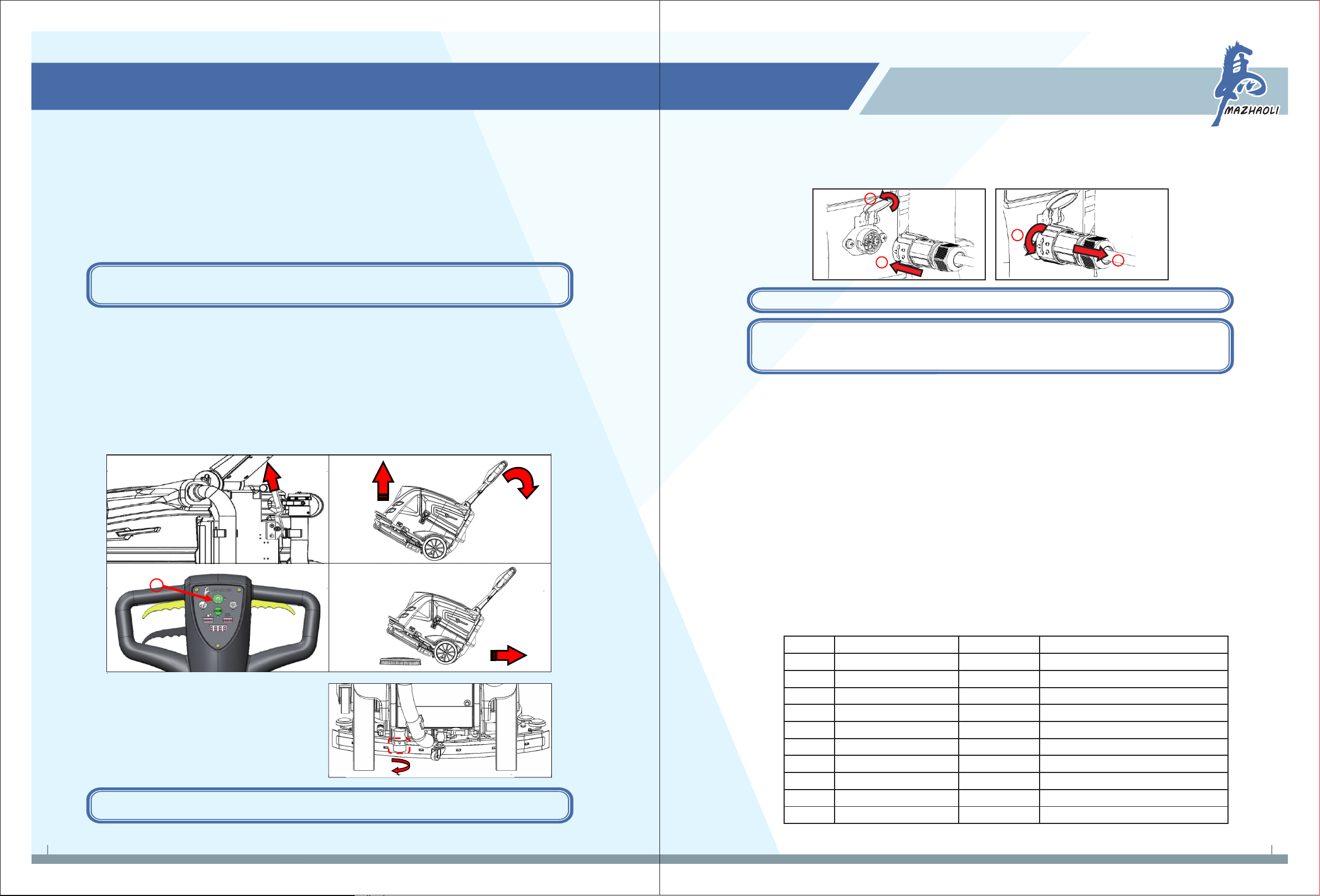

5.7 There is a filter screen in the water valve, and the filter
screen should be removed and cleaned frequently to
ensure that the drainage system is unblocked:
☆The filter is located at the bottom left of the rear of the
machine. Rotate the cover in the direction shown by
the arrow in the figure below to remove the filter for
cleaning. After cleaning, install the filter and tighten the
cover.
Mazhaoli (Guangdong) Technology Co., LTD
Step3 Step 4
1
Step 1 Step 2
6．Trouble Shooting Form
6.1 Classification and exclusion of water absorption effect
"Bad effect in the middle" "Bad effect at both ends"-adjust the verticality of the squeegee
"The squeegee can be scraped, but the water overflows from both ends of the squeegee"-check whether the suction port of the
squeegee has suction power, whether it is blocked, whether the recovery tank is full, whether the recovery tank sealing strip is not
installed, and the sewage pipe cover Is it not closed tightly;
6.2 No response after the water suction motor or the brush motor is turned on
Remedy: Check whether the temperature control switch is disconnected, whether the motor power connector is loose or has poor contact
6.3 The power display is good, and the motor runs weakly
Ask a professional to check whether the carbon brush of the motor is worn;
6.4 The battery voltage is displayed normally, and the use time is getting shorter and shorter
Check whether the battery is short of liquid?
Is each charge completed continuously and continuously as required? Is the green light on every time you charge?
Elimination method: Please add distilled water for lack of liquid, be sure to complete the uninterrupted charging according to the
regulations, and the green light must be automatically completed after each charge Cycle and try several times to see if the battery
can be recovered, if not, replace the battery.
5.8 When the power is lower than the specified value during use, the machine will automatically stop working with a buzzer alarm. At this
time, the machine needs to be charged.
Charging must be completed at one time to reduce the number of charging and discharging and improve battery life
Choosing high-efficiency power-type maintenance-free batteries can bring you greater convenience.
When using high-efficiency maintenance-free batteries, you must maintain an effective charging time
and do not interrupt normal charging at will. Use the maintenance-free charging charger that is randomly configured.
The battery charger is used for maintenance-free battery charging, which will cause the battery to "burst"
When charging, open the cover of the charging socket, adjust the direction of the charger plug and insert it into the charging socket.
The blue lock ring of the plug will lock the plug on the socket to prevent it from loosening.As in step 1; after charging is completed, turn the
blue lock ring on the front of the plug 20° counterclockwise before pulling out the plug, as in step 2;
Step 1
1
2
Step 2
3
4
6.5 The suction motor is running, but the suction nozzle has no suction check
A. Check whether the intake pipe in the sewage tank is blocked or whether the sewage pipe cover is installed
B. Check if the water inlet of the squeegee is blocked by foreign matter?
C. Remove the hose connected to the squeegee and check if the hose port is blocked?
6.6 Check that the machine does not flow out or does not flow out smoothly
A. Is the drain switch turned on
B. If it is a "one-key start" switch model, the water will only be discharged after starting
C. whether the water volume button is turned on
D. Unscrew the filter screen of the water valve to check whether it is blocked (see 5.3)
E. Check whether the water pipe under the chassis is flattened
6.7 Other fault information of the control board
E00
E01
E02
E11
E12
E13
E21
E22
E23
E30
Downtime
Downtime
Downtime
Downtime
Downtime
Downtime
Downtime
Downtime
Downtime
Downtime
Error code Description Fault actionError details
Battery undervoltage
Motherboard over
temperature
hardware malfunction
Main brush motor overload
Short circuit of main
brush motor
The main brush motor temperature
control switch is disconnected
Unrecoverable, need to shut down to clear
Recoverable
Unrecoverable, the controller needs
to be returned to the factory for repair
Unrecoverable, need to shut down to clear
Unrecoverable, need to shut down to clear
Automatically recover after the temperature is
normal, but need to restart the button to start
Unrecoverable, need to shut down to clear
Unrecoverable, need to shut down to clear
Automatically recover after the temperature is
normal, but need to restart the button to start
Unrecoverable, need to shut down to clear
Suction motor overload
Short circuit of suction motor
The temperature control switch of the
suction motor is disconnected
Drain solenoid valve failure
