MB QUART MM-1 User manual

Thank you for purchasing the Maxxsonics MM-1 iPod / MP3
interface module.
This model allows you to connect your iPod / MP3 music
source directly into your aftermarket amplifier with out having
to use a radio frequency transmitter that degrades the signal
path and sound quality performance.
Enjoy the “direct wire” benefits of the MM-1 and the outstanding
sound quality it provides.
FEATURES
1
- COMPATIBLE WITH ALL iPod / MP3 PLAYERS / SATELLITE
RADIOS
- BLUE LED VOLUME KNOB BACK LIGHTING
- ILLUMINATED MAXXSONICS LOGO
- SMALL IN OR UNDER DASH CONTROL HEAD WITH 3.5mm
HEADPHONE INPUT
- HEADPHONE INTERFACE INPUT CABLE INCLUDED
- ADJUSTABLE INPUT LEVEL CONTROL
- AUTOMATIC RADIO BYPASS CIRCUIT
- ULTRA-LOW THD & N CIRCUITRY
- UNDER-DASH OR HIDDEN MAIN MODULE
- INSTALLATION HARDWARE INCLUDED
R
R
iPod is the registered trademark of Apple Computer, Inc,
which is not affiliated with this product. Maxxsonics is not
an agent or affiliated in any way with Apple Computer, Inc.
RR
R

2
OPERATING INSTRUCTIONS
The MM-1 is an interface module installed in-between the radio
and aftermarket amplifier that allows you to connect your iPod / MP3
audio player directly into your aftermarket amplifier with out having to
use a sound quality degrading FM or AM adaptor.
NOTE: The radio signals travel into the MM-1 main control module
and pass through to the amplifier.
When the MM-1 headphone cable is plugged into the MM-1 control
head, the radio signal will be bypassed so that the iPod / MP3 signals
can be routed directly to the amplifier.
When the headphone cable is unplugged, the radio signal path will
be restored directly to the amplifier for normal operation.
Please follow the directions below.
1. Turn the radio / CD player off.
2. Plug one end the 3.5mm headphone adaptor cable into the
iPod / MP3 player headphone output jack as shown below.
3. Plug the other end of the 3.5mm headphone adaptor cable
into the MM-1 control head 3.5 mm “INPUT” jack.
NOTE: The radio will not play as long as the headphone
adaptor cable is plugged in.
4. Turn the MM-1 volume to minimum
5. Turn the iPod / MP3 player volume to maximum.
6. Turn the Radio / CD player on (note: radio must be on to use MM-1)
7. Adjust the MM-1 volume to your preferred listening level.
Note: The radio volume control will not affect the iPod / MP3
volume level.

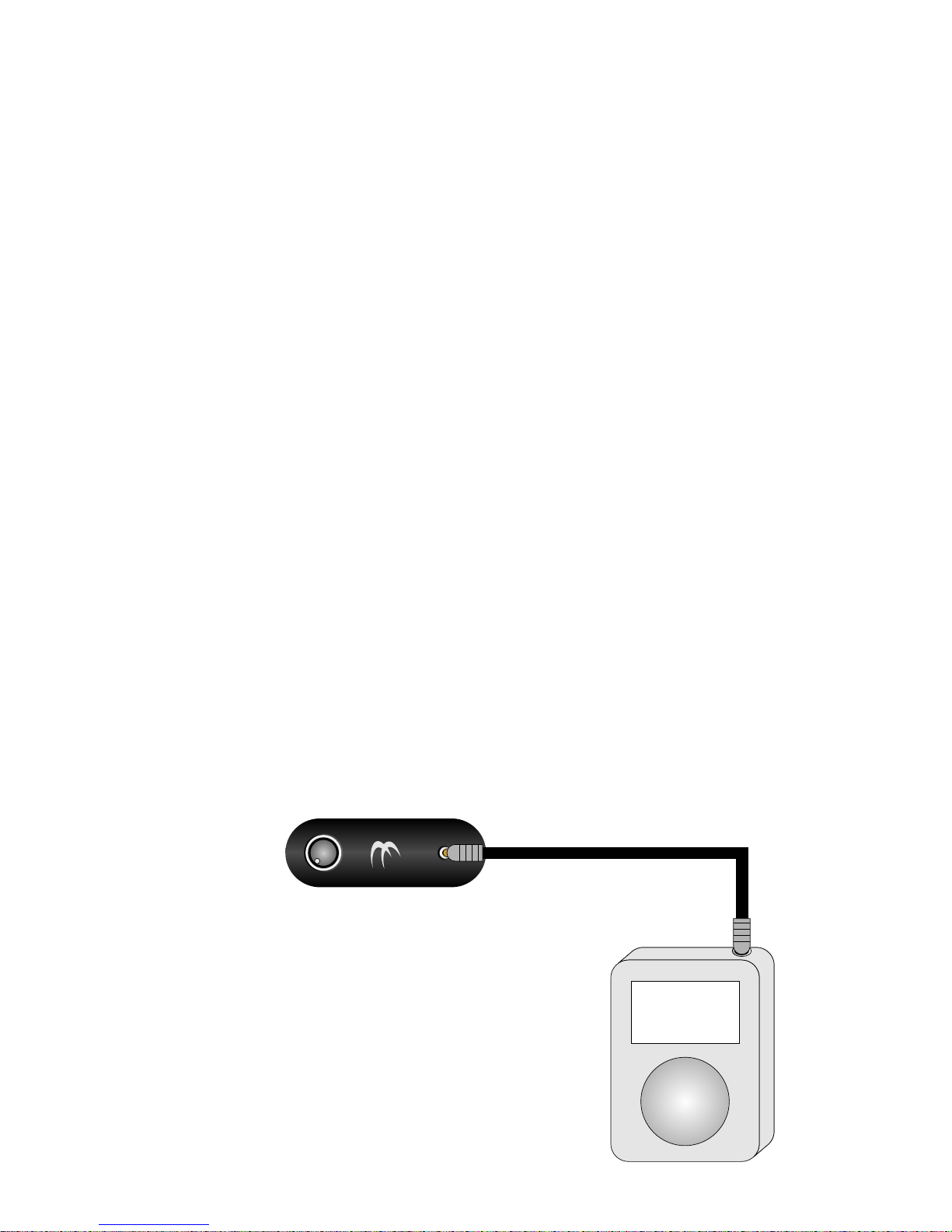

MP3
Player
MM-1MM-1
MAXXSONICSMAXXSONICS
MIN MAXX
INPUT
MM-1 Control Head
MM-1 Headphone Adaptor Cable
HEADPHONE JACK

3
INSTALLATION INSTRUCTIONS
CONTROL MODULE WIRING
1. Using a small flat blade screw driver, connect 3 different color
wires (one each) to the green power connector on the back of
the MM-1 module labeled “- REM +”.
We recommend you choose red for +, black for - & blue for REM.
2. Connect the “+” (red wire) to a constant + 12 volt source such
as the radio power wire with an in-line 5 amp fuse.
3. Connect the “-” (black wire) to a good chassis ground source.
Note: Be sure to remove all paint and primer to expose clean
metal. Use a nut, bolt and lock washer to secure the ground wire.
4. Connect the “REM” remote turn-on (blue wire) to the radio remote
turn-on wire.
CONTROL MODULE RCA CONNECTIONS
1. If the radio / CD player has front (L & R) and rear (L & R) RCA
outputs, plug them into the Control Module “INPUT” connectors.
2. Connect good quality RCA cables into the Control Module “OUTPUT”
connectors.
3. Route the “OUTPUT” RCA cables to the amplifier RCA INPUTS as
specified in your amplifier installation manual.
CONTROL MODULE
1. Plug the RJ45 cable into the Control Module and route to
the location you have chosen to mount the Control Head
2. Mount the Control Module in a concealed location under
the dash board.
CONTROL HEAD
1. Mount the control head under the dash with the supplied “C Bracket”
and hardware supplied or in the dash in a location easily accessible
by the driver.
2. Plug the RJ45 cable into the back of the Control Head.

MM-1MM-1
MAXXSONICSMAXXSONICS
MP3
Player
30” 3.5mm headphone cable
36” rj45 cable to connect the
control head to the control module.
MM-1MM-1
MAXXSONICSMAXXSONICS

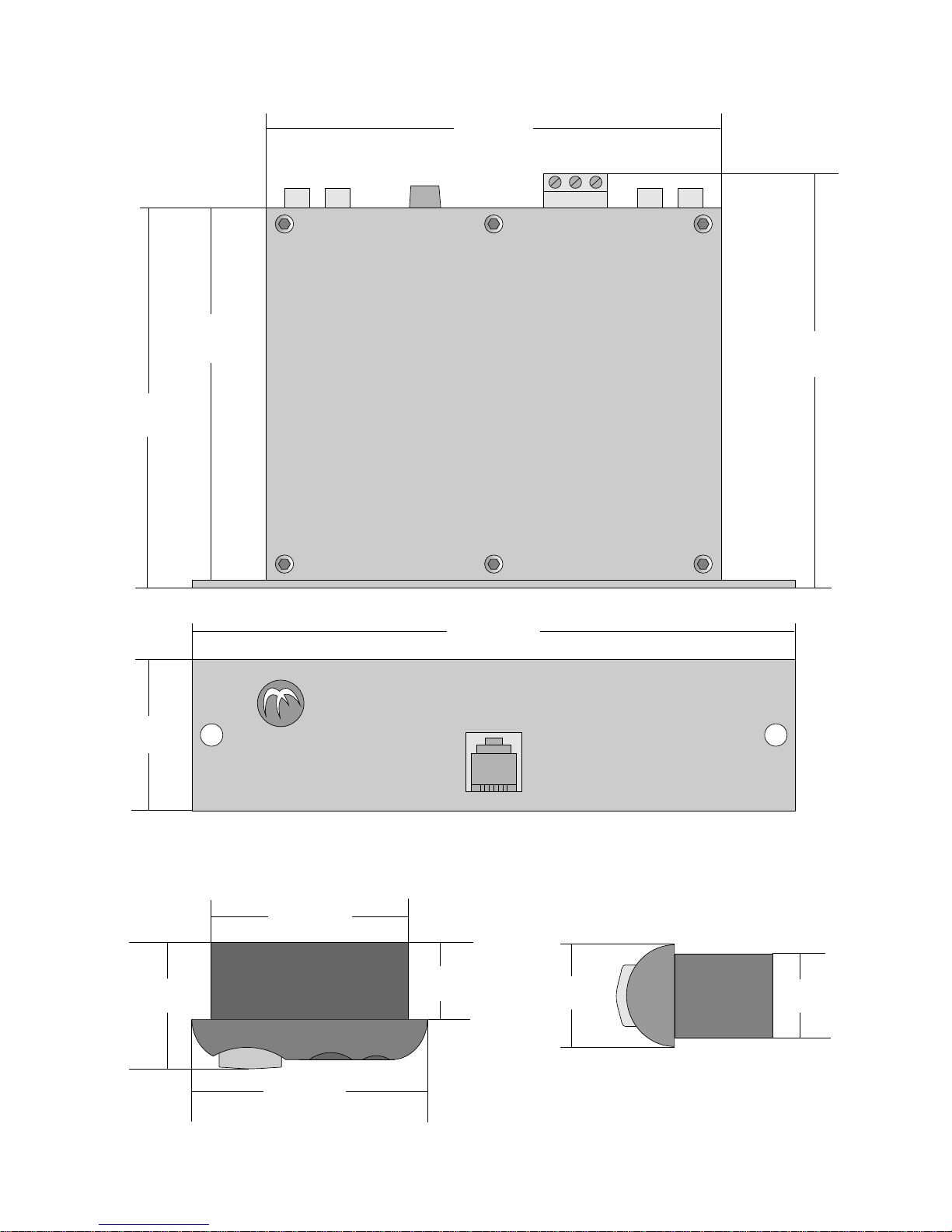

BACK OF CONTROL HEAD FRONT OF CONTROL HEAD
MM-1MM-1
INPUT
INPUT OUTPUT
LEVEL
CH1
CH2
CH3
CH4
6V - 0.2V
- REM +
MM-1
CONTROL MODULE
FRONT
BACK
Chassis
Ground
Remote Input
(Turn-On Input)
To Battery (+)
With 5-Amp
Fuse
4
WIRING DIAGRAM
INPUT
Connect to Radio / CD player
RCA Front (L & R) and Rear
(L & R) RCA outputs
Connect to Amplifier RCA
Front (L & R) and Rear
(L & R) RCA inputs
INPUT
