RVDVD2.0 USER MANUAL
AM/FM/WB ● Bluetooth®● USB ● HDMI● Multi-Zone
RV DVD Player and Media Receiver

PRE-INSTALLATION CHECKLIST
2
Thank you for purchasing the MB Quart RVDVD2.0 multi-zone RV radio with
AM/FM, USB, Bluetooth audio streaming and a built-in DVD player. Please
take a few minutes to review the user manual before attempting installation
and operation.
Additional support documentation can be found at MBQUART.com or by
emailing [email protected].
FEATURES
AM/FM Radio (selectable USA/Europe)
Weather Band (WB) Radio
Built-In CD/DVD Player
Bluetooth Audio Streaming (HSP)
USB Media Input (MP3/WMA/Video/Photo)
HDMI Video Output with ARC Support
Front Panel AUX 1 Audio Input
Rear Panel AUX 2 Audio Input
Multi-Zone Operation
Four (4) Built-In Speaker Outputs
Front/Rear Preamp Outputs for External Amplifiers
Built-In Wake Up Alarm andAuto-Off Sleep Modes
Wired Headphone Output (Privacy Listening)
Separate USB Quick-Charge Port
Infra-red Remote Control
CHECKLIST
1. Please read the instruction manual carefully before installing the unit. This
unit is intended for only 12V DC electrical systems.
2. Remove the two transport screws on the top of the DVD unit marked with
red tabs before proceeding with installation.
3. Make insulated connections to the unit as outlined in this instruction
manual. Complete all wired connections before powering on the unit.
Incorrect connections may cause damage to the unit.
4. Secure any loose wires after installation.
5. For HDMI rear-connected cables, please keep the overall length 12 feet or
less.

WIRING & INSTALLATION
3
REAR PANEL DETAIL

WIRING & INSTALLATION
4
INSTALL THE UNIT
Please note: This unit requires a minimum 6-3/4” mounting depth which
includes space for the electrical/speaker plugs and any A/V input and output
connections.
1. Cut or utilize a mounting opening 7”(H) x 2” W).
2. Remove the left and right decorative covers as shown in the diagram.
3. Insert the unit into the mounting opening.
4. Attach the unit using the four (4) supplied mounting screws.
5. Replace decorative side covers over mounting screws.

FRONT PANEL CONTROLS & INPUTS
5

FRONT PANEL FUNCTIONS (BY MODE)
6
BUTTON
ACTION
RADIO
DISC/USB
AUX IN 1/2
BT MUSIC
POWER
Short
Power ON/
Mute ON/OFF
Power ON/
Mute ON/OFF
Power ON/
Mute ON/OFF
Power ON/
Mute ON/OFF
Long
Power OFF
Power OFF
Power OFF
Power OFF
ZONE 1
Short
Zone 1
Active / Unavailable
Zone 1
Active / Unavailable
Zone 1
Active / Unavailable
Zone 1
Active / Unavailable
Long
Zone 1 Mute On/Off
Zone 1 Mute On/Off
Zone 1 Mute On/Off
Zone 1 Mute On/Off
ZONE 2
Short
Zone 2
Active / Unavailable
Zone 2
Active / Unavailable
Zone 2
Active / Unavailable
Zone 2
Active / Unavailable
Long
Zone 2 Mute On/Off
Zone 2 Mute On/Off
Zone 2 Mute On/Off
Zone 2 Mute On/Off
MODE
Short
Change Source
Change Source/SCH:7
Change Source
Change Source
Long
/
Video/Photo/Music
change
/
BT(off/link)
ALARM
Short
Alarm ON/OFF
Alarm ON/OFF /SCH:8
Alarm ON/OFF
Alarm ON/OFF
Long
Alarm Setting
Alarm Setting
Alarm Setting
Alarm Setting
SLEEP
Short
Sleep ON/OFF
Sleep ON/OFF /SCH:9
Sleep ON/OFF
Sleep ON/OFF
Long
Sleep Setting
Sleep Setting
Sleep Setting
Sleep Setting
DIM
Short
Dimmer H/M/L/Off
Dimmer H/M/L/Off
Dimmer H/M/L/Off
Dimmer H/M/L/Off
Long
/
DIR SCH/NUM SCH
/
/
DISP
Short
Info/Clock
Info/Clock/SCH:0
Info/Clock
Info/Clock
Long
Clock Setting
Clock Setting
Clock Setting
Clock Setting
VOL
Rotary
Volume Up/Down
Volume Up/Down
Volume Up/Down
Volume Up/Down
MENU
(PUSH
VOL)
Short
BAS-TRE-BAL-EQ-
LOUD
BAS-TRE-BAL-EQ-
LOUD
BAS-TRE-BAL-EQ-
LOUD
BAS-TRE-BAL-EQ-
LOUD
Long
BEEP/CLOCK/P_VOL/
CT/AREA/DX/ST
BEEP/CLOCK/P_VOL
BEEP/CLOCK/P_VOL
BEEP/CLOCK/P_VOL
SEEK
Rotary
Seek Up/Down
Next/Previous File
/
Next/Previous File
BAND/TUNE
(PUSH SEEK)
Short
Band/Manual
/
/
/
Long
Auto Store
FF/FR
/
/
1/PAU
Short
Recall M1 station
play/pause/SCH:1
/
/
Long
Save station to M1
/
Show MCU version
/
2/INT
Short
Recall M2 station
INT on/off/SCH:2
/
/
Long
Save station to M2
/
Show DVD version
/
3/RPT
Short
Recall M3 station
RPT(ONE/ALL)/SCH:3
/
/
Long
Save station to M3
/
Reset(5 seconds)
/
4/RDM
Short
Recall M4 station
RDM on/off/SCH:4
/
/
Long
Save station to M4
/
/
/
5/DIR-
Short
Recall M5 station
DIR-/SCH:5
/
/
Long
Save station to M5
-10
/
/
6/DIR+
Short
Recall M6 station
DIR+/SCH:6
/
/
Long
Save station to M6
+10
/
/

OPERATION
7
POWER AND BASIC ADJUSTMENTS
Turn the Unit ON or OFF
Press button to turn the unit ON. When the unit is switched on, press and hold
button for 2 seconds to switch the unit OFF. A “GOOD BYE” message is displayed to confirm
power down.
MUTE
To mute the unit, quickly press and release button. “MUTE” is displayed. Repeat the
process to unmute the unit.
Sound Adjustments
Press and release VOLUME/SEL knob to choose sound settings in the following order:
BASS-TRE-BAL-EQ
Bass –Choose from -7 to +7
Treble –Choose from -7 to +7
Balance –Choose Left or Right (up to 7 steps in either direction)
EQ –If “OFF” turn knob to the right and choose from pre-programmed tone settings*:
oClassical
oRock
oPop
oFlat
oJazz
oEQ OFF
o*Note: If one of the EQ sound settings is chosen, manual Bass and Treble
adjustments are disabled. Only “BAL” and the name of the EQ setting will show in the
Sound Adjustment menu. To disable the EQ and allow manual Bass/Treble setting,
simply scroll through the settings until “EQ OFF” is displayed.
LOUD –Choose from ON or OFF**.
o**Note: Loudness gives a boost of low and high frequencies at low volumes, but can
add more distortion at high volumes. We recommend leaving in the OFF position and
using an EQ setting to achieve the sound profile that achieves the best low and high
volume performance for your system.
Setting Adjustments (DVD, USB, Bluetooth or AUX Sources)
Press and hold VOLUME/SEL button for the setting menu: BEEP ON/OFF-CLOCK 12/24 -
P_VOL
In each menu item, rotating the VOLUME/SEL knobselects them and allow you to
rotate through the sub-settings.
oBEEP –Choose ON or OFF
oCLOCK –12 or 24 hour format
oP_VOL –Preset volume level (see next page)

OPERATION
8
POWER AND BASIC ADJUSTMENTS (Continued)
Setting Adjustments (AM/FM Source ONLY)
The AM/FM source adds additional settings to the adjustment menu. Press and hold
VOLUME/SEL button for the setting menu: BEEP ON/OFF- CLOCK 12/24 - P_VOL –CT
SYNC or CT INDEP –AREA USA or AREA EUR–DX or LOC –STEREO or MONO
In each menu item, rotating the VOLUME/SEL knobselects them and allow you to
rotate through the sub-settings. The additional AM/FM settings are:
oBEEP –Choose ON or OFF
oCLOCK –12 or 24 hour format
oP_VOL –Preset volume level (see below)
oCT SYNC or CT INDEP –allows the clock to synch with the radio station’s
RDS time feed (SYNC) or to be set independently (INDEP) by the user
oAREA USA or AREA EUR –Selects the region: USA or Europe
oDX or LOC –Selects distance (DX) or local (LOC) for optimized reception
oSTEREO or MONO –Selects a stereo or mono broadcast reception
Beep Setting
The audible beep function allows you to hear the beep tone through the speakers whenever
a button is pressed on the unit.
To set the audible beep, advance to the “BEEP” function in the settings menu and
rotate the VOLUME/SEL knob to choose the “ON” or “OFF.”
Clock Setting Procedure
The clock allows you to select between 12 or 24 hour time formats.
To set the 12 or 24 hour time format, advance to the “CLOCK” function in the settings
menu and rotate the VOLUME/SEL knob to choose the format.
To set the clock time, press and hold DISP button and the HH (hours) flash. Rotate
the VOLUME/SEL knob to set the hour. Press DISP (or VOLUME/SEL) button until
the MM (minutes) flash. Rotate the VOLUME/SEL knob to set the minutes. Once
complete, press DISP (or VOLUME/SEL) button to exit.
Preset (P_VOL) Setting
This function allows the user to set the volume level at which the unit powers up again
depending on what level was recorded when the unit was last turned off.
To set the P_VOL threshold, advance to the “P_VOL” function in the settings menu
and rotate the VOLUME/SEL knob to choose the volume setting.
When the volume threshold at the time of unit turn off is less than P_VOL value, the
next time turns on the unit the volume will be the same as last time turned off.
When the volume threshold at the time of unit turn off is greater than P_VOL value,
the next time turns on the unit the volume will default to the lower P_VOL preset
threshold.

OPERATION
9
ZONES, DISPLAY, ALARM & SLEEP
ZONE 1 Operation
ZONE 1 is connected to the unit’s on-board FRONT speaker and preamp-level RCA outputs.
Quickly press and release the ZONE 1 button to select between the zone being
active or disabled. The LCD screen will indicate the status of the zone above the
button.
Rotate the VOLUME/SEL knob up or down to adjust the ZONE 1 volume when it is in
the active state.
When ZONE 1 is in the disabled state, the VOLUME/SEL knob only controls the
active zone. Otherwise, the ZONE 1 volume remains where it was left when disabled.
To match the output of ZONE 2 after re-enabling, simply turn the volume all the way
down and back to the desired level for both zones which then display equally.
To mute ZONE 1, press and hold the ZONE 1 button to toggle between ON or OFF.
The LCD screen indicates the muting status.
ZONE 2 Operation
ZONE 2 is connected to the unit’s on-board REAR speaker and preamp-level RCA outputs.
Quickly press and release the ZONE 2 button to select between the zone being
active or disabled. The LCD screen will indicate the status of the zone above the
button.
Rotate the VOLUME/SEL knob up or down to adjust the ZONE 1 volume when it is in
the active state.
When ZONE 2 is in the disabled state, the VOLUME/SEL knob only controls the
active zone. Otherwise, the ZONE 2 volume remains where it was left when disabled.
To match the output of ZONE 1 after re-enabling, simply turn the volume all the way
down and back to the desired level for both zones which then display equally.
To mute ZONE 2, press and hold the ZONE 2 button to toggle between ON or OFF.
The LCD screen indicates the muting status.
Show Clock or Source Information
Press DISP button to show either the clock or source information. Depending on the source,
text information about the song or movie playing may be available on the display (such as
RDS-enabled FM stations, USB music files or Bluetooth streamed music).
Alarm Operation
The alarm built into the unit functions as a wake-up alarm. It could also be used to
automatically turn the unit on at a specific time.
On the front panel using the “ALARM” button, turn ALARM to “ON” and set the wake-
up alarm time (see next page Alarm Time Setting). When the wake-up alarm time is
set, the unit will generate a wake-up beeping sound at the preset time. The beep
sound stops when any key pressed.

OPERATION
10
Alarm Time Setting Procedure
When ALARM is set to “ON”, press and hold the “ALARM” button again to set the time.
If the ALARM setting is “OFF”, simply press and hold the “ALARM” button to go directly to
setting the alarm. This will not turn the alarm on, it will only set the time. If no alarm time has
begun setting within 5 seconds, the alarm time setting mode is automatically cancelled.
After entering the alarm time setting mode, the HH (hours) flash. Rotate the
VOLUME/SEL knob to set the hour. Next, press VOLUME/SEL knob. The MM
(minutes) flash. Rotate the VOLUME/SEL knob to set the minutes. Press the
VOLUME/SEL or “ALARM” button to exit.
If the ALARM was not already set to “ON”, press the “ALARM” button to enable the
alarm for the time you just set.
Sleep Operation
The sleep function built into the unit allows the user to set a specific time when the unit will
automatically turn off from 1-59 minutes later.
On the front panel using the “SLEEP” button, turn SLEEP to “ON” then set the sleep
time (see below Sleep Time Setting). When the sleep time is set, the unit will power
off automatically at the preset time.
Sleep Time Setting Procedure
When SLEEP is set to “ON”, the next menu item is SLEEP SET.
If the SLEEP setting is “OFF”, simply press and hold the “SLEEP” button to go directly to
setting the sleep time. This will not turn the sleep setting on, it will only set the time. If no
sleep time has begun setting within 5 seconds, the sleep time setting mode is automatically
cancelled.
After entering the sleep time setting mode, the sleep timer will flash. Rotate the
VOLUME/SEL knob to set it between 01-59 minutes. Press VOLUME/SEL or
“SLEEP” button to exit.
If the SLEEP function was not already set to “ON”, press the “SLEEP” button to
enable the sleep timer for the preset countdown time.
Display Dimmer
The LCD display brightness is adjustable.
Press the DIM button below the disc slot and it toggles between LOW-MID-HIGH-OFF.
Unit Reset
When errors occur in the display or functions (such as a DVD not playing and won’t eject), you
can reset the unit to its initial status.
Using a paper clip or small pen tip, press the RESET button on the face of the unit to
reset the unit. This will erase all settings and memory functions and reset to factory
defaults.

OPERATION
11
DVD PLAYER, HDMI ARC, AUX INPUTS & HEADPHONES
DVD/CD Player
This unit plays DVDs and audio CDs. For DVDs, the V-OUT 1 and/or HDMI output must be
connected to a monitor to display the picture. You can connect both outputs and two
separate TVs if you wish - one via HDMI and the other via V-OUT 1 (Composite Video).
To play an audio CD or DVD, insert the disc into the slot on the face of the unit.
Depending on the content on the disc (such as a full-length movie), the player may
take a few seconds to fully read the disc and be ready for play. When ready, the disc
will begin play automatically.
When the disc is playing, the “disc” icon in the upper left corner of the display will
indicate spinning and the display shows the disc information. In a DVD, this is
generally the “chapter” on the left and the “elapsed time” on the right.
To advance to another chapter or song, or to revisit a previous chapter or song, use
the TUNE ( / ) knob. The display will indicate the NEXT or PREVIOUS chapter
or song***. Slow turning goes one-by-one. Faster turning goes more quickly.
***Note: Some DVDs have preview tracks at the beginning which disable the player to
manually skip ahead. After these play, the “NEXT” and “PREVIOUS” functions are allowed to
work as described.
To pause the disc, press the 1/ (play/pause) button. “PAUSE” will appear in the
display and the disc icon will not appear to spin. To resume play, press the 1/
(play/pause) button again.
If a disc contains a combination of music, video and/or photos, you can also access
each file type individually. To access these functions, press and hold the MODE
button while in the DISC mode to select: Music-->Video-->Photo.
To eject the disc, press the eject button at the right side of the disc slot.
HDMI ARC (Audio Return Channel) Functionality
Using an ARC-enabled HDMI connection to the TV, the audio from whatever is playing on
the TV (such as a satellite broadcast or over-the-air television channel) can be routed to the
unit’s HDMI connection and allow the audio to play through the unit’s speakers and/or
preamp outputs.
Press the MODE button to switch to HDMI ARC. Ensure the HDMI cable on the TV is
connected either to a port labeled “HDMI ARC” or that ARC is enabled in the TV
settings menu.
AUX Inputs
There are two methods for selecting an auxiliary input.
Press the MODE button to switch to AUX IN 1 or AUX IN 2 mode when an auxiliary
audio signal input is desired.
Choose AUX IN 1 for front panel 3.5mm jack. Choose AUX IN 2 for preamp-level
RCA input on the back of the unit.

OPERATION
12
AM/FM/WB RADIO
Receive a Radio Station
There are 3 FM station groups - FM1, FM2 and FM3. There is one weather band (WB)
selection. There are 2 AM station groups - AM1 and AM2.
To select a radio station group, press the MODE button to select the radio mode.
Next press BAND button to select desired group (FM1, FM2, FM3, WB, AM1 or
AM2). Press and quickly release BAND ( / ) button to select the station group.
Rotate the BAND ( / ) knob to tune by automatically seeking up or down to the
next available radio station frequency.
Press and hold BAND ( / ) button once to switch to manual tuning up or down to
the desired frequency. Then rotate the same knob to manually tune stations.
Manually Store and Recall AM/FM Radio Station Presets
The unit offers 6 presets for each of the AM and FM station groups. There are a total of 18 FM
presets and 12 AM presets.
To store radio station presets, press and hold one of the preset button (1 through 6) for
2 seconds. The current station is stored into the number button.
To recall a given radio station preset, quickly press the preset button (1 through 6) to
directly listen the station saved in the corresponding preset button.
Auto-Store Stations
This is a useful method to populate available AM/FM radio stations in a new area.
Press and hold BAND button for 2 seconds to automatically store stations to numeric
buttons 1 through 6 of band 1, 2 or (if FM) 3. Stations will store in the order of scanning
and reception. Use front panel buttons 1 through 6 to recall presets.
Weather Band Operation
The unit includes 6 weather band channels between 162.400-162.550MHz. Five are preset.
To select the weather band, press the MODE button to select the “WB” radio mode.
Rotate the BAND ( / ) knob to change to manually change WB stations.
oWB Preset 1: 162.400MHz
oWB Preset 2: 162.425MHz
oWB Preset 3: 162.450MHz
oWB Preset 4: 162.475MHz
oWB Preset 5: 162.500MHz
oWB Preset 6: 162.525MHz
oRotate the BAND ( / ) knob to change to the remaining WB station at
162.550 MHz. Further rotation scrolls through the other WB channels again.

OPERATION
13
USB Sources
Connecting a USB Device
This unit supports USB source devices such as a thumb drive or portable media player.
Insert the USB device into the front panel USB port labeled “MEDIA.”
If the USB drive only contains music files, these will begin to play automatically.
Playing or Viewing USB Files
The unit supports playback of MP3 and WMA files. It also supports mixed-media on a single
USB device to include music, video and photo files.
To select USB as the source, press the MODE button until the USB mode display
appears.
If a video monitor is connected to the unit, you can also view videos and photos for
USB sources that contain mixed media files. To access these functions, press and
hold the MODE button while in the USB mode to select: Music-->Video-->Photo.
Selecting Files
Selecting the files uses the icon-based buttons below the LCD to the right. Refer to page 5 for
the icon button locations.
Rotate the NEXT or PREVIOUS function on the TUNE knob to skip to
next/previous file. Slow turning goes one-by-one. Faster turning goes more quickly.
Play/Pause
To play or pause the file:
Press 1/ button to play/pause the file.
INTRO Function
The INTRO function plays the first 10 seconds of each file. To initiate INTRO:
Press 2/INT button.
Press again to stop this function.
Repeat (RPT) Function
The REPEAT function simply repeats the same chosen file(s) or folder again and again until
de-selected.
Press 3/RPT button to select RPT mode.
oRPT FOLD: Repeat all files of the folder.
oRPT ONE: Repeat the same file.
oRPT ALL: Repeat all files.

OPERATION
14
USB Sources (Continued)
Random (RDM) Function
The RANDOM function simply randomizes all files. This is also called “shuffle” on some
devices.
Press 4/RDM button to choose RDM on/off.
oRDM ON: Plays all files in random order.
oRDM OFF: Turns off the random function.
Directory+/- Function (for MP3/WMA files only)
If you have a USB device set up with folders (such as by artist or playlist), the Directory
function allows you to navigate the folders for MP3 and WMA music files.
Press DIR+/ DIR- button to select next/previous folder to play. Once in the directory
function, use the +10/-10 to navigate the folders.
Press and hold DIR+/ DIR- button for 2 seconds it will skip +10/-10 file to play.
Search MP3/WMA Songs –Direct Mode (DIR)
The unit allows users to rotate through the dial to quickly get to a specific song (file) on the
USB device.
To numerically search songs on a USB device, press and hold the DIM button on the
front panel.Alternatively, press the USB/DISC button on the remote. “DIR SCH” is
displayed on the unit’s LCD screen.
Rotate VOLUME/SEL (or BAND ( / ) knob to advance and select the file/folder.
If you need to go back, press and hold VOLUME/SEL (or BAND ( / ) knob to go
back to the previous file or folder.
Once you are at your chosen file/folder, press VOLUME/SEL (or BAND ( / )
knob to confirm and play.

OPERATION
15
USB Sources (Continued)
Search MP3/WMA Songs –Numeric Search Mode (NUM)
The unit allows users to directly input a song number or rotate through the dial to quickly get
to a specific song (file) on the USB device.
To numerically search songs on a USB device, press and hold the DIM button on the
front panel.
Quickly press the DIM button again to enter Numeric Search mode. Alternatively,
press the USB/DISC button twice on the remote. The display shows “NUM ****.”
Rotate VOLUME/SEL (or BAND ( / ) knob to scroll through the numbers. Press
the VOLUME/SEL (or BAND ( / ) knob to choose a number after scrolling.
Continue entering until you complete the numeric entry.
You can also directly enter numbers using the front panel buttons. Select each
number by pressing the VOLUME/SEL (or BAND ( / ) knob after the selection:
oFor the number 1: Use preset button 1
oFor the number 2: Use preset button 2
oFor the number 3: Use preset button 3
oFor the number 4: Use preset button 4
oFor the number 5: Use preset button 5
oFor the number 6: Use preset button 6
oFor the number 7: Use the MODE button
oFor the number 8: Use the ALARM button
oFor the number 9: Use the SLEEP button
oFor the number 0: Use the DISP button

OPERATION
16
HEADPHONES, VIDEO IN/OUT and BLUETOOTH
Headphone Jack
There is a 3.5mm headphone jack in the front panel to allow for use of wired headphones.
When a headphone plug is inserted into the jack, the unit’s speakers are muted.
Video-OUT 1
Video-OUT 1 (V-OUT 1) is a composite video connection on the unit’s rear panel intended to
connect to a video screen with a composite video input. This can be used with or as an
alternative to the HDMI video output.
Video-IN / Video-OUT 2 Function
Video-IN and Video-OUT 2 is a pass-through video connection in the event you have
existing video wiring separate of what will display the unit’s DVD and USB Media. There is
no switching or control of this video connection within the unit. It’s simply a pass through.
Bluetooth Pairing
You must first pair a Bluetooth-enabled device to stream music to your unit.
Select “search” or “discover” on the Bluetooth device while the unit is in the BT MUSIC
mode. “RVDVD2.0” should appear in the list of available devices. Select “RVDVD2.0.”
If a password is required, input “0000.”
When successfully paired, BT MUSIC is displayed on LCD.
If no Bluetooth device is paired, “UNPAIRED” will show in the LCD display.
Stream Bluetooth Audio
This unit supports Bluetooth music streaming using the HeadsetProfile(HSP).It also supports
text readout from compatible BT streams.
Using a Bluetooth-enabled device, press MODE button to switch to BT MUSIC source.
It will play a song from the BT device automatically as long as it’s been selected in the
music player on the device.
Press the 1/ button to play/pause the song. Rotate the BAND ( knob to
select next/previous song.
Disconnect Bluetooth Device
This is useful for mobile phones where the user wishes to place or receive a call.
When the Bluetooth device is paired with the unit. Press and hold MODE button (or BT
button on the remote) to disconnect the Bluetooth. “BT OFF” is displayed.
Reconnect Bluetooth Device
This is useful if a Bluetooth-enabled mobile phone user has completed a call and wishes to
continue playing music via Bluetooth.
Press and hold MODE button (or BT button on the remote) again to connect the
previously paired Bluetooth device. “LINKED” is displayed.

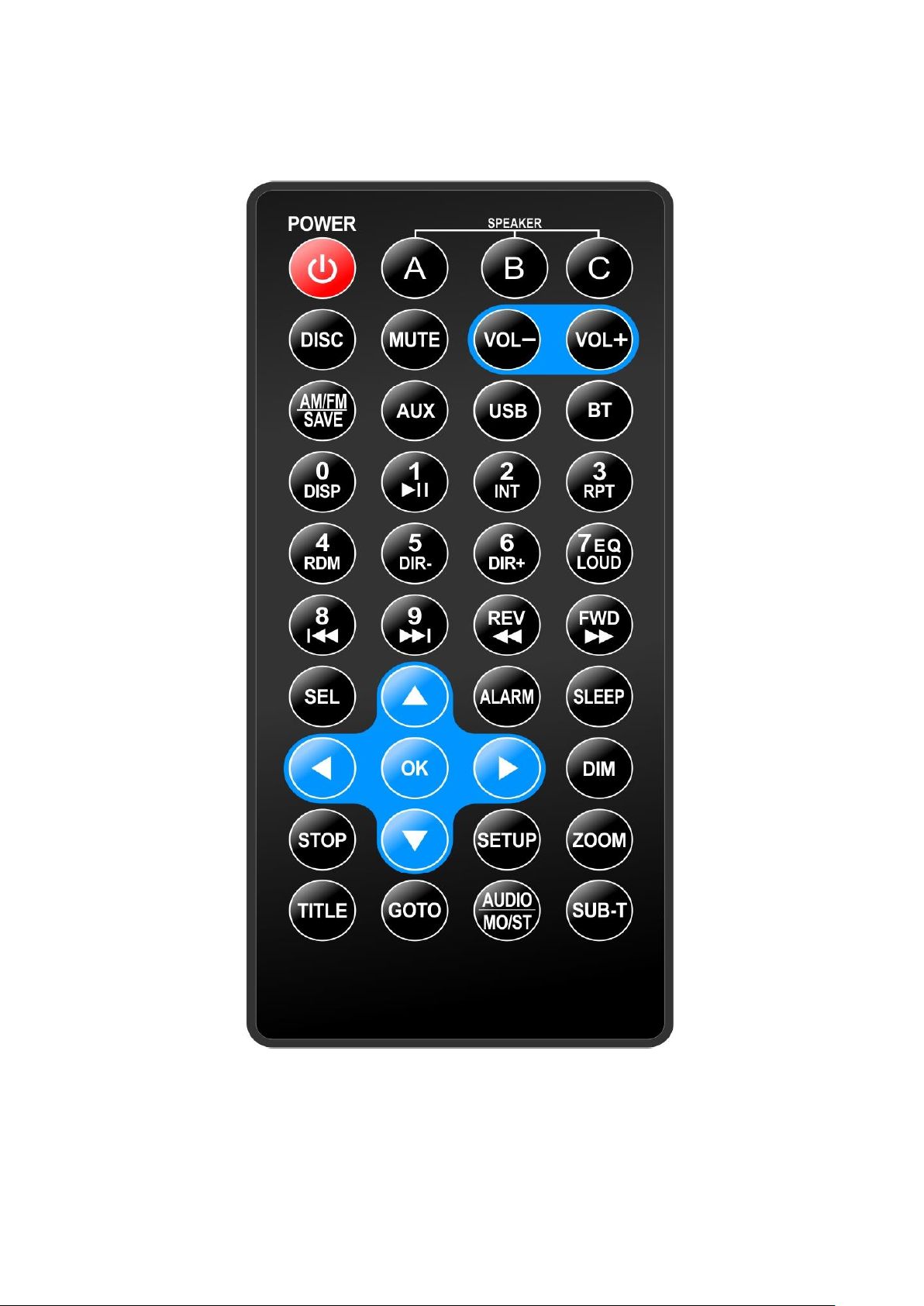

REMOTE CONTROL
17
IR Remote Operation

REMOTE CONTROL
18
KEYS
ACTION
RADIO
DISC
USB
AUX IN
BT MUSIC
POWER
Short
Power ON/
Mute ON/OFF
Power ON/
Mute ON/OFF
Power ON/
Mute ON/OFF
Power ON/
Mute ON/OFF
Power ON/
Mute ON/OFF
Long
Power OFF
Power OFF
Power OFF
Power OFF
Power OFF
A
Short
Zone 1 Active /
Unavailable
Zone 1 Active /
Unavailable
Zone 1 Active /
Unavailable
Zone 1 Active /
Unavailable
Zone 1 Active /
Unavailable
Long
Zone 1 Mute
ON/OFF
Zone 1 Mute
ON/OFF
Zone 1 Mute
ON/OFF
Zone 1 Mute
ON/OFF
Zone 1 Mute
ON/OFF
B
Short
Zone 2 Active /
Unavailable
Zone 2 Active /
Unavailable
Zone 2 Active /
Unavailable
Zone 2 Active /
Unavailable
Zone 2 Active /
Unavailable
Long
Zone 2 Mute
ON/OFF
Zone 2 Mute
ON/OFF
Zone 2 Mute
ON/OFF
Zone 2 Mute
ON/OFF
Zone 2 Mute
ON/OFF
C
Short
/
Video/Photo/Music
Change
Video/Photo/Musi
c Change
/
/
Long
/
/
/
/
/
MUTE
Short
Zone 1/2 Mute
ON/OFF
Zone 1/2 Mute
ON/OFF
Zone 1/2 Mute
ON/OFF
Zone 1/2 Mute
ON/OFF
Zone 1/2 Mute
ON/OFF
Long
/
/
/
/
/
VOL+
Short
Volume Up
Volume Up
Volume Up
Volume Up
Volume Up
Long
Volume Up Fast
Volume Up Fast
Volume Up Fast
Volume Up Fast
Volume Up Fast
VOL-
Short
Volume Down
Volume Down
Volume Down
Volume Down
Volume Down
Long
Volume Down
Fast
Volume Down
Fast
Volume Down
Fast
Volume Down
Fast
Volume Down
Fast
DISC
Short
Switch to DISC
Mode
DIR SCH/
NUM SCH
Switch to DISC
Mode
Switch to DISC
Mode
Switch to DISC
Mode
Long
/
/
/
/
/
AM/FM
SAVE
Short
AM/FM Band
Change
Switch to Radio
Mode
Switch to Radio
Mode
Switch to Radio
Mode
Switch to Radio
Mode
Long
Auto Store
/
/
/
/
AUX
Short
Switch to AUX
Mode
Switch to AUX
Mode
Switch to AUX
Mode
/
Switch to AUX
Mode
Long
/
/
/
/
/
USB
Short
Switch to USB
Mode
Switch to USB
Mode
DIR SCH/
NUM SCH
Switch to USB
Mode
Switch to USB
Mode
Long
/
/
/
/
/
BT
Short
Switch to BT
Mode
Switch to BT
Mode
Switch to BT
Mode
Switch to BT
Mode
/
Long
BT OFF/LINK
BT OFF/LINK
BT OFF/LINK
BT OFF/LINK
BT OFF/LINK
0/DISP
Short
Info/Clock
Info/Clock/SCH:0
Info/Clock/SCH:0
Info/Clock
Info/Clock
Long
Clock Setting
Clock Setting
Clock Setting
Clock Setting
Clock Setting
1/PAU
Short
Recall M1
Station
Play/Pause/SCH:1
Play/Pause/SCH:
1
/
Play/Pause
Long
Save Station to
M1
/
/
/
/

REMOTE CONTROL
19
2/INT
Short
Recall M2
Station
INT On/Off/SCH:2
INT On/Off/SCH:2
/
/
Long
Save Station to
M2
/
/
/
/
3/RPT
Short
Recall M3
Station
RPT(ONE/ALL)/
SCH:3
RPT(ONE/ALL)/
SCH:3
/
/
Long
Save Station to
M3
/
/
/
/
4/RDM
Short
Recall M4
Station
RDM
On/Off/SCH:4
RDM
On/Off/SCH:4
/
/
Long
Save Station to
M4
/
/
/
/
5/DIR-
Short
Recall M5
Station
DIR-/SCH:5
DIR-/SCH:5
/
/
Long
Save Station to
M5
-10
-10
/
/
6/DIR+
Short
Recall M6
Station
DIR+/SCH:6
DIR+/SCH:6
/
/
Long
Save Station to
M6
+10
+10
/
/
7/EQ/
LOUD
Short
FLAT-POP-
ROCK-CLAS-EQ
OFF
FLAT-POP-
ROCK-CLAS-EQ
OFF
/SCH:7
FLAT-POP-
ROCK-CLAS-EQ
OFF
/SCH:7
FLAT-POP-
ROCK-CLAS-EQ
OFF
FLAT-POP-
ROCK-CLAS-EQ
OFF
Long
LOUD ON/OFF
LOUD ON/OFF
LOUD ON/OFF
LOUD ON/OFF
LOUD ON/OFF
8/I<<
Short
Seek Down
Previous
File/SCH:8
Previous
File/SCH:8
/
Previous File
Long
Manual Turn
Down
FR
FR
/
/
9/>>I
Short
Seek up
Next File/SCH:9
Next File/SCH:9
/
Next File
Long
Manual Turn Up
FF
FF
/
/
REW <<
Short
Manual Turn
Down
FR
FR
/
/
Long
/
/
/
/
/
FWD >>
Short
Manual Turn Up
FF
FF
/
/
Long
/
/
/
/
/
SEL
Short
BAS-TRE-BAL-
EQ-LOUD
BAS-TRE-BAL-
EQ-LOUD/Confirm
BAS-TRE-BAL-
EQ-
LOUD/Confirm
BAS-TRE-BAL-
EQ-LOUD
BAS-TRE-BAL-
EQ-LOUD
Long
BEEP/CLOCK(1
2/24)/P_VOL/CT
(sync/indep)/AR
EA(USA/EUR)/D
X/STEREO
BEEP/CLOCK(12/
24)/P_VOL
BEEP/CLOCK(12/
24)/P_VOL
BEEP/CLOCK(12
/24)/P_VOL
BEEP/CLOCK(12/
24)/P_VOL

REMOTE CONTROL
20
ALARM
Short
Alarm ON/OFF
Alarm ON/OFF
Alarm ON/OFF
Alarm ON/OFF
Alarm ON/OFF
Long
Alarm Setting
Alarm Setting
Alarm Setting
Alarm Setting
Alarm Setting
SLEEP
Short
Sleep ON/OFF
Sleep ON/OFF
Sleep ON/OFF
Sleep ON/OFF
Sleep ON/OFF
Long
Sleep Setting (1-
59 Minutes)
Sleep Setting (1-
59 Minutes)
Sleep Setting (1-
59 Minutes)
Sleep Setting (1-
59 Minutes)
Sleep Setting (1-
59 Minutes)
DIM
Short
Dimmer H/M/L/Off
Dimmer H/M/L/Off
Dimmer H/M/L/Off
Dimmer H/M/L/Off
Dimmer H/M/L/Off
Long
/
/
/
/
/
∧
Short
/
Cursor Up Move
/
/
/
Long
/
/
/
/
/
∨
Short
/
Cursor Down
Move
/
/
/
Long
/
/
/
/
/
<
Short
/
Cursor Left Move
/
/
/
Long
/
/
/
/
/
>
Short
/
Cursor Right Move
/
/
/
Long
/
/
/
/
/
OK
Short
/
Confirm
Confirm
/
/
Long
/
/
/
/
/
STOP
Short
/
Stop
/
/
/
Long
/
/
/
/
/
SETUP
Short
/
Setup Menu
/
/
/
Long
/
/
/
/
/
ZOOM
Short
/
Zoom In
/
/
/
Long
/
/
/
/
/
TITLE
Short
/
Back to TITLE
Menu
/
/
/
Long
/
/
/
/
/
GOTO
Short
/
GOTO
/
/
/
Long
/
/
/
/
/
AUDIO
MO/ST
Short
MONO/STEREO
Audio
Audio
/
/
Long
/
/
/
/
/
SUB-T
Short
/
Sub-Title
/
/
/
Long
/
/
/
/
/
