MBIZONE MACH TRUCK 3500 Luxury User manual

C ontents
1. Information of User's Manual
2. Precautions when using the product
3. Product Features
4. Product Components
5. Name of each part
6. Product Specification
7. Precautions before installation &
How to install the product
8. System Booting
9. Driving Recording
10. Parking Recording
3
4
6
7
8
9
11
12
15
16
17
18
19
23
25
26
27
36
37
38
2
MACH TRUCK 3500 Luxury / BLACK Manual
11. Event Recording
12. Screen Saver Mode
13. Safe Driving(ADAS)
14. Safe Driving(ADAS) Correction Menu
15. Safe Driving(ADAS) Malfunction Condition
16. Live Screen
17. Menu Settings
18. AV-OUT Settings
19. Consumer Injury Compensation Rule
20. Product Warranty

1. Information of User's Manual
All contents of this manual are protected under copyright law.
This manual contains explanations of Dash Cam operation and how to operate it.
This manual is subject to modification for improvement without notice in advance.
Please read this manual for proper use of this Dash Cam prior to use.
This apparatus is for recording videos and sounds of driving in order to provide a proof of a car accident, but it does not guarantee that it would record all
videos and sounds pertaining to a car accident.
The Company shall not be held responsible for any damage caused by this device, data loss, or any other damages to this device.
We will not be responsible for any loss of product caused by user's discretion.
In accident of light impact, shock sensor may not operate and all accidental images may not be recorded.
ADAS function contains many errors depending on using environment, so it is recommended to use it for driving reference.
The warranty period of SD memory card is 6 months. We recommend that you use SD memory card with a product that is guaranteed by us.
We are not responsible for any problems that occur during warranty period if you use a third-party SD memory card.
We are not responsible for any problems caused by using other accessories that we do not warrant.
3
MACH TRUCK 3500 Luxury / BLACK Manual
Thank you for purchasing Dash Cam(MACH TRUCK 3500 Luxury / BLACK) of MBIZONE Co., Ltd.
※ Scopes of Responsibilities and Assurance ※

2. Precautions when using the product
4
MACH TRUCK 3500 Luxury / BLACK Manual
Power Supply
Do not modify the power cable or cut the cable.
Direct exposures to sunlight and extreme temperature may damage this device, or cause fire.
Please do not install this device at a location blocking your vision.
Securely attach the product so that it does not fall.
Do not place any other objects around the product. If another object is placed on the dashboard,
it may be reflected on the windshield and video image identification may not be possible.
Damaged or modified power cable can cause explosion, or fire.
Please use manufacturer-approved power cables and accessory.
Do not handle this device with wet hands.
Installation

2. Precautions when using the product
5
MACH TRUCK 3500 Luxury / BLACK Manual
Operation
Precautions on
Using Memory Card
Do not attempt to operate this device while driving. Operation of the product during driving a vehicle may cause accidents.
Operate product after stopping vehicle at a safe place.
If product left in high temperature or low temperature for a long time, it may cause malfunction.
If you are not using the product, be careful of the storage temperature.
Keep this product and cables away from foreign objects.
Foreign objects may cause malfunction.
Do not use dash cam for a long time in the parking mode after vehicle is parked.
Vehicle battery will be discharged and may not be started.
Excessive window tinting may cause degradation of recorded image quality.
Do not use a sharp object on LCD panel.
Disassembling or dropping the product may cause damage or breakdown.
Please use manufacturer-approved genuine parts.
Do not remove Micro SD card by force when it is recording. Press slightly to remove it from slot after turn off power.
Memory storage devices have a usable life and may have data loss due to static electricity or external voltages.
Please backup important data to other media.
Using a third-party Micro SD Card may cause problems. Be sure to use only the authorized Micro SD Card.
Insert or remove memory card while product is turned off. This may result in data loss or damage to memory card or the product.

3. Product Features
6
MACH TRUCK 3500 Luxury / BLACK Manual
Full HD 2CH
Provides up to 126 ° (diagonal) angle of view
Built-in Super Cap
Unexpected power failure.
Normal recording / shutdown
ADAS : LDWS, FCWS, FVSA
Save speed / location via GPS navigation
device(optional)
Provides voice guidance function
Low voltage protection
High temperature shutdown / LCD auto saver
Built-in high-performance microphone
PProvided exclusive PC viewer
WDR
Format-Free
Continuous Recording Mode
Event Recording Mode
Event recording in case of shock during recording
Manual Recording Mode
Save as manual recording with manual recording button
Parking Recording Mode(Motion)
Motion detection recording during parking mode
Parking Recording Mode(Event Recording)
Parking event recording when a shock is detected
during parking mode

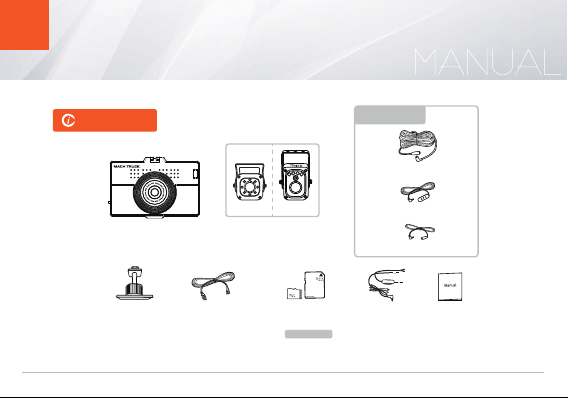

4. Product Components
7
MACH TRUCK 3500 Luxury / BLACK Manual
Basic components
Main Body
Cradle 5m cable for
Rear-view Camera Micro SD Memory Card
Micro SD Adapter
Continuous
Power Cable Quick Manual
Rear-view Camera 10~20M Cable
External GPS Antenna
External Camera
Luxury BLACK
Sell Separately
Consumables
* Micro SD Memory Card will be shipped by inserted main body.
AV-OUT Cable

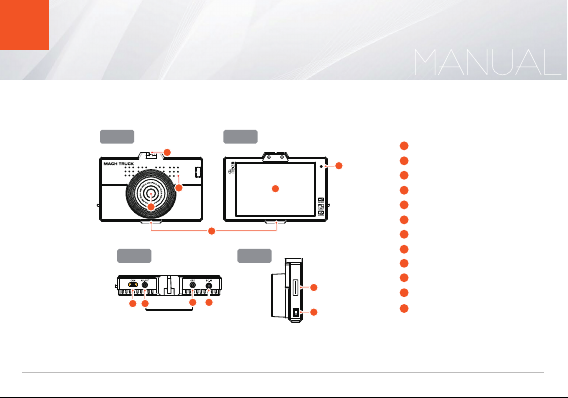

5. Name of each part
8
MACH TRUCK 3500 Luxury / BLACK Manual
Front Back
Top Side
Cradle Connection
1
1
Speaker
2
Front Camera
3
Security LED
3.5" Touch LCD
4
Microphone
5
Rear-view Camera Input
6
AV-OUT Input
7
GPS Input
8
DC Power Input
9
Memory Card
10
Power Switch
11
12
2
3
4
6
5
11
12
7 8 910

9
MACH TRUCK 3500 Luxury / BLACK Manual
MBZ-150 FHD IR
MACH TRUCK 3500 Luxury

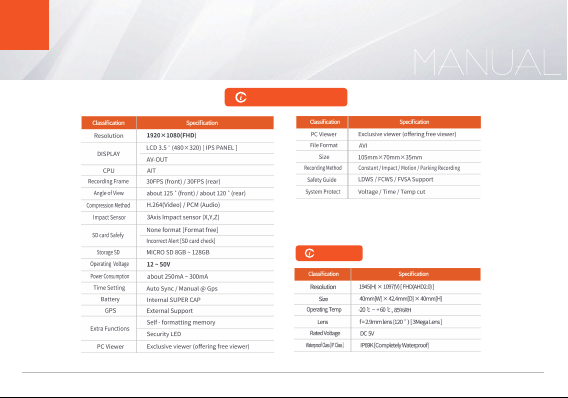

6. Product Specification
(MACH TRUCK 3500 Luxury)

10
MACH TRUCK 3500 Luxury / BLACK Manual
MBZ-120IR
MACH TRUCK 3500 BL A CK
6. Product Specification
(MACH TRUCK 3500 BLACK)

Precautions
before installation
In a flat and bright place, turn off ignition, and start installation with vehicle key unplugged.
Clean the glass of dash cam mounting area to remove foreign matter.
Be sure to check whether front and rear video images are stored properly before installation.
If lens of dash cam is installed facing up, the product may malfunction.
Please do not install this device at a location blocking your vision.
For optimum image quality, please keep the installed front glass and dash cam lens clean.
How to install
the product
Clean glass where dash cam is to be installed. And, attach cradle and dash cam. (Place dash cam in area-proper.)
After attaching the dash cam, connect cables in the order of rear-view camera -> GPS (optional) -> DC power.
When cable installation is complete, fix it to cradle.
After power is turned on, booting will start with MBIZONE product name.
When booting is completed, main screen will appear and start recording with announcement voice message
of "Start continuous recording".
1
2
3
4
5
7. Precautions before installation &
How to install the product
11
MACH TRUCK 3500 Luxury / BLACK Manual

Normal booting
Show product logo screen.
This is warning screen for accident risk during driving.
Continuous recording progress notification screen.
Format the SD card.
(After the dash cam is installed, formatting is performed
only once at boot time, to make the SD card format-free.)
It shows live screen.
It boots when power is applied by ACC power and cigar cable.
The boot case is divided into 3 types, Normal booting / SD card is not mounted boot / SD card is none format-free format.
1
2
3
4
5
8. System Booting
12
MACH TRUCK 3500 Luxury / BLACK Manual
1
3
2
5
4

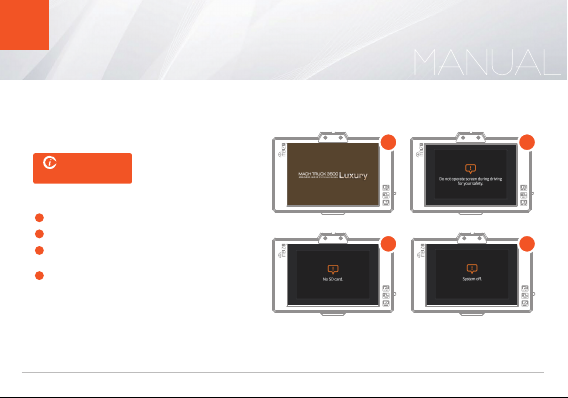

SD card is not
mounted boot
Show product logo screen.
This is warning screen for accident risk during driving.
It shows screen that SD card is not installed and it
waits on current screen until installation is completed.
When SD card is installed, system shutdown screen is displayed.
After system shutdown, 'normal boot' process is started.
1
2
3
4
13
MACH TRUCK 3500 Luxury / BLACK Manual
12
34
8. System Booting

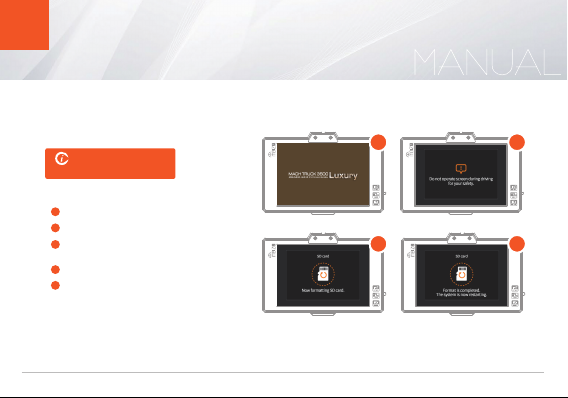

SD card is none
format-free format
Show product logo screen.
This is warning screen for accident risk during driving.
If SD Card is None Format Free,
this is format progress notification screen.
It is system restarting screen after format completion.
It shows system shutdown screen, and after system
shutdown, it performs 'normal boot' process.
1
2
3
4
5
14
MACH TRUCK 3500 Luxury / BLACK Manual
12
34
8. System Booting

When device power is ON, continuous recording mode is activated automatically
after booting. The word 'Normal' is displayed on live screen.
When Exit Menu is activated, continuous recording is started, and its image is as figure
Continuous recording is started after event recording.
Continuous recording is started after ACC On while parking recording mode.
The following figure shows procedure for switching to continuous recording in
parking recording mode.
When ACC On, shows number of impact for 2 seconds.
Shows switching to continuous recording mode and starts continuous recording.
1
2
3
4
5
6
6
7
9. Driving Recording
15
MACH TRUCK 3500 Luxury / BLACK Manual
1
67

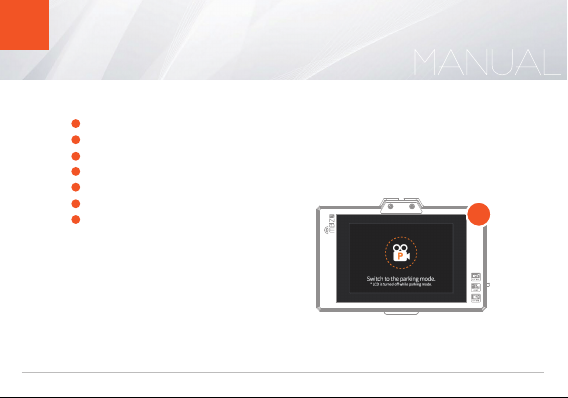

When ACC off for 10 seconds, it is switched to parking mode.
The LCD screen is off and LCD ON for 1 minute when you touch screen.
It detects movement of camera image and carries out parking motion recording.
When G-Sensor detects impact, parking event recording is performed.
Following figure shows when parking mode is switched in continuous mode.
It shows that continuous recording mode is stopped.
It shows that parking recording mode is switched.
1
2
3
4
5
6
7
10. Parking Recording
16
MACH TRUCK 3500 Luxury / BLACK Manual
7

Event recording is performed when G-Sensor detects event during continuous recording mode.
When event recording during continuous recording mode, it is displayed by GUI in live screen.
When G-Sensor detects event during parking recording mode, event recording is performed.
1
2
3
11. Event Recording
17
MACH TRUCK 3500 Luxury / BLACK Manual
1

If there is no user input for 1 minute in live screen mode,
it turned to screen saver mode.
It can be used as a clock screen and LCD OFF screen depending
on user's setting.
When user's input is occurred in screen saver mode,
the mode is changed from screen saver to live screen mode.
Select one of two saver modes when screen saver is operated.
A. Clock screen mode
B. LCD OFF mode
1
2
3
4
12. Screen Saver Mode
18
MACH TRUCK 3500 Luxury / BLACK Manual
A
B

19
MACH TRUCK 3500 Luxury / BLACK Manual
This function is for driver convenience while driving.
Supports LDWS(Lane Departure Warning System),
FCWS(Forward Collision Warning System), FVSA(Front Vehicle Start Alarm).

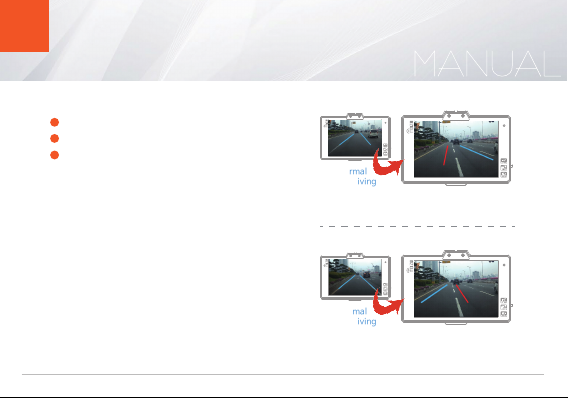

LDWS (Lane Departure Warning System)
A. It informs you when the vehicle leaves the lane while driving.
B. It can be set by 60km, 70km and 80km.
C. It is displayed in blue and red colors respectively when lane
departure from normal speed at above setting speed.
1
2
3
Lane departure to left during driving
Lane departure to right during driving
Normal
lane driving
Normal
lane driving
13. Safe Driving(ADAS) - LDWS
(Lane Departure Warning System)

1
20
MACH TRUCK 3500 Luxury / BLACK Manual
If vehicle is detected ahead of you while driving,
GUI and voice alert will notify you to a collision warning.
Object (vehicle)
collision danger detection
(Collision dangerous status)
Detecting object
(vehicle)
(Keeping safety distance)
13. Safe Driving(ADAS) - FCWS
(Forward Collision Warning System)
