McAlpine Mountain FRANCIS ANTHONY LITTLE GOURMET... Assembly instructions

Form 1800 -1881 inst sht
9/17/20
INSTALLATION SHEET
MT1870DIY-NL
FRANCIS ANTHONY
LITTLE GOURMET
®
HOT / HOT & COLD
WATER DISPENSERS
MT1800DIY-NL
MT1800-NL
MT1830DIY-NL
MT1830-NL
MT1840DIY-NL
MT1840-NL
MT1850DIY-NL
MT1850-NL
MT1870-NL
MT1821-NL
MT1841-NL MT1851-NL
MT1871-NL
MT1820-NL
MT1830-NL
MT1831-NL
MT1840-NL
MT1870-NL
MT1801-NL
MT1800-NL
MT1880-NL
MT1881-NL
MT1840/SS
MT1841/SS
MT1850-NL

page 2
THE REPLACEMENT PARTS SHOWN BELOW ARE IDENTICAL FOR EVERY MODEL
FAUCET IN THE SERIES AS SHOWN ON THE FIRST PAGE EXCEPT WHERE NOTED
DHM32325
COLD CARTRIDGE
WCD2001
WATER SUPPLY HOSE 3/8"
COMPRESSION
WCD2002
HW TANK INLET HOSE 1/4"
COMPRESSION
MT641-3 HEATING TANK
RO FILTER COMPATIBLE
1/4" TANK INLET TUBE
STMT277-61 TANK OUTLET
SILICONE SUPPLY TUBE
TANK OUTLET
TO DISPENSER
MT1870-9106
LOCK NUT
DHM32324
HOT CARTRIDGE
HANDLE VARIES
BY MODEL
SRSN0832L0301
8-32 SET SCREW (2)
NOT PRESENT ON
HOT-ONLY DISPENSERS
WCD-5700149 NYLON
HOSE CLAMP (2)
MT1870-9007
HORSESHOE WASHER
ESCUTCHEON VARIES
BY MODEL
ORNB30011-N O RING
MT1800-9002
HOSE NIPPLE
MT550-9003
PLASTIC SLEEVE
MT550-9004
COMPRESSION NUT
MT1800-BARB-ASSY
3/8 COMP
TUBE ASSY
MT1870-9001-02
STAINLESS SHANK
SPOUT TIP
VARIES BY
MODEL
SRSN0832L0302
SET SCREW IN BACK OF
FAUCET
CONNECT TO 3 / 8 COMP
WATER SUPPLY
CONNECT TO 1 / 4 COMP INLET
ON CORNER OF TANK TOP
Temperature Setting
READY HEATING
Little ourmet
Adjust Slowly
Premium Hot Water Dispenser
Instant
Hot Tank
MT641-3
SPOUT VARIES
BY MODEL
STMT277-61
SPOUT LINER HOSE
MT550-8003
HOSE BARB (2)
CLIP0007
TEFLON CLIP
ORNB00037-N
SWIVEL O RING (2)
MT1401-2003-15-LF
SPOUT TIP ADAPTER

IMPORTANT PLEASE READ:
INSTALLATION MUST COMPLY WITH LOCAL PLUMBING CODES.
READ THESE INSTRUCTIONS FOR THE DISPENSER AND MT641-3 HEATING TANK BEFORE
PROCEEDING.
DO NOT KINK
FLEXIBLE SS HOSES. MAKE SURE THE TANK OUTLET SUPPLY TUBE HAS
NO LOOPS OR LOW AREAS.
TIGHTEN FITTINGS WITH AN ADJUSTABLE CRESCENT OR OPEN END WRENCH. NEVER
USE A PIPE WRENCH.
NEVER DISPENSE BOTH HOT AND COLD WATER AT THE SAME TIME
.
DISPENSER MAY OCCASIONALLY DRIP DURING INITIAL HEAT UP AND DURING USE
WHEN TANK IS HEATING MORE WATER.
1. MAKE SURE COUNTER HAS A 1 1/8" MOUNTING HOLE (NO LARGER THAN 1 1/2") AND COUNTER IS NO MORE
THAN 2 1/4" THICK.
2. REMOVE LOCK NUT AND HORSESHOE WASHER FROM THE DISPENSER NIPPLE.
3. MAKE SURE ORING ORNB30011-N IS IN THE BOTTOM OF ESCUTCHEON. SLIDE THE MOUNTING HOSES
THROUGH THE COUNTER.
4. PLACE THE HORSESHOE WASHER ON THE MOUNTING NIPPLE AND THREAD ON LOCK NUT. MAKE SURE
DISPENSER IS ALIGNED PROPERLY AND THE HOT HANDLE IS ON THE LEFT. TIGHTEN THE LOCK NUT.
5. MAKE SURE THE HEATING TANK IS LOCATED SO THAT THE WCD2002 HW TANK HOSE CAN
BE CONNECTED DIRECTLY TO THE HEATER WITHOUT ANY EXTENSIONS. DO NOT REPLACE INCLUDED SILICONE
TUBE WITH A TUBE NOT PROVIDED BY MOUNTAIN PLUMBING.
INSTALL THE HEATING TANK PER THE INSTRUCTIONS SUPPLIED WITH THE HEATING TANK.
6. CONNECT WCD2001 SUPPLY HOSE TO AN INLET STOP OR SUPPLY VALVE. DO NOT CONNECT DIRECTLY
TO A WATER SUPPLY WITHOUT A SHUTOFF VALVE. FLUSH ALL LINES BEFORE CONNECTING.
7. CONNECT THE WCD2002 1/4" COMPRESSION HOSE TO THE TANK INLET LOCATED IN THE
RIGHT HAND BACK CORNER ON THE TOP OF THE TANK. SEE FIG 1.
8. INSTALL MT1800-BARB-ASSY 3/8" COMPRESSION TUBE ASSY ON TANK OUTLET TUBE. DO NOT OVER TIGHTEN.
9. SLIDE CLAMP WCD-5700149 ON THE TANK OUTLET SUPPLY TUBE AND PUSH TUBE ALL THE WAY UP ON THE
MOUNTING NIPPLE BARB.
10. CHECK THE CORRECT POSITION AND LENGTH OF THE SILICONE HOSE SO THAT THERE ARE NO LOOPS OR LOW
AREAS WHEN INSTALLED ON THE TANK. CUT THE HOSE IF REQUIRED, SLIP ON CLAMP WCD-5700149 THEN PUSH
HOSE ON BARB END OF COMPRESSION TUBE ASSY. THEN SQUEEZE THE CLAMPS TO SECURE. DO NOT
OVER TIGHTEN.
11. VERIFY ALL CONNECTIONS ARE TIGHT AND REFER TO TANK INSTRUCTIONS FOR INITIAL HEAT UP OF
TANK.
12. DO NOT PLUG IN HEATING TANK YET! TURN ON WATER, OPEN HOT SIDE TO FILL TANK. TANK IS FULL WHEN
WATER FLOWS FROM DISPENSER. CHECK FOR LEAKS.
13. PLUG IN TANK AND TURN CONTROL KNOB TO 3 O'CLOCK THEN WAIT 15 MINUTES FOR TANK TO
HEAT. CHECK FOR LEAKS AGAIN THEN ADJUST TO THE TEMPERATURE DESIRED.
Adjust Slowly
Temperature Setting

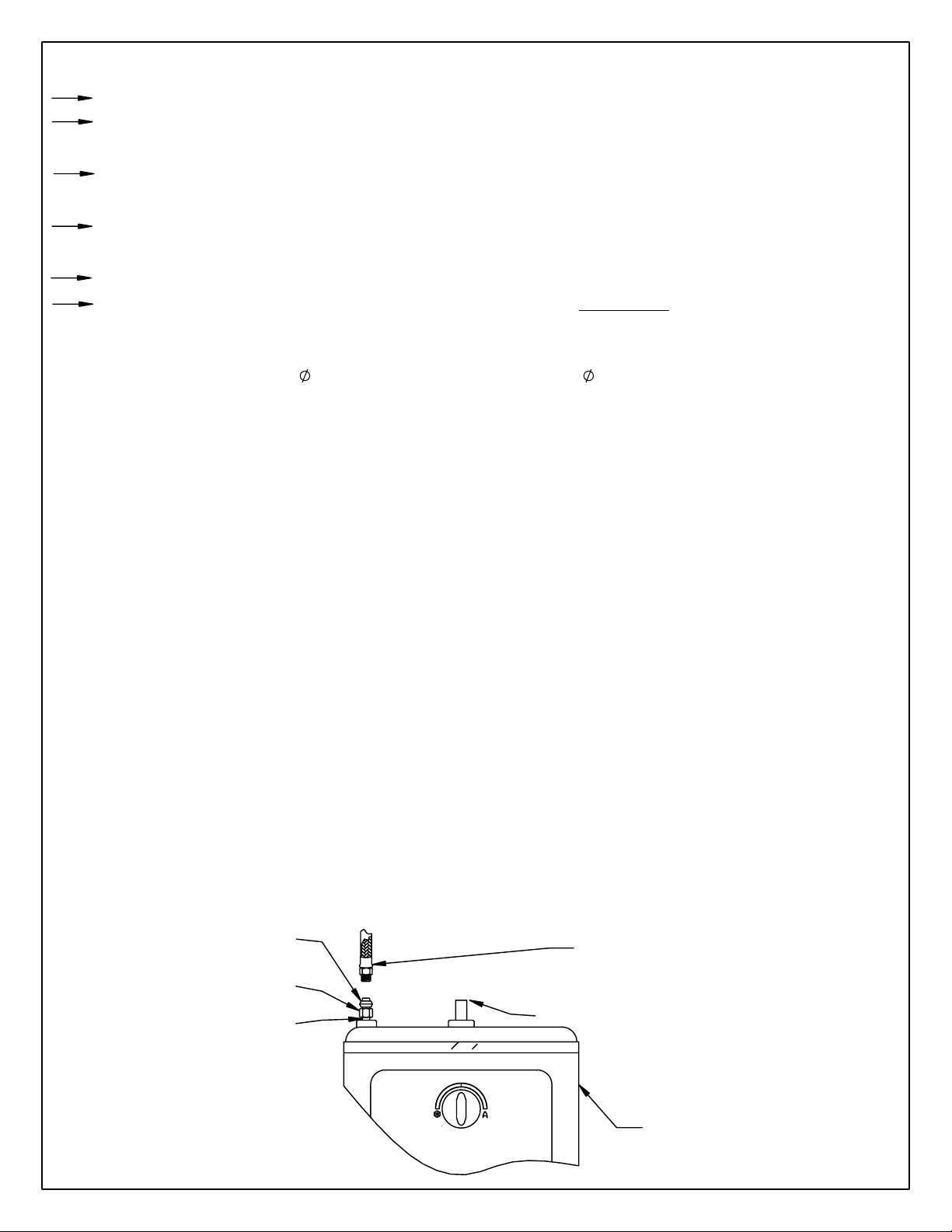

FIG. 1
SECOND - PUSH ON COMPRESSION
METAL SLEEVE
FIRST - SLIDE ON 1/4"
COMPRESSION NUT
TANK OUTLET TO
DISPENSER IN CENTER
OF TANK
1/4" TANK INLET TUBE
MT641-3 HEATING TANK
RO FILTER COMPATIBLE
THIRD - ATTACH WCD2002 HW
TANK INLET HOSE END TO
COMPRESSION NUT
page 3

page 4
WATER FILTER
(NOT SUPPLIED)
WATER SUPPLY HOSE 3/8"
COMPRESSION
WATER SUPPLY INLET
STOP (NOT SUPPLIED)
HOT WATER TANK
INLET HOSE 1/4"
COMPRESSION
NOTE: TUBING NOT SUPPLIED
DISPENSER WITH FILTERED
WATER SUPPLY
CONNECT TO 3 / 8 COMP
WATER SUPPLY
CONNECT TO 1 / 4 COMP INLET
ON CORNER OF TANK TOP
FINISH CARE & MAINTENANCE
NEVER USE ANY HARSH ALKALI, ACID BASED DETERGENTS OR CLEANERS SUCH AS SOFT SCRUB®, SCRUBBING
BUBBLES® OR COMET® TO CLEAN. DO NOT USE BRILLO® OR SCOTCH BRITE® PADS,
AS THESE WILL ALL HARM THE FINISH.
TO CLEAN, USE ONLY A DAMP SOFT CLOTH AND WIPE USING A SOFT CLOTH. STANDARD WINDEX® CAN ALSO BE USED
SPARINGLY. IT IS NOT NECESSARY TO WIPE HARD TO REMOVE SPOTS.
TO MAINTAIN THE FINISH, WIPE WITH A SOFT DRY CLOTH AFTER USE. AN OCCASIONAL COAT OF PURE CARNAUBA
WAX WITHOUT CLEANERS WILL HELP PROTECT THE FINISH.
CAUTION
SIMILAR TO ANY WATER HEATER, THE HEATING TANK HAS A LIMITED LIFE AND AS A RESULT MAY EVENTUALLY LEAK.
IT IS RECOMMENDED THAT REGULAR INSPECTIONS ARE PERFORMED ON THE HEATING TANK AND DISPENSER TO
AVOID ANY PROPERTY DAMAGE. ADDITIONALLY, THE INSTALLATION OF A DRAIN PAN WITH DRAIN OR LEAK
DETECTOR WILL ALSO HELP PROTECT AGAINST PROPERTY DAMAGE .
WARRANTY
FOR FULL WARRANTY IMFORMATION PLEASE VISIT
WWW.MOUNTAINPLUMBING.COM/PAGE/RESOURCES/WARRANTY
