McCall R-10EGD User manual

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
July 2007 / Printed in U.S.A.

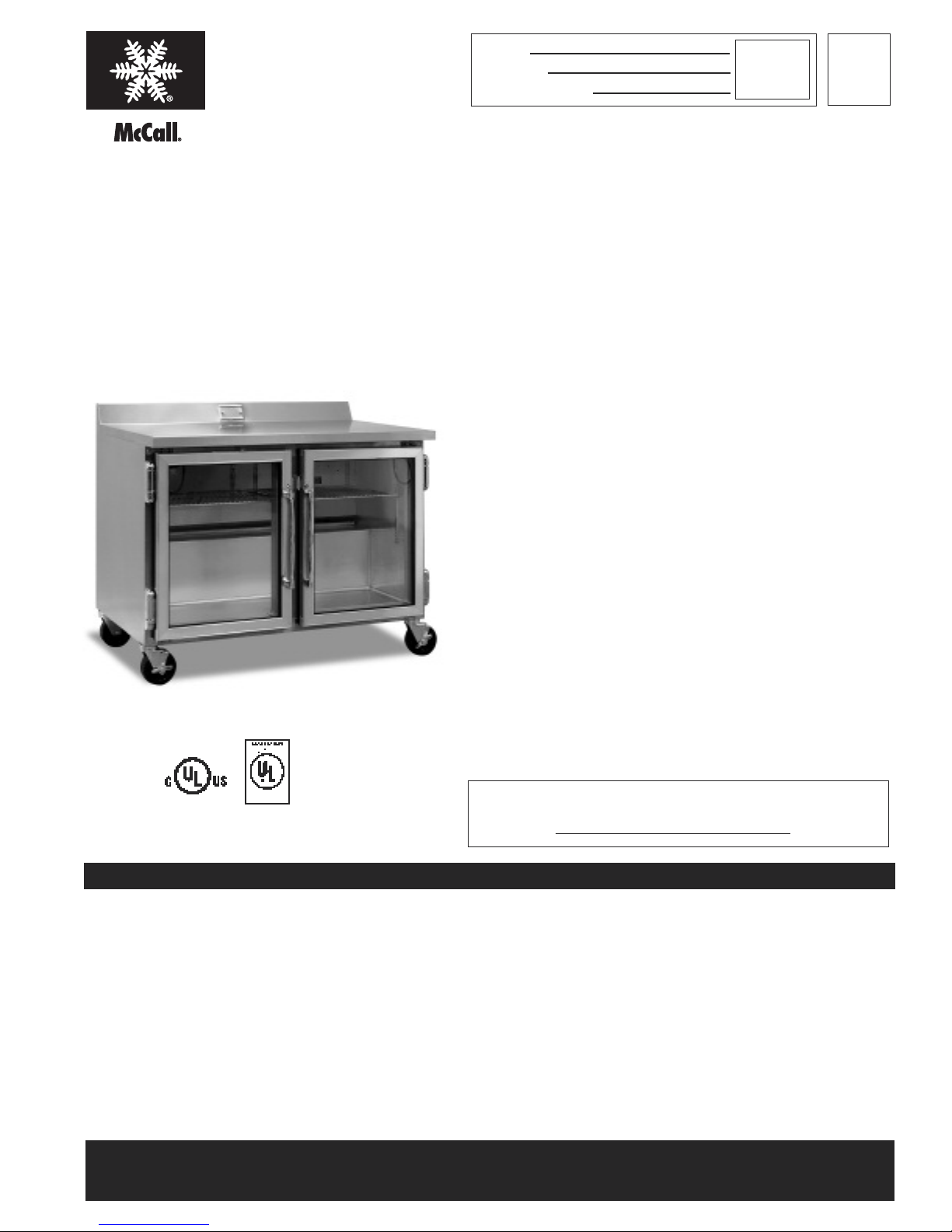

REFRIGERATED
UNDERCOUNTER UNITS
45" Wide Models:
RS-10EGD, RSC-10EGD, R-10EGD
Standard Features
• “One-shot” high pressure foamed-in-place
polyurethane insulation
• Automatic defrost system
• Stainless steel fronts, top and exterior ends
• Self-closing glass doors with stay open features
• One-piece removable magnetic door gasket
• R-134a refrigerant
SPECIFICATIONS
Cabinet - Stainless steel top, front and exterior ends. All
metal, welded construction. All joints and seams closed
and sealed. Enclosed rear with removable machine com-
partment panel, Zinc coated steel exterior bottom and
rear with coved, sanitary aluminum interior
(S/S interior available if specified.). The unit is
supported by 6" minimum height adjustable legs
with non-marring feet.
Doors - Self-closing, hinged glass doors. Gaskets are re-
movable without tools for cleaning. All door openings
have full perimeter minimum-wattage anti-condensate
heaters behind the S/S facia to retard condensation. One
piece door pull with concealed self-closing hinge mech-
anism and stay open feature.
Insulation - Entire cabinet and door insulated with spe-
cial, extra rigid one-shot, high pressure, foamed-in-place,
closed cell polyurethane, average thickness 2".
Interior Shelves - Two heavy-duty, adjustable, removable
epoxy coated shelves are furnished for each door sec-
tion.
Self-Contained Refrigeration - The system is a forced-
air, automatic defrost, hermetic design with R-134a re-
frigerant, capillary-metering device, and automatic,
adjustable thermostat. It is self-contained with air-
cooled, condensing unit and a high-efficiency, space-
saver evaporator with high-humidity, fin coil for extra
long life. This system is capable of maintaining a cabinet
temperature of 38°F average internal air temperature. All
models are complete with a removable, energy free auto-
matic condensate evaporator. o floor drain or plumbing
connections required.
Tops - All refrigerator models are available with full size
S/S counter tops and matching integral S/S back splash
and receptacle cutout complete with chrome plated
cover plate. S/S counter top models are available with
full size, removable, reversible, removable/reversible syn-
thetic cutting board. All refrigerator models are available
with S/S flat tops for undercounter and
built-in applications.
All units are performance tested on the production line
prior to shipping.
RS-10EGD
McCall Refrigeration specification sheets are available on-
line @ www.mccallrefrigeration.com
Approval :
AIA #
ITEM #
MODE #
PROJECT NAME
SIS #
CLASSIFIED TO
NSF (STD-7-1999)

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone [phone] / Fax [phone] / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
July 2007 / Printed in U.S.A.
29.13
(27" MODE S ON Y)
30.63
(27" MODE S ON Y)
29.63
3.13
28.13
1.5
.75
28.75 29.5
34.75
38.63
REFRIGERATED UNDERCOUNTER UNITS
R-10EGD
(F AT TOP)
R-10EGD
(With Backsplash)
115 volt, 60 Hertz, 1 phase, 6'-0" (1.85 m.)
power cord and plug. ( EMA 5-15)
* Based on 90°F ambient and 20°F
evaporating temperature
Specifications are subject to change without notice.
Capacity Wrkg. Shelf Area Cabinet Shipping
Model (Cu. Ft.) ength Depth Ht. (Sq. Ft.) Top Comp HP BTUH* Amps Weight
RS-10EGD 12 45" 29.63" 36" 12.74 S/S Top & Backsplash 1/5 1440 5.5
RSC-10EGD 12 45" 29.63" 36" 12.74 S/S Top & Backsplash 1/5 1440 5.5
w/Cutting Board
R-10EGD 12 45" 28.13" 34.75" 12.74 S/S Flat Top Underctr 1/5 1440 5.5
285 lbs.
285 lbs.
295 lbs.
Two Door ( 45" )
STATISTICS
Swivel asters: 6" height for 27" models;
3-3/4", 5" and 6" load height for 45" and 59" models.
Dial thermometer, in ba k splash models only
Stainless steel interior
Stainless steel exterior ba k and a ess panel
OPTIONS
Model RS-10EGD, RSC-10EGD, R-10EGD
SIDE VIEW SIDE VIEW
Bidding Specifications
McCall Undercounter Refrigerators shall have:
S/S front, glass door(s) and S/S exterior ends. One-shot, high-pressure, foamed-in-place
polyurethane insulation. Automatic defrost system. All metal constructions. Self-closing
doors. R-134a refrigerant. One-piece removable magnetic door gaskets. 6" adjustable legs.
115V, 60 cycle, single phase, 2 adjustable, epoxy-coated shelves per section.
Cord and plug attached.
Description
16055-1
