MCS ST-100 User manual

1
Manual
MCS ST-100
EN Hard of hearing telephone
NL Telefoon voor slechthorenden
DE Telefon für Schwerhörigen
FR Téléphone pour alentendent
Wijkermeerstraat 16 ● 2131 HA Hoofddorp
T 0235544011 ● F 023555646 ● TT 0235571610
E info multicaresystems.nl ● I www.multicaresystems.nl

2

3
EN 4 - 12
NL 13 - 22
DE 23 - 33
FR 34 - 43

4
TABLE OF CONTENTS
Package content 4
Product features 4
Location and functions of controls 5
Installation 6
uick operation guide 7
Function setup 8
Operation 9
Trouble shooting guide 11
Important safety instructions 11
Wall mounting 12
Wall mounting the phone 12
Service and guarantee 12
Package content
- 1 x base station
- 1 x handset
- 1 x curl cord
- 1 x line cord
- 1 x phone plug
- 1 x manual
PRODUCT FEATURES
1. Battery free
2. Commercial grade high-quality speakerphone
3. LCD displays phone numbers, date and time
4. Incoming call indication
5. Speakerphone auto answering launched while receiving calls from 5 preset caller
numbers
6. Hold with mute, music and extension release
7. 16 dialled numbers review and redial
8. Automatic call timer
9. Intelligent auto redial function
10. Flash time adjustable 100 ms, 200 ms, 300 ms, 400ms, 600 ms, 900 ms
11. 80 phone book entries
12. One-touch emergency keys with auto-redial function
13. 16 melodies selectable
14. Ringer volume 8 levels adjustable
15. FSK/DTMF available
16. Call waiting caller ID
17. 76 caller ID memories
18. Multiple language support
19. Hearing Aid compatible
20. Cellular phone RFI noise immunity

5
LOCATION AND FUNCTIONS OF CONTROLS
1. LCD display Displays the phone number, date and time and other information.
2. + Key can store one phone number for speed dialing
3. P Key can store one phone number for speed dialing
4. Emergency Key can store emergency phone number as for speed dialing
5. CLID en Review caller ID’s. Also can be uses within the menu to select telephone
settings
6. Del/Set a. Press and hold for 3 seconds to bring up setup menu (In on-hook
status)
b. Press to delete or edit the telephone number when editing phone book
or viewing call ID’s.
7. Call Back/Clock a. Press to dial the stored number when viewing caller ID’s or phone book
b. Press and hold for 3 seconds to set alarm
8. Redial/Pause a. Press repeatedly to review the outgoing numbers (on-hook)
b. Press to dial the last number (off-hook)
c. Press for a break off 1,2/2.4/3.6 seconds
9. Press to enter the phone book operation
10. ringing indicator Lights up when the unit is in use, flash when there is a new call, flash when
on hold
11. Press for handsfree dialing and speak without lifting the handset
12. Flash/store a. for PBX
b. Press to store phone numbers
13. Hold Press to hold the line. Turns sounds off.
14. a. Press to auto-redial the last dialed number repeatedly until the phone is
answered
b. Press and hold for 3 seconds to change the ringtone (16 melodies)
15. a. Press and hold to adjust ringer volume (on-hook)
b. Press to adjust handset volume (off-hook)
c. Press to adjust speaker volume (speakerphone mode)
16. Dialling keys (0-9,*,#) Dial numbers and extensions
17. Speaker Ringing sound is spread from here
18. Wall mounting hook Turn 180 degrees to hang up the handset when the unit is mounted on the
wall
19. Hook on/off switch Press to end a call

6
INSTALLATION
1. Open the battery compartment cover and load 4 AA batteries (not included).
2. Connect one end of coil cord to the handset jack and connect the other end to the jack of
the base unit.
3. Plug one end of phone line to line jack in the base unit and connect the other end to the
wall jack
NOTE
1. The phone works well with the line power alone. Batteries are only needed for the clock to
function.
2. Use only the following type and size batteries: AA cellUm3. The proper polarity or
direction must be observed.
3. Please change your batteries every 6 months
4. All batteries should be changed at once.
5. Please pull out the line cord before replacing batteries

7
QUICK OPERATION GUIDE
1. Make a call:
a. Pick up the handset or
b. press op -> dial number
2. Answer a call:
a. Pick up the handset or
b. press
3. End a call:
a. Hang up the handset or
b. press
4. Redial:
a. On-hook; press repeatedly to review dialed numbers, then pick up
the handset or press or press
b. Off-hook; press for the last number
5. Pre-dial :
On-hook, dial number, then pick up handset
6. Auto redial:
On-hook, press
7. Caller ID review
On-hook; press
8. Delete caller ID:
a. On-hook; press -> select a call -> press
b. Off-hook; press -> press 3 seconds to delete all ID’s
9. Call back from caller ID:
On-hook; press -> select a call -> press or
10. Set emergency speed dial numbers
On-hook; enter phone number -> press , then press or or
, press #
11. Emergency speed-dial :
Press or or
12. Store number to phone book:
On-hook; press , then press enter name, press , enter phone number, press
13. Dial from phone book:
a. On-hook; press , press , select a number, press , or pick up
handset or press
b. Off-hook; press , press , select a number, press

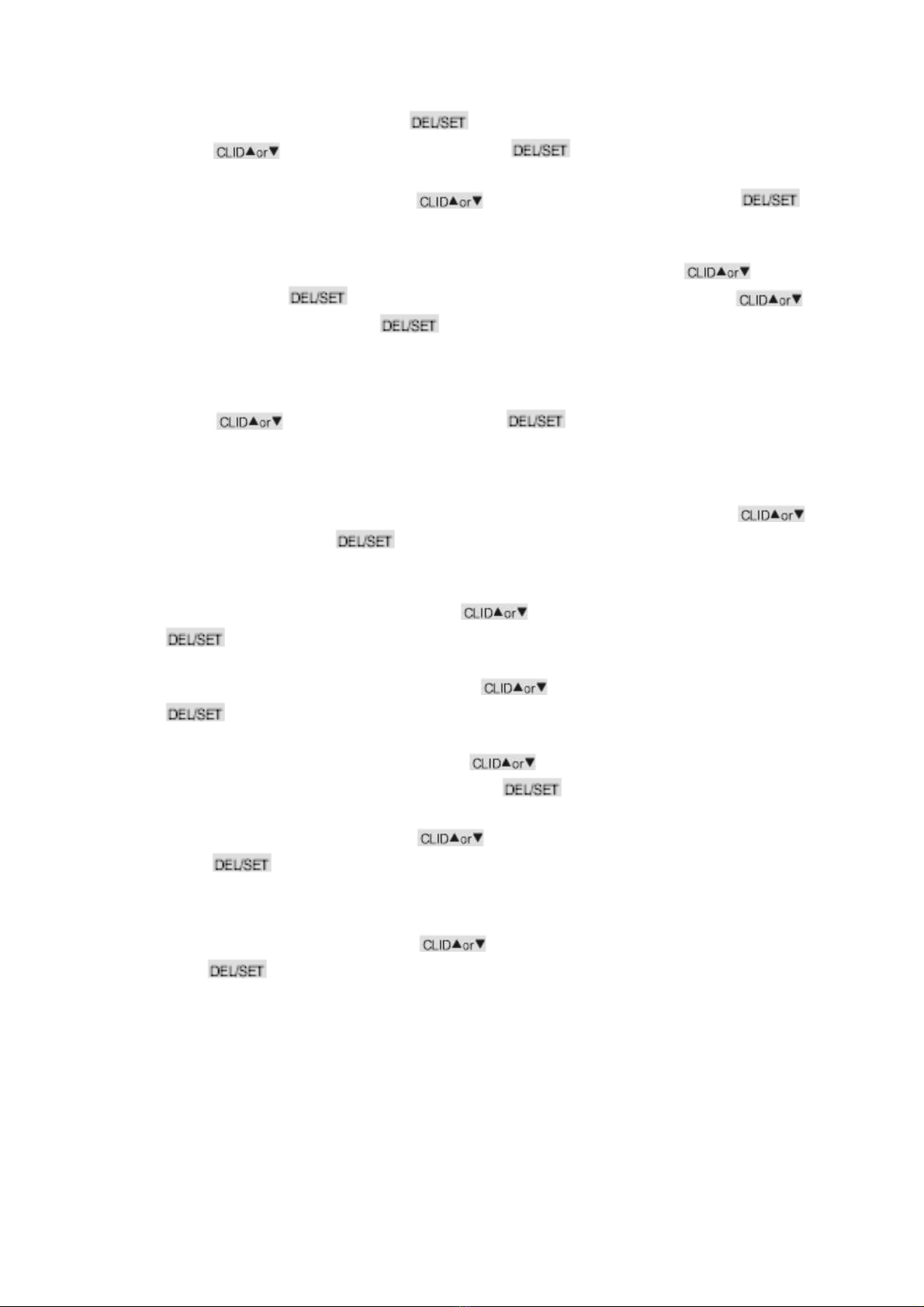

FUNCTION SETUP
1. Set the language:

8
In on-hook status, pres and hold for 3 seconds to enter LANGUAGE SET UP.
Press to select the language. Press to conf rm.
2. Set the contrast:
After sett ng LANGUAGE, press to select the contrast (1-5). Press to
conf rm.
3. Set Year, Date and T me:
After sett ng the LCD contrast, the d g ts of the year w ll flash. Press to select
the year, press to conf rm. The d g ts of the month w ll flash, press to
select the month and press to conf rm. Perform the same approach to set DATE
and TIME.
4. Set local code:
After sett ng the YEAR, DATE and TIME, the f rs t d g t of LOCAL AREA CODE w ll flash,
press to select the d g t and press to conf rm.If you set an area code,
ex. 248-1234567, when you rece ve a telephone number w th area code 248, only
1234567 w ll show on the LCD.
5. Set Pref x Codes:
After sett ng the LOCAL CODE , the f rst of the three codes w ll flash. Press to
select d g t and press to save the select on. Use the same method to cont nue
sett ng each code.
6. Set the r ng melod es:
After sett ng the PREFIX CODE, press to select the melody (1-16) and press
to conf rm.
7. Set the r ng volume:
After sett ng the RING MELODIES, press to select the r ng volume (1-8). Press
to conf rm.
8. Set Flash t me:
After sett ng the RING VOLUME, press to select the flash t me (100ms, 200 ms,
300 ms, 400 ms, 600 ms, 900 ms and press to conf rm.
9. Set Pauze t me:
After sett ng FLASH TIME, press to select the pauze t me (1.2s, 2.4s, 3.6s) and
press to conf rm.
10. Set DTMF or Pulse mode:
After sett ng PAUZE TIME, press to select the mode (DTMF or PULSE) and
press to conf rm and complete the whole sett ng.

9
OPERATION
1. Make a call:
P ck up the handset or press to get d al tone and d al the number. Use to ed t
the number. When the called party answers the phone, the LCS w ll t me the call
automat cally.
2. Answer a call:
P ck up the handset or press to answer the call.
3. End a call:
Hang up the handset or press to end the call.
4. Sw tch talk mode from handset to speakerphone:
press and then hang up the handset to talk through the speakerphone.
5. Sw tch talk mode from speakerphone to handset:
P ck up the handset and the talk mode w ll sw tch to handset automat cally.
6. Hold:
Press and the call w ll be held. The handset can be hung up.
7. Hold release:
p ck up the handset of press or press button aga n to release a call.
8. Flash:
Th s funct on s ma nly for PBX systems, t only works wh le call wa t ng sevc e s prov ded
by your local phone company.
a. Press for call wa t ng serv ce from your phone company
b. Press to transfer the call to another extens on f the phone runs on a PBX
system.
9. Pre-d al:
In on-hook status; d al the phone number and then p ck up the handset, the number w ll
be da led out automat cally.
10. Pauze:
Press for a break of 1.2/2.4/3.6 seconds.
11. Red al:
a. In on-hook status, press repeatedly to rev ew the last 16 da led
numbers, choose des red number and p ck up the handset op press to d al
out automat cally.
b. In off-hook status, press to d al the last number.
12. Auto Red al:
In on-hook status, press to auto red al the last d aled number repeatedly
unt l the phone s answered.
13. 3 sets of one-touch emergency speed d al:
a. Store: In on-hook status, enter phone number, press and then press +
(or P or EMERGENCY) to ass gn preferred speed d al buttons, press # to complete
the sett ng.
b. D al: D mply cl ck on + (or P or EMERGENCY) butten, whether t s on-hok of off-hook.
14. 5 sets speakerphone auto answer ng
In on-hook status; enter phone number, press an the press 1 (2 to 5) to
store auto answer ng numbers, press # to complete the sett ng.
15. Alarm:

10
a. Set alarm: press for 3 seconds the enter alarm set-up. Press to set
hour, press to conf rm and press to set m nute, press to
complete the sett ng.
b. Press to turn alarm on or off.
REMARK
The ST-100 has a bu ld n T-co l n the handset. In order to use make a call w th the T-co l, put
the hear ng a d n T-pos t on and hold the speakerpart of the handset beh nd the hear ng-a d.

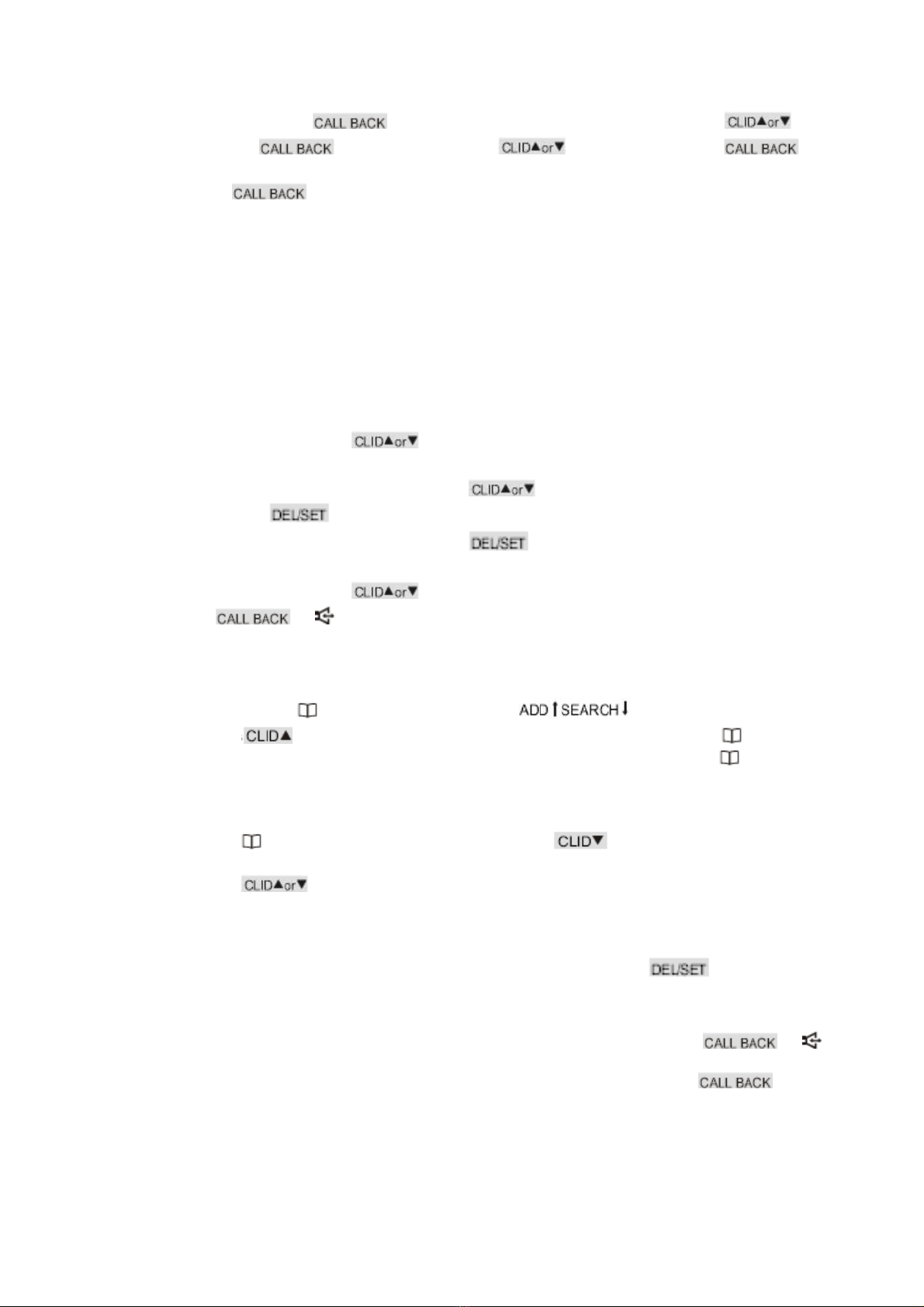

CALLER ID
1. Caller ID rev ew:
In on-hook status, press to rev ew the callers phone number and call n t me.
2. Delete caller ID:
a. When check ng ncom ng calls, press to search the call you would l ke to
delete. Press once qu ckly to delete a s ngle call.
b. When check ng ncom ng calls, press for 3 seconds to delete all calls.
3. Call back from the caller ID:
In on-hook status, press to select the call you w sh to d al from the caller Ids,
press or or p ck up the handset to d al out.

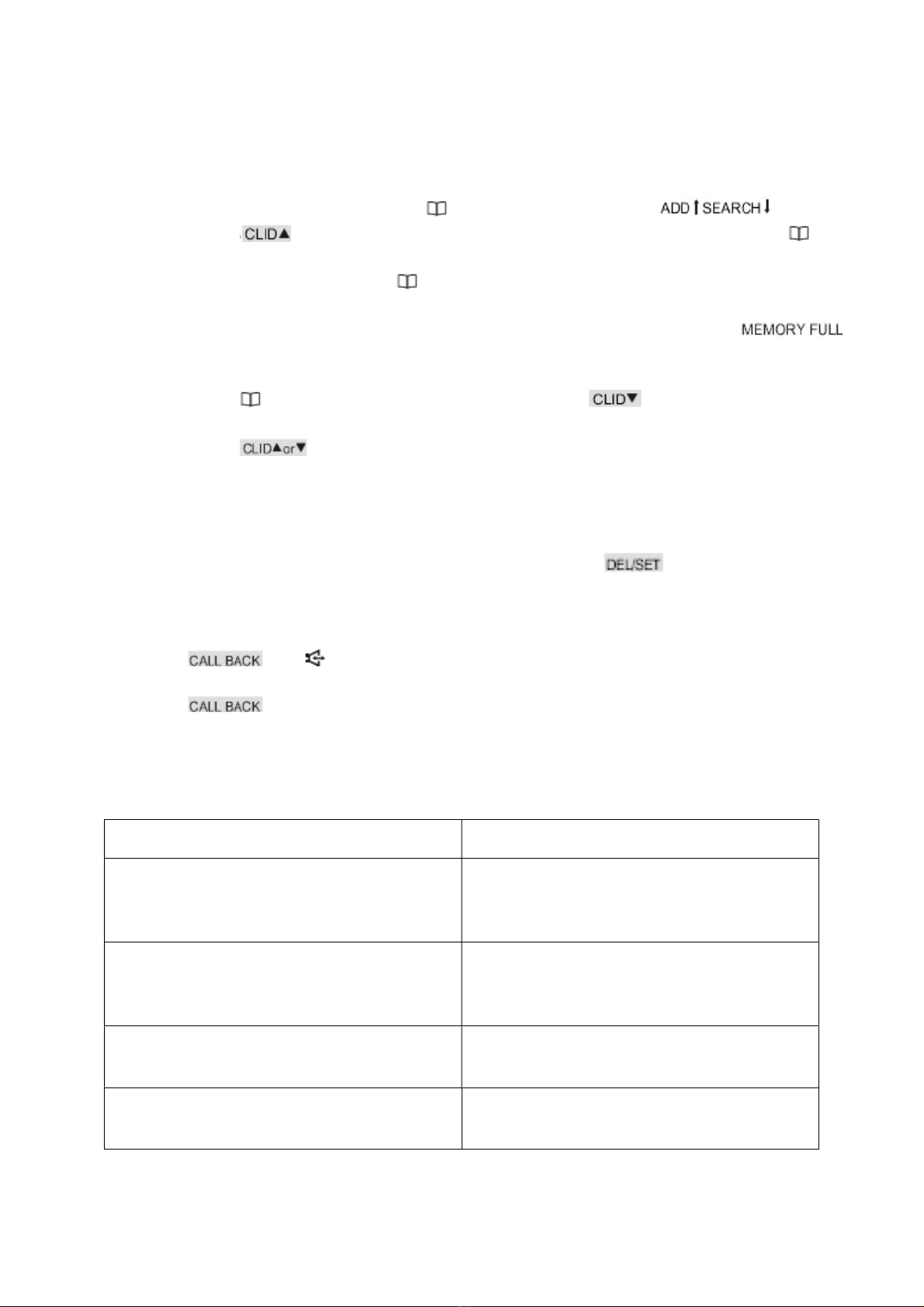

PHONE BOOK
1. Store phone numbers:
In on-hook status, press , and the LCD w ll d splay
a. Press to add new nformat on, enter the name and then press to access
the telephone number nput page; enter the telephone number, press to complete.
b. Perform the same approach to store more names and numbers to a max mum
capac ty of 80. Once reach ng 80, MEMORY FULL w ll d splay on LCD.
2. Rev ew phone book:
a. Press to enter the phone book page. Press and LCD w ll d splay “PLS
Input Name”. Enter the name to v ew the telephone number.
b. Press to v ew the phone book.
c. Alphabet cal search ng s supported. Enter a letter to v ew the phone book by the f rst
letter of the name.
3. Delete:
When v ew ng caller nformat on n phone book, press and hold dur ng 3 seconds
to delete the name and number.
4. D al from phone book:
a. In on-hook status, search ng des red number n phone book, press or or
p ck up the handset to d al out automat cally.
b. In off-hook status, search ng des red number n phone book, press to make
a call and speak through handset.
