MCZ CUTE User manual

INSTALLATION GUIDE EN
PELLET STOVE
CUTE/THEMA AIR
Instructions in English

II
TABLE OF CONTENTS
TABLE OF CONTENTS .................................................................................................. II
INTRODUCTION ..........................................................................................................1
1WARNINGS AND WARRANTY CONDITIONS .................................................................2
2FUEL.......................................................................................................................6
3INSTALLATION.........................................................................................................7
4FLUE.......................................................................................................................8
5DRAWINGS AND TECHNICAL FEATURES....................................................................15
6INSTALLATION AND ASSEMBLY ...............................................................................18
7REMOTE CONTROL MAX..........................................................................................25
8EMERGENCY PANEL................................................................................................31
9OPERATION ...........................................................................................................33
10SAFETY DEVICES ..................................................................................................36
11ALARMS..............................................................................................................37
12CLEANING ...........................................................................................................40
13FAULTS/CAUSES/SOLUTIONS.................................................................................46
14CIRCUIT BOARD ...................................................................................................49

1
INTRODUCTION
Technical Dept. - All rights reserved - Reproduction is prohibited
Dear Customer,
our products are designed and manufactured in compliance with European reference Standards for construction products (EN13240
wood-burning stoves, EN14785 pellet-burning appliances, EN13229 replaces/wood-burning inserts, EN 12815 wood-burning cookers),
with high quality materials and extensive experience in the transformation processes.The products also meet the essential requirements
of Directive 2006/95/EC (Low Voltage) and Directive 2004/108/EC (Electromagnetic Compatibility).
To get the best performance, we suggest you read the instructions in this manual carefully.
This installation and use manual forms an integral part of the product: ensure that the manual is always supplied with the appliance,
even if it changes owner. If the manual is lost, you can request another copy from the local technical service or download it directly from
the company website.
All local regulations, including those regarding national and European regulations, must be observed when the appliance is installed.
In Italy, for the installation of systems with biomass below 35KW, refer to ministerial decree D.M. 37/08, and the qualied installation
technician with the appropriate requisites must issue a certicate of compliance for the system installed. (By system one means
Stove+Chimney+Air inlet).
REVISIONS TO THE PUBLICATION
The content of this manual is strictly technical and the property of MCZ Group Spa.
No part of this manual may be translated into other languages and/or adapted and/or reproduced, even in part, in other mechanical or
electronic forms, photocopies, recordings or other, without the prior written authorisation from MCZ Group Spa.
The company reserves the right to make changes to the product at any time without prior notice. The proprietary company reserves its
rights according to the law.
CARE OF THE MANUAL AND HOW TO CONSULT IT
• Take care of this manual and keep it in an easily accessible place.
• Should the manual be misplaced or ruined, request a copy from your retailer or directly from the authorised Technical Assistance
Department. It can be downloaded from the company website.
• The“text in bold”must be read with particular care.
• The“text in italics”draws attention to other sections in this manual or clarications.
• “NOTE”provides the reader with additional information.
SYMBOLS USED IN THE MANUAL
ATTENTION:
read the relative message carefully as failure to observe the information provided could result in serious
damage to the product and put the persons who use it at risk.
INFORMATION:
failure to comply with these provisions will compromise the use of the product.
OPERATING SEQUENCES:
sequence of buttons to be pressed to access the menus or change settings.
MANUAL
carefully read this manual or the relative instructions.

2
1-WARNINGS AND WARRANTY CONDITIONS
SAFETY PRECAUTIONS
• Installation, electrical connection, function test and maintenance must only be carried out by authorised and
qualied personnel.
• Install the product in accordance with all local and national legislation and regulations in force in the region or state.
• Only use the fuel recommended by the manufacturer. The product must not be used as an incinerator. It is strictly forbidden to use
liquid fuel.
• Do not put any fuel other than wood pellets in the hopper.
• The instructions provided in this manual must always be complied with to ensure the product and any electronic appliances
connected to it are used correctly and accidents are prevented.
• The user, or whoever is operating the product, must read and fully understand the contents of this installation guide before
performing any operation. Errors or incorrect settings can cause hazardous conditions and/or poor operation.
• Do not climb on or lean on the product.
• Do not put linen on the product to dry. Any drying racks or the like must be kept at a safe distance from the product. Fire hazard.
• All liability for improper use of the product is entirely borne by the user and relieves the Manufacturer from any civil and criminal liability.
• Any type of tampering or unauthorised replacement with non-original spare parts could be hazardous for the operator’s safety and
relieves the company from any civil and criminal liability.
• Many of the surfaces of the product get very hot (door, handle, glass, smoke outlet pipes, etc.). Avoid coming into contact with
these parts, without adequate protective clothing or suitable implements, such as gloves with thermal protection or
“cold handle” operating systems.
• It is forbidden to operate the product with the door open or the glass broken.
• The product must be powered by an electrical system that is equipped with an eective earthing device.
• Switch the product o in the event of a fault or malfunction.
• Accumulated unburned pellets in the burner after each “failed start-up” must be removed before lighting again. Check that the
burner is clean and positioned properly before lighting again.
• Do not wash the product with water. Water could get inside the unit and damage the electrical insulation and cause electric shocks.
• Do not stand for a long time in front of the product in operation. Do not overheat the room you are in and where the product is
installed. This could cause injuries and health problems.
• Install the product in a location that does not feature a re hazard and is equipped with power and air supplies and smoke extractors.
• In the event of re in the chimney, turn o the device, disconnect it from the mains electricity and do not open the hatch. Then
contact the competent authorities.
• The product and the cladding must be stored in a dry place and must not be exposed to weathering.
• It is recommended not to remove the feet that support the product in order to guarantee adequate insulation, especially if the
ooring is made of ammable materials.
• In the event of a malfunction of the ignition system, do not force it to light by using ammable materials.
• Special maintenance must only be performed by authorised and qualied personnel.
• Assess the static conditions of the surface on which the weight of the product will rest and provide suitable insulation if it is made of
ammable material (e.g. wood, tted carpet or plastic).
• Live electrical parts: only power the product after completing assembly.
• Disconnect the product from the 230V power supply before performing any maintenance operation.

3
1-WARNINGS AND WARRANTY CONDITIONS
Technical Dept. - All rights reserved - Reproduction is prohibited
INFORMATION:
Please contact the retailer or qualied personnel authorised by the company to resolve a problem.
• You must only use the fuel specied by the manufacturer.
• When the product is switched on for the rst time it is normal for it to emit smoke due to the paint overheating for the rst time.
Therefore make sure the room in which it is installed is well ventilated.
• Check and clean the smoke extraction pipes regularly (connection to the chimney).
• The product is not a cooking appliance.
• Always keep the cover of the fuel hopper closed.
• Store this installation and use manual with care as it must accompany the product for the duration of its useful life. If the product is
sold or transferred to another user, ensure the manual is also handed over.
INTENDED USE
The product only works with wood pellets and must be installed indoors.
WARRANTY CONDITIONS
The company guarantees the product, with the exception of elements subject to normal wear listed below, for a period of 2 (two)
years from the date of purchase attested by:
• a document to serve as proof of purchase (invoice and/or receipt) that shows the name of the vendor and the date on which the
purchase was made;
• forwarding of the completed certicate of guarantee within 8 days of purchase.
Furthermore, the product must be installed and started by specialised personnel who must, where provided, issue a declaration of
conformity of the plant and of the proper functioning of the product, for the warranty to be valid and eective.
We recommend testing the product before completion with the relative nishes (claddings, painting of walls, etc.).
Installations that do not meet the current standards, improper use and lack of maintenance as expected by the manufacturer, void the
product warranty.
The guarantee is valid on the condition that the instructions and warnings contained in the use and maintenance manual are observed,
and therefore the product is used correctly.
The replacement of the entire appliance or the repair of one of its components does not extend the warranty period, and the original
expiry date remains unchanged.
The warranty covers the replacement or free repair of parts recognised as faulty at source due to manufacturing defects. To
benet from the warranty, in the event of a fault, the customer must have the warranty certicate and show it with the proof of purchase
document to theTechnical Assistance Oce.

4
1-WARNINGS AND WARRANTY CONDITIONS
EXCLUSIONS
The guarantee does not cover malfunctions and/or damage to the appliance that arise due to the following causes:
• Damage caused during transportation and/or handling
• all parts that develop faults due to negligence or improper use, incorrect maintenance, installation that does not comply with the
manufacturer’s instructions (always refer to the installation and use manual provided with the appliance)
• incorrect sizing with regard to the use or faults in the installation or failure to adopt the necessary devices to guarantee proper
execution
• improper overheating of the equipment, use of fuels not conforming to the types and quantities indicated in the instructions provided
• further damage caused by incorrect user interventions in an attempt to x the initial fault
• worsening of the damage due to the continued use of the equipment by the user, once the defect has been noticed
• in presence of a boiler, any corrosion, incrustations or breakages caused by water ow, condensation, hardness or acidity of the water,
improperly performed descaling treatments, lack of water, mud or limescale deposits
• ineciency of chimneys, ues or parts of the plant aecting the equipment
• damage caused by tampering with the appliance, atmospheric agents, natural disasters, vandalism, electric shocks, res, faults in
the electric and/or hydraulic system.
The following are also not covered by the warranty:
• parts subject to normal wear such as gaskets, glass, claddings and cast iron grids, painted, chrome-plated or gilded parts, handles
and electric cables, bulbs, indicator lights, knobs, all parts which can be removed from the hearth.
• Variations in colour of the painted or ceramic/serpentine parts and craquelure ceramics as they are natural characteristics of the
material and product use.
• masonry work
• plant parts (if present) not supplied by the manufacturer
Any technical interventions on the product to eliminate the above-said defects and consequent damages must be agreed upon with
the Technical Assistance Centre, who reserves the right to accept the relative appointment or not. However, said interventions will not
be carried out under warranty but as technical assistance to be granted at part of any eventual and specic agreed conditions and in
accordance with the fee in force for the work to be carried out.
The user will also be charged for any costs incurred to remedy the incorrect technical interventions, tampering or damage to the appliance,
not attributable to original faults.
With the exception of the legal or regulatory limits, the warranty does not cover the reduction of atmospheric and acoustic pollution.
The company declines all liability for any damage which may be caused, directly or indirectly, to persons, animals or objects as
a consequence of non compliance with any provision specied in the manual, especially warnings regarding installation, use
and maintenance of the appliance.

5
1-WARNINGS AND WARRANTY CONDITIONS
Technical Dept. - All rights reserved - Reproduction is prohibited
SPARE PARTS
In the event of a malfunction, consult the retailer who will forward the call to the Technical Assistance Service.
Only use original spare parts. The retailer or service centre can provide all necessary information regarding spare parts.
We do not recommend waiting for the parts to get worn out before having them replaced. It is important to perform regular maintenance.
The company declines all liability if the product and any other accessory is used improperly or modied without
authorisation.
All parts must be replaced with original spare parts.
WARNINGS FORTHE CORRECT DISPOSAL OF THE PRODUCT.
The owner is the sole party responsible for demolishing and disposing of the product. This must be performed in compliance with laws
related to safety and environmental protection in force in his/her country.
At the end of its working life, the product must not be disposed of as urban waste.
It must be taken to a special dierentiated waste collection centre set up by the local authorities or to a retailer that provides this service.
Separating and recycling prevents potential negative eects on the environment and health (often caused by inappropriately disposing of
product parts). It also allows materials to be recovered in order to obtain signicant savings in energy and resources.

6
2-FUEL
The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. In any case, always observe the regulations
in force in the country of installation.
PELLETS
Wood pellets are manufactured by hot-extruding compressed sawdust which is produced during the working of natural dried wood. The
compactness of the material is guaranteed by the lignin contained in the wood itself and allows pellets to be produced without glue or
binders.
The market oers dierent types of pellets with characteristics that vary according to the wood mixtures used. The most common
diameter on the market is 6 mm (although 8 mm diameter is available too) with a length, on average, of between 5 and 30 mm. A good
quality pellet has a density of between 600 and 750 or more kg/metres cubed and a water content that accounts for 5 to 8% of its weight.
Pellets have technical advantages besides being an ecological fuel, as the wood residue is used completely, thereby achieving cleaner
combustion than that of fossil fuels.
While good-quality wood has a caloric value of 4.4 kW/kg (15% moisture, after about 18 months of seasoning), whereas that of pellets
is around 4.9 kW/kg. To ensure good combustion, the pellets must be stored in a dry place and protected from dirt. Pellets are usually
supplied in 15 kg bags, therefore, storing them is very convenient.
Good quality pellets guarantee good combustion, thereby decreasing harmful emissions into the atmosphere.
The poorer the quality of the fuel, the more often the internal parts of the brazier and combustion chamber must
be cleaned.
The main quality certications for pellets currently available on the European market guarantee that the fuel complies with class A1/A2
according to EN14961-2. These certications include, for example, ENPlus, DINplus, Ö-Norm M7135, and in particular, guarantee the
following characteristics:
• caloric value: 4.6 ÷ 5.3 kWh/kg.
• Water content: ≤ 10% of the weight.
• Percentage of ash: max 1.5% of the weight.
• Diameter: 6±1/8±1 mm.
• Length: ≤ 40 mm.
• Content: 100% untreated wood without the addition of binding substances (max 5% bark).
• Packaging: in sacks made from ecologically compatible or biologically decomposing material.
The company strongly recommends using certied fuel for its products (ENplus, DINplus, Ö-Norm M7135).
Poor quality pellets or others that do not comply with the characteristics specied previously may compromise the
operation of your product and can therefore make the guarantee and product liability invalid.
15 Kg BAG OF FUEL

7
3-INSTALLATION
Technical Dept. - All rights reserved - Reproduction is prohibited
FOREWORD
The installation position must be chosen according to the room, to the smoke extraction system, to the chimney ue. Check with local
authorities whether there are any restrictive regulations in force regarding the combustion air inlet, the smoke outlet system, the
ue or the chimney cap. The manufacturer declines all responsibility in the event of installations that do not comply with the laws in
force, incorrect room air exchange, electrical connection non-compliant with the standards and inappropriate use of the appliance. The
installation must be carried out by a qualied technician, who must issue a declaration of conformity of the system to the purchaser and
will assume full responsibility for nal installation and consequent good operation of the product.
In particular one must ensure that:
• there is a suitable combustion air inlet and smoke outlet in compliance with the type of product installed
• other stoves or devices installed do not cause depression in the room where the product is installed (for sealed appliances only, a
maximum of 15 Pa of depression in the room is allowed)
• when the product is switched on there is no reux of smoke in the room
• fumes extraction takes place in total safety (sizing, smoke seal, distances from ammable materials..).
We especially recommend to check the data tags of the ue for the safety distances that must be observed in presence
of combustible materials and the type of insulating material to be used. These indications must be followed strictly to
prevent serious harm to people and the integrity of the home. The installation of the appliance must ensure easy access to
clean the appliance itself, the smoke outlet pipes and the ue. It is forbidden to install the stove in rooms with a re hazard.
Installation in studio ats, bedrooms and bathrooms is only allowed with sealed or closed appliances equipped with
suitable combustion air ducting directly outside. Always maintain adequate distance and protection in order to prevent
the product from coming into contact with water.
In the event there are several appliances installed, the external air inlet must be sized accordingly.

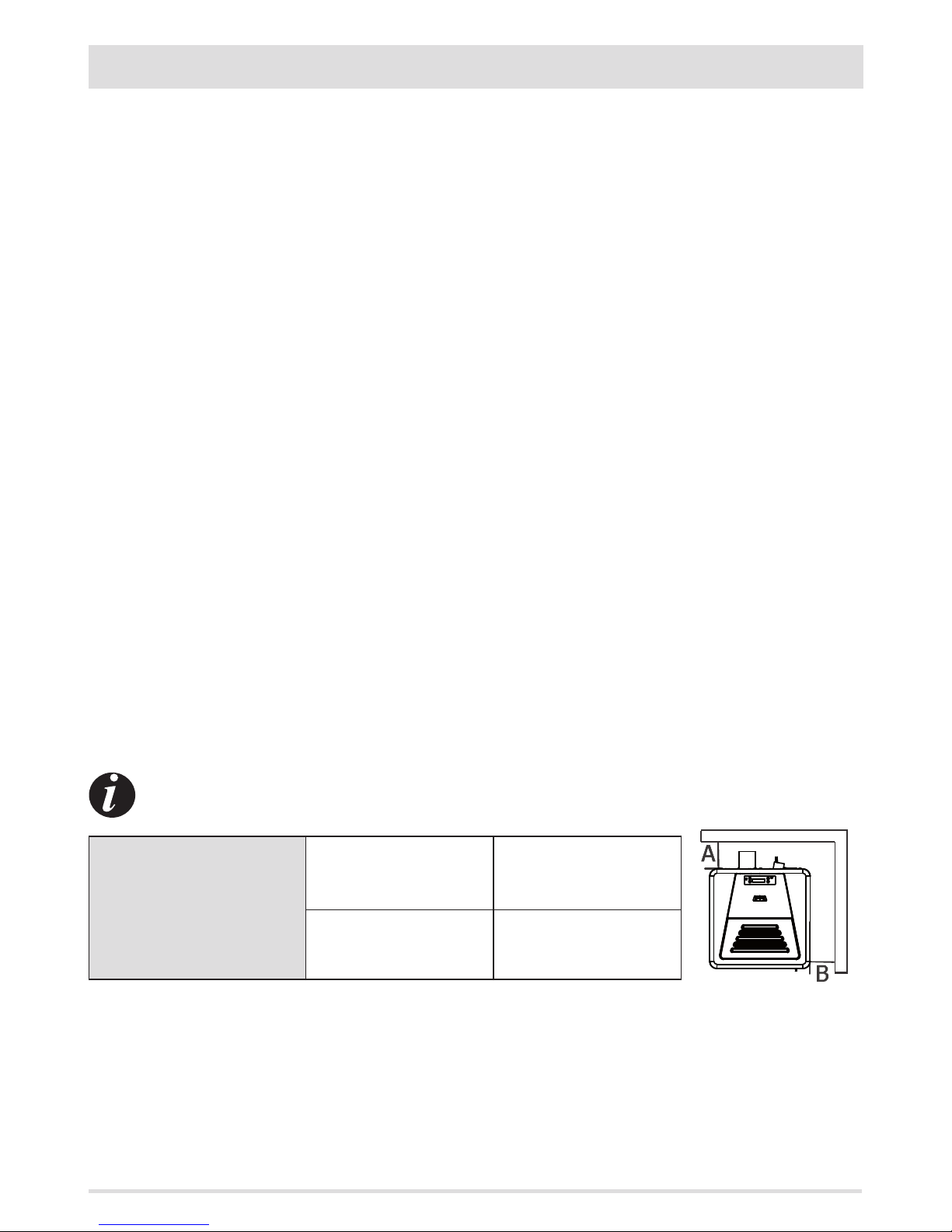

MINIMUM DISTANCES
It is recommended to install the stove detached from any walls and/or furniture, with a minimum clearance to allow eective aeration
of the appliance and a good distribution of heat in the room. Observe the distances from ammable or heat-sensitive objects (sofas,
furniture, wood panelling, etc..) as specied.The front distance from ammable materials must be at least 80 cm.
If particularly delicate objects are present, such as furniture, curtains or sofas, increase the stove clearance accordingly.
If the oor is made of wood, it is recommended to t a oor protection sheet in compliance with the Standards in
force in the country of installation.
CUTE/THEMA
Non-ammable walls Flammable walls
A = 5 cm
B = 5 cm
A = 5 cm
B = 5 cm
If the oor is made of combustible material, it is recommended to use protection made of non-combustible material (steel, glass...) that
also protects the front from falling combusted material during cleaning operations.
The appliance must be installed on a oor with adequate load capacity.
If the existing construction does not meet this requirement, one must take appropriate measures (for example a load distribution plate).

min.3,5 metri
AT
(A)
AP
(B)
8
4-FLUE
FOREWORD
The Chimney Flue chapter has been drawn up with reference to the provisions of European Standards (EN13384 - EN1443 - EN1856 -
EN1457).
The chapter provides instructions for installing a chimney ue eciently and properly, but under no circumstances is it a substitute of the
Standards in force, which the qualied technician must be in possession of. Check with local authorities whether there are any restrictive
regulations in force regarding the combustion air inlet, the smoke outlet system, the ue or the chimney cap.
The company declines all liability relating to the poor functioning of the stove if this is due to the use of an insuciently sized ue in
violation of the Standards in force.
CHIMNEY FLUE
The ue or chimney is of great importance for the proper operation of a solid fuel-burning heating appliance with forced draught, as
modern heating appliances have high eciency with cooler ue gasses and consequently less draught, it is therefore essential that the
ue is built up to standard and always kept in perfect order. A ue that serves a pellet/wood fuelled appliance must be at least category
T400 (or greater if the appliance requires so) and resistant to soot res. Smoke must be extracted through a single ue made of insulated
steel (A) or an existing ue that complies with the intended use (B).
A simple air shaft made of cement must be suitably lined. In both solutions there must be an inspection cap (AT) and/or inspection hatch
(AP) - FIG.1.
It is forbidden to connect more than one wood/pellet-burning appliance or of any other kind (vent hoods... ) to the same ue.
FIGURE 1 - SMOKE FLUE

ABC
D
E
A
B
C
D
15° E
F
A
B
C
D
E
30°
F
9
4-FLUE
Technical Dept. - All rights reserved - Reproduction is prohibited
TECHNICAL CHARACTERISTICS
Have the eciency of the ue checked by an authorised technician.
The ue must be sealed against ue gasses, in a vertical direction without narrowing, be made with materials impermeable to smoke,
condensation, thermally insulated and suitable to resist normal mechanical stress over time (we recommend replaces made of A/316
or refractory material with insulated round section double chamber). Be suitably insulated externally to avoid condensation and reduce
smoke cooling. It should be separated from combustible or ammable materials with an air gap or insulating materials: check the
distance specied by the manufacturer of the replace according to EN1443. The chimney opening must be in the same room as the
appliance, or at most in the adjoining room, and have a soot and condensation collection chamber beneath the opening, and be accessible
via a sealed metal hatch.
FLAT ROOF
ROOF AT 15°
ROOF AT 30°
A = 0.50 metres
B = DISTANCE > 2 metres
C = DISTANCE < 2 metres
D = 0.50 metres
E = TECHNICAL VOLUME
A = MIN. 1.00 metres
B = DISTANCE > 1.85 metres
C = DISTANCE < 1.85 metres
D = 0.50 metres above highest
point
E = 0.50 metres
F = REFLUX AREA
A = MIN. 1.30 metres
B = DISTANCE > 1.50 metres
C = DISTANCE < 1.50 metres
D = 0.50 metres ABOVE
HIGHEST POINT
E = 0.80 metres
F = REFLUX AREA
FIGURE 2
FIGURE 3
FIGURE 4

A
B
D
60°
E
C
FA
B
C
D
E
45° F
10
4-FLUE
ROOF AT 60° ROOF AT 45°

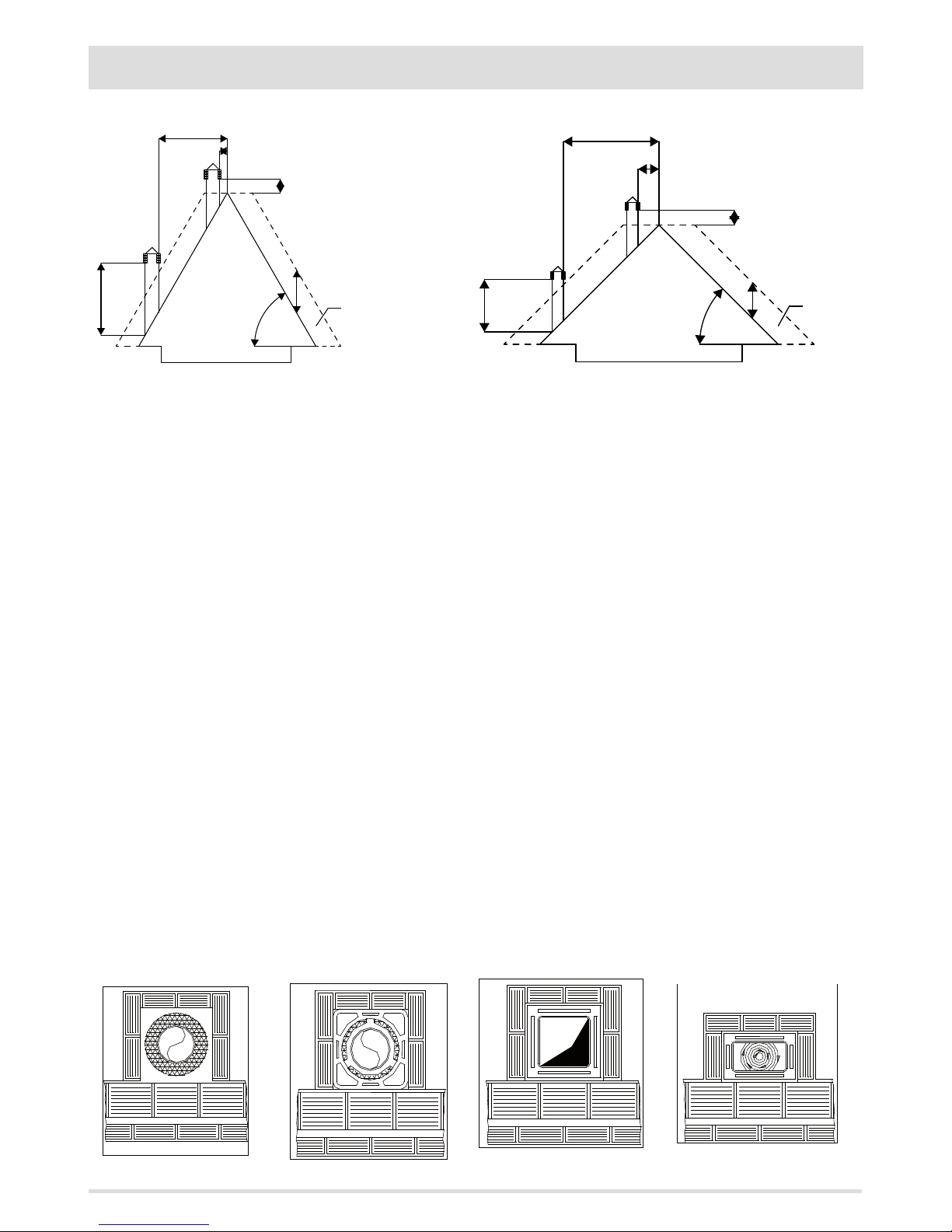

SIZING
The depression (draught) of a ue depends on its height. Check the depression with the values indicated in the technical characteristics.
The minimum height of the chimney is 3.5 meters.
The interior cross-section of the ue can be round (best), square or rectangular (the ratio between the internal sides must be ≤1.5) with
the sides joined with a minimum radius of 20 mm. The dimension of the cross-section must be minimum Ø100mm.
The cross-sections/lengths of the chimneys shown in the technical data tables are indications for correct installation. Any alternative
congurations must be correctly sized in accordance with the general method of calculation of UNI EN13384-1 or other proven eciency
methods.
Below is a list of some ues available on the market:
AISI 316 steel chimney with
double chamber insulated
with ceramic bre or
equivalent resistant up to
400°C.
Refractory chimney with
double insulated chamber and
external lightweight concrete
cladding with cellular material
such as clay.
Traditional square-section
clay chimney with insulating
empty inserts.
Avoid products with an
internal rectangular section
where the larger side is 1.5
times the smaller side (e.g.
20x40 or 15x30).
EXCELLENT GOOD POOR VERY POOR
A = MIN. 2.60 metres
B = DISTANCE > 1.20 metres
C = DISTANCE < 1.20 metres
D = 0.50 metres ABOVE HIGHEST POINT
E = 2.10 metres
F = REFLUX AREA
A = MIN. 2.00 metres
B = DISTANCE > 1.30 metres
C = DISTANCE < 1.30 metres
D = 0.50 metres ABOVE HIGHEST POINT
E = 1.50 metres
F = REFLUX AREA
FIGURE 5 FIGURE 6

1
9
9
2
3
4
5
6
7
8
9
11
4-FLUE
Technical Dept. - All rights reserved - Reproduction is prohibited
MAINTENANCE
The ue must be kept clean, since the deposit of soot or unburned oils reduces the cross-section reducing the draft and thus compromising
the ecient operation of the stove and, if large build-ups accumulate, can catch re. The ue and chimney must be cleaned and checked
by a qualied chimney sweep at least once a year. Once maintenance has been performed, request a written declaration that the system
is safe.
Failure to clean the system jeopardises safety.
CHIMNEY CAP
The chimney cap is a crucial element for the heating appliance to work properly: we recommend a wind proof chimney cap (A), see Figure
7.
The area of the openings for smoke
extraction must be at least double the
cross-section of the smoke duct/ue
system, and arranged so that smoke
extraction is ensured even in strong
wind. The chimney must prevent rain,
snow or animals from entering the
chimney. The height of outow into
the atmosphere must be beyond the
reux area due to the shape of the
roof or any obstacles near the outlet
(see Figures 2-3-4-5-6).
CHIMNEY COMPONENTS
KEY:
(1) CHIMNEY CAP
(2) REFLUX CHANNEL
(3) SMOKE DUCT
(4) THERMAL INSULATION
(5) OUTSIDE WALL
(6) CHIMNEY CONNECTION
(7) SMOKE CHANNEL
(8) HEAT GENERATOR
(9) INSPECTION ACCESS PANEL
FIGURE 7
FIGURE 8

A
B B
A
C
MIN.1,5 m MIN.1,5 m
MIN.1,5 m
MIN.0,3 m
12
4-FLUE

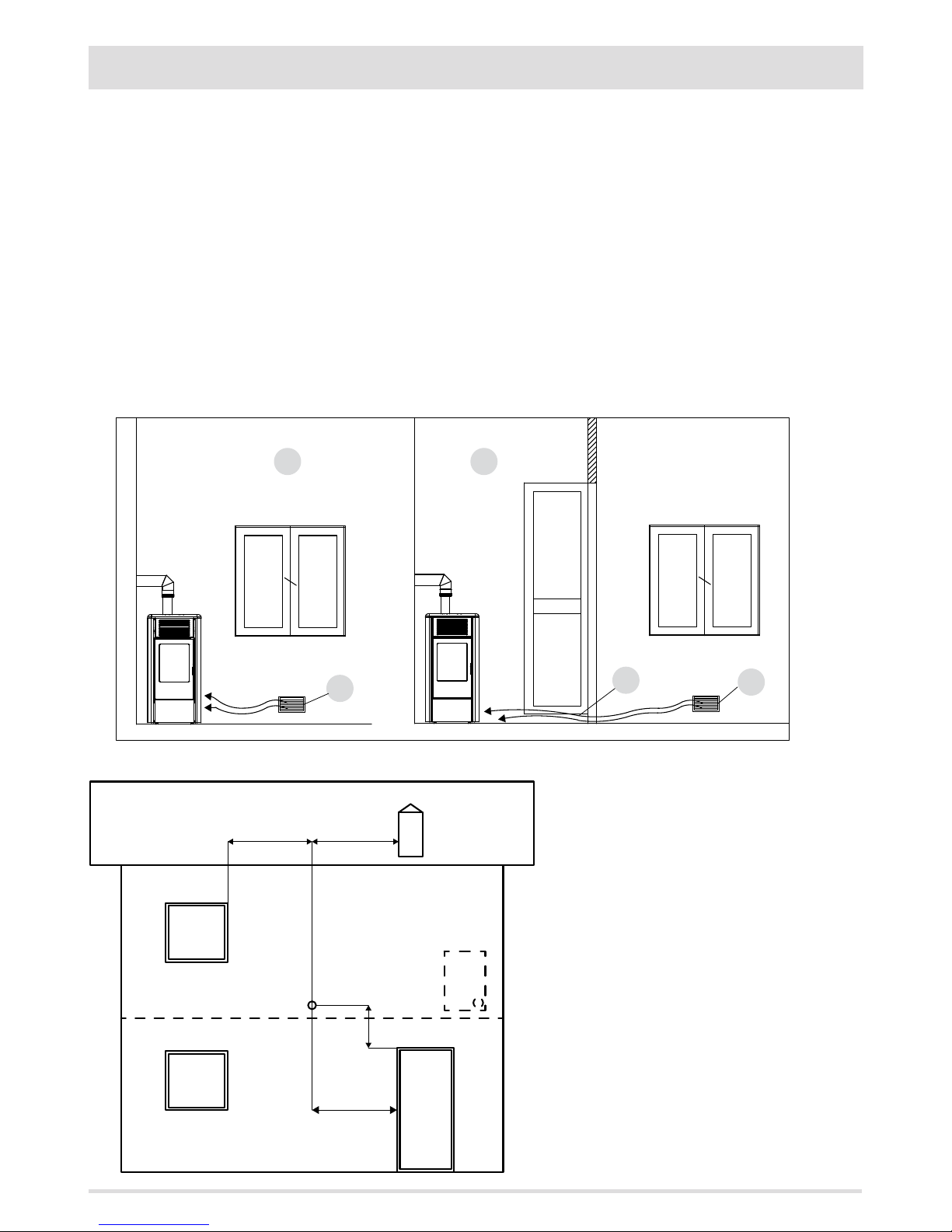

EXTERNAL AIR INLET
It is mandatory to provide an adequate external air intake that supplies the combustion air required for the product to work properly. The
ow of air between the outside and the installation room may be direct, through an inlet in an external wall of the room; or indirect, via
air intake from adjoining rooms and connecting permanently with the installation room (see Figure 9 b). Adjoining areas may not include
sleeping areas, garages or general areas that present a re hazard. During installation one must check the minimum clearances required
for air intake from outside. Take into account the presence of doors and windows that could interfere with the proper ow of air to the
stove (see diagram below).
The air intake must have a minimum total net area of 80 cm2: the surface must be increased accordingly if within the room there are other
active generators (for example: electric fan for stale air extraction, kitchen hood, other stoves, etc...), which could cause cause depression
in the room. One must verify that, with all the equipment on, the pressure drop between the room and the outside does not exceed a
value of 4 Pa. If necessary increase the intake section of the air inlet, which must be made at oor level and always protected with a bird-
proof outer protection grid and in such a way that it cannot be obstructed by any object.
It is possible to connect the air required for
combustion directly to the outside air inlet, with a
pipe of at least Ø50mm, with maximum length of
3linear metres; each pipe bend shall be considered
equivalent to a linear metre. To attach the pipe see
the back of the stove.
For stoves installed in studio ats, bedrooms and
bathrooms (where allowed), it is mandatory to
connect the combustion air outside. In particular for
sealed stoves the connection must be sealed in order
not to compromise the overall sealed characteristic of
the system.
FIGURE 9 A - DIRECTLY FROM OUTSIDE
FIGURE 10
FIGURE 9 B - INDIRECTLY FROM THE ADJACENT ROOM
A=AIR INLET
B=ROOM TO BE VENTILATED
C=INCREASE OF THE GAP UNDER THE DOOR

13
4-FLUE
Technical Dept. - All rights reserved - Reproduction is prohibited
DISTANCE (metres) The air inlet must be at a distance of:
1.5 m UNDER Windows, doors, smoke outlets, cavities, ....
1.5 m HORIZONTALLY Windows, doors, smoke outlets, cavities, ....
0.3 m ABOVE Windows, doors, smoke outlets, cavities, ....
1.5 m AWAY from smoke outlet
CONNECTION TO THE FLUE
The connection between the ue and the appliance must be via a smoke duct that complies with EN 1856-2.The connecting section must
extend no more than 4 m horizontally, with a minimum slope of 3% and with a maximum of 3 90% bends (accessible for inspection - do
not count theT tting at the appliance outlet).
The diameter of the smoke duct must be equal to or greater than that of the appliance outlet (Ø 80 mm).
TYPE OF SYSTEM SMOKE DUCT
Minimum vertical length 1.5 metres
Maximum length
(with 1 accessible 90° bend)
6.5 metres
Maximum length
(with 3 accessible 90° bends)
4.5 metres
Maximum number of accessible 90° bends 3
Horizontal sections
(minimum slope 3%)
4 metres
Use smoke ducts with a diameter of 80mm or 100mm depending on the type of system, with silicone gaskets or similar gaskets that can
withstand the high operating temperatures of the appliance (min. T200 class P1). The use of exible metal hoses made of bre
cement or aluminium is forbidden. For direction changes, we always recommend using a T tting with an inspection cap
allowing easy access to clean the pipes. Always ensure that the inspection cap is put back in place and sealed hermetically with the
relevant seal intact after cleaning.
It is forbidden to connect several appliances to the same smoke duct, or the outlet from the overhead hoods. It is forbidden to extract the
combustion products directly through the wall, whether into indoor spaces or outdoors.
The smoke duct must be at a minimum distance of 400 mm from ammable or heat-sensitive structures.

T
I
S
I
U
B
A
P
U
I
I
C
4
3
D
2
I
E
V
U
1
F
14
4-FLUE

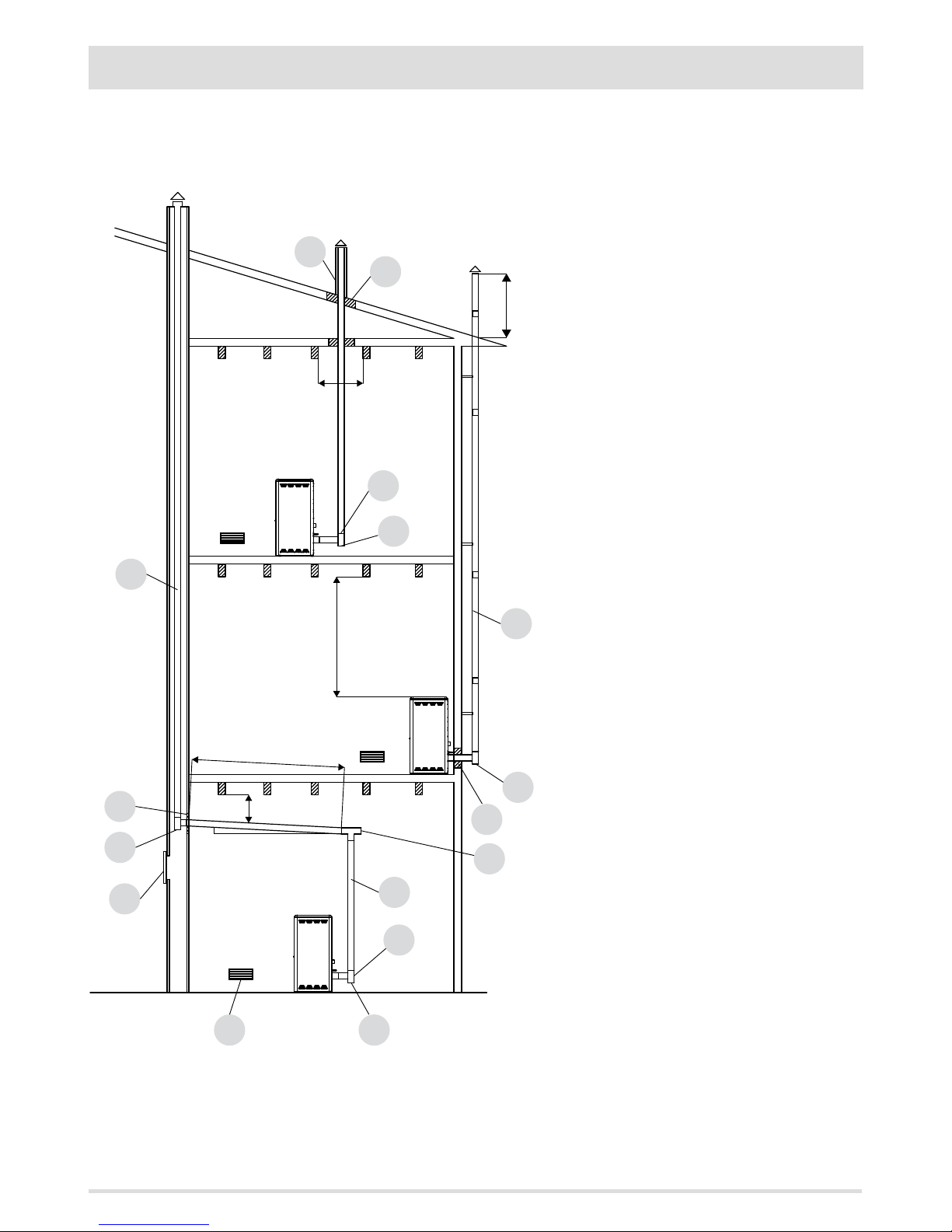

EXAMPLES OF CORRECT INSTALLATION
1. Installation of Ø120mm ue with hole for the passage
of the pipe increased by:
minimum 100mm around the pipe if next to non
ammable parts such as cement, brick, etc.; or
minimum 300mm around the pipe (or as required by
data tags) if next to ammable parts such as wood etc.
In both cases, install suitable insulation between the ue
and the ceiling.
Always check and respect the data tags on the ue,
in particular the minimum safety distances from
combustible materials.
The previous rules also apply for holes made in walls.
2.Old ue, minimum pipe Ø100mm with the inclusion of
an external access door for chimney cleaning.
3. External ue made of insulated stainless steel pipes,
i.e. with double walls minimum Ø100mm: all securely
mounted on the wall.With wind-proof chimney cap. See
g. 7 type A.
4. Ducting system using T tting that allow easy access
for cleaning without having to remove the pipes
FIGURE 11
U = INSULATING
V = ANY REDUCTION FROM 100 TO 80 MM
I = INSPECTION CAP
S = INSPECTION ACCESS PANEL
P = AIR INLET
T = T JOINT WITH INSPECTION CAP
A = MINIMUM 40 MM
B = MAXIMUM 4 M
C = MINIMUM 3°
D = MINIMUM 400 MM
E = HOLE DIAMETER
F = SEE FIG.2-3-4-5-6

122
189
Ø 50
560
69
Ø100
600
800
720
15
5-DRAWINGS AND TECHNICAL FEATURES
Technical Dept. - All rights reserved - Reproduction is prohibited
DRAWINGS AND CHARACTERISTICS

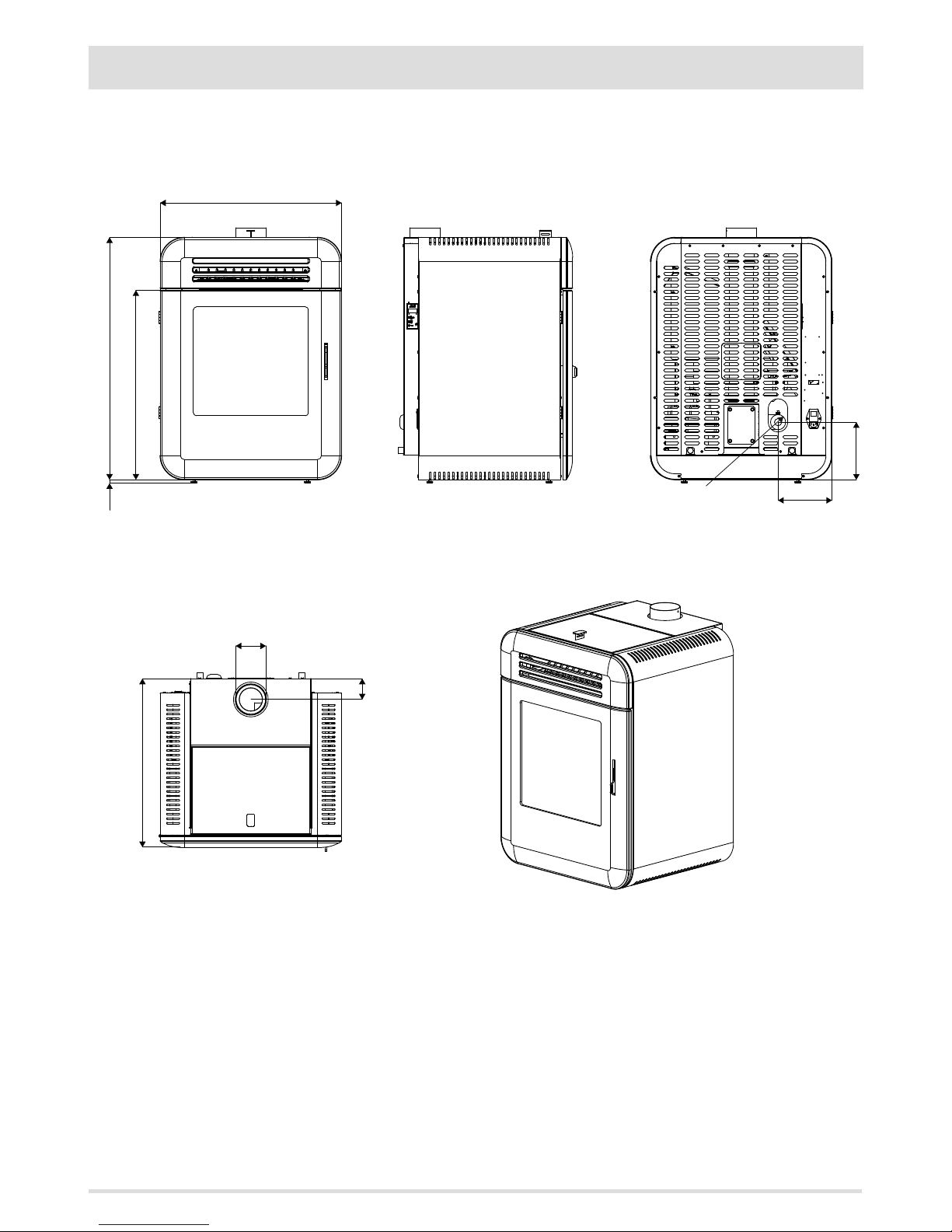

CUTE AIR STOVE DIMENSIONS

178
Ø50
190
600
80111
626
Ø100
69
557
16
5-DRAWINGS AND TECHNICAL FEATURES
THEMA AIR STOVE DIMENSIONS

17
5-DRAWINGS AND TECHNICAL FEATURES
Technical Dept. - All rights reserved - Reproduction is prohibited
TECHNICAL CHARACTERISTICS CUTE/THEMA Model AIR
Nominal output power 8 kW (6880 kcal/h)
Minimum output power 2,4 kW (2064 kcal/h)
Eciency at Max 90,5%
Eciency at Min 90,0%
Temperature of exhaust smoke at Max 170 °C
Temperature of exhaust smoke at Min 100 °C
Particulate /OGC / Nox (13%O2) <13 mg/Nm3 - 5 mg/Nm3 - 107 mg/Nm3
CO at 13% O2at Min and at Max 0,060 – 0,018%
CO2at Min and at Max 4,5% - 9,0%
Recommended draught at Max power**** 0,10 mbar - 10 Pa****
Minimum draw allowed for minimum power 0,0 mbar - 0 Pa
Smoke mass 6,2 g/sec
Hopper capacity 20 litres
Type of pellet fuel Pellet diameter 6-8 mm and size 5/30 mm
Pellet hourly consumption Min ~ 0,7 kg/h* - Max ~ 1,8 kg/h*
Autonomy At min ~ 20 h* - At max ~ 7 h*
Heatable volume m3172/40 – 197/35 – 229/30 **
Combustion air inlet Ø 50 mm
Smoke outlet Ø 80/100*** mm
Air inlet 80 cm2
Rated electrical power (EN 60335-1) 55 W (Max 400 W)
Supply voltage and frequency 230 Volt / 50 Hz
Net weight 130 kg
Weight with packaging 140 kg
Distance from combustible material (rear\sides\oor) 50/50/0 mm
Distance from combustible material (ceiling\front) 800/800 mm
* Data that may vary depending on the type of pellets used
** Volume that can be heated, according to the power requirement per m3(respectively 40-35-30 Kcal/h per m3)
***Using the adapter supplied with the product
**** Value recommended by the manufacturer (non-binding) for the optimal operation of the product
Head according to EN 14785 in agreement with the EU Building Products Regulation (EU 305/2011).

t
t
v
v
s
18
6-INSTALLATION AND ASSEMBLY
PREPARATION AND UNPACKING
The packaging consists of a recyclable cardboard box according to RESY standards, recyclable EPS foam inserts, wooden pallets. All
packaging materials can be reused for similar use or eventually disposed of as urban solid waste, in compliance with the regulations in
force.
After having removed the packaging make sure the product is intact.
Handle the product with suitable means paying attention to the applicable safety regulations in force. Do not turn the
packaging over and handle the majolica parts with care.

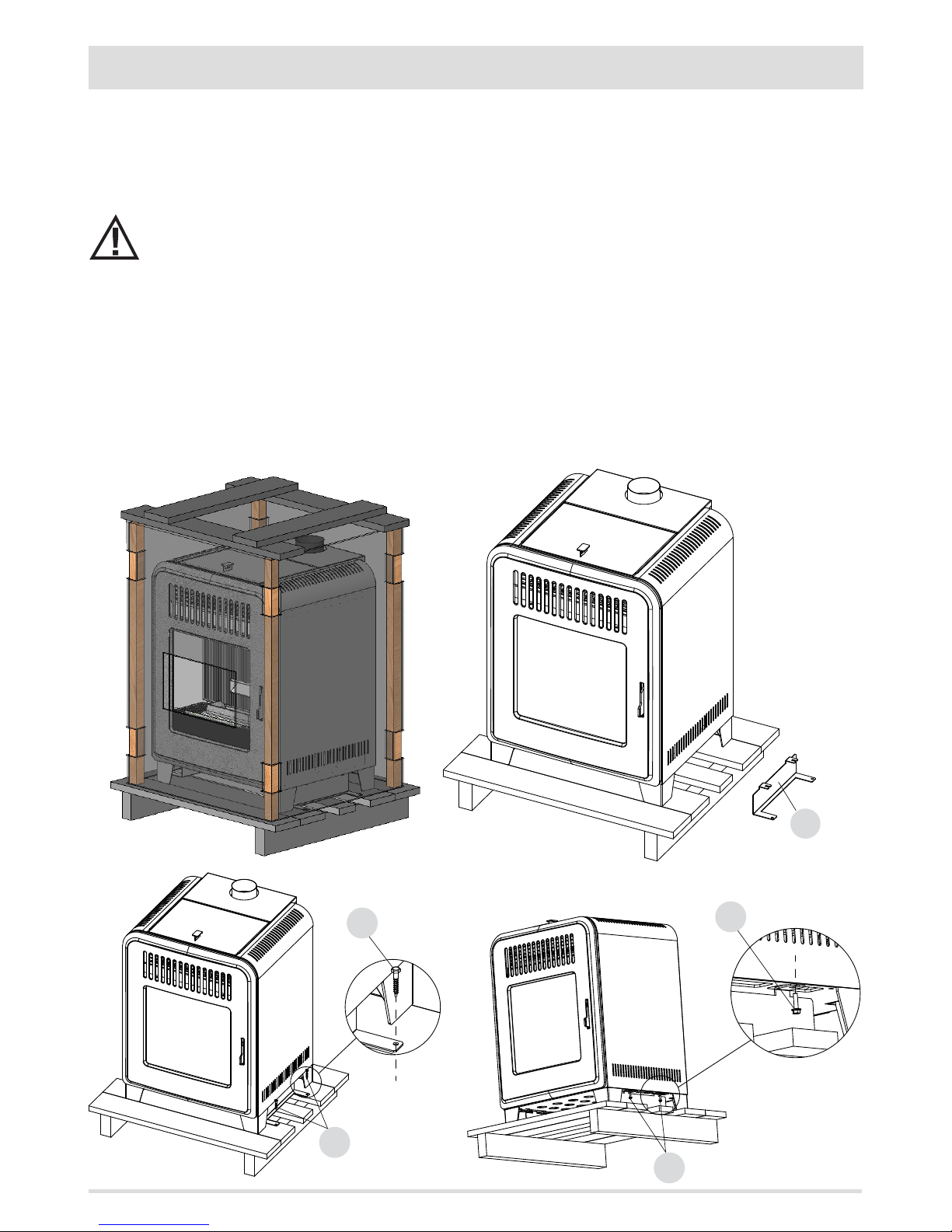

The stove CUTE/THEMA is delivered in a single package. Open the package, remove the two screws“v”which secure the stove brackets to
the pallet and then remove the bracket “S”from the stove foot.
Install the stove in the chosen area, making sure it complies with the requirements.
The stove body or unit must always be kept in a vertical position when handled, and handled using carts only. Pay particular attention to
the door and its glass, protecting them from mechanical knocks that would compromise their integrity.
The product must always be handled with care. If possible, unwrap the stove near the chosen area of installation.
The packaging materials are neither toxic nor harmful, therefore no particular disposal measures are required.
