ME-Geithain ME802K User manual

musikelectronic geithain
Instructions for installation and use

II
musikelectronic geithain GmbH ME 802 K
1 Table of contents
1 Introduction 1
2 Disclaimer 2
3 System description 3
4 Basic information 4
4.1 Guidelines 4
4.2 Safety instructions 4
4.3 Unboxing 5
4.4 Delivery contents 5
4.5 Cleaning 5
4.6 Environmental conditions 5
4.7 Guarantee acknowledgements 5
5 Positioning 6
5.1 Positioning near walls 6
5.2 Stereo operation 7
5.3 Surround operation 8
6 Set-up the speakers 9
6.1 Mains connection 9
6.2 Cable connection 9
6.3 Adjustment controller 10
6.4 Status indication 10
6.5 LFE input 10
7 Technical data 11
8 Acoustic measurements 12
9 Notes 13

Introduction 1
musikelectronic geithain GmbH ME 802 K
1 Introduction
Dear customer,
Thank you for the trust you have put in us by buying these speakers. You decided upon a quality
product that in regard to tonal and technical characteristics complies to the utmost expectations.
The usual burn-in period is not required, because the speakers are artifi cially aged in-house.
Please read the technical description and manual to take advantage of the capabilities
of these speakers and ensure safe operation.

Disclaimer 2
musikelectronic geithain GmbH ME 802 K
2 Disclaimer
Technical data and appearances are subject to changes without notice. Errors and omissions
excepted. Musikelectronic Geithain GmbH assumes no liability for any loss which may be suff ered
by any person who relies either wholly or in part upon any description, photograph or statement
contained herein. Musikelectronic Geithain GmbH products are sold through authorized fulfi llers
and resellers only. Fulfi llers and resellers are not agents of Musikelectronic Geithain GmbH and
have absolutely no authority to bind Musikelectronic Geithain GmbH by any express or implied
undertaking or representation. This manual is copyrighted. No part of this manual may be reproduced
or transmitted in any form or by any means, electronic or mechanical, including photocopying and
recording, or by any information storage or retrieval system without the prior written permission of
Musikelectronic Geithain GmbH.
All rights reserved
Copyright © 2017 Musikelectronic Geithain GmbH

System description 3
musikelectronic geithain GmbH ME 802 K
3 System description
The 4-way concept of the ME 802K comprises three 10-inch woofer systems, a 6.5-inch high-
performance midrange system and a tweeter array with three vertically arranged 1-inch dome
tweeters. The directivity of the system has been optimized for listening distances of between three
and eight metres, rendering a natural sound image in stereo and multichannel operation. Two 1000
W and two 500 W amplifi er modules supply the bass, mid and treble channels with suffi cient power.
The resulting overload safety ensures that even signals with highest peak levels are not limited. Also,
sound pressure levels of up to 125 dB can be performed without audible distortions throughout the
eff ective frequency range. A room compensation network, integrated into the amplifi er electronics,
allows control of the room-dependent frequency response.
The vertical arrangement of the 10-inch woofers provides a directivity index that ensures realistic
bass presence even at listening distances of up to eight metres. Our reliable K Technology minimizes
rearward-directed room refl ections in the bass range and simplifi es the positioning of the ME 802K
in the listening room. If required, the three 10-inch bass units can be operated as subwoofers via
the LFE input.
The low coloration and low distortion of the 6.5-inch high-performance midrange system result from
the intelligent combination of several construction details. The cone loudspeaker, for example, runs
without contact to the enclosure, thus avoiding the problem of cabinet resonances. Instead, the
midrange system is operated with a rearward-directed acoustic fl ow resistor in order to achieve the
desired directivity.
Frequently used wave guides in front of tweeter systems make directivity control easy. However,
they tend to produce unavoidable coloration due to short-time refl ections on the inner horn surface.
We take a diff erent approach by using a tweeter array and doing without horn loudspeaker systems
for sound level enhancement. The tweeter unit that is arranged coaxially in front of the midrange
system guarantees the trademark low coloration reproduction of sound events in our loudspeakers.
All these features make the ME 802K so unique on the loudspeaker market. It is ideal for large
listening distances and for acoustically less attenuated rooms.

Basic information 4
musikelectronic geithain GmbH ME 802 K
4 Basic information
4.1 Guidelines
This product complies to requirements of current European and national guidelines (Elektro-
magnetische Verträglichkeit 89/336/EWG). The conformity is ascertained, corresponding declarations
and records are deposited with the manufacturer.
Products built by us belong to B2C-class of the WEEE guidelines and must not
be disposed with domestic waste.
4.2 Safety instructions
Like using any other electrical device you should observe the following operation guidelines, safety
instructions and warning signs to ensure optimum functionality and safety of operation!
Read these instructions carefully.
Keep these instructions.
Do not attempt to service this product yourself as opening or removing cover may expose you
to dangerous voltage or other hazards.
Do not install the device near any heat sources.
Do not expose the device to direct sun radiation.
Do not install the device in rooms with high humidity.
Do not try to insert anything into device openings.
The device shall not be exposed to dripping or splashing and no objects fi lled with liquids shall
be placed on the device.
There is risk of electric shock when the device is open.
Refer all servicing to qualifi ed service personnel.
Clean only with dry or slightly moistened cloth.

Basic information 5
musikelectronic geithain GmbH ME 802 K
4.3 Unboxing
The speakers are shipped in proper condition. Unpack the speaker carefully and check for visible
damages. In case of damages report them to your retailer. Keep the packaging, in case the speaker
has to be transported in the future.
4.4 Delivery contents
Speaker ME 802K
 Mains cable
Technical description and user manual
4.5 Cleaning
The speaker is made of real wood veneer and needs to be nurtured in the same way as furnishings.
We advise quality wax polish to ensure durability of the veneer. Surfaces can also be cleaned with
tidy, slightly damped, fuzz-free, smooth cloth.
4.6 Environmental conditions
Ensure the following environmental conditions in your listening room:
Operating temperature + 15°C ... + 35°C (59°F ... 95°F)
Storage temperature range - 25°C ... + 45°C (- 13°F ... 113°F)
Relative humidity 45 % ... 75 %
4.7 Guarantee acknowledgements
Opening the device by unauthorized personnel leads to all claims under guarantee expire. In case of
destruction by overload, misuse or outside infl uences there are no claims under guarantee.

Positioning 6
musikelectronic geithain GmbH ME 802 K
5 Positioning
Our speakers do not impose special requirements neither in stereo nor in multichannel set-ups.
Nonetheless speaker positioning has infl uence on listening impression because every room is
individually designed and furnished. The following advices are just guidelines that ease proper
positioning. In addition we off er a measurement service to take advantage of the capabilities of your
listening environment.
5.1 Positioning near walls
When speakers are installed near walls sound quality is physically aff ected. Every customary speaker
behaves as a punctual sonic source in the low frequency range, with sonic waves spherical radiated
without any constructional measures. Back wall refl ections are unavoidable.
The speakers however utilize cardioid radiation characteristics with rearward attenuation greater than
10 dB. Because of this structural measurement installation near walls is considerably less critical. For
optimum listening experience a minimum distance of 20 cm (7.9″) to walls and furniture should be
ensured. Avoid corner installations because unwanted bass accentuation could arise.

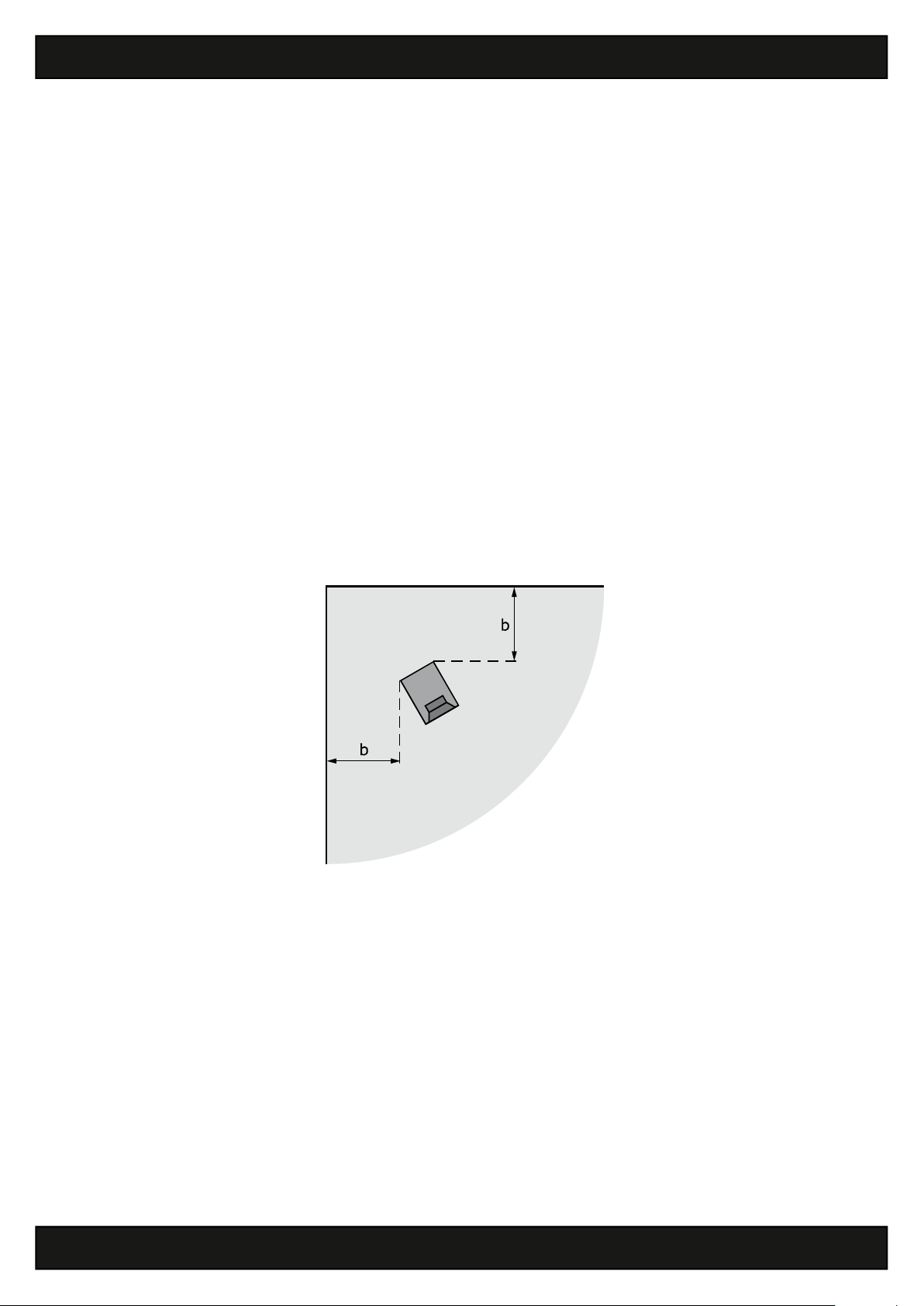

Minimum distance to wall b ≥ 20 cm (7.9″)

Positioning 7
musikelectronic geithain GmbH ME 802 K
5.2 Stereo operation
The optimum position of the speakers in your listening environment is the so-called stereo triangle
(see fi gure). The base distance between the speakers and the distance to the hearing zone form
an equilateral triangle (stereo triangle). A distance less than 3 m (9′10″) or more than 8 m (26′3″)
should be avoided. For precise, spacial reproduction turn the speakers inside, directed to the hearing
zone.
Distance between speakers and your listening position a = 3 m … 8 m (9′10″ … 26′3″)
Adjust the speaker horizontally to the height of the ear at the listening position

Positioning 8
musikelectronic geithain GmbH ME 802 K
5.3 Surround operation
In surround operation the stereo triangle (see Stereo operation) is extended to a circle. The hearing
zone is the centre of this circle. Position all speakers in the same distance to the hearing zone. The
centre speaker is positioned in the middle between both front speakers. Pay attention to positioning
the front and rear speakers horizontally along one plane. The angle between centre and rear speakers
should be about 110° - 120°.
Distance between speakers and your listening position a = 3 m … 8 m (9′10″ … 26′3″)
In case installation in the prescribed way is not possible in your listening room most decoding
devices allow adjustments of single speakers.

Set-up the speakers 9
musikelectronic geithain GmbH ME 802 K
6 Set-up the speakers
In this chapter we inform you how to connect your speakers to mains and your signal source. Ensure
that the mains switch on the backside is in position “OFF”. Only when your speaker is completely
connected (see chapters 6.1 and 6.2) you can take the device into operation by use of the mains
switch.
The speaker can be connected to every common pre-amplifi er (Ua = 1 V ... 5 V; Ri < 600 Ω).
6.1 Mains connection
Before start-up check the mains voltage state on the backside of the device. If your local mains voltage
does not match the specifi cation of the speaker, please refer to your retailer or direct distribution.
When the stated and your local mains voltage comply connect the mains connector of the speaker
to the socket with the included mains cable.
6.2 Cable connection
The input of the integrated amplifi er is electrically balanced. When your signal source also utilizes
balanced connectors, please use a cable wired as stated in the table:
Balanced connector
(amplifi er)
Balanced connector
(signal source)
Unbalanced connector
(signal source)
XLR XLR RCA
Earth Pin 1 Pin 1 Ring
Signal + Pin 2 Pin 2 Tip
Signal - Pin 3 Pin 3 Ring
When using a signal source with unbalanced outputs (RCA) you need to balance the connecting
cables. This avoids hum and other noise interferences. The table and the following fi gure show the
wiring.

Set-up the speakers 10
musikelectronic geithain GmbH ME 802 K
6.3 Adjustment controller
The “Level” controller is used for level adjustment over the full frequency range.
6.4 Status indication
The two-coloured LED at the front of the speaker is used as status indicator of the device.
LED green: indicates normal operation of the device
LED red: indicates the operation of the overload protection circuit;
Output power limitation to protect the components from overloading
6.5 LFE input
The LFE input is useful if only the two lower woofers should exclusively reproduce the LFE channel.

Technical data 11
musikelectronic geithain GmbH ME 802 K
7 Technical data
General Active 4-way high-performance-loudspeaker for listening distances
between 3 m (9′10″) and 8 m (26′3″)
Maximum SPL
to IEC 268-1
Programme material
≥ 119 dB
125 dB peak / r = 1 m (3′3″) (4 π)
Bandwidth 25 Hz ... 22 kHz ± -6 dB
Calibration:
Acoustic output level / PE = - 14 dBu 90 dB / r = 1 m (3′3″)
Directivity index
from 100 Hz ... 10 kHz increasing from 4 dB to 10 dB
Inherent noise sound level ≤ 10 dB (A) / r = 1 m (3′3″)
Total harmonic distortion
measured at 100 dB / r = 1 m (3′3″)
from 100 Hz ... 10 kHz ≤ - 45 dB
Nominal input level + 6 dBu (adjustable)
Input i mpedance ≥ 10 kΩ RC balanced
Electronic crossover frequencies 160 Hz, 680 Hz und 2 kHz
Nominal output power of the amplifi er
LF 1 and 2
MF
HF
1,000 W / 4 Ω
500 W / 4 Ω
500 W / 4 Ω
Input connector 2× XLR 3F (programme- and LFE-input)
Loudspeaker systems
Woofer
Mid-range unit
Tweeter
3x 260 mm (10″) cone
1x 160 mm (6.5″) cone
3x 25 mm (1″) dome
Operation and clipping indicator LED on front
Power requirements 90V ... 132 V, 55 Hz ... 65 Hz
190 V ... 265 V, 45 Hz ... 55 Hz
Power consumption 42 VA when idle
max. 1,500 VA at full load
Mains connection IEC power connector with HF fi lter
Temperature requirements
for use
for storage
Humidity
+ 15°C ... + 35°C (59°F ... 95°F)
- 25°C ... + 45°C (- 13°F ... 113°F)
45 % ... 75 %
Dimensions (H × W × D) 1,155 mm × 366 mm × 423 mm (45.5″ × 14.5″ × 16.7″)
Weight 82 kg (180.8 lbs)
Design of the cabinet
acoustic baffl e
MDF wood in ash black veneered; optional diff erent veneers or colours
MDF wood in microstructure semi-gloss black

Acoustic measurements 12
musikelectronic geithain GmbH ME 802 K
8 Acoustic measurements
All acoustic measurements are carried out under anechoic conditions with 2 m (6′7″) distance.

Notes 13
musikelectronic geithain GmbH ME 802 K
9 Notes

Notes 14
musikelectronic geithain GmbH ME 802 K

Notes 15
musikelectronic geithain GmbH ME 802 K

musikelectronic geithain gmbh
STUDIOTECHNIK - HIGHENDTECHNIK - BESCHALLUNGSTECHNIK
Nikolaistraße 7
04643 Geithain / Germany
Tel: [phone]
Fax: [phone]
E-Mail: [email protected]
www.me-geithain.de
BDA ME 802 K170825ENV03
