Measurement Systems DAIRYSCAN JET 1 User manual

MEASUREMENT SYSTEMS LTD
18, Pop Manol Street, Plovdiv 4003, Bulgaria, email: [e-mail],
www.msyst.eu, tel./fax: [phone]
DAIRYSCAN
Milk analyzing device
Model –JET 1
Fat, Solids-Non-Fat (SNF), Density, Protein, Lactose, Salts, Water
content, Freezing point, Temperature and Conductivity
OPERATING INSTRUCTIONS

2
Thank you for purchasing this product!
For optimum safety, proper use and maintenance of
the device,
Please read these instructions carefully!
MEASUREMENT SYSTEMS LTD
THE INFORMATION CONTAINED IN THIS MANUAL IS A SUBJECT
TO CHANGE WITHOUT NOTICE. FOR UPDATES, PLEASE
CONTACT THE MANUFACTURER
OR USE THE FOLLOWING WEB ADDRESS:
www.msyst.eu
CAUTION!
This device operates on 100-250V. In order to avoid electrical
shock or to prevent the unit from damage, DO NOT REMOVE the
cover!
Please follow the instructions in this manual!

3
Safety recommendations:
Read carefully and make sure you understand all the
instructions.
For safety purposes this device is equipped with grounded
power cable. If you do not have grounded electrical outlet
please have one installed before using the device.
Place the device on a leveled and stable surface. If it falls or
is severely shocked its functional systems may be
damaged.
When plugging the device into the electrical outlet, put away
the power cord so it does not stay in the way when
accessing the device and cannot be stepped on.
Unplug the device from the electrical outlet every time
before cleaning. The device must remain unplugged from
the outlet for the entire time during cleaning.
Do not disassemble the device in order to avoid possible
electrical shock. In case of malfunction contact your local
dealer.
Handle the liquids the device works with carefully, following
all the instructions for their preparation.

4
Table of contents
1. Table of contents.……………………….………………..………….…..4
2. General description.……………..……………………………...............5
3. Close-up view.………………………………….………………………...6
3.1 Front panel………………………………….…………………….6
3.2 Display…..…………………………………………………..........7
3.3 Back panel..............................................................................8
4. Samples preparation...…………………………………………………..9
5. Working description.………..…………………………………………..10
6. Cleaning and maintenance.…………….……………………………..24
6.1 Routine cleaning.……………………………………………….24
6.2 Complete flushing …………….…………………………….....25
6.3 Weekly cleaning.……..………………………………………...26
7. Troubleshooting.…..…………………………………………………....27
8. Technical specifications.…………………………………………........28
9. Guarantee card................................................................................30

5
General description
2. General description
DAIRYSCAN JET 1 is designed for percentage analysis of Fat, Solids-
Non-Fat (SNF), Density, Protein, Lactose, Salts, Water content,
Freezing point, Temperature (°C) and Conductivity (option). Тhose
components can all be measured at the same time.
The device can measure three types of milk. Factory preset is for cow
milk. Upon user’s request the device can be calibrated for other types
of milk.
The device has a compact design with a robust structure and a user-
friendly interface. Most importantly, the one-button operation is
extremely simple –you press only once to start measuring, you press
only once for cleaning. DAIRYSCAN JET 1 can analyse three types of
milk defined by user. The measuring cycle is 60/90 samples per hour.
The samples are precisely dosed and small quantities are required –
the sample volume is 15cm³. No thermal or mechanical treatment of
the samples before analysis is necessary. No use of chemical
reagents is required. The working conditions are as follows –
temperatures from 10° to 40°C (option 43°C), Relative Humidity from
30% to 80%.
With regard to the “moisture problem” which remains of much
significance the front panel of the device is designed to operate when
with wet hands. In addition to this DAIRYSCAN provides a one-year
full warranty.

6
Close-up view
3. Close-up view
3.1 Front panel
1
2
1 –Intake pipette
2 –Sample cup

7
Close-up view

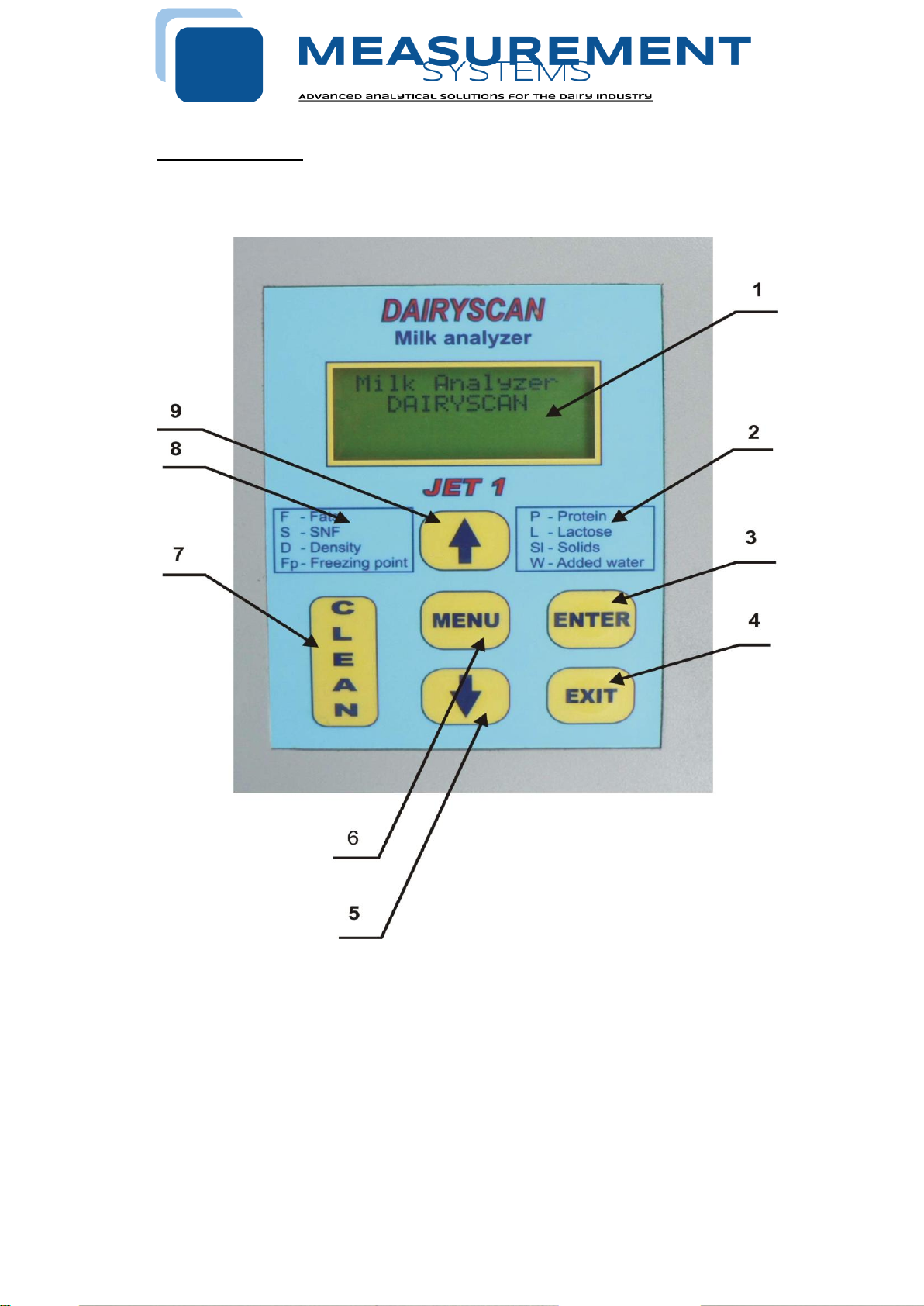

3.2 Display
1 –LCD
2 –Components to be measured
3 –ENTER button
4 –EXIT button
5 –Arrow DOWN button
6 –MENU button
7 –CLEAN button
8 –Components to be measured
9 –Arrow UP button

8
Close-up view
3.3 Back panel
1 –Serial port to printer
2 –Serial port RS 232
3 –Power out 12V (for printer)
4 –Power switch 220V AC
5 –Power socket 220V AC
6 –Hose
7 –Connection to flushing syringe
8 - Replaceable fuse 1,6A
9 –Power-in socket 12V DC
10 –Tube indicating the quality of flushing (milk level indicator)

9
Samples preparation
4. Samples preparation
In order that most accurate results are obtained it is important that the
milk be kept for 2 hours after milking and stirred well before being used
for sample material. A good way to stir up the milk is to pour it several
times out of one vessel into another and back. Before analysis the
samples have to be filtered in order to be free from foreign fragments.
Milk samples should be 1-40°C (option 43°C). Full cream samples
containing fat over 10% should be heated up to 42-43°C and then
cooled to 25-30°C. If the sample temperature is over 40°C the
message “Sample overheated” will appear on the display. Use milk
samples only once and do not return it to the vessel. Samples can be
kept for a maximum of 2 days if they are stored at a temperature not
exceeding 5°С.

10
Working description
Preparing the device
1. Place the device on a horizontal and stable surface.
Caution: Any sources of hot or cold air can influence the
accuracy of the measurements.
2. Connect the power cord 220V AC to the power socket on the
rear panel of the unit and plug it into the electrical outlet (the
outlet has to be grounded, see “Important Safety
Instructions”.
3. Turn on the POWER switch and DAIRYSCAN JET 1 will be
ready for use. Before proceeding, please read and follow the
rest of the instructions in this chapter!
Powering by an external 12V DC power source
DAIRYSCAN JET 1 can be used in places where no regular electrical
supply is available, DAIRYSCAN JET 1 can be powered by your car
battery or other 12V DC external power sources. DAIRYSCAN JET 1
has provided a cable suitable for this purpose. To use this option,
follow the procedure described below:
1. Unplug the 220V AC power cable from the socket on the rear
panel of the unit and then from the electrical outlet.
2. Connect the supplied power cord 12V DC to the Power-in
socket 12V DC socket on the rear panel of the unit and plug
the other end of the cable into the electrical lighter socket
inside your vehicle.
3. The device will be turned on immediately. After starting the
unit goes into system check mode and will be ready for
analyses in about 1 minute.

11
Working description
NOTE:
If the unit does not start up after it is connected to the power source, check the
fuse inside the connector plugged into the electrical lighter socket.
SELECTING A WORKING MODE
After DAIRYSCAN JET 1 is turned on from the POWER switch, the
display reads first:
Followed by:
You can choose among three types of milk at a time, (upon user’s
request the device can be calibrated for any type of milk). When you
choose the desired type you use the ↑↓ (UP and DOWN) arrow
buttons, then press ENTER to activate analyzing.
Milk Analyzer
DAIRYSCAN
Please Wait
System Check
Cow Milk
Sheep Milk
UHT Milk

12
Working description
In the meantime you should have dipped the intake pipette into the
sample milk in the cup and should have put them in a vertical position.
The following text will appear:
In about 40/60 sec. the results of analyzing will appear on the display
as follows:
Where:
F is for Fat
S is for Solids-Non-Fat (SNF)
D is for Density
Fp is for Freezing point
P is for Protein
L is for Lactose
Sl is for Salts
W is for Added water.
By choosing the ENTER button you can start measuring anew.
By choosing the EXIT button you can start from the very beginning and
choose to analyse another type of milk.
To access the menu, press the MENU button. The range of functions
is grouped into submenus. Scroll through the menu to select the one
that you need and then select the settings you need to make. Press
ENTER to activate them. Press EXIT to keep the previous settings.
MEASURING…
Please Wait
F=xx.xx P=xx.xx
S=xx.xx L=xx.xx
D=xx.xx Sl=xx.xx
Fp- x.xxx W=xx.xx

13
Working description
Example:
MENU > Mode > Correction > Cow milk > Fat.
To select Mode, Options or Settings use the ↑↓ (up and down) arrows
and press ENTER.
In Submenu Mode Use the ↑↓ (up and down) arrows and press
ENTER to select Correction, Calibration, Back up or Restore.
If You choose correction and press ENTER, then use the ↑↓ (up and
down) arrows and press ENTER to select the type of milk.
Mode
Options
Settings
Correction
Calibration
Back up
Restore
Correction
Cow Milk
Sheep Milk
UHT Milk

14
Working description
After choosing the type of milk use the ↑↓ (up and down) arrows and
press ENTER to choose a component for correction (mind that there
are 2 (two) pages of components thus scroll up and down).
Press the ↑↓ (up and down) arrows to correct the value with 0.01.
Press ENTER to validate the correction or EXIT to keep the previous
value.
Fat
SNF
Density
Protein
Lactose
Solids
Water
Correction
Of Fat
0.01

15
Working description
MENU > Mode > Calibration
Calibration:
In order to perform calibration of the device for a certain type of milk
/for example –cow milk/. You need two samples of milk with known
values of their parameters –one with comparatively high percentage of
Fat and one with comparatively low percentage of Fat.
After pressing ENTER on the display appears:
Use the ↑↓ (up and down) arrows and press ENTER to select the type
of milk.
The following text will appear on the display:
Use the ↑↓ (up and down) arrows and press ENTER to select a
parameter. Then the cursor will mark the place to enter a known value.
Use the ↑↓ (up and down) arrows to set the desired figure and press
Calibration
Cow milk
Sheep milk
UHT milk
Set High sample
FAT=x.xx
SNF=x.xx
DEN=x.xx
Set High sample
LAC=x.xx
SOL=x.xx
PRO=x.xx

16
Working description
ENTER to confirm. Then the cursor goes to the figure to the right. Use
the same procedure to enter the second and third figure. After
confirmation of the last figure the cursor goes to the next parameter for
entering new values (mind that there are 2 (two) pages of components
thus scroll up and down).
By confirming the last figure of the last parameter the following text
appears on the display:
And then
By performing the procedure described above enter the known values
of the parameters of the milk with low percentage of Fat.
After confirming the last figure of the last parameter by pressing
ENTER the following text appears on the display:
The sample of milk with high Fat must be measured 5 consecutive
times. Put the first cup with the sample and press ENTER.After
measurement the following text appears on the display:
Set Low sample
FAT=x.xx
SNF=x.xx
DEN=x.xx
Set Low sample
LAC=x.xx
SOL=x.xx
PRO=x.xx
Put sample
High Milk
1/5 times
and Press ENTER
Put Sample
High Milk
2/5 times
and Press ENTER

17
Working description
Follow the procedure until the 5th measurement. After performing the
last measurement the following text appears on the display:
The sample of milk with low Fat must be measured 5 consecutive
times. Put the first cup with the sample and press ENTER.After
measurement the following text appears on the display:
Follow the procedure until the 5th measurement. After performing the
last measurement the following text appears on the display:
Follow the described above procedure. After the end of the 5th
measurement the calibration procedure is complete.
Put Sample
Low Milk
1/5 times
and Press ENTER
Put Sample
Low Milk
2/5 times
and Press ENTER
Put Sample
Water
1/5 times
and Press ENTER

18
Working description
Please note:
Before each sample measurement stir the milk by pouring it from one
vessel to another.
The temperature of the samples should be in the range of 15 to 25
degrees.
Before starting calibration it is recommendable to back up the
parameters of the existing calibration:
MENU > Mode > Back up
Choose the type of milk calibration for back up and press ENTER
In case of unsuccessful calibration/electricity cut, temperature range,
etc/choose Restore from the MENU to validate the last backed up
calibration and press Enter.
MENU > Mode > Restore
Cow –calibr.1
Sheep –calibr.2
UHT –Calibr.3

19
Working description
MENU > Options > System info
Choose Options and press ENTER.
Choose System info, Language or Time and Date, and press ENTER.
MENU > Options > Language
Language:
Example:
MENU > Options > Time and Date
Time and date:
System Info
Language
Time and Date
DAIRYSCAN
Model: Jet 2
Ver: x.xx
SN: XXXXXX
Not available
for this model
Not available
for this model

20
Working description
MENU > Settings > Set Fr. Point.
Choose Settings and press ENTER.
Choose Set Fr.point or Set pH and press ENTER.
Use ↑↓(Up and Down) arrows to choose a type of milk and press
ENTER. The following text appears on the display:
Use ↑↓(Up and Down) arrows to enter the new value and Press Enter
to confirm. After dialing the last symbol press ENTER to confirm the
new value.
Set Fr. Point
Set pH
Set thermometer
Set f. Point Cal.1
Set f. Point Cal.2
Set f. Point Cal.3
Set Fr. Point
- 0,540
Press ENTER
To Set
