INSTALLATION AND OPERATION MANUAL
Traction table
TRITON 6M
Manufacturer
MEDEN - INMED, Spółka z o.o.
UL. WENEDÓW 2
75-847 KOSZALIN
POLSKA
TEL. [phone]
FAX. [phone]
www.meden.com.pl
For service & repair:
Please contact your local DJO office or
authorized dealer.
www.djoglobal.com

01-12-2017 TRITON 6M User Manual.doc Strona 2 z 27
CONTENT
1. INTRODUCTION 3
2. FEATURES OF TRITON 6M TRACTION TABLE 4
2.1. USAGE 4
2.2. CE MARK 4
2.3. MARKING 5
2.4. TECHNICAL DATA 6
3. TRACTION TABLE TRITON 6M DESIGN AND FUNCTIONS 7
3.1. TABLE COMPONENTS 7
3.2. EQUIPMENT AND ADDITIONAL ACCESSORIES 8
3.3. TABLE SET 8
3.4. TRANSPORT AND STORAGE 8
4. GENERAL WARNINGS AND CAUTIONS 9
5. PREPARING THE UNIT FOR USE 10
6. OPERATING THE TABLE 11
6.1. HEIGHT ADJUSTMENT – RAISING (LOWERING) THE BED 12
6.2. ADJUSTMENT OF THE SECTIONS INCLINATION/DECLINATION ANGLE 13
6.3. POSITIONING THE SLIDING TOP SECTION 14
6.4. ATTACHING AND REPLACING TRACTION UNIT STAND TO TABLE 14
6.5. ASSEMBLY OF TRACTION BELT 15
6.6. PLACEMENT OF TRACTION UNIT 16
6.7. MOVING THE TABLE 16
6.8. ACCESS LOCK 17
7. MAINTENANCE 18
7.1. CLEANING THE UPHOLSTERY 18
7.2. MAINTENANCE OF THE MECHANICAL PARTS 19
7.3. CHECKING THE GAS SPRINGS 19
7.4. CHECKING THE ACTUATOR 19
7.5. PERIODIC CHECK OF ELECTRICAL SAFETY 20
8.0. TROUBLESHOOTING 21
9.0. ELECTROMAGNETIC COMPATIBILITY – GUIDANCE AND MANUFACTURER’S
DECLARATION 22
10. WARRANTY CARD 26

01-12-2017 TRITON 6M User Manual.doc Strona 3 z 27
1. INTRODUCTION
Congratulations on a perfect choice of our traction table. TRITON 6M is stable, reliable and easy to
use. These features result from careful design, manufacturing methods applied in production and the
quality assurance system. Reading and following instructions provided in this manual will ensure safe
and long lasting use of our table.
GENERAL INSTRUCTIONS:
1. This product must be operated by qualified and trained personnel who have thoroughly read,
understood and put into practice all the precautionary and operating instructions contained in
this operation manual.
2. Using, operating or servicing of the product contrary to the rules and recommendations
contained in this user manual is prohibited, as it may lead to damage which the manufacturer
shall not be liable for.
3. If the performance or parameters of the product are found to be inconsistent with what the
operation manual describes or any damage is noted, you must stop using the product and
inform the manufacturer or the reseller immediately.
4. Repair of the product must be done by the local DJO office or authorized dealer and registered
on the repair list in the warranty card. Failure to do so will void the warranty.
5. Technical description of the table with a list of spare parts and how to replace them is
available from the manufacturer on request.
This warranty will not be fulfilled if the product is used contrary to its purpose or fails to comply with
the terms set in the user manual. The manufacturer shall not be liable for the consequences of
improper (i.e. against the instructions contained in this user manual) use of the accessories for the
traction table.

01-12-2017 TRITON 6M User Manual.doc Strona 4 z 27
2. FEATURES OF TRITON 6M TRACTION TABLE
This manual describes the features of the TRITON 6M table, not all of the information and drawings
contained in it may apply to your table. The manufacturer reserves the right to make changes, not
depicted in the current version of the manual, which will not cause degradation of functional and
safety conditions of the product.
2.1. Usage
TRITON 6M Traction table is designed to treat the spine under traction together with the traction unit.
Traction treatments are performed in order to increase spinal mobility and decompression by relaxing
tense muscles and increasing intervertebral disc spacing and foraminal encroachment, which leads to
a reduction of oppression and irritation of the nerve roots and improvement of circulation in the area of
the vertebral artery.
2.2. CE mark
TRITON 6M Traction table with accessories is manufactured in accordance with the essential
requirements for medical devices (Class I, rule 12) and carry a CE mark, according to the manufacturer's
declaration.

01-12-2017 TRITON 6M User Manual.doc Strona 5 z 27
2.3. Marking
Symbol Definitions:
CAUTION
This sign denotes operations which - when performed in a way other than described in this manual –
may
cause injury to the user or damage to equipment.
Refer to Instruction Manual/Booklet.
Type B Equipment.
Manufacturer.
All electrical and electronic equipment waste must be disposed-
of properly at recycling facilities according
to the European Union’s WEEE directive or equivalent regulations. It is absolutely necessary that all
devices which contain substances harmful to the environment or humans are recycled properly in rel
evant
facilities and must not be disposed of with general or household waste. Such regulations ensure that the
quantity of electronic waste is reduced and a required amount of electronic devices is recycled properly.
Proper recycling of electronic waste is
important as it may contain substances harmful to the environment
and humans.
Safe working load
Pelvic section angle adjustment
- lowering
Pelvic section angle adjustment
- raising
Lock/Unlock moveable bed section
He
ad and Chest adjustment control lever
Arm section adjustment lever
Graduation range of the pelvic section

01-12-2017 TRITON 6M User Manual.doc Strona 6 z 27
2.4. Technical data
Table 1 shows the technical characteristics of the TRITON 6M traction table:
Technical data
TRITON 6M
Table length
[cm]
arms, chest and head
section 72
mid section 22
pelvic section 26
leg section 77
total 217 (leg section extended)
Angle adjustement/
declination
inclination [degrees]
arms, chest and head
section from -15 to 40
Angle adjustement
inclination [degrees] pelvic section from 0 to 15
Angle adjustement
inclination [degrees] leg section from 0 to 45
Displacement adjustment
leg section 10
[cm]
Height adjustement min 48 1
[cm] max 95 1
Table width [cm] All sections 70
Duty cycle
18
min.
2
min.
discontinuous, short term load (10%) max. 2 minutes “on”, min. 18 minutes “off”
Lifting capacity [kg]
≤ 200 kg
(max safe load while adjusting height)
Working capacity
[kg]
≤ 275 kg
(max safe load while not adjusting height)
Weight [kg] Not more than 165
Power and security
Voltage frequency,
current consumption 100-240V/50-60 Hz/3,9A
requirements Protection class
I
Application part type B,
Protection level Enclosure (control
box) IPX4
environment conditions
work +10C up to +40C, from 30% to 75% non-condensing, 700-1060 hPa
(temperature, relative
storage +5C up to +45C, not exceeding 75% non-condensing, 700-1060 hPa
humidity, air pressure)
transport -10C up to +45C, from 20% to 95% non-condensing, 700-1060 hPa
Table 1 – Technical data

01-12-2017 TRITON 6M User Manual.doc Strona 7 z 27
3. TRACTION TABLE TRITON 6M DESIGN AND FUNCTIONS
3.1. Table components
CAUTION !
It is forbidden to modify tables without written authorization from the manufacturer.
CAUTION !
The manufacturer has made every effort to ensure
that the product may be used with other
traction accessories on the market. At the same time in order to ensu
re full compatibility and
comfort in use, it is
recommended to use QuickWrap DTS traction belts and mechanical traction
unit TRU-TRAC/TRITON of Chattanooga Group, recommended by Meden-Inmed.
The frame of the table is made of welded steel sections coated with powder paint. It includes the
following components:
Picture 1 - Elements of the TRITON 6M Traction table
①base frame the table support base, equipped with 4 wheels with total lock;
②upper frame the base for the bed top with locking of the movable part;
③patient bed allows patients to assume comfortable position for traction treatment with the
possibility of manual adjustment of inclination and declination angles of the arms, chest, head and
adjustment of position of the movable leg section;
④front section with angle adjustment, a breathing hole, and a mounting point for the belt;
⑤traction unit base the base for the traction unit;

01-12-2017 TRITON 6M User Manual.doc Strona 8 z 27
3.2. Equipment and additional accessories
CAUTION !
Use only accessories recommended or provided by the manufacturer.
Every TRITON 6M traction table is provided with a breathing slot and reinforced mounting point for
the traction belt in its front section.
Additionally, the tables may be equipped with the following accessories:
- traction unit TRU-TRAC/TRITON (recommended by Meden-Inmed);
- set of professional traction belts QuickWrap DTS (recommended by Meden-Inmed);
- stabilization belts;
- wedges: 30x40x12 cm and 50x35x20 cm;
- rolls and semi-rolls 60x15 cm and 60x15x10 cm;
- traction supports.
3.3. Table set
3.4. Transport and storage
Transport and storage conditions are described in Table 1. The TRITON 6M tables are transported to
the customer in a cardboard box on a wooden pallet. Stacking is permitted up to 3 layers using
special stackable pallets. External edges of the upholstered parts are protected with foam, bubble
wrap and stretch foil. Protect the outer edges of TRITON 6M Traction tables against damage while
moving or transporting them.
TRITON 6M Traction table model as per order
specs
Installation and operation manual 1 pc.
Additional accessories as per order specs

4. GENERAL WARNINGS AND CAUTIONS
CAUTION !
To avoid the risk of electric shock, the device must be connected to a protective earth ground.
Do
not use any extension cords and splitters.
CAUTION !
Do not use a table with a power cord other than provided by the manufacturer.
CAUTION !
TRITON 6M traction table has a
limited load capacity! The safe working load should not exceed
200 kg when lifting and the total load should not exceed 275 kg.
CAUTION !
If the patient is placed in the wrong position relative to the moving parts of the bed, there is a risk
of injury to the body or table structure.
INCORRECT CORRECT

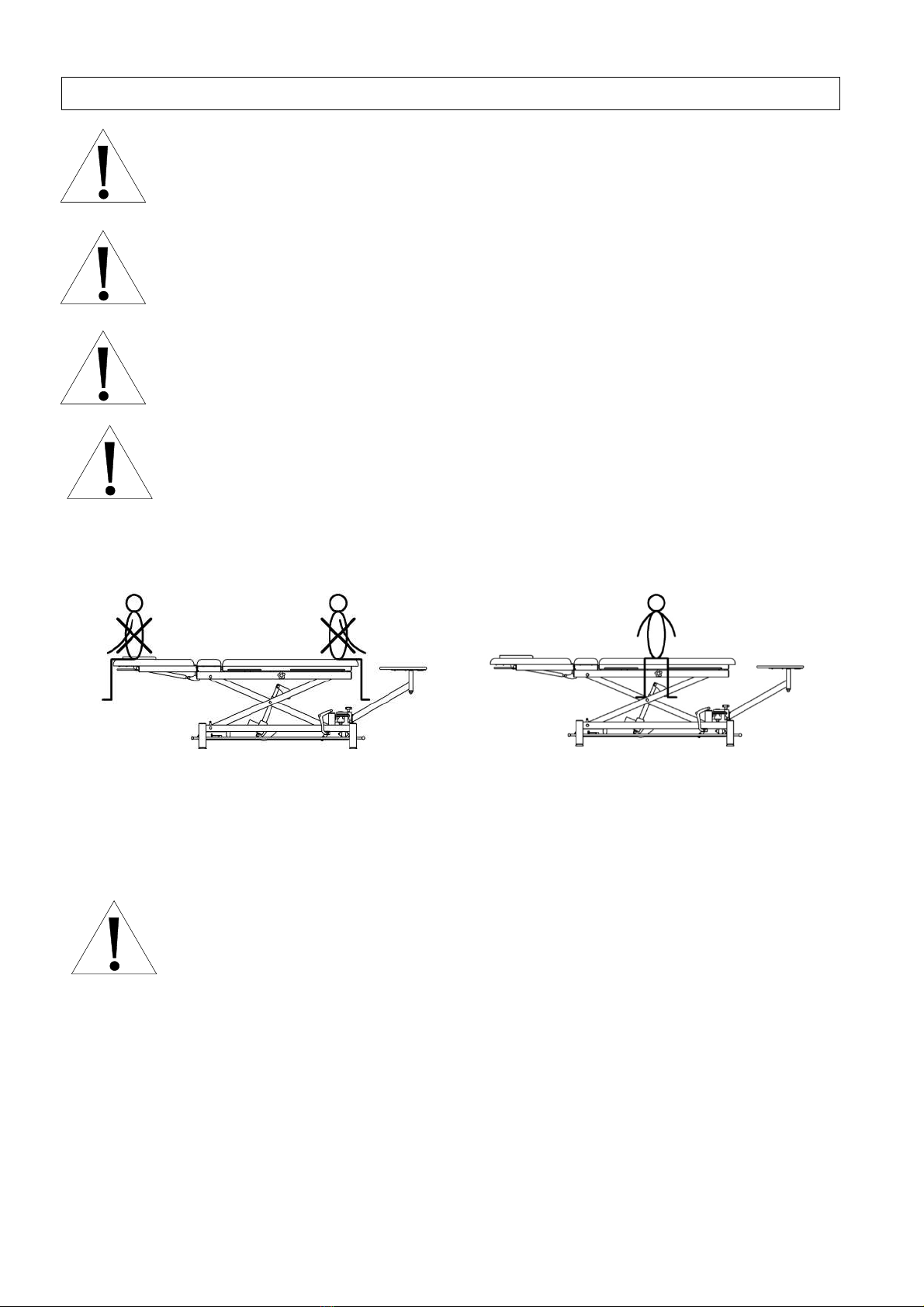

Picture 2 - Ways of correct and incorrect loading of the table
CAUTION !
Do not allow liquids (coffee, tea, water, detergents and disinfectants) to contact the actuator
electrical wiring
and other components of the table. In the case of water damage to electrical
wiring or actuator conduit the ta
ble should be immediately disconnected from the power supply
by removing the plug from the outlet.
It is recommended to have the table examined by a
qualified technician.
Help the patient to maintain proper position before doing treatment procedures by lowering the table
to the lowest position. Likewise, lower the table after the treatment to help the patient to get off the
table. The manufacturer is not liable for the consequences of improper (not in accordance with the
conditions set out in this manual) use of the TRITON 6M Traction tables.

01-12-2017 TRITON 6M User Manual.doc Strona 10 z 27
5. PREPARING THE UNIT FOR USE
CAUTION !
When setting or changing the place of use of the TRITON 6M traction table, ensure that there are
no objects in the space below the bottom frame of the table. Do not allow access to children or
animals. Do not place objects in the space under the table to avoid damaging during the
movement.
CAUTION !
In order to safely disconnect the power supply system of the table, unplug the power cord of the
table from the socket.
CAUTION !
Unplug the table from the mains socket while performing maintenance, servicing or similar
actions under the table.
CAUTION !
When connecting the electrical power supply cable, make sure to protect it from accidental
clamping of objects between moving parts of the table. The electrical power supply cable
should be laid in such a manner so as to prevent the patient or the user from tripping over it.
CAUTION !
Do not use the table in rooms with high relative air humidity (especially in rooms meant for hydro-
therapeutic treatment).

01-12-2017 TRITON 6M User Manual.doc Strona 11 z 27
Select the place for the use of the table with a minimum of 80 cm clearance on each side of the
unit.
Picture 3 - Recommended positioning of the TRITON 6M Traction table
Once the table is in position, unpack it from the transport foil and plug the power cord into the mains
socket, which is freely accessible when using the table.
6. OPERATING THE TABLE
CAUTION !
Always maintain a safe distance from the table mechanisms operating at the time of adjusting
the height and position of the section table. Moving parts pose a risk.
CAUTION !
When using other electrical appliances near the table, make sure that their power cables are
not clamped or damaged by moving parts of the table.
CAUTION !
Before starting work on the table, make sure that the wheels are locked. (pic. 4).
CAUTION !
Before starting work, user should make sure that the patient is in a safe position.
CAUTION !
Avoid contact of upholstered surfaces with: oils, lotions, cosmetics. Contact with such agents can
cause stiffening and cracking of the cover material, as well as a change in gloss of the upholstery
surface, not covered by the warranty.

01-12-2017 TRITON 6M User Manual.doc Strona 12 z 27
a) b)
Picture 4 – Locking TRITON 6M wheels a) LOCK b) UNLOCK
Prepare a disposable bed cover (such as paper towels, disposable sheets etc.) for each patient
before using the TRITON 6M Traction table for treatment procedures. The patient should wear
comfortable clothing, which will help relax the patient and ensure effective treatment.
6.1. Height adjustment – raising (lowering) the bed
CAUTION !
Before starting work the user should make sure that the patient is in a safe position.
The height of the Triton 6M table is adjusted using the hand remote and foot control. To raise the
table to the desired height, press on the foot control or the on the remote control. To lower the
table, press the on the foot control or the on the remote control (pic.6). Lifting (lowering) the table
continues as long as the foot or hand button is depressed. When the maximum or minimum height is
reached, the actuator is automatically deactivated.
a) remote control b) foot control
Picture 5 – Height adjustment a) remote control b) foot control
LOCK
UNLOCK

01-12-2017 TRITON 6M User Manual.doc Strona 13 z 27
6.2. Adjustment of the sections inclination/declination angle
CAUTION !
Before adjusting the table, the user should make sure that the patient is in a safe position.
CAUTION !
Do not insert your fingers into the gaps betwe
en the segments of the table, as this could trap them
when
lifting or regulating and the position of the table.
Picture 6 - Regulation elements of TRITON 6M Traction table
In order to adjust the tilt of the TRITON 6M front section, release the gas spring lock by holding down
the lever (pic. 6 - position A), set the desired position of the front section, and lock in place releasing
the lever. To tilt the back of the TRITON 6M table, release the gas spring lock by holding down the
lever (pic. 6 - position B), set the desired leg section position, and lock in place by releasing the lever.
To adjust the tilt of the TRITON 6M pelvic section, release the rotary knob handle and set the desired
value for the tilt angle of the pelvic (pic. 6 - D position).

6.3. Positioning the sliding top section
CAUTION !
Before adjusting the table, make sure the patient is in a safe position.
CAUTION !
Do not insert your fingers into the gaps between the segments of the table, as this could trap them
when
lifting or regulating and the position of the table.
It is possible to move the pelvic section of the Triton 6M table. Locate the lock release knob, located
on the left and right side of the top frame (see pic 6 – position C) to operate this function. To unlock
and move the sliding section, turn the knob to UNLOCK (it cannot be unscrewed fully). Slide the
section to the desired position and turn the knob to LOCK (pic 7) to fix the cushion in place.
Picture 7 - Lock release knob for sliding section of table.
6.4. Attaching and replacing traction unit stand to table
CAUTION !
The TRITON 6M Traction table Is transported to the customer with the traction unit bracket
removed.
In order to mount (remove) the traction unit bracket to the swivel arm in the bottom frame (pic. 9), use
the screws (ISO 7380 M8×25 – 4 pcs), spring washers (DIN 7980 ø 8,1 – 4 pcs.) and a hexagonal
allen key (No 5).
The traction unit base in the TRITON 6M Traction tables has a rotation of ± 90 degrees, as well as a
step blockade every ~13 degrees. In order to unlock the unit base stand, unscrew the safety lock
(pic.8 - A) - the safety knob is protected from being unscrewed fully, set the working degree of the
traction unit and tighten the safety knob to lock in place.

01-12-2017 TRITON 6M User Manual.doc Strona 15 z 27
Picture 8 – Attaching and replacing the traction unit base arm of the TRITON 6M Traction table.
6.5. Assembly of traction belt
CAUTION !
During the use of the traction belt, refer to the User Manual enclosed by the belt manufacturer.
The traction belt is fixed using the designated hook. It is placed in the headrest hinge plate (pic. 9).
Before attaching the traction belt, remove the upholstered cap which is attached magnetically. Then
the traction belt hook can be attached.
Upholstered cap mounted - work on the table without
the traction belt attached.
Upholstered cap removed - work on the table with
the traction belt attached.
Picture 9 - Location for the traction belt hook

01-12-2017 TRITON 6M User Manual.doc Strona 16 z 27
6.6. Placement of traction unit
CAUTION !
Triton Traction/Tru-Trac Unit - the mechanical spine traction device is put on a 360°-
rotating plate.
The traction unit must be placed on the plate in the direction of the unit hook and bed.
CAUTION !
To set, lock and use the traction unit, the user needs to follow instructions in the User Manual
supplied.
Mounted mechanical spine traction device Triton Traction/Tru-Trac Unit on the swivel base is shown
in the picture 10
Picture 10 – Assembly of traction unit
6.7. Moving the table
CAUTION !
Befo
re changing the location of the table, make sure that the mains plug of the power cord is
removed from the AC outlet and protected against accidental damage during relocation.
CAUTION !
It is forbidden to move the TRITON 6M Traction table with a patient on the table.
CAUTION !
Any manipulation of the position change lever WORK-TRANSPORT should be performed with
the table without the patient.
TRITON 6M is equipped with four wheels with total lock.
- WORK – during work the table rests on wheels with total lock on.
- TRANSPORT - The table rests on the wheels with total lock off.

01-12-2017 TRITON 6M User Manual.doc Strona 17 z 27
6.8. Access lock
CAUTION !
Always shut down the table and prevent the table from being used by unauthorized persons.
Then check it is locked, by testing the functions.

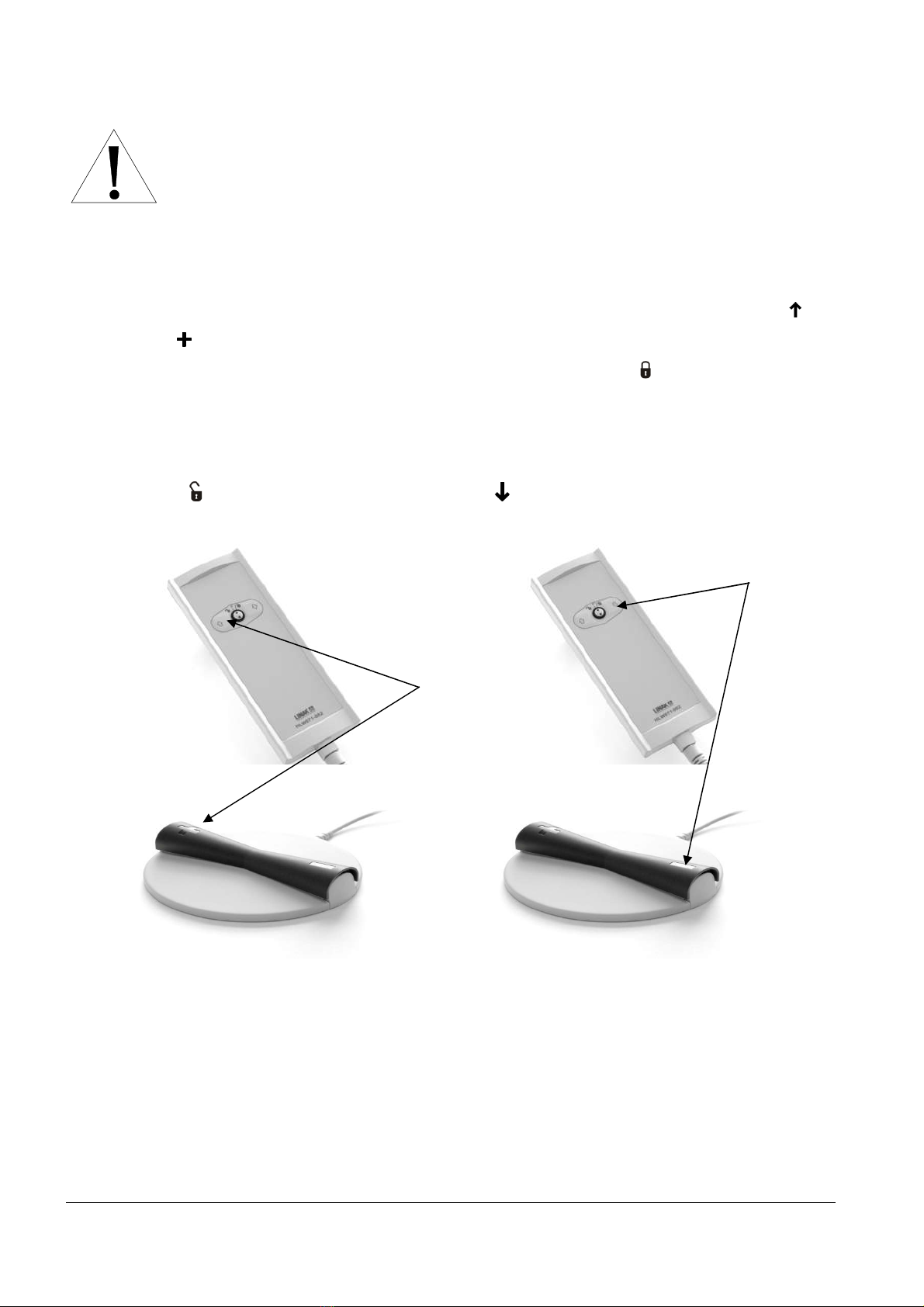

The TRITON 6M is equipped with an access lock mechanism for the height adjustment function.
There are two steps of locking access to the height adjustment function
To lock the height adjustment function simultaneously press the button on the remote control and
the footswitch (pic. 11 – 1
st
step). Confirmation of the lock is signaled by a short beep. Next, insert
the key  into the remote control slot  and turn right to the symbol marked (pic. 12 – 2nd step) .
When access to the height adjustment function is blocked, each press of the buttons on the remote
control or foot is signaled by a beep.
To unlock the access lock, insert the key  into the lock slot on the remote control  and turn to the
symbol marked and simultaneously press the button on the remote control and the footswitch
minus ▬ . The locking confirmation is indicated by a double short beep.
Blocked Unblocked
Picture 11 – Access lock mechanism

01-12-2017 TRITON 6M User Manual.doc Strona 18 z 27
Picture 12 Access lock mechanism with the key
7. MAINTENANCE
CAUTION !
We recommend cleaning and/or disinfecting the upholstered surfaces and other parts of the
tables after each use to ensure proper hygiene level.
CAUTION !
Before cleaning the table, ensure that the electrical power supply cable has been disconnected
from the supply in the room to prevent accidental movement of the table.
CAUTION !
Estimated shelf life of the device is 7 years. After 7 years from the date of table manufacture,
(and its equipment), the manufacturer is not held accountable for any flaws of the device (and its
equipment), as well as their consequences.
7.1. Cleaning the upholstery
Clean and maintain the upholstered surfaces as follows:
- clean regularly with warm water and mild detergent (e.g. soap) solution; use soft cloth or sponge;
- rub the more heavily stained areas with a soft, damp brush;
- after cleaning, wipe dry with a soft cloth;
- in case the surface has been stained with ball pen ink, lipstick, ink etc., remove the stain
immediately by rubbing it with a soft cloth.
Avoid extensive wetting of the surface of the table.
Disinfect the upholstery and other surfaces using Incidin Foam or similar formula (available at Meden-
Inmed).
Never use:
- cleaning paste, wax, sprays;
- strong detergents, solvents and cleaning agents containing solvents, cleaning preparations for
natural leather.
Use of such preparations may cause stiffening and breakages of the cover material as well as
adverse change of the glossy finish of the upholstery surface which is not covered by the warranty.
Disinfection with the use of the UV rays does not affect the surface of the upholstery.

01-12-2017 TRITON 6M User Manual.doc Strona 19 z 27
7.2. Maintenance of the mechanical parts
Clean the metal parts with a soft, damp sponge. Wipe the parts dry immediately after cleaning. Do not
use cleaning agents containing alcohol.
All movable joints must be lubricated every six months or when experiencing squeaks or other noise.
These joints include in particular:
- axles of transport wheels,
- actuator mounting shafts,
- boom arm sleeve bearing.
- mechanism of sliding section of movable part of the bed.
We recommend using any available retail lubricants. Protect the upholstered parts from contact with
the lubricants and remove any excess amounts or leaks of these with a dry cloth.
Check the threaded joints periodically every six months and tighten loose connections with a
screwdriver, hex keys (no 4, 5, 6) and flat (10, 13 and 19 mm). Especially:
- bolts attaching the boom arms to the lower and upper frame;
- gas springs piston road press bolts.
Report all loose connections that cannot be tightened to the manufacturer’s authorized service centre
and stop using the table until the cause of the problem is resolved.
7.3. Checking the gas springs
TRITON 6M Traction tables are equipped with gas springs for easy adjustment of the arms, chest &
head and leg section inclination angle. To ensure proper performance of the gas springs check the
springs visually for leaks every 3 months. Any perceived performance deficiency or leak must be
reported to your local DJO technical service centre immediately.
7.4. Checking the actuator
TRITON 6M Traction tables are equipped with electric actuator which changes the height of the table.
In order to ensure the proper performance of the electric actuator we recommend a check every 3
months for any unexpected sounds (rattles, squeaks etc). Any perceived performance deficiency must
be reported to your local DJO technical service centre immediately and stop using the table until the
cause of the problem is removed.

7.5. Periodic check of electrical safety
The electrical safety check should be performed or ordered not less than once every 2 years, and
after every fault or repair of the actuator and/or the power mechanism of the traction table. As a basic
requirement, the review should include:
- check for mechanical damage of wiring system of the table;
- check for mechanical damage of actuators and control case;
- an examination of the height adjustment and pivot function switches;
- electrical safety tests should be performed according to PN-EN 62353.
Protective earth resistance should be performed from the point indicated in the picture 13.
Picture 13 – Measuring point of protective earth resistance
