Siemens Uroskop ACCESS Installation manual

© Siemens AG
The reproduction, transmission or use
of this document or its contents is not
permitted without express written
authority. Offenders will be liable for
damages. All rights, including rights
created by patent grant or registration
of a utility model or design, are
reserved.
Print No.:
Köllner
UROSKOP ACCESS
System
Installation and Start-up
SP
2003
SPL5-330.814.01.05.02
Replaces: SPL5-330.814.01.04.02
English
Doc. Gen. Date: 08.05
Urodynamic Interface/Scan Converter
0575612205756130

2 Revision / Disclaimer
UROSKOP ACCESS SPL5-330.814.01.05.02 Siemens AG
08.05 CS PS 24
Page 2 of 18 Medical Solutions
1Revision / Disclaimer
Document revision level
The document corresponds to the version/revision level effective at the time of system
delivery. Revisions to hardcopy documentation are not automatically distributed.
Please contact your local Siemens office to order current revision levels.
Disclaimer
The installation and service of equipment described herein is to be performed by qualified
personnel who are employed by Siemens or one of its affiliates or who are otherwise
authorized by Siemens or one of its affiliates to provide such services.
Assemblers and other persons who are not employed by or otherwise directly affiliated
with or authorized by Siemens or one of its affiliates are directed to contact one of the
local offices of Siemens or one of its affiliates before attempting installation or service pro-
cedures.

Siemens AG SPL5-330.814.01.05.02 UROSKOP ACCESS
08.05 CS PS 24
Table of Contents 3
Page 3 of 18
Medical Solutions
1- 0Table of Contents
1 _______ General Information______________________________________________ 4
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Required aids and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Additionally required documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 _______ Urodynamic interface ____________________________________________ 7
Urodynamic Interface/Scan Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Retrofit scan converter kit, part number 57 56 098. . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Scan converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Upgrade kit, optical isolation amplifier (OTV; part no. 57 56 494) . . . . . . . . . . . . . . . 7
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Scan converter (connections) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Image signal splitter (connections) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation and wiring of the scan converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Programming the scan converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Standard programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cutting off the menu bar (ASPIA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cutting off the menu bar (FLUOROSPOT Compact) . . . . . . . . . . . . . . . . . . . . . . . . 13
Scan converter parameter table (ASPIA imaging system) . . . . . . . . . . . . . . . . . . . . 13
Scan converter parameter table (FLUOROSPOT Compact imaging system) . . . . . 15
Faulty screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Final work steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Protective Conductor Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3 _______ Changes to previous version _____________________________________ 18

4 General Information
UROSKOP ACCESS SPL5-330.814.01.05.02 Siemens AG
08.05 CS PS 24
Page 4 of 18 Medical Solutions
2-
1General I nformation
Requirements 0
Required aids and tools 0
NOTE All tools, measuring equipment and aids, with the exception of the
standard installation tool kit, are listed and specified in the Service
Tools Catalogue (contained in the Spare Part Catalogue).
General Information 0
•The original version of this document was written in German.
•The illustrations and drawings may differ slightly from the delivery condition, depending
on the actual system.
•Damaged or worn parts must be replaced with original parts.
Safety information 0
General safety information
WARNING Danger of injuries, death or material damage.
Non-compliance can lead to death, injury or material damage.
¹Observe the product-specific safety guidelines in this
document, the general safety guidelines in document
TD00-000.860.01, and the safety guidelines in accor-
dance with ARTD Part 2.
General Safety Information, Electrical
WARNING
VElectrical safety!
Non-compliance can lead to severe injury or even death, as well as
material damage.
¹After the cover panels are opened, parts under voltage
are accessible. To avoid danger, disconnect the system
from the power supply prior to opening the covers. Pull
out the power supply plug.
¹If an uninterruptible power supply (USV) is installed in
the system, the voltage output of the USV must also be
deenergized or the voltage output plug must be discon-
nected.

Siemens AG SPL5-330.814.01.05.02 UROSKOP ACCESS
08.05 CS PS 24
General Information 5
Page 5 of 18
Medical Solutions
CAUTION
EElectrical voltage!
Non-compliance can result in material damage.
¹When working on the system, ESD regulations must be
observed.
Safety Information, Mechanical
CAUTION Risk of burns from hot parts or components!
If not observed, minor to more severe burns, especially on the
hands, can occur. After opening the cover panels, parts and com-
ponents (e.g. power components, cooling units) are accessible
that can reach temperatures of > 50°C during operation.
¹To avoid burns, switch the system off prior to touching
parts or components and allow at least 5 minutes of cool-
ing.
CAUTION Risk of injury from mechanical parts!
If not observed, minor to more severe injury, especially to the
hands, can occur. After covers are opened, parts such as flat
plugs, threaded bolts, cut-off cable ties and edges of components
can be touched which, if care is not taken, can cause crushing,
scrapes and cuts to the skin, particularly to the hands.
¹Perform the required work with special care and atten-
tion to detail.
¹If needed, wear work gloves.
Safety Information, Risk of Infection
WARNING Risk of infection due to pathogens!
Non-compliance can lead to severe injury and even death. This
product can be contaminated by infected blood or other bodily flu-
ids.
¹Avoid all contact with blood or other bodily fluids!
¹Strictly observe the safety information in
ARTD-002.731.37 regarding prophylactic measures
against infectious diseases during service.

6 General Information
UROSKOP ACCESS SPL5-330.814.01.05.02 Siemens AG
08.05 CS PS 24
Page 6 of 18 Medical Solutions
Additionally required documents 0
Abbreviations 0
ARTD Safety and Radiation Protection Guidelines ARTD, part 2
ARTD Safety and Radiation Protection Guidelines
(Safety Regulations for Installation and Mainte-
nance)
ARTD, part 2
(ARTD-002.731.17)
ARTD Safety and Radiation Protection Guidelines
(Prophylactic Measures against Infectious Dis-
eases during Service)
ARTD, part 2
(ARTD-002.731.37)
Medical Products; Safety Information; General
Safety Notes
TD00-000.860.01
Installation Instructions; System SPL5-330.812.01
ESD Electrostatically sensitive device
FLC Imaging system FLUOROSPOT Compact
OTV Optical isolation amplifier
USV Uninterruptible Power Supply

Siemens AG SPL5-330.814.01.05.02 UROSKOP ACCESS
08.05 CS PS 24
Urodynamic interface 7
Page 7 of 18
Medical Solutions
3-
2Urodynam ic interface
Urodynamic Interface/Scan Converter 0
The following installation and start-up instructions describe the installation and program-
ming of the urodynamic option. Part number 57 56 098 (retrofit scan converter kit) is
required for an endoscopy interface. Otherwise part number 57 56 494 (optical isolation
amplifier) and part number 57 56 452 (urodynamic interface) are required.
•Prior to beginning work, check the completeness of the retrofit kits according to the fol-
lowing setup.
Retrofit scan converter kit, part number 57 56 098 0
Scan converter 0
NOTE There are two types of scan converter, which differ in the color of
the housing and in the type designation:
- Corioscan Pro S;
- TVone CS-500A.
Both have the same part number, 30 84 134, since they are techni-
cally identical.
The parameter “CSync In Fr“ in the model TVone CS-500A can no
longer be selected and configured.
Upgrade kit, optical isolation amplifier (OTV; part no. 57 56 494) 0
Number Part number Description
1 30 84 134 Scan converter
1 75 57 526 Scan converter connection cable
1 30 79 035 SVGA cable, 3,000 mm (5 BNC, 15 pol. SUB-D HD)
1 30 65 844 SVGA cable, 2,000 mm (5 BNC, 15 pol. SUB-D HD)
1 30 89 497 SVGA cable, 3,000 mm (2 BNC, 15 pol. SUB-D HD)
1 37 95 239 BNC video cable (or S-video adapter)
Number Part numer Description
1 46 72 028 OTV80M2
1 75 58 518 OTV power cable
2 37 95 239 BNC video cable

8 Urodynamic interface
UROSKOP ACCESS SPL5-330.814.01.05.02 Siemens AG
08.05 CS PS 24
Page 8 of 18 Medical Solutions
Installation 0
•Remove the rear panel, the cover, and the right side panel (as viewed from the front of
the container) from the imaging system container (see also the document "Installation
Instructions; System" [SPL5-330.812.01]).
•Install the scan converter (3/Fig.1/p.8)und den OTV (4/Fig.1/p.8)(optical isolation
amplifier) in the imaging system container of the UROSKOP Access.
- No OTV is installed if an endoscopic interface is present.

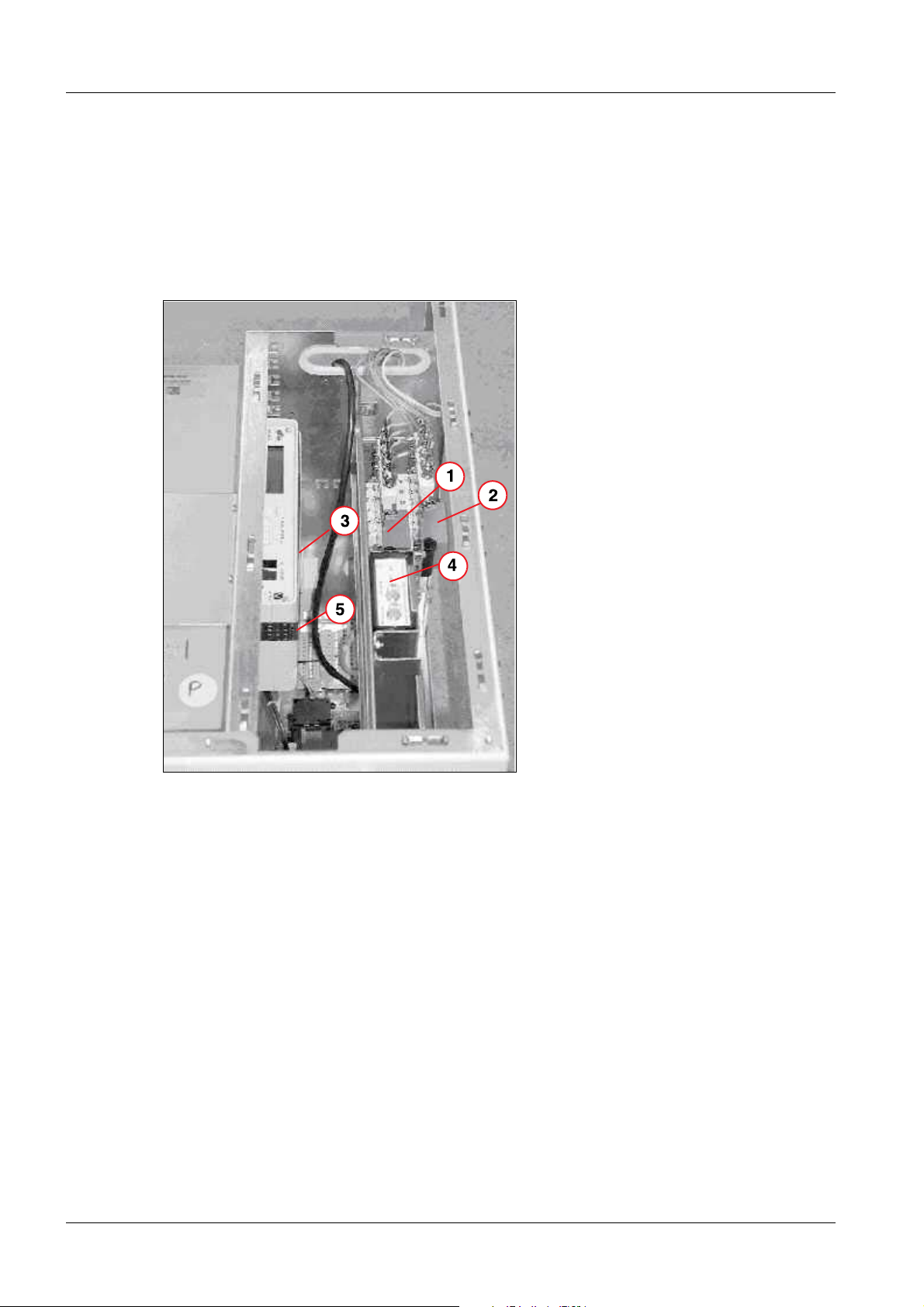

Fig. 1: Imaging system container
Pos. 1 Image signal splitter 2 (reference image)
Pos. 2 Image signal splitter (live image)
Pos. 3 Scan converter
Pos. 4 Optical isolation amplifier (OTV)
Pos. 5 Scan converter holder

Siemens AG SPL5-330.814.01.05.02 UROSKOP ACCESS
08.05 CS PS 24
Urodynamic interface 9
Page 9 of 18
Medical Solutions

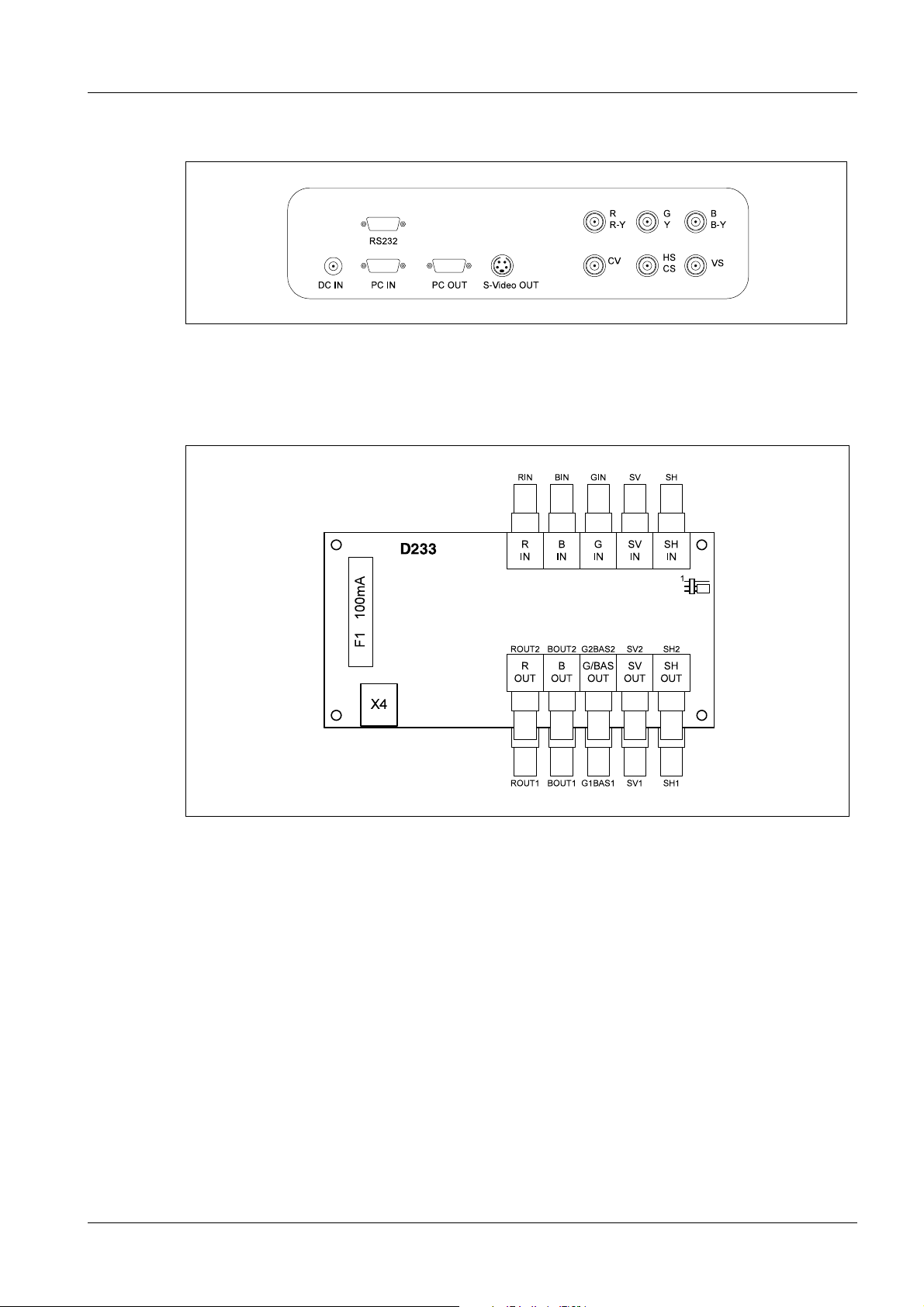

Scan converter (connections) 0
Fig. 2:
Image signal splitter (connections) 0
Fig. 3:

10 Urodynamic interface
UROSKOP ACCESS SPL5-330.814.01.05.02 Siemens AG
08.05 CS PS 24
Page 10 of 18 Medical Solutions
Fig. 4: Urodynamic interface
Fig. 5:
Pos. 1 BNC 1 urodynamic option

Siemens AG SPL5-330.814.01.05.02 UROSKOP ACCESS
08.05 CS PS 24
Urodynamic interface 11
Page 11 of 18
Medical Solutions
Installation and wiring of the scan converter 0
NOTE When there is an endoscopy interface, points 5, 6, 7, 10 can be
omitted. The video cable of the "CV" video jack of the scan con-
verter (or the S-video jack, depending on the delivery) is then con-
nected directly to the "BNC 1" video jack in the imaging system
container.
1. Establish the power supply via the cable connection from the "DC IN" of the scan con-
verter to D1.X7.
2. Remove the cable from the live monitor in the control room to the live image output of
the image signal splitter.
3. Connect the short SVGA cable (2 m) between the "PC IN" of the scan converter and the
available live output of the image signal splitter (Fig.3/p.9).
4. Run the long SVGA cable (3 m) between the "PC OUT" of the scan converter
(Fig.2/p.9)and the monitor in the control room and connect the cable.
- In the case of a SIMOMED monitor, only the green BNC cable is connected; isolate
the other connections.
5. Connect the power cable at the OTV and secure it to terminal strip K2 in the imaging
system container.
6. Run the video cable from the "CV" video jack of the scan converter (or the S-video jack,
depending on the delivery volume) to the input of the OTV and connect them.
7. Run the video cable from the output of the OTV to the "BNC 1" video jack in the imaging
system container.
8. Ensure that the BNC cable included in the W650 is connected to the "BNC 1" jack (im-
aging system container output) (1/Fig.5/p.10).
9. Use the cable ties to secure the cables.
10. Connect the BNC cable located at the lifting base in the back wall of the device (moni-
tor switchover URO).
11. Install the urodynamic interface in the back wall of the UROSKOP Access lifting base.

12 Urodynamic interface
UROSKOP ACCESS SPL5-330.814.01.05.02 Siemens AG
08.05 CS PS 24
Page 12 of 18 Medical Solutions
Programming the scan converter 0
Standard programming 0
NOTE For the scan coverter to be programmed, an image input signal
from the live image must be present.
•Connect the urodynamic measuring unit to the output of the urodynamic interface FBAS
(BNC jack) (Fig.4/p.10)(this connection is used to export the X-ray video signal to the
monitor of the urodynamic measuring unit).
•Switch the scan converter on. Press the Menu key of the scan converter several times
until Adjust: Auto Set appears.
•Press the +key within 15 s and wait for the adjustment.
- The adjustment is complete once an image appears on the monitor or the display au-
tomatically switches back to the Status: menu.
•If no image appears on the monitor, press the Menu key until the Adjust: Advanced...
menu is displayed. Press the +key within 15 s.
•Use the Menu key to set Output Sig. Use the +or -key to set the output to RGB.
- An image is displayed on the test monitor.
•Select the menu Advanced...RGB Term. and with the +or -key select the paramater
OFF .
•Select the Advanced... Video Std menu and use the +or -to set the parameter PAL
(European standard) oder NTSC (USA standard), depending on your location.
•Select the Advanced Engineering menu and press the +and -keys simultaneously,
until the following sub-menus appear.
- Select the DAC Ref. menu and set 65 (press the +or the -key).
- Select the CV Filter and set 0. (Press the +or the -key; standard setting is 25).
•With the Menu key, select Exit and use the +to return to the Advanced menu.
•Press the Menu key and the +key at the same time for approx. 2 s to store the configu-
ration in the permanent memory.
- An acoustic signal is emitted.
•Switch the scan converter off and then on again and check the configuration.
Cutting off the menu bar (ASPIA) 0
NOTE This subsection refers exclusively to UROSKOP-Access systems
with the ASPIA imaging system.
•Press the Menu key until Adjust: Screen size appears.
•Press the +key.
- The sub-menu is displayed.

Siemens AG SPL5-330.814.01.05.02 UROSKOP ACCESS
08.05 CS PS 24
Urodynamic interface 13
Page 13 of 18
Medical Solutions
•Set Out H-Centre to 79 (press the +or the -key).
•With the Menu key, select Exit and use the +to return to the Advanced menu.
•Press the Menu key until Manual Set appears.
•Press the +key (the sub-menu is displayed).
-SelectVGA Left and set 18, until only the X-ray image is visible (press the +or the -
key, default setting is 9).
•Use the Menu key to select VGA Store for a save operation and press the +key until an
acoustic signal is emitted.
•To save all settings, press the Menu key and the +key at the same time..
•Switch the UROSKOP Access off and back on again.
Cutting off the menu bar (FLUOROSPOT Compact) 0
NOTE This subsection refers exclusively to UROSKOP-Access systems
with the FLC imaging system.
•Press the Menu key until Adjust: Screen size appears.
•Press the +key.
- The sub-menu is displayed.
•Set Out H-Centre to 65 (as setting for PAL; setting for NTSC is 66) (press the +or
the -key).
•With the Menu key, select Exit and use the +key to return to the Advanced menu.
•Press the Menu key until Manual Set appears.
•Press the +key (the sub-menu is displayed).
-SelectVGA Left and set 1, until only the X-ray image is visible (press the +or the -
key).
•Use the Menu key to select VGA Store for a save operation and press the +key until an
acoustic signal is emitted.
•To save all settings, press the Menu key and the +key at the same time..
•Switch the UROSKOP Access off and back on again.
Scan converter parameter table (ASPIA imaging system) 0
Tab. 1 Scan converter parameter table (ASPIA )
Parameters Default value (PAL) Default value (NTSC)
Menu“Screen Size“1
Out H-Centre 79 79
Out H-Width 93 94
Out V-Centre 160 132

14 Urodynamic interface
UROSKOP ACCESS SPL5-330.814.01.05.02 Siemens AG
08.05 CS PS 24
Page 14 of 18 Medical Solutions
Out V-Height 260 215
Menu “Manual Set“2
VGA Left 18 18
VGA Width 47 47
VGA Top/4 7 7
VGA Bot/4 266 266
Menu “Advanced“
Video Standard PAL NTSC
Output Signal RGB RGB
H. Soften Off Off
Sense 1 1
RGB Term. Off Off
Sync In VGA HV VGA HV
CSync In Fr370 70
Sync Out -CS-CS -CS-CS
Menu “Engineering“
ADC Ref. 131 131
DAC Ref. 65 65
CV Filter 0 0
Adj. Osc. 0 0
SC/H Phase 4 4
Y/C Delay 1 1
1. The parameters in the menu “Screen Size“ (Out H-centre, Out H-width, Out V-centre, Out
V-height) can vary from customer to customer, depending on the factory-set monitor settings im-
plemented by the manufacturer in the urodynamic system.
2. The parameters in the menu “Manual set“ (VGA left, VGA width, VGA top/4, VGA bott/4) can vary
from customer to customer, depending on the factory-set monitor settings implemented by the
manufacturer in the urodynamic system.
3. For the scan converter model TVone CS-500A, this parameter is no longer selectable.
Parameters Default value (PAL) Default value (NTSC)

Siemens AG SPL5-330.814.01.05.02 UROSKOP ACCESS
08.05 CS PS 24
Urodynamic interface 15
Page 15 of 18
Medical Solutions
Scan converter parameter table (FLUOROSPOT Compact imaging system) 0
Tab. 2 Scan converter parameter table (FLC)
Parameters Default value (PAL) Default value (NTSC)
Menu “Screen Size“1
1. The parameters in the menu “Screen Size“ (Out H-centre, Out H-width, Out V-centre, Out
V-height) can vary from customer to customer, depending on the factory-set monitor settings im-
plemented by the manufacturer in the urodynamic system.
Out H-Centre 65 66
Out H-Width 81 80
Out V-Centre 160 130
Out V-Height 260 215
Menu “Manual Set“2
2. The parameters in the menu “Manual set“ (VGA left, VGA width, VGA top/4, VGA bott/4) can vary
from customer to customer, depending on the factory-set monitor settings implemented by the
manufacturer in the urodynamic system.
VGA Left 1 1
VGA Width 42 42
VGA Top/4 9 7
VGA Bot/4 266 266
Menu “Advanced“
Video Standard PAL NTSC
Output Signal RGB RGB
H. Soften Off Off
Sense 1 1
RGB Term. Off Off
Sync In VGA HV VGA HV
Sync Out -CS-CS -CS-CS
Menu “Engineering“
ADC Ref. 131 131
DAC Ref. 65 65
CV Filter 0 0
Adj. Osc. 0 0
SC/H Phase 4 4
Y/C Delay 1 1

16 Urodynamic interface
UROSKOP ACCESS SPL5-330.814.01.05.02 Siemens AG
08.05 CS PS 24
Page 16 of 18 Medical Solutions
Faulty screen display 0
•To revert to the factory settings, switch off the scan converter, press and hold the + and
-keys simultaneously, and restart the scan converter.

Siemens AG SPL5-330.814.01.05.02 UROSKOP ACCESS
08.05 CS PS 24
Urodynamic interface 17
Page 17 of 18
Medical Solutions
Final work steps 0
X•Perform a function test.
•Attach all panels and housing components to the imaging system container.
Protective Conductor Test 0
NOTE Perform the protective conductor test again after any repairs, in-
stallation of new components, or maintenance.
Document and assess the values determined in the repeat mea-
surement.
•Perform the test in accordance with DIN VDE 0751, Part 1 (see ARTD Part 2,
ARTD-002.731.17).
- In the course of the test, the protective conductor resistance in the normal operating
state of the system must be measured from the protective conductor connection
clamp on the system side to all touchable conductive system parts.
Make sure that control cables or data cables between the components of the system
are not mistaken for a protective conductor connection.
The ground wire resistance must not exceed 0.2 ohms.
Document and assess the values determined in the repeat measurement, indicating the
measurement points.
Additionally, the measurement procedure and the measurement instrument used (type
designation and serial number) must be documented.
NOTE Evaluate the results by comparing the first measured value to the
corresponding values documented during previous maintenance
procedures or safety checks.
A sudden or unexpected increase in the measured values may in-
dicate a defect in the ground wire connections (ground wire or
contacts) - even if the limit value of 0.2 ohms is not exceeded.

18 Changes to previous version
UROSKOP ACCESS SPL5-330.814.01.05.02 Siemens AG
08.05 CS PS 24
Page 18 of 18 Medical Solutions
4-
3Changes to previous version
Subsection “Required aids
and tools“
completely revised
Subsection “General guide-
lines“
new.
Subsection “Safety guide-
lines“
completely revised
Subsection “Additionally
required documents“
completely revised
Subsection “Abbreviations“ new.
Subsection “Scan con-
verter“
new.
Subsection “Installation“ second point revised
Subsection “Programming
the scan converter“
completely revised; “Cutting off the menu bar
(FLUOROSPOT Compact)“ new; “scan converter
parameter table (FLUOROSPOT Compact imaging
system)“ new
Subsection “Final work
steps“
“Protective conductor test“ new
