Media Pointe HD Portal plus User manual

HD Portal plus User Manual
Version 1.0
HD Portal plus
February, 2015

DMR HD Portal plus User Manual |i
Digital Media Recorder DMR HD Portal plus
©2015 MediaPOINTE, Inc
All rights reserved. This document contains information that is proprietary to MediaPOINTE, Inc. the manu-
facturer of all MediaPOINTE® products. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted, in any form, or by any means, electronically, mechanically, by photocopying, or oth-
erwise, without the prior written permission of MediaPOINTE, Inc. Nationally and internationally recognized
trademarks and trade names are the property of their respective holders and are hereby acknowledged.
MediaPOINTE® is a registered trademark of MediaPOINTE, Inc.
Disclaimer
The information in this document is believed to be accurate and reliable; however MediaPOINTE, Inc. assumes
no responsibility or liability for any errors or inaccuracies that may appear in this document, nor for any
infringements of patents or other rights of third parties resulting from its use. No license is granted under any
patents or patent rights of MediaPOINTE, Inc.
This document was written by MediaPOINTE, Inc. We are fully committed to, and take pride in maintaining
high quality documentation. We welcome and appreciate any comments or suggestions you may have
regarding content, presentation, structure and distribution of this document. Please use the contact
information below for all correspondence:
MediaPOINTE, Inc.
667 Rancho Conejo Blvd.
Newbury Park, CA 91320
USA
suppor[email protected]

ii | DMR HD Portal plus User Manual February, 2015
Safety Precautions
For your protection, please read all related safety instructions, observe all warnings and precautions, and exercise com-
mon sense while operating this electronic equipment.
♦Always place the unit on a stable cart, stand or table.
♦Do not use the unit near water or sources of heat.
♦Do not drop or shake the unit. Do not place or install the unit in environments where it can be dropped or shaken.
♦Make sure the unit is powered o while being moved even for short distances.
♦Observe the power requirements of the unit; if you are not sure of the power available, consult your local dealer
power company.
♦When plugging into a power outlet, insert the plug rmly into the outlet. Route the power cord so as to avoid any
activity that may result in fraying or other damage to the cord or the plug.
♦Under no circumstances should you attempt to override the polarization or grounding protection on the plug.
♦Do not overload wall outlets, integral convenience receptacles or extension cords.
♦Unplug the unit from the wall before cleaning. Do not use liquid or aerosol cleaners.
♦For proper ventilation, do not block the slots and openings. Do not install the unit in a location where the
ventilation slots and openings can be plugged during everyday use.
♦Do not place or install the unit under, on top of or near any heat-producing equipment (i.e. radiators, stoves, or
ampliers), or in a heated place.
♦Unplug the unit during lightning storms, when it will not be used for extended periods of time, or before you have
a scheduled power outage.
♦If the unit is visibly damaged either by not observing the precautions above or for any other reason, contact your
local dealer immediately. If the unit does not operate to the specications set forth in this user guide, or exhibits a
distinct change in performance, this may be an indication of a problem needing repair.
Environmental Operating Limits of HD Portal plus
Operating Temperature: 0°C to 32°C (32°F to 90°F)
Relative Humidity: 10% to 90% non-condensing
Storage & Transport Temperature: -20°C to 80°C (-4°F to 140° F)
Electrical requirements
Input: 100-240V ~50/60Hz
Service Support and Training
MediaPOINTE, Inc., is committed to providing the service support and training needed to install, manage, and
maintain your MediaPOINTE® equipment. All MediaPOINTE® products are sold through a wide network of Authorized
MediaPOINTE, Inc. Dealers. For help with your products, contact your local dealer for assistance rst. If for any reason,
you would like to contact MediaPOINTE, Inc. directly for information regarding service programs and extended
warranty information, training, installation or usage, we are glad to be of assistance. You can contact us at the phone
number listed below, or visit our website.

DMR HD Portal plus User Manual |iii
Technical Support
MediaPOINTE, Inc. Technical Support
Hours: 8:30 a.m. – 5:30 p.m. Pacic Standard Time
[phone] TOLL FREE
[phone] INTERNATIONAL
suppor[email protected]
http://www.mediapointe.com
HD Portal plus Package Contents
• 1 - MediaPOINTE HD Portal
• 1 – RCA Video Cable
• 1 – Male VGA (RGBHV) Cable
• 1 - CAT-5e LAN Cable
• 1 - 3.5mm Stereo to Male RCA Audio Cable
• 1 - 3.5mm Mono to Female RCA Audio Adapter
• 1 - AC Power Cable
• 1 – IR Remote Control plus 2 AAA batteries
• 1- 12 Volt AC Power Adapter
• 1- IR Receiver
• 1- DVI Cable1- DVI To DVI+VGA Adapter
• 1 - WiFi® Antenna (if WiFi®option purchased)

iv | DMR HD Portal plus User Manual February, 2015
Warranty
MediaPOINTE, Inc. warrants that the HD Portal plus (excluding spare parts if applicable, external peripheral devices
and consumables) will be free from any defect in materials or workmanship and shall perform in accordance
with its specication for a period of 30 days for MediaPOINTE, Inc. software and 1 year for hardware, starting on
shipment date of the initial purchase of the equipment. MediaPOINTE, Inc. disclaims any and all implied warranties
of merchantability or tness for a particular purpose. MediaPOINTE, Inc.’s sole liability for breach of this warranty
will be (at its option) to provide access to software for download or to repair or replace the defective unit or
component after customer has shipped the product to MediaPOINTE, Inc. for return-to-factory repair. Customer
must obtain an RMA (return material authorization) number from MediaPOINTE, Inc. prior to returning equipment.
Replacement parts may be new or equivalent to new. Part(s) replaced will be covered for the remaining term of the
warranty. MediaPOINTE, Inc. shall not be liable for any loss of prots or incidental or consequential loss for whatever
reason. This warranty will be void if the equipment has been subject to any unauthorized modications, improper
operation, user negligence, service by an unauthorized person, accident, neglect, misuse, tampering, acts of God, or
any event other than ordinary use.

TABLE OF CONTENTS | v
Table Of Contents
About this guide
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
Safety Precautions & System Specications . . . . . . . . . . . . . . . . ii
Service Support and Support . . . . . . . . . . . . . . . . . . . . . . . ii
HD Portal plus Package Contents . . . . . . . . . . . . . . . . . . . . . iii
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
1Introduction and Overview
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
How It works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Optical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Front PanelTouch Keypad . . . . . . . . . . . . . . . . . . . . . . . . 3
LED Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IR Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Audio/Video Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Audio/Video Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . 4
All Other Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Basic Setup Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2Setting Up the HD Portal plus 6
System Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Initial Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Access Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Administrator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Author . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

vi | TABLE OF CONTENTS
Congure Security and Other Settings . . . . . . . . . . . . . . . . . . . . . 6
Changing Administrator Password. . . . . . . . . . . . . . . . . . . . . 6
Author Login Security . . . . . . . . . . . . . . . . . . . . . . . . . . 7
User Login Security . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setting Date & Time . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
System Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Conguring Static IP Address . . . . . . . . . . . . . . . . . . . . . . . 8
Conguring DHCP IP Address . . . . . . . . . . . . . . . . . . . . . . . 8
USB Network Conguration . . . . . . . . . . . . . . . . . . . . . . . . . 8
SMTP Mail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Telnet (TCP/IP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. Controlling HD Portal plus Functions
Web Portal Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Main System Toolbar. . . . . . . . . . . . . . . . . . . . . . . . . . . 9

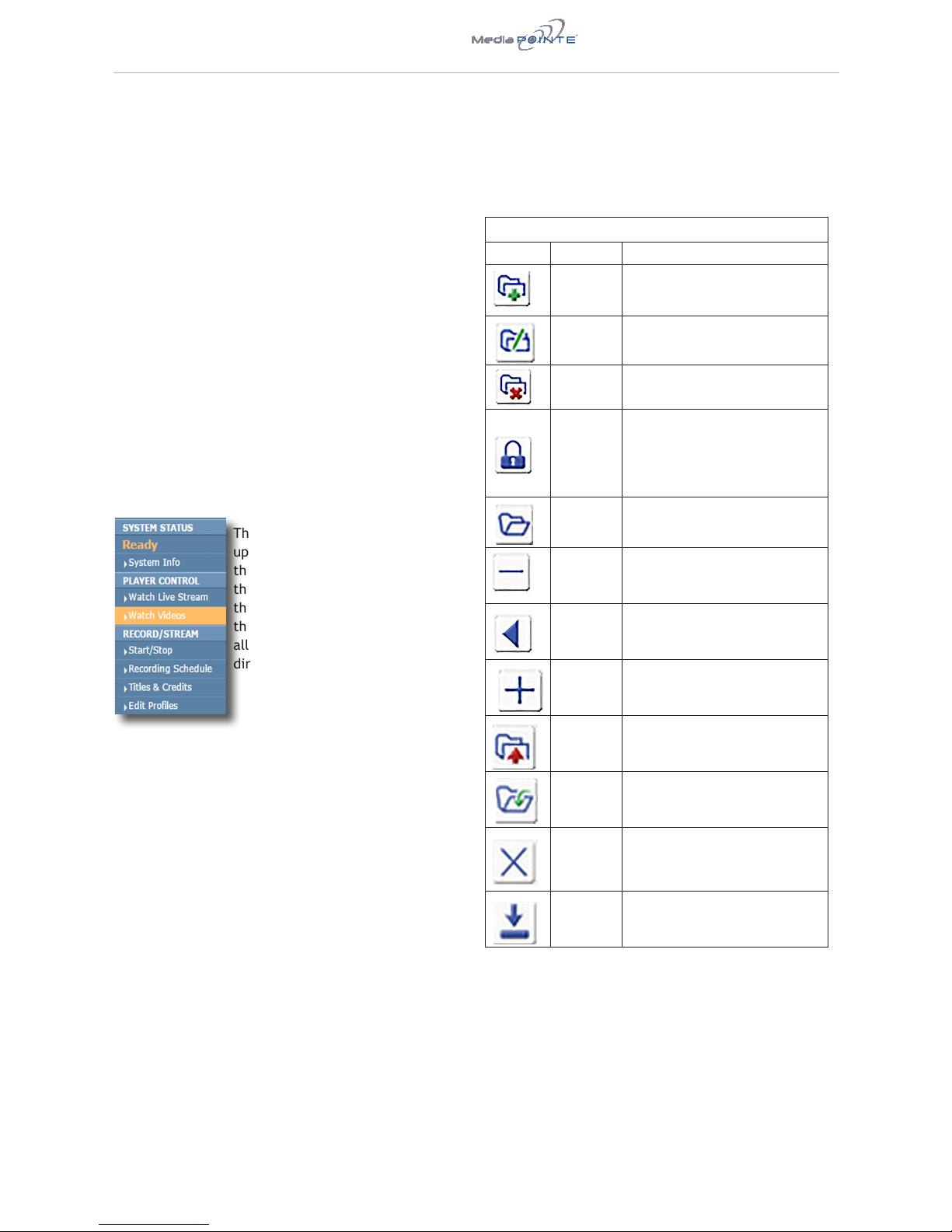

Main System Toolbar Icon Table . . . . . . . . . . . . . . . . . . . . . . 9
On-Screen Menu/ Front Control Panel . . . . . . . . . . . . . . . . . . . 10
External Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Infra-Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Recording, Archiving and Streaming
Recording and Streaming . . . . . . . . . . . . . . . . . . . . . . . . . .11
Playback on HD Portal plus . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Archiving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Download Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
USB Ooad/Upload . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Streaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Manual FTP Upload . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Metadata. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Transcoding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Titles & Credits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Changing Proles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Edit Proles IconTable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

TABLE OF CONTENTS | vii
Video On Demand (VOD) . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
VOD Channel Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Viewing VOD Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5 Creating and Modifying Proles 5
Proles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Creating/Modifying a Prole . . . . . . . . . . . . . . . . . . . . . . . . . 13
Creating a Prole . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Modifying a Prole . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6. Management and System Tools5
AV Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
AV Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Live Video Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Notications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Storage Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Job Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Upgrade System Software . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Disabling and enabling multicast . . . . . . . . . . . . . . . . . . . . . . . 17
Reset Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
System Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7 Options
Installing Upgrade Packages . . . . . . . . . . . . . . . . . . . . . . . . . 18
Setting up the WiFi® Option . . . . . . . . . . . . . . . . . . . . . . . . .18
Keycard Automation Option . . . . . . . . . . . . . . . . . . . . . . . . .18

DMR HD Portal plus User Manual |1
1
Introduction and Overview
Introduction
Welcome to the user’s guide for the MediaPOINTE®
HD Portal plus. The HD Portal plus is one of the
easiest to use, cost-effective and reliable capture,
recording, streaming and archiving products on the
market today. It can archive important audio, video,
and graphical data while simultaneously transmitting
it anywhere on your network.
This user’s guide describes how to set up and use
the HD Portal plus to record and transport graphics,
video and audio content over IP networks. As with
all MediaPOINTE® AV-over-IP products, you can
control the HD Portal plus by different methods.
These methods include: Web Portal interface, remote
control, contact closure, RS-232 serial port orTelnet.
This guide is written for units running 5.3 software. If
your HD Portal plus is operating on a different version
of software, some capabilities and screen shots may
be different.
Key Features
The HD Portal plus may be used in a variety of
situations for live communication and collaboration,
including:
• Capture, record, stream and archive live events,
meetings, conferences, seminars, colloquia
in digital High Denition. All content can be
easily accessed and published with full security
privileges dened by the content owner.
• Capture, record, stream and archive one HD and
one compoiste video source simultaneously. The
HD video input supports graphics content from
computing devices such as laptops
• Archive media content from multiple independent
sources.
• Share visual information, designs, and concepts
with dispersed groups of people to gather input
during a video conference.
• Stream important video conferences to other
locations such as overow rooms or remote
conference locations over your corporate network.
• Conduct customer or employee training across vast
geographical areas.
• Discuss research, engineering, architecture,
product design, or process analysis when the
participants are not able to meet in one central
location.
• Access a centralized data bank of expertise from a
eld location.
How It Works
(Method of Operation)
The HD Portal plus can capture, record, stream and
archive video, graphics and audio media. The HD Portal
plus accepts DVI-D, analog RGBHV, composite video,
unbalanced line level audio inputs. The selected video
input source along with the audio is captured into a le
which can be simultaneously streamed live over your
network and archived. The Content input accepts DVI
and VGA sources. The audio input signals is connected
via 3.5 mm mono unbalanced input. The HDMI and
RGBHV outputs allow easy connection to a monitor.
Audio is output via 3.5 mm stereo unbalanced output.
HDMI input is also available via a DVI-to-HDMI adapter
or cable. Audio via the HDMI cable is not supported.
Users can select from several congurable parameters
(proles) for capturing and subsequent playback
of the recorded material. These proles are fully
congurable, allowing the user to specify the input
source, capture resolution, bit, visual layout style and
frame rates.

2| DMR HD Portal plus User Manual February, 2015
How It Works (cont.)
The archived recordings are stored on the HD Portal
plus’s hard drive. The recorded le can then be
viewed on your PC locally or replayed directly from
the HD Portal plus on a local monitor using the VGA
or HDMI output connector. The content can also be
copied to a USB memory stick, downloaded to a PC, or
automatically transferred (FTP) to a server after the le
has been indexed.
The HD Portal plus records content in standard H.264/
MPEG-4 AVC format, which can be played on a variety
of desktop client players including QuickTime, VLAN
and others. The HD Portal plus supports multiple
resolutions.

DMR HD Portal plus User Manual |3
HD Portal plus Front Panel
Front Panel Controls
The front panel consists of a power switch, USB
port and a WiFi®antenna. The following is a brief
description of each of these components.
1. Power Switch
The HD Portal plus has a power button on the front
panel. Press the button once to power up the unit.
Press the illuminated power button to power down the
unit.
2. USB Port
The USB 2.0 port on the front panel is used to trans-
fer les to and from the HD Portal. The USB Port may
also be used with the optional MediaPOINTE KEYCARD
AUTOMATION SYSTEMS
3. WiFi System Antenna (Optional)
1
2
3

4| DMR HD Portal plus User Manual February, 2015
10
CONNECTORS AND FUNCTIONS
Connector Function/Name Description
1DC Power Input
The 12 Volt 3 Amp DC input provides DC power
to the unit. The DC connector goes to the AC/DC
Power Adapter
2HDMI Output
The HDMI output connector sends digital HD
Video to the display of choice. The HDMI output
does not support audio
3RGBHV Output The HD-15 (VGA) connector is used to output an
analog computer video signal to a display device
4USB 2.0 Ports
The USB ports on the back of the unit can be
used for upload or o load of video content or for
network conguration
5LAN Connection
The RJ-45 connector allows the included standard
10/100Mb CAT-5e LAN cable to connect the HD
Portal plus to a network.
6Audio Line Level
Output (Unbalanced)
The standard 3.5 mm mini stereo connector
outputs stereo unbalanced audio from the HD
Portal plus.
7Audio Line Level
Input (Unbalanced)
The standard 3.5 mm mini mono connector takes
input from unbalanced mic or line level signals.
HD Portal plus Back Panel
1
2 3 4 5
6 7
89 10 11

DMR HD Portal plus User Manual |5
CONNECTORS AND FUNCTIONS
Connector Function/Name Description
8IR Infrared Input
The 3.5 mm mini stereo connector is used
to connect the IR receiver to the unit for
IR remote control.
9RS-232 Serial Port
The standard serial DB-9 connector allows
connection for serial control (Note: a null-
modem serial cable is required)
10 Video Input
The RCA video connector allows
connection of a composite NTSC video
source
11 Content Input
DVI-RGBHV Video
The DVI connector is used to input an
digital or analog computer video signal
Basic Setup Diagram

6| DMR HD Portal plus User Manual February, 2015
2
Setting Up the HD Portal plus
System Administration
Use this information when you are ready to install
the HD Portal plus hardware at your site. First,
plug in the supplied RJ 45 cable into your network
connecting the cable from your network nto the LAN
controller on the back of the unit. Second, plug the
connector from the AC Power Adapter into the 12
VDC connector on the back, then connect the Power
Adapter to AC power. Third, start the unit by pressing
the front panel Power Button
Initial Login
This section describes the procedure for a rst time
Administrator login, and for setting the HD Portal
plus access rights. Administrator rights are required
to access or change any of the settings under the
Congure and Manage sections in the main menu and
to change all features of the HD Portal plus.
To log into the HD Portal plus, browse to its IP
address using your Internet web browser. The default
IP address is:192.168.1.253
Once you have navigated to the website, you will be
presented with the a login page. The screen capture
below shows the login elds. For the initial login, use
the Login ID “admin” and the default password of
“MediaPOINTE”. Note that the Login ID and password
are case sensitive. The login page is shown in the
screen capture below.
Access Rights
There are three levels of access rights: admin, au-
thor and user. The Adminstrator can control all of the
functions of the HD Portal plus. The author can record,
stream and view content. The user can only view con-
tent. Note that the Login ID and the password are case
sensitive. It is not possible to change any of the login
names. Only the passwords can be changed.
Adminstrator (Username: admin)
The Administrator maintains all rights to the HD Portal
plus. Exclusive Administrator access allows the congu-
ration of: the date and time; security; IP settings; com-
mand line; e-mail and managing notications; logging;
AV controls; AV test; jobs; and software
Author (Username: author)
The Author maintains content creation rights on the HD
Portal plus. The Author can access or change any of the
settings under the “Record/Stream” section in the main
menu. No password is required for the “author” login as
a default.
User (Username: “user”)
The user can watch content. No password is required
for the “user” login as a default.
Congure Security
Changing the Administrator Password
By default, the Administrator Username and Password
are set to “admin” and “MediaPOINTE” respectively.
To change the Administrator password, enter a new Ad-
ministrator password in the New Admin Password eld
(10 characters maximum) reenter the new password in
the conrm password eld and click the Update button.
The next time the HD Portal plus is accessed, the new
admin password will take effect.
Be sure to write down the new administrator
password and keep it in a safe place. If you forget

DMR HD Portal plus User Manual |7
the admin password, the HD Portal plus must
be reset back to the factory defaults to enable
administrator access.
Author Login Security
The Administrator needs to enable the security login
for author. Checking the Enable Author Security box
will enable the author password. Enter an author
password in the author password eld then reenter
the new password in the conrm password eld and
click the Update button.
Unchecking the Enable Author Security check box
deactivates the author login password. Press Update
to conrm the change.
Note that the Login ID and the password are case
sensitive.
User Login Security
By default, a login password for the user is disabled.
Checking Enable User Security will enable the User
password. Enter a user password in the User Password
eld, then reenter the same password in the Conrm
User Password eld and click the Update button.
Setting Date & Time
When content is recorded using the HD Portal plus it
is given a time and date stamp. The time and date
stamp can be set in the Date & Time section of the
main menu. The date can be selected from the pop-up
calendar. The Time Zone can be selected from the
drop down menu. Current time can be selected from
the drop down menu. Conrm any changes by clicking
on the Submit button.
If desired, the NTP (Network Time Protocol) feature
can be enabled to synchronize the clock of the HD
Portal plus to an NTP server; click on the “Enable
NTP” box and enter the server information, then click
on Submit.
IP Settings
System Name
The factory set system name is MediaPOINTE. You
can change the name in the IP setting menu page by
entering a new name in the text eld. A reboot is
required for the new name to take effect. The name
can be up to 15 characters long and consist of alpha-
numeric characters. No special characters or symbols
will be accepted except for a hyphen.
NETWORK CONFIGURATION
Setting Description
DHCP
Client
Enable DHCP settings for automatic address
retrieval from DHCP Server. Disabling the
DHCP client will require a static IP address
(with subnet mask and default gateway) to be
entered.
IP
Address
Assign a static IP address to HD Portal plus. This
eld will also display the currently assigned IP
address
IP
Subnet
Mask
Assign subnet mask to HD Portal plus. This eld
will also display the currently assigned subnet
mask
Default
gateway
Assign a default gateway to the HD Portal
plus. This eld will also display the currently
assigned default gateway
The System Name and all network settings can be set
in the IP Settings section of the main menu. Network
settings may also be congured via USB memory stick
conguration.
NOTE:To change the default IP settings of the HD Portal
plus or any of the other conguration settings, you must
log in with administrator rights as (admin).
To quickly nd the system’s IP Address, connect a local
monitor to the DVI output. Use the keypad to navigate
to the System Info page of the on screen menu.
IP addresses may be assigned to the HD Portal plus by
two ways: DHCP and Fixed (Static) IP. If your network
is congured for DHCP, the IP address will be provided
automatically and will be visible on the DVI output of
the HD Portal plus. To set a Fixed (Static) IP address,
follow the procedure on the next page.

8| DMR HD Portal plus User Manual February, 2015
Use this option with caution as you are changing the
default of this conguration le and will implement the
settings from the le.
If the dmx_ip_conf.txt le is intentionally left blank
with no text of any type within the body of the le,
the HD Portal plus will write its network settings to this
le. This is an easy way to obtain the unit’s network
settings.
SMTP Mail
The HD Portal plus has the ability to send emails.
To send the emails you must enable the SMTP
conguration. After enabling it, enter the address of
the SMTP server in the appropriate text box and the
e-mail account that you use to send emails in the
appropriate box. Conrm any changes to the SMTP mail
conguration by clicking Submit.
Telnet (TCP/IP)
The Telnet port by default is not enabled. To turn on
Telnet control, set the Telnet port number (typically
Port 23) and check the TCP/IP port enable check box.
A password for the Telnet session can be activated by
entering a password in the Password for TCP/IP connec-
tion text box. If a password is not desired on the Telnet
session, leave the text box blank.
RS-232
On the back of the HD Portal plus there is a serial con-
trol port congured as a DTE that supports the RS-232
protocol. A Null-Modem cable should be used between
the HD Portal plus and the COM port on your PC.
Terminal session settings required for RS-232 control
are: 9600, 8, None, 1 with No Flow Control.
There is no password protection on this interface and,
by default the RS-232 port is enabled. The administra-
tor has the ability to disable the port by unchecking the
COM port enable check box.
Conguring a Static IP Address
1. On your Internet browser, enter the current IP
address of the HD Portal plus. (Note: If the unit has
factory settings, the default static IP address is:
192.168.1.253)
2. Login to the HD Portal plus using the procedure
shown in the Logging In section.
3. Navigate to the network settings page by selecting
IP Settings.
4. To change to a Fixed or Static IP address, set the
DHCP Client check box to “Disable”. Fill in the
IP Address, IP Subnet Mask and Default Gateway
elds.
5. Once you have completed all of the above steps,
select the Apply Changes button. You will receive a
pop-up window warning you to use this option with
caution as you are changing the default address
and should remember the new settings.
Conguring a DHCP IP Address
1. Follow the rst three steps above.
2. To enable the HD Portal plus to pick up an
IP address, set the DHCP Client check box to
“Enable”.
3. If you have made any changes to the network
settings, select the Apply Changes button. You will
receive a pop-up window warning you to use this
option with caution as you are changing the default
address and should remember the new settings.
USB Network Conguration
This section describes how to congure the HD Portal
plus using a USB memory stick. The network parameters
of the HD Portal plus can be set via a special
conguration text le on a USB memory stick. Insert the
memory stick into one of the HD Portal plus USB ports
at any time. The unit will look for the presence of this
conguration le and will implement the settings from
the le. Use a simple ASCII text editor to create the le
named dmx_ip_conf.txt.
dhcp=(bool)0
dns_1=(string)192.168.0.2
dns_2=(string) 192.168.0.3
ethernet=(string)auto
gateway=(string)192.168.1.1
ipaddress=(string)192.168.1.253

DMR HD Portal plus User Manual |9
The HD Portal plus can be controlled by several different
methods. These include, a Web Portal interface, IR remote
control, contact closure, RS-232 serial port, Telnet, or by
the convenient button panel (Keypad) on the front of the
unit. This section will cover each of these controls.
Web Portal Overview
The HD Portal plus has a fully featured Web Portal
that can be accessed via a web browser. Enter the
unit’s IP address in the web browser’s address bar and
logon. From this portal you can start and stop a re-
cording session, play or download previously archived
material, set recording preferences and move content
on,off or within the HD Portal plus.
The Watch Videos page will appear
upon login. The screen capture on
the left indicates when you are in
the Watch Videos page. Selecting
the Watch Videos selection from
the main menu will show a list of
all current recordings in the Root
directory.
Main System Toolbar
When logged in, selecting the Watch Videos selection
from the main menu provides the main system
toolbar. The Main System Toolbar Icons Table on the
right shows the icons found at the top of the web
page in the Watch Videos web page.
MAIN SYSTEM TOOLBAR TABLE
Icon Function Description
Create
New Folder
Creates a new folder without
password protection.
Rename
Folder
Changes the name of the name of
the selected folder
Delete
Folder
Permanently deletes folder including
all content
Folder
Password
Allows the user to password protect
the currently selected folder. If
the folder is already password
protected, it allows user to change
the password.
Show
Folders
Displays the Folder management
Trees
Close All
Folders
Shows only the highest tier folder of
the folder tree.
Close
Folder
View
Hides all folders on the HD Portal
plus.
Open All
Folders
Shows all folders on the HD Portal
plus
Move To Allows content to be moved from
one folder another.
Copy to Allows a copy of a media le to be
created in a dierent folder.
Delete
Selected
Deletes the selected content. There is
no recovery process for content that
has been deleted.
Download
to my PC
Opens Download Manager to allow
content to be moved to the local PC.
3
Controlling the HD Portal plus

10 | DMR HD Portal plus User Manual February, 2015
On-Screen Menu/Front Control Panel
The On-Screen Menu is displayed on the VGA or HDMI
output of the HD Portal plus. The HD Portal plus IR
remote will provide some of the conguration features
of the Web Portal as well as provide the ability to
navigate and playback non-password protected content
stored on the HD Portal plus.
Currently the on screen menus give the user the
following capabilities:
♦Start/Stop Recording
♦Browse and Play non-password protected
content
♦Browse and Play recent content
♦Copy content to USB
♦Set audio input recording level
♦Adjust the Menu opacity, position and timeout
♦Retrieve System Information
External Control
Telnet
The telnet client within the HD Portal plus provides
access to the Command Line Interface through the
TCP/IP protocol. By default, TCP telnet is disabled but
can be activated from the Web Portal with an optional
password. The available commands are the same as
listed in the RS-232 section.
Once logged in, type ‘help’ or ‘?’ for a list of
commands.
Infra-Red
The Infra-Red (IR) receiver for the remote control plugs
into a jack located on the back of the HD Portal plus. It
can also be used for IR control via control systems such
as AMX or Crestron.

DMR HD Portal plus User Manual |11
Recording/Streaming
A recording/streaming session can be started and
stopped from the Start/Stop section of the main toolbar
and from the prole listing of the Web Portal. The
“default” prole will be used unless another prole is
selected. To select an alternate prole, use the Change
button to bring up a prole listing.
The Web Portal will display a “Recording” message at
the top of the page. The record/stream parameters
will be as specied in the prole that was chosen.
To stop the recording and create an archived le,
press the Stop button to begin the “indexing” process.
Playback on HD Portal plus
Content stored on the HD Portal plus can be viewed via
the DVI or RGBHV output connected to a local monitor.
Selecting the Play Locally button on the Watch Videos
page will start the content playback.
During playback, the pause, stop, skip forward and skip
backward controls may be selected.
In order to play les, an MPEG-4 capable playback
application (such as Quicktime Player) is required on
the viewing PC.
Archiving
Download Manager
Files and Folders can be downloaded to the browsing
computer using the Download Manager.
Select the Download Manager icon from the Watch
Videos paging using this icon:
The Download Manager Toolbar will appear
USB Ooad / Upload
The front USB port can be used to move media to or
from the HD Portal plus. Connect the USB memory stick
and a folder named USB will appear in the Folder tree
in the left pane. While the USB is connected, media can
be copied to and from this folder.
Streaming
The Watch Live Stream page allows users at their
personal computers to launch client media players,
which will receive and decode the media streams for
playback.
Manual FTP Upload
Under the actions menu for any video there is a manual
FTP icon. Clicking this icon will allow you to manually
transfer a video le and associated XML le to a remote
server. SCP, FTP, and FTPS are all available options for
transferring les. To transfer your desired le, choose
the Manual FTP icon in the actions menu. Enter the
server destination, Port number (optional for non
standard ports), Destination path, and credentials. You
can choose to delete the content after a successful
upload.
Metadata
Metadata tagging allows you to tag a video le with
information such as Author, Title, Keywords and more.
This information is stored in the header of the Video
le. A second copy of this information is stored within
an XML le that is downloaded or transferred alongside
the le. To add metadata to the le, select the video
you wish to edit and click on the metadata icon in the
Actions Menu associated with that le. Then enter your
desired information into the available elds.
Transcoding
The HD Portal plus supports le transcoding. This is a
manual post process procedure. To transcode a video
select the transcode icon under the actions menu
for the desired video. Select the desired formats you
wish to transcode from the pop-up menu. You can
choose: H.264, iPod and Flash formats. The transcoding
will happen in the background and appear as a new
le in your media library. The new le will have the
transcoded video type appended to the beginning of the
original le name for easy recognition. To see waiting
jobs reference the Job Management page.
4
Recording, Archiving,Streaming and VOD

12 | DMR HD Portal plus User Manual February, 2015
Titles & Credits
JPEG images can be uploaded to the HD Portal plus
in the Titles & Credits selection of the main menu.
Images uploaded here can be specied in the prole
parameters. Images must be in JPEG format.
To upload an image, browse to the JPEG you wish to
use and click on the Upload button. Individual images
can be viewed or deleted using the controls provided on
each graphic.
Changing Proles
On the Start/Stop page, you can click on the Change
icon and you will get a list pop-up with all available
proles. Select on the prole of your choice and the
Start/Stop page will automatically be updated.
Video On Demand (VOD)
A VOD channel is a way to link up to other units
simultaneously.
VOD Channel Settings
By clicking on “Add New Channel” a window will open
allowing you to enter the IP address of the device you
want to connect to.
Viewing VOD Channels
If you go to the Live Streams page you will see current
live streams from all your VOD channels. To view
the stream click on the play icon under Actions and a
window will open and display the stream. The following
table describe the HD Portal plus play/stream VOD
capabilities:
CHANNEL FEATURES HD Portal plus
View/Play recorded
content Yes
View/Play live stream Yes
Make recorded content
available Yes
Stream live content Yes
EDIT PROFILE ICONS TABLE
Icon Function Description
Start
Record/
Stream
Starts a recording/streaming
session using the settings specied
in Prole.
Stop
Record/
Stream
Stops both the recording and
the live stream and will begin the
indexing process.
Streaming Indicates that Streaming is enabled
on this prole.
Archive
Saves le when the Stop Record/
Stream button is clicked on the HD
Portal plus.
Info Provides a quick view of all
congured settings in prole.
Copy Creates a copy of a prole that can
be customized.
Edit Prole
Allows a user dened prole to be
edited. To create a custom prole,
copy one of the 8 Originals.
Delete
Prole
Permanently deletes a custom
prole.
Default
Prole
Used when a recording is started
without a prole specied.
Identied by a Gold Star.
Set Default
Prole
Changes the Default prole when
clicked.
