Media MVUH450B-VA3i User manual
DM17-01.01.06en
Service manual
MIV V5 INDIVIDUAL
DC INVERTER R410A
MVUH400B-VA3i
MVUH450B-VA3i
MVUH560B-VA3i
MVUH615B-VA3i
MVUH670B-VA3i
MVUH730B-VA3i
MVUH785B-VA3i
MVUH850B-VA3i
MVUH900B-VA3i
DM16-01.01.06en MIV V5 Individual DC Inverter R410A
2 Specifications & Performance
Specifications & Performance
1.Specifications .......................................................................................... 3
2.Dimensions .............................................................................................. 9
3.Service space ........................................................................................ 11
4.Piping diagrams .................................................................................... 13

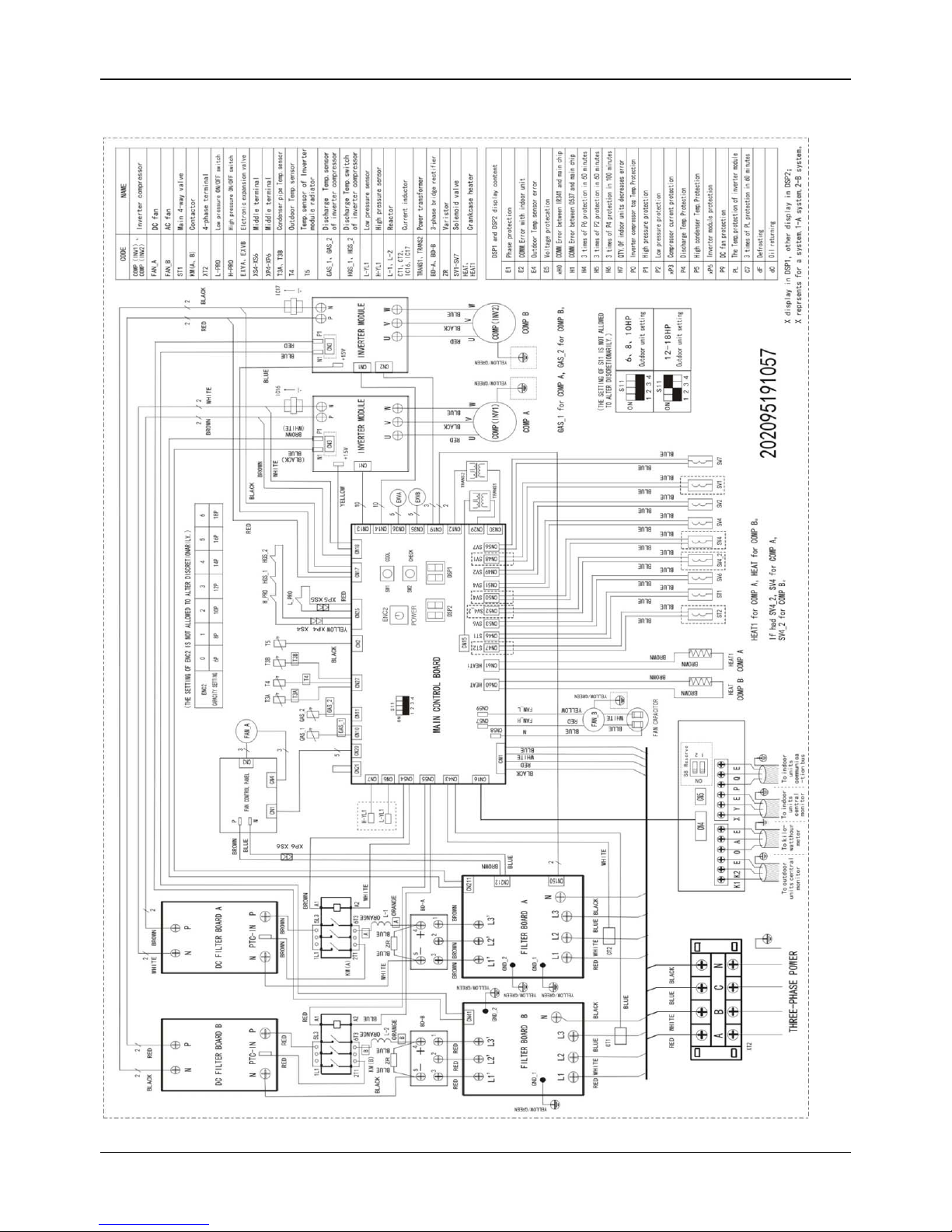

5.Wiring diagram ...................................................................................... 16
6.Electric characteristics ......................................................................... 19
7.Capacity tables ...................................................................................... 20
8.Sound levels .......................................................................................... 93
9.Accessories ........................................................................................... 95
MIV V5 Individual DC Inverter R410A DM16-01.01.06en
Specifications & Performance 3
1. Specifications
Model MVUH400B-VA3i MVUH450B-VA3i
Power supply V-Ph-Hz 380-415/3/50
Cooling
Capacity kW 40.0 45.0
Power input kW 11.9 13.6
EER 3.35 3.32
Heating
Capacity kW 45.0 50.0
Power input kW 11.1 12.7
COP 4.05 3.93
Compressor
Model LNB42FSAMC LNB53FCAMC
Type Rotary
Brand MITSUBISHI
Quantity 2
Capacity kW 13.98×2 16.86×2
Input kW 4.27×2 5.2×2
Crankcase heater W 25×2
Refrigerant oil type FV50S
Refrigerant oil charge ml 1400×2+2500 1700×2+3600
Outdoor fan
motor
Model WZDK560-38G(B)+YDK320-6A
Type DC+AC
Quantity 2
Brand Nidec,panasonic,welling/welling,matchwell
Insulation class DC: E/AC: F
Safe class IP44
Input W 580/422
Output W 560/320
Rated current A 3.84+2.65
Outdoor fan
Model Plastic
Type Axial fan
Quantity mm 2
Diameter mm 700
Height 200
Outdoor coil
Number of rows 2 2.7
Tube pitch(a)×row pitch(b) mm 22×19.05
Fin spacing mm 1.6
Fin type Hydrophilic fin
Tube outside diameter mm Ф7.94
Tube type Inner thread tube
Coil length×height mm (1290+1260)×792×2 (1360+1390+930)×792×2
Number of circuits 18 24
Outdoor air flow m
3/h 16575 16575
Sound pressure level dB(A) 62 62
Connectable
indoor unit
Total capacity % 50-130
Max. quantity 14 15
Outdoor uint Net dimension (W×H×D) mm 1360×1650×540 1460×1650×540
DM16-01.01.06en MIV V5 Individual DC Inverter R410A
4 Specifications & Performance
Packing (W×H×D) mm 1450×1785×560 1550×1785×560
Net/Gross weight mm 240/260 275/290
Refrigerant Type R410A
Factory charged kg 9 12
Throttle type Electronic expansion valve
Design pressure (Hi/Lo) MPa 4.4/2.6
Refrigerant
piping
Liquid pipe mm Ф12.7 Ф12.7
Gas pipe mm Ф22.2 Ф25.4
Ambient temp.
range
Cooling oC -5~48
Heating oC -15~24
Notes:
Capacities are based on the following conditions:
Cooling: Indoor temperature 27 oC DB/19 oC WB; Outdoor temperature 35 oC DB/24 oC WB.
Heating: Indoor temperature 20 oC DB/15 oC WB; Outdoor temperature 7 oC DB/6 oC WB.
Piping length: Interconnecting piping length 7.5m, level difference of zero.
Sound values are measured in a semi-anechoic room, at a position 1m in front of the unit and 1.3m above the floor.
The above data may be changed without notice for future improvement on quality and performance.
MIV V5 Individual DC Inverter R410A DM16-01.01.06en
Specifications & Performance 5
Specifications
Model MVUH560B-VA3i MVUH615B-VA3i MVUH670B-VA3i
Power supply V-Ph-Hz 380-415/3/50
Cooling
Capacity kW 56 61.5 67
Power input kW 17 18.8 20.8
EER 3.3 3.27 3.22
Heating
Capacity kW 63 69 75
Power input kW 16 17.9 19.8
COP 3.94 3.86 3.79
DC inverter
compressor
Model E655DHD-65D2YG
Type Scroll
Brand Hitachi
Quantity 1 1 1
Capacity kW 31.59 31.59 31.59
Input kW 10.34 10.34 10.34
Crankcase
heater W 30×2 30×2 30×2
Refrigerant oil type FVC68D
Refrigerant oil
charge ml 500
Fixed inverter
compressor
Model E605DH-59D2YG E655DH-65D2YG E855DH-80D2YG
Type Scroll
Brand Hitachi
Quantity 2
Capacity kW 15.39×2 17.1×2 20.9×2
Input kW 5.13×2 5.74×2 7.08×2
Crankcase
heater W 33×2
Refrigerant oil type FVC68D
Refrigerant oil
charge ml 500×2 500×2 1100×2
Outdoor fan
motor
Model WZDK450-38G+YDK450-6C WZDK750-38G-5+YDK450-6C
Type DC+AC
Quantity 2
Brand Panasonic, Nidec/YongAn, Broad-ocean, Weiling, Match-well
Insulation class E/F
Safe class IP44
Input W 420+720 780+720 780+720
Output W 340+450 625+450 625+450
Rated current A 3.6+3.3 5.7+3.3 5.7+3.3
Outdoor fan
Material ASG20
Type Axial fan
Quantity 2
Diameter mm 562/700 700/700 700/700
Height mm 162/202 200/202 200/202
DM16-01.01.06en MIV V5 Individual DC Inverter R410A
6 Specifications & Performance
ESP Pa 0-20 (default)
Pa 20-40 (customized)
Outdoor coil
Number of rows 2
Tube pitch(a)×
row pitch(b) mm 22×19
Fin spacing mm 1.6
Fin type Hydrophilic fin
Tube outside
diameter mm 7.94
Tube type Inner thread tube
Coil dimension
(W×H×D) mm 3135×1232×38 3504×1232×38 3504×1232×38
Number of circuits inlet:28; outlet:28 inlet:52; outlet:33 inlet:52; outlet:33
Outdoor air flow m
3/h 20000 23000 23000
Sound pressure level dB(A) 62 63 63
Connectable
indoor unit
Total capacity % 50-130
Max. quantity 33 36 39
Outdoor unit
Net dimension
(W×H×D) mm 1390×1615×765 1585×1615×765 1585×1615×765
Packing
(W×H×D) mm 1455×1790×830 1650×1810×840 1650×1810×840
Net/Gross
weight mm 360/375 385/400 390/405
Refrigerant
Type R410A
Factory
charged kg 17 18.5 18.5
Throttle type EXV
Design pressure (Hi/Lo) MPa 4.4/2.6
Refrigerant
piping
Liquid pipe mm Φ19.1
Gas pipe mm Φ31.8
Ambient temp.
range
Cooling oC -5~48
Heating oC -20~27
Notes:
Capacities are based on the following conditions:
Cooling: Indoor temperature 27 oC DB/19 oC WB; Outdoor temperature 35 oC DB/24 oC WB.
Heating: Indoor temperature 20 oC DB/15 oC WB; Outdoor temperature 7 oC DB/6 oC WB.
Piping length: Interconnecting piping length 7.5m, level difference of zero.
Sound values are measured in a semi-anechoic room, at a position 1m in front of the unit and 1.3m above the floor.
The above data may be changed without notice for future improvement on quality and performance.
MIV V5 Individual DC Inverter R410A DM16-01.01.06en
Specifications & Performance 7
Specifications
Model MVUH730B-VA3i MVUH785B-VA3i MVUH850B-VA3i MVUH900B-VA3i
Power supply V-Ph-Hz 380-415/3/50
Cooling
Capacity kW 73.0 78.5 85.0 90.0
Power input kW 22.3 24.2 28.3 28.5
EER 3.27 3.24 3.00 3.16
Heating
Capacity kW 81.5 87.5 95.0 100.0
Power input kW 20.6 22.4 26.0 26.5
COP 3.96 3.91 3.65 3.77
DC inverter
compressor
Model E655DHD-65D2YG
Type Scroll
Brand Hitachi
Quantity 1
Capacity kW 31.59
Input kW 10.34
Crankcase
heater W 33×2
Refrigerant oil type FVC68D
Refrigerant oil
charge ml 500
Fixed inverter
compressor
Model E655DH-65D2YG(GC)
Type Scroll
Brand Hitachi
Quantity 3 4
Capacity kW 17.1×3 17.1×4
Input kW 5.7×3 5.4×4
Crankcase
heater W 30×2+33 27.6×2+33+30
Refrigerant oil type FVC68D
Refrigerant oil
charge ml 500×3 500×4
Outdoor fan
motor
Model YDK520-4D×2+YDK380-4D×2
Type AC
Quantity 4
Brand YongAn, Broad-ocean, Weiling
Insulation class F/E
Safe class IP44
Input W 790×2+580×2
Output W 520×2+380×2
Rated current A 3.6×2+2.7×2
Outdoor fan
Material ASG20
Type Axial fan
Quantity mm 4
Diameter mm 562/560
Height 162/189
DM16-01.01.06en MIV V5 Individual DC Inverter R410A
8 Specifications & Performance
ESP Pa 0-20 (default)
Pa 20-40 (customized)
Outdoor coil
Number of rows 2
Tube pitch(a)×
row pitch(b) mm 22×19
Fin spacing mm 1.6
Fin type Hydrophilic fin
Tube outside
diameter mm 7.94
Tube type Inner thread tube
Coil dimension
(W×H×D) mm (2141×1232×19+2081×1232×19)×2
Number of circuits (inlet:22; outlet:20)×2
Outdoor air flow m
3/h 33100
Sound pressure level dB(A) 64 64 65 65
Connectable
indoor unit
Total capacity % 50-130
Max. quantity 43 46 50 53
Outdoor unit
Net dimension
(W×H×D) mm 2540×1615×765
Packing
(W×H×D) mm 2600×1800×825
Net/Gross weight mm 555/590 555/590 600/635 600/635
Refrigerant Type R410A
Factory charged kg 27
Throttle type EXV
Design pressure (Hi/Lo) MPa 4.4/2.6
Refrigerant
piping
Liquid pipe mm Φ22.2
Gas pipe mm Φ38.1
Ambient
temp.
range
Cooling oC -5~48
Heating oC -15~24
Notes:
Capacities are based on the following conditions:
Cooling: Indoor temperature 27 oC DB/19 oC WB; Outdoor temperature 35 oC DB/24 oC WB.
Heating: Indoor temperature 20 oC DB/15 oC WB; Outdoor temperature 7 oC DB/6 oC WB.
Piping length: Interconnecting piping length 7.5m, level difference of zero.
Sound values are measured in a semi-anechoic room, at a position 1m in front of the unit and 1.3m above the floor.
The above data may be changed without notice for future improvement on quality and performance.
MIV V5 Individual DC Inverter R410A DM16-01.01.06en
Specifications & Performance 9

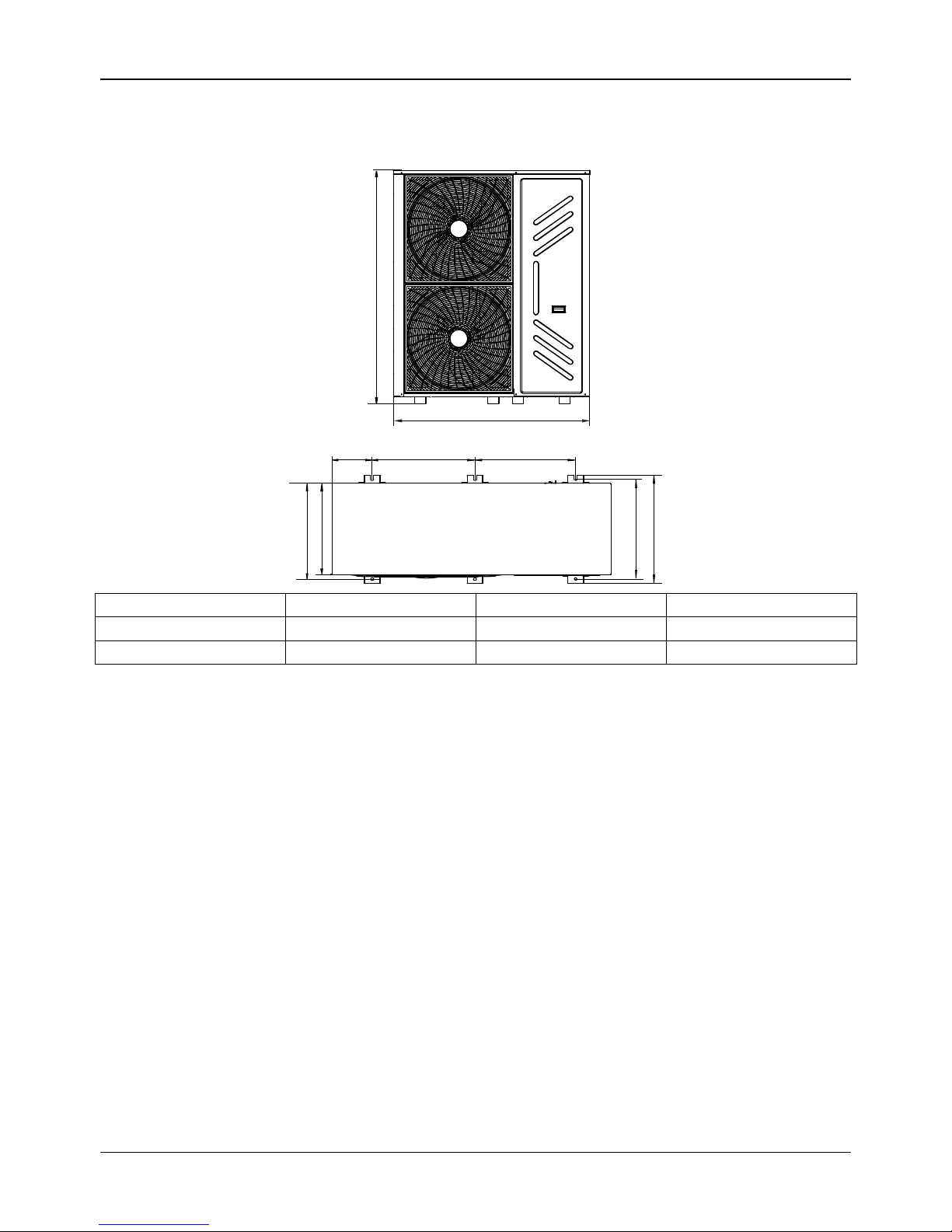

2. Dimensions
MVUH400B-VA3i MVUH450B-VA3i
Unit: mm
Model A B C
MVUH400B-VA3i 175 505 1360
MVUH450B-VA3i 225 555 1460
1650
C
540
500
505
475
450
AB
DM16-01.01.06en MIV V5 Individual DC Inverter R410A
10 Specifications & Performance
MVUH560B-VA3i MVUH615B-VA3i MVUH670B-VA3i
Unit: mm
MVUH730B-VA3i MVUH785B-VA3i MVUH850B-VA3i MVUH900B-VA3i
Unit: mm
Top view
1615
765
1390
1615
765
1585
Top view
1615
2540 765
800
MIV V5 Individual DC Inverter R410A DM16-01.01.06en
Specifications & Performance 11
3. Service space
MVUH400B-VA3i MVUH450B-VA3i
Single unit installation
Multiple unit installation
>
600
>4000
>400
>400
>600
A
ir inlet
(Wall or obstacle)
Air inlet
Air outlet
Maintain
channel
>600
>4000
>400
>
600
>4000 >1000 >8000 >6000 >400
DM16-01.01.06en MIV V5 Individual DC Inverter R410A
12 Specifications & Performance
MVUH560B-VA3i ~ MVUH900B-VA3i
Unit: mm
When installing the unit, leave enough space for maintenance.
When the outdoor unit is higher than the surrounding obstacle
One row
Two rows
More than two rows
When the outdoor unit is lower than the surrounding obstacle, to avoid cross connection of the outdoor hot
air from affecting the heat exchange effect, please add an air director onto the exhaust hood of the outdoor
unit to facilitate heat dissipation. See the figure below. The height of the air director is HD (namely H-h).
Please make the air director on site.
>1m
>1m
>1m
>0.1m >0.1m
>1m
Top view of the outdoor unit
>1m
>1m
>1m
＞0.1m
Front Front
>0.8m
>1m
>1m>1m
>1m
Front Front
Front Front
＞0.1m
>0.8m
>1m>1m
>1m
>1m
>1m
Front Front
Front Front
Front Front
＞0.1m
>0.8m
>1m
Front Front
>1m
>1m
Air director
hh-H
H
＞0.1m
MIV V5 Individual DC Inverter R410A DM16-01.01.06en
Specifications & Performance 13

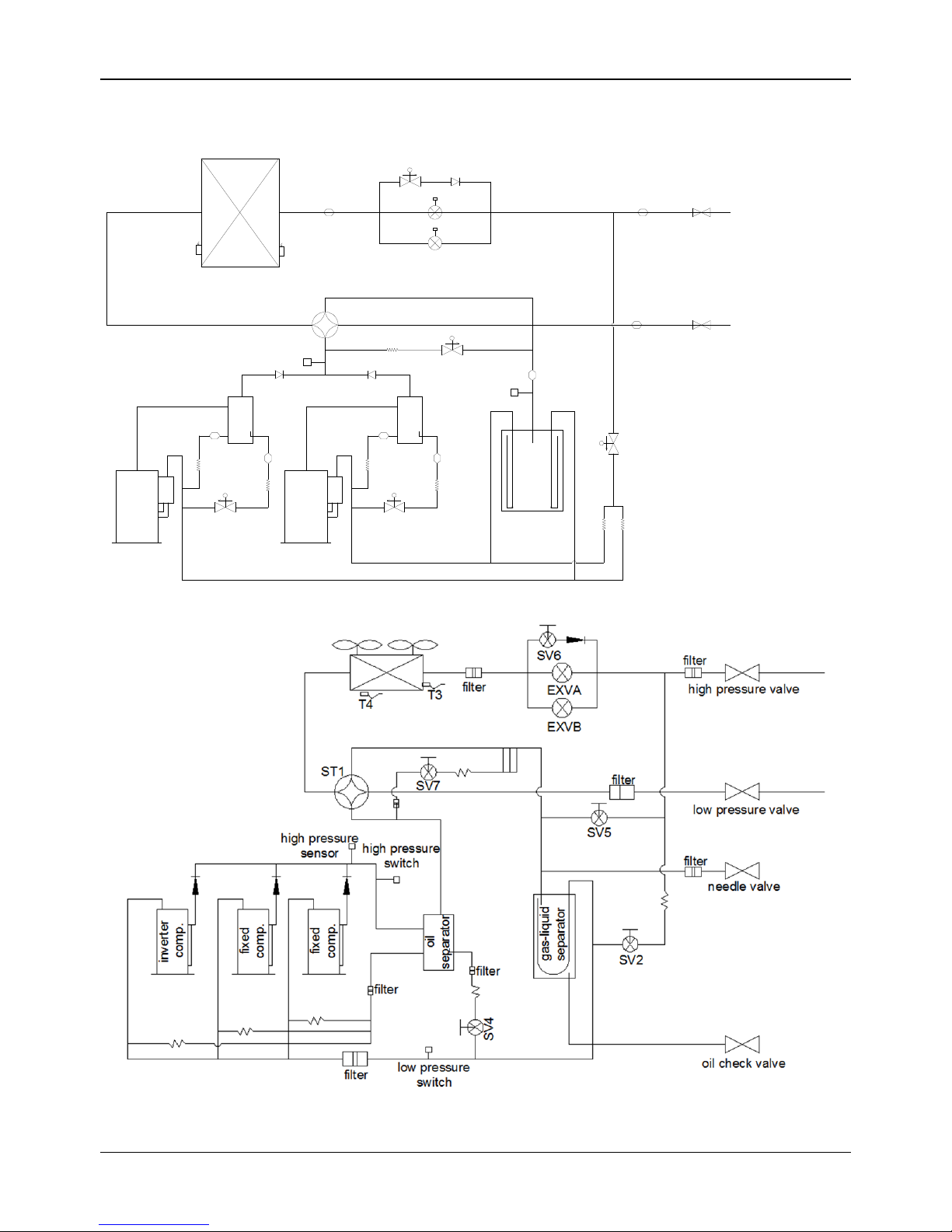

4. Piping diagrams
MVUH400B-VA3i MVUH450B-VA3i
MVUH560B-VA3i MVUH615B-VA3i MVUH670B-VA3i
SV6
EXVA
EXVB
SV41
Inverter
comp.
Inverter
comp.
SV42
Oil
separator
Oil
separator
T3 T4
High
pressure
switch
SV7
Low
pressure
switch
SV2
High pressure valve
Low pressure valve
Gas-liquid
separator
ST1
DM16-01.01.06en MIV V5 Individual DC Inverter R410A
14 Specifications & Performance
MVUH730B-VA3i MVUH785B-VA3i
MVUH850B-VA3i MVUH900B-VA3i
SV2
Left HE
SV4
SV3
ST1
ST2 SV5
SV6
EXVB
EXVA
SV6
Inverter
comp.
Oil
separator
Gas-liquid
separator
Gas-liquid
separator
High pressure valve
Low pressure valve
Right
HE
Fixed
comp.
Fixed
comp.
Fixed
comp.
SV2
SV4
SV3
ST1
ST2 SV5
SV6
EXVB
EXVA
SV6
Inverter
comp.
Fixed
comp.
Fixed
comp.
Fixed
comp.
Fixed
comp.
Oil
separator
High pressure valve
Low pressure valve
Gas-liquid
separator
Gas-liquid
separator
Left HE
Right
HE
MIV V5 Individual DC Inverter R410A DM16-01.01.06en
Specifications & Performance 15
Key components:
Oil separator: It is used to separate oil from high pressure and high temperature gas refrigerant, which is
pumped out from compressor. The separation efficiency is up to 99%, it makes the oil return back to each
compressor very soon.
Gas-liquid separator: It is used to store the liquid refrigerant and oil; it can protect the compressor from liquid
hammer.
Four-way valve (ST1): It is used to change the refrigerant flow direction; it is closed in cooling mode and
opened in heating mode.
EXV (Electromagnetic Expansion Valve): It is used to adjust refrigerant volume.
SV2: It is used to protect compressor. When any compressor discharge temperature is higher than 100oC, SV2
will be open to spray a little liquid refrigerant to cooling compressor, and it will be closed when the discharge
temperature is lower than 90oC.
SV4: It is used to help the oil in oil separator return back to compressor, guarantee the oil balance among
compressors. When the unit is initial power on, SV4 will open 120 seconds, then it will reopen after DC inverter
compressor running 5 minutes and then it will close after DC inverter compressor running 15 minutes. Later,
SV4 will open 3 minutes after DC inverter running 20 minutes regularly.
SV5: It is used to enlarge refrigerant volume to accelerate defrosting speed. In defrosting mode, SV5 will be
open to cut the refrigerant flowing circle, so the defrosting process will take less time, in cooling mode, SV5 will
always be closed.
SV6: It is used to by-pass refrigerant. It will be closed in heating and standby mode. It will be open in forced
cooling and oil return mode. In cooling mode, it will be open or closed according to discharge pressure.
SV7: It is used to balance system pressure before open the unit, and it can guarantee system reliability in low
temperature heating mode.
High pressure sensor: It is used to supervisor the discharge pressure of the compressor and to control the
DC fan speed.
T3: Pipe temperature sensor; T4: Ambient temperature sensor
DM16-01.01.06en MIV V5 Individual DC Inverter R410A
16 Specifications & Performance
5. Wiring diagram
MVUH400B-VA3i MVUH450B-VA3i
MIV V5 Individual DC Inverter R410A DM16-01.01.06en
Specifications & Performance 17
MVUH560B-VA3i MVUH615B-VA3i MVUH670B-VA3i
DM16-01.01.06en MIV V5 Individual DC Inverter R410A
18 Specifications & Performance
MVUH730B-VA3i MVUH785B-VA3i MVUH850B-VA3i MVUH900B-VA3i
MIV V5 Individual DC Inverter R410A DM16-01.01.06en
Specifications & Performance 19
6. Electric characteristics
Model
Units Power supply Compressor OFM
Hz Voltage
(V)
Min.
(V)
Max.
(V)
MCA
(A)
TOCA
(A)
MFA
(A)
MSC
(A)
RLA
(A) kW FLA
(A)
MVUH400B-VA3i 50 380~415 342 456 42.5 39.84 60 / 12×2 0.56+
0.32
2.65+
3.84
MVUH450B-VA3i 50 380~415 342 456 52.5 49.84 60 / 15.4×2 0.56+
0.32
2.65+
3.84
MVUH560B-VA3i 50 380~415 342 456 44 60 45 -/62/62 13.0+8.8×2 0.45×2 3.4×2
MVUH615B-VA3i 50 380~415 342 456 53.9 60 55 -/64/64 13.0+9.6×2 0.45+0.75 3.4+5.6
MVUH670B-VA3i 50 380~415 342 456 59.4 64 60 -/80/80 13.0+12×2 3.4+5.6
MVUH730B-VA3i 50 380~415 342 456 63.1 77 65
-/64/64/64
13.0+9.6×3 0.52×2+
0.38×2
3.6×2+
2.7×2
MVUH785B-VA3i 50 380~415 342 456 68.3 77 70 13.0+9.6×3 0.52×2+
0.38×2
3.6×2+
2.7×2
MVUH850B-VA3i 50 380~415 342 456 74.3 94 75 13.0+9.6×4 0.52×2+
0.38×2
3.6×2+
2.7×2
MVUH900B-VA3i 50 380~415 342 456 78.0 94 80 13.0+9.6×4 0.52×2+
0.38×2
3.6×2+
2.7×2
Notes:
1. RLA is based on the following conditions, Indoor temp. 27°C DB/19°C WB, Outdoor temp. 35°C DB
2. TOCA means the total value of each OC set.
3. MSC means the Max. current during the starting of compressor.
4. Voltage range: Units are suitable for use on electrical systems where voltage supplied to unit terminals is not below or above
listed range limits.
5. Maximum allowable voltage variation between phases is 2%.
6. Selection wire size based on the larger value of MCA or TOCA.
7. MFA is used to select the circuit breaker and the ground fault circuit interrupter (earth circuit breaker).
Symbols:
MCA: Min. Circuit Amps. (A)
TOCA: Total Over-current Amps. (A)
MFA: Max. Fuse Amps. (A)
MSC: Max. Starting Amps. (A)
RLA: Rated Locked Amps. (A)
OFM: Outdoor Fan Motor.
FLA: Full Load Amps. (A)
kW: Rated Motor Output (KW)
-/64/64/64
-/64/64/64/64
-/64/64/64/64
0.45+0.75
DM16-01.01.06en MIV V5 Individual DC Inverter R410A
20 Specifications & Performance
7. Capacity tables
7.1 Cooling capacity tables
Cooling capacity tables
MVUH400B-VA3i
TC: Total Capacity (kW); PI: Power Input (kW) (Compressor + Outdoor fan motor)
Combination
(%)
Outdoor
temp.
(oC)
Indoor temperature(oC DB/WD)
20.8/14 23.3/16 25.8/18 27/19 28.2/20 30.7/22 32/24
TC PI TC PI TC PI TC PI TC PI TC PI TC PI
kW kW kW kW kW kW kW kW kW kW kW kW kW kW
130%
-5 35.1 4.86 41.9 5.94 48.6 6.36 50.4 6.62 52.9 6.81 54.1 7.41 55.5 7.45
-2 35.1 4.86 41.9 6.05 48.6 6.36 50.4 6.66 52.9 6.81 54.1 7.50 55.5 7.53
0 35.1 4.95 41.9 6.16 48.6 6.60 50.4 7.03 52.9 7.21 54.1 7.59 55.5 7.63
2 35.1 5.04 41.9 6.17 48.6 6.82 50.4 7.42 52.9 7.29 54.1 7.65 55.5 7.74
4 35.1 5.15 41.9 6.29 48.6 7.06 50.4 7.45 52.9 7.38 54.1 7.64 55.5 7.89
6 35.1 5.25 41.9 6.42 48.6 7.32 50.4 7.52 52.3 7.61 53.5 7.64 54.9 7.95
8 35.1 5.37 41.9 6.56 48.6 7.69 50.4 7.88 51.6 7.86 52.9 3.90 54.2 8.02
10 35.1 5.49 41.9 6.70 48.6 7.97 50.4 8.15 51.0 4.04 52.3 4.06 53.6 8.26
12 35.1 5.58 41.9 6.83 48.6 8.13 49.7 4.03 50.4 4.06 51.6 4.07 52.9 8.31
14 35.1 5.69 41.9 6.96 48.4 4.05 49.1 4.06 49.7 4.08 51.0 4.09 52.3 8.50
16 35.1 5.79 41.9 7.11 47.9 4.06 48.4 4.08 49.0 4.10 50.3 4.12 51.6 8.63
18 35.1 5.90 41.9 7.25 47.1 8.50 47.7 8.55 48.4 8.60 49.7 8.68 51.0 8.76
20 35.1 6.03 41.9 7.71 46.4 8.92 47.1 8.97 47.7 9.01 49.0 9.09 50.3 9.19
21 35.1 6.19 41.9 7.99 46.1 9.13 46.9 9.17 47.4 9.22 48.7 9.32 50.0 9.40
23 35.1 6.64 41.9 8.56 45.6 9.54 46.1 9.59 46.7 9.64 48.0 9.74 49.3 9.83
25 35.1 7.09 41.9 9.17 44.9 9.96 45.4 10.01 46.1 10.07 47.4 10.17 48.7 10.26
27 35.1 7.57 41.9 9.82 44.3 10.38 44.9 10.44 45.4 10.49 46.7 10.60 48.0 10.71
29 35.1 8.08 41.9 10.49 43.6 10.79 44.1 10.86 44.9 10.92 46.1 11.04 47.4 11.15
31 35.1 8.63 41.7 11.10 42.9 11.23 43.6 11.29 44.1 11.34 45.4 11.47 46.7 11.60
33 35.1 9.19 41.0 11.52 42.3 11.64 42.9 11.71 43.6 11.77 44.9 11.90 46.0 12.03
35 35.1 9.80 40.3 11.93 41.6 12.08 42.3 12.14 42.9 12.21 44.1 12.35 45.4 12.48
37 35.1 10.43 39.7 12.37 41.0 12.51 41.6 12.58 42.3 12.66 43.4 12.80 44.7 12.94
39 35.1 11.10 39.0 12.49 40.3 12.93 41.0 13.01 41.6 13.09 42.9 13.23 44.1 13.39
41 35.1 11.68 38.6 12.62 39.9 13.05 40.6 13.13 41.1 13.21 42.4 13.26 42.4 13.51
43 35.1 11.98 38.3 12.68 39.6 13.08 40.4 13.19 40.7 13.23 41.7 13.28 41.9 13.54
45 35.1 12.57 38.1 12.80 39.2 13.21 39.9 13.27 40.1 13.29 40.5 13.33 41.1 13.80
48 35.1 13.02 38.0 13.21 38.6 13.33 39.3 13.39 39.6 13.44 39.5 13.56 40.2 13.84
120%
-5 32.4 4.70 38.6 5.69 44.9 6.73 48.0 7.34 50.3 7.65 51.4 7.89 52.6 8.10
-2 32.4 4.74 38.6 5.75 44.9 6.80 48.0 7.38 50.3 7.74 51.4 7.96 52.6 8.13
0 32.4 4.79 38.6 5.79 44.9 6.87 48.0 7.40 50.3 7.81 51.4 8.01 52.6 8.15
2 32.4 4.80 38.6 5.85 44.9 6.92 48.0 7.47 50.3 7.84 51.4 8.07 52.6 8.17
4 32.4 4.85 38.6 5.92 44.9 7.02 48.0 7.54 50.3 7.94 51.4 8.08 52.6 8.19
6 32.4 4.90 38.6 5.97 44.9 7.10 48.0 7.62 50.3 8.03 51.4 8.15 52.6 8.21
8 32.4 4.94 38.6 6.03 44.9 7.20 48.0 7.72 50.3 8.11 51.4 8.18 52.6 8.25
10 32.4 5.00 38.6 6.11 44.9 7.27 48.0 7.86 50.3 8.12 51.4 8.20 52.6 8.29
12 32.4 5.10 38.6 6.22 44.9 7.41 48.0 8.00 49.6 8.15 50.7 8.16 51.9 8.34
14 32.4 5.20 38.6 6.35 44.9 7.55 48.0 8.16 48.9 8.20 50.1 8.28 51.3 8.44
16 32.4 5.29 38.6 6.48 44.9 7.70 47.7 4.10 48.3 8.32 49.4 8.42 50.6 8.57
18 32.4 5.39 38.6 6.61 44.9 7.96 47.0 8.50 47.6 8.53 48.7 8.61 50.0 8.69
20 32.4 5.50 38.6 6.86 44.9 8.56 46.4 8.92 47.0 8.95 48.1 9.03 49.3 9.11
21 32.4 5.55 38.6 7.10 44.9 8.87 46.0 9.13 46.6 9.16 47.9 9.24 49.0 9.33
23 32.4 5.93 38.6 7.62 44.9 9.49 45.4 9.53 46.0 9.57 47.1 9.67 48.3 9.75
25 32.4 6.34 38.6 8.15 44.1 9.91 44.7 9.94 45.3 9.99 46.6 10.09 47.7 10.18
27 32.4 6.77 38.6 8.71 43.6 10.31 44.1 10.38 44.7 10.43 45.9 10.52 47.0 10.62
29 32.4 7.22 38.6 9.30 42.9 10.73 43.4 10.79 44.0 10.84 45.1 10.95 46.4 11.05
31 32.4 7.70 38.6 9.93 42.1 11.16 42.9 11.21 43.4 11.27 44.6 11.39 45.7 11.50
33 32.4 8.20 38.6 10.59 41.6 11.58 42.1 11.64 42.7 11.69 43.9 11.82 45.0 11.93
35 32.4 8.72 38.6 11.29 40.9 11.99 41.4 12.06 42.1 12.12 43.3 12.25 44.4 12.38
37 32.4 9.29 38.6 12.03 40.3 12.43 40.9 12.49 41.4 12.56 42.6 12.69 43.7 12.83
39 32.4 9.88 38.4 12.70 39.6 12.85 40.1 12.93 40.7 12.99 42.0 13.14 43.1 13.26
41 32.4 10.15 38.1 12.79 39.3 12.94 39.8 13.02 40.4 13.08 41.7 13.17 41.9 13.36
43 32.4 10.30 37.9 12.88 39.0 13.02 39.5 13.07 40.1 13.13 41.0 13.21 41.3 13.63
This manual suits for next models
8
Table of contents
