Mediair SUA01 Series User manual

MEDIAIR SUCTION UNIT
SUA01 Series／SUB01 Series
USER’S MANUAL
Caution
Federal law restricts this device to sale by or on order of a physician, or any
other practitioner licensed by the law of the State in which he practices to use
or order the use of this device.
NOTE
Check ALL parts for shipping damage. If shipping damage is noted, DO NOT
use. Contact medical equipment provider for further instruction.

Index
1. Safety Information ......................................................................... 2
2. AC Power Source............................................................................ 3
3. Electrical........................................................................................ 3
4. Introduction................................................................................... 4
5. Illustration of Important Parts ......................................................... 5
6. Set-Up........................................................................................... 6
7. How to Operate Your SUA01 Series／SUB01 Series Suction Unit …..... 6
8. Cleaning Instructions...................................................................... 9
9. Maintenance ................................................................................ 10
10. Troubleshooting........................................................................... 12
11. Specifications／Classifications........................................................ 13
12. Warranty..................................................................................... 14
1

1. SAFETY INFORMATION
When using electrical products, especially when children are present, basic safety
precautions should always be followed. Read all instructions before using.
Important information is highlighted by these terms:
DANGER
Urgent safety information for hazards that will cause serious injury or death.
WARNING
Important safety information for hazards that might cause serious injury.
CAUTION
Information for preventing damage to the product.
NOTE
Information to which you should pay special attention.
READ ALL USER’S MANUAL BEFORE USING.
DANGER
To reduce the risk of electrocution:
1. Do not use while bathing.
2. Do not place or store product where it can fall or be pulled into a tub or sink.
3. Do not place in or drop into water or other liquid.
4. Do not reach for a product that has fallen into water. Unplug immediately.
WARNING
To reduce the risk of burns, electrocution, fire or injury to persons:
1. Close supervision is necessary when this product is used by, on, or near children or
invalids.
2. Use this product only for its intended use as described in this guide.
3. Never operate this product if:
a. It has a damaged power cord or plug.
b. It is not working properly.
c. It has been dropped or damaged.
d. It has been dropped into water.
4. Return the product to an authorized SUA01 Series／SUB01 Series medical equipment
service center for examination and repair.
5. Keep the power cord away from heated surfaces.
6. Never use while drowsy or asleep.
2

SPECIFIC WARNINGS
TO REDUCE THE RISK OF ELECTRICAL SHOCK OR INJURY TO PERSONS, DO
NOT DISASSEMBLE THIS UNIT. Disassembly or attempted repairs if
accomplished incorrectly can create electrical shock hazard. Only qualified
technicians should perform servicing of this suction unit.
DANGER
The SUA01 Series／SUB01 Series Suction Unit is a vacuum suction device
designed for the collection of nonflammable fluid materials in medical
applications only. Improper use during medical applications can cause injury
or death.
For all medical applications:
1. All suctioning should be done in strict accordance with appropriate procedures that
have been established by a licensed medical authority.
2. Some attachments or accessories may not fit the tubing supplied. All attachments or
accessories should be checked prior to use to assure proper fit.
2. AC POWER SOURCE
CAUTION
The Model SUA01 Series／SUB01 Series is used with a power supply allowing
operation on AC voltage (115 VAC, 60 Hz／230 VAC, 50 Hz). However the correct
power source must be used to connect to adaptable wall power.
3. ELECTRICAL
Compressor：
If the overload protector shuts off the motor frequently, you may have a low voltage
situation. Low voltage can also be suspected when:
1. The motor does not get up to full power or speed.
2. Other motor operated appliances fail to operate properly. Too many motor operated
appliances on same circuit.
NOTE
The motor of this compressor has a thermal overload protector. If the motor overheat, the
overload protector will shut off the motor. If this occurs, turn the ON／OFF switch to the
OFF position and allow the motor to cool (approximately 5 minutes). Restart compressor.
If the compressor fails to start, wait an additional 5 minutes before attempting to restart.
If this fails, inspect the fuses on your suction unit. If the unit still does not restart, call your
3

medical equipment provider immediately.
WARNING
Proper operation of this product is necessary to avoid physical harm. Improper
use can cause personal injury and／or tissue damage. This product should not
be used unless the operator has been instructed by a physician or other
qualified health care professional.
1. Familiarize yourself with this unit.
2. Place unit on table and push down hard so that suction feet hold unit firmly in place.
3. Before plugging power cord into electrical outlet, check if the ON／OFF switch is in the
“O” OFF position.
NOTE
Before attempting to start a cold unit, let the unit reach room temperature in a heated
area.
4. INTRODUCTION
Your SUA01 Series／SUB01 Series Suction Unit is a professional medical suctioning device
that produces a maximum vacuum of 560 mmHg. The unit is equipped with an 800 ml
collection bottle and has been designed for convenient and reliable usages.
Features:
 New anti-bacteria filter design helps contamination.
 High quality vacuum regulator and anti-vibration vacuum gauge setting.
 Oil-less, permanent lubrication.
 Collection bottle with overflow protection.
 Superior performance and high reliability for continuous operation design.
 Easy carry and easy cleaning.
Following the recommended operating and maintenance procedures outlined in this user’s
manual will maximize the life of this product. Refer to the diagrams on page 6.
4

5. ILLUSTRATION IMPORTANT PARTS
MODEL: SUA01 Series／SUB01 Series
1. Vacuum Adjust Knob
Figure 1
1
2
4
5
3
2. Vacuum Gauge
3. Bacteria Filter
4. Connection Tubing
5. Patient Tubing Connector
6. Patient Tubing
7. 800cc Collection Bottle
8. Holder
9. Base
10.Cord Fixed Support
11.Power Switch
12.Power Cord
13.Fuse
7
8
9
10
1112
13
6
Figure 2
5

6. SET-UP
1. Connect either end of the connecting tubing (item# 4) to the top of collection bottle
connector then connect the other end to the bacteria filter.
2. The patient tubing should be connected to collection bottle at the outlet labeled
(patient). Please assure that all connections are secure and without leaks before using.
7. HOW TO OPERATE YOUR VAC-ASSIST SUCTION UNIT
1. Before use, check the specification label on the side of the suction unit to ensure that
the voltage and current indicated on the unit correspond with the voltage and current
available. Make sure the power switch located on the side of the unit is in the “Off”
position before connecting the unit to a power source.
Figure 3 "Off" position
2. Switch the power switch to “I” position (on), the unit start running.
Figure 4 "On" position
6

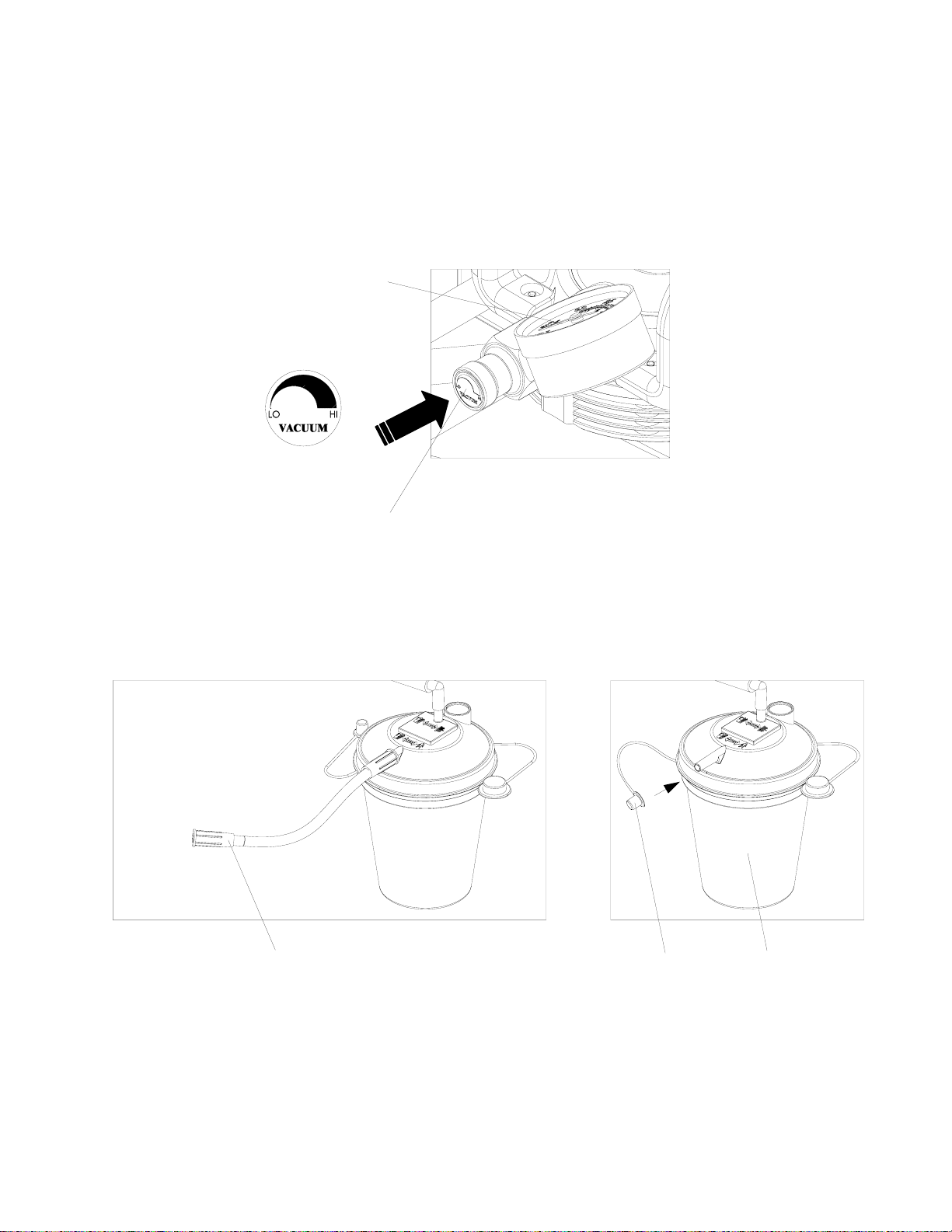

3. Adjust the vacuum level from 0 to 560 mm Hg by turning the vacuum adjust knob
(clockwise to increase vacuum and counter-clockwise to decrease vacuum). Referring
to the vacuum gauge while setting the desired level of vacuum. To accurately read the
gauge, block the patient end of the hose or cap off the collection bottle and allow the
gauge to reach a stable vacuum reading.
Figure 5
V
acuum Gau
g
e
V
acuum Ad
j
ust Knob
Collection Bottle
Cap
Patient End of the Hose
Figure 6
7

4. Place the patient tubing to the appropriate position of patient and start to suck sputum.

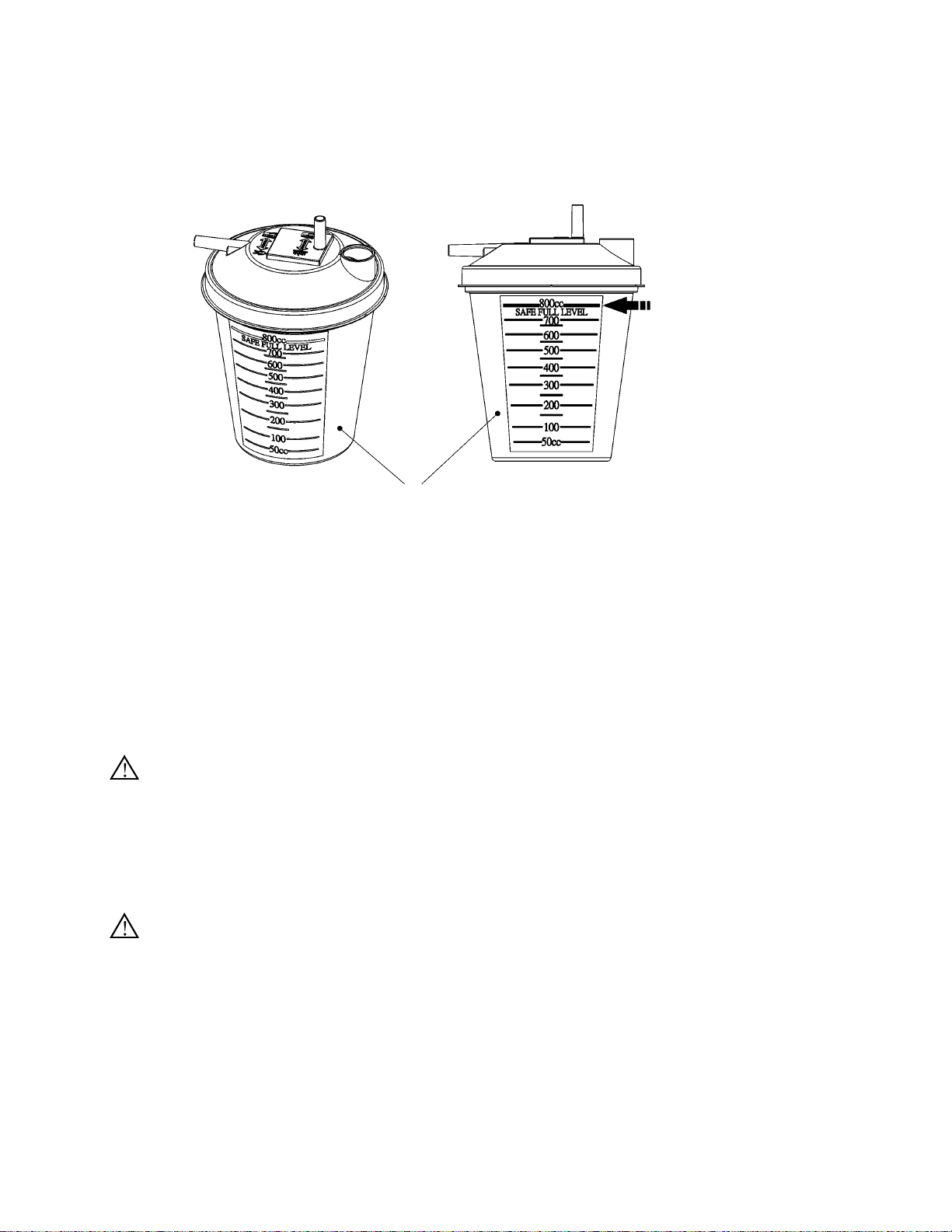

5. When the sputum reaches the safe full level of collection bottle (800cc), the suctioning
will stop sucking automatically (float shut-off).
Safe Full Level
Collection Bottle
Figure 7
6. Switch the power switch to “O” position (off), shut off the suction motor.
7. Remove the sputum from collection bottle after the motor stops turning completely.
(Please refer to the section “CLEAN INSTRUCTIONS” on page 9 for the directions of
how to clean the collection bottle).
8. Turn on the unit and start to run the suction unit again.
NOTE
1. If the unit sustains a severe drop, validity of the gauge must be checked. Inspect if the
float shut-off is still functioning properly when the liquid in the collection bottle reaches
the safe full level.
2. Always transport unit with vacuum adjust knob rotated fully clockwise in case unit is
dropped.
CAUTION
1. When automatic float shut-off is activated, contents of the collection
bottles should be emptied. Further suctioning could cause damage to the
vacuum pump.
2. Should fluid be aspirated back into the unit, send your suction to an
authorized service center for a detailed inspection as the vacuum pump may
have been damaged.
8

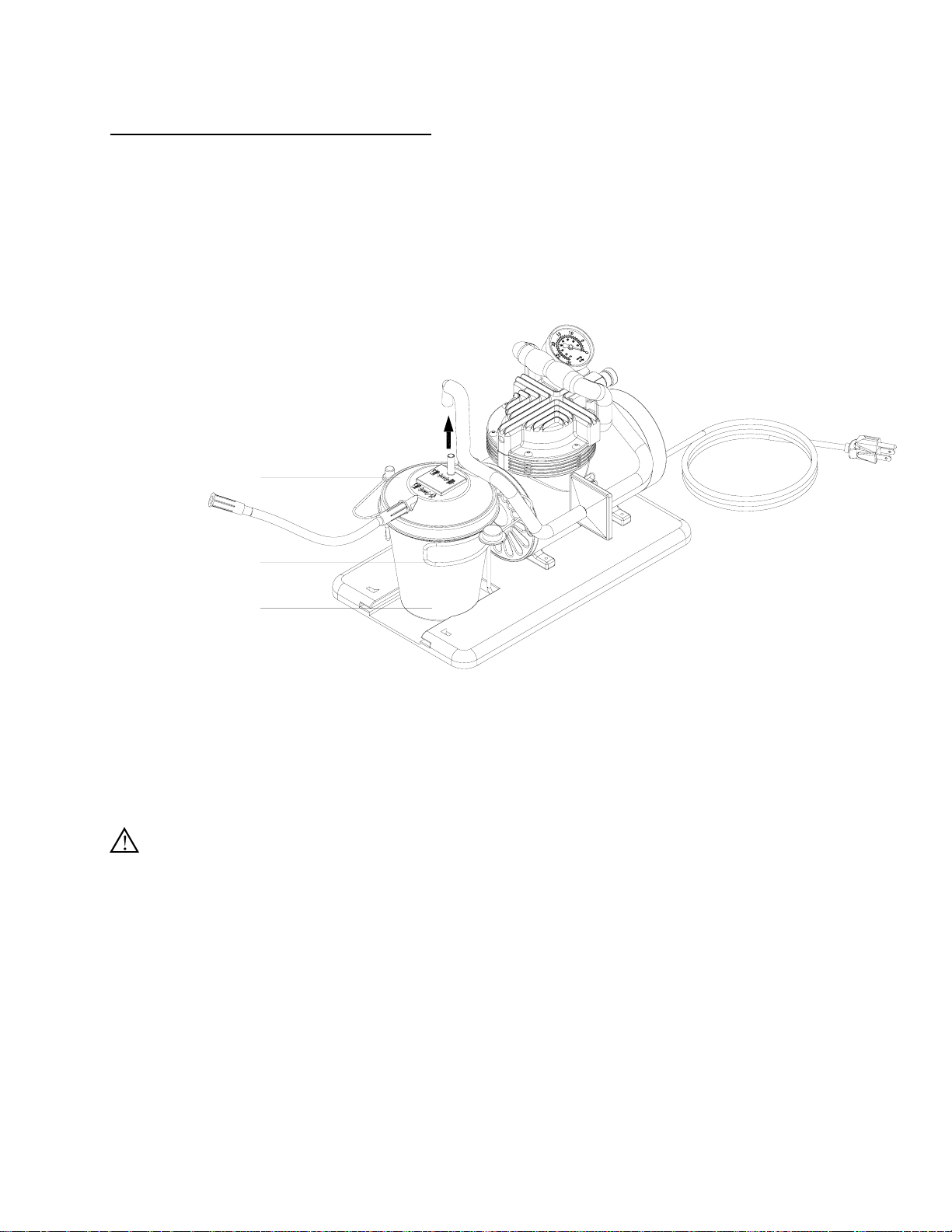

8. CLEANING INSTRUCTIONS
Clean Collection Bottle:
1. Turn off the suction unit and allow vacuum to drop, then disconnect AC power source.
2. With the collection bottle still in the holder, remove the collection bottle lid. The bottle
can now be taken out of the holder to be emptied.
Collection Bottle Lid
Holder
Collection Bottle
Figure 8
NOTE
Collection bottle should be emptied after each use.
3. Collection bottle should be thoroughly cleaned after each use by one of the following
three methods:
a. Wash in a hot water／dishwashing detergent solution and rinse with clean, hot tap
water. Then wash in one part vinegar to three parts hot water solution. Rinse with
hot tap water and air dry.
b. Wash with rubbing alcohol and air dry
c. Wash with a commercial (bacterial-germicidal) disinfectant, follow disinfectant
manufacturer's recommended instructions and dilution rates carefully.
9

Clean Suction Unit and Collection Bottle Lid:
1. Disconnect the suction unit from all external power sources.
2. Wipe the suction unit housing and collection bottle lid with a clean cloth and any
commercial (bacterial-germicidal) disinfectant.
CAUTION
Do not submerge in water as this will result in severe damage to the vacuum
pump.
Clean Tubing:
1. Disconnect the tubing from the unit.
2. Tubing should be rinsed thoroughly after every use by running hot tap water through it
followed by a solution of one part vinegar to three parts hot water.
3. Rinse with hot tap water and air dry.
4. Keep the outer surface of the tubing clean by wiping with a clean, damp cloth.
WARNING
The waste in collection bottle may cause respiratory infection which must be
handled according to medical waste disposing regulation. Operator must wear
gloves and medical class mask before cleaning the collection bottle, tubing
and handle the wasting unit and／or accessories.
9. MAINTENANCE
Inspect suction tubing and collection bottle for leaks, cracks, etc. before each use.
DANGER
Electric shock hazard
Do not attempt to open or remove the suction cabinet. If a service is required, return your
suction to an authorized service center. Opening or tampering with the unit will void
warranty.
Bacteria Filter Change:
1. Bacteria filter should be replaced every two month. If overflow occurs, change the filter
immediately.
2. Remove filter by disconnecting it from tubing connected to pressure adjusting valve
and tubing connected to collection bottle lid assembly.
3. Replace with a new SUA01 Series／SUB01 Series bacteria filter and connect to above
two tubing. Additional filters can be purchased from an authorized dealer.
10

Pressure
Adjusting
Valve
Tubing
Bacteria
Filter
Tubing
Collection
Bottle Lid
Figure 9
NOTE
Use only SUA01 Series／SUB01 Series filters. Do not substitute any other material for this
bacteria filter. Improper substitution may lead to contamination or poor performance;
Fuse Change:
1. Use only the same type of fuse to replace the broken fuse.
2. Fuse specification: Miniature Glass Fuse 5x20mm, Fast Blow (Quick Acting), F2A/250V.
WARNING
When this unit or accessories reach the end of their useful lives (depends on
using conditions), residues in collection bottle, tubing and filter may cause
respiratory infection. Dump the wasting collection bottle, tubing and filter into
a specific waste bin labeled with medical waste.
11

10. TROUBLESHOOTING
Your SUA01 Series／SUB01 Series Suction Unit contains no user-serviceable parts. If you
believe your unit is not working properly, BEFORE YOU RETURN IT TO THE MEDICAL
EQUIPMENT PROVIDER WHERE YOU PURCHASED IT OR TO SUA01 Series／SUB01 Series,
please take a few moments to check for these possible causes:
PROBLEM ACTION
Unit does not turn on 1. Check power source and connection
2. Ensure that the wall outlet is live
3. Check power cord is not damage
Motor runs, no vacuum 1. Verify tubing connection security
2. Check for leaks or tubing kinks
3. Ensure that float shut-off is not activated
4. Check for bottle leaks and cracks
Low Vacuum 1. Use vacuum adjust knob to increase
vacuum level
2. Check system for leaks
12

11. SPECIFICATIONS／CLASSIFICATIONS
Dimensions (L) 375 x (W) 175 x (H) 250 mm
(14.8 x 6.8 x 9.8 in)
W
ei
g
ht.5.5kgs (12.1Lbs)
Maximum Vacuum 560 ± 3% mm Hg
Flow Ran
g
e ＞40 LPM
Sound Level ＜58 dBA
Electrical Requirements SUA01: AC 115 V 60Hz
SUB01: AC 230 V 50Hz
Power Consumption 70 watts
Bacteria Filter pore size 0.45 microns
Collection Bottle Capacit
y
800 ml (cc)
Operatin
g
Temperature 32° ~ 104° F (0° ~ 40°C)
Operatin
g
Humidit
y
95% RH
Operatin
g
Atmospheric Pressure 10.2 ~15.4 psig ( 70 ~106 kpa )
Stora
g
e Temperature 14° ~ 158° F ( -10° ~ 70°C )
Stora
g
e Humidit
y
0 ~ 95%
Stora
g
e Atmospheric Pressure 7.3 ~15.4psig ( 50 ~106 kpa )
Fuse Specification Miniature Glass Fuse 5x20mm, Fast
Blow (Quick Acting), F2A/250 V
Equipment Classifications With respect to protection from
electric shock Class I
13

12. WARRANTY
Two years limited warranty
The compressor portion of the SUA01 Series／SUB01 Series Suction Unit is warranted to
be free from defective workmanship and materials for a period of two years from date of
purchase and six months on accessories.
Any defective part(s) will be repaired or replaced at SUA01 Series／SUB01 Series option if
the unit has not been tampered with or used improperly during that period. Make certain
that any malfunction is not due to inadequate cleaning or failure to follow the instructions.
If repair is necessary, please contact the medical equipment provider where you
purchased it or SUA01 Series／SUB01 Series.
NOTE
This warranty does not cover providing a loaner unit, compensating for costs incurred in
rental while said unit is under repair, or costs for labor incurred in repairing or replacing
defective part(s).
THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO
THE DURATION OF THE EXPRESS LIMITED WARRANTY AND TO THE EXTENT
PERMITTED BY LAW ANY AND ALL IMPLIED WARRANTIES ARE EXCLUDED. THIS IS THE
EXCLUSIVE REMEDY AND LIABILITY FOR CONSEQUENTIAL AND INCIDENTAL DAMAGES
UNDER ANY AND ALL WARRANTIES ARE EXCLUDED TO THE EXTENT EXCLUSION IS
PERMITTED BY LAW. SOME STATES (IN THE US) DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, OR THE LIMITATION OR EXCLUSION OF
CONSEQUENTIAL OR INCIDENTAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
This warranty gives you specific legal rights, and you may also have other rights, which
vary from state to state (in the US).
Manufacturer's Note
Thank you for choosing a SUA01 Series／SUB01 Series Suction Unit. We would like you to
be a satisfied customer. If you have any questions or comments, please send them to our
address below.
For Service Call Your Authorized SUA01 Series／SUB01 Series Medical Provider: EMG
Technology Co., Ltd.
14
