Medion P85042 User manual

Powerline Adapter Set
MEDION®P85042 (MD 87305)
04/2014
MEDION Australia Pty Ltd
St Leonards, NSW 2065
Australia
Hotline: [phone]
Opening hours: Mon - Fri 08:30AM to 06:00PM EST
Internet
www.medion.com.au
E-mail Support
austr[email protected]
Instruction Manual
5455
87305 EN Aldi AUS Cover RC1.indd 187305 EN Aldi AUS Cover RC1.indd 1 20.01.2014 15:31:0320.01.2014 15:31:03

1 of 30
Phone: [phone]
Internet: www.medion.com.au
After sales support
Table of contents
1. Warranty Details ............................................3
2. Repair and Refurbished Goods or Parts
Notice..............................................................4
3. Notes on how to use these instructions.......6
3.1. Symbols and keywords used in these
instructions .................................................... 6
4. Package contents...........................................8
5. Proper use ......................................................8
6. Safety instructions.........................................9
6.1. Operational safety ....................................... 9
6.2. Electromagnetic compatibility .............11
6.3. Notes on conformity.................................11
6.4. Transport and packaging........................12
7. System requirements ................................. 12
8. Functionality ............................................... 12
9. Overview of the device............................... 14
10. Possible LED displays ................................. 15
11. The SECURITY/RESET button ..................... 17
12. Connections ................................................ 17
12.1. Notes on the electricity connection....18
12.2. Connection with a network device .....19
13. Changing the network key......................... 21
14. Integrating additional adapters into the
network ....................................................... 22
15. Removing a Powerline Adapter................. 23
87305 EN Aldi AUS Content final_REV1.indd 187305 EN Aldi AUS Content final_REV1.indd 1 23.01.2014 09:27:3323.01.2014 09:27:33

2 of 30 Phone: [phone]
Internet: www.medion.com.au
After sales support
16. Energy-saving mode................................... 24
17. Factory settings .......................................... 24
18. Troubleshooting ......................................... 25
19. Cleaning....................................................... 28
20. Disposal ....................................................... 28
21. Technical data ............................................. 29
22. Legal notice ................................................. 30
87305 EN Aldi AUS Content final_REV1.indd 287305 EN Aldi AUS Content final_REV1.indd 2 23.01.2014 09:28:0423.01.2014 09:28:04

3 of 30
Phone: [phone]
Internet: www.medion.com.au
After sales support
Powerline Adapter Set
P85042 (MD 87305)
Powerline Adapter MD 87304
1. Warranty Details
The product is guaranteed to be free from defects in
workmanship and parts for a period of 12 months from
the date of purchase. Defects that occur within this
warranty period, under normal use and care, will be
repaired, replaced or refunded at our discretion. The
benefits conferred by this warranty are in addition to all
rights and remedies in respect of the product that the
consumer has under the Competition and Consumer
Act 2010 and similar state and territory laws.
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law. You
are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably
foreseeable loss or damage. You are
also entitled to have the goods repaired
or replaced if the goods fail to be of
acceptable quality and the failure does
not amount to a major failure.
87305 EN Aldi AUS Content final_REV1.indd 387305 EN Aldi AUS Content final_REV1.indd 3 23.01.2014 09:28:0423.01.2014 09:28:04

4 of 30 Phone: [phone]
Internet: www.medion.com.au
After sales support
Powerline Adapter Set
P85042 (MD 87305)
Powerline Adapter MD 87304
2. Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are
manufactured which need to be returned to the Supplier
for repair.
Please be aware that if your product is capable of retaining
user-generated data (such as files stored on a computer
hard drive, telephone numbers stored on a mobile
telephone, songs stored on a portable media player,
games saved on a games console or files stored on a USB
memory stick) during the process of repair, some or all of
your stored data may be lost. We recommend you save
this data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods,
we may replace them with refurbished goods of the same
type or use refurbished parts in the repair process.
87305 EN Aldi AUS Content final_REV1.indd 487305 EN Aldi AUS Content final_REV1.indd 4 23.01.2014 09:28:0423.01.2014 09:28:04

5 of 30
Phone: [phone]
Internet: www.medion.com.au
After sales support
Please be assured though, refurbished parts or
replacements are only used where they meet ALDI’s
stringent quality specifications.
If at any time you feel your repair is being handled
unsatisfactorily, you may escalate your complaint.
Please telephone us on 1300 884 987 or write to us at:
MEDION Australia Pty Ltd
St. Leonards, NSW 2065
Australia
MEDION Help Desk 1300 884 987
(Operating Hours: Mon-Fri 8:30AM to 6:00PM EST)
Email: [email protected]
87305 EN Aldi AUS Content final_REV1.indd 587305 EN Aldi AUS Content final_REV1.indd 5 23.01.2014 09:28:0523.01.2014 09:28:05

6 of 30 Phone: [phone]
Internet: www.medion.com.au
After sales support
3. Notes on how to use these
instructions
Read the safety instructions carefully before
use. Note the warnings on the device and in
the operating instructions.
Always keep the operating instructions
close to hand. If you sell the device or give
it away, make sure you also hand over these
instructions and the warranty card.
3.1. Symbols and keywords used
in these instructions
DANGER!
Warning: immediate mortal
danger!
WARNING!
Warning of possible risk of fatal
injury and/or serious irreversible
injuries!
87305 EN Aldi AUS Content final_REV1.indd 687305 EN Aldi AUS Content final_REV1.indd 6 23.01.2014 09:28:0523.01.2014 09:28:05

7 of 30
Phone: [phone]
Internet: www.medion.com.au
After sales support
CAUTION!
Please follow the instructions
to prevent injuries and property
damage!
ATTENTION!
Please follow the guidelines to avoid
property damage!
NOTE!
Additional information on using the device.
NOTE!
Please follow the guidelines in the
operating instructions!
WARNING!
Warning of risk of electric shock!
• Bullet point/information on operating steps
and results
Tasks to be performed
87305 EN Aldi AUS Content final_REV1.indd 787305 EN Aldi AUS Content final_REV1.indd 7 23.01.2014 09:28:0523.01.2014 09:28:05

8 of 30 Phone: [phone]
Internet: www.medion.com.au
After sales support
4. Package contents
Please check your purchase to ensure that all items
are included. If anything is missing, please contact us
within 14 days of purchase. The following items are
supplied with your Powerline Adapter Set:
−2 x MD 87304 Powerline Adapter
−2 x Network Cable RJ-45
−1 x Instruction Manual
−1 x Warranty Certificate
−2 x Warranty Sticker
5. Proper use
The Powerline Adapters are designed to
transfer network signals via the sockets
connected to the mains electricity network.
This device is for private use only and may
not be used for commercial purposes.
87305 EN Aldi AUS Content final_REV1.indd 887305 EN Aldi AUS Content final_REV1.indd 8 23.01.2014 09:28:0623.01.2014 09:28:06

9 of 30
Phone: [phone]
Internet: www.medion.com.au
After sales support
6. Safety instructions
6.1. Operational safety
• This device is not intended for use by
people (including children) with reduced
physical, sensory or mental abilities or
by those without experience and/or
knowledge, unless they are supervised
by a person responsible for their safety or
they have been instructed in its use by that
person. Children should be supervised to
ensure they do not play with this device.
• Always adhere to the user instructions
of those devices that you connect to the
Powerline Adapters.
• Do not place liquid containers, e.g. vases,
on or near the device. The container may
tip over and the liquid may impair the
electrical safety of the device.
• Keep the device away from moisture and
from water in droplet or spray form. Avoid
vibrations, dust, heat and direct sunlight
in order to prevent malfunction. The
operating temperature is 5° - 35° C.
87305 EN Aldi AUS Content final_REV1.indd 987305 EN Aldi AUS Content final_REV1.indd 9 23.01.2014 09:28:0623.01.2014 09:28:06

10 of 30 Phone: [phone]
Internet: www.medion.com.au
After sales support
• Never open the housing on the devices;
they do not contain any parts requiring
maintenance! There is a risk of electric
shock when the housing is open. This
would invalidate the warranty and may
render the device unusable.
• Plug the Powerline Adapter into freely
accessible sockets for your mains
electricity network so that it can be
quickly disconnected from the mains
electricity network in the event of danger.
• After transporting the device, wait until
it has reached room temperature before
switching it on. Major fluctuations in
temperature or humidity can lead to
condensation which could cause an
electrical short-circuit.
• To avoid static charges, you should not
operate the device in extremely dry
conditions.
• In circumstances where there are
electrostatic discharges, the device could
malfunction. In this case, the device must
be reset to the factory settings.
87305 EN Aldi AUS Content final_REV1.indd 1087305 EN Aldi AUS Content final_REV1.indd 10 23.01.2014 09:28:0623.01.2014 09:28:06

11 of 30
Phone: [phone]
Internet: www.medion.com.au
After sales support
6.2. Electromagnetic
compatibility
• You must comply with the European
directives on electromagnetic
compatibility (EMC) when making
connections. Keep the device at a distance
of at least one metre from sources of
high-frequency or magnetic interference
(televisions, loudspeakers, mobile
telephones, etc.) to avoid malfunctions
and data loss.
6.3. Notes on conformity
MEDION AG hereby declares that the set
consisting of 2 x MD 87304 Powerline
Adapter conforms to the following European
requirements:
• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC
• Ecodesign Directive 2009/125/EC
• RoHS Directive 2011/65/EU.
Full declarations of conformity are available at
www.medion.com/conformity.
87305 EN Aldi AUS Content final_REV1.indd 1187305 EN Aldi AUS Content final_REV1.indd 11 23.01.2014 09:28:0723.01.2014 09:28:07

12 of 30 Phone: [phone]
Internet: www.medion.com.au
After sales support
6.4. Transport and packaging
Keep the original packaging in the event the device
needs to be sent in the post.
7. System requirements
Ensure that your computer meets the following
requirements before installing the Powerline Adapter:
−At least two wall sockets (100-240V~50/60Hz).
−LAN connection
8. Functionality
The Powerline Adapters can be used to extend your
existing LAN network using the mains electricity
network available in your household, without having
to lay additional cables.
87305 EN Aldi AUS Content final_REV1.indd 1287305 EN Aldi AUS Content final_REV1.indd 12 23.01.2014 09:28:0723.01.2014 09:28:07

13 of 30
Phone: [phone]
Internet: www.medion.com.au
After sales support

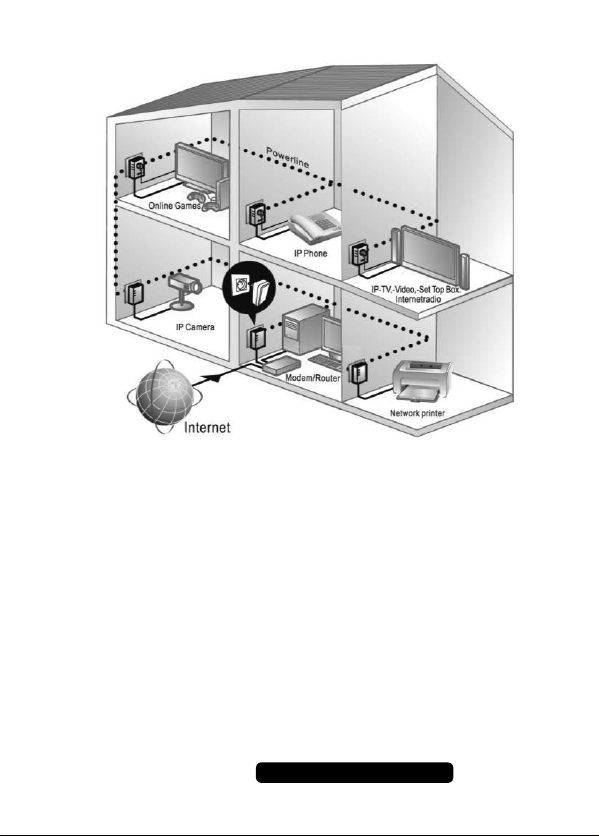

Example of Use
The two adapters delivered in the set are already
synchronised, the encryption has been activated and
you can send and receive data without having to carry
out any additional configuration steps. Additional
Powerline Adapters can also be connected to the
network via simple cable connections.
The encryption function enables you to protect your
private network against unauthorised access (see
Chapter“13. Changing the network key” on page 21).
87305 EN Aldi AUS Content final_REV1.indd 1387305 EN Aldi AUS Content final_REV1.indd 13 23.01.2014 09:28:0723.01.2014 09:28:07

14 of 30 Phone: [phone]
Internet: www.medion.com.au
After sales support
9. Overview of the device
5
1
3
4
2
1) Integrated socket
2) LED displays: POWER, LAN and
POWERLINE
3) SECURITY/RESET button: encryption/resets
the device to the factory settings
4) RJ-45 LAN connection
5) Mains power plug
87305 EN Aldi AUS Content final_REV1.indd 1487305 EN Aldi AUS Content final_REV1.indd 14 23.01.2014 09:28:0723.01.2014 09:28:07

15 of 30
Phone: [phone]
Internet: www.medion.com.au
After sales support
10. Possible LED displays
LED Status Meaning
Power
Green
light The adapter is switched on.
Flashes
green
−The adapter is restart-
ing or carrying out se-
curity settings
Flash-
es green
every 15
seconds
(other
LED dis-
plays are
off)
The adapter is ready for opera-
tion (standby).
Off The adapter is not being sup-
plied with electricity.
LAN
Green
light
LAN cable is connected, adapt-
er is ready to transfer data.
Flashes
green Data is being transferred.
Off
The LAN connection is not ac-
tive (no LAN cable connect-
ed, network device is switched
off).
87305 EN Aldi AUS Content final_REV1.indd 1587305 EN Aldi AUS Content final_REV1.indd 15 23.01.2014 09:28:1023.01.2014 09:28:10

16 of 30 Phone: [phone]
Internet: www.medion.com.au
After sales support
LED Status Meaning
Power-
line
Green
light
Another Powerline Adapter
has been detected in the same
network.
Off
No connection to another
adapter or no device with the
same network key has been
detected.
Green Signal > 40 Mbit/s
Orange Signal 20 - 40 Mbit/s
Red Signal ≤ 20 Mbit/s
87305 EN Aldi AUS Content final_REV1.indd 1687305 EN Aldi AUS Content final_REV1.indd 16 23.01.2014 09:28:1123.01.2014 09:28:11

17 of 30
Phone: [phone]
Internet: www.medion.com.au
After sales support
11. The SECURITY/RESET button
The SECURITY/RESET button has three functions
depending on how long it is pressed:
Seconds Function
1-2 Connects to an existing Powerline net-
work
5-8 Generates a random, unique network key
on the adapter and immediately separates
the device from an existing network.
10-15 Resets the adapter to the factory settings.
12. Connections
In order to create a network with the Powerline
Adapters, it is necessary for at least two adapters to be
connected for the purpose of transferring data.
There are two options available: A direct connection
between two network-capable devices or a
connection between a network-capable device and a
router (to the Internet).
Connect the Powerline Adapter to a wall socket (100-
240V~50/60Hz) near to the network-capable device.
NOTE
In order to ensure constant access to an existing
LAN network, it is necessary to permanently
supply the Powerline Adapter with electricity.
87305 EN Aldi AUS Content final_REV1.indd 1787305 EN Aldi AUS Content final_REV1.indd 17 23.01.2014 09:28:1223.01.2014 09:28:12

18 of 30 Phone: [phone]
Internet: www.medion.com.au
After sales support

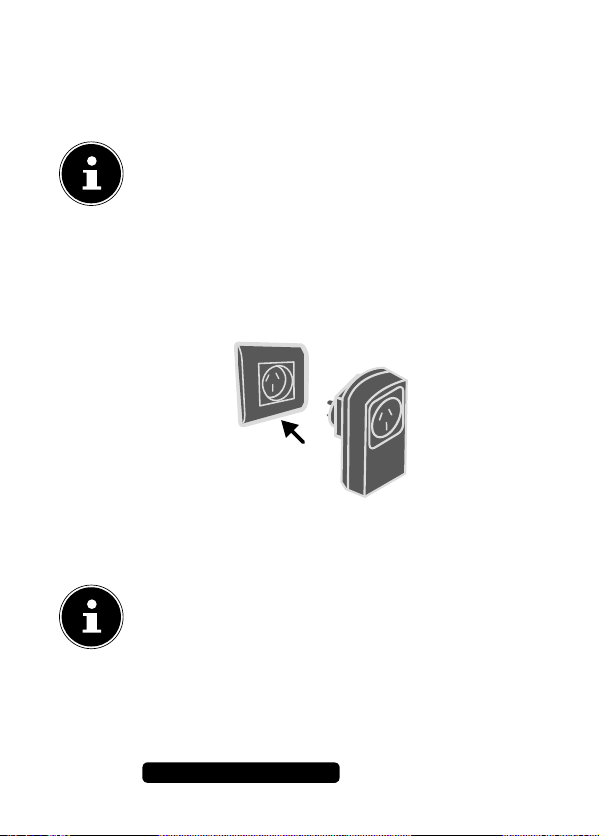

12.1. Notes on the electricity
connection
NOTE
Directly connect the Powerline Adapter to a
wall socket and not to an extension cable or
multiple socket adapter because otherwise
this may negatively influence the quality of
the data transmission. You can operate other
devices via the integrated power socket on
the Powerline Adapter.
If possible, directly plug the Powerline Adapter into
its own wall socket.
NOTE
If you cannot achieve a connection after
linking the adapter to a computer, try the
process again using a different wall socket.
Please note that the quality of the data
transmission is dependent on the load and
quality of your mains electricity network:
87305 EN Aldi AUS Content final_REV1.indd 1887305 EN Aldi AUS Content final_REV1.indd 18 23.01.2014 09:28:1223.01.2014 09:28:12

19 of 30
Phone: [phone]
Internet: www.medion.com.au
After sales support
−The data transmission will slow down as the
length of the power line between the two
Powerline Adapters increases.
−Depending on the load placed on the mains
electricity network, the speed of the data
transmission may vary or even be interrupted.
−In the case of older mains electricity networks,
which do not correspond to the latest
technological standards, the data transmission
may be a little slower.
12.2. Connection with a network
device
In order to connect two network devices e.g. a PC
and a router together in a network using Powerline
Adapters, each of the two devices must be connected
to their own Powerline Adapter with a LAN cable (RJ-
45).
87305 EN Aldi AUS Content final_REV1.indd 1987305 EN Aldi AUS Content final_REV1.indd 19 23.01.2014 09:28:1323.01.2014 09:28:13
