Mega LED Lighting MJ-1006 User manual

LED MOVING HEAD 108
MJ-1006
User Manual
======PROFESSIONAL LED LIGHTING ========
Thank you for choosing our LED moving head light. For the sake of your safety, Please read
and follow these instructions carefully and keep this manual in a safe place for future
reference.

2
Catalogue
Chapter Page
Safe Usage Of The Product -----------------------------------------------------------------------------------------3
Install The Equipment ------------------------------------------------------------------------------------------------4
Power Code Connection ---------------------------------------------------------------------------------------------4
DMX Connection ------------------------------------------------------------------------------------------------------5
DMX Terminator -------------------------------------------------------------------------------------------------------6
Function Set --------------------------------------------------------------------------------------------------------------6
Operation Menu ---------------------------------------------------------------------------------------------------------7
Maintenance --------------------------------------------------------------------------------------------------------------9
Keeping The Product Clean -----------------------------------------------------------------------------------------10
Trouble Shooting--------------------------------------------------------------------------------------------------------10
Equipment and Appendix----------------------------------------------------------------------------------------------10
Channel List----------------------------------------------------------------------------------------------------------------11
Technical Parameters---------------------------------------------------------------------------------------------------12
☆Important notice:
·In this instruction for use contains about the installment and the use aspect important information of the LED moving
head. When installing and using, you need to look this usage instruction strictly.
·Before open the LED moving head and if you want to do the repair work, please make sure the power source is at the
separation condition.
·Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and the unit are
in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer
and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer or dealer.
Attention: Unceasingly carries on the product improvement about our company the policy, in this instruction booklet
carries the data will have the possibility to be able to change in the future, when no longer separate notice change matters
concerned. Our company retains when the product improvement changes the related specification the authority. This
instruction booklet publisher cannot be responsible regarding this instruction booklet in information accuracy, also cannot
the related consequence which causes regarding these information be responsible.

3
SAFE USAGE OFTHE PRODUCT
When unpacking and before disposing of the carton, check there is no transportation damage before
using the product. Should there be any damage caused by transportation, consult your dealer and do
not use the apparatus.
The product is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain
and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other
liquids.
The product is not designed or intended to be mounted directly on to inflammable surfaces
The product is only intended for installation, operation and maintenance by professional person.
The product must be installed in a location with adequate ventilation, at least 50cm from adjacent
wall surfaces. Be sure that no ventilation slots are blocked.
Do not product the beam onto inflammable surfaces, minimum distance is 5m.
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power
requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all
relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the
power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull
out the plug by tugging the power-cord.
Keep the optical system clean. Do not touch the LED lens with bare hands.
The product should always be installed with a secondary safety fixing. On the projector base brink,
there is a hole for the safety cord provided. It should be attached as shown in “installing the projector”
section.
LED lens shall be changed if they have become visibly damaged to such an extent that their
effectiveness is impaired, for example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 40°C，when steady state is
achieved 50°C.
There is no user serviceable parts inside the projector, do not open the housing and never operate the
product with the covers removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
★Always disconnect from the mains, when the device is not in use or before cleaning it or
before attempting any maintenance work !

4
Install The Equipment:

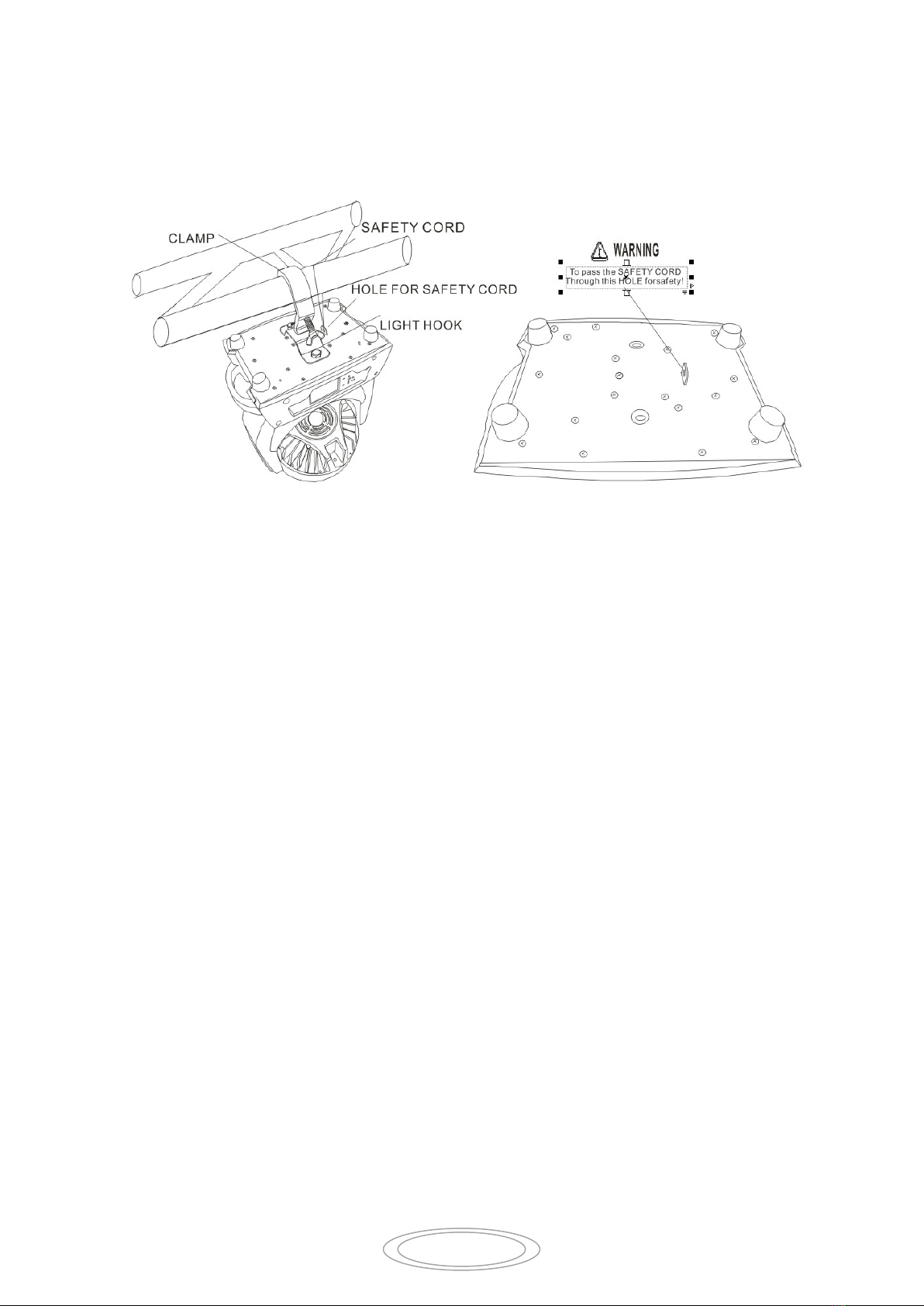

Use 1pcs clamp and safety cord(need to purchase).Use clamp fix with light hook which in the
packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure
and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm
the light which you fixed is strong enough for hanging the light. Base on safety reason, please
according to the above picture using safety wire cross the light to make it strong enough again.
Warning!
1．Hook and clamp only use for hanging the light. Do not use clamp as a tool to move fixtures.
2．Base on safety reason, please use the safety cord which can afford the weight ten times of lamp
through Insurance hole for auxiliary hanging.
3．Don't use the handle of the moving head light to fixed or lift!
Power Code Connection:
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage and
frequency marked on the panel of the projector. It is recommended that each projector be supplied
separately so that they may be individually switched on and off.
★It is essential that each projector is correctly earthed and the electrical installation conforms
to all relevant standards.

5
DMX Connection:
Connection between the controller and a projector and between one projector and another must be
made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to
and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and
sockets. The XLR's are connected as shown in the figure above.
Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each
other. The body of the plug is not connected in any way. The XLED 590 accepts digital control
signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the
second fixture’s input and connect the rest fixtures in the same way. Eventually connect the last
fixture’s output to a DMX terminator as shown in the figure below.

6
DMX Terminator:
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a
DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control
signals.

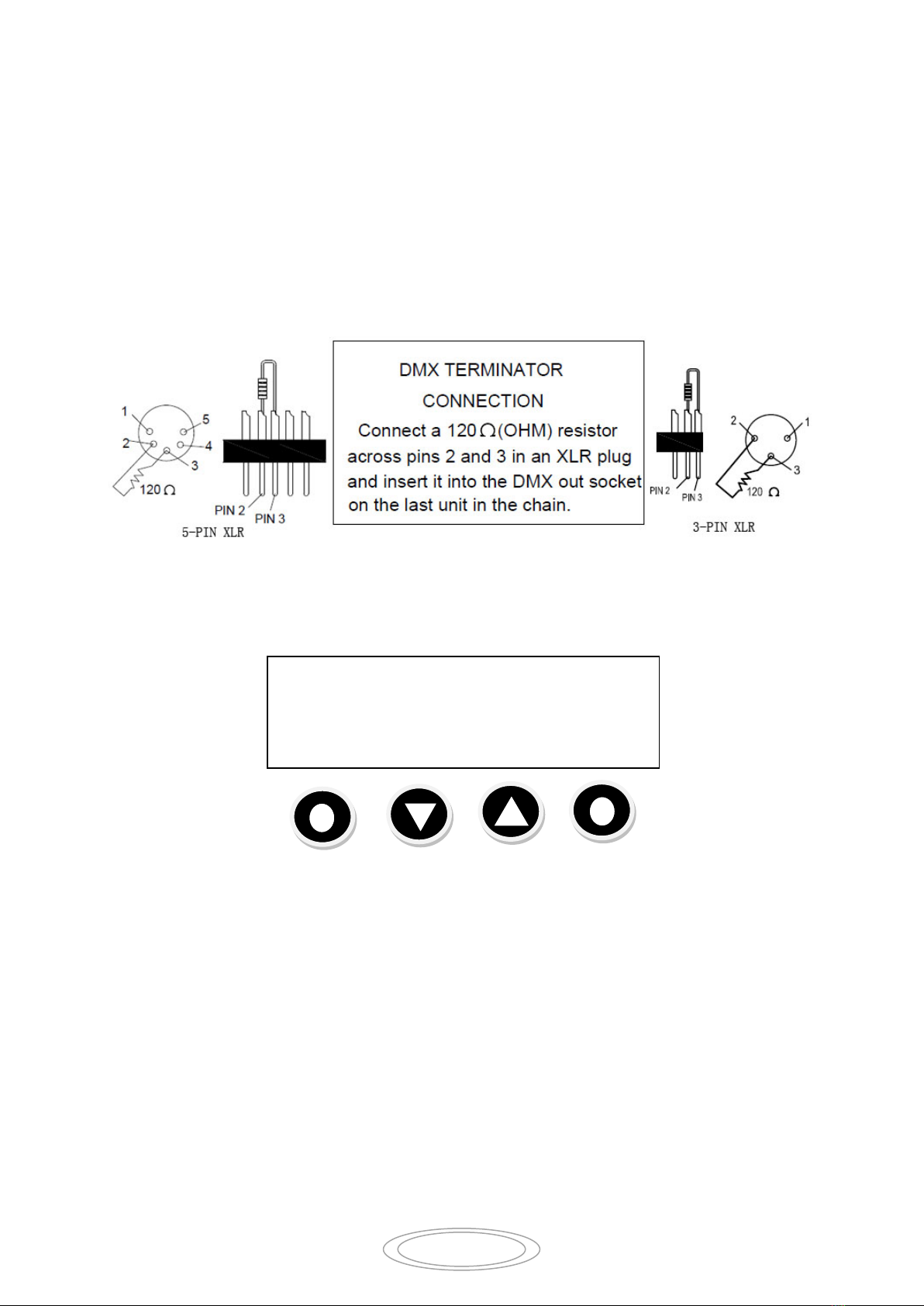

The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins
2 and 3, which is then plugged into the output socket on the last projector in the chain. The
connections are illustrated below.
Function Set:
MENU DOWN UP ENTER
Use button switch and LCD display,can set the address code and function code easily.
Check or modify lighting function settings, Press ENTER button, LCD display panel will display function
menu of lighting. Function operation menu all have corresponding submenu. Each menu all represent the
specific functions of lamps, specific see below "operation menu" section.
Set or browse function setting of lamp, press UP or DOWN key.
Press ENTER key to save your changes or to ENTER submenu, press UP or DOWN can change
value(Plus or reduce number).
According to the MENU key to return to the last menu. If do not press MENU key, system will
return to display state automatic.

7
Operation Menu:
DMX Address
DMX Addr set
001-512
Config Set
Channel Set
Standard
Extended
Short
Fan Set
AUTO speed
High speed
Temperature Set
70-110℃
Option Set
Pan Invert
Pan swap off
Pan swap off
Tilt Invert
Tilt swap off
Tilt swap on
Dimmer Invert
Dimmer swap off
Dimmer swap on
Display Set
Language Set
English
Chinese
Display Invert
Display off
Display on

8
Work Modes
Demo Modes 1
Master show
***
Demo Modes 2
Master Running
***
Sound Mode
Sound Running
***
Slave Mode
Slave Running
***
DMX512 Mode
DMX512 Mode
Information
Power On Hours
**** hour
Power this time
**** minute
Head ensor
Software version
YL-1080.1
Reset
To Factory Mode
Sytem Reset
﹥DMX512 Address code Settings：
1. Press “Menu” button to Set DMX Address，to confirm by press “ENTER” button。
2. Show Set DMX address DMX address:001，correct by pressing “UP&DOWN” button。
3. Press “ENTER” button to save and quit. Press “MENU” button to quit no saving
﹥Config Settings：
1. Press “Menu” button to Config Settings , and choose channel quantity select，it will be show
Standard ,Extended , Short three mode, to confirm by press “ENTER” button.
2. Show Fan Settings, choose menu by pressing ”UP&DWON” button, will show AUTO speed and
high speed, correcting by “UP&DOWN” Button.
3. Show temperature Settings, and press the menu choose set the temperature.
4. Press “ENTER” button to save and quit. Press “MENU” button to quit no saving.
﹥Option Settings
1. Press “Menu” button to choose Options Settings, it will be show Pan invert, Tilt Invert and
Dimmer invert three options. confirm by press “ENTER” button.

9
2. Show Pan invert , Choose menu by pressing ”UP&DWON” button, will show pan swap .
correcting by “ENTER” Button.
3. Show Tilt invert , Choose menu by pressing ”UP&DWON” button, will show tilt
Swap and tilt DMX swap.. correcting by “ENTER” Button.
4. Show Dimmer invert, Choose menu by pressing ”UP&DWON” button, will show Dimmer Swap
and dimmer invert. correcting by” ENTER” Button.
5. Press “ENTER ”button to save and quit. Press “MENU” button to quit no saving.
﹥Display options settings.
1. Press “Menu” button to Set display option, Will show languages and display invert functions.
confirm by press “ENTER” button.
2. Show languages selections , Choose menu by pressing ”UP&DWON” button, will show English
and Chinese functions, correcting by “ENTER” Button.
3. Show display invert functions. Choose menu by pressing ”UP&DWON” button, will show
display invert on and display invert off. correcting by “ENTER” Button..
4. Press “ENTER ”button to save and quit. Press “MENU” button to quit no saving.
﹥Work modes
1. Press “Menu” button to Set work modes，confirm by press “ENTER” button.
2. Show DEMO modes 1，press ”ENTER” button, Will show program demo ,
3. Show DEMO modes , correct by pressing “ENTER” button. Will show modes running.
4. Show sound mode ,press “ENTER” will show sound control running.
5. Show slave mode, press “ENTER” will show slave running
6. Show DMX512 mode, press “ ENTER” will show main screen running status.
7. Press “ENTER” button to save and quit. Press “MENU” button to quit no saving.
﹥Information
1. Press “Menu” button to information ，confirm by press “ENTER” button. It will show Power On
Hours, Power this time ,Head Sensor, Software Version.
2. Press “ENTER” button to save and quit. Press “MENU” button to quit no saving.
﹥Reset
1. Press “Menu” button to Reset, ，confirm by press “ENTER” button, it shows reset.
Maintenance:
To prolong the life of the projector, some maintenance work has to be done to ensure the LED
optical system in good condition. If the projector does not function, check the fuses on the power
socket of the projector, they should only be replaced by fuses of the same specification. Should
these be damaged, call a qualified technician before replacement. The projector has thermal
protection device that will switch off the projector in case of overheating. Should either of these
operate, check that the fans are not blocked, and if they are dirty, clean them before switching on the
projector again. Check that the fans are operational, if not, call a qualified technician.
☆Any maintenance work should only be carried out by qualified technicians.

10
Keeping The Product Clean:
To ensure the reliability of the projector, it should be kept clean. It is recommended that the fans
should be cleaned every 15 days. LED lens should also be regularly cleaned to maintain an optimum
light output.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or
particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics. Asoft cloth
and typical glass cleaning products should be used for cleaning. It is recommended to clean the
external optics at least once every 15 days.
☆Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.
Trouble Shooting:
Problem
Answer
The LED moving head light doesn’t switch
on.
Check the fuse the power socket
Although shines, but the LED moving head
lamp doesn’t accept the instruction of the
controller.
Check the digital start address and
also check the connection situation of
the communication control line
LED moving head lamp only can work
intermittently.
Inspect the power supply and voltage
is whether normal.
Do not receive the DMX512 signal.
Whether the signal lines do contact
well or broken.
The light beam appears gloomily.
Check that the heat dissipation
system is running normally or Inspect
the optics part is whether clean.
☆Other maintain work should by the specialist which has the experience to carry on.
Equipment and Appendix:
The packing list of this light as follows:
☆Led moving head light 1pcs
☆Power Cable 1pcs
☆XLR connecter 1pcs
☆Light Hook 1pcs
☆M10 Screw 2pcs
☆The Product of Instruction 1pcs

11
Channel List:
Short
mode
Standard
mode
Extended
mode
Function
DMX
Value
Effect
---- 1CH 1CH Main dimming 0-255
1CH 2CH 2CH R dimming 0-255
2CH 3CH 3CH G dimming 0-255
3CH 4CH 4CH B dimming 0-255
4CH 5CH 5CH W dimming 0-255
5CH 6CH 6CH Strobe 0-10 No strobe
10-255 Strobe speed
---- 7CH 7CH Marco Strobe
0-32 Standard white strobe
64 R bottom color strobe
96 RG bottom color strobe
128 G bottom color strobe
160 GB bottom color strobe
192 B bottom color strobe
224 BR bottom color strobe
255 All flashed
---- 8CH 8CH Marco speed 0-255
---- 9CH 9CH Marco Effect
0-10 Full Functions
60 Jumping effect
110 Gradually effect
160 Impulse effect
210 Static state select color
255 Sound control start
6CH 10CH 10CH X 0-255
7CH 11CH 11CH Y 0-255
---- ---- 12CH X16B 0-255
---- ---- 13CH Y16B 0-255
8CH ---- 14CH XY speed 0-255
9CH 12CH 15CH Reset 0-254 No Functions
255
System reset

12
Technical Parameters:
Construction: Composite plastic, die-casting aluminum,
Voltage: AC90V-240V; 50/60Hz
Power Consumption: 360W @(220V)
LED Bulbs: 3W*108LEDs(Red:30pcs;Green:30pcs;Blue:30pcs;White:18pcs)
LED Current: 750mA
LED Lifetime: 50000Hours
Colors: RGBW color mixing
Adjusts the light: 0-100 electron adjusts the light, various colors may alone move also may mix the
color tone
Strobe: 1-25/second high speed strobe, but single color Mixes the color strobe
Head Movement:Pan 540°, Tilt 270°, with auto position correction and electronic replacement
function.
BeamAngle: 25°
Control mode: DMX 512, Stand –alone mode, Self-test mode, Sound, Master/slave
DMX Channel: 9CH, 11CH, 15CH
Control Panel: LCD display
IP Grade: IP20
Work Environment Temperature:-20°C~40°C
Other Functions:Pan and Tilt speed adjustable; Fan automatic control function; Display LED lamps
and lanterns use time; Menu inversion
Net weight:9.5KG
Gross Weight: 11.3 kg
Package Size: 42 x 33 x 46cm

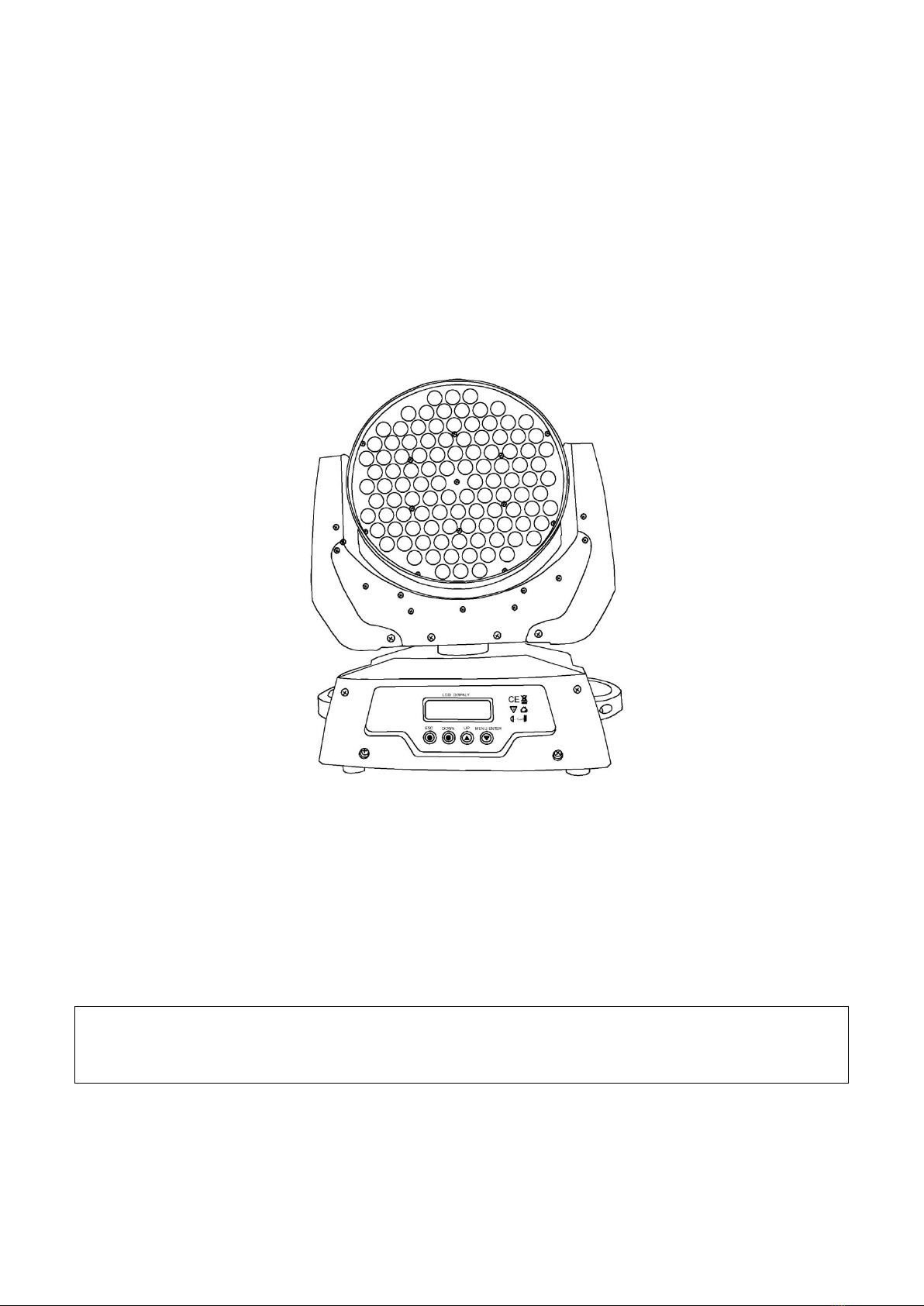

Light Size(see it below)
