Prime HDR
Micro Dome IP Camera
User’s Manual
Ver. 1.1

1
Table of Contents
1. Overview................................................................................................................................2
1.1 Features......................................................................................................................2
1.2 Package Contents .......................................................................................................3
1.3 Dimensions..................................................................................................................4
1.5 Connectors (Indoor Only).............................................................................................5
1.6 Function Cable Definition (Outdoor Only) ....................................................................6
2. Camera Cabling.....................................................................................................................7
2.1 Connect Ethernet Cable...............................................................................................7
2.1.1 Indoor Camera.............................................................................................7
2.1.2 Outdoor Camera ..........................................................................................8
3. System Requirements ........................................................................................................10
4. Access Camera ...................................................................................................................11
5. Setup Video Resolution......................................................................................................14
6. Configuration Files Export / Import ...................................................................................15
7. Tech Support Information ..................................................................................................16
7.1 Delete the Existing Viewer.........................................................................................16
7.2 Setup Internet Security..............................................................................................17
Appendix: Technical Specifications

2
1. Overview
The Prime HDR Micro Dome IP Camera is a high-end surveillance solution with
easy set-up design. Supporting up to 4M real-time video and Quad Streams
Codec (H.264 Baseline / Main / High Profile + MJPEG), the camera offers
supreme image quality while keeping efficient bandwidth for storage
management.
Equipped with HDR function, the camera provides up to 4M real-time stream
with 2 shutter WDR images, which is suitable for scenarios under extreme light
contrast or environments with changing lighting.
The compact outlook design of the camera is ideal for discreet installations
where space is limited, makes install and setup quickly and easily, with 3-axis
mechanism, a factory-focused lens and a simple PoE connection.
1.1 Features
Multiple Progressive Scan CMOS Sensor Support 4M Resolution
Multi-exposure HDR
Low Latency Streaming
Low Power Consumption on Encoding
Quad Codec Support (H.264 Baseline / Main / High Profile + MJPEG)
Quad Streams Support
Smart Event Function-
Motion Detection / Network Failure Detection / Tampering Alarm / Periodical
Event / Manual Trigger / Audio Detection
Text Overlay and Privacy Masks
3D Motion Compensated Noise Reduction (MCTF)
BNC Analog Output
Weatherproof (IP66 international)*
64GB SDXC microSD Card Support
ONVIF Profile Support
(*) Optional

3

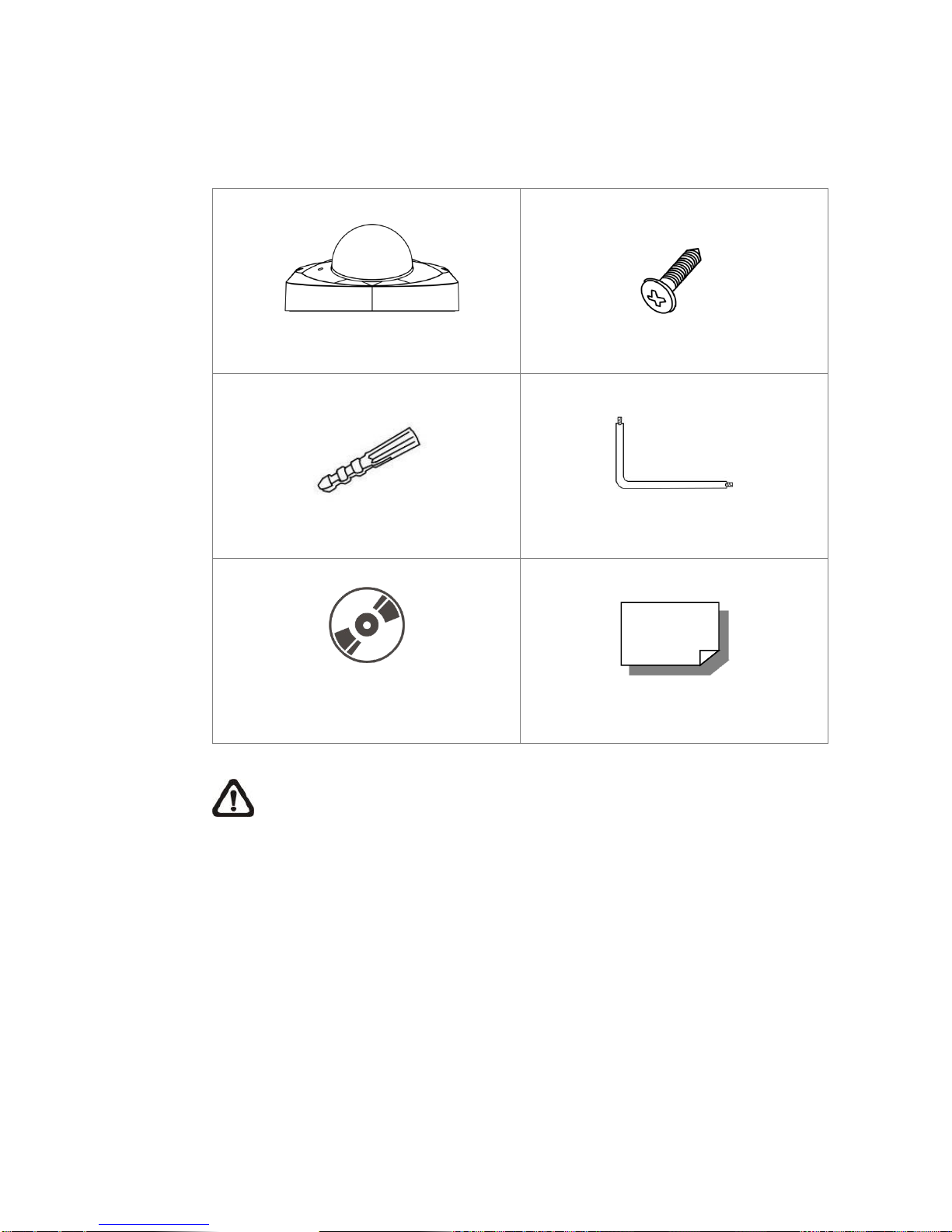

1.2 Package Contents
Please check the package containing the following items listed below.
Prime HDR Micro Dome IP Camera
Indoor / Outdoor (with Cable)
Self-tapping screws (x3)
Plastic Anchors (x3)
Security Torx
CD
(bundled software and documentation)
Quick Guide
NOTE: The supplied self-tapping screws are for soft substances /
materials such as wood. For other installation environments such as
cement wall, it is required to pre-drill and use plastic anchors before
fastening the supplied self-tapping screws on the wall.

4
1.3 Dimensions
The dimensions of the camera are shown below.

5
1.5 Connectors (Indoor Only)
The diagram below shows the default button, microSD card slot and various
connectors of the camera. Definition of each connector is given as follows.
No.
Connector
Pin Definition
Remarks
1
RJ-45
- For network and PoE connections
2
Speaker
- Audio Out
3
Power (DC 12V / AC
24V)
1 DC 12V
AC 24V 1
Power connection
2 GND
AC 24V 2
4
Default Button
- Press the button with a proper tool for at least 20
seconds to restore the system.
5
Alarm & Audio I/O
1 Alarm Out +
Alarm connection
2
Alarm Out -
3
Alarm In +
4
Alarm In -
5
GND
Ground connection
6
Audio Out
Two-way audio
transmission
7
Audio In
6
BNC*
-
For analog video output
7
Built-in Microphone
-
Audio In
8
microSD Card Slot
-
Insert the microSD card into the card slot to store
videos and snapshots. Do not remove the microSD
card when the camera is powered on.
*Please contact the manufacturer for the compatible BNC cable.
NOTE: It is not recommended to record with the microSD card for 24/7
continuously, as it may not be able to support long term continuous data
read/write. Please contact the manufacturer of the microSD card for
information regarding the reliability and life expectancy.

6

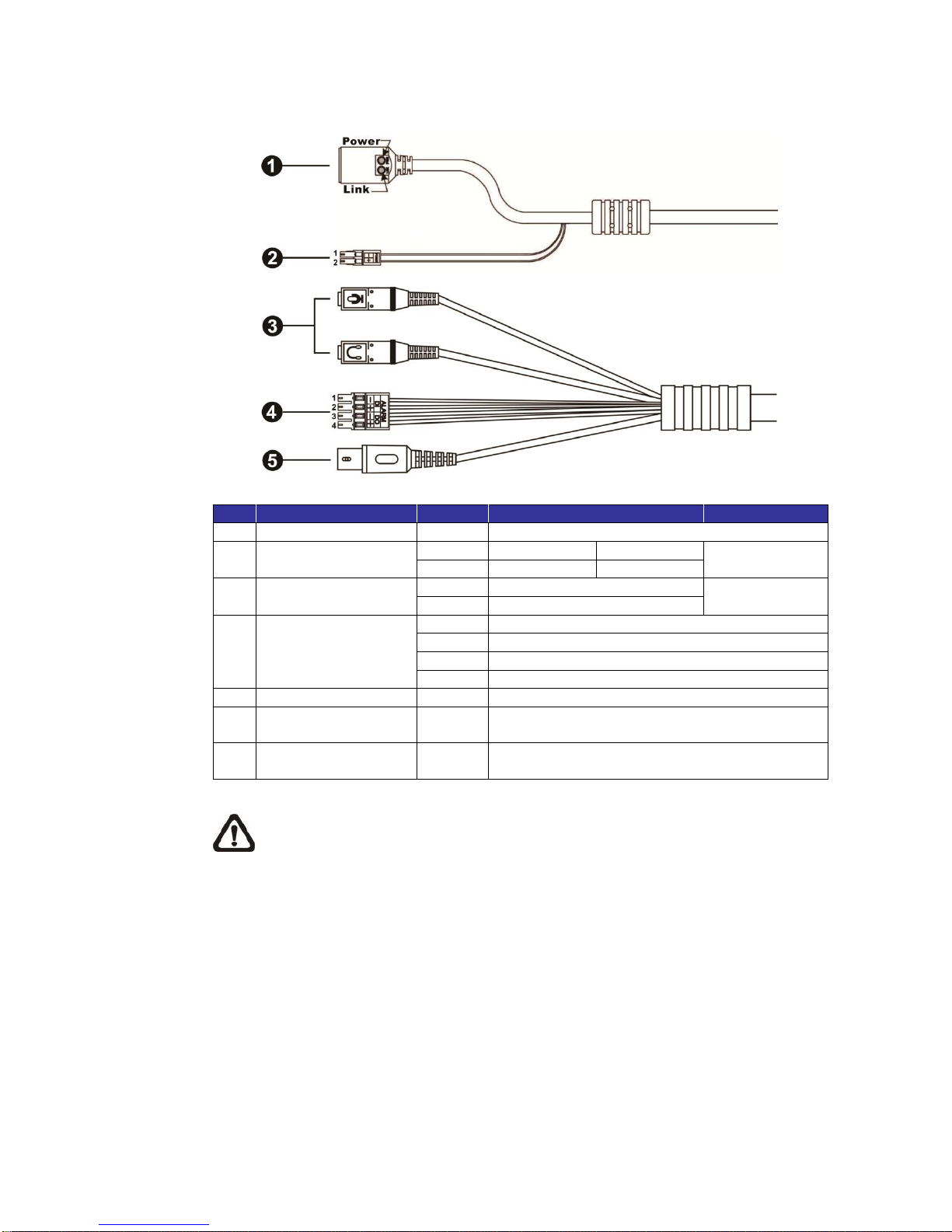

1.6 Function Cable Definition (Outdoor Only)
No.
Connector
Pin Definition
Remarks
1
RJ-45
- For network and PoE connections
2
Power Jack (DC
12V / AC 24V)
1 DC 12V
AC 24V 1
Power
connection
2 GND
AC 24V 2
3
Audio I/O
Pink
Audio In
Two-way audio
transmission
Green
Audio Out
4
Alarm I/O
(4-Pin Terminal
Block)
1
Alarm In –
2
Alarm In +
3
Alarm Out –
4
Alarm Out +
5
BNC
-
For analog video output
-
Default Button
-
Please refer to Default Button in the table under
Camera’s Connectors (Indoor Only).
-
microSD Card Slot
-
Please refer to microSD Card Slot in the table
under Camera’s Connectors (Indoor Only).
NOTE: It is not recommended to record with the microSD card for 24/7
continuously, as it may not be able to support long term continuous data
read/write. Please contact the manufacturer of the microSD card for
information regarding the reliability and life expectancy.

7
2. Camera Cabling
Before users connect cables, make sure that all cables and the power adaptor
are placed in dry and well-waterproofed environments, e.g. waterproof boxes.
The purpose is to prevent moisture accumulation inside the camera and
moisture penetration into cables, which might lead to camera breakdown.
Please follow the instructions below to complete camera connection.
2.1 Connect Ethernet Cable
Refer to the camera type and follow the instructions to connect Ethernet cable.

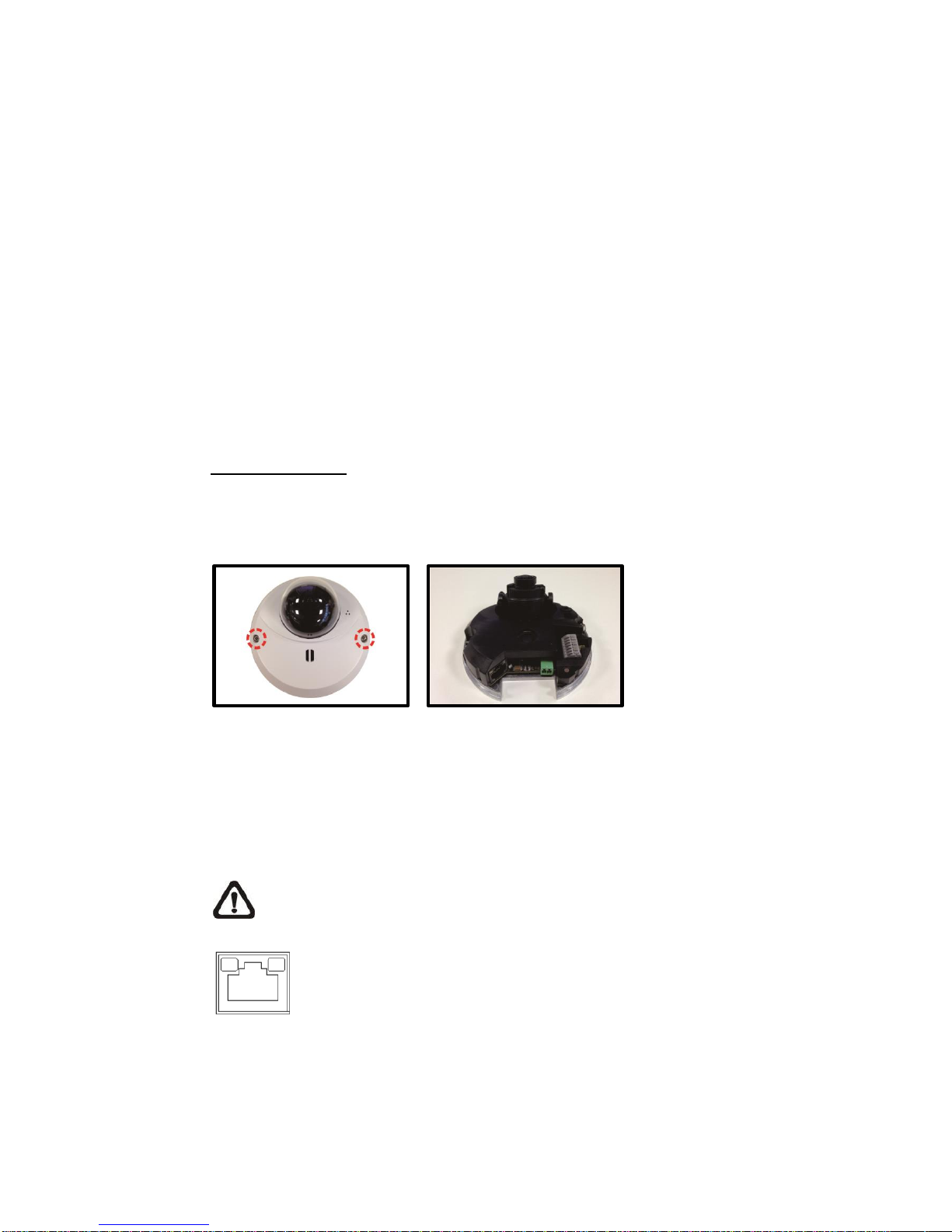

2.1.1 Indoor Camera
PoE Connection
Before connecting Ethernet cable, please loosen the two security screws of the
indoor camera and detach the dome cover.
Connect one end of the Ethernet cable to the RJ-45 connector of the indoor
camera, and plug the other end to a PSE switch. Check the status of the link
indicator and activity indicator LEDs. If the LEDs are unlit, please check the LAN
connection.
NOTE: Please use an Ethernet cable without the boot cover to connect
the indoor camera. Otherwise, the dome cover cannot be installed.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
After cable connection, attach the dome cover back to the indoor camera and
fasten the two security screws.

8
2.1.2 Outdoor Camera
The RJ-45 cable of the outdoor camera is either RJ-45 cable or IP66 RJ-45
cable. Refer to the cable type and follow the instructions below to connect
Ethernet cable and waterproof connector.
RJ-45 Cable
IP66 RJ-45 Cable
RJ-45 Cable
Follow the instruction below to waterproof the connector of the RJ-45 cable.
Plug the Ethernet cable to the connector of the
RJ-45 cable and coat the joint with silicone gel.
Make sure there is no gap between the
Ethernet cable and the connector; otherwise,
waterproof function cannot be guaranteed.
IP66 RJ-45 Cable
For IP66 RJ-45 cable, please use an RJ-45 IP66 plug for connection to prevent
water damage. Follow the steps below for cable connection.
Step 1:
Take out the supplied connector from the
RJ-45 IP66 plug. Loosen the thread-lock
sealing nut on the plug. Then thread the
Ethernet cable through the thread-lock sealing
nut and the plug. If the Ethernet cable is
already attached to a connector, please
remove it first.
Step 2:
Carefully remove a section of rubber coating
from the end of the Ethernet cable to reveal
the wires. Inset the wires to the correct pins of
the connector. Plug the Ethernet cable to the
connector of IP66 RJ-45 cable.

9

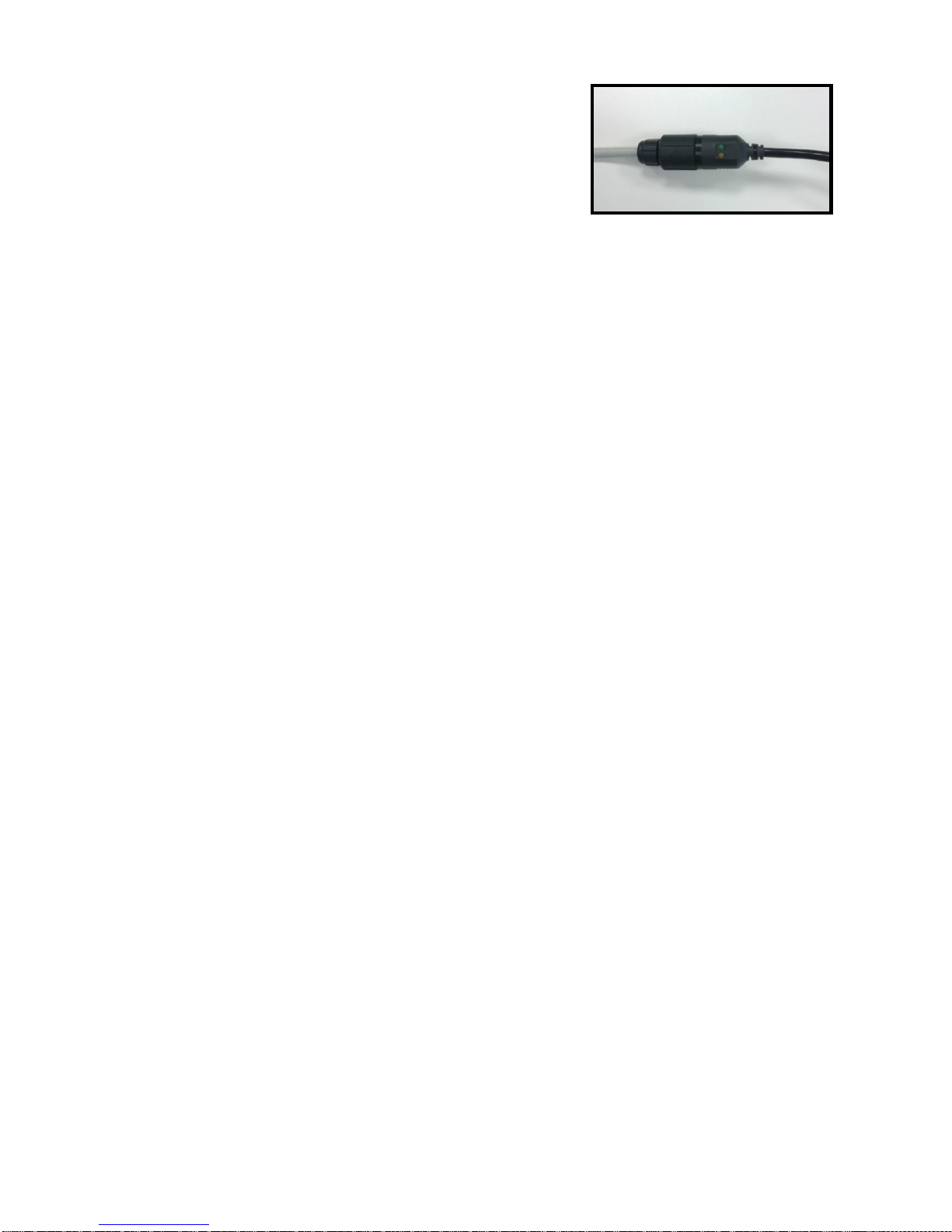

Step 3:
Fasten the RJ-45 IP66 plug to the connector of
the IP66 RJ-45 cable. Lastly, tighten the
thread-lock sealing nut to the plug.
Step 4:
Connect the other end of the Ethernet cable to a waterproof PoE switch / hub.

10
3. System Requirements
To perform the IP camera via web browser, please ensure the PC is in good
network connection, and meet system requirements as described below.
Items
System Requirement
Personal Computer
1. Intel®CoreTM i5-2430M @ 2.4 GHz
2. 4 GB RAM
Operating System
Windows VISTA / Windows XP / Windows 7
Web Browser
Microsoft Internet Explorer (recommended)
Firefox
Chrome
Safari
Network Card
10Base-T (10 Mbps), 100Base-TX (100 Mbps) or
1000Base-T operation
Viewer
ActiveX control plug-in for Microsoft IE

11
4. Access Camera
For initial access to the IP camera, users can search the camera through the
installer program: DeviceSearch.exe, which can be found in “DeviceSearch”
folder in the supplied CD.
Accessing the Camera by Device Search Software
Step 1: Double click on the program Device Search.exe.
Step 2: After its window appears, click on the <Device Search> button on the
top. All the finding IP devices will be listed in the page.
Step 3: Find the camera in the list by its IP address and click on it. The default
IP address of the camera is: 192.168.0.250.
Step 4: The default IP address of the camera may not be in the same LAN as
the IP address of the PC. If so, the IP address of the camera needs to
be changed. Right click on the camera and click <Network Setup>.
Meanwhile, record the MAC address of the camera, for future
identification.
Step 5: The <Network Setup> page will come out. Select <DHCP> and click
<Apply> down the page. The camera will be assigned with a new IP
address.
Step 6: Click <OK> on the Note of setting change. Wait for one minute to
re-search the camera.
Step 7: Click on the <Device Search> button to re-search all the devices. Find
the camera in the list by its MAC address. Then double click or right
click and select <Browse> to access the camera directly via a web
browser.

12
Step 8: A prompt window requesting for default username and password will
appear. Enter the default username and password shown below to
login to the camera.
Login ID
Password
Admin
1234
NOTE: ID and password are case sensitive.
NOTE: It is strongly advised that administrator’s password be
altered for the security concerns. Refer to the Prime HDR IP
Camera Menu Tree in the supplied CD for further details.
Installing Viewer Software Online
For the initial access to the IP camera, a client program, Viewer, will be
automatically installed to the PC when connecting to the camera.
If the web browser doesn’t allow Viewer installation, please check the Internet
security settings or ActiveX controls and plug-ins settings (refer to section Setup
Internet Security) to continue the process.
The Information Bar (just below the URL bar) may come out and ask for
permission to install the ActiveX Control for displaying video in browser. Right
click on the Information Bar and select <Install ActiveX Control…> to allow the
installation.
The download procedure of Viewer software is specified as follows.
Step 1: In the Viewer installation window, click on <Next> to start
installation.
Step 2: The status bar will show the installation progress. After the installation
is completed, click on <Finish> to exit the installation process.
Step 3: Click on <Finish> to close the Viewer installation page.

13
Once the Viewer is successfully installed, the Home page of the IP camera will
be able to correctly display as the figure below.
NOTE: Please refer to the Prime HDR IP Camera Menu Tree in the
supplied CD for more button function details.

14
5. Setup Video Resolution
Users can setup video resolution on Video Format page of the user-friendly
browser-based configuration interface.
Video Format can be found under this path: Streaming> Video Format.
The default value of video resolution is as below.
3M
Normal Mode
H.264- 2048 x 1536 (30/25 fps) +
H.264- 720 x 480 (30 fps) / 720 x 576 (25 fps)
HDR Mode
H.264- 1920 x 1080 (30/25 fps) +
H.264- 720 x 480 (30 fps) / 720 x 576 (25 fps)
4M
Normal Mode
H.264- 2304 x 1296 (30/25 fps) +
H.264- 720 x 480 (30 fps) / 720 x 576 (25 fps)
HDR Mode
H.264- 1920 x 1080 (30/25 fps) +
H.264- 720 x 480 (30 fps) / 720 x 576 (25 fps)
For more details about combinations of video resolution, please refer to the
Prime HDR IP Camera Menu Tree in the supplied CD.

15
6. Configuration Files Export / Import
To export / import configuration files, users can access the Maintenance page
on the user-friendly browser-based configuration interface.
The Maintenance setting can be found under this path: System> Maintenance.
Users can export configuration files to a specified location and retrieve data by
uploading an existing configuration file to the camera.
Export
Users can save the system settings by exporting the configuration file (.bin) to a
specified location for future use. Click on the <Export> button, and the popup
File Download window will come out. Click on <Save> and specify a desired
location for saving the configuration file.
Upload
To upload an existing configuration file to the camera, please first click on
<Browse> to select the configuration file, and then click on the <Upload> button
for uploading.

16
7. Tech Support Information
This chapter will introduce how to delete previously-installed Viewer in the PC
and how to setup the Internet security.
7.1 Delete the Existing Viewer
For users who have installed the Viewer in the PC previously, please first
remove the existing Viewer from the PC before accessing to the IP camera.
Deleting the Viewer
In the Windows <Start Menu>, activate <Control Panel>, and then double click
on <Add or Remove Programs>. In the <Currently installed programs> list,
select <Viewer> and click on the button <Remove> to uninstall the existing
Viewer.
Deleting Temporary Internet Files
To improve browser performance, it is suggested to clean up all the files in the
Temporary Internet Files. The procedure is as follows.
Step 1: Click on the <Tools> tab on the menu bar and select <Internet
Options>.
Step 2: Click on the <Delete> button under <Browsing history> section. Then
click on the <Delete Files> button under the <Temporary Internet files>
section.
Step 3: A confirmation window will pop up. Click on <Yes> to start deleting the
files.

17
7.2 Setup Internet Security
If ActiveX control installation is blocked, please either set Internet security level
to default or change ActiveX controls and plug-ins settings.
Internet Security Level: Default
Step 1: Start the Internet Explorer (IE).
Step 2: Click on the <Tools> tab on the menu bar and select <Internet
Options>.
Step 3: Click on the <Security> tab, and select <Internet> zone.
Step 4: Down the page, click on the <Default Level> button, and click on <OK>
to confirm the setting. Close the browser window, and restart a new
one later to access the IP camera.
ActiveX Controls and Plug-ins Settings
Step 1: Repeat Step 1 to Step 3 of the previous section above.
Step 2: Down the page, click on the <Custom Level> button to change ActiveX
controls and plug-ins settings. The Security Settings window will
pop up.
Step 3: Under <ActiveX controls and plug-ins>, set ALL items (as listed below)
to <Enable> or <Prompt>. Please note that the items vary by IE
version.
ActiveX controls and plug-ins settings:
1. Binary and script behaviors.
2. Download signed ActiveX controls.
3. Download unsigned ActiveX controls.
4. Allow previously unused ActiveX controls to run without prompt.
5. Allow Scriptlets.
6. Automatic prompting for ActiveX controls.
7. Initialize and script ActiveX controls not marked as safe for scripting.
8. Run ActiveX controls and plug-ins.
9. Only allow approved domains to use ActiveX without prompt.
10.Script ActiveX controls marked safe for scripting*.
11.Display video and animation on a webpage that does not use external media player.
Step 4: Click on <OK> to accept the settings. A prompt window will appear for
confirming the setting changes, click <Yes(Y)> and close the Security
Settings window.
Step 5: Click on <OK> to close the Internet Options screen.
Step 6: Close the browser window, and restart a new one later to access the IP
camera.
