Meiko TopClean M User manual

9018116 / Valid from: 2018-12 / Update: 2021-09
www.meiko.info
Read the instructions for use before using the appliance!
test
TopClean M
Type M2
Cleaning and disinfection machine for respira-
tory protection equipment
Instructions for use
EN

2 / 54
9018116
Translation of the “original instructions for use”
Contents
1INFORMATION ON INSTRUCTIONS FOR USE..........................................................4
1.1 Product identification 4
1.2 Delivery contents 4
1.3 Related documents 4
2LIABILITY AND WARRANTY.......................................................................................4
3SAFETY........................................................................................................................5
3.1 Symbol explanation 5
3.1.1 Notes in the instructions 5
3.1.2 Safety symbols in the instructions 6
3.2 Requirements for the personnel 7
3.3 Residual risks 8
3.4 Intended use 9
3.5 Foreseeable misuse 10
3.6 Fundamental safety and accident prevention regulations 10
3.7 What to do in the event of an emergency 12
4PRODUCT DESCRIPTION.........................................................................................13
4.1 Functional description 13
4.2 Type label 13
4.3 GiO MODULE 13
4.4 Blue operating concept 14
4.5 Detergent and rinse aid 14
4.5.1 Detergent 15
4.5.2 Rinse aid 15
4.5.3 Dosing equipment 15

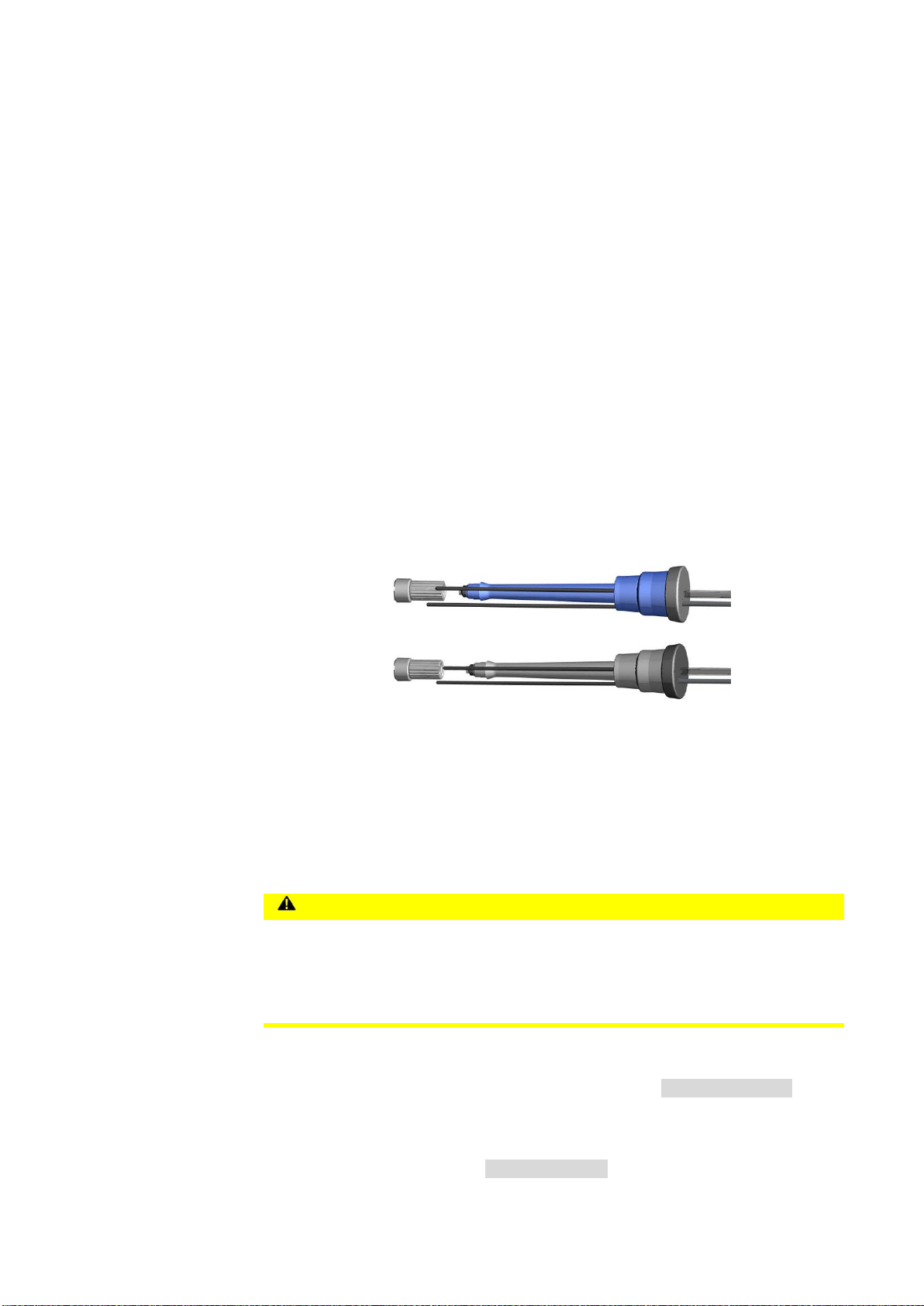

4.5.4 Suction lances 15
4.5.5 Change of products 15
4.6 Chemo-thermal disinfection method 16
5TECHNICAL DATA.....................................................................................................16
5.1 EC/EU declaration of conformity 16
6TRANSPORT..............................................................................................................16
7ASSEMBLY ................................................................................................................17
7.1 Prerequisites for assembly 17
7.1.1 Checking the condition at delivery 17
7.1.2 Requirements for the installation area 17
7.1.3 Requirements for the waste water connection 18
7.1.4Requirements for the compressed air connection 18
7.1.5 Requirements for the fresh water connection 18
7.1.6 Requirements to the electrical connection 19
7.2 Perform assembly 21
7.3 Connection 21
8COMMISSIONING ......................................................................................................22
8.1 Check prerequisites for commissioning 22
8.2 Perform commissioning 22
9OPERATION/USE.......................................................................................................23

TopClean M
9018116
3 / 54
9.1 Membrane key pad 23
9.1.1 Preparing the cleaning and disinfection machine 24
9.2 Start up the machine 25
9.3 Cleaning 25
9.3.1 Rack range 25
9.3.2 Accessories adapter 26
9.3.3 Placement of respirator masks 27
9.3.4 Placement of regulators 29
9.3.5 Use of the adapter (optional) 30
9.3.6 Placement of combi-rack 30
9.3.7 Placement of harness 31
9.3.8 Fitting of compressed air bottles 32
9.3.9 Connection of regulator and/or combi-rack to the compressed air pipe 32
9.3.10 Selecting the cleaning programme 32
9.3.11 Starting the cleaning process 33
9.3.12 Removal of regulator or combi-rack from the compressed air pipe 34
9.3.13 Removing the washware 34
9.4 Decommissioning the cleaning and disinfection machine 35
9.5 Fill consumables 35
9.5.1 Replace canister 36
9.6 Water change programme (option) 36
9.7 Malfunctions 37
9.7.1 Messages 37
9.8 Change authorisation level 40
9.9 Service level 41
9.9.1 View parameters 41
9.9.2 Ventilating the pipes 41
9.9.3 Replace counter for partial desalination cartridge (optional) 42
9.10 Dosing system level 42
10 MAINTENANCE AND CLEANING .............................................................................43
10.1 Maintenance 44
10.2 Maintenance table 45
10.3 Daily cleaning 47
10.4 Cleaning the stainless steel surfaces 48
10.5 Descaling 48
10.6 Spare parts 49
11 NON-USE FOR SEVERAL DAYS ..............................................................................49
11.1 Break in operation (e.g. seasonal operation) 49
11.2 Commissioning after break in operation 49
12 DISMANTLING AND DISPOSAL ...............................................................................49
12.1 Disposal of packaging materials 50
12.2 Dismantling and disposal of the old device 50
13 ABBREVIATIONS.......................................................................................................50
14 INDEX.........................................................................................................................51
15 NOTES........................................................................................................................53

4 / 54
9018116
1 Information on instructions for use
Before using the machine, read the instructions for use and the related documents
carefully and keep them in a safe place and within easy reach.
These instructions for use can be downloaded from the following address:
https://www.meiko.de and https://www.meiko.info or https://partnernet.meiko-
global.com.
1.1 Product identification
These instructions for use apply to the following machine type:
Cleaning and disinfection machine TopClean M, M2 type.
1.2 Delivery contents
The delivery contents include:
•1x TopClean M cleaning and disinfection machine
•Connection hoses for fresh water and waste water
•Documentation
Optionally available:
•Racks, as per rack range
1.3 Related documents
The following documents provide additional information to these instructions for use:
•Installation drawing
•Wiring diagram
•Installation instructions for optional components (e.g. GiO MODULE)
External documents of the manufacturer of the respiratory protective equip-
ment
•Current washing instructions
•Current release
2 Liability and warranty
All of the manufacturer's obligations arise from the relevant purchase contract, which
also contains the entire and only valid guarantee provisions. These contractually
guaranteed provisions shall be neither extended nor restricted as a result of any ex-
planations given in the instructions.
If you follow these operating instructions for use, your washer-disinfector will always
work to your complete satisfaction and have a long service life.
The delivered device corresponds to the state of technology and safety regulations
valid at the time of production/delivery.
The information, data and notes specified in the instructions for use correspond to
the latest version at the time of printing. No claims for already delivered systems
may be asserted based on these statements, illustrations and descriptions.
Claims must be reported to the manufacturers immediately after determination of the
defect or error.

9018116
5 / 54
Liability claims for personal injury or material damage as well as for operational
problems are excluded if they are due to one or more of the following causes:
•Unintended use.
•Improper assembly, commissioning, operation or maintenance.
•Operation of the machine or system with defective safety devices or improperly
attached or non-functioning safety or protective devices.
•Noncompliance with the notes in the instructions for use regarding transport,
storage, assembly, commissioning, operation and maintenance.
•Unauthorised design changes or settings on the machine or system beyond the
intended purpose.
•Improper monitoring of parts subject to wear.
•Use of wear and spare parts that are not from the manufacturers.
•Improperly performed repairs, inspections or maintenance.
•Catastrophes due to human-induced events or force majeure.
3 Safety
Read and observe all safety information, instructions and symbols attached on the
product. Improper use may result in damage to the product or danger to the user.
3.1 Symbol explanation
3.1.1 Notes in the instructions
Warnings
Danger
Short description of the danger:
The signal word DANGER designates an immediately threatening danger.
Failure to observe this leads to very serious injuries or death
Warning
Short description of the danger:
The signal word WARNING designates a possible danger.
Failure to observe this can lead to very serious injuries or death.
Beware
Short description of the danger:
The signal word BEWARE designates a possible danger.
Failure to observe this can lead to minor to medium injuries.
Application information
Caution
Short description:
The signal word Caution designates a possible danger.
Failure to observe this can lead to damage to the machine or system.
Note
The signal word Note designates further information on the machine / system or its
application.

6 / 54
9018116
3.1.2 Safety symbols in the instructions
The following note and danger symbols are used both in the document and on the
machine. Observe these symbols and signs on the machine to avoid personal injury
and material damage!
The symbols have the following meanings:
Symbol
Meaning
Warning of hazardous areas
Warning of dangerous electric voltage
Warning of the danger of hand injuries
Caution, keep hands away from parts that bear this warning symbol. The danger ex-
ists that hands can be crushed, pulled in or otherwise injured.
Warning of hot surfaces and liquids
Warning of the machine falling over
Warning of environmental damage
Do not spray with water
No drinking water
Access prohibited for persons with pacemakers
Eye protection must be used or protective glasses must be worn
Hand protection must be worn
Read the operating instructions
Disconnect before servicing or repair
Potential equalisation connection

9018116
7 / 54
3.2 Requirements for the personnel
•Make sure that only trained and experienced staff operate the washer-disinfec-
tor.
•Personnel who have not been briefed or trained may not handle the washer-
disinfector.
•Make sure that staff learning to use the washer-disinfector are supervised by a
trained and experienced operator at all times.
•Clearly define the staff's responsibilities.
•Confirm training in writing.
Persons
Experienced
staff
Instructed in-
house technician
Authorised in-house techni-
cians/fitters (Medical Products
Advisor)
Activity
Installation/assembly

Commissioning

Operation, use



Cleaning



Checking safety devices


Troubleshooting


Troubleshooting, mechanical


Troubleshooting, electrical

Maintenance

Repairs


8 / 54
9018116
3.3 Residual risks
Phase
Activity
Nature of the hazard
Avoidance measure
Transport and
assembly
Loading and unloading
with forklift truck
Crushing/impact
•Load-bearing capacity of the forklift
truck must be adequate for the weight of
the cleaning combination
•Please note the cleaning combination's
centre of gravity
•Secure to prevent slipping
Deposit at the installation
site
•Ensure that the ground beneath is capa-
ble of taking the load, level and horizon-
tal
•Always apply the holding brake
•Only use the front handle of the clean-
ing combination for pushing or pulling,
not for carrying
•Make sure that the cleaning combina-
tion cannot tip
Electrical connection
Compressed air connec-
tion
Waste water connection
Electric shock
Slipping/tripping/falling
•Only skilled personnel may install, con-
nect and dismantle the cleaning combi-
nation.
•Observe the dimension sheet with con-
nection and consumption values
•Adhere to the accident prevention regu-
lations
Install separate GiO
MODULE (optional)
Tripping/falling/crushing
•Only operate GiO-MODULE in the
cleaning combination
Commissioning
Fill with detergent/rinse
aid
Eye injury/health risks
•Wear safety eyewear/gloves
•Avoid contact with skin and eyes
Operation
Cleaning programme run-
ning
Scalding due to inappropri-
ate opening of the wash
chamber door
•Do not open the wash chamber door
during programme run
Appliance catching fire
due to overload or block-
age of pump motors
•Always use a fine/coarse sieve when
running the appliance to keep out for-
eign bodies
•Pre-wash washware
Loading and unloading
the appliance
Trapping of hand
•To close the wash chamber door, use
the handle designated for this purpose
Broken washware causing
cuts/severing
•Clean the washware in the specially de-
signed rack in the appliance
•Place small items in the appropriate
rack inserts
•Washware must not come into contact
with rotating parts of the appliance
Risk of snagging with
loose clothing or items of
jewellery
•Wear suitable work clothing and sturdy
shoes
•Do not wear rings, necklaces or other
pieces of jewellery
Slipping
•Use non-slip floor coverings
Scalding
•If necessary, allow washware to cool
down
•If necessary, allow appliance parts to
cool down before touching them
•Do not remove tank cover sieve while
appliance is in operation
•Protective gloves recommended
Other activities
Injury through standing or
sitting on the open wash
chamber door
•Make sure that nobody sits or stands on
the wash chamber door

9018116
9 / 54
Phase
Activity
Nature of the hazard
Avoidance measure
Swallowing of water in the
wash chamber
•Do not use the cleaning water for food
preparation
•Do not drink the cleaning water
Independent changes to
chemical dosing
Breathing difficulties/suffo-
cation
•Only allow specialist personnel to adjust
dosing, otherwise the manufacturer of
the respiratory protective equipment's
warranty will be void
Refilling of detergent/dis-
infectant/rinse aid
Tripping/falling over open
dosing cover
•Close dosing cover as soon as refilling
is complete
Eye injury/health risks
•Wear safety eyewear/gloves
•Avoid contact with skin and eyes
Maintenance and
cleaning
Any maintenance work
Electric shock
•Before opening the covers, ensure the
mains switch has been disconnected
and secured so that it cannot be turned
on again
•Only specialist personnel may carry out
maintenance work
Cleaning or maintenance
Tripping/falling over open
wash chamber door
•Always close wash chamber door after
use
Scalding/burning
•Allow appliance parts to cool down be-
fore touching them
•Wear protective gloves
Cleaning
Poisoning
•Do not use aggressive cleaning or
scouring agents
•Only use descaling products suitable for
commercial cleaning and disinfection
appliances
•Wear protective gloves
GiO MODULE: replace fil-
ter cartridge
Water escaping
•Provide suitable vessel (e.g. base drip
tray)
Dismantling and
disposal
Dismantling
Eye injury/health risks
•Wear safety eyewear/gloves
•Avoid contact with skin and eyes
•If necessary, clean hoses, dosing sys-
tem and appliance parts with fresh wa-
ter
Loading and unloading
with forklift truck
Crushing/impact
•Load-bearing capacity of the forklift
truck must be adequate for the weight of
the cleaning combination
•Please note the cleaning combination's
centre of gravity
•Secure to prevent slipping
3.4 Intended use
The TopClean M cleaning and disinfection appliance must only be used in accord-
ance with its intended purpose and as per these instructions for use.
The TopClean M cleaning and disinfection machine must only be used in accord-
ance with its intended purpose and as per these instructions for use.
The TopClean M cleaning and disinfection machine serves the cleaning and disin-
fecting of respiratory protective equipment. Order instructions for use of the respec-
tive respiratory protective equipment.
The material compatibility of various respirator masks from Dräger Safety AG & Co.
KGaA, MSA AUER GmbH and INTERSPIRO AB during cleaning and disinfecting in
the TopClean M has been confirmed by a report issued by Dekra-EXAM GmbH, the
specialist body for respiratory protection.
When reprocessing respirator masks and regulators, the manufacturer's instructions
must be strictly observed.

10 / 54
9018116
The TopClean M cleaning and disinfection machine must only be operated with a
compressed air connection for respiratory protection devices (between 2 and max. 5
bar) in accordance with EN 12021.
The washware must be suitable for the chemo-thermal cleaning disinfection process
up to max. 60°C.
3.5 Foreseeable misuse
The cleaning and disinfection appliance must not be used for:
•Unsuitable washware (cleaning and disinfection process chemo-thermal up to
max. 60°C)
•Cleaning of parts with electrical components, made of iron or wood
•Cleaning plastic parts that are not heat and alkali-stable
•Cleaning living creatures
•Cleaning of foodstuff for consumption
•The preparation of foodstuffs
•Taking tank water to prepare food or for drinking
•Filling the machine from an external source (e.g. shower)
•Introducing service water into the local waste water system
•Standing or sitting on machine parts (e.g.: door)
3.6 Fundamental safety and accident prevention regulations
Note
The following safety instructions serve to protect the operating personnel, third par-
ties and the cleaning and disinfection machine.
Observe the notes in these instructions for use and the information signs on the
cleaning and disinfection machine.
Safety can only be guaranteed during operation if all necessary measures are taken.
The operator of the machine has an obligation of care to ensure that these
measures are planned for and also to check that they are correctly implemented.
The operator must ensure in particular that:
•The cleaning and disinfection machine is only used for its intended purpose. In
the event of the machine being used or operated contrary to this, damage or
risks may arise.
•In order to guarantee functionality and safety, only original spare parts supplied
by the manufacturers may be used.
•The safety of the cleaning and disinfection machine is not impaired by the sub-
sequent installation of dosing technology.
•Only appropriately qualified and authorised employees use, maintain, and re-
pair the cleaning and disinfection machine.
•No one sits or stands on the open door.
•Staff are regularly trained in all questions relating to occupational safety and
environmental protection and are familiar with the instructions for use and, in
particular, the safety information that they contain.
•The area around the machine is assessed with reference to the risk to other
people, e.g. children, people with physical, sensory or mental impairments,
people lacking in knowledge or experience. In case of doubt, special optional
initiation functions other than conscious, intentional operation (i.e. operation
from the screen) are to be deactivated.
•The cleaning and disinfection machine is only operated in perfect, functional
condition; all protection devices and covers are installed.
•The safety and switching equipment is regularly tested to ensure it is function-
ing correctly.

9018116
11 / 54
•Cleaning and disinfection machines that are accessible from behind can only
be operated with a rear wall cover.
•The required personal protective equipment is made available to and worn by
maintenance and repair personnel.
•A functional test on all safety systems of the cleaning and disinfection machine
is carried out during all regular maintenance.
•All safety and warning notices affixed to the cleaning and disinfection machine
are not removed and are legible.
•Upkeep (maintenance and inspection) is carried out on optional vendor parts
according to the requirements in the corresponding instructions.
•Following assembly, commissioning and handing over of the cleaning and dis-
infection machine to the customer/operator, no modifications are made (e.g.
electrical or mechanical machine components).
•Equipment for optimising energy consumption must not be used to lower the
required operating temperatures, as set out in the standards DIN 10510, 10511
and 10512. If equipment for optimising energy consumption is nevertheless in-
stalled, MEIKO does not accept any responsibility for a possible reduction in
the quality of the wash and hygiene.
Instructions for operating the cleaning and disinfection machine:
•The cleaning and disinfection machine may only be operated under the supervi-
sion of trained personnel.
•Do not use the cleaning and disinfection machine if you are not sure how to use
it.
•Always close all doors and flaps.
•After use, turn off the machine at the on-site mains isolator. This is located in
the electricity supply pipe for the machine.
•Wear suitable work clothing.
- Wear suitable protective gloves when working on the cleaning and disinfection
machine.
•Allow machine components and washware to cool down before touching.
Information on the use of detergents/disinfectants and rinse aid:
•Only use detergents/disinfectants and rinse aid that are suitable for the chemo-
thermal cleaning disinfection process up to max. 60°C.
•Acquire information from the manufacturers of these products. Only use prod-
ucts authorised by the manufacturer of the respiratory protective equipment.
Detergents/disinfectants and rinse aid can be hazardous to health. The cleaning wa-
ter used during operation contains chemicals.
•Never drink cleaning water.
•If cleaning water is swallowed, consult a doctor immediately.
•Pay attention to the manufacturers' hazard warnings on the original canisters
and safety data sheets.
•When handling chemicals, wear appropriate protective gloves and safety eye-
wear.
•Do not mix up detergent/disinfectant and rinse aid.
•Make sure that the suction connections of the cleaning and disinfection ma-
chine are correctly connected to the canisters.

12 / 54
9018116
Information on the use of descaling agents
Residue from descaling agents can cause damage to the plastic components and
sealing materials in the machine.
•Acquire information from the manufacturers of these products.
•Please observe the manufacturer's hazard warnings.
•Thoroughly remove any residue after use.
Information on cleaning the machine
Foam leads to malfunctions and poor cleaning results in the cleaning and disinfec-
tion machine.
•Do not use a foaming manual dishwashing detergent for precleaning or for
cleaning the machine.
•Allow machine components and washware to cool down before touching.
Information on cleaning the surrounding area
When cleaning the surrounding area, the machine can be damaged by aggressive
external influences (steams, detergents) or the ingress of water.
•Do not use aggressive detergents (e.g. aggressive tile cleaner).
•If installed at ground level, never allow the surrounding area to flood.
Notices on electrics and electronics
There is a danger to life if exposed parts and supply lines under electrical voltage
are touched.
•Please take note of the warning notices in these instructions and the signs on
the cleaning and disinfection machine.
•Whenever you are working on electrical components in the machine, ensure
that electrical connections are physically secure.
•Whenever you are working on electrical components in the machine, check
wires and cables for any potential damage and replace, if necessary.
Incorrect cleaning can cause damage to the electronics.
•The cleaning and disinfection machine, control cabinets and other electrical
components must never be sprayed with a hose or high pressure cleaner.
•Ensure that no water can enter the machine by accident.
Notice on non-ionising radiation
Non-ionising radiation is not produced intentionally but simply comes about due to
electrical operating equipment (e.g. electrical motors, high-voltage cables and
magnetic coils). In addition, the machine has no strong permanent magnet.
3.7 What to do in the event of an emergency
•In dangerous situations, disconnect from the power supply using the locally
available mains isolator.

9018116
13 / 54
4 Product description
4.1 Functional description
The TopClean M is a cleaning and disinfection machine with a square rack.
The cleaning and disinfection machine has a cleaning, disinfection and a final rinse
cycle.
A temperature controller maintains the set cleaning and disinfection temperature of
60°C within one cycle. A rotary pump circulates the water from the cleaning tank into
the cleaning nozzles. The water jets hit the washware from different directions. This
ensures uniform cleaning results.
The cleaning cycle is followed by a fresh water final rinse. The washware is rinsed
with 60°C fresh water via a separate nozzle system. This heats up the washware for
the following drying process.
At the same time, the final rinse water is used to regenerate the wash water, which
reduces the degree of soiling of the rinse water.
4.2 Type label
The rating plate is on the inside of the front panel. Additional rating plates are lo-
cated on the switch cabinet behind the front panel, on the display and on the sepa-
rate GiO module (if it is part of the cleaning and disinfection machine).
The rating plate includes the following information:
1 Manufacturer name and address
2 Machine type
3 Model name
4 Serial number
5 Current type
6 Electrical connection
7 Rated power of boiler
8 Water pressure
9 Boiler capacity
10 Steam connection
11 Year of manufacture
12 CE mark
13 IP protection rating
4.3 GiO MODULE
The module works according to the principle of reverse osmosis. Drinking water is
pressed by a pump through a semi-permeable membrane. The membrane lets only
water molecules through. The hardness components and salts (lime scale, etc.) con-
tained in the water are held back. The clean water (permeate) is brought to the dish-
washing machine; the materials held back (concentrate) are brought to the drain.

14 / 54
9018116
4.4 Blue operating concept
1 AktivPlus filter
The parts of the cleaning and disinfection machine that must be touched by the op-
erator in operation and in daily use are blue. And so after a short briefing, operators
know intuitively that they have to remove and clean the wash system, tank cover
sieve and filter, for example.
4.5 Detergent and rinse aid
Warning
Risk of injury from contact with chemicals
•Observe the safety data sheets and dosing recommendations of the chemical
manufacturers.
•Use eye protection.
•Wear protective gloves.
•Do not mix different chemical products.
Caution
•Only use products that are suitable and approved for commercial cleaning and
disinfection appliances. Generally, the currently valid documentation of the PPE
manufacturer must be followed when choosing the right cleaning chemicals.
Deviations from this can lead to a loss of product liability.
(Cf. EU 425/2016 - The PPE manufacturer is responsible for releasing the
cleaning and disinfection process and its parameters)
•Do not mix different cleaning products.
The cleaning and disinfection appliance is equipped by default with dosing units for
dosing liquid detergent/disinfectant and rinse aid. Manual dosing with powder
cleaner is not intended.
Approved products:
Rinse aid
(depending on approval from the respective
PPE manufacturer!)
•Etol GT500
•Curacid PSA TC, PICO-Medical
GmbH, Hamburg
Chemical detergent/disinfectant
(depending on approval from the respective
PPE manufacturer!)
•EW 80mat, EW 80 Systeme GmbH,
Dortmund
•Sekumatic® FDR ECOLAB

9018116
15 / 54
4.5.1 Detergent
Detergents are alkaline (pH value should be > 7) and are needed to dissolve soiling
from the washware. The standard setting is 2 ml of detergent per litre of tank water.
If necessary, the concentration can be adjusted depending on the water quality,
washware and degree of soiling. This setting is made during commissioning by an
service technician authorised by MEIKO or the chemical supplier.
Change dosing quantity, see chapter “Dosing system level” on page 42.
4.5.2 Rinse aid
Rinse aids are acidic (pH value should be between 2 and 7) and accelerate the dry-
ing of the washware by reducing the surface tension of the water so that it can run
off the washware quickly.
The correct dosage is achieved when the water drips evenly from the washware and
depends on the available water quality on-site. This setting is made during commis-
sioning by an service technician authorised by MEIKO or the chemical supplier.
Change dosing quantity, see chapter “Dosing system level” on page 42.
4.5.3 Dosing equipment
The components of the dosing units are subject to high demands and must therefore
be regularly maintained and, if necessary, replaced in accordance with the mainte-
nance specification.
4.5.4 Suction lances
Suction lances with level monitoring for rinse aid (blue) and detergent (grey)
Suction lances ensure that the liquid chemical product is sucked in correctly. Suction
lances are inserted vertically into the canisters and are optionally equipped with level
monitoring. When the canister is running low, a message will appear on the machine
display.
4.5.5 Change of products
Caution
When changing the detergent product (even to a product from the same
manufacturer), crystallisation may occur, which can lead to failure of the
dosing system.
•When changing the detergent product, flush the dosing system with warm wa-
ter.
Procedure for changing the detergent product:
1. Provide a suitable container with warm water and insert the suction lance.
2. Thoroughly flush the dosing system several times by venting the lines, see
page 41.
3. Wipe the suction lance and put it into the canister with the other detergent prod-
uct.
4. Refill the dosing system by venting the lines.

16 / 54
9018116
In addition, observe the instructions of the manufacturer of the chemicals and
the respiratory protective equipment. This applies in particular to the conver-
sion from manual to mechanical processing.
4.6 Chemo-thermal disinfection method
The tank temperature falls when the programme begins, depending on the
washware. The set programme cycle time can be exceed by the time it takes to
reach the prescribed disinfection parameters. Due to the technical hysteresis, the
temperature of the wash water can reach 62°C for a short time. This ensures that
60°C prevails continuously on the washware.
5 Technical data
MEIKO has created a dimensional drawing that shows machine dimensions as well
as connection and consumption values.
Further data should be taken from the MEIKO dimensional drawing.
Net weights
Versions
Weight approx.
UPster U 500 M2
73 kg
+
ActiveClean water softener
9 kg
+
GiO module reverse osmosis
23 kg
Noise emission
Workplace noise level LpA ≤70 dB (A).
5.1 EC/EU declaration of conformity
See separate EC-/EU-Declaration of Conformity.
6 Transport
Warning
Danger of injury due to machine tipping
•Only qualified personnel may carry out transport works.
•Please note safety notices on the packaging.
•Always transport the machine on a wooden frame only.
•Wear protective gloves and safety shoes.
The packaging is specifically designed to allow the appliances to be moved safely
and securely using a pallet jack or a sack truck. For safe transport, the cleaning and
disinfection machine is supported by a special square timber frame.

9018116
17 / 54
•Transport with care.
•Open packaging using a suitable tool.
•Only unpack the cleaning and disinfection machine after transportation.
7 Assembly
Warning
Danger of injury from entering a danger zone
Unauthorised persons might be in or enter the danger zone during transport, as-
sembly, commissioning, maintenance and repair work. This can lead to injuries.
•Only permit qualified persons to perform work at the machine.
•Remove unauthorised persons from the danger zone.
•Cordon off danger zone and signpost it for third parties.
•Never remove or disable safety devices on the machine.
•Always wear cut-resistant protective gloves when removing housing parts and
when working inside the machine!
7.1 Prerequisites for assembly
7.1.1 Checking the condition at delivery
•Check that the delivery is complete immediately after receiving it by comparing
it with MEIKO’s order confirmation and/or the delivery note.
•If applicable, submit a claim for any missing parts immediately to the freight for-
warder and notify MEIKO.
•Check the machine for transportation damage.
Note
If there is any suspicion of transportation damage, the shipping company and
MEIKO must be informed immediately in writing. Photograph any damaged parts
and send the pictures to MEIKO.
7.1.2 Requirements for the installation area
The cleaning and disinfection appliance is only frost-proof in as-delivered state or if
equipped with special features (option: frost drainage).
Installation of the cleaning and disinfection machine in an area where the ambient
temperature is below 0° C can result in damage to the internal water circuit compo-
nents (e.g. pump, solenoid valve, boiler, etc.).
•Make sure that the storage and installation site are always frost free.
•Make sure that the ground beneath is capable of taking the load, level and hori-
zontal.
There is a danger of slipping in the working area due to the use of water.
•After assembly, put in place non-slip floor coverings in the working area based
on the general/location-specific safety regulations.

18 / 54
9018116
7.1.3 Requirements for the waste water connection
A waste water pump is integrated into the drain pump.
•Connect the drainage hose to the locally available waste water pipe.
–For Australia only:
The drain hose must be connected such that it is watertight with a drain fit-
ting in accordance with AS 1589 AS 2887 and a sanitary waste water pipe
or sanitary waste water fitting in accordance with AS / NZS 1260.
•Depending on the cleaning and disinfection machine application, a grease trap
may be included, based on the general/location-specific regulations.
•For cleaning and disinfection machines with GiO MODULE, the maximum drain
height must be considered (see dimensional drawing).
7.1.4 Requirements for the compressed air connection
•On-site compressed air connection for respiratory protection devices (between
2 and max. 5 bar) in accordance with EN 12021.
•Specification of the authorised pressure range: operating pressure 2 to max. 5
bar.
If loud noises occur that are not typical of operation, the malfunction must be
repaired without delay. Comply with the general rules for working with com-
pressed air (wear hearing protection, if necessary).
7.1.5 Requirements for the fresh water connection
Fresh water connections and their components must be carried out in accord-
ance with local regulations, e.g. EN 1717/DIN 1988-100. The fresh water must
be of the same quality as drinking water in microbiological terms. This also
applies to processed water.
The basic model of the washer-disinfector features an air gap (type AA or AB as per
EN 1717 or EN 61770). In the case of SVGW (Switzerland) and other countries, a
type EA safety device (at least) is also required in front of the connection hose, de-
pending on the machine version. Installation components and materials must be
suitable and permitted in accordance with local regulations. A solenoid valve is inte-
grated into the cleaning and disinfection machine's fresh water pipe. This, together
with the leakage detector in the base drip tray in the subframe, ensures that in the
event of a leak within the machine, the fresh water inlet is shut off.
Pressure range of the fresh water supply flow pressure upstream of the solenoid valve:
•Machines with air gap or pressure booster pump:
60 –500 kPa (0.6 –5 bar)
•Machines with a safety device to prevent backflow:
250 –500 kPa (2.5 –5 bar)
Maximum pressure
•Do not exceed maximum pressure of 500 kPa (5 bar).
Measures to ensure correct water pressure:
•If the minimum flow pressure is too low, increase the pressure using a pressure
booster pump.
•If the maximum pressure is exceeded, limit the pressure using a pressure regu-
lator.
Other measures:
•Ensure that no foreign iron particles can enter the appliance via the fresh water
connection. The same also applies for contamination by other metal particles
(e.g. copper shavings). Corresponding instructions are contained in the assem-
bly plan.
•A dirt trap must be fitted in the fresh water supply to protect the solenoid valve.
•After the washer-disinfector has been unused for longer periods of time, drain
the connection pipe and clean it before placing the machine in operation again.
•When replacing an old machine with a new one, make sure that the existing
feed hose is exchanged for the new feed hose supplied with the machine.

9018116
19 / 54
7.1.6 Requirements to the electrical connection
Warning
Danger to life from electric shock
Contact with live electrical parts can lead to serious injury or death.
•Work at or repairs to the electrical system must be conducted by a qualified
electrician who complies with the electrotechnical rules.
•Disconnect the machine from the power supply before working on the electrical
system. To do this, turn the local mains switch to OFF and ensure that it can't
be switched back on again.
Note
The wiring diagram is located behind the front panel of the cleaning and disinfection
machine. This must remain in the cleaning and disinfection machine!
The rating plate with the electrical connected values is located inside the front
panel.
Other dangers Danger of death by electric shock: contact with live electrical parts can lead to seri-
ous injury or death.
Who may connect it? The cleaning and disinfection machine must be connected by a (MEIKO authorised)
electrician in accordance with the locally applicable norms and regulations.
Local earth wire system
The electrical safety of this machine is only ensured if it is connected to a properly
installed protective conductor system. It is very important to verify this fundamental
safety feature. If in doubt, have the building wiring checked by an electrician.
Voltage and frequency The machine may only be operated with the data provided on the rating plate(see
chapter “Type label” on page 13).
Power cable/fixed connection:
Recommended connection with protective equipotential bonding
The machine and accessory appliances are intended for permanent connection to
the locally available power supply and the locally available protective equipotential
bonding and have been tested accordingly before being brought to market.
A 5-pole terminal strip (L1, L2, L3, N, PE) must be used for connection to a three-
phase current.
Electricity supply without a neutral wire (N): When connecting to three-phase cur-
rent, use a 4-pole clamping strip (L1, L2, L3, PE).
Wire colours: live wire L1 = black/1, L2 = brown/2, L3 = grey/3, neutral wire N =
blue/4, protective earth conductor PE = green-yellow
Alternative connection without protective equipotential bonding
The operator can decide at his/her own discretion and under his/her own responsi-
bility to connect the electrical supply using customer resources in collaboration with
a professional electrician:
1. Fixed connection without protective equipotential bonding
2. Plug connection according to EN 60309 (CEE plug connection)

20 / 54
9018116
Note
Where discharge currents exceed 10 mA, the use of an RCD/FI is not recom-
mended. False alarms restrict machine availability.
MEIKO expressly excludes any liability for damages caused by improper connection
of the machine.
This includes any work in connection with services due to said connection, e.g. pro-
cessing complaints or claims due to:
•Triggered RCD/FI
•Automatic shut-down of the supply when consistency is lost in the protective
earth conductor (EN 60204-1 Chap. 8.2.8.c)
Local mains isolator The power supply must be fused in accordance with the regulations and a lockable
mains isolator provided in the local electrical installation.
If an unearthed neutral conductor (N) is used with three-phase current, the mains
isolator must have 4 poles (with alternating current 2 poles).
If the neutral wire (N) is not earthed, you must use a 4-pole mains switch. Mains
power cables must be oil-resistant, shielded, flexible cables no lighter than an
H07RN-F cable.
Local fuse protection The machine must be fused appropriately for the rated current shown on the de-
scriptive plaque. The electrical connection must be fused as a separately fused cir-
cuit (final circuit). Take note of the connection variant.
The requirements for limiting voltage changes, fluctuations and flicker in accordance
with DIN EN 61000-3-11 for the TopClean 60 M2 cleaning and disinfection machine
are fulfilled if the network has a current-carrying capacity of ≥ 100 A.
Protective equipotential bonding
The screw for the potential equalisation
is located on the back of the machine
near the media connections.
The potential equalisation connection must be carried out in accordance with the
requirements of the local electricity supply companies and all applicable local regula-
tions (in Germany VDE 0100 Part 540). Incorporate the machine and any conductive
substructures and table systems into the local potential equalisation system.
