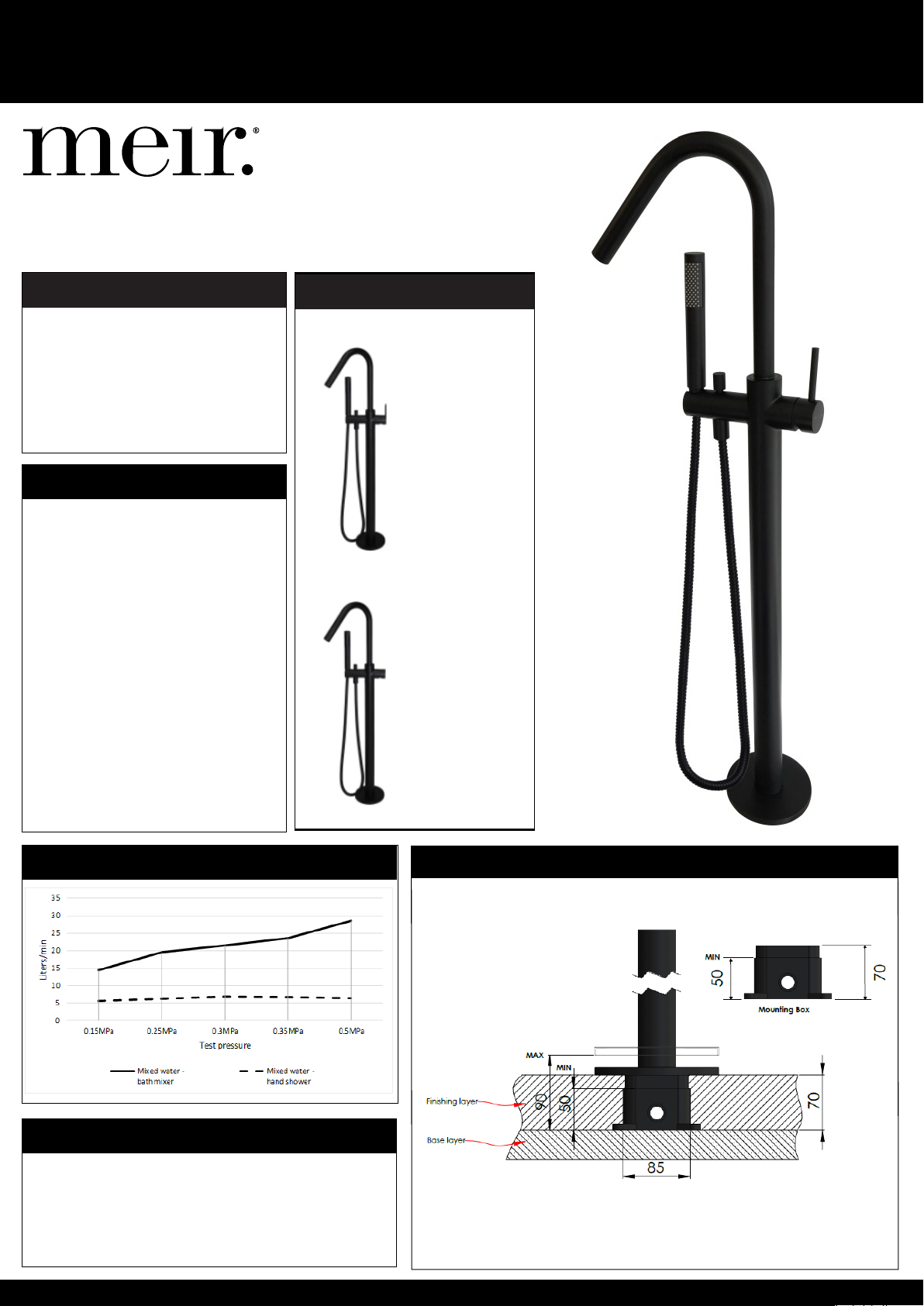

meir MB09 User manual

FEATURES
FLOW RATE GRAPH
CREDENTIALS
CARE
MB09 V6
MB09
FREE-STANDING BATH MIXER
TOLERANCE
• Watermark AS/NZS3718WMKA25013
• Do not install tapware using any
form of acetone silicones.
• Do not apply physical items (such as
tools) directly to product.
• Never use house-hold or commercial
detergents, citrus based
cleaners, or abrasive cleaners.
• Clean using a mild washing soap
solution rinsed, and dry with a
soft cloth.
• Check for any product defects
before installation.
• Refer to the installation manual for
correct installation.
•Refer to the Meir website for
warranty terms & conditions.
• Flow rate 20 L p/m
•European components and cartridge
• Solid brass construction
•Box Weight 6.2 Kg
HANDLE VARIANTS
Paddle: MB09PD
Pinless: MB09PN

SPECIFICATIONS
MB09
FREE-STANDING BATH MIXER
MB09 V6
200
150
700
1047
45
910
236
PINLESS HANDLE
PADDLE HANDLE

MB09
FREE-STANDING BATH MIXER
MB09 V6
EXPLODED VIEW
No
.
Part
1
Spout
2
PVC washer
3
O-ring
4
Copper sleeve
5
O-ring
6
Wear-resisting ring
7
Nut
8
Decor knob
9
Handle
10
Decor cover
11
Nut
12
D35 cartridge
13
Stand pipe
14
Water pipe
15
Water test base
16
Rubber ring
17
Blocks
18
Aerator
19
Handle
20
Decor cover
21
Body
22
Handle shower
23
Divertor
24
Non-return valve
25
Shower hose
26
Back plate
27
O-ring
28
Sponge mat
29
Screw
30
Fixed plate
31
Fixing nut
32
Plastic box
33
Screw
34
O-ring
35
Flexible hose
36
O-ring
37
Dustproof cover
1
2
3
4
5
7
3 3
9
1 0
1 1
1 2
1 3
1 4
1 5
1 6
1 7
3 4
3 2
3 7
3 1
3 0
2 9
2 8
2 6
3 4
3 5
3 4
2 5
2 4
2 3
2 1
2 0
1 9
1 8
3 8
6
8
2 7
3 6
