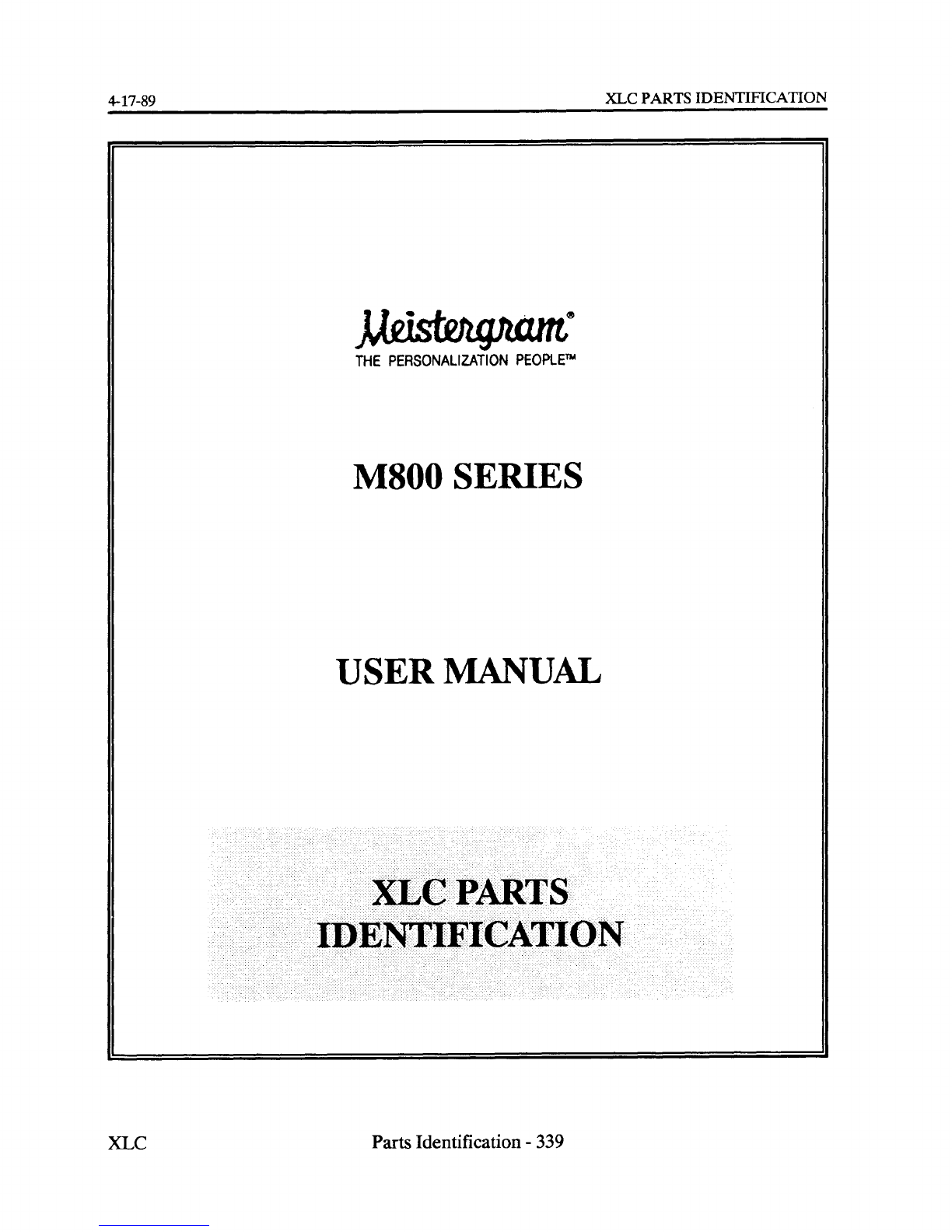

Meistergram MSOO SERIES User manual

4-17-89 XLC PARTS IDENTIFICATION
THE PERSONALIZATION PEOPLEru
MSOO SERIES
USER MANUAL
XLC Parts Identification -339
From the library of: Superior Sewing Machine & Supply LLC

XLC PARTS IDENTIFICATION
~-
4-17-89
FRAME ASSEMBLY: VIEW 1
Parts Identification -340 XLC
From the library of: Superior Sewing Machine & Supply LLC

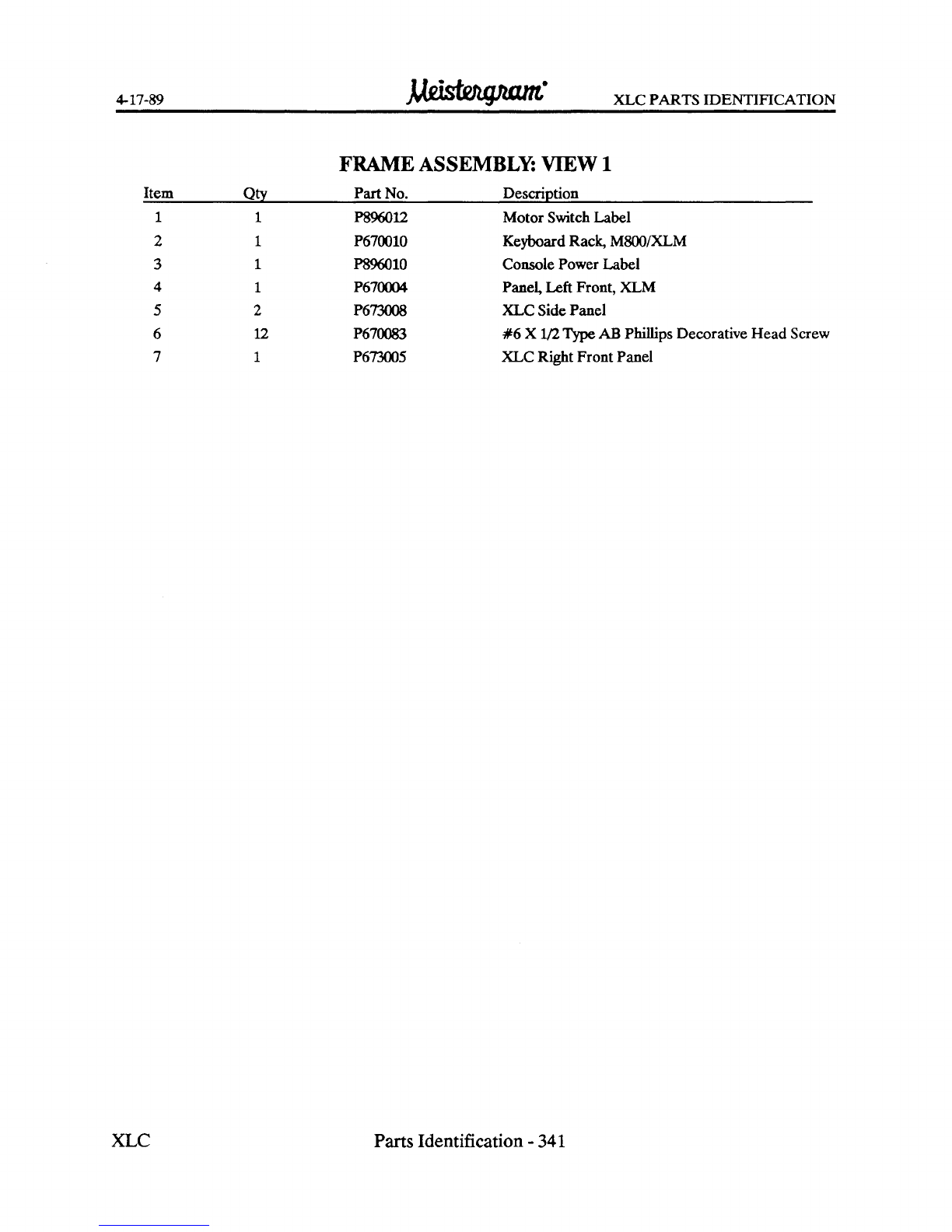

4-17-89
XLC PARTS IDENTIFICATION
FRAME ASSEMBLY: VIEW 1
Item
O!I
Part No. DescriEtion
1 1 P896012 Motor Switch Label
2 1 P670010 Keyboard Rack, M800/XLM
3 1 P896010 Console Power Label
4 1 P670004 Panel, Left Front,
XLM
5 2 P673008 XLC Side Panel
6 12 P670083
#6 X 1/2 Type AB Phillips Decorative Head Screw
7 1 P673005
XLC Right Front Panel
XLC Parts Identification -341
From the library of: Superior Sewing Machine & Supply LLC

'fi tt' on -342
Parts ldentt ca
4-17-89
XLC
From the library of: Superior Sewing Machine & Supply LLC

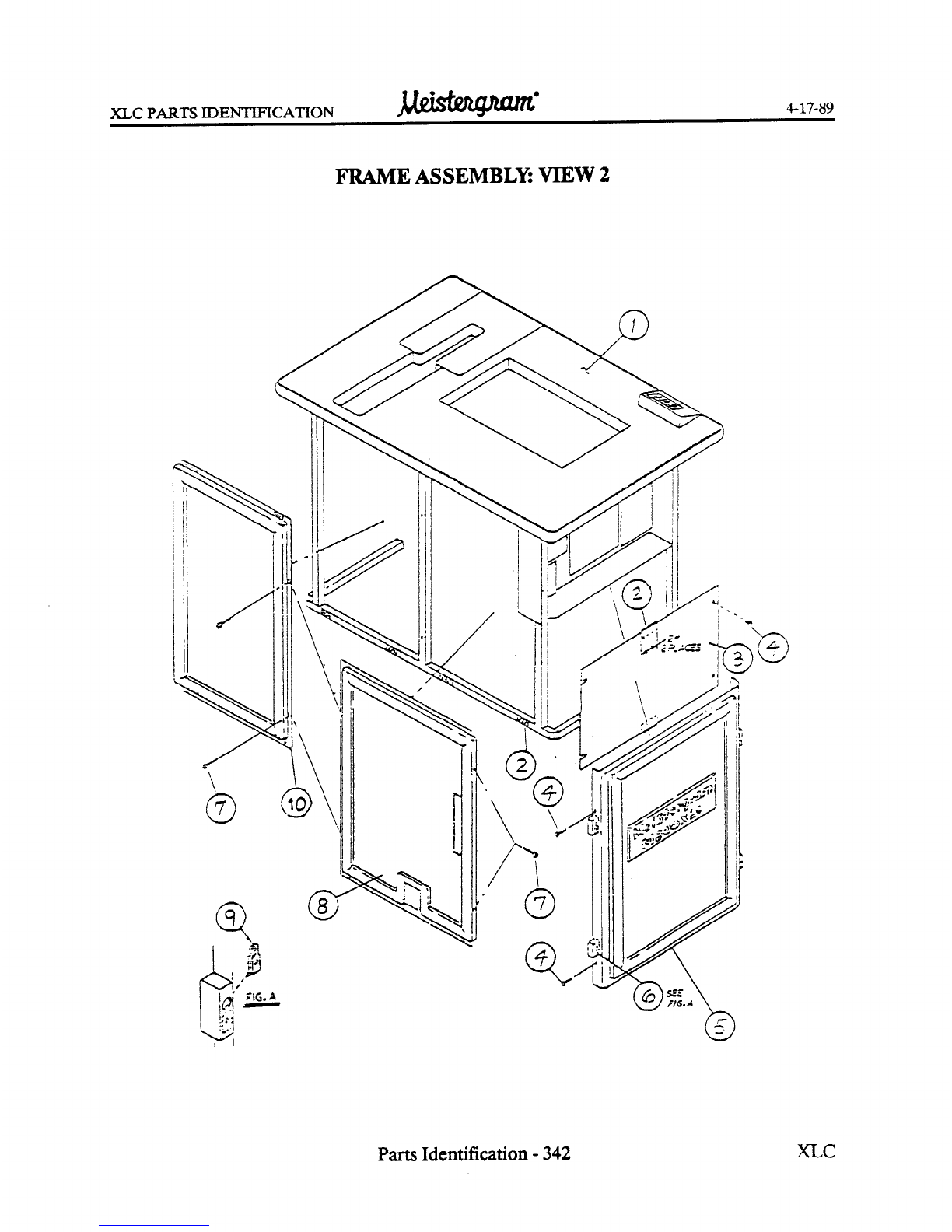

4-17-89
XLC PARTS IDENTIFICATION
FRAME ASSEMBLY: VIEW 2
Item
0~
Part No. Descri:Etion
1 1 ZP673900
MBOOXLC Table Assembly
2 3.5' 9P520007 Adhesive
Back Loop Fastening-Bulk
3 1 P670835 Cover, Plate,
Electronics Enclosure
4 12 P840203 8-32 X
1/2 Hex Head Self- Tapping Screw
5 2 P673008 XLC Side Panel
6 8 P620011 Tinnerman Clip
7 12 P670083
#6 X 1/2 Type AB Phillips Decorative Head Screw
8 1 P670006 Panel Left Rear, XLM
9 8 P620011 Tinnerman Clip
10 1 P670007
Panel Right Rear, XLM
XLC Parts Identification -343
From the library of: Superior Sewing Machine & Supply LLC

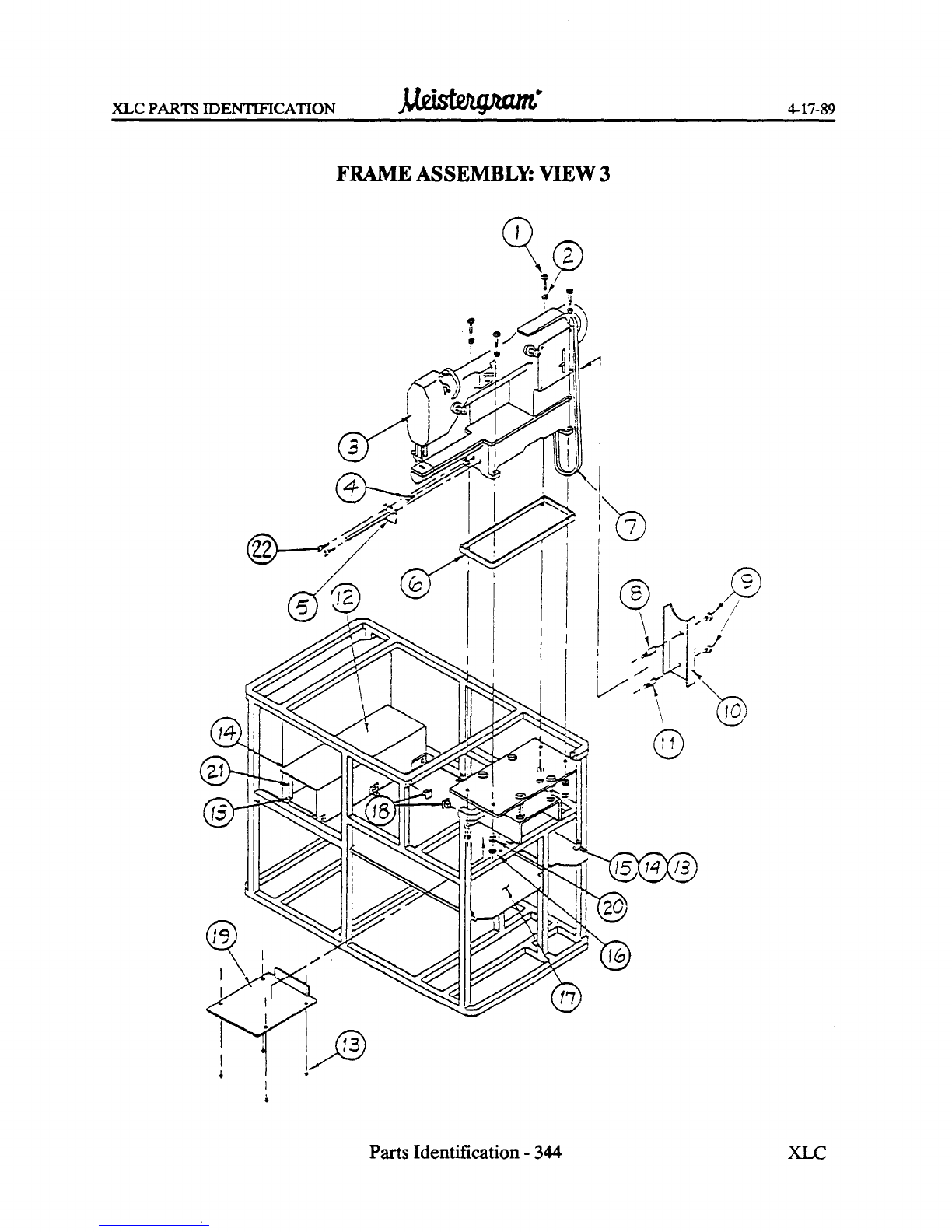

XLC PARTS IDENTIFICATION 4-17-89
FRAME ASSEMBLY: VIEW 3
Parts Identification -344 XLC
From the library of: Superior Sewing Machine & Supply LLC

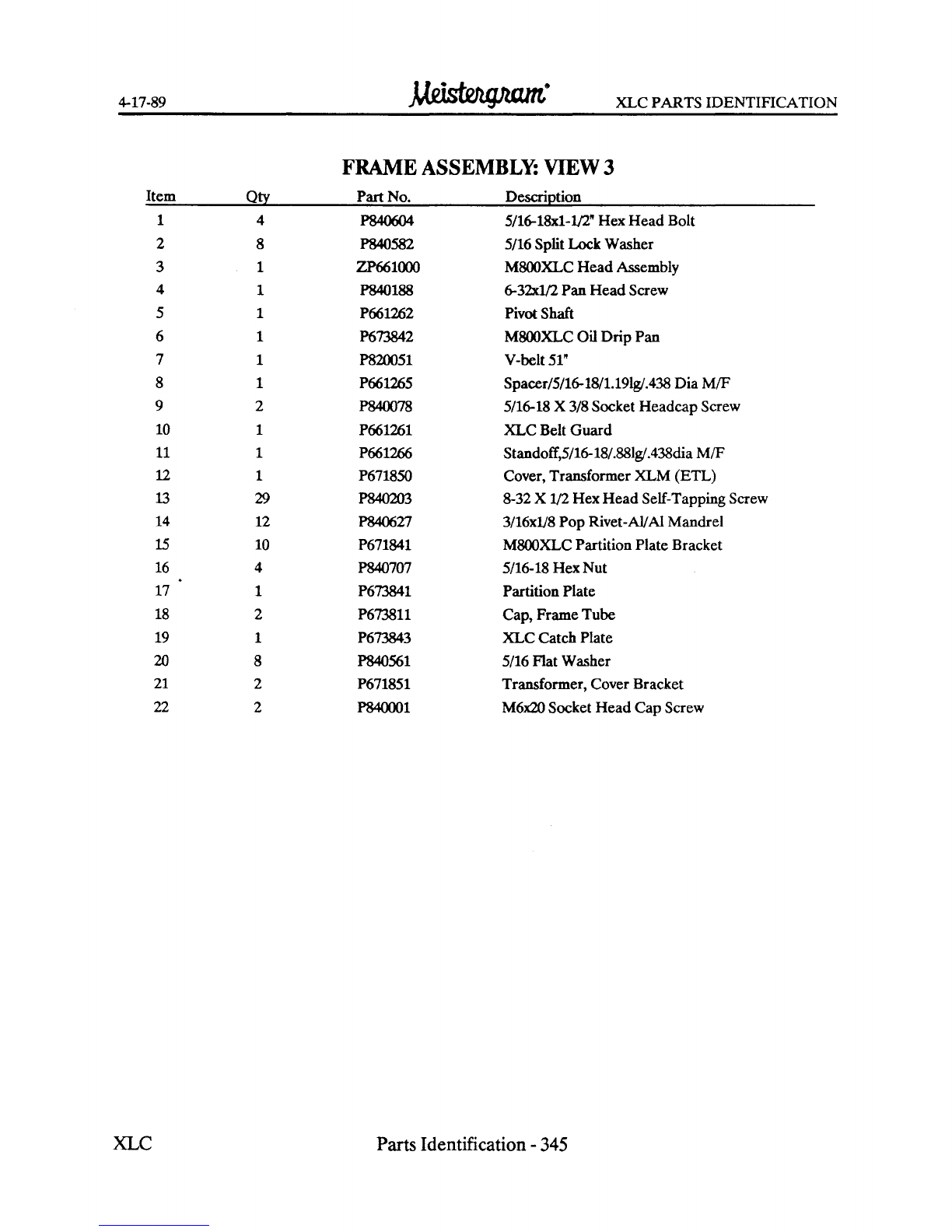

4-17-89
XLC PARTS IDENTIFICATION
FRAME ASSEMBLY: VIEW 3
Item
Qty
Part No. Description
1 4
P840604
5/16-18xl-1/2" Hex Head Bolt
2 8 P840582 5/16 Split Lock
Washer
3 1 ZP661000 M800XLC Head Assembly
4 1 P840188 6-32xl/2
Pan Head Screw
5 1 P661262 Pivot Shaft
6 1 P673842 M800XLC Oil
Drip Pan
7 1 P820051 V-belt
51"
8 1 P661265 Spacer/5/16-18/1.19lw.438
Dia M/F
9 2 P840078 5/16-18 X 3/8 Socket
Headcap Screw
10 1 P661261
XLC Belt Guard
11 1 P661266 Standoff,5/16-18/.88lg1.438dia
M/F
12
1 P671850 Cover, Transformer XLM (ETL)
13
29
P840203
8-32 X 1/2 Hex Head Self- Tapping Screw
14 12
P840627 3/16xl/8 Pop Rivet-Al/Al Mandrel
15 10 P671841 M800XLC Partition Plate Bracket
16 4 P840707 5/16-18
Hex Nut
17 1 P673841 Partition Plate
18 2 P673811 Cap,
Frame Tube
19 1 P673843
XLC Catch Plate
20
8 P840561 5/16 Flat Washer
21
2 P671851 Transformer, Cover Bracket
22 2 P840001 M6x20 Socket
Head Cap Screw
XLC Parts Identification -345
From the library of: Superior Sewing Machine & Supply LLC

XLC PARTS IDENTIFICATION
iO X
L.lMIT
(WHiiC:
WIRE.$)
4-17-89
FRAME ASSEMBLY: VIEW 4
Parts Identification -346 XLC
From the library of: Superior Sewing Machine & Supply LLC

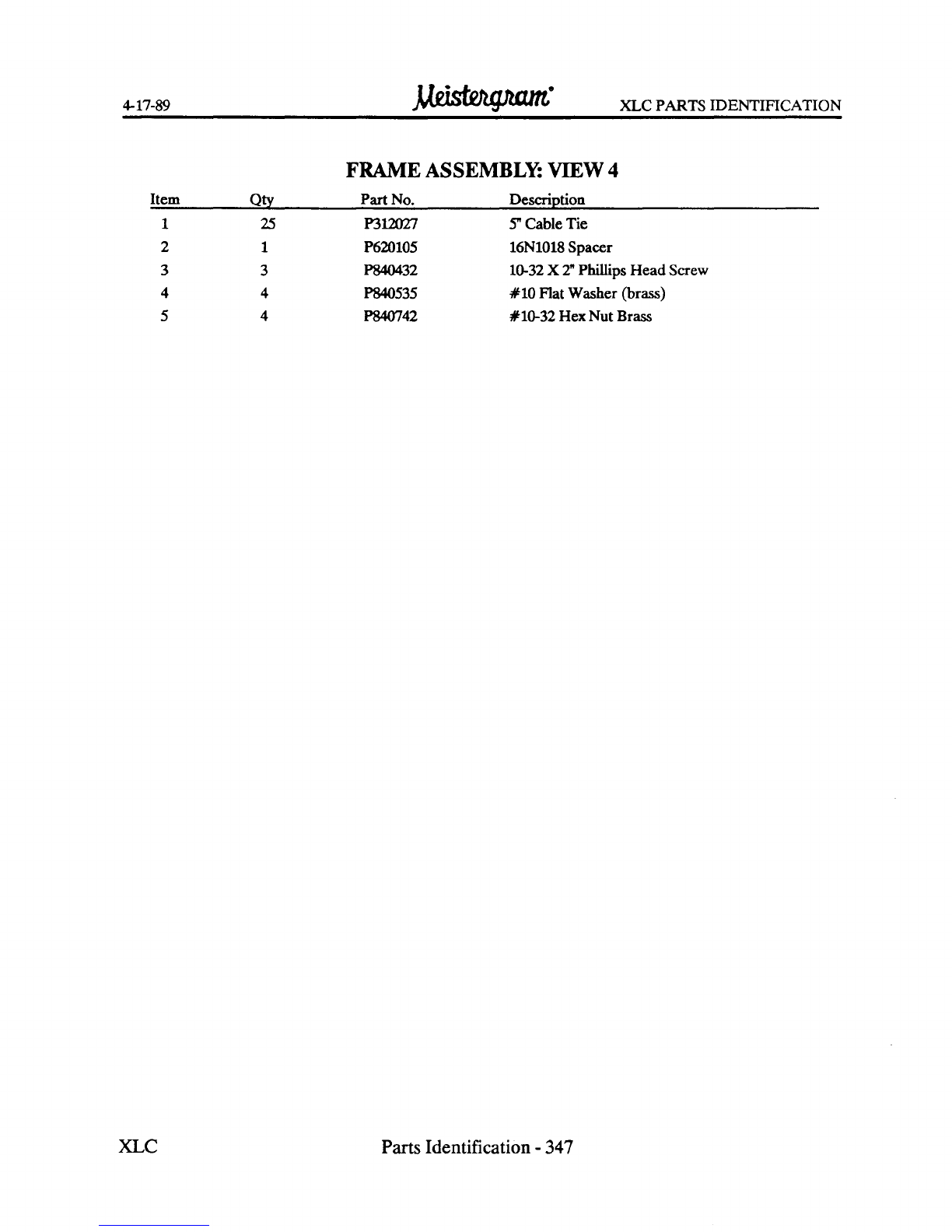

4-17-89
XLC PARTS IDENTIFICATION
FRAME ASSEMBLY: VIEW 4
Item
Qty
Part No. Description
1
25 P312027
5" Cable Tie
2 1 P620105 16N1018 Spacer
3 3 P840432 10-32 X
2" Phillips Head Screw
4 4 P840535
#10 Flat Washer (brass)
5 4 P840742 #10-32 HexNut Brass
XLC
Parts Identification -347
From the library of: Superior Sewing Machine & Supply LLC

XLC PARTS IDENTIFICATION 4-17-89
FRAME ASSEMBLY: VIEW 5
Parts Identification -348 XLC
From the library of: Superior Sewing Machine & Supply LLC

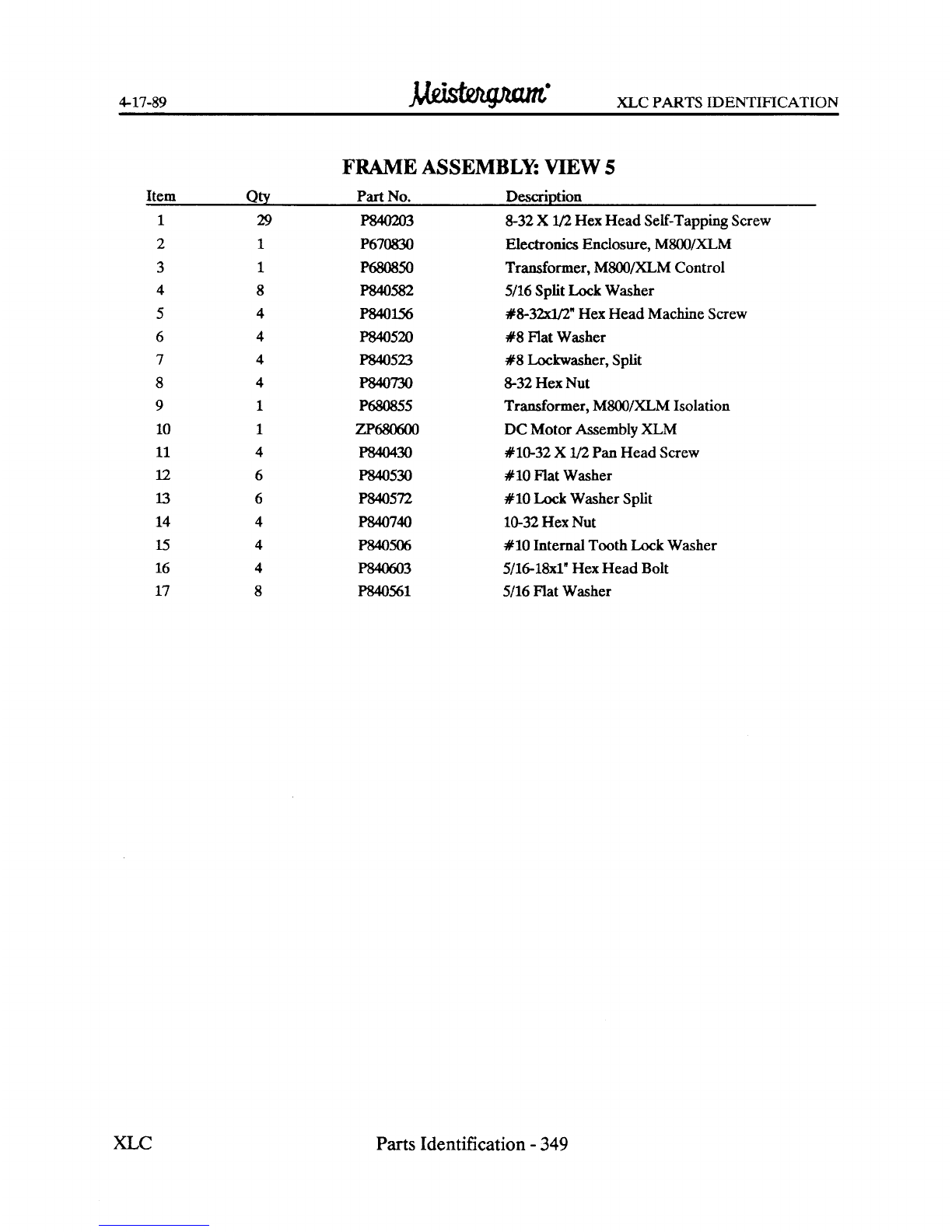

4-17-89
~·
XLC PARTS IDENTIFICATION
FRAME ASSEMBLY: VIEW 5
Item
Qty
Part No. Description
1
29
P840203
8-32 X 1/2 Hex Head Self-TappingScrew
2 1 P670830 Electronics Enclosure, M800/XLM
3 1
P680850
Transformer, M800/XLM Control
4 8 P840582 5/16 Split Lock Washer
5 4 P840156 #8-32xl/2"
Hex Head Machine Screw
6 4 P840520
#8 Flat Washer
7 4 P840523
#8 Lockwasher, Split
8 4 P840730 8-32HexNut
9 1 P680855 Transformer, M800/XLM Isolation
10 1
ZP680600 DC Motor Assembly XLM
11 4 P840430 #10-32 X 1/2
Pan Head Screw
12 6 P840530
#10 Flat Washer
13 6 P840572 #10 Lock Washer Split
14 4 P840740 10-32
Hex Nut
15
4 P840506
#10 Internal Tooth Lock Washer
16 4 P840603 5/16-18x1"
Hex Head Bolt
17 8 P840561 5/16 Flat Washer
XLC Parts Identification -349
From the library of: Superior Sewing Machine & Supply LLC

XLC PARTS IDENTIFICATION
CD
~·
FRAME ASSEMBLY: VIEW 6
i'.A6LE MOUNTING
13 PLACES
SEE F'lG. A
SEE FIG. a
C2 PLACES
MARKED 8)
SEE F"IG C
C .3 PLACES
MARKED C)
Pansldentification-350
4-17-89
XLC
From the library of: Superior Sewing Machine & Supply LLC

4-17-89
XLC PARTS IDENTIFICATION
FRAME ASSEMBLY: VIEW 6
Item
Qty
Part No. Description
1 1 P673820 M800XLC
Table Top
2 1 P673810 M800XLC
Frame
3 1 P673821 M800XLC Table Insert
4 24 P840540 1/4"
SAE Flat Washer-Plated
5 16
P840915
Rubber Grommet Z-399
6
13 P840057 1/4-20x2-114" Socket Head Screw
7 24 P840580
114" Lock Washer
8 1 ZP670400
Pantograph Assembly XLM
9 3 P840056 1/4-20 X11/4 Sock Head Screw
10 4 P520406 1/4-20 X 7/16 T-Nut Plain
Base
11 4 P520408
Grommet -M700 Pantograph
12 4 P520509 Molly
Well- Nut
13
4 P840062
1/4x:20 X 3" Socket Head Cap Screw
14 2
P840436
10-32 X 3 3/4" Socket Head Cap Screw
15
6 P840572
#10 Lock Washer Split
16 6 P840530
#10 Flat Washer
XLC
Parts Identification -351
From the library of: Superior Sewing Machine & Supply LLC

XLC PARTS IDENTIFICATION
)hjsWupuun,.
FRAME ASSEMBLY: VIEW 7
Parts Identification -352
61NCH
LENGTH
A80V£ TA8L[
4-17-89
XLC
From the library of: Superior Sewing Machine & Supply LLC

4-17-89
XLC PARTS IDENTIFICATION
FRAME ASSEMBLY: VIEW 7
Item Oty
Part No. Description
1 4 P520109
F1at Cable Mount
2 3 P840347
#6 X 1/2 Wood Screw
3 1 P683745
Head Interface Cable, XLC
XLC Parts Identification -353
From the library of: Superior Sewing Machine & Supply LLC

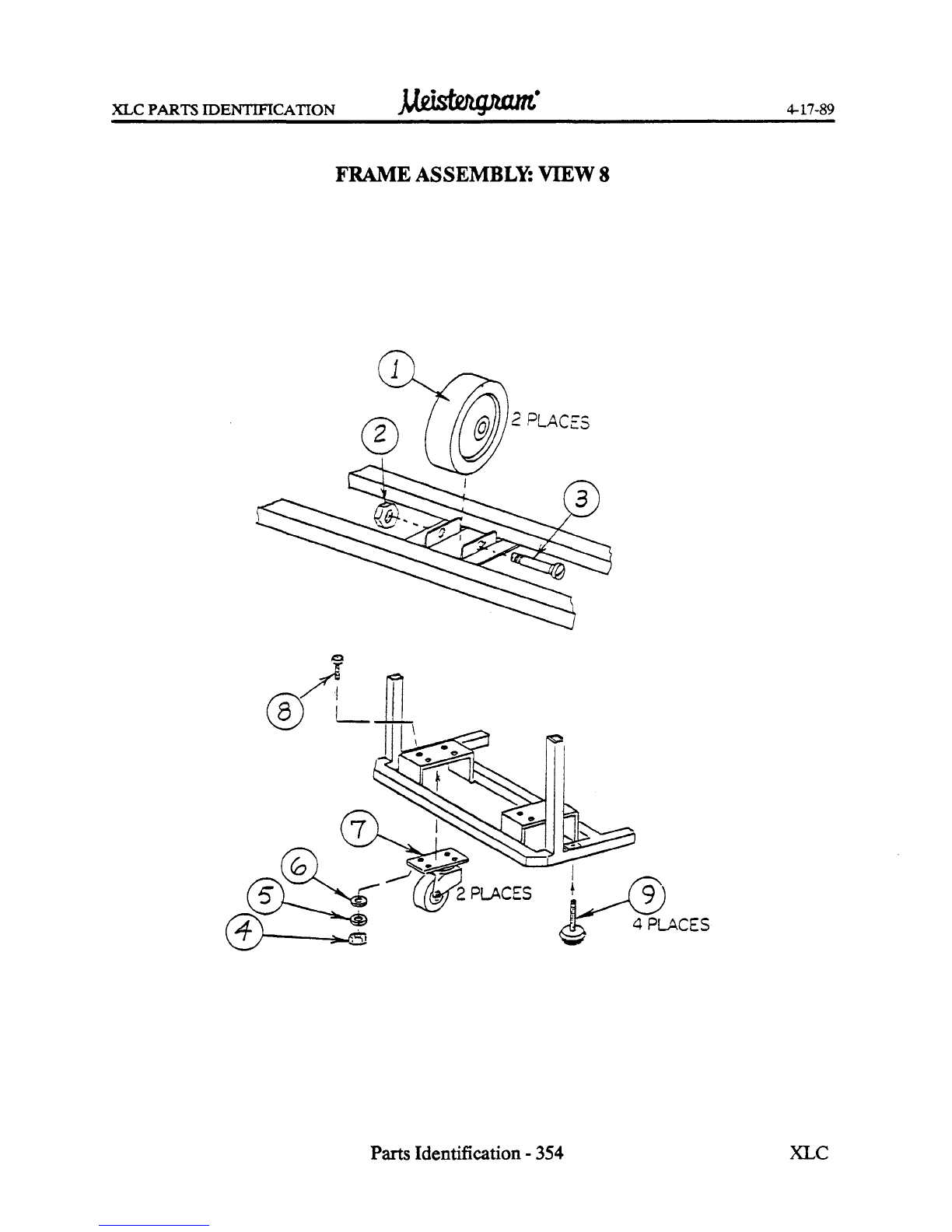

XLC PARTS IDENTIFICATION
~·
4-17-89
FRAME ASSEMBLY: VIEW 8
L»J
~ 4PLACES
Parts Identification -354 XLC
From the library of: Superior Sewing Machine & Supply LLC

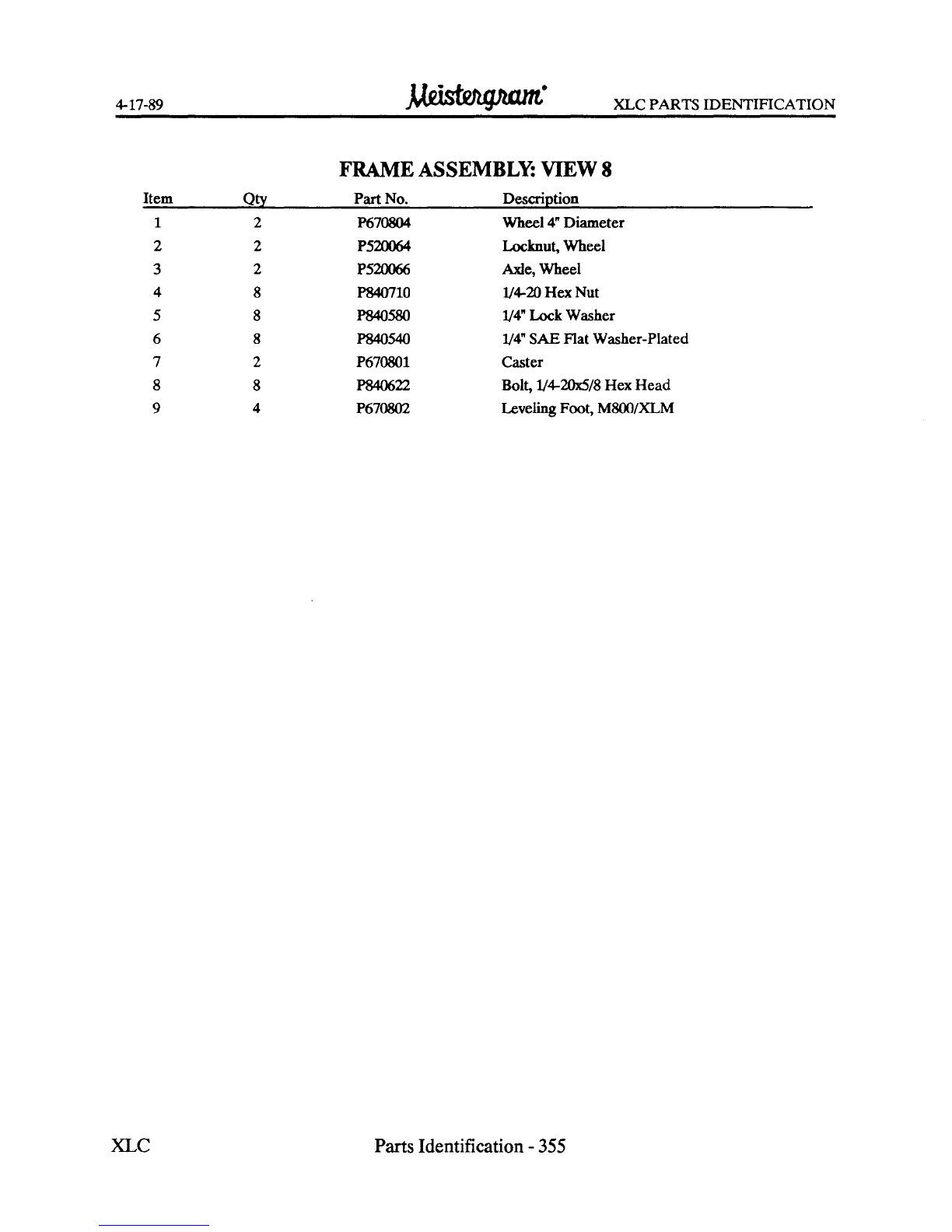

4-17-89 XLC PARTS IDENTIFICATION
FRAME ASSEMBLY: VIEW 8
Item
Qty
Part No. Description
1 2 P670804 Wheel4" Diameter
2 2 P520064 Locknut, Wheel
3 2 P520066 Axle, Wheel
4 8 P840710 1/4-20
Hex Nut
5 8 P840580
1/4" Lock Washer
6 8
P840540
1/4" SAE Flat Washer-Plated
7 2 P670801 Caster
8 8
P840622
Bolt, 1/4-20x5/8 Hex Head
9 4 P670802 Leveling Foot, M800/XLM
XLC Parts Identification -355
From the library of: Superior Sewing Machine & Supply LLC

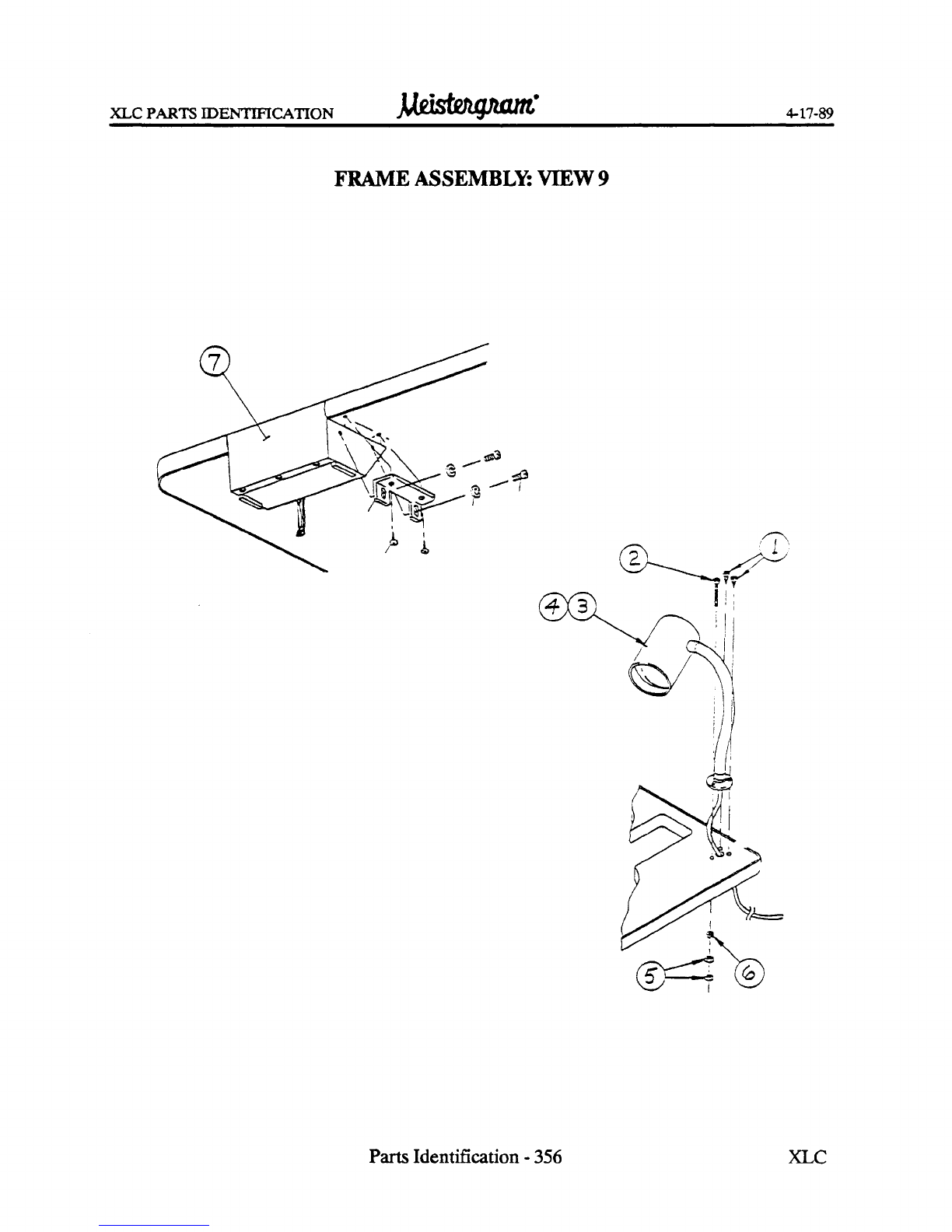

XLC PARTS IDENTIFICATION 4-17-89
FRAME ASSEMBLY: VIEW 9
Parts Identification -356 XLC
From the library of: Superior Sewing Machine & Supply LLC

4-17-89
XLC PARTS IDENTIFICATION
FRAME ASSEMBLY: VIEW 9
Item
Qty
Part No. Description
1 2
P840313
#10 X 3/4" Phillips Round Head Screw
2 3 P840432 10-32 X
2" Phillips Head Screw
3 1 P820037 60
Watt Light Bulb, rugged duty
4 1 P420022 Lamp,
84" Cord/flange Mount
5 2
P840740 10-32 Hex Nut
6 1
P840572
#10 Lock Washer Split
7 1 ZP683500
MSOOXLC Console Assembly
XLC Parts Identification -357
From the library of: Superior Sewing Machine & Supply LLC

XLC PARTS IDENTIFICATION
~·
4-17-89

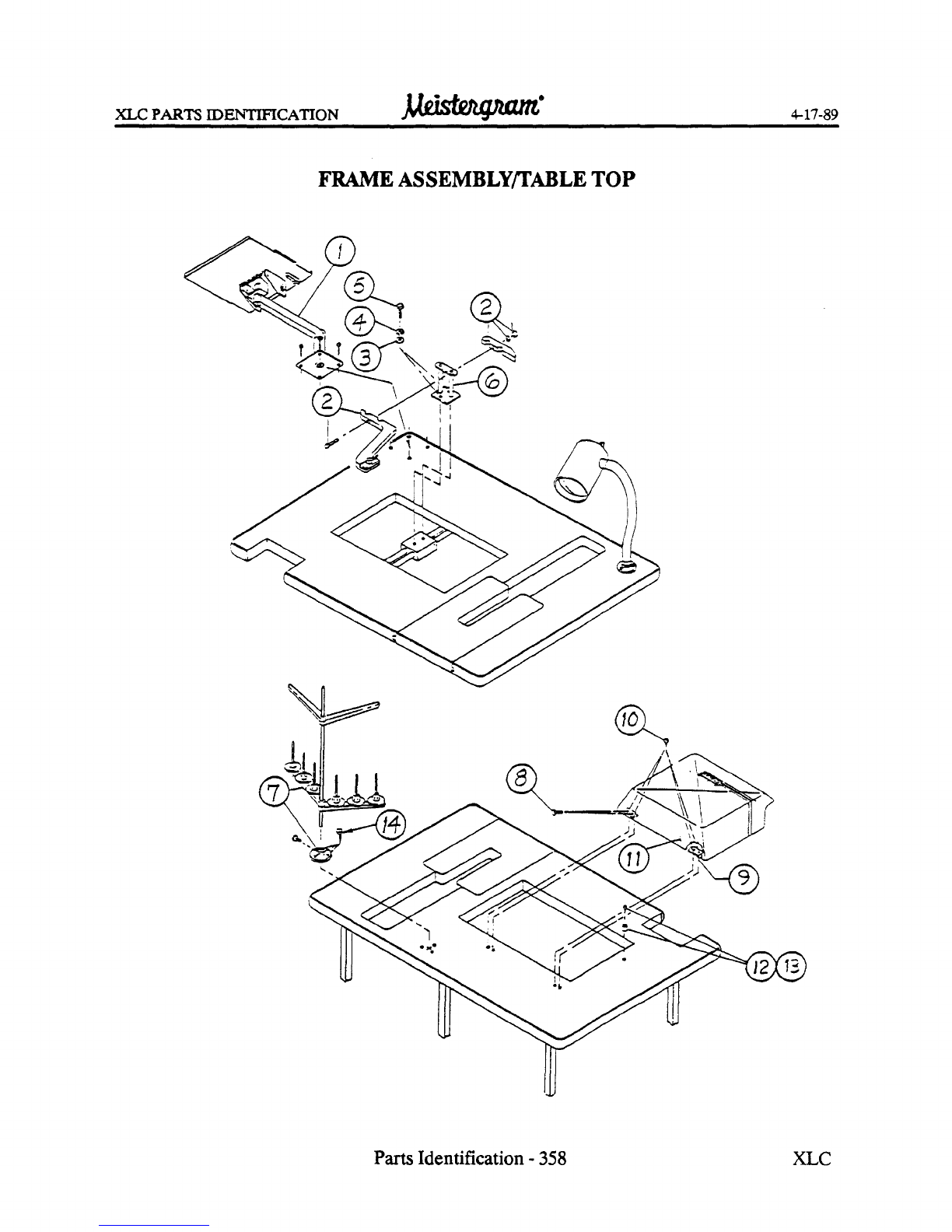

FRAME ASSEMBLY {fABLE TOP
Parts Identification -358 XLC
From the library of: Superior Sewing Machine & Supply LLC
