Melscooters X7 User manual

User Manual for
Folding E-scooter
形式：骑马钉（20P）
尺寸：159x110mm
材质：120g双铜
工艺：单色 双面印刷，封面覆哑膜

● Congratulations on your purchase of the E-scooter.
● For your driving Safety, please read this user manual carefully before using and ensure to be able to ride the
scooter under correct guidance. Learning all the safety warning and tips listed in this manual that will be
helpful for you to better control the scooter.
● Please note "warnings"and "tips" in this manual particularly.
Warnings: Improper operation may result in personal injury.
Tips: Helpful advice & clues for the usage of E-scooter.
● Should you have any inquiries, please contact the supplier immediately.
Tips:
A. Children below 14 years old shall be accompanied by an adult.
B. The people without experience, poor ability to accept & physical coordination, should learn to ride with
accompanies. Please read this manual carefully before you ride the electric scooter, make sure that you can
riding with correct guide.
C. No parents Accompanied, children are prohibited from cleaning and maintenance of the product.
WARNING!
IMPROPER USE OF THE scooter AND/OR FAILURE TO READ THIS USER MANUAL MAY
LEAD TO SERIOUS BODILY INJURY .SELLER WILL TAKE NO RESPONSIBILITY FOR ANY INJURIES CAUSED
BY IMPROPER USE WITHOUT FOLLOWING THE MANUAL.
1.Safety Notes………………………………………………………………………………………… 3-5
2.Product Introduction …………………………………………………………………………… 6-10
3.How to ride…………………………………………………………………………………………… 11-12
4.Battery Instruction………………………………………………………………………………… 13-14
5.Parameter …………………………………………………………………………………………… 15
6.Maintenance………………………………………………………………………………………… 16
7.Trouble shooting…………………………………………………………………………………… 17
8.Packing List ………………………………………………………………………………………… 17
9.Product Quality Certificate …………………………………………………………………… 18
10.Product Warranty Card………………………………………………………………………… 18
About the manual Content
0201

wine
There’s risk for any vehicle, including e-scooter. For your safety, please learn to ride safely and obey the local rules
and enjoy the riding.
● Please check if the tire is damaged or the spare parts are tight before riding. Please contact local distributor for any
unexpected situation.
● Please do not do anything that may harm other people or their properties with e-scooter.
● Any conversion of the e-scooter is prohibited as it will change its performance or damage the structure, which may
bring serious injury.
● Please do not put the electric scooter in the water, which will not only damage the electric scooter, but also cause a
safety accident.
1.2 Safety Precautions
Please note that you may lose balance, crash or fall down when you ride an e-scooter. To avoid injury,
you should be familiar with this manual and keep the e-scooter in good condition.
Safety measurements should be taken before riding, eg: wear
sportswear, helmet, kneecap, elbow pads and so on.
DO NOT ride when it rains.
1 Safety Notes
1.1 About safety
DO NOT ride with loading
DO NOT ride with two people or more, only for one rider.
Max Loading: 100 kg
Loading
20~100kg
People between 14 and 60 years old may use the product,
pregnant is not allowed to ride the e-scooter.
DO NOT ride after drinking or taking medicine.
baby
0403

Handle
LCD Display
Lever
Headlight
Folding ring Folding spanner
Tail lights
Disc brake
Dashboard cover lock
Charging port
Fender
Accelerator / Throttle
Brake
Motor
Stand
Anti-slip pedal
Hook
DO NOT call or listen to music when you ride the e-scooter.
DO NOT use in dangerous area, where the exploding or
catching fire may be caused by something inflammable,
explosive or steam, liquid, dust and fiber.
Be careful of the road with roadblock, sandstone,
ponding, mud, wet, ice and snow, slope (angle >15°)
stairs, dark area when you are riding.
DO NOT ride on Vehicle road.

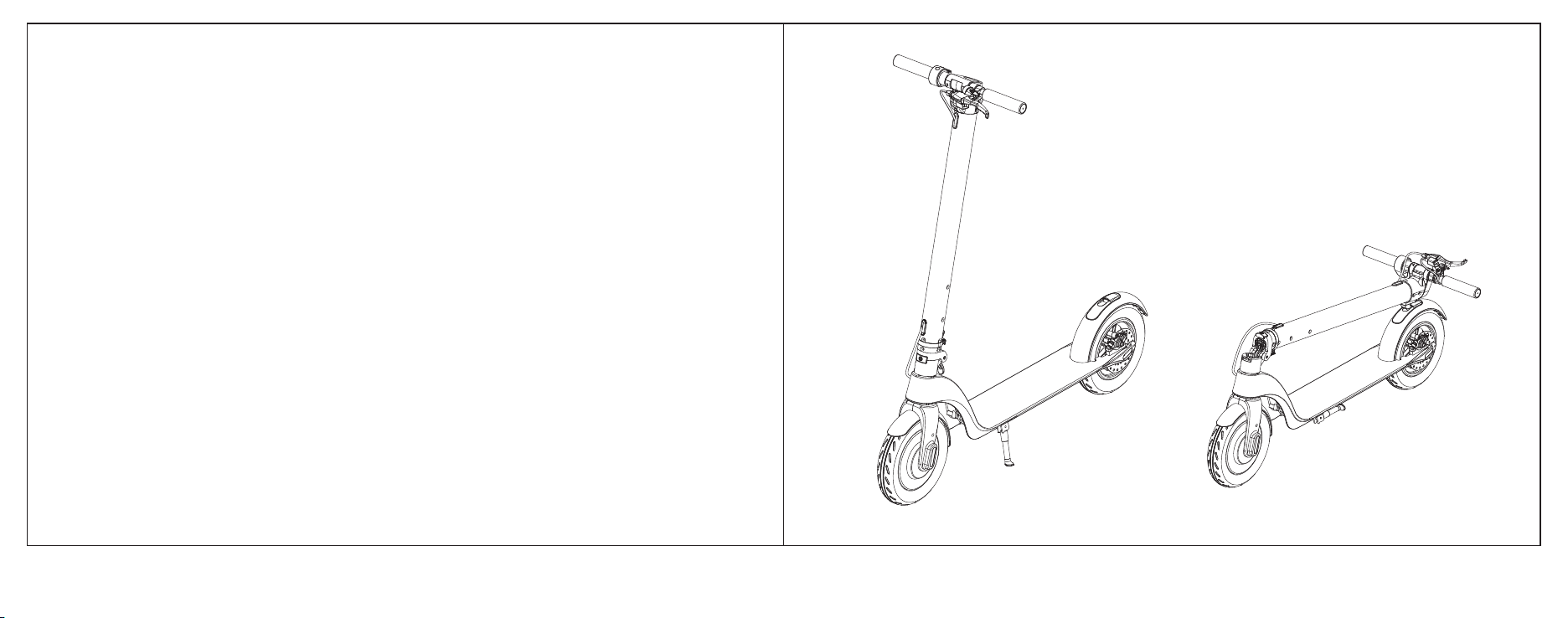

2.1 Overall View
2 Production Introduction
0605

Power
Fault display Multifunction
The unit display
Instructions of Buttons
Switch: long press the power button to turn on/off the power;
Acceleration: press the right acceleration button to start and accelerate;
Brake: hold the brake handle to brake.Lightly step on the rear fender to assist the brakes
Short press the function key to directly adjust the speed
Beginner mode: no characters in the gear position
Normal mode: gear characters display white
Sports mode: gear characters display red
Headlights: Press the function button twice shortly to turn on the headlights, and the taillights are always on;
In the light-on state, press the function button twice shortly to turn off the headlights and taillights;
Cruise mode: keep the current speed for 6 seconds to enter the cruise mode;
Exit the cruise mode when pressing accelerator again or brake.
2.2 Pre-assembly instructions
1.Pull up the lever while pressing
down the rear wheel fende.r
2.Raise the pole,Fasten the folding
spanner,And use the folder fixing
ring to fix the folder wrench.
3.Fix the brake lever with M6 hex
wrench.
4.Tighten handlebars(Pay attention
to the direction of rotation when
tighten).
5.According to the shaking condition
of the pole, properly adjust the folder
screw
LCD Display Throttle button
Power switch
Function button
Brake handbar
Speed
Gear
LCD display
1
2
3
4
5
6
0807

1.Loosen the folder fixing ring.
2.Open the folder wrench.
1. Pull up and press the
dashboard cover lock
to open the cover
4.Align the hook with the hole of
the rear fender and press down.
3.Open the folder wrench and
lower the pole.

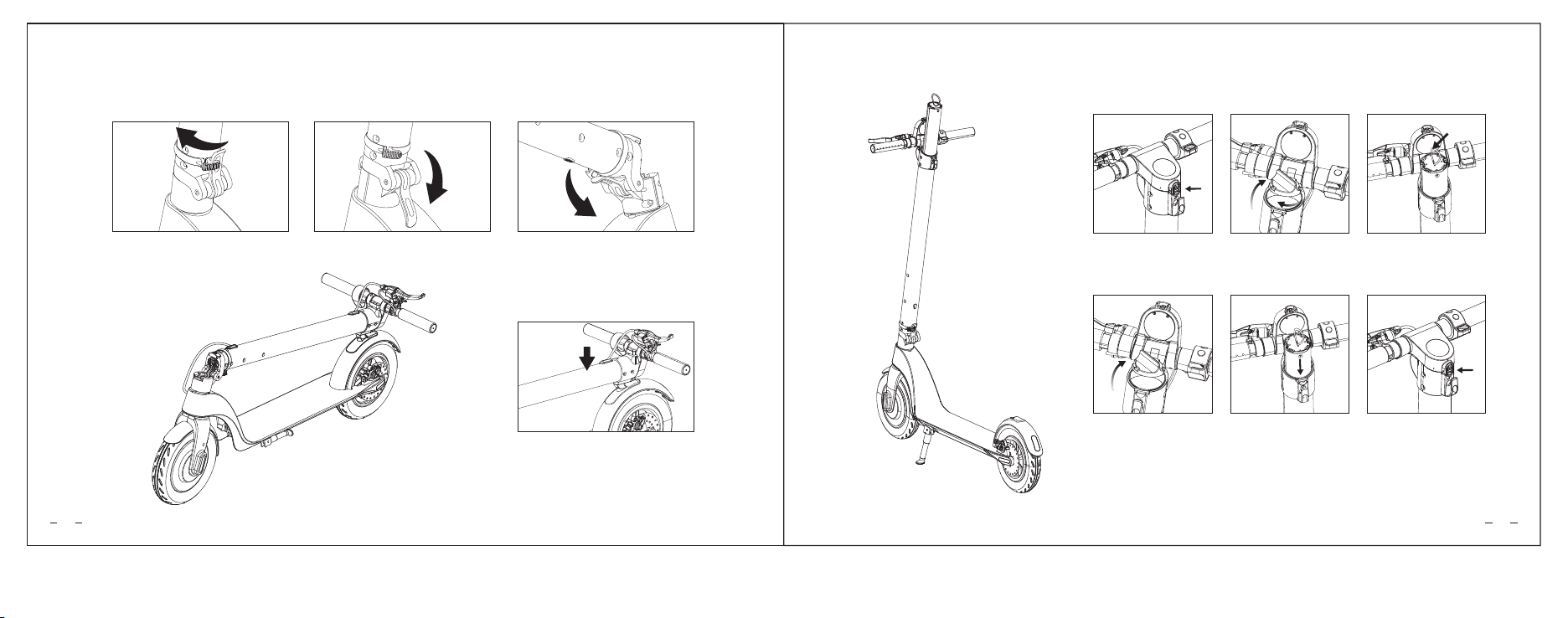

2.3 Folding chart 2.4 Battery Disassemble and assemble Instructions
Disassemble
Assemble
2. Unscrew the battery
cover
3. Pull the battery straight
up to remove the battery
1. Open the
cover and battery cover
dashboard 2. Align the battery groove
with the groove in the pole
and slowly put the battery
inside(please pay attention
to the groove direction)
3. Tighten the battery cover
and push the dashboard
cover lock down, complete
the installation.
1009

7 When the scooter stops or run at a slow speed,
you can get off.
5 Press the THROTTLE button to speed up.
Do not ride too fast.
4 Press the THROTTLE button slightly on your
right hand to start and rotate the handle to turn
3 Balance both feet on your scooter when you
have enough momentum
6 Press the brake lever to brake, and gently
press the rear fender to assist the brake.

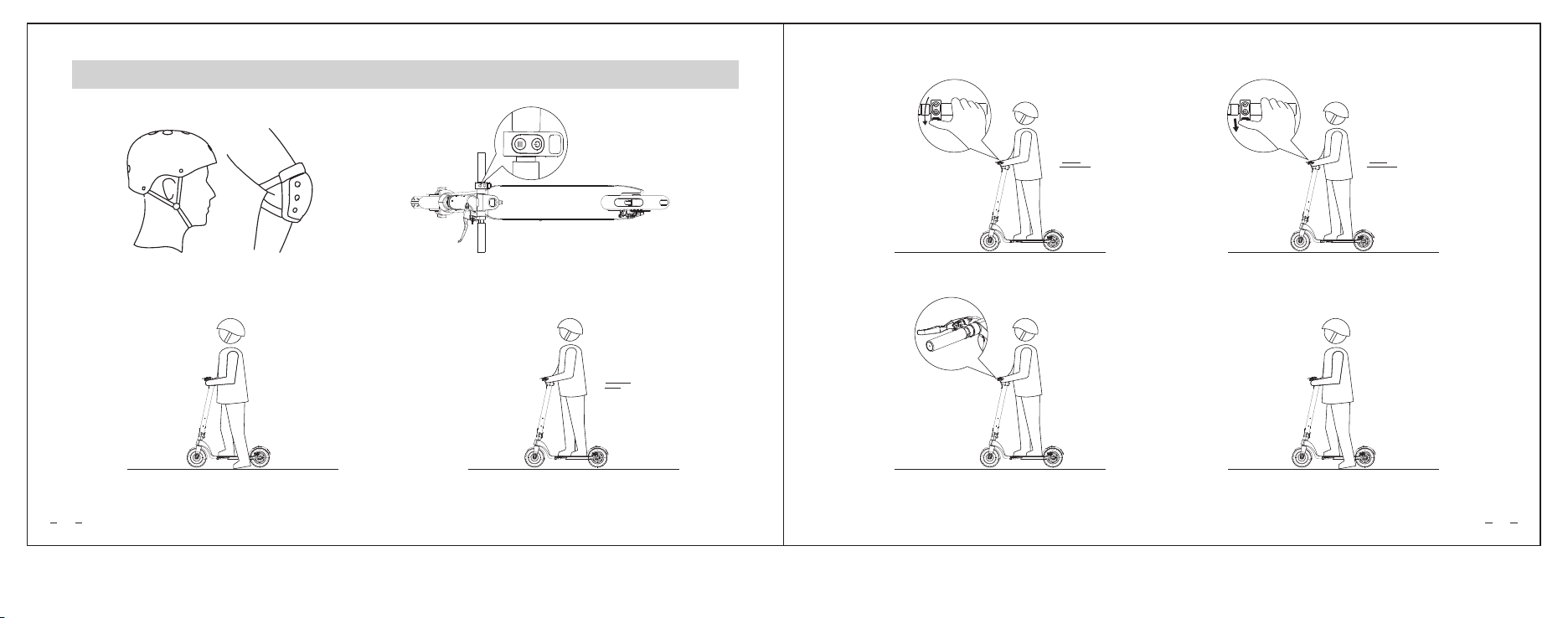

3 How to ride the scooter
Please wear helmet, kneecap,
elbow-pad when you learn to ride the scooter.
1 Press the POWER button for 2 seconds.
2 Put one foot on the pedal,
Push off the ground with your strong leg.
1211

ParameterName
3 months (full charge)
5Ah/6.4Ah
2A
（-10℃-40℃）Store Time
Initial Volume
Max Charging Current
0℃-35℃
0℃-35℃
42V
Working Temperature
Charging Temperature
Max Charging Voltage
Li-ion battery
3-4 hours
36V
Parameter
Type
Charging Time
Voltage
4 Battery Instruction
Tips:
Charging method 2:
The instruction shows how to charge and maintain the battery, some safety notices and the specification.
Please use the battery properly according to this instruction to prolong the battery life and its performance.
4.1 Battery Parameters
4.2 Battery Safety
Do not continue to use the battery when the following conditions occur:
The battery of the electric scooter should be used only with local law. Only for professionals to disassemble and
maintain the battery.
Odor or excessive heat; leak any substance; do not touch anything leaking from the battery.
Do not let children and animals touch the battery. Must unplug the charger before installing the battery or riding.
In the case of charging, it is very dangerous to do anything related to electric vehicles.
If you want the electric scooter to run most efficiently, the battery must be charged and used within the temperature
range indicated in the battery specifications.
Lithium batteries are considered dangerous and require local law to allow transportation.
The battery contains dangerous substances. Please do not open the battery . Do not insert anything into the battery.
It is forbidden to charge a lithium battery that has been over-discharged. A battery that has been over-discharged has
a safety hazard and can only be scrapped.
Tip: When the internal temperature of the battery exceeds 45 °C, the battery is protected.
Do not charge the battery at high temperature (45 ° C) or Charge the battery in a high temperature (40 ° C) environment.
Only use the original charging equipment to charge the electric scooter.

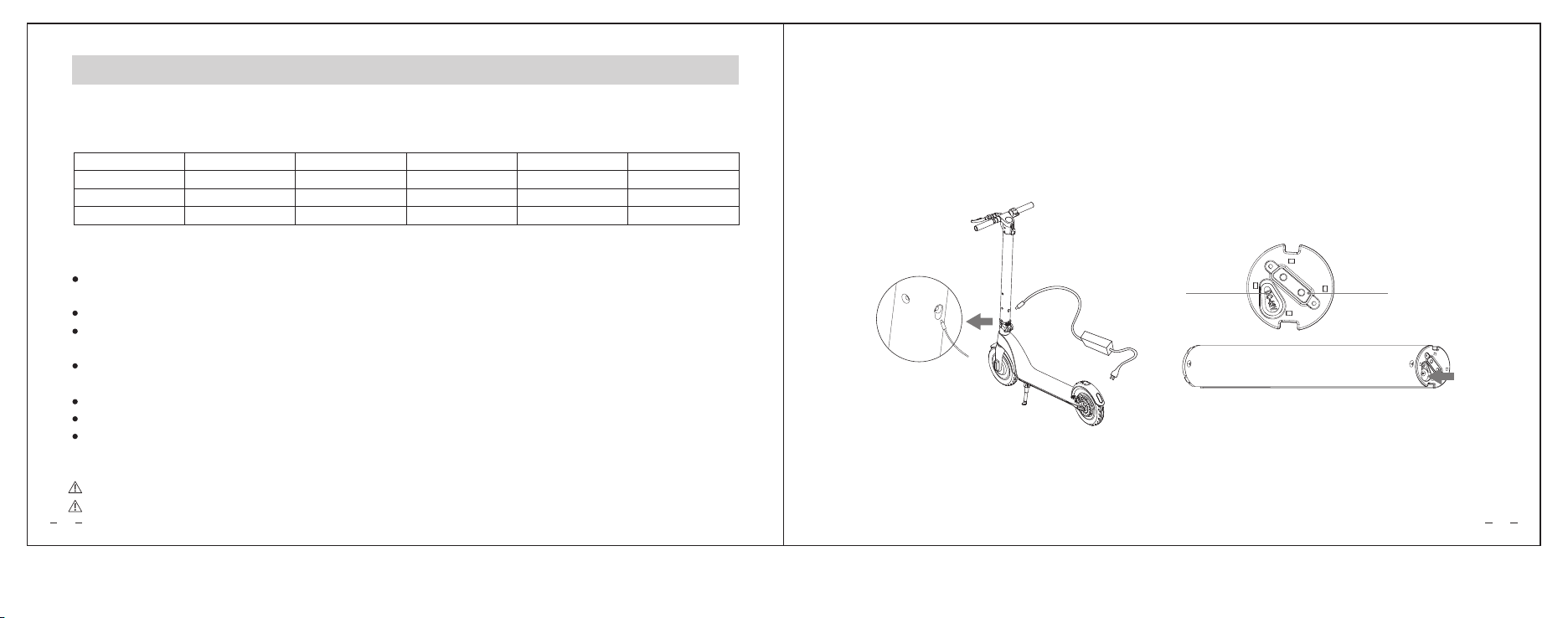

4.3 Charging step
Remove the battery to open the silicone charging port, plug the charger DC plug into the battery charging port;
plug the power cord into the charger, then connect the other port to the socket (100V-240V; 50/60Hz),
and confirm the charger indicator is on normally
Charging method 1:
Charging
port
Battery
interface
Name ParameterName
●
● Connect the charger with the battery and the other end with power(100V-240V;50/60Hz), make sure the charging
indicator is on.
● When the indicator light on the charger changes, indicating that the charging process is normal, otherwise check if the line
connection is good.
● When the indicator on the charger has color change, it indicates that the battery has been filled to 99%, Please stop
charging; long time over charge will affect the battery life.
Open the charging port cover, Make sure the charging port is clean and dry.
Cover the charging port with the anti-dust cap in case some metal may touch the charging port and bring
short-circuit after charging finished.
1413

：Maintenance considerations
● Make sure the electric scooter charger and charging line are disconnected and ensure that the electric scooter is off.
● Wipe the shell with a soft cloth to clean the electric scooter. Please don’t put more lubricating oil on bearing when you do the
maintenance for it.
Warning
● It is forbidden to clean electric scooters by using water cannon or soaking in liquid. This will cause permanent damage of the
electronic devices in the host.
Storage
● Please charge your electric scooter before storage, for preventing the battery from discharging too long time. Please ensure
charge at least once every three months.
● If the storage environment temperature is lower than 0 ℃, please don't charge electric scooter. Please put it in inside
environment temperature (above 10 ℃) and then charge, storage temperature is - 10 ℃ to 35 ℃.
● Please keep the electric scooter in a suitable place indoor, dry and appropriate temperature. You can mask the electric scooter
to prevent from the dust.
Warning
● In order to protect the user's safety, the user can not take apart the electric scooter, otherwise, the user will give up the
maintenance warranty rights of the product automatically.
8.5 inch 10 inch
1056*420*1166mm
1056*420*450mm
130mm
12.5kg
36V/5Ah or 6.4Ah
250W/350W
15-25km
20km/h
100kg
15°
FY-4202000
100-240Vac
50-60Hz
42V
2A
-10℃-35℃
1083*420*1186mm
1083*420*460mm
135mm
13kg
36V/5Ah or 6.4Ah
250W/350W
15-25km
20km/h
100kg
15°
FY-4202000
100-240Vac
50-60Hz
42V
2A
-10℃-35℃
Model
Input voltage
Frequency
Output voltage
Output current
Store temperature
Capacity
Moto power
Mileage per charge
Max speed
Max loading
Climbing angle
Unfolded size
Folded size
Height from pedal to ground
Net weight
Item
Product
6 Maintenance
5 Specification
Scooter Specification
Basic Information
Charger Specification
1615

We shall provide warranty service due to non-artificial quality problems.
1. One year warranty to the main body including handlebar stem, Motor, Charger...
2. Battery is 6 months warranty period,
3. Plastic Decorative cover, rubble Handlebar ,rear wheel is not in the scope of warranty.
4.AlI of damage by man—made(open the housing,tear off the sticker,unnormally using),or losing this card we will not
guarantee.
Electric scooter packing list
E-scooter 1PC
Charger: 1PC
Manual: 1PC
Screws & Wrench: 1set
Please contact us with no hesitate if there is any breakage or missing when you open package. We will replace it for you as
soon as possible.
Have a nice day!
：
:
Solution
Check to see if the battery is powered
Check the bluetooth switch whether turn on.
1.
2.
3.
Check whether the plugboard has electricity；
Check the charger whether connect AC plug
(the light whether is on);
Check the plug of the charger and the charging port
of the whole scooter have been inserted correctly.
Description of adverse phenomena
unable starting up
No horn、no blue tooth signal
can not charge
9 Product Quality Certificate
10 Product Warranty Card
7 Trouble shooting
Please contact the sales office or the dealer with no hesitate for repair when the electric scooter fails to ride normally.
8 Packing List
This product is qualified by passing QC inspection and allowed to be sold on the market.
The warranty card (It takes effect upon manufacturer’s seal and passing with serial number) regular sales invoice
is effective maintenance certificate. Please keep the warranty card properly.
Release date:
QC Qualified Seal:
User Files
User Name
Address
Telephone
Purchase Site
Purchase Price
Dealers Signature
Commodity And
Specifications
Serial Number
The User Signature
Sex Age
Zip
1817
