Jetson Adventure User manual

1
ADVENTURE
-MANUAL-

2
TABLE OF CONTENTS
Introduction 3
Included In The Box 4
Features And Specs 5
Assembly 6
Safe Riding 12
Charging Battery 13
How To Use The Bike Controls 14
A. Gears
B. LCD Display
C. Turning the Bike On and Off
D. Pedal Assist
E. Speedometer
F. Walk Mode
G. Turning on the Front LED Headlight and Rear LED Light
H. Battery Indicator
I. Showing the Mileage
J. Error Codes
K. Settings
Care And Maintenance 18
Safety Warnings 19
Warranty 21
Product Registration 22

3
Congratulations on your new Jetson Adventure! The Adventure is an innovative
and fun personal transportation device, ready to take on everyday use. Before
your rst ride, check whether the wheels are damaged, or parts are loose. If
there are any abnormalities, please contact Jetson Customer Support at
[phone] or email us at [e-mail].
This product manual can help you understand, use, and maintain your Adven-
ture. In order to avoid danger caused by collisions, falls, and loss of control,
please use caution and learn how to ride the Adventure safely. Jetson and au-
thorized dealers cannot be held liable for injury or damage caused from riding
the Adventure. Users ride at their own risk.
The rider is responsible for consequences caused by violating warnings or
improper operations.
If you want to return this product for any reason, be sure to rst call or email us
before taking it back to the store so we can assist you.
INTRODUCTION

4
INCLUDED IN THE BOX
1
2
34
5
9
8
7
610
16
15
14
17 13
11
12
1. Front Fork with Hydraulic
2. Front LED Headlight
3. Handlebar
4. Handlebar Stem
5. Frame
6. Charging Port
7. Controller
8. Saddle Post
9. Saddle
10. Rear LED Light
11. Seat Clamping Lever
12. Seat Tube
13. Rear Derailleur and Freewheel
14. Front Derailleur and Freewheel
15. Pedals
16. Concealed Battery
17. Front Wheel

5
12
39
4
8
76 5
FEATURES AND SPECS
MODEL: ADVENTURE
WHEEL DIAMETER: 27.5”
MAX SPEED: US: 20 MPH UK/EUROPE: 15.5
MPH
MAX RANGE: 30-35 MILES
BATTERY TYPE: PANASONIC LITHIUM ION
BATTERY RATED VOLTAGE: 36v/ 7.8Ah
MOTOR TYPE: HUB MOTOR
MOTOR: 250w
MOTOR RATED RPM: 195
CHARGER: 110-240V
CHARGE TIME: 4-6 HOURS
PRODUCT WEIGHT: 42 LBS
WEIGHT LIMIT: 300 LBS
RECOMMENDED AGE: 14+

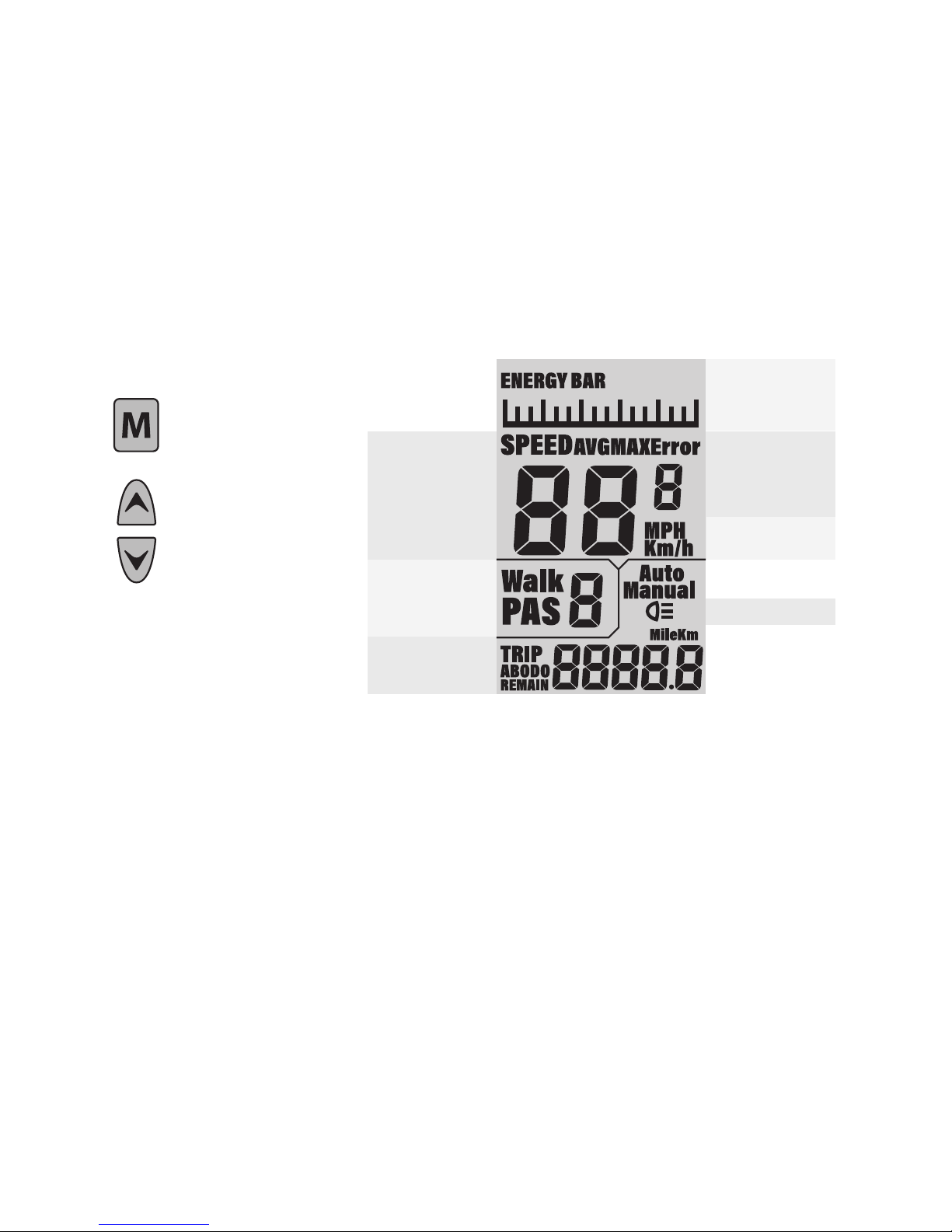

1. Left Brake Lever
2. Power and Mode Button
3. LCD Display
4. Right Brake Lever
5. Right Shifter (7 Gears)
6. Left Shifter (3 Gears)
7. Down Button
8. Up Button
9. USB

6
ASSEMBLY
The Adventure comes partially assembled. In order to fully assemble, you will
need to attach the Handlebars, the Front Wheel, the Disc Brake, the Saddle,
and the Pedals. Please refer to the diagrams on pages 4 and 5 while assem-
bling your Adventure. If you are having difculty assembling the Adventure,
please call our customer service or take your Adventure to a local bike shop.
Assembling the Handlebar

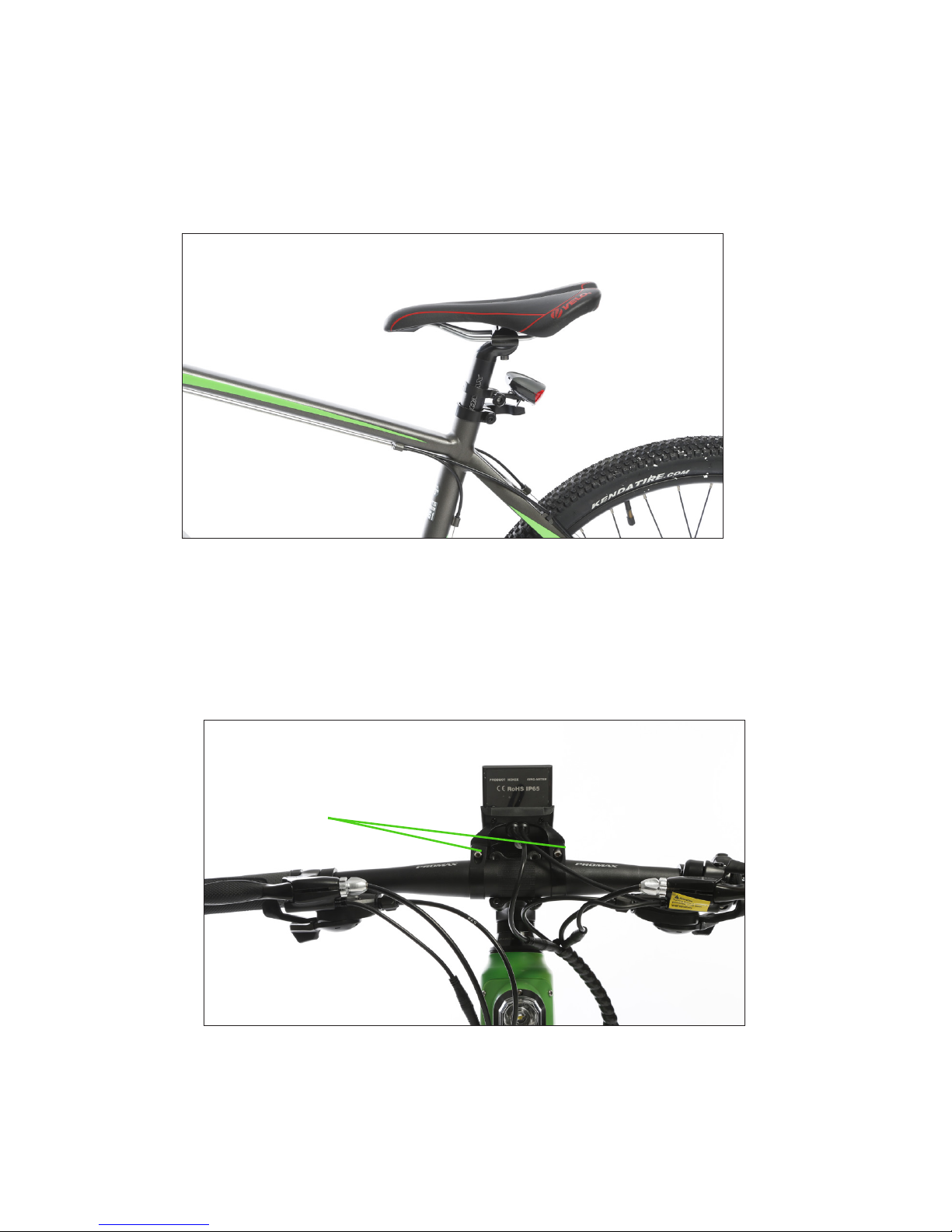

• First, make sure the Handlebar Stem is facing forward, towards the Front Fork.
• Unscrew the 4 bolts in the Handlebar Stem using the provided Allen Key.
Handlebar Stem

7
• Make sure all the wires are connected according to color.
• In order to center the Handlebar, make sure the ridge markings are covered
by the Handlebar Stem.
• Place the Handlebar into the Handlebar Stem and screw the 4 bolts in using
the provided Allen Key. Please be careful not to scratch the LCD Screen.
Connect Wires by Color

8
• Twist the cap off the Quick Release Clamping Lever and remove it from the
Wheel.
• Place the Quick Release Clamping Lever to the side.
ATTACHING THE FRONT WHEEL
Assembling Disc Brake
• Attach the Disc Brake to the Front Fork by screwing in the two bolts.
Bolts

9
• Slide the front Tire between the Front Fork.
• Hook the Front Fork onto each side of the Tire and slide the Disc Brake into
the Disc.
•Please be careful not to bend the Disc Brake. If you nd that it will not go in
smoothly, please call us for assistance or bring the Adventure to your local bike
shop.
Lever
Cap
• Now that the front Tire is t to the Front Fork, slide the Quick Release
Clamping Lever through the Front Wheel. Place the spring back on to the
Quick Release Clamping Lever, with the wide end of the spring facing
outwards, and turn the lever clockwise. Once tight enough, fold over the lever
to secure.

10
• Make sure the Quick Release Clamping Lever is secure.
• Make sure the Brake is hooked onto the Disc and working properly.
Push Lever in
